DXL360 DXL360S Dual axis Digital Angle Protractor Inclinometer LED Display Dual-axis Level Gauge Angle Ruler Elevation Meter Magnetic Base, Using this axis digital angle protractor, you can measure the angle between two faces, not only in earth gravity direction. Wholesale Dual axis Digital Angle Protractor
Item No. COBD27661 Price Down Notice
In Stock
Price:
US$116.00/ piece
Discount Price:
US$77.99/ piece 33%
Color:
  • DXL360
  • DXL360S
Quantity:

Shipping:
Airmail Post
Estimated delivery time: 7-45 working days.See details»
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat WhatsApp Skype Ask a question

GVDA Professional Dual-axis Digital Display Level Gauge Dual Axis Digital Angle Protractor with 5 Side Magnetic Base

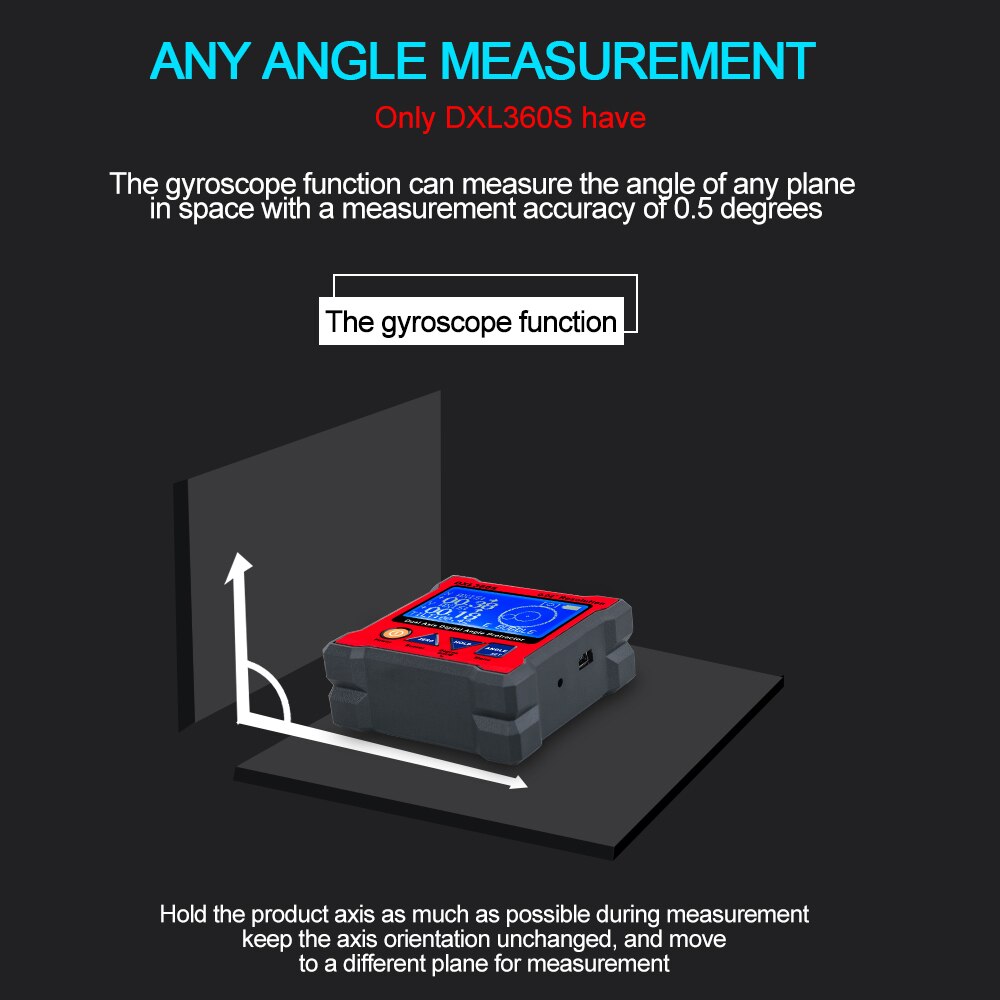

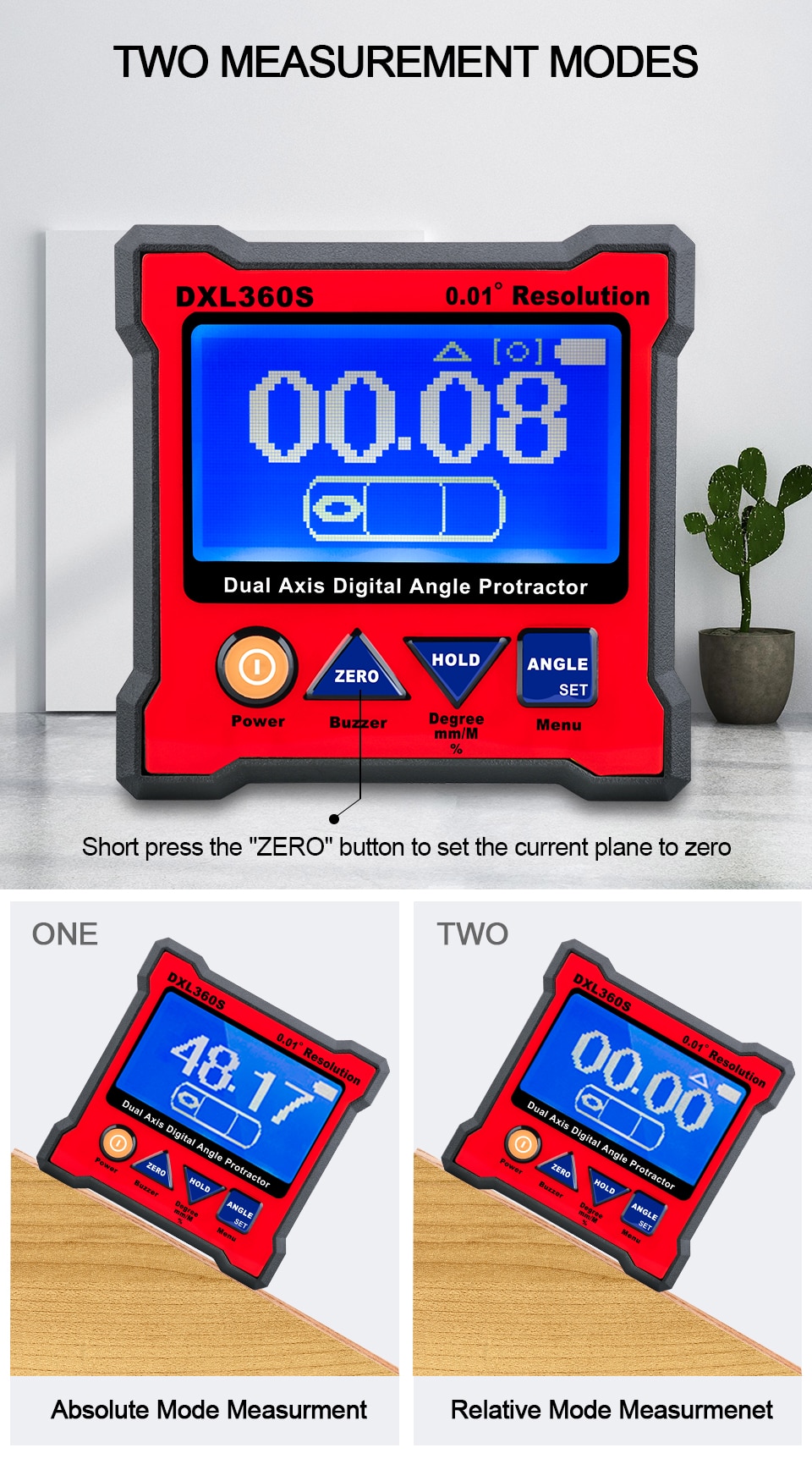

GVDA Using this axis digital angle protractor, you can measure the angle between two faces, not only in earth gravity direction. Press Angle key at the first face, and then rotate slowly and must keep the rotation axis to another testing face, It will then show the angle once you not move the unit. Any angle measurement is using gyro technique.

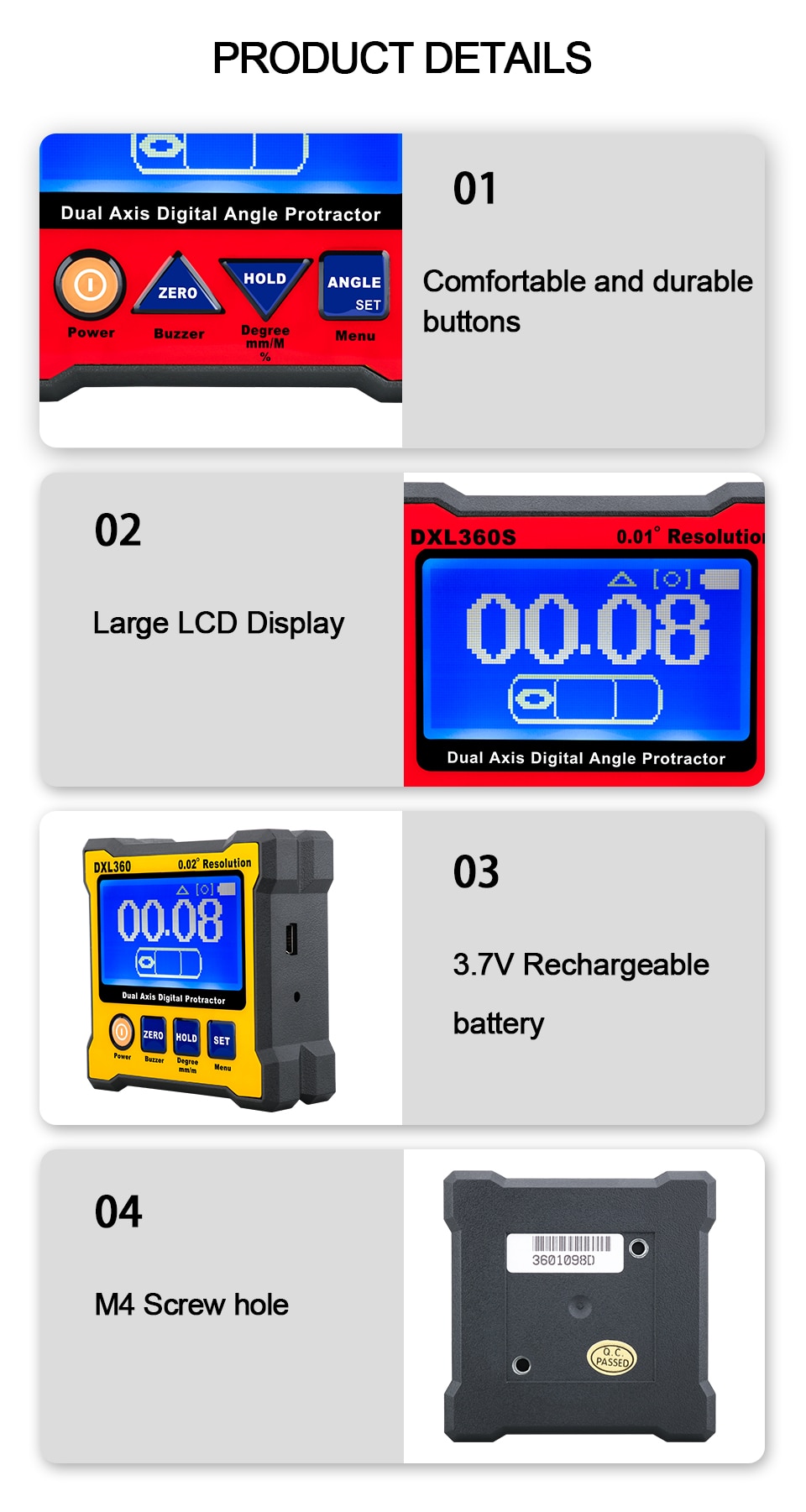

Product Features

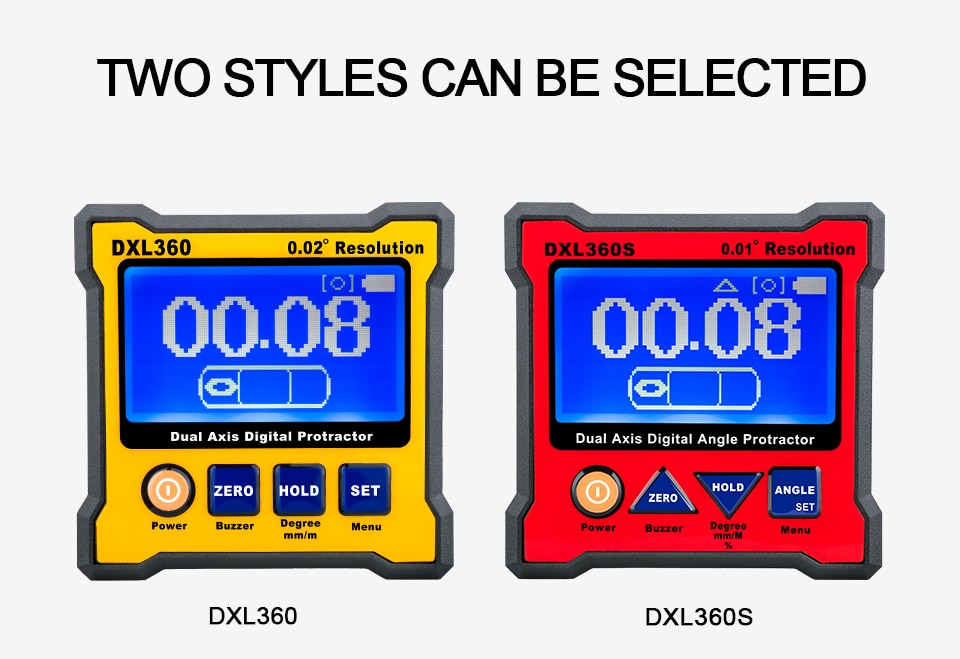

1) DXL360S:High accuracy±0.05°,high resolution0.01°DXL360:0.1°,resolution0.02°

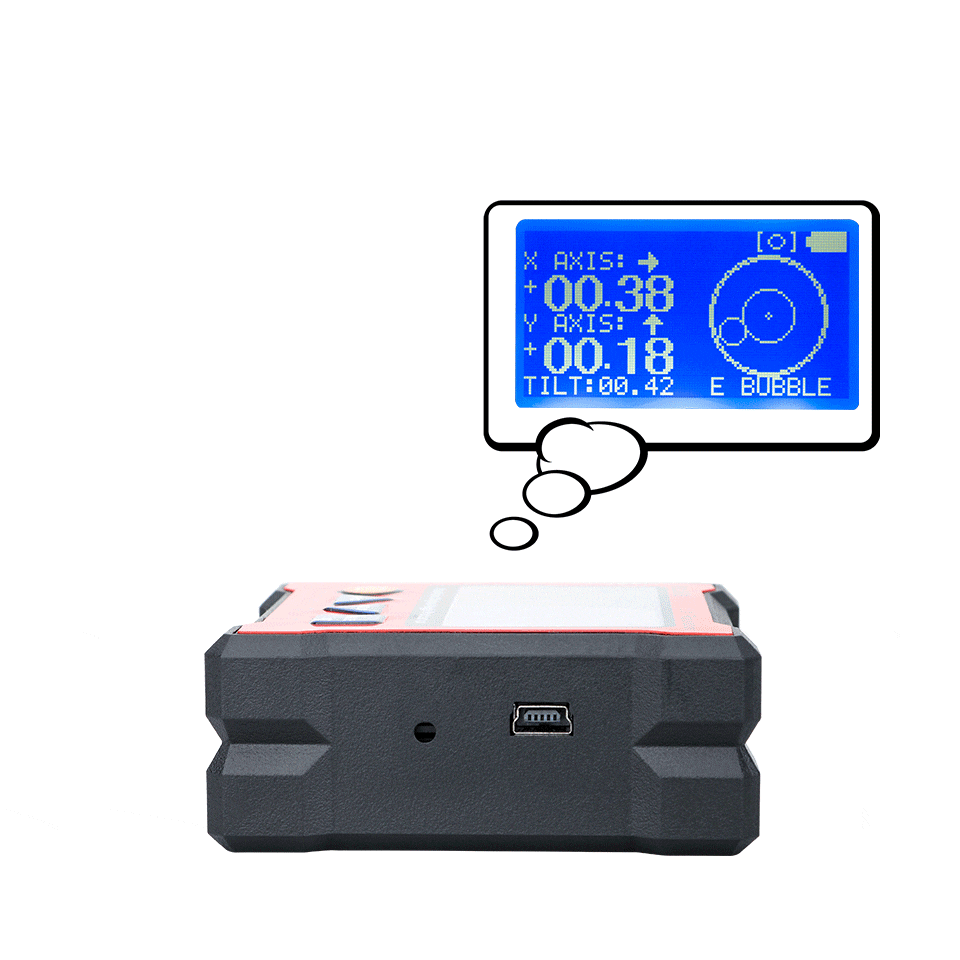

2) Dual and Single axis with user friendly LCD display angle

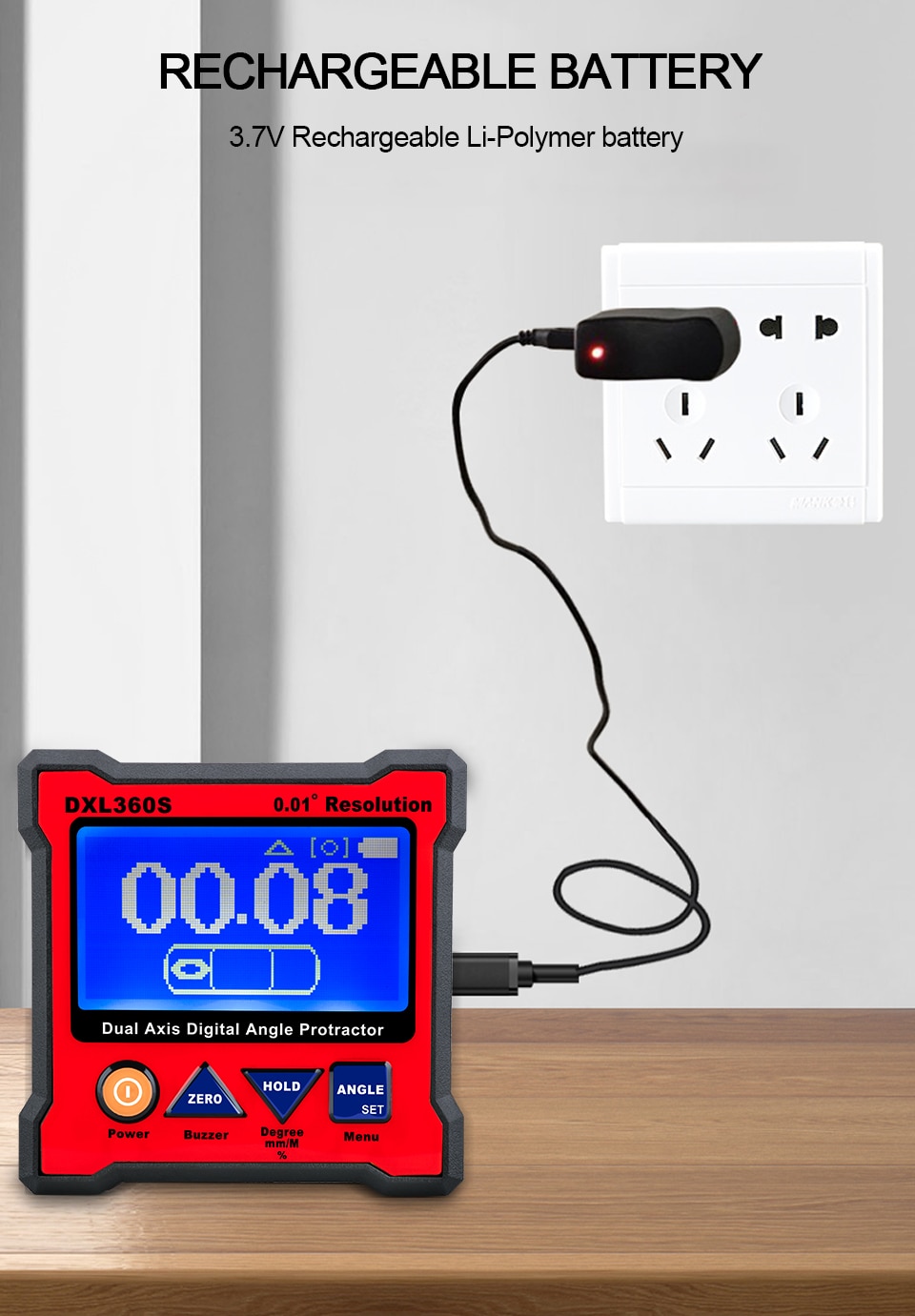

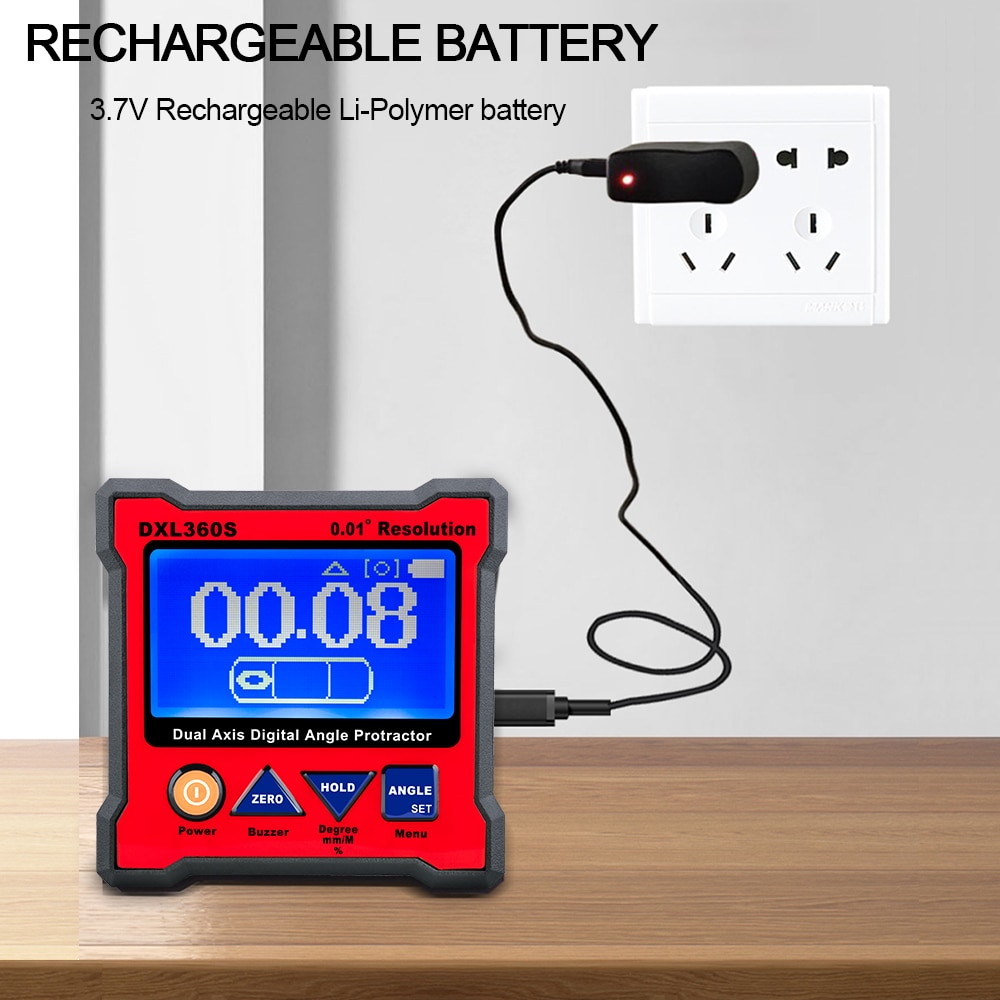

3) Rechargeable Li-Polymer 3.7V Battery
4) V Shape metal case for easy to fit at the corner or pipe.
5) 5 Side Magnetic base

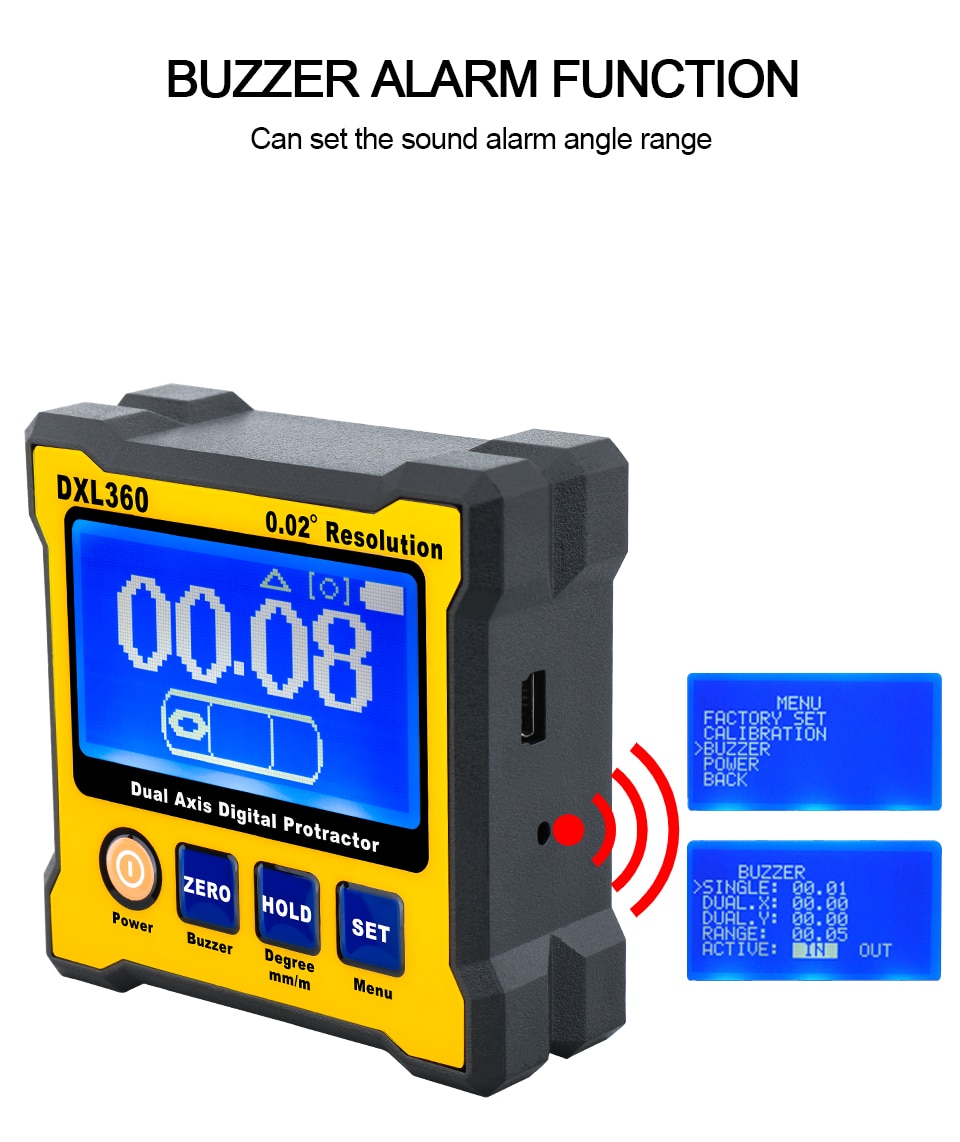

6) Audible alarming at settable angle range
7)Any angle measurementforDXL360sonly
8) USB / Bluetooth to pc connection need adapter for DXL360 and DXL360s

Technical Details


Product Name;GVDA Dual axis Digital Angle Protractor
Accuracy:DXL360:0 to 20°: ± (0.1°) 20 to 70°: ± (0.2°) 70 to 90°: ± (0.1°)
DXL360S: 0 to 20°: ± (0.05°) 20 to 70°: ± (0.1°) 70 to 90°: ± (0.05°)

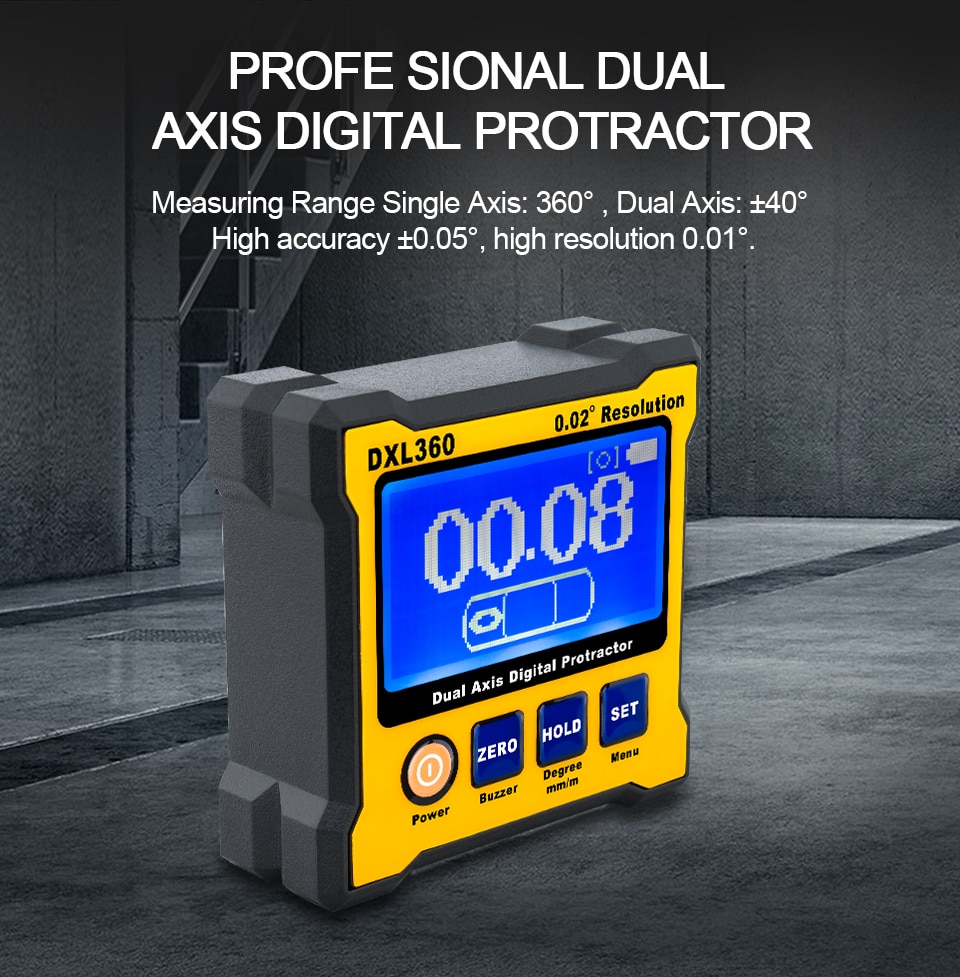

Measuring Range Single Axis: 360° , Dual Axis: ±40°
Resolution:DXL360: 0.02°,DXL360S: 0.01°
Gyro Rotation Speed*DXL360s: <50°/s
Any Angle Measurement accuracy : 0.5°
Response time: <0.4 second
Audio sound: 60dB@30cm
Zero offset drift angle per °C: 0.0058°(typical)
Operating temperature: 0 to 50°C (32 to 122 Fahrenheit)
Storage temperature: -10 to 60°C (14 to 140 Fahrenheit)
User Interface: Mono-color LCD with backlight
Supply Power: Rechargeable Li-Polymer 3.7V
Charger port: 5V 500mA Mini type-B USB port
Power Consumption: Standby: 10uA, Operation: 20mA
Standby Battery Life: 4000 hours
Operating Battery Life: 40 hours

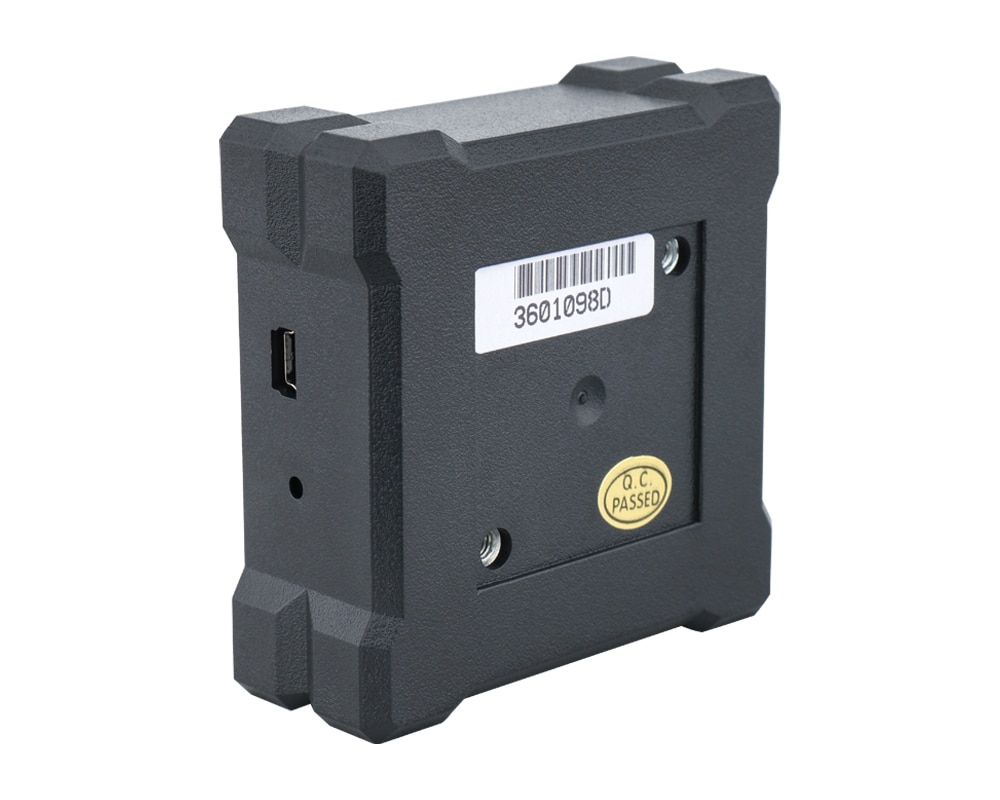

Magnetic Base: set on 4 corners
Magnetic Force: N48
Item Size: Approx 7 * 7 * 2.8cm / 2.7 * 2.7 * 1.1in
Item Weight: 118.3 / 4.2oz
Package Size: 17 * 13 * 4.5cm / 6.7 * 5.1 * 1.8in
Package Weight: 249g / 8.8oz
Package List:
1 * Digital Angle Protractor
1 * USB cable
1 * User Manual
