Fcar F502 is a small Heavy Vehicle Code Reader which researched and developed by Fcar. It is with LCD true color display and can support heavy duty truck standard protocols. With high quality and good performance,this code reader can enable vehicle technicians to diagnose heavy duty trucks more easily and quickly.The  micro tool is widely used in various maintenance companies, auto manufacturers, repair stations, petrol engine manufacturers and energy-based enterprises etc.
Item No. COBD25145 Price Down Notice
In Stock
Price:
US$135.00/ piece
Discount Price:
US$108.00/ piece 20%
Quantity:

Shipping:
Express Shipping Service
Estimated delivery time: 3-15 working days.See details »
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat WhatsApp Skype Ask a question
Fcar F502 Heavy Dutry Code Reader

Top 6 Reasons to get Fcar F502 Heavy Duty Code Reader:

1.Exclusive Sale Heavy Duty code reader for the vehicles with standard protocol of heavy-duty trucks (J1939 and J1708)
2.Operation Methods:
Diagnose the vehicles by OBD16 via diesel 6PIN and diesel 9PIN Diagnostic Protocol.
Fcar F502 Heavy Duty Handheld Code Reader
3.Supported Language: English
4.Update Online on Official Website
5.Read DTC
6.Support ECU of vehicles like CUMMINS、Bosch、DELPHI

Fcar F502 code reader Functions
◆Engine #1
◆Turbocharger
◆Transmission
◆Axle, Power Unit
◆Axle, Trailer
◆Brakes, Power Unit
◆Brakes, Trailer #1
◆Instrument Cluster
◆Trip Recorder

Fcar F502 Update Guide:

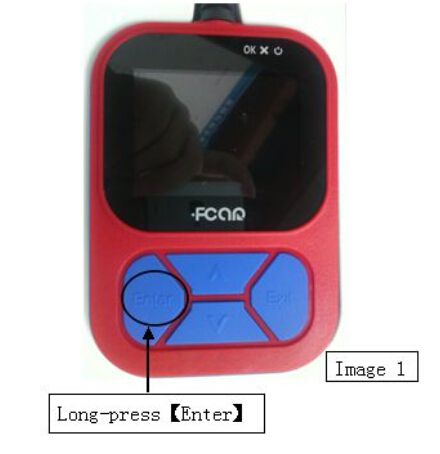

Step 1:Long-press “Enter” of Main Unit while insert it with USB cable.See Image 1
Fcar F502 Heavy Duty Handheld Code Reader

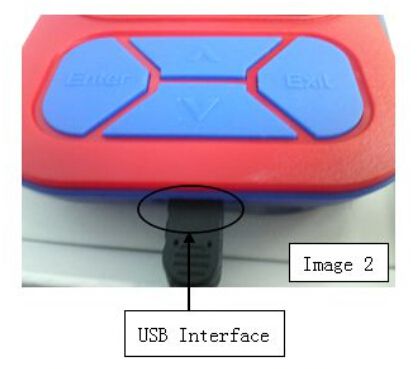

Step 2:Long-press “Enter” of Main Unitwhile insert it with USB cable. See Image 2.
Fcar F502 Heavy Duty Handheld Code Reader

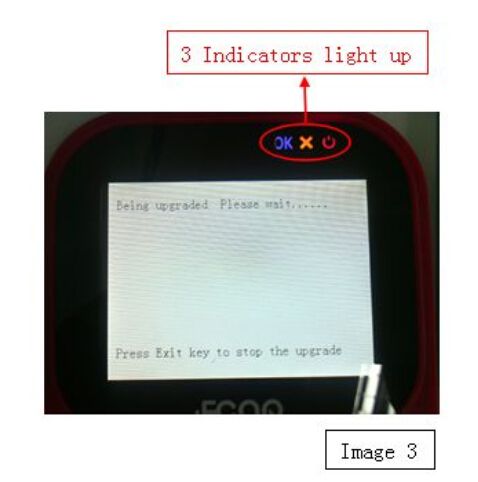

Step 3:Long-press “Enter” of Main Unit while insert it with USB cable. See Image 3.
Fcar F502 Heavy Duty Handheld Code Reader

Fcar F502 Parameters:
Screen size :2.8 inch 320×240 LCD
Work voltage:8V ~ 32V
Work current :Typical value <100mA
Connection method :Standard 16-PIN OBD diagnostic connector
Working temperature :0℃~ 50℃
Storage environment temperature: -20℃~70℃
Relative humidity: 60%
Product size(mm):123×88×27
Weight of the main unit: 280g

Fcar F502 Firmware Display:

Fcar F502 Heavy Duty Handheld Code Reader
1.OK diagnosis normal indicator light: The indicator light is on in communication diagnosis.
2.OK diagnosis failure indicator light: The indicator light is on when there is a failure of communication diagnosis;
3.Voltage indicator light: The indicator light is on when the machine is connected to OBDⅡ diagnostic sockets.
4.Diagnosis communication line, which should be connected to OBDⅡ diagnostic sockets on the vehicle;
5.Up and down buttons
6.Enter: The button for confirmation;
7.USB data line interface: Backup interface for data connecting;
8.Exit: The button for cancellation and back.
f502 heavy vehicle code reader full screen
