Original Wifi LAUNCH X431 PAD III V2.0 Diagnostic Coding and Programming Tool Bluetooth 4 .2
  • Original Wifi LAUNCH X431 PAD III V2.0 Diagnostic Coding and Programming Tool Bluetooth 4 .2
Original Wifi LAUNCH X431 PAD III V2.0 Diagnostic Coding and Programming Tool Bluetooth 4 .2

Original Wifi LAUNCH X431 PAD III V2.0 Diagnostic Coding and Programming Tool Bluetooth 4 .2

X-431 PAD Ill V2.0 is the high-end diagnostic equipment newly launched by Launch, integrating the Launch excellent diagnostic technology and made many improvements and innovations.It has deeply optimized the system layer, greatly improved the system responsespeed, and optimized the user experience.
Item No. COBD2394 Price Down Notice
Out of Stock
Price:
US$6,999.00/ piece
Discount Price:
US$4,999.00/ piece 29%
Quantity:

Shipping:
Express Shipping Service
Estimated delivery time: 3-15 working days.See details »
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat WhatsApp Skype Ask a question

Original Launch X431 PAD III V2.0 Diagnostic Tool Bluetooth 4 .2


X-431 PAD III V2.0 is the high-end diagnostic equipment newly launched by Launch, integrating the Launch excellent diagnostic technology and made many improvements and innovations.
It has deeply optimized the system layer, greatly improved the system responsespeed, and optimized the user experience.

Launch X431 PAD 3 Features:

Can support almost all OBD I and OBD II protocol

Can scan 12V car and 24V Truck and bus with the help of HD module

Support remote diagnosis and scan car even though car is 1000KM away from garage

Support online technician’s community where problem can be shared and solutions for that problem can be answered by expert from that field

Can support multi graph display of up to 15 graphs at a time which is one of the largest graph displays in any LAUNCH scanner till date

User can search error code online from device itself and can find solution for particular problem

Bluetooth connector can scan up to range of 10 Meter away car

Online software update

No compulsion for software update every year​

LAUNCH X431 PADIII supported function

​LAUNCH X431 PAD3 is the only car scanner in the world which is built to IP65 water proof specifications, with dust proof design and which has passed droop test.

  • Read and clear trouble code

  • Support data stream and actuation test/component testing

  • ECU/ECM programming

  • Battery registration

  • Injector coding

  • KEY coding for Maruti Suzuki (upto 2013),TATA and HONDA(Note: KEY coding is not available for Mahindra car)

  • Immobilizer trouble code reading.

  • Service light reset for BMW, AUDI, Benz, VW, Skoda and many more.

  • Support A.B.S(anti lock brake) function

  • Support E.P.S(Electric Power Steering) function

  • Support Air bag function

  • Steering angle sensor reset

  • Support car A.C( air conditioning system)

  • Support ECM/PCM reset

  • Support Automatic Transmission function

  • Support B.C.M(Body Control Module) including seat belt, Central locking, Light

  • Support adaptation for almost all car

  • Scan radio system

  • Online Coding Available for Euro car brands

LAUNCH X431 PAD III V2.0 Diagnostic Tool Improvements

Optimization of operation

Optimization diagnostic application enhance operation fluency and the higher data stream refresh speed

Preset tool applications

Simplified the device setup

High-end hardware configuration


Extension module for PAD III

1). Sensor box (Optional)

A sensor box is used along with x431 PAD IIl to test most of sensor like MAP sensor, MAF sensor, TP sensor, Oxygen sensor, CAM sensor, Temperature sensor and many more

2).Multimeter

An inbuilt multi meter used along with sensor box to test output of most of sensors.

3).Battery box (Optional)

A battery box used to test 12V battery for almost all cars. Battery box is also capable of testing alternator and starter.

4). Oscilloscope (Optional)

A device is used along with LAUNCH X431 PAD3 to test electronic circuit.

5).Video scope(Optional)

A device which can reach to a place where even our eays cannot reach. Video scope along with X431 PAD2 can make repairing job of technician very simple and easy.

6).X-431 HD Module (Optional)

With help of LAUNCH X431 HD Module, X431 PAD II can even scan commercial and 12V vehicle.

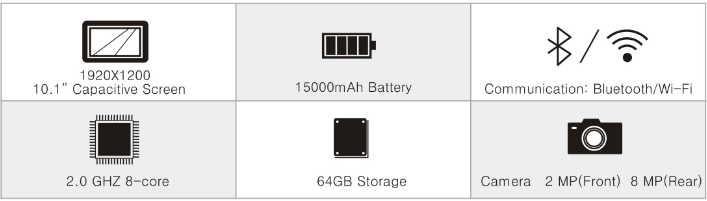

Launch X431 PAD3 SPECIFICATIONS
Display Screen 10.1″ IPS screen, 1920×1200
CPU Eight-core, 2GHz
Operating system Android 6.0
RAM 2G
Storage capacity 64G SSD
WLAN WiFi (802.11 b/g/n)
USB 2.0
Bluetooth 2.0
Working temperature (ºC) -10~+55
Storage humidity 20-90%
Storage temperature (ºC) -20~+70
Camera Front 2.0M, rear 8.0M, AF with flashlight
Battery 15000mAh lithium-polymer battery
Audio Input/Output Microphone, Speakers, 3.5mm stereo headset jack
Video output HDMI

dbscar-iii-parameter

X431 PAD III Supported CAR brand

EUROPEAN: Alfa Romeo, Audi, BMW, Citroen, Euro Ford, Fiat, Land Rover, Mercedes Benz, Opel, Peugeot, Porsche, Renault, Rover, SAAB, Seat, Mini, Skoda, Smart, Jaguar, Transporter V Class, Volvo, VW.

ASIAN: Maruti, Mahindra, TATA, Hyundai, Daewoo, Daihatsu, Honda, Kia, Lexus, Mazda, Mitsubishi, Nissan, Proton, Sangyong, Subaru, Suzuki, Toyota.

AMERICAN: Chrysler Ford, GM, Work Horse, Chevrolet, Pontiac, Buick, Cadillac, Saban, GMH Truck, Hummer, Ford F Series Trucks, Lincoln, Mariner Hybrid, Mustang, Montego, Ford Motor Home Range, Taurus.

PROTOCOLS: OBDII, EOBDII, EOBDIICANBUS.


Packing List:

1set LAUNCH X431 PADIII Scanner

LAUNCH X431 PADIII Scanner
