V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
  • V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
  • V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
  • V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
  • V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
  • V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
  • V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
  • V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
  • V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
  • V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
  • V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
  • V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
  • V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
  • V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside
V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside

V-checker T501 TPMS Tire Pressure Monitoring System Tire Internal Sensor With Bluetooth inside

V-checker T501 TPMS tool,Tire Pressure Monitoring System Tire External Sensor,with Bluetooth inside the device,free shipping to any country in the world.
Item No. COBD24268 Price Down Notice
Out of Stock
Price:
US$99.00/ piece
Quantity:

Shipping:
Airmail Post
Estimated delivery time: 7-45 working days.See details»
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat WhatsApp Skype Ask a question

Bluetooth V-checker T501 TPMS Tire Pressure Monitoring System Tire External Sensor

80% driving accident comes from abnormal tire pressure.The T501 TPMS dynamically monitors tire pressure, which can prevent puncture and damage of car parts caused by flat tire. Improve fuel efficiency, prolong tire life, increase traffic safety and avoid abnormal wear of vehicle parts. Adopting Infineon solution, the device mainly consists of 4 tire sensors modules and monitoring the vehicle tire status and showing all related information such as tire pressure & temperature in real time.
Through Bluetooth, V-checker T501 device can be connected with your intelligent mobile phone via our self-developed Android and iOS Apps available in Google Play and App Store (You can also scan the QR code on the package to download the APP).

Features:

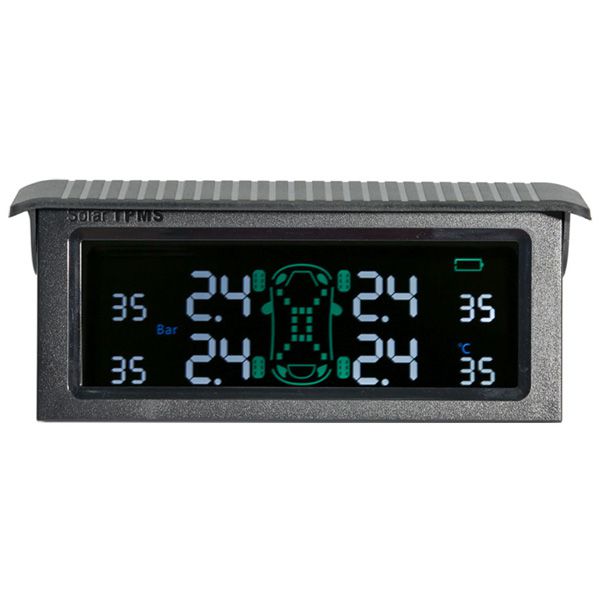

4" LCD Screen and Brilliantly Colorful Display.
With the inserted G-sensor, the device is automatically activated once the ignition is on, and turns itself off when the engine stalls.
Smart Sleeping Mode for Energy Conservation.
A real-time and accurate display of tire air pressure / temperature / solar panel working status / battery capacity, etc, timely warn if any abnormal situation happens.
Multiple Placements - On Dashboard or On Windshield.
Flexible Adjustment of Viewing Angles and No Visual Blind Area.

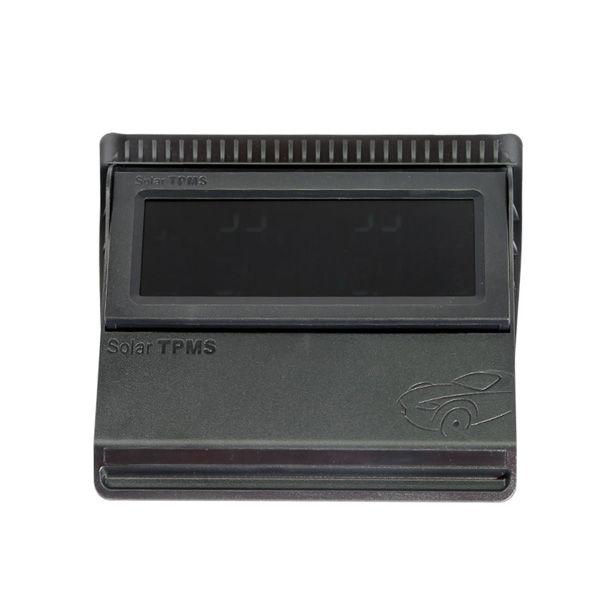

Large-size solar Panel with high efficiency, fully relies on solar charging.
Built-in with explosion-proof battery , high and low temperature resistance.
Battery capacity 2000mAH, once fully charged the endurance can support continuous Usage for 45days. No need to occupy the cigar lighter.

Works on all models:
All kinds of cars, off-road vehicles, SUV, commercial vehicles, MPV, etc.

DO YOU KNOW ?
20% under-inflation reduces tire lifetime by 30%;
30% over-inflation reduces tire lifetime by 45%;
30% pressure lower looks like proper inflated tire
So you need a V-checker® T501 TPMS to monitor tire dynamic pressure, warn early of abnormal tire pressure, improve fuel efficiency,
increase tire life and traffic safety.

Specifications:
Host Parameters
Dimensions 118 x 130 x 20 (mm)
Operating Frequency 433.92MHZ
Operating Voltage 3.5 - 6.0 VDC
USB Charging Current ≤ 600mA
Operating Environment Temperature Range -20 - 85℃
Sleeping Mode Current < 1mA
Environment Temperature Range for Long-term Storage -20 to 85℃(-22 to 158℉)
Monitoring Air Pressure Range 0.0 - 4.0 Bar
Supported Bluetooth Bluetooth 4.0 Version or Above
Monitoring Temperature Range -20 - 85℃(-4 to 185℉)
Battery Capacity 2000mAH
Solar Charging Time 4Hours
Operating Environment Humidity Range 0 - 100%
Weight Approx 0.2 Kg
Tire Sensor (External) Parameters
Battery 3V Imported Lithium Battery
Sensor Chip Infineon
Operating Environment Humidity Range 0 - 100%
Operating Environment Temperature Range -55 - 125℃(-67 to 257℉)
Air Pressure Range 0.0 - 4.0Bar
Radio Frequency 433.92MHZ
Transmitting Power ≤ 5dBm
Pressure Display Accuracy 0.1Bar
Temperature Measuring Accuracy 2℃(35.6℉)
Weight Approx 9 grams
Battery Life 2-3 Years(depending on the actual usage conditions)









Package includes:

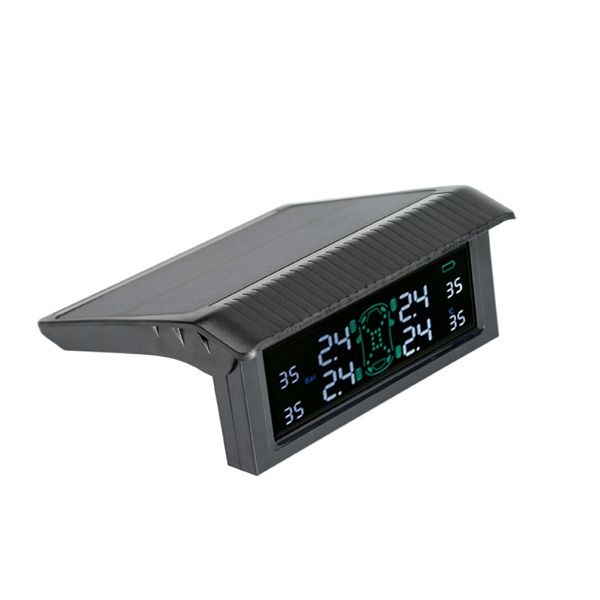

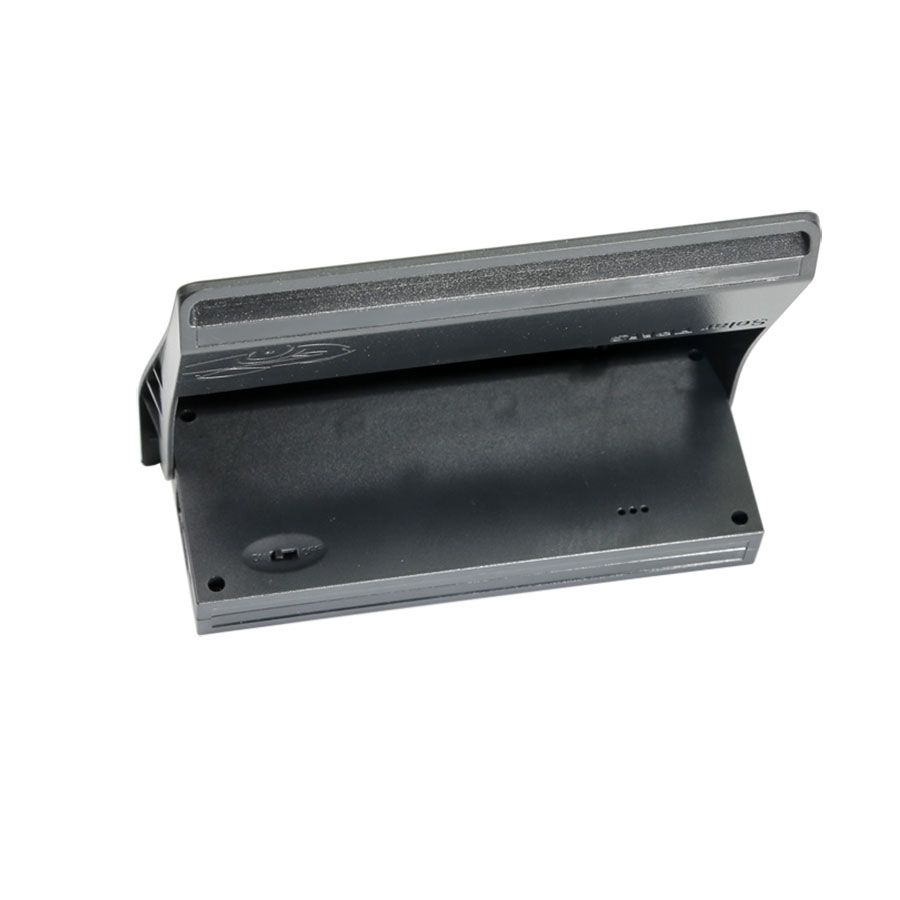

1pc x T501 Main Unit

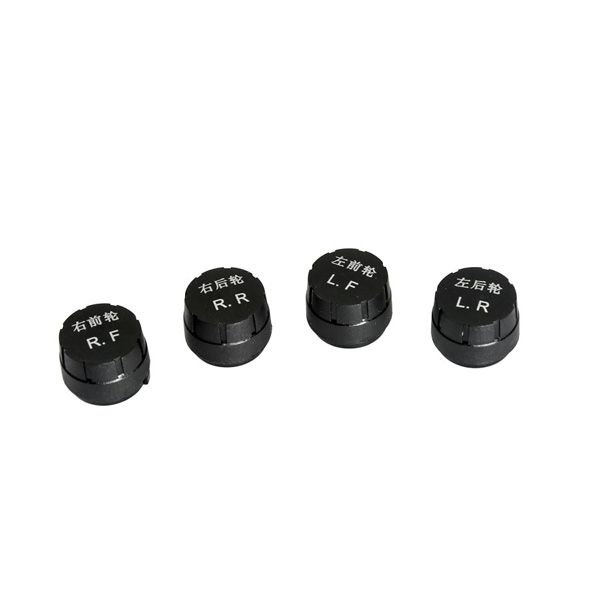

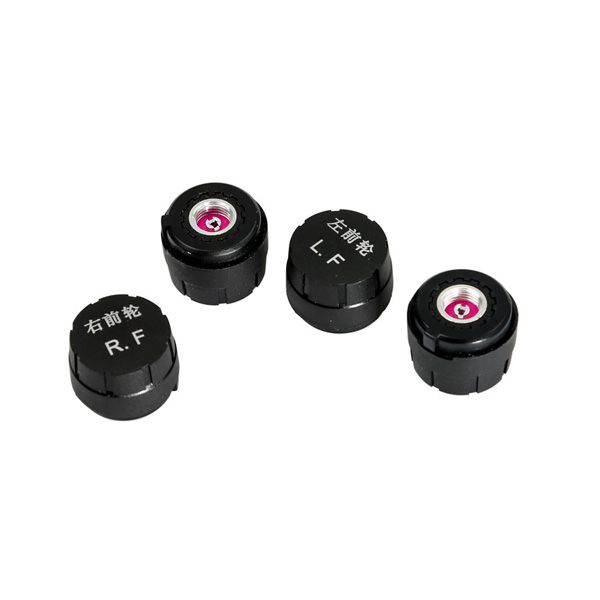

4pc x Tire External Sensor
1pc x USB Charge Cable

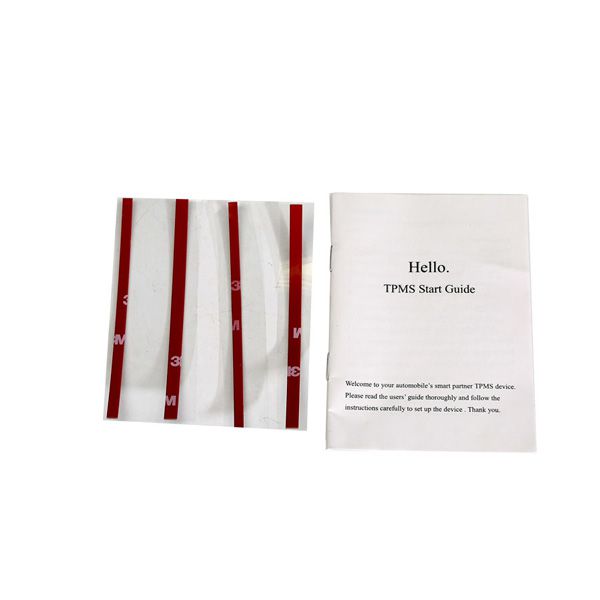

4pc x Adhesive Tape

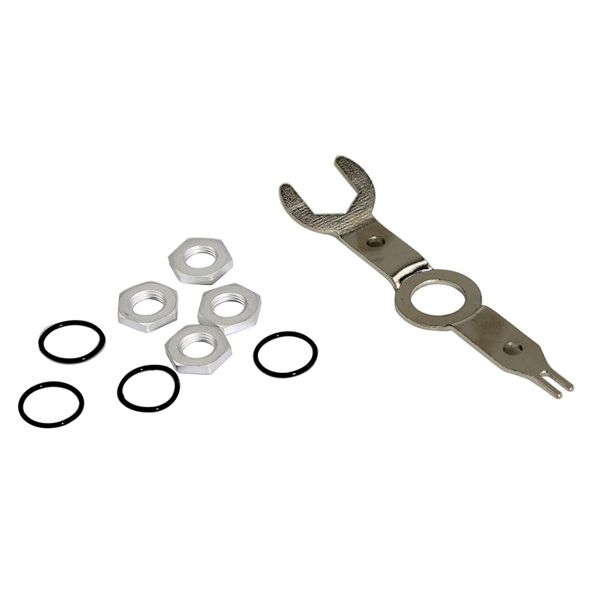

4pc x Anti-theft Hex Nut
1pc x Spanner for hex nut
4pc x Spanner for sensor cap
1pc x User's Manual
