12V 24V Car Battery Charger

Battery TestAn automatic battery test is conducted immediately after the absorption stag, wholesale 12V 24V Car Battery Charger, 6A 12.6V Lithium Battery Ch.

12V 24V Car Battery Charger, 6A 12.6V Lithium Battery Charger & Maintainer, 7-Stage Car & Motorcycle Battery Charger is a one of our 12V 24V Car Battery Charger Tools, you can buy 12V 24V Car Battery Charger, 6A 12.6V Lithium Battery Charger & Maintainer, 7-Stage Car & Motorcycle Battery Charger from ukobd2.com.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150

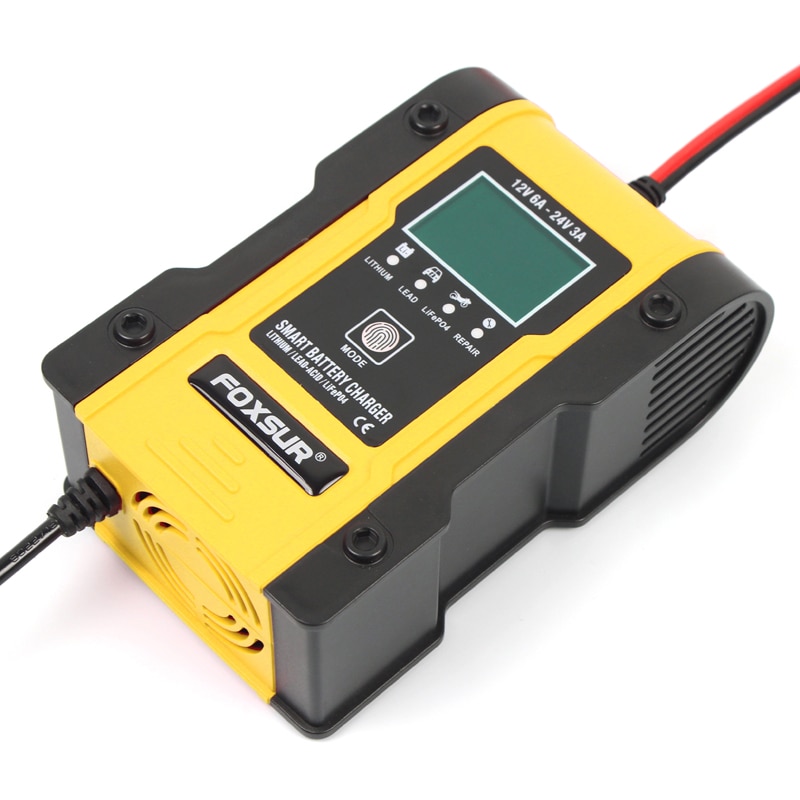

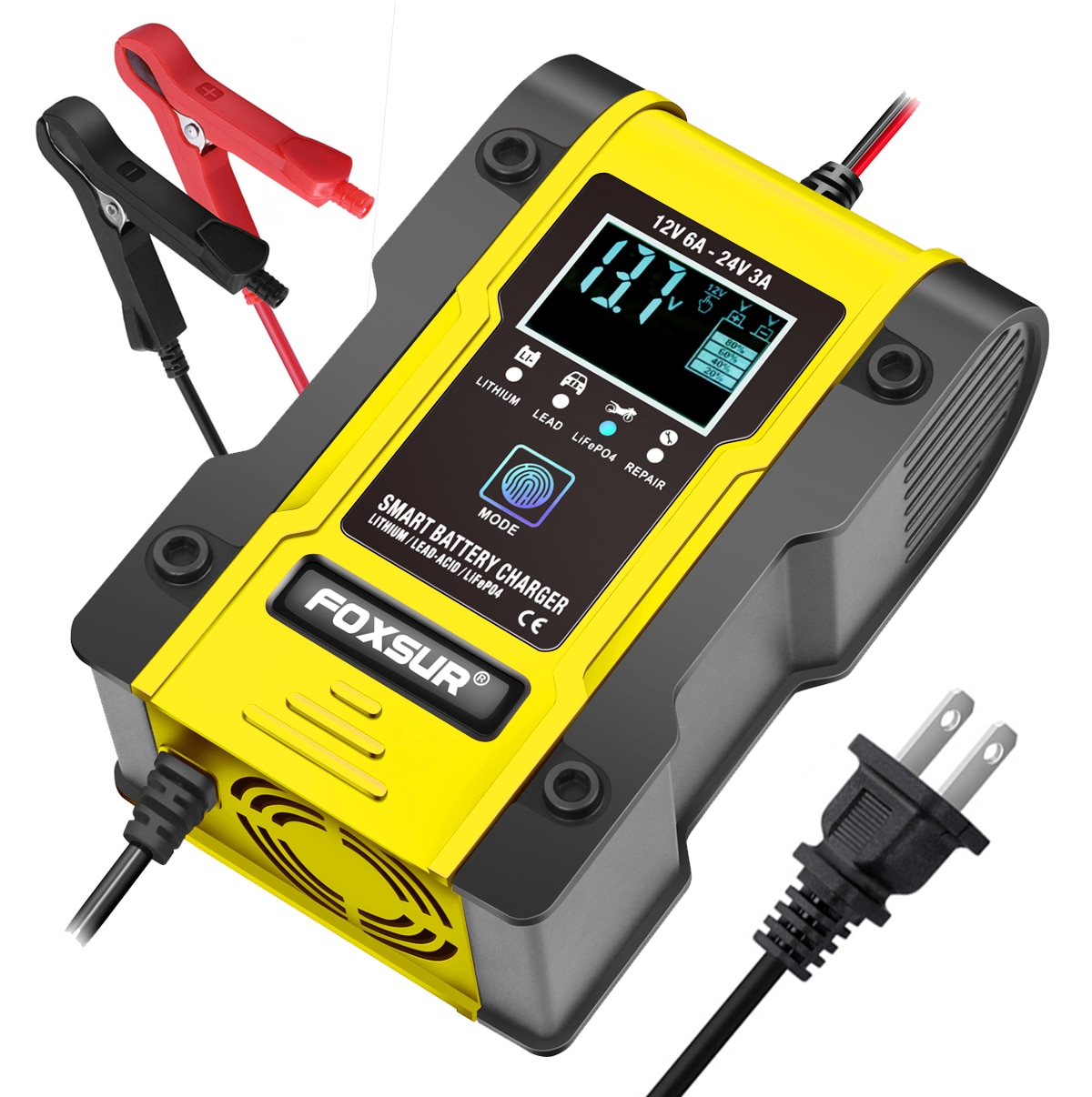

images of 12V 24V Car Battery Charger, 6A 12.6V Lithium Battery Charger & Maintainer, 7-Stage Car & Motorcycle Battery Charger

12V 24V Car Battery Charger, 6A 12.6V Lithium Battery Charger & Maintainer, 7-Stage Car & Motorcycle Battery Charger12V 24V Car Battery Charger, 6A 12.6V Lithium Battery Charger & Maintainer, 7-Stage Car & Motorcycle Battery Charger12V 24V Car Battery Charger, 6A 12.6V Lithium Battery Charger & Maintainer, 7-Stage Car & Motorcycle Battery Charger12V 24V Car Battery Charger, 6A 12.6V Lithium Battery Charger & Maintainer, 7-Stage Car & Motorcycle Battery Charger12V 24V Car Battery Charger, 6A 12.6V Lithium Battery Charger & Maintainer, 7-Stage Car & Motorcycle Battery Charger12V 24V Car Battery Charger, 6A 12.6V Lithium Battery Charger & Maintainer, 7-Stage Car & Motorcycle Battery Charger

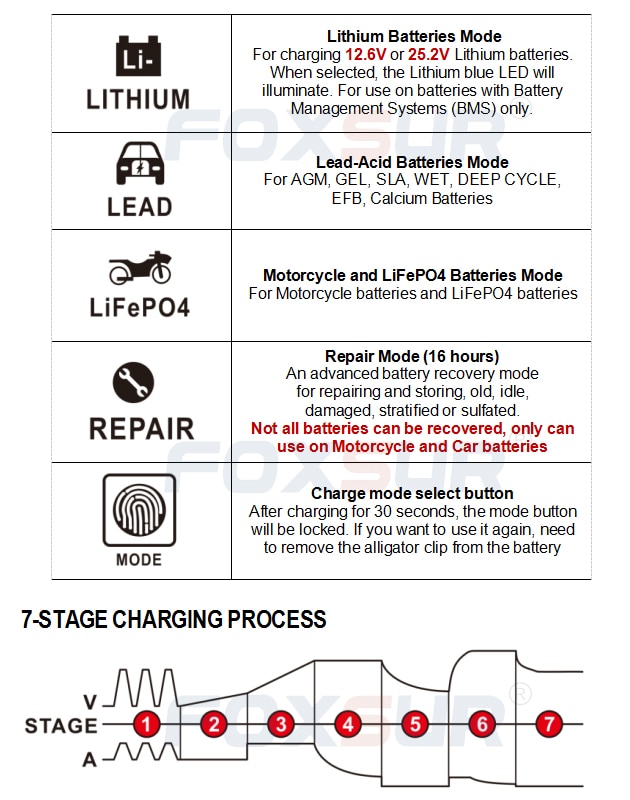

示意图

1. Desulphation
The Desulphation stage may break down sulphation that occurs in batteries that have been left flat for extended periods of time, returning them back to full charge. sulphation occurs when lead-sulphate hardens and clogs up the battery cells.
2. Soft Start
A preliminary charge processes that gently introduces power to the battery. This protects the battery and increases battery life.
3. Bulk (Constant Current)
Bulk mode charges the battery at the maximum rate (constant current) putting a large amount of power into the battery in a short amount of time. This stage will charge the battery to approximately 80%
4. Absorption (Constant Voltage)
The charge rate slows down so the battery can absorb more power and reach 100% charge.
5. Battery Test
An automatic battery test is conducted immediately after the absorption stage. The test monitors the voltage for 10 minute to determine if the charge was successful.
6. Recondition
The battery reconditioning function is initiated automatically in the case that the battery fails the battery test (stage 5). Failing the battery test indicates that the absorption stage was unable to fully charge the battery. The recondition mode will then begin to introduce a low constant current for a period of 30 minute. Then the charger will go into float charging mode.
7. Float
The Float stage maintains the battery at 100% charge without overcharging or damaging the battery. This means the charger can be left connected to the battery indefinitely.

三视图

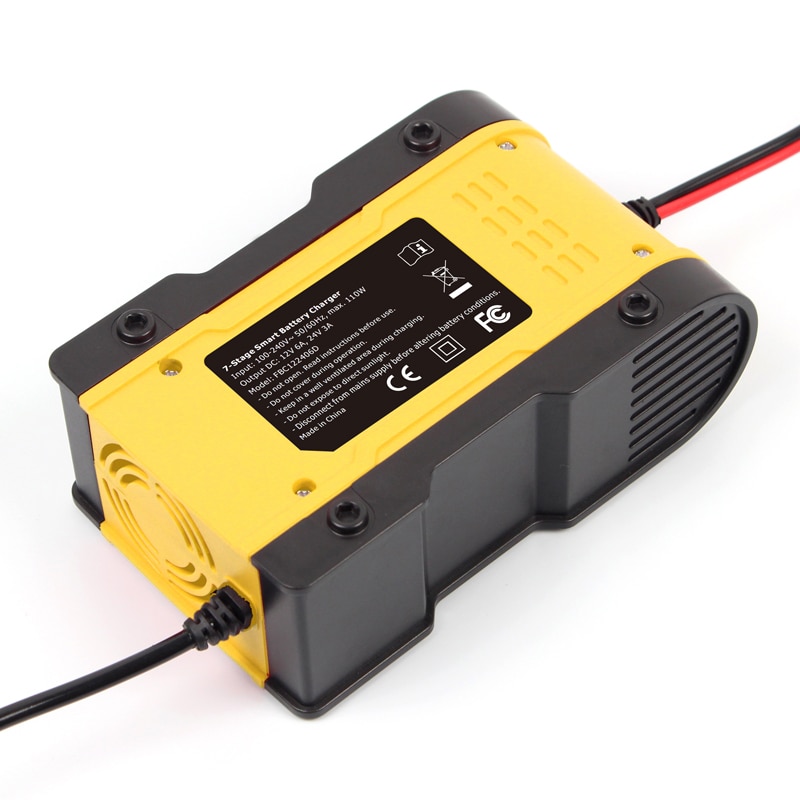

Charger output side and input side

后三视图

• Microprocessor Control (CPU).

• 7-STAGE AUTOMATIC CHARGING:
• This is a fully automatic battery charger with 7 charge stages.
• Automatic charging protects your battery from being overcharged. So you can leave the charger connected to the battery indefinitely.
• 7-stage chargers are suitable for most battery types including Calcium, Gel, Lithium, LiFePo4 and AGM, Wet batteries. They may also help restore drained and sulphated batteries.
• Types of batteries: Most types of lead acid batteries including Calcium, GEL and AGM, Wet,EFB, Lithium, LiFePo4
• Switchmode technology: Yes
• Polarity protection: Yes
• Output short protection: Yes
• Non battery link protection: Yes
• Over voltage protection: Yes
• Over temperature protection: Yes
• Cooling: Fan
• Input voltage: 100-240V AC, 50-60Hz
• Rated output: 12V 6A 24V 3A
• Minimum start voltage: 7.0V
• Battery range: 6Ah-120Ah
• Thermal protect: 65'C+/-5'C
• Efficiency: App. 85%.
• Compliant standards: CB,CE, IEC60335, EN61000, EN55014
• Dimension (L×W×H): 160×100×62mm
• Weight: 470g

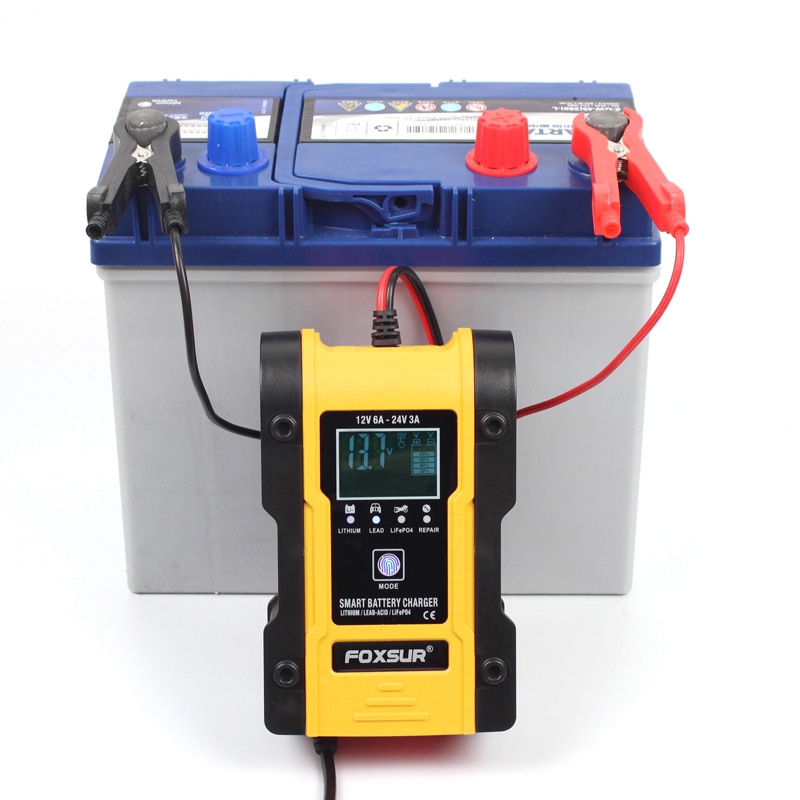

充电电压

LCD Display: Charge Voltage

充电电流

LCD Display: Charge Current

内部温度

LCD Display: Inside Temperature (allowed tolerance)

反接保护

Reverse connection protection. Display: ERO

短路保护

Output short-circuit protection. Display: ERO

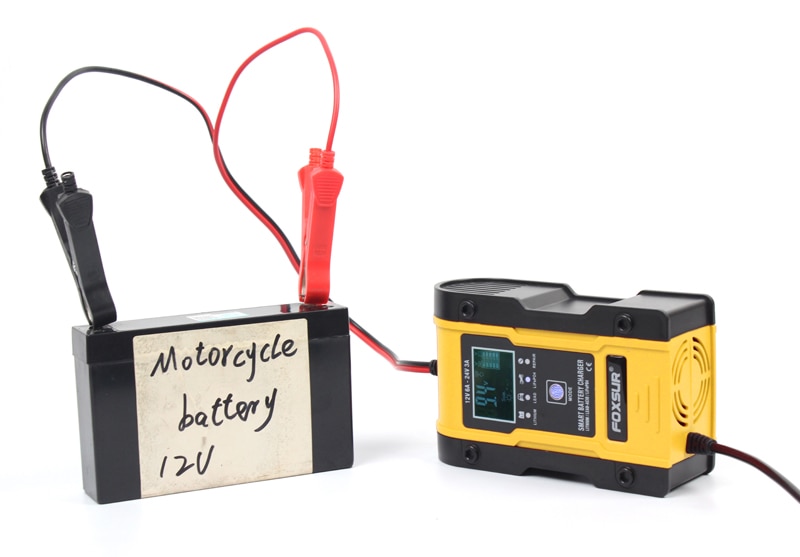

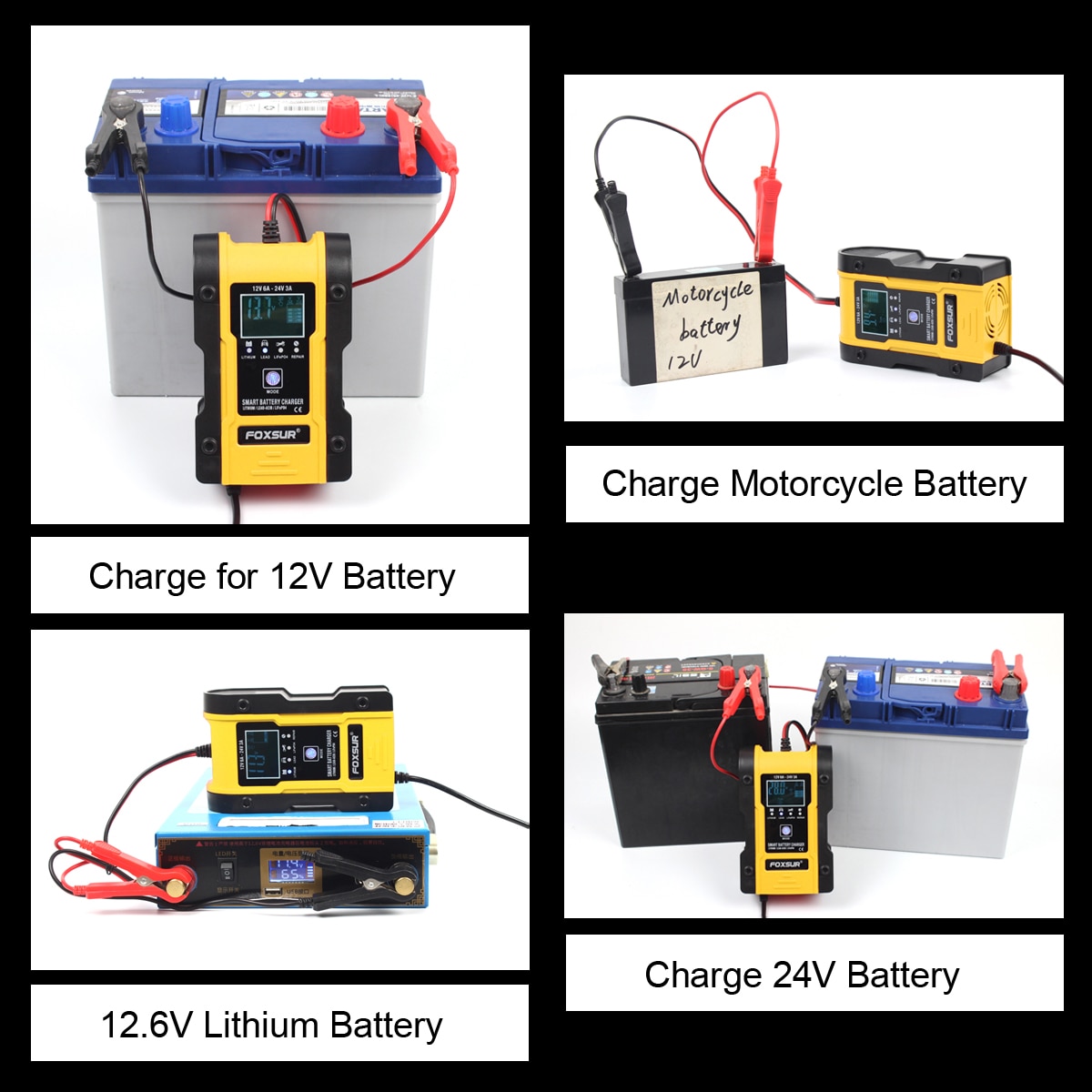

充摩托车电瓶

Charging for 12V Motorcycle battery

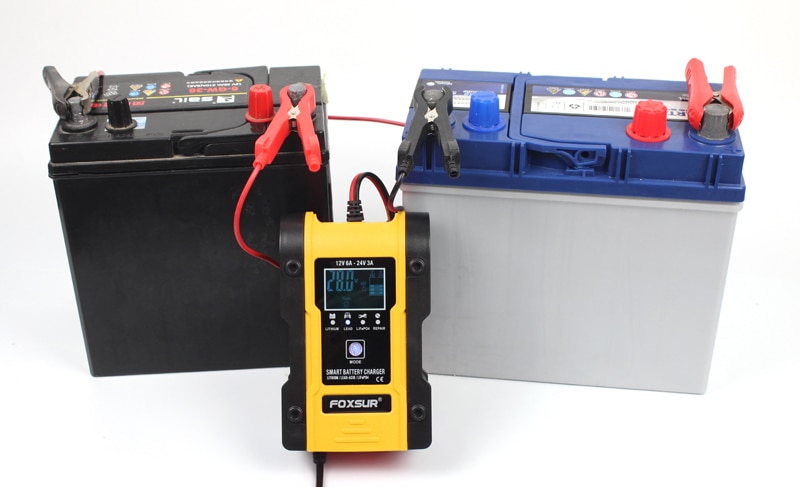

充24V电瓶

Charging for 24V battery

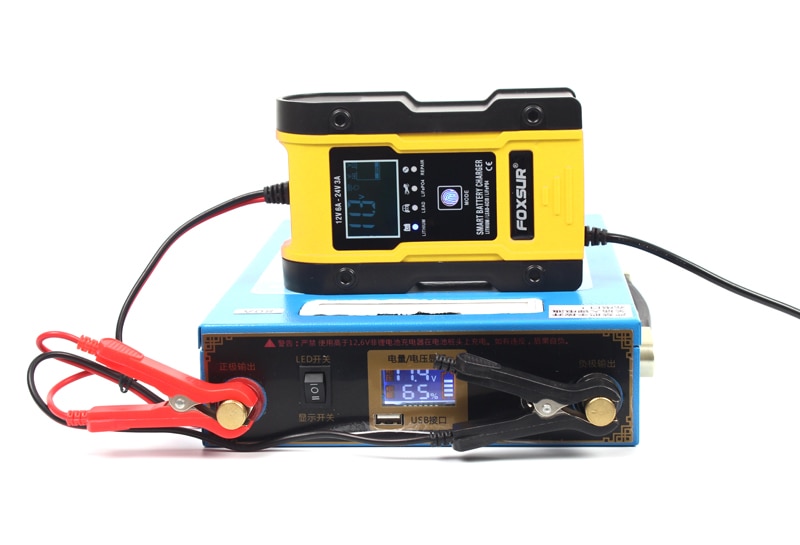

充锂电池

Charging for 12.6V Lithium Battery

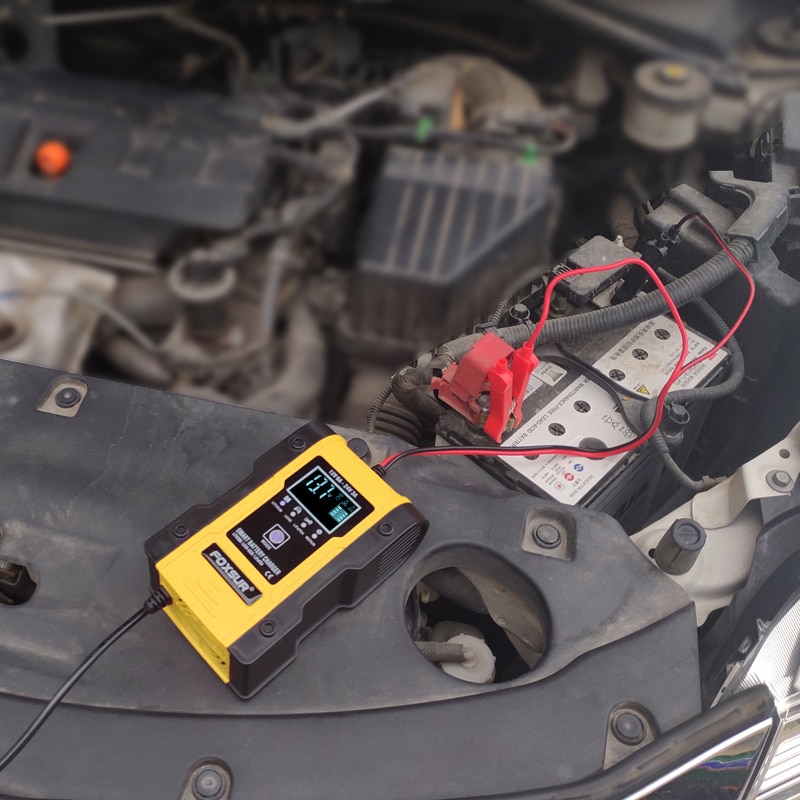

汽车实充

Charging for car battery

修复模式

Repair Mode (Time: 16 hours)

An advanced battery recovery mode for repairing and storing, old, idle, damaged, stratified or sulfated.

脱硫模式

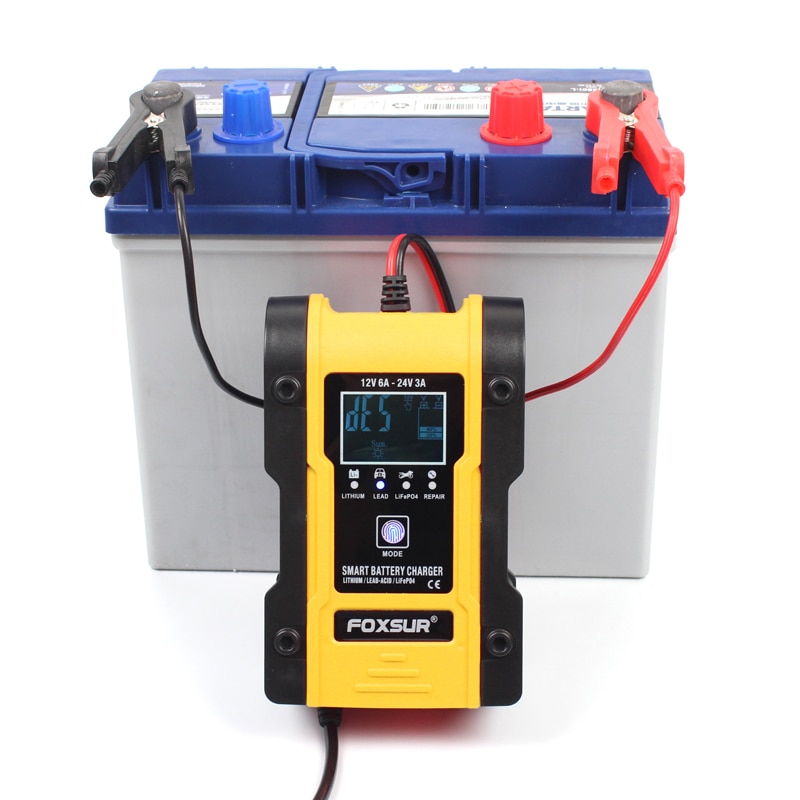

Desulphation stage (only for car mode), LCD display: dES

The Desulphation stage may break down sulphation that occurs in batteries that have been left flat for extended periods of time, returning them back to full charge. sulphation occurs when lead-sulphate hardens and clogs up the battery cells.

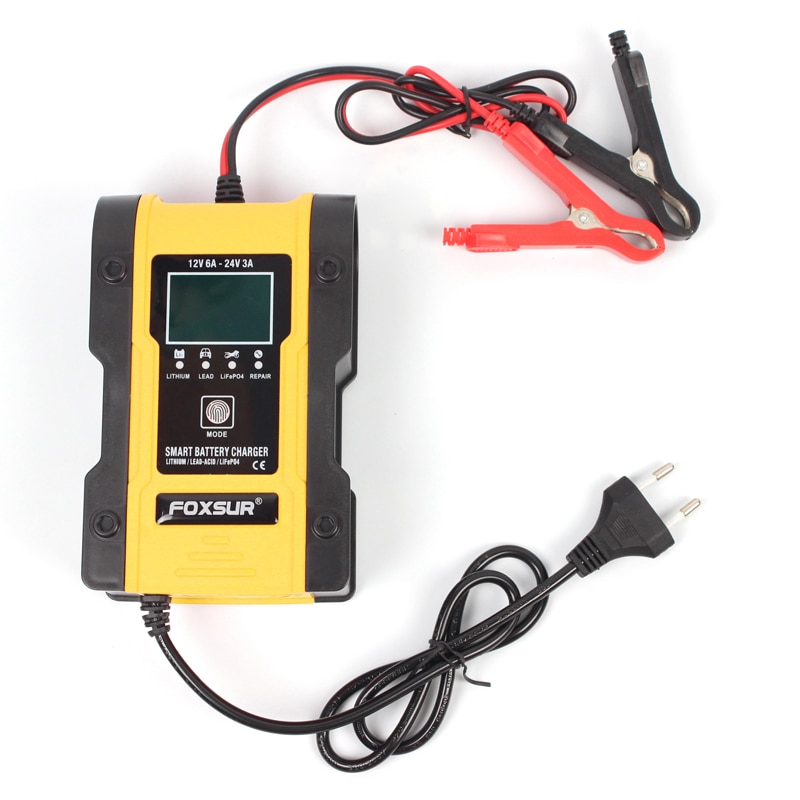

全景图 US全景图EU

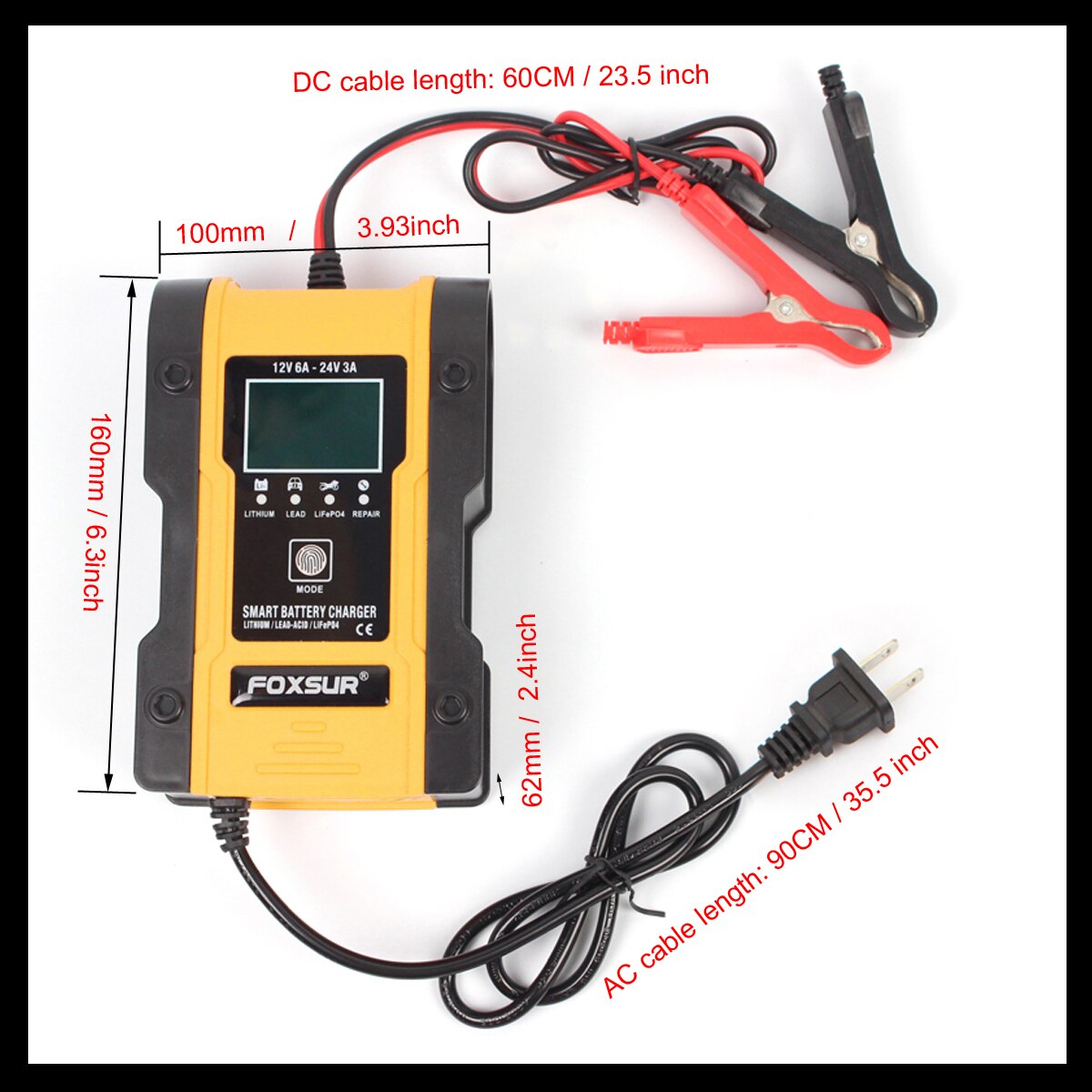

AC cable length: 90cm, DC cable length: 60cm.

带包装图

1 Set = 1pc Charger + 1pc Manual + 1pc Color Box
