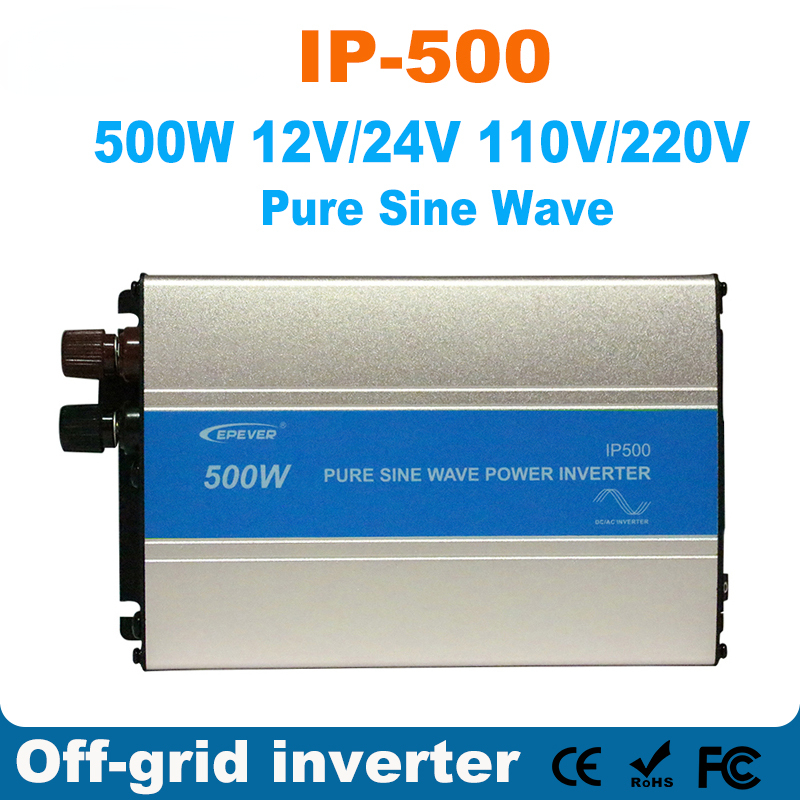

500W Pure Sine Wave Inverter

IPower series is a pure sine wave inverter which can convert 12/24Vdc into 110/120Vac 220/230Vac. It has the characteristics of concise outline, compact size, high reliability, high efficiency, easy to install and operate and so on. The inverter applicable to household emergency lighting system, vehicle mounted system and small field power supply, etc

500W Pure Sine Wave Inverter 12V/24V Input 110VAC 120VAC 220VAC 230VAC Output 50HZ 60HZ High Efficiency Converter IPower is a one of our 500W Pure Sine Wave Inverter Tools, you can buy 500W Pure Sine Wave Inverter 12V/24V Input 110VAC 120VAC 220VAC 230VAC Output 50HZ 60HZ High Efficiency Converter IPower from ukobd2.com.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150

images of 500W Pure Sine Wave Inverter 12V/24V Input 110VAC 120VAC 220VAC 230VAC Output 50HZ 60HZ High Efficiency Converter IPower

500W Pure Sine Wave Inverter 12V/24V Input  110VAC 120VAC 220VAC 230VAC Output 50HZ 60HZ High Efficiency Converter IPower500W Pure Sine Wave Inverter 12V/24V Input  110VAC 120VAC 220VAC 230VAC Output 50HZ 60HZ High Efficiency Converter IPower500W Pure Sine Wave Inverter 12V/24V Input  110VAC 120VAC 220VAC 230VAC Output 50HZ 60HZ High Efficiency Converter IPower500W Pure Sine Wave Inverter 12V/24V Input  110VAC 120VAC 220VAC 230VAC Output 50HZ 60HZ High Efficiency Converter IPower500W Pure Sine Wave Inverter 12V/24V Input  110VAC 120VAC 220VAC 230VAC Output 50HZ 60HZ High Efficiency Converter IPower500W Pure Sine Wave Inverter 12V/24V Input  110VAC 120VAC 220VAC 230VAC Output 50HZ 60HZ High Efficiency Converter IPower

500W Pure Sine Wave Inverter 12V/24V Input 110VAC 120VAC 220VAC 230VAC Output 50HZ 60HZ High Efficiency Converter IPower

Overview:

IPower series is a pure sine wave inverter which can convert 12/24Vdc into 110/120Vac 220/230Vac. It has the characteristics of concise outline, compact size, high reliability, high efficiency, easy to install and operate and so on. The inverter applicable to household emergency lighting system, vehicle mounted system and small field power supply, etc

Features:

Complete isolation-type inverter technology

Adoption of advanced SPWM technology, pure sine wave output

Low output harmonic distortion (THD≤5%)

Optional output voltage and frequency at 220/230Vac,50/60Hz

High conversion efficiency up to 91%~92%

USB output 5Vdc/1A

(Different batch have different version, sometimes have the USD port but sometimes do not have it, we will send randomly, please note!)

Extensive Electronic protection

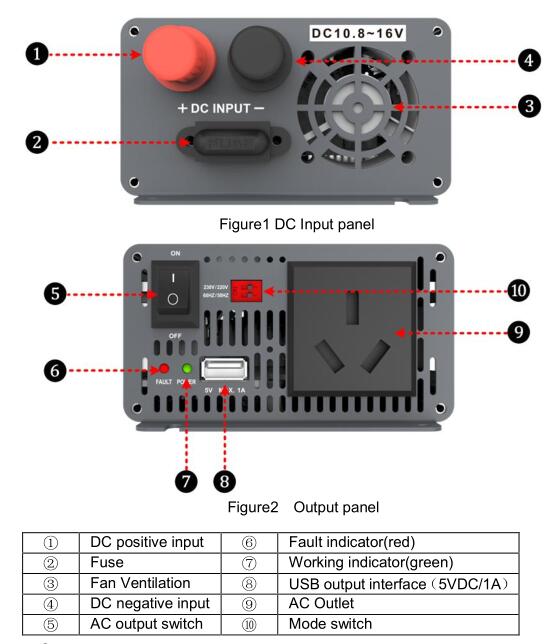

Product Features:

Note:12V system input voltage range is 10.8 ~16V; 24V system input voltage range is 21.6 ~32V.

1) Fan Ventilation

When the heat sink temperature is more than 40°Cor internal temperature is more than 45°C, the fan will turn on automatically.When the heat sink temperature is lower than 35℃ and internal temperature is lower than 40°C, the fan will turn off automatically.

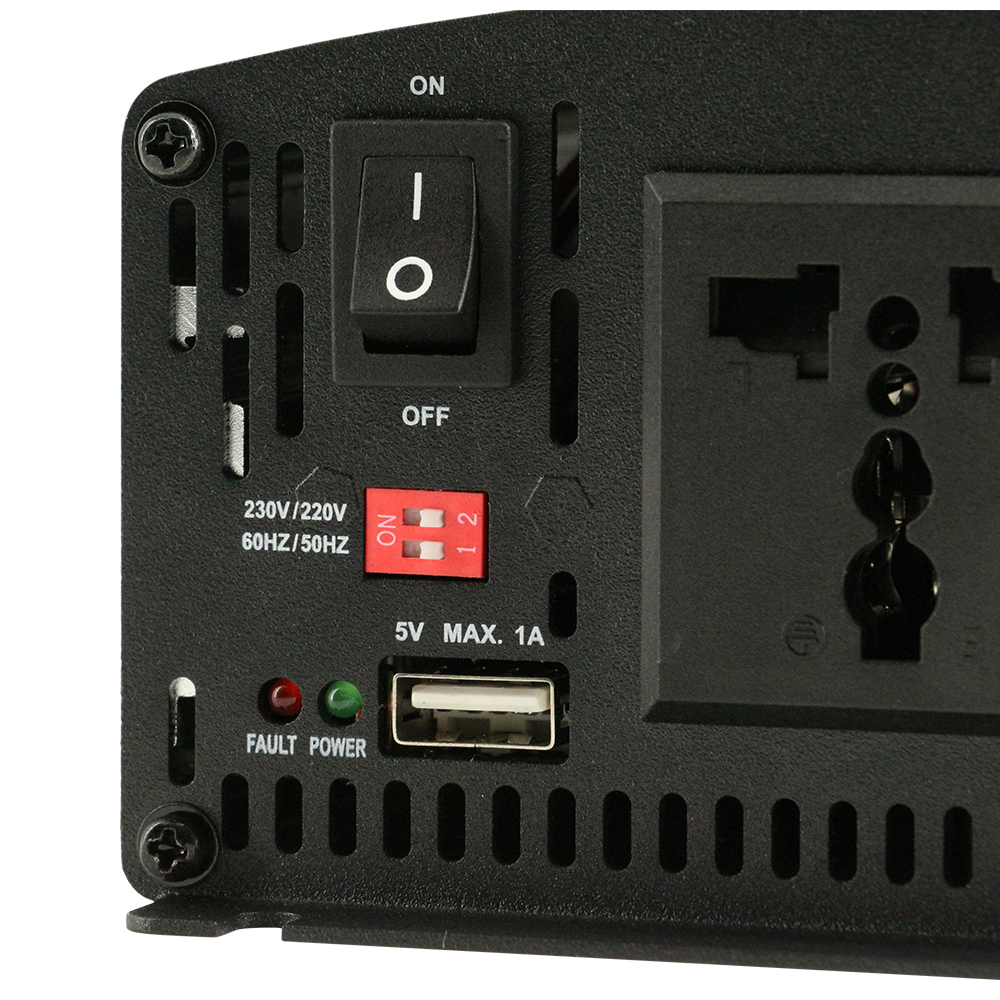

2) Mode Switch

The output mode can be changed by the mode switch. This mode can be switched online.

When the switch No.1 is on the ON side, output frequency is 60Hz, otherwise is 50Hz.
When the switch No.2 is on the ON side, the output voltage is 230Vac,otherwise is 220Vac.
same in 110Vac/120Vac

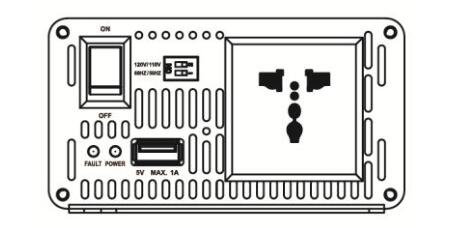

3)AC Outlet

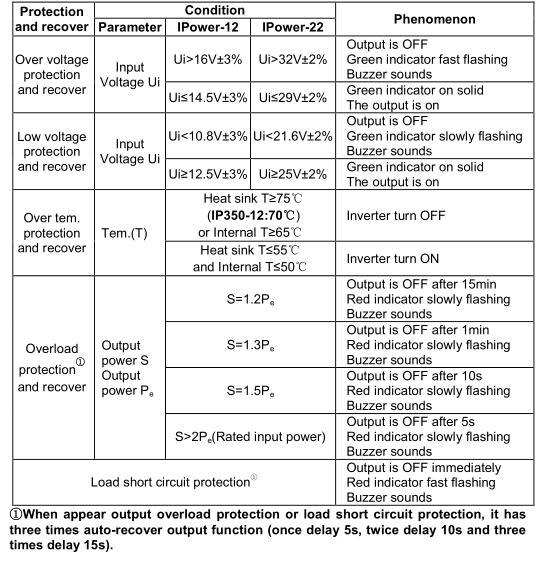

Protection:

Technical Specifications:

Model

IP500-11

IP500-12

IP500-21

IP500-22

Input Rated Voltage

12VDC

24VDC

Input Voltage Range

10.8~16VDC

21.6~32VDC

Input surge voltage

< 32V

< 44V

Fuse

2*32VDC/35A

2*32VDC/25A

No-load current

< 0.9A

< 0.5A

Output Voltage

110VAC(±5%)
120VAC(-10%~+5%)

220VAC(±5%)
230VAC(-10%~+5%)

110VAC(±5%)
120VAC(-10%~+5%)

220VAC(±5%)
230VAC(-10%~+5%)

Output Continuous Power(-20°C~+45°C)

500VA

Power factor

0.8

Instantaneous impact power

≥1000VA

Output way

Single phase

Output Wave

Pure sine wave

Output Frequency

50/60Hz(±0.2%)

Distortion THD

THD≤5%(Resistive load)

Max. Efficiency

91%

92%

91%

92%

Max. USB Output

5VDC/1A

Working environment temperature

-20°C~+45°C

Storage temperature range

-35°C~+70°C

Humidity range

≤93%(N.C.)

Enclosure

IP20

Altitude

<2000m(Derating to operate according to IEC62040 at a height exceeding 1000 m)

DC input terminal

6mm 2

Overall dimension

232.2×132×74.5mm

Mounting dimension

205×102mm

Mounting hole size

Φ5.2mm

Net weight

1.40kg

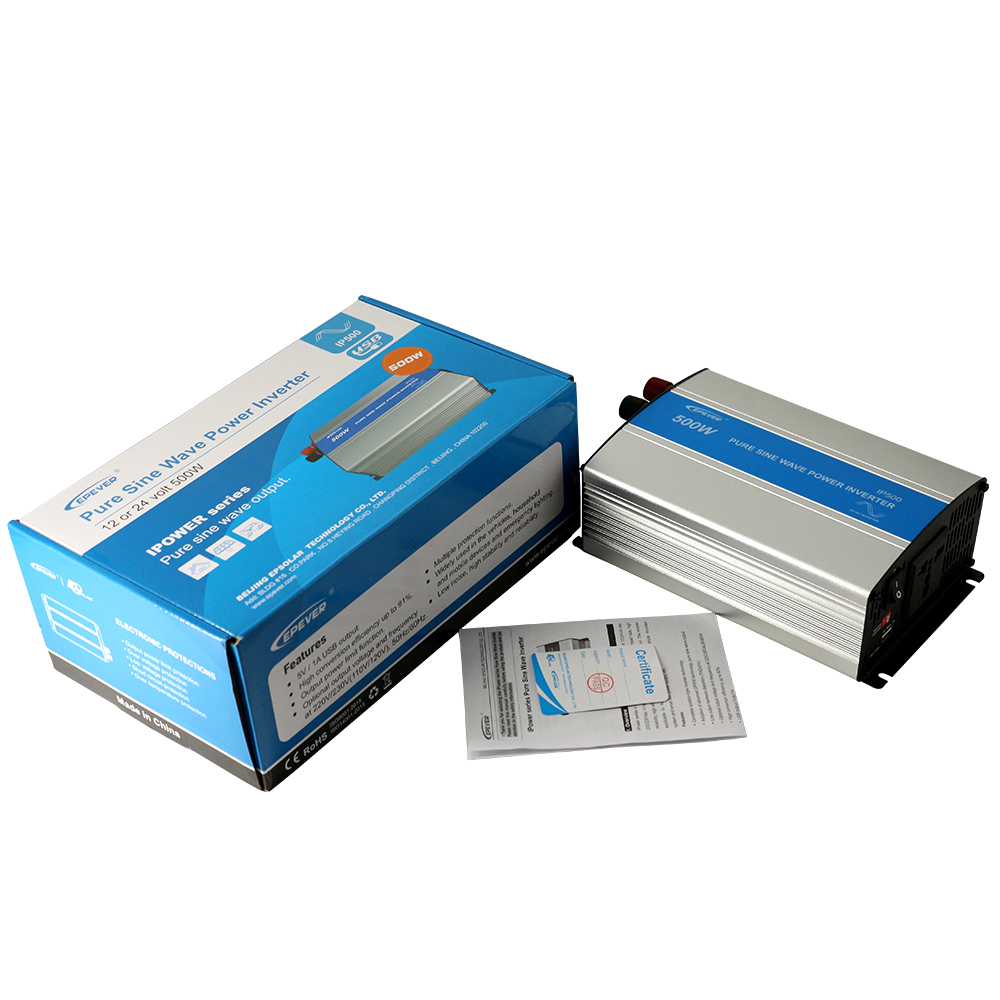

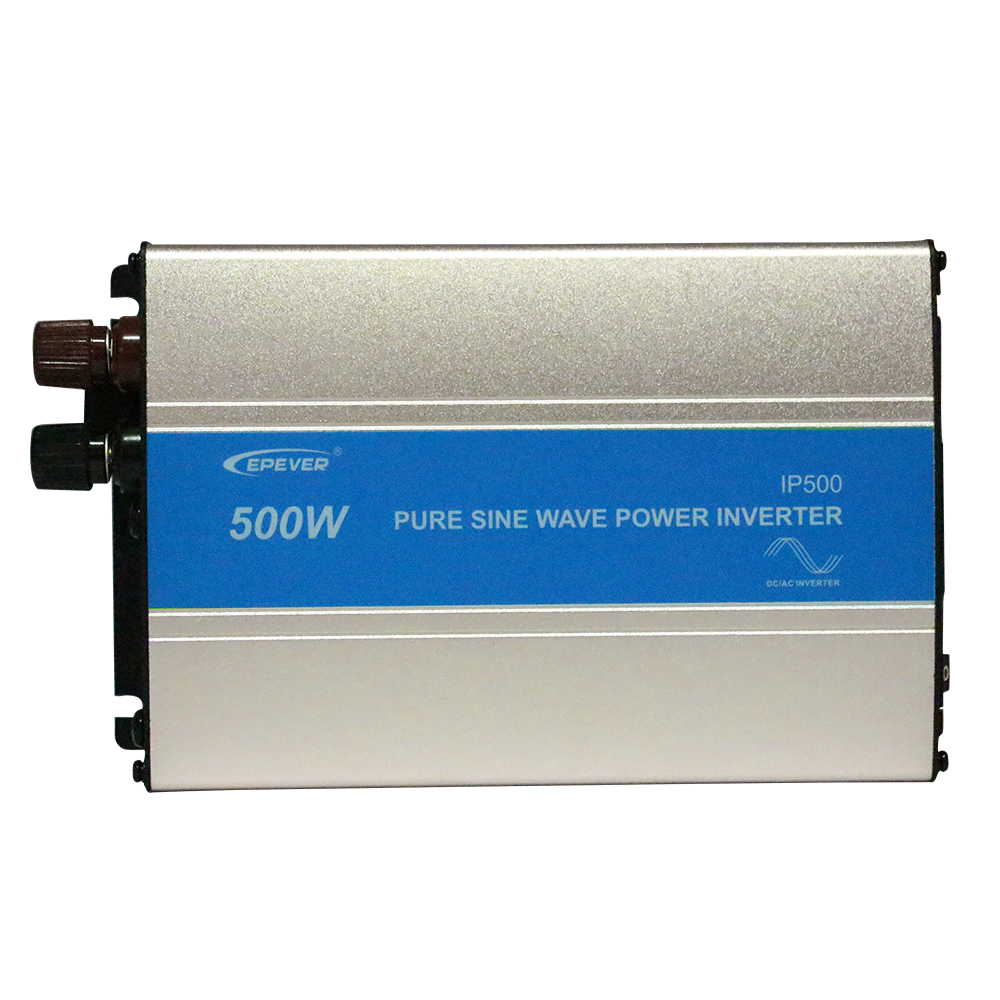

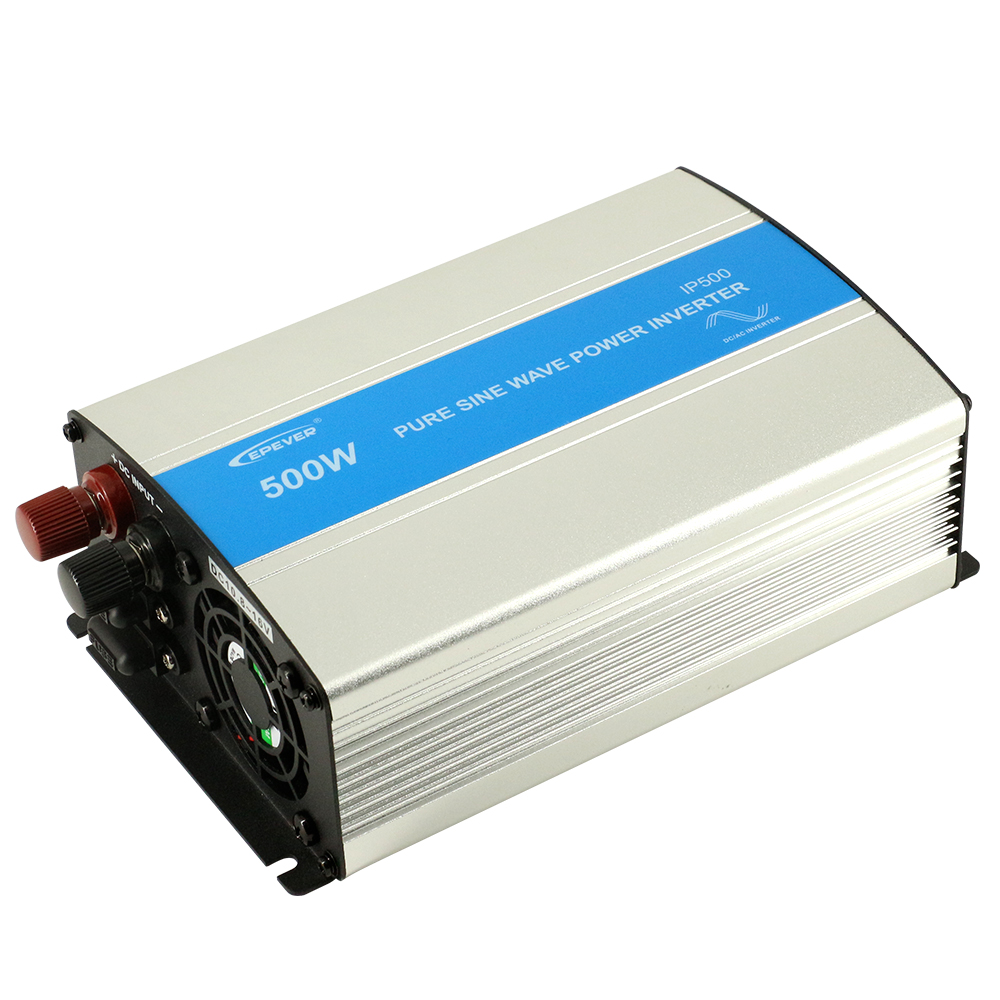

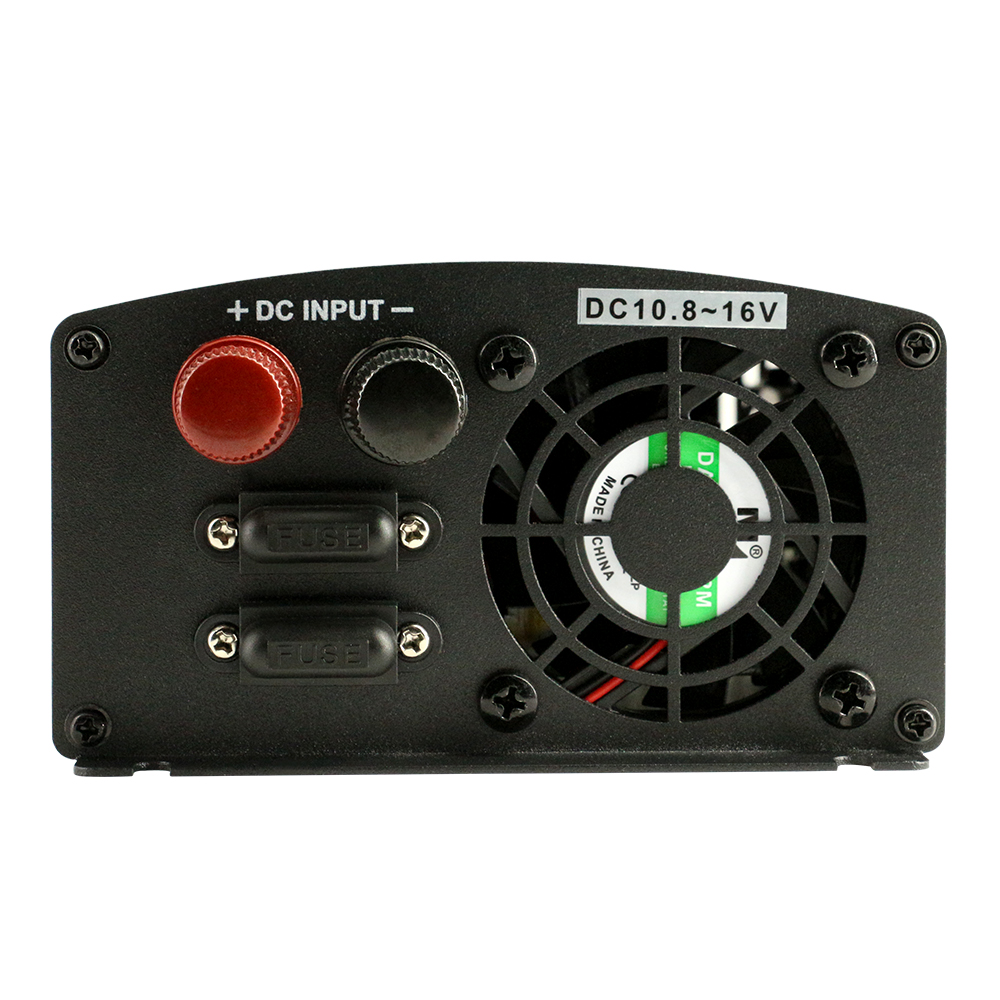

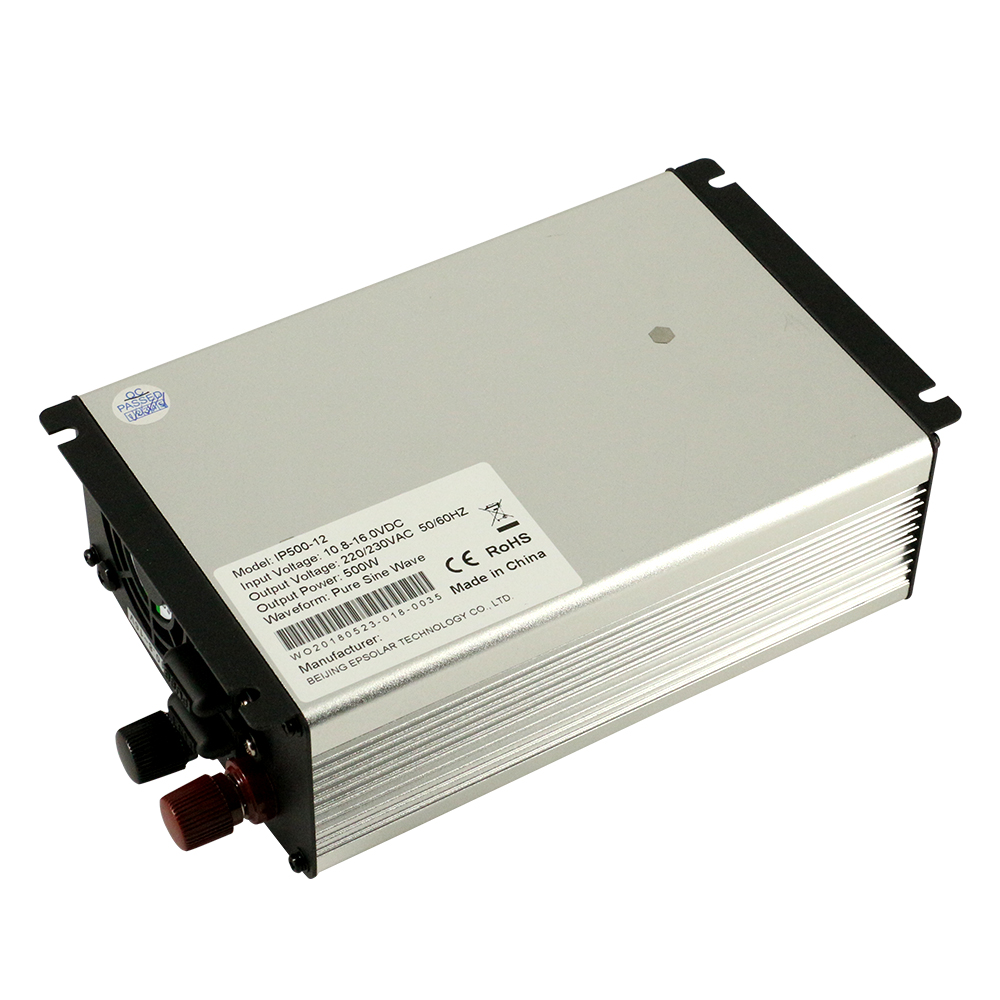

Photo:

Go to Buy: 500W Pure Sine Wave Inverter 12V/24V Input 110VAC 120VAC 220VAC 230VAC Output 50HZ 60HZ High Efficiency Converter IPower
