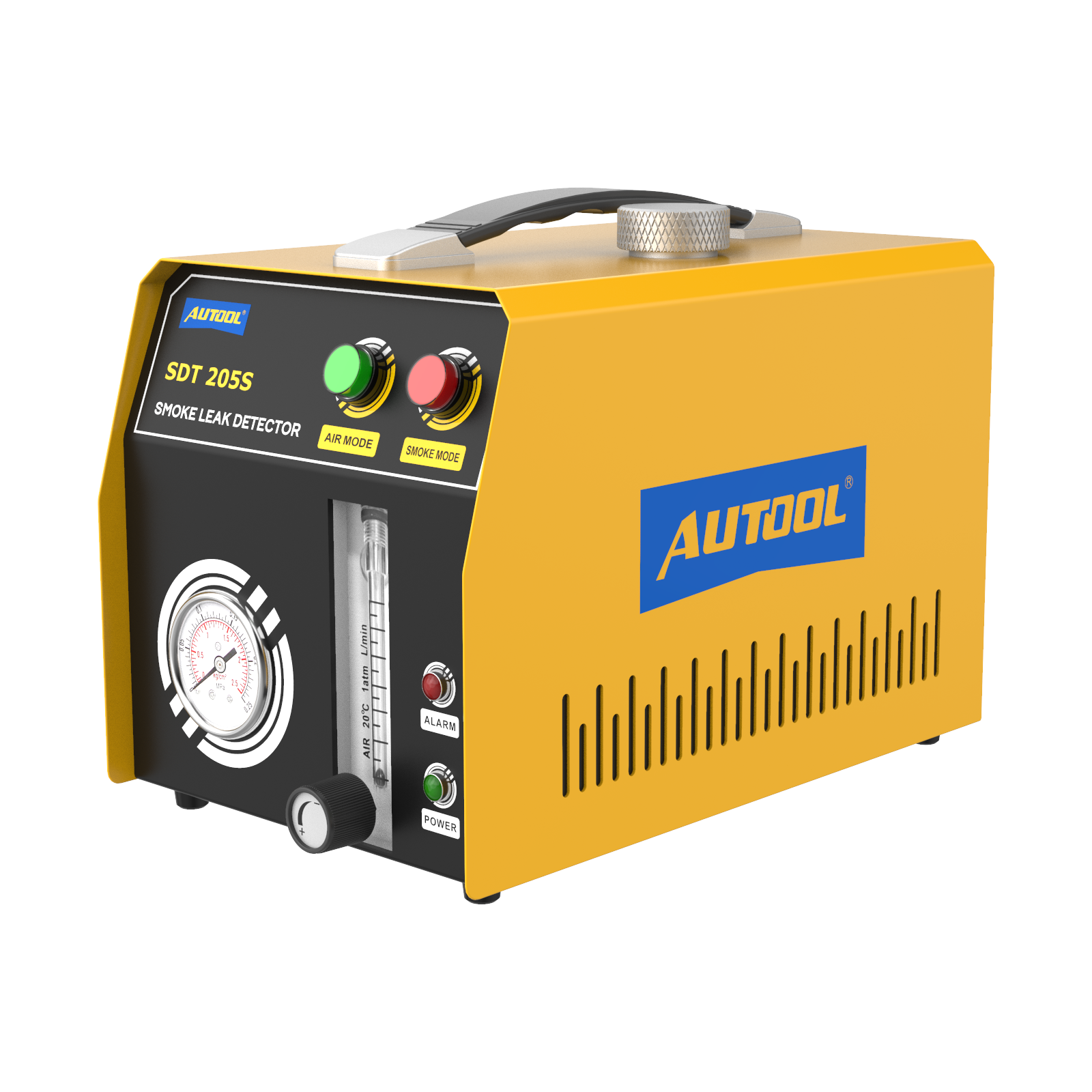

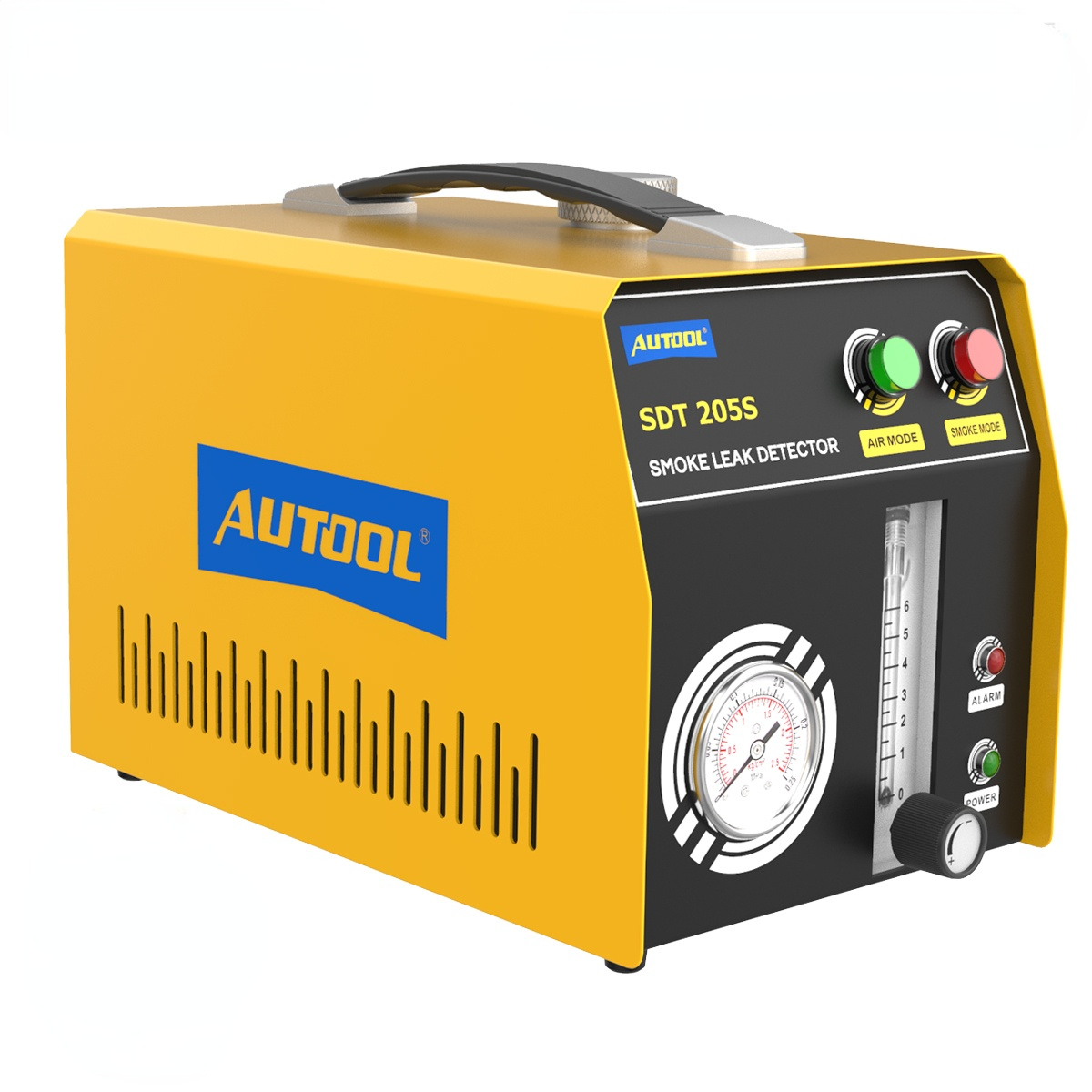

AUTOOL SDT205S Car Smoke Leak Detector

AUTOOL SDT205S Car Smoke Leak Detector Automotive Car Truck ATVs EVAP System Pipe Leakage Locator Analyzer Diagnostic Tool 15psi

Descriptions :

AUTOOL Upgraded SDT 205S Car Smoke Leak Detector is a professional auto pipe leak detect tool. It will help us position cars motorcycles leakage on the pipe systems quickly and exactly, such as Intake System Test, Exhaust Systems Test, Cooling System Test, Crankcase system test,Car Sealing Test, Fuel Tank System Test, Turbo System Test,Various Pipe Fittings Test.

AUTOOL SDT205S Car Smoke Leak Detector

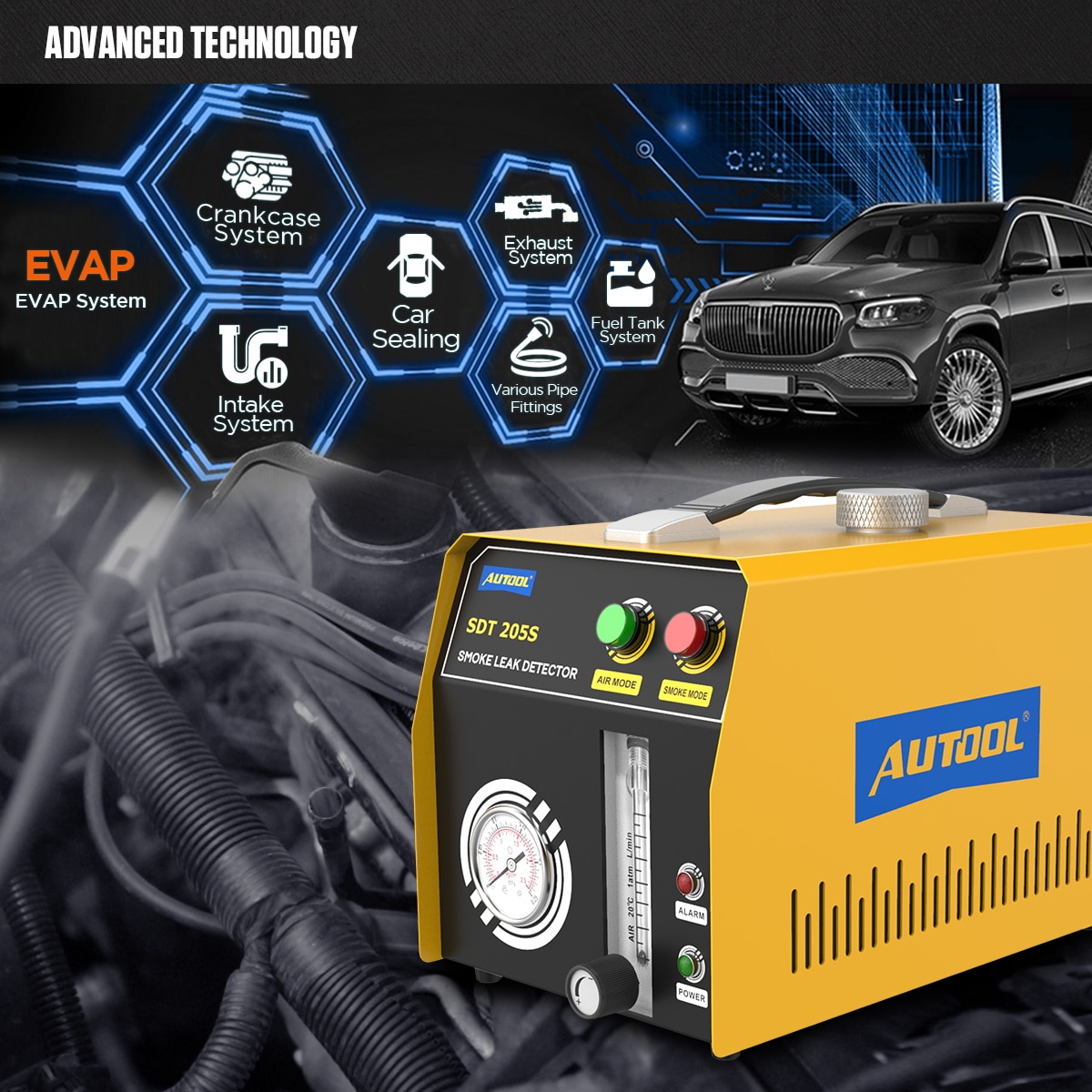

Advanced Technology

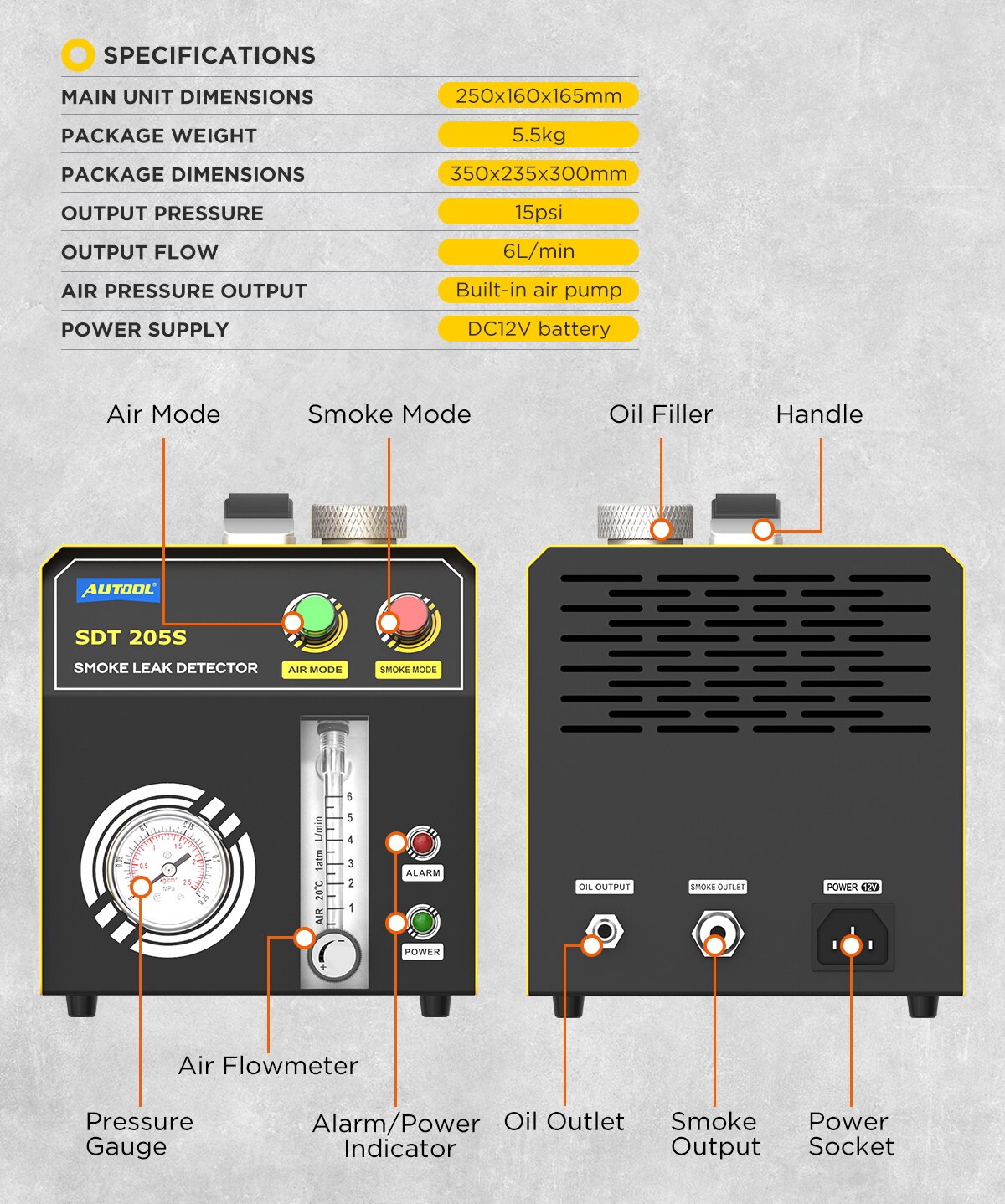

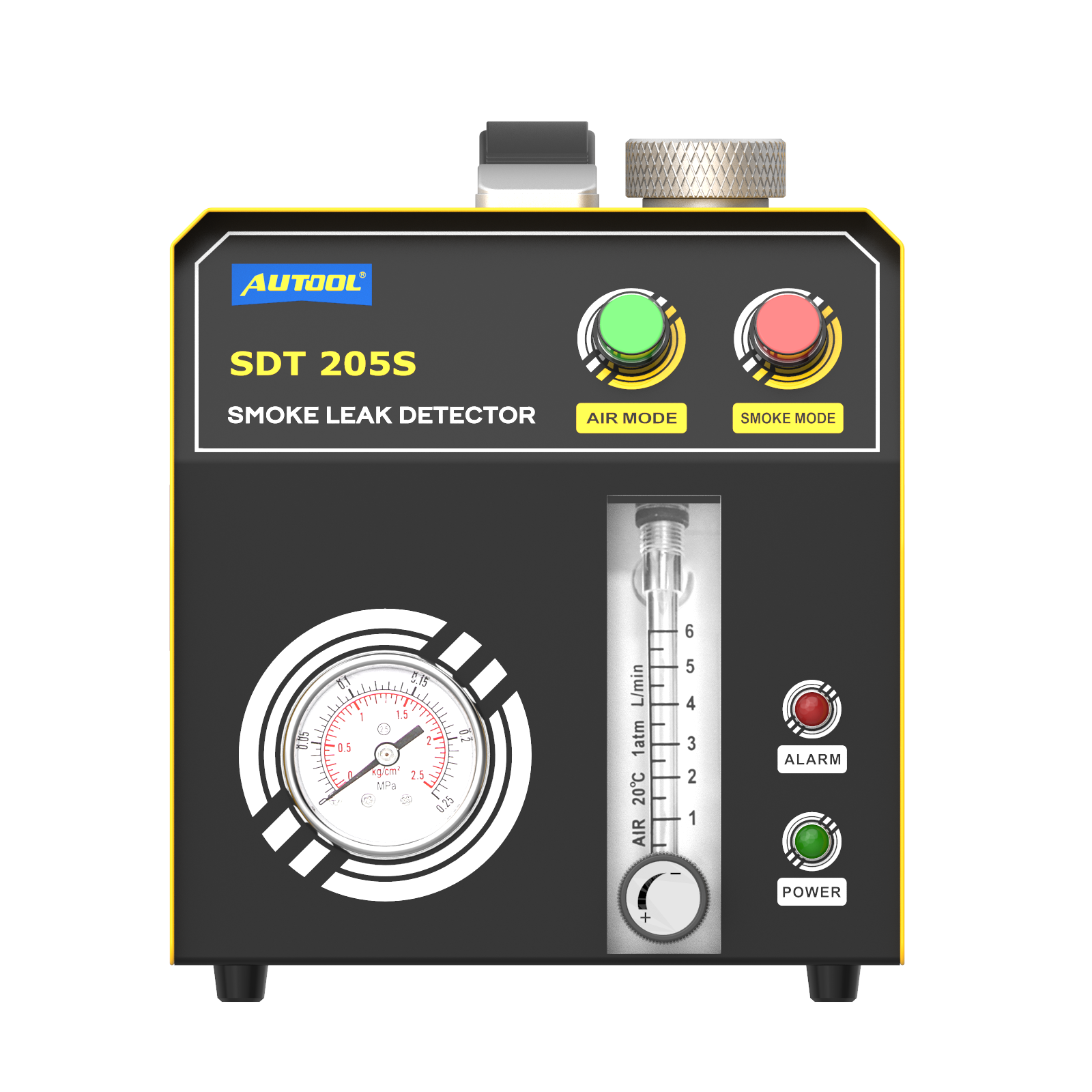

It works on the EVAP system. (Provided with another version that specially designed for EVAP system). Equipped with dual flow meters for accurate data display & Independently controlled Air mode and Smoke mode.

AUTOOL SDT205S Car Smoke Leak Detector

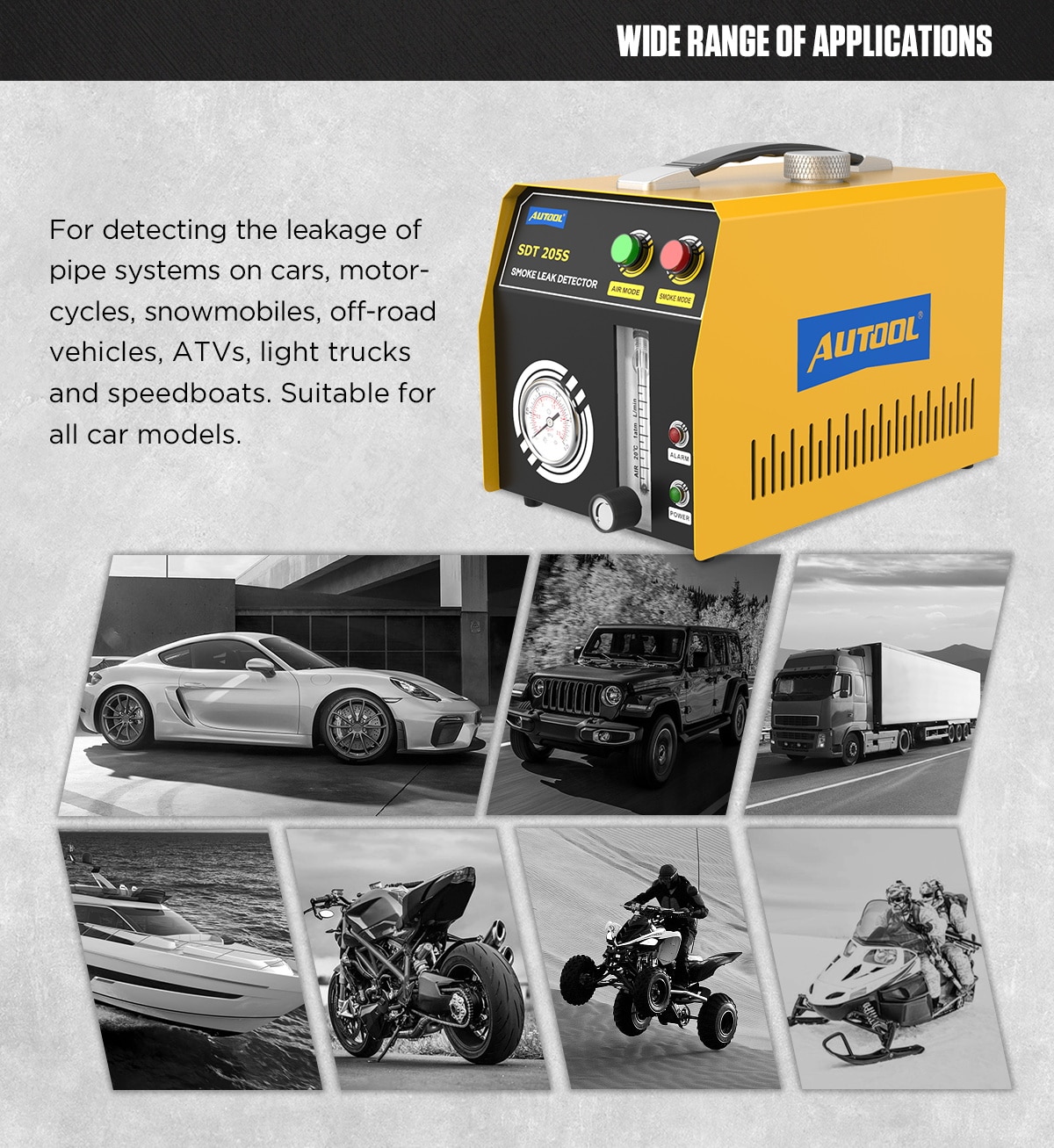

Wide Range of Applications

For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light Trucks and speedboats boats. Suitable for all car models.AUTOOL SDT205S Car Smoke Leak Detector

independent switch control design

AUTOOL SDT205S Car Smoke Leak Detector

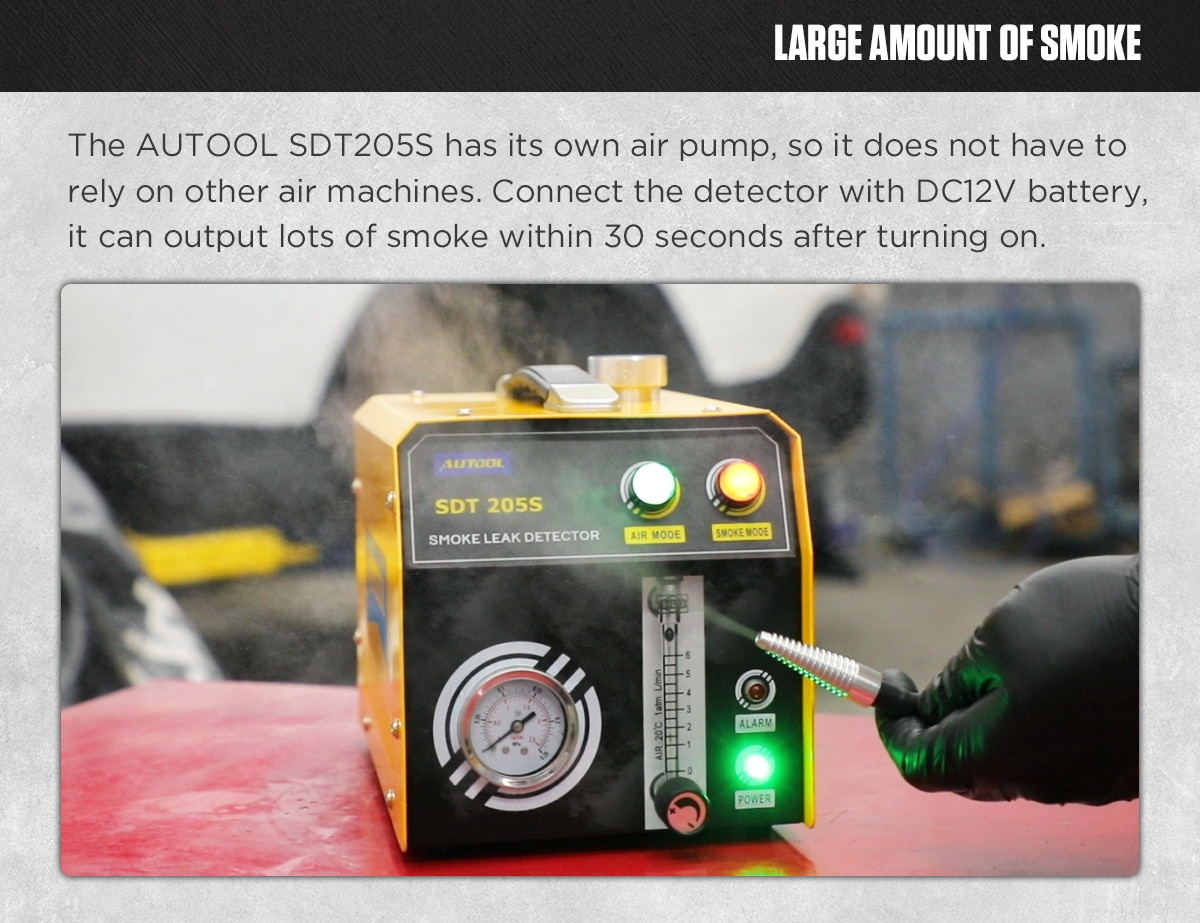

Large Amount Of Smoke

AUTOOL SDT205S Car Smoke Leak Detector Overheat & Anti-frost Protection

This smoke detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power to secure the safety of both the operator and device.

Caution:

1.When you use this AUTOOL SDT 205S Car Smoke Leak Detector for the first time, fill with 20ml oil .

Please be careful NOT to beyond this range.

2.The testing liquid : both liquid paraffin and baby oil are OK.

3.Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.

4.Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.

5.During the process of leak detection, please keep away from smoke-sensitive parts.

6.Do NOT run the detector over 8 minutes continuously. It needs interval rest.

7.The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.

8.The round part of this detector has temperature, please be careful to avoid burns.

9.If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.

AUTOOL SDT205S Car Smoke Leak Detector

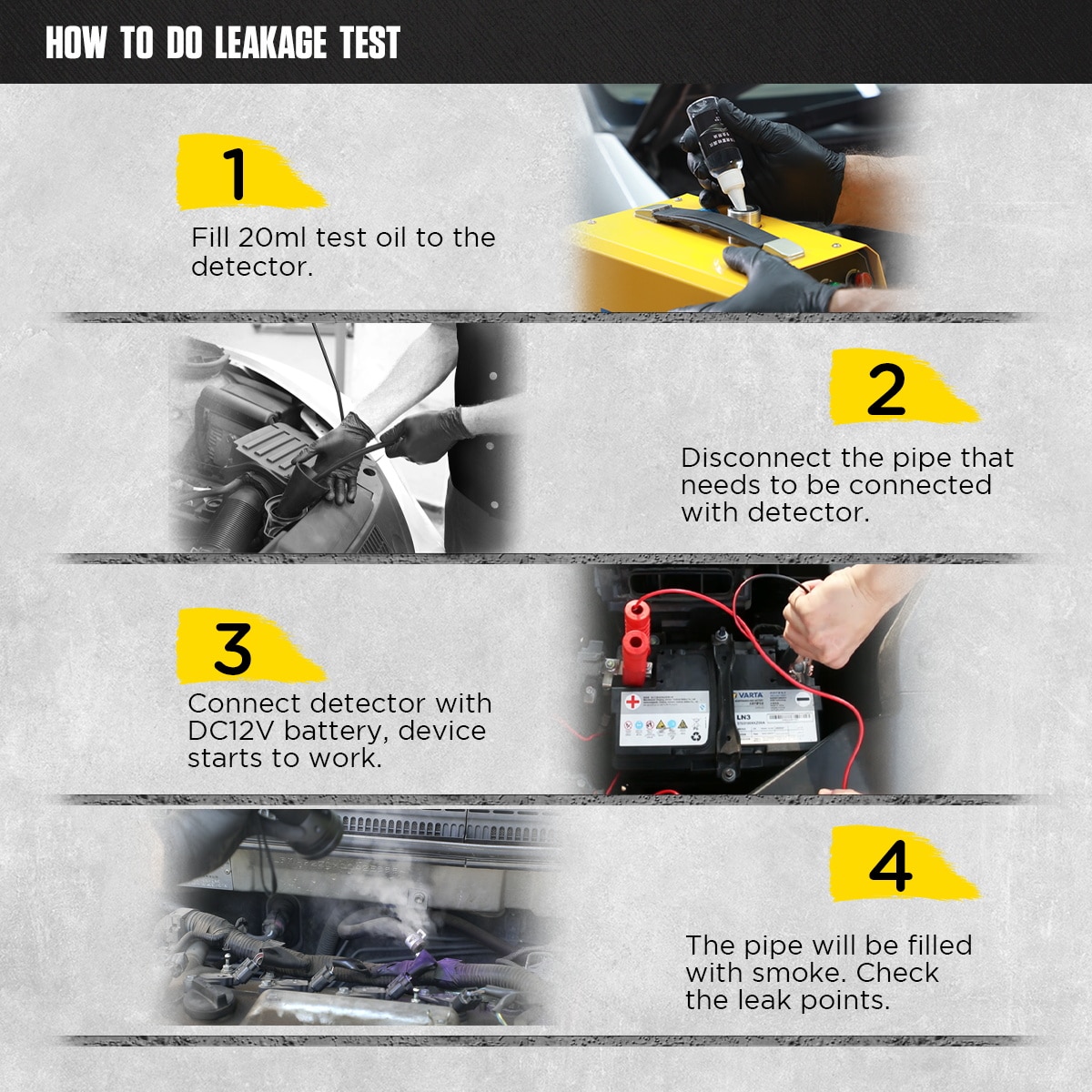

How to do leakage test?

1. Fill 20ml baby oil to the detector for the first time. Open the engine cover, and hang the detector in the cover.

2. Disconnect the pipe that needs to be connected with detector.

3. Connect detector with DC12V battery, turn on the power switch, and the detector starts to work.

4. In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary.

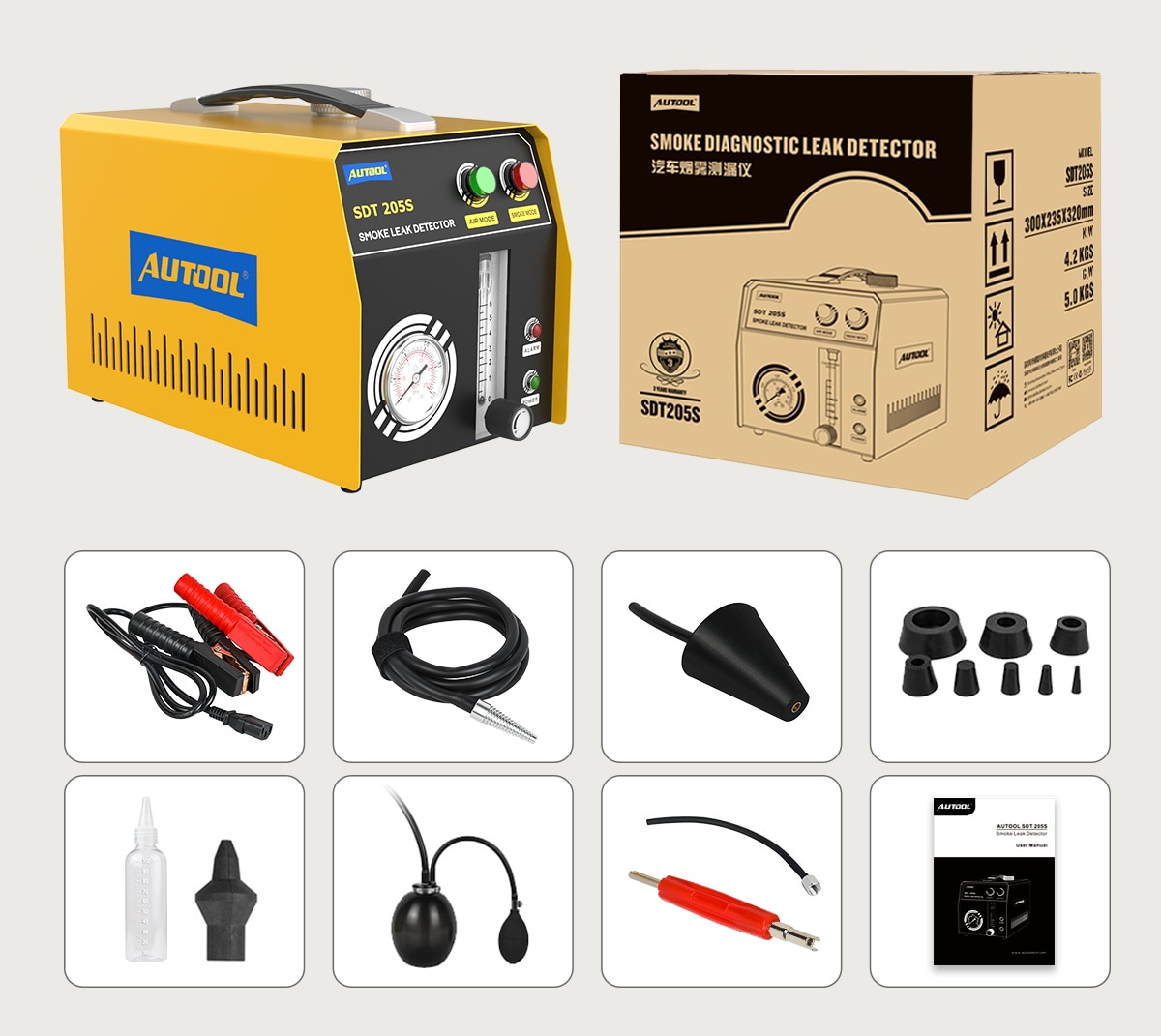

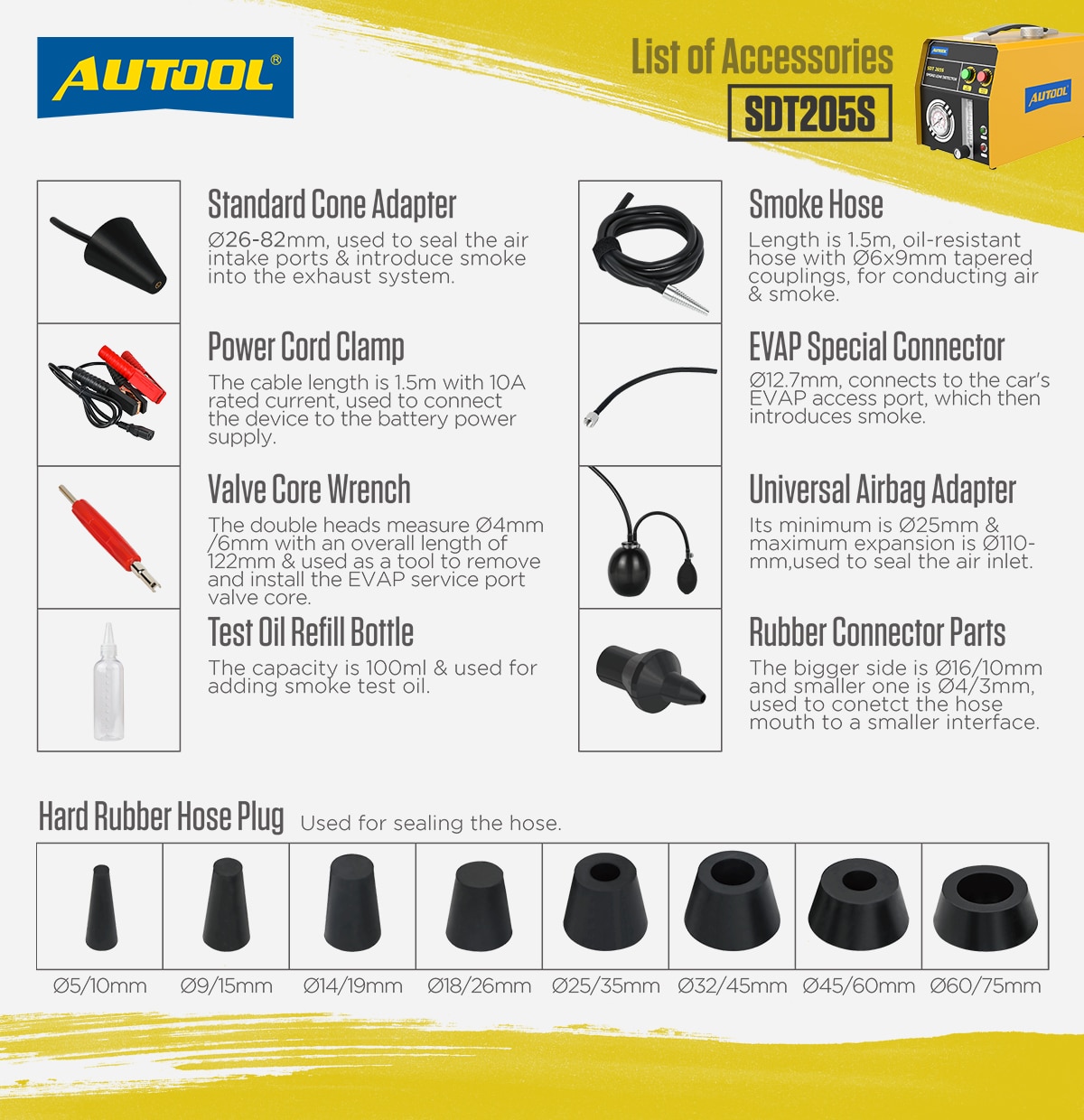

AUTOOL SDT205S Car Smoke Leak Detector Packing List:

1pc * AUTOOL SDT 205S Car Smoke Leak Detector Main Unit

1pc * Hook (with hand-tighten nuts)

1pc * Rubber Connect Parts

1sets * Hard Rubber Hose Plug (with serial specification)

1sets * Soft Rubber Hose Plug (with serial specification)

1pc * Standard Cone Adapter

1pc * Universal Airbag Adapter

1pc * Power Cord Clamp

1pc * Valve Core Wrench

1pc * Test Oil Refill Bottle(oil not included)

1pc * EVAP Special Connector

1pc * Smoke Hose

1pc * User ManualAUTOOL SDT205S Car Smoke Leak Detector AUTOOL SDT205S Car Smoke Leak Detector AUTOOL SDT205S Car Smoke Leak Detector AUTOOL SDT205S Car Smoke Leak Detector AUTOOL SDT205S Car Smoke Leak Detector AUTOOL SDT205S Car Smoke Leak Detector
