Autel MaxiScope

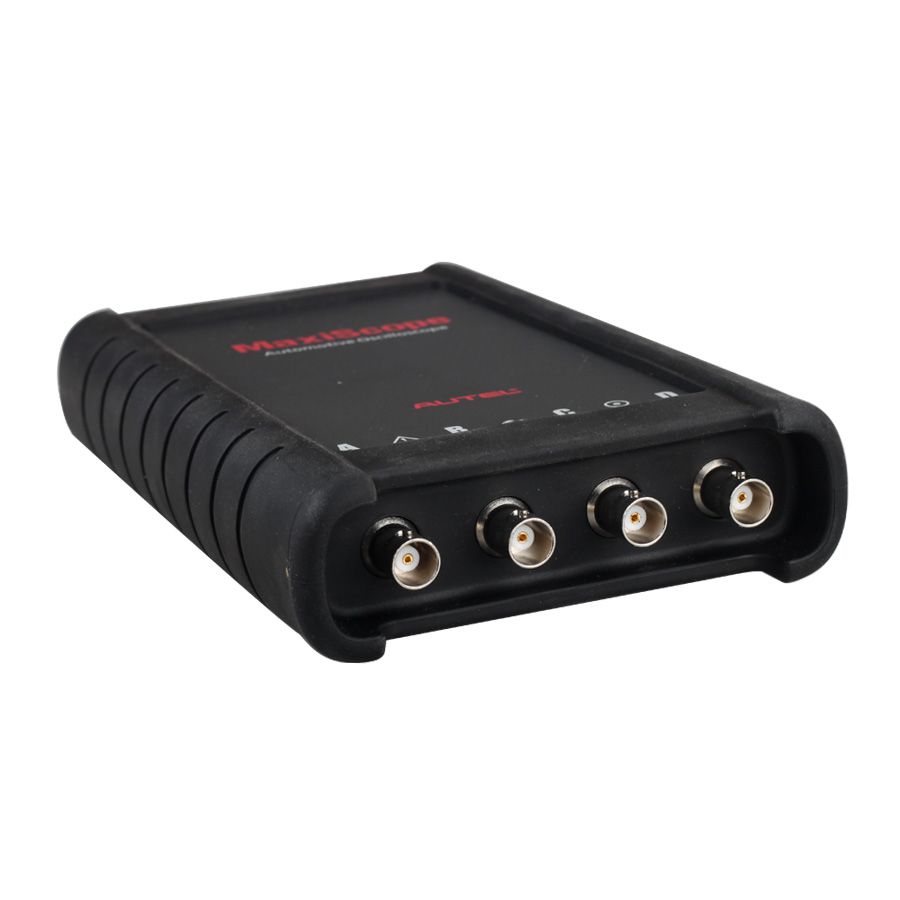

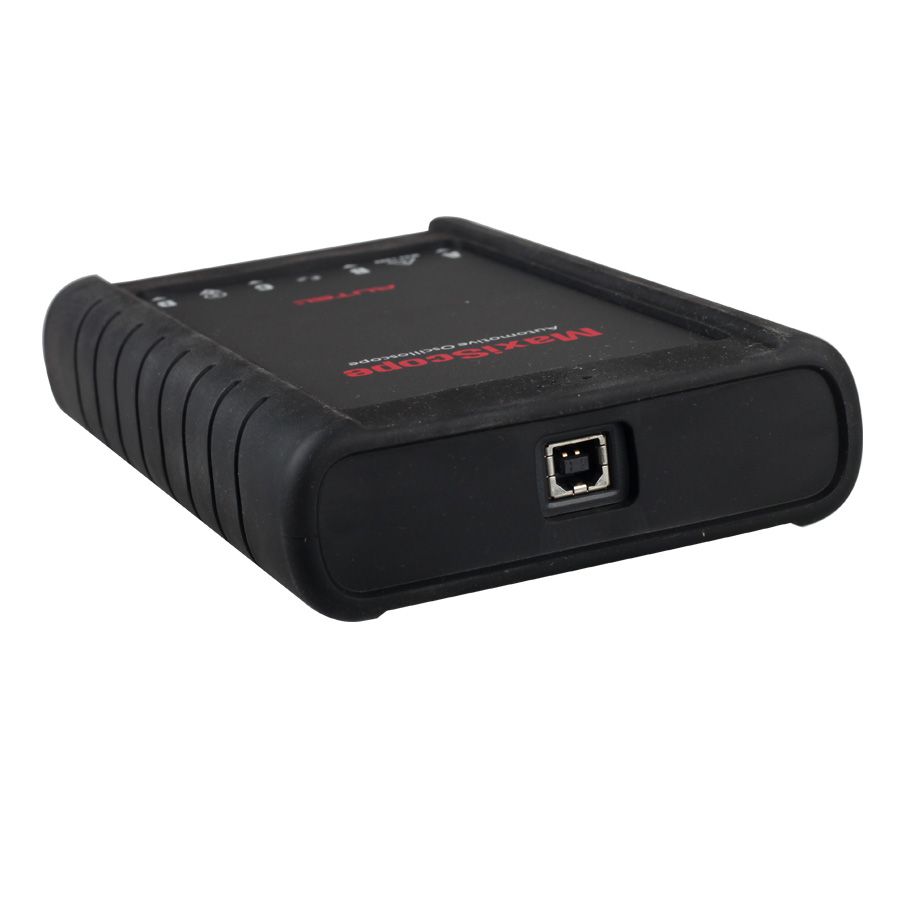

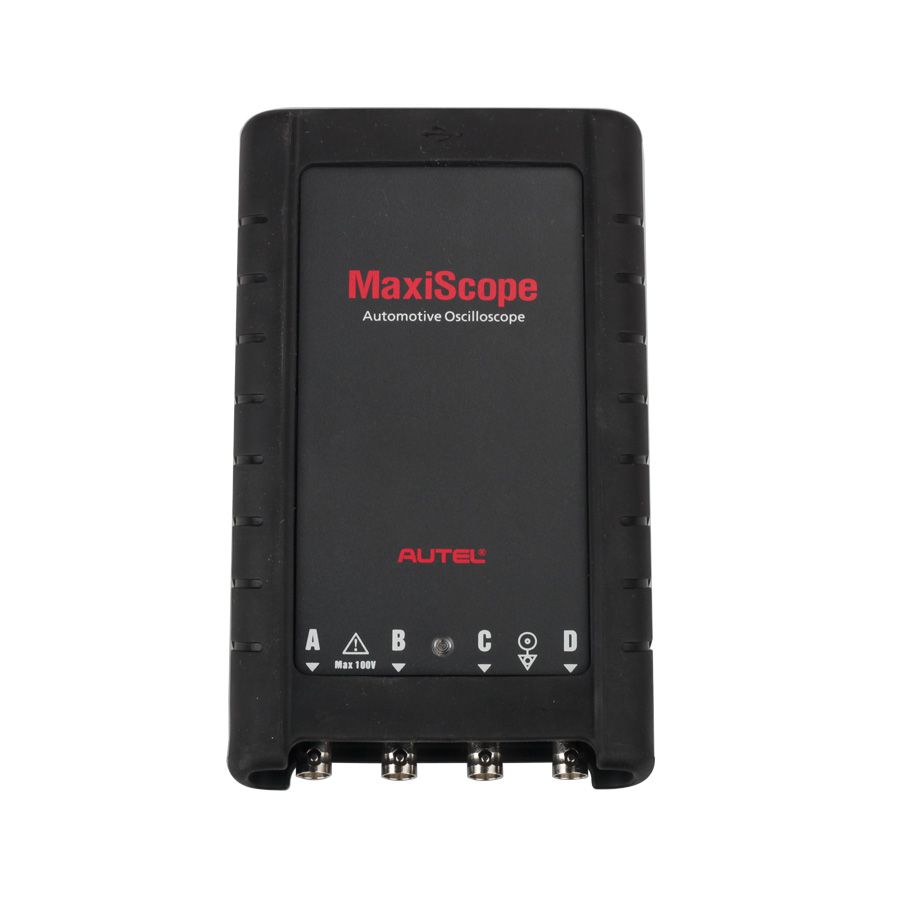

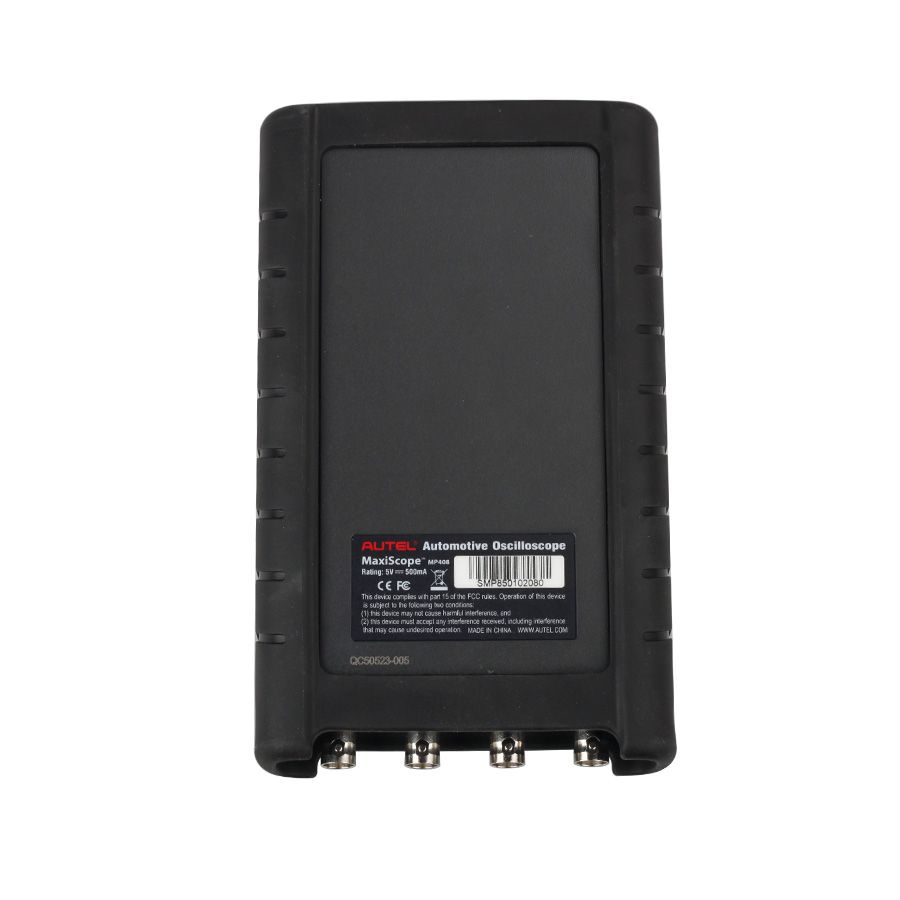

The MaxiScope MP408 is a PC based 4-channel automotive oscilloscope. It works in combination with your PC or MaxiSys Tablet, which turns into a powerful diagnostic tool, providing you an insight to the inner workings of a vehicle’s electronic circuits.
Autel MaxiScope MP408 4 Channel Automotive Oscilloscope Basic Kit Works with Maxisys Tool is a one of our Autel MaxiScope Tools, you can buy Autel MaxiScope MP408 4 Channel Automotive Oscilloscope Basic Kit Works with Maxisys Tool from ukobd2.com.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150
images of Autel MaxiScope MP408 4 Channel Automotive Oscilloscope Basic Kit Works with Maxisys Tool
Autel MaxiScope MP408 4 Channel Automotive Oscilloscope Basic Kit
Works with Maxisys Tool
The MP408 can work together with MS906BT, MS906TS, MAXISYS, MAIXSYS PRO, MAXISYS ELITE & Maxisys mini.
Featuring a user-friendly UI design combined with unrivalled hardware specifications, the MP408 system is able to measure and test virtually all electrical and electronic components and circuits in any modern vehicle. Power for the MaxiScope MP408 Module comes directly from the USB port of the connected PC, making the system highly versatile and portable.
Features and Functions
- One-click auto setup of voltage scale and time base
- Works on all makes and models of modern vehicles
- Compatible with LIN, CAN, and FlexRay data bus standards
- Reads and displays electrical signals in high-resolution waveforms
- Allows manual editing of measurement parameter display
- Records and plays back waveform data
- Color-coded 4-channel control panel
- Intuitive UI design with easy trigger point adjustment and real-time scale information display
- Direct power supply through USB connection
- Free online software updates via the Internet
- Portable design with strong housing and protective rubber boot
How to Install MaxiScope MP408 PC Software
- Download the MaxiScope PC Suite from www.autel.com → Products → MaxiScope MP408 → Downloads.
- Unzip the downloaded file, and click setup.exe to install the software, then click Next to continue.
- Click the Browse button, select a destination folder to install the program, and click Next to continue. Or click Next directly to use the default installation folder.
- Click Install and the Setup.exe program will be installed onto the computer.
Specifications
- Vertical resolution: 12 bits
- Channels: 4
- Bandwidth: 20 MHz
- Accuracy: 1%
- Sensitivity: 10 mV/div to 20 V/div
- PC Interface: USB 2.0 – Cable supplied
- Power Requirements: Powered from USB port
- Input Ranges (full scale): ±50 mV to ±100 V in 11 ranges
- Input Impedance: 1 MΩ in parallel with 22 pF
- Input Type: Single-ended, BNC connector
- Input Coupling: Software selectable AC/DC
- Overload Protection: ±200 V on single input
- Buffer Memory: 32M samples shared among active channels
- Waveform Buffer: Up to 1000 waveforms
- Timebase Ranges: 100 ns/div to 1000 s/div
- Operating Temperature Range: 0°C to 50°C (15°C to 40°C for quoted accuracy)
- Storage Temperature Range: -20°C to +60°C
- Storage Humidity Range: 5% to 95% RH, non-condensing
- Maximum Sampling Rate (Single Shot):
- 1 or 2 channels in use: 80 MS/s
- 3 or 4 channels in use: 20 MS/s

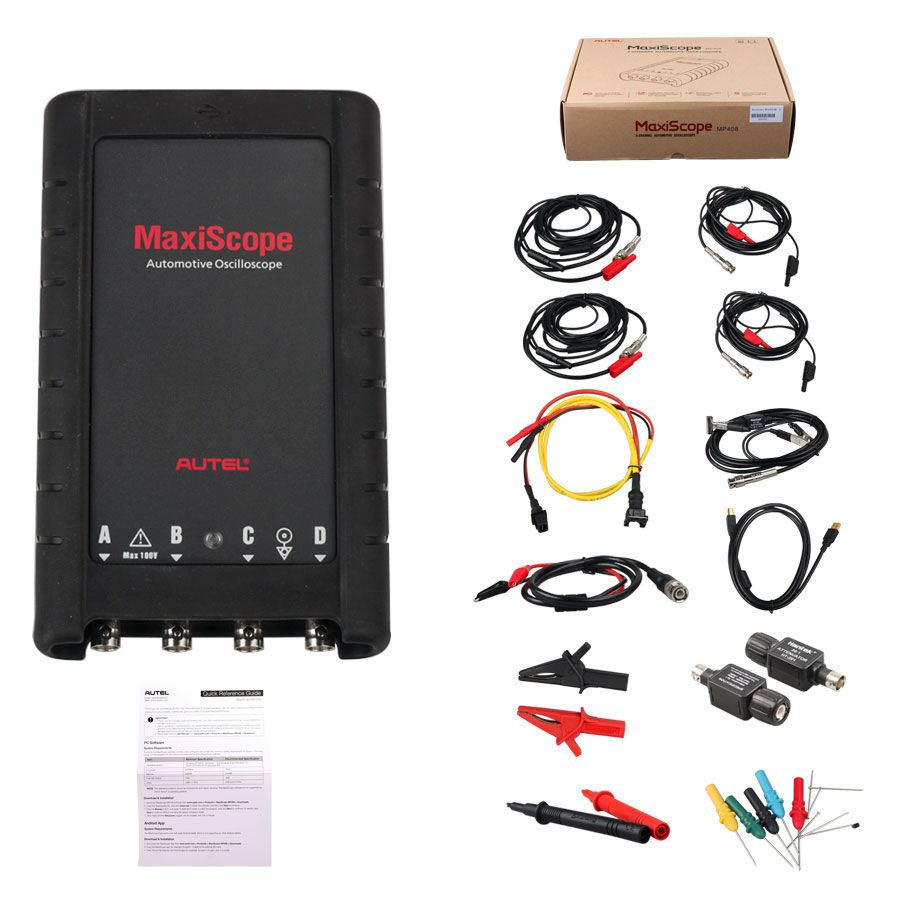

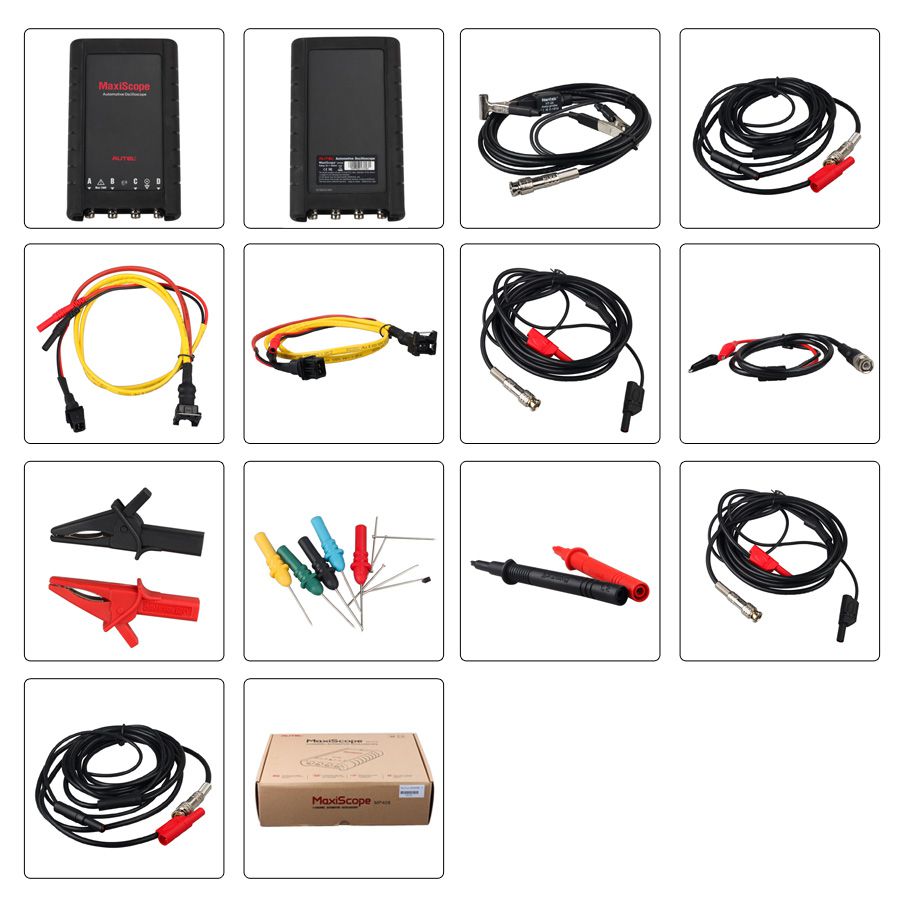

Package Includes
- 1 pcs × Autel MaxiScope MP408 Interface
- 1 pcs × Compact Disc (CD)

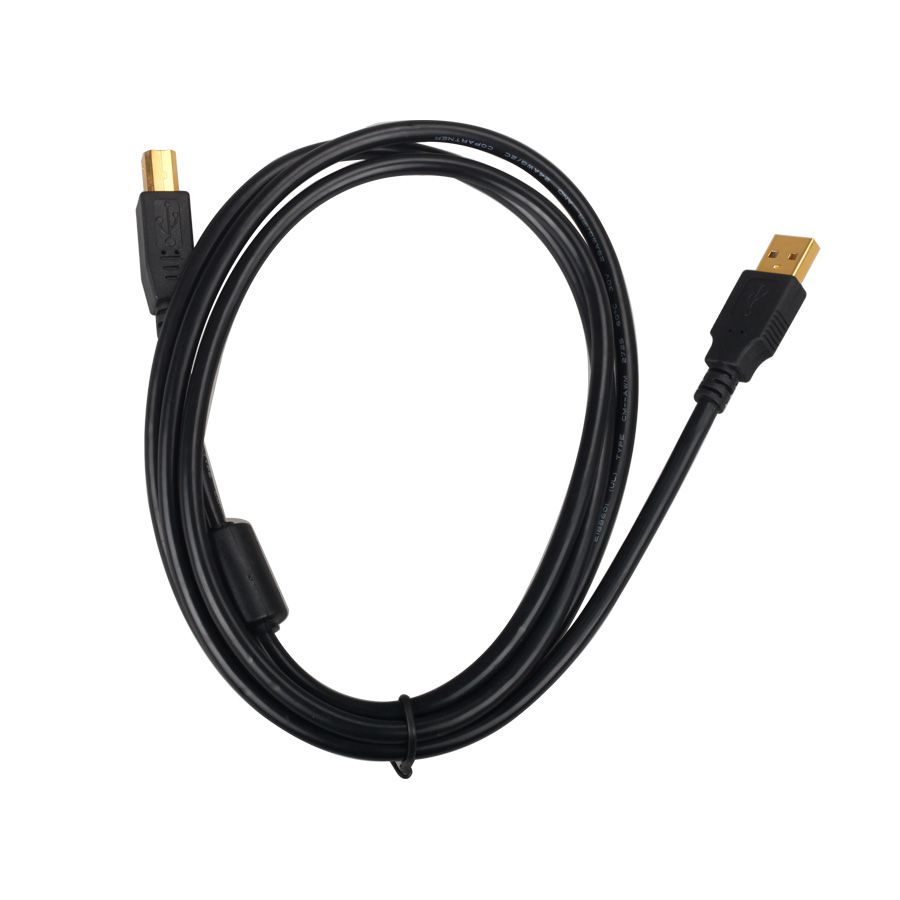

- 1 pcs × 1.5 m USB Cable

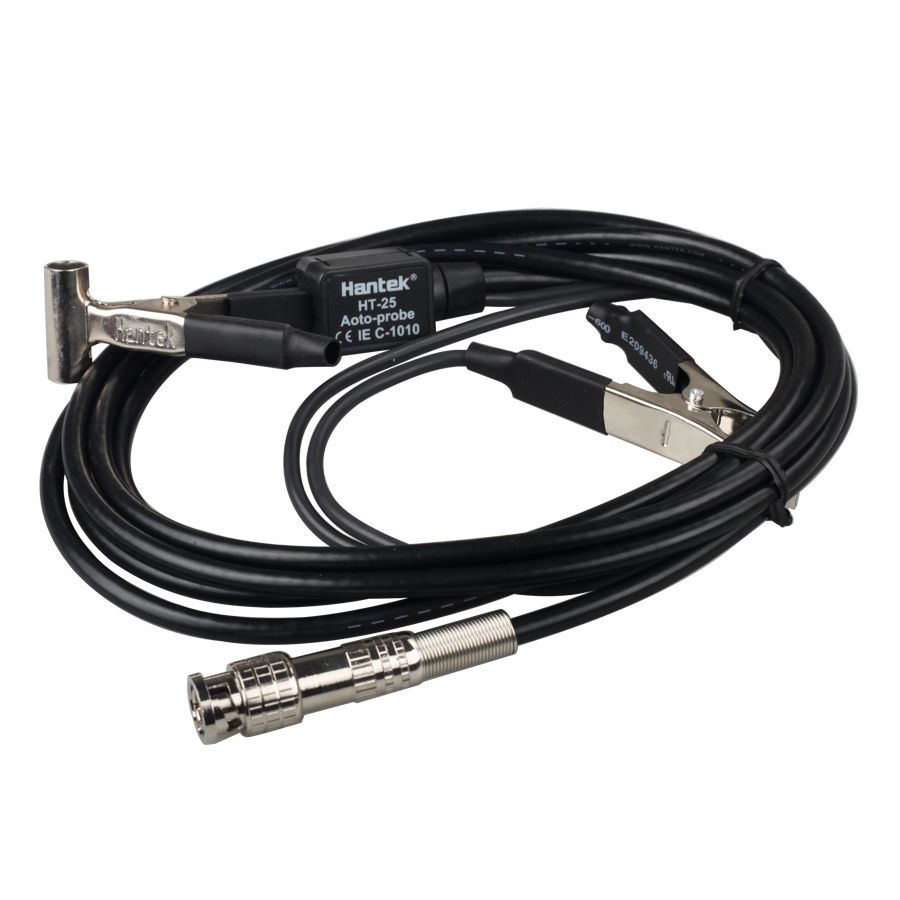

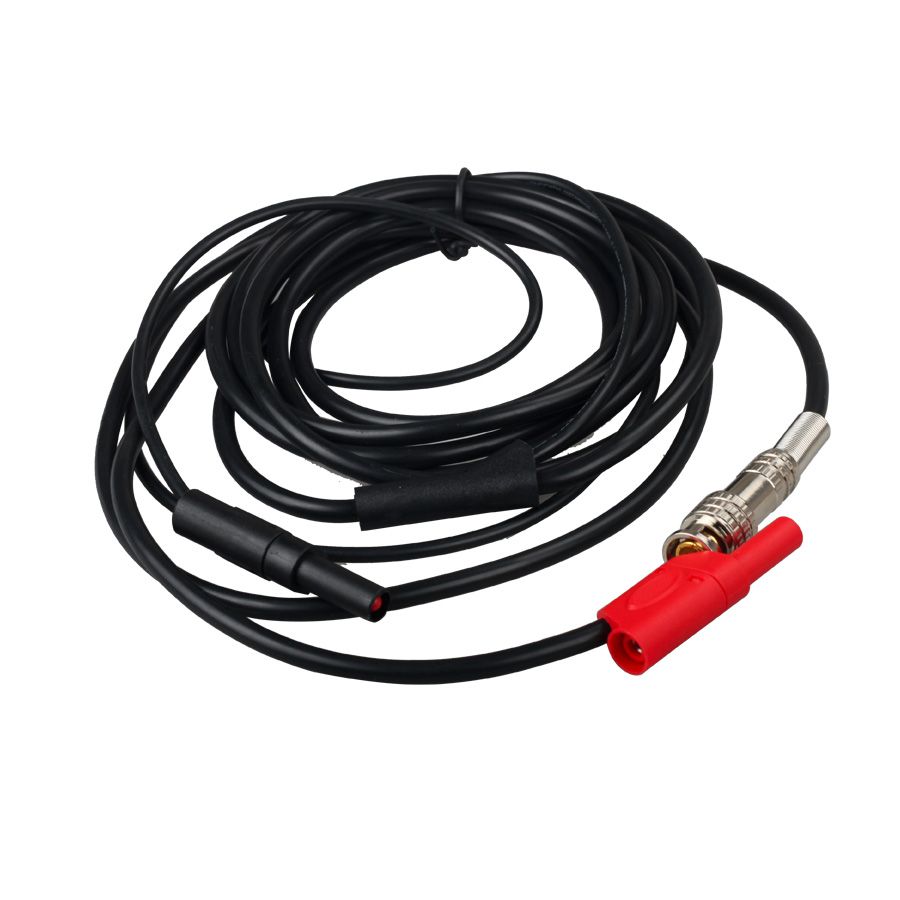

- 4 pcs × 3 m (10 ft) Screened Test Leads
- 1 pcs × Secondary Ignition Pickup

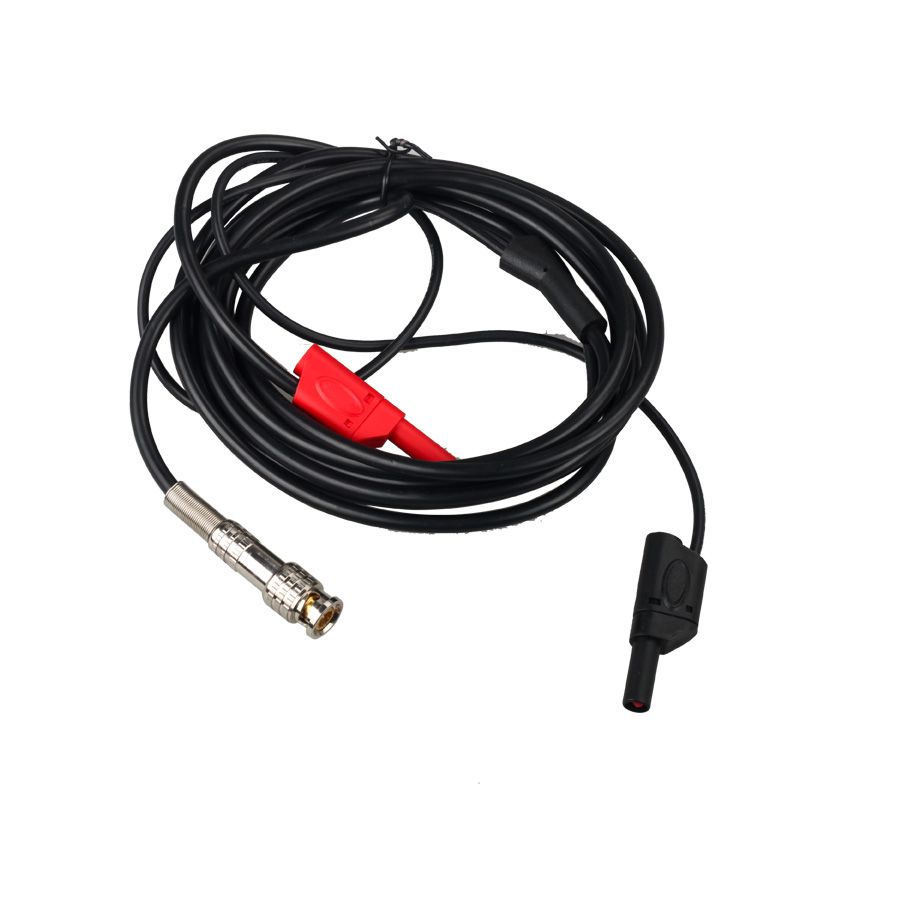

- 1 pcs × 2-pin Breakout Lead

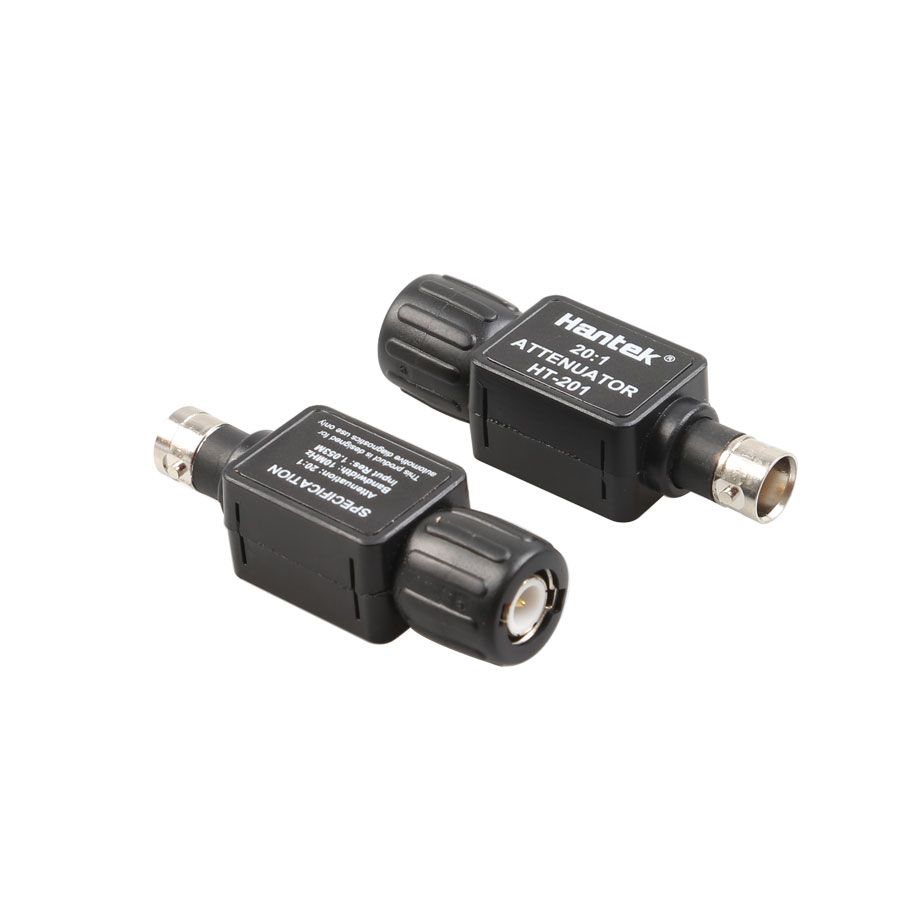

- 2 pcs × Attenuators 20:1

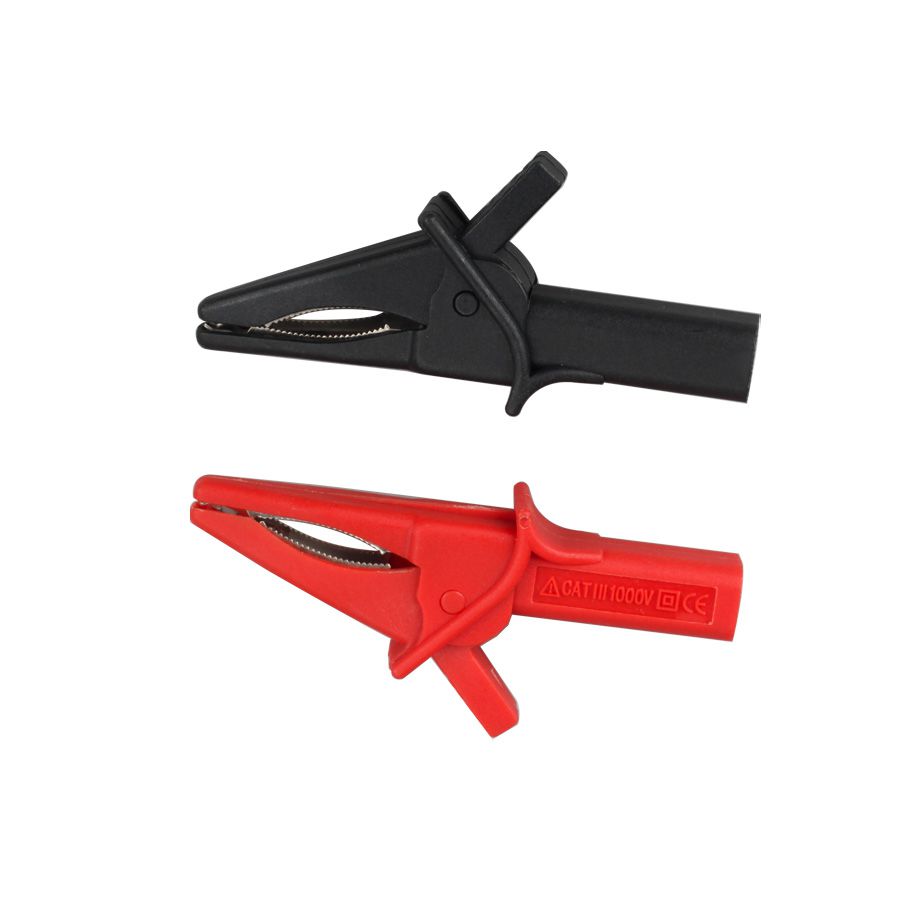

- 1 pcs × Large Crocodile Clip Set
- 1 pcs × Small Crocodile Clip Set

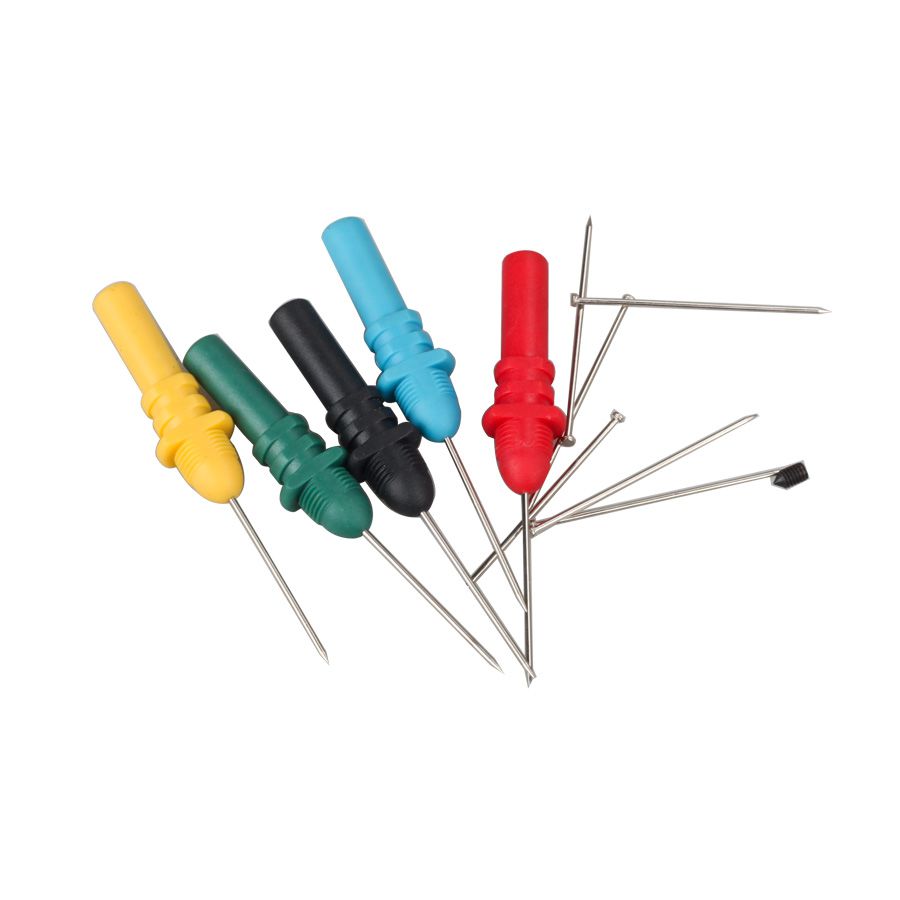

- 1 pcs × Acupuncture Probe Set

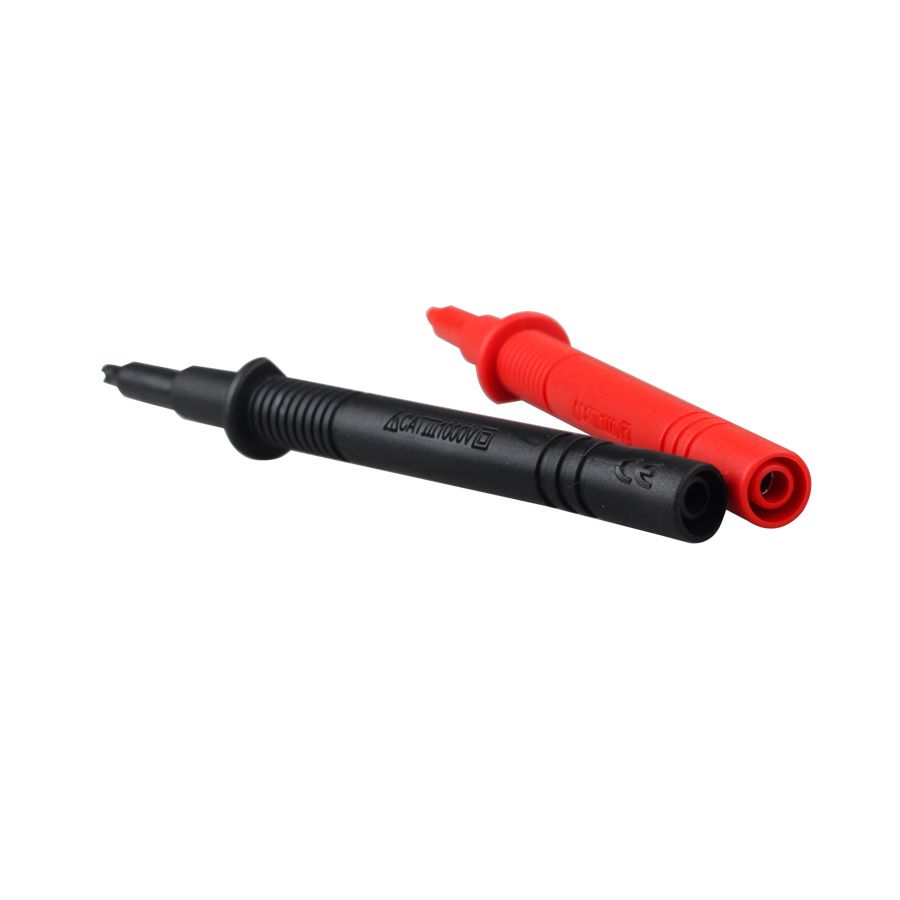

- 1 pcs × Multimeter Probes
