DY23 Fluid Tester

Duoyi DY23 Automotive Brake Fluid Tester Digital Brake Fluid Inspection,free shipping.

Duoyi DY23 Automotive Brake Fluid Tester Digital Brake Fluid Inspection is a one of our DY23 Fluid Tester Tools, you can buy Duoyi DY23 Automotive Brake Fluid Tester Digital Brake Fluid Inspection from ukobd2.com.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150

images of Duoyi DY23 Automotive Brake Fluid Tester Digital Brake Fluid Inspection

Duoyi DY23 Automotive Brake Fluid Tester Digital Brake Fluid InspectionDuoyi DY23 Automotive Brake Fluid Tester Digital Brake Fluid InspectionDuoyi DY23 Automotive Brake Fluid Tester Digital Brake Fluid InspectionDuoyi DY23 Automotive Brake Fluid Tester Digital Brake Fluid InspectionDuoyi DY23 Automotive Brake Fluid Tester Digital Brake Fluid InspectionDuoyi DY23 Automotive Brake Fluid Tester Digital Brake Fluid InspectionDuoyi DY23 Automotive Brake Fluid Tester Digital Brake Fluid InspectionDuoyi DY23 Automotive Brake Fluid Tester Digital Brake Fluid Inspection

Duoyi DY23 Automotive Brake Fluid Tester Digital Brake Fluid Inspection

Operation Manual:

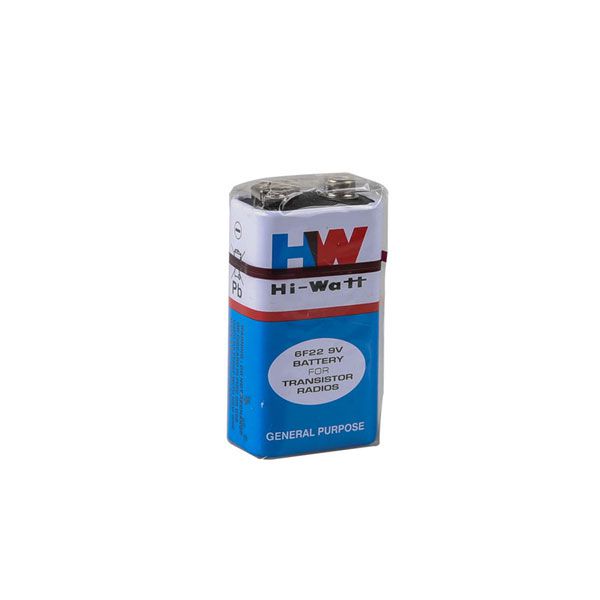

1. Install one 9V(6F22) battery at the back of tester.
2. After inserting the battery, press POWER button to turn on the tester, all LEDs lights turn on with buzzer sounding, which indicates the product self-test is successful.
3. Press SELECT button, it will locate DOT3 model automatically.

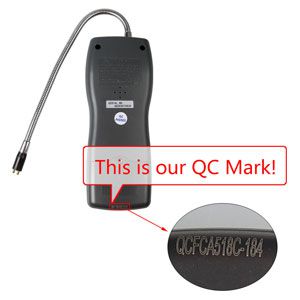

4. Each time you push the SELECT button, it will recycle from DOT3 to DOT4 to DOT5.1 with the indicator LEDs.Duoyi DY23  QC MARK
5. Immerse the probe into brake fluid and you will get different colors of LED lights, they indicate:
Green Light: indicates the brake fluid water content is below 1%
The First Yellow Light: indicates the brake fluid water content is approximately 1.5%
The Second Yellow Light: indicates the brake fluid water content is approximately 2.5%
The First Red Light: indicates the brake fluid water content is approximately 3%
The Second Red Light: indicates the brake fluid water content is more than 4%
6. Press POWER button to turn off the tester.

Note:

1. After use, please clean up the residual stains on the probe that might affect the test.
2. If in use for a long time, you'd better remove all batteries and store in a dry place at a normal room temperature.

Item Height:5 inch
Voltage:12Model
Name:DY23
Item Width:5 inch
Hardware Version:Latest
Software Version:Latest
Electronic:Yes
External Testing Certification:CE
Item Length:25 inch
Item Type: Electrical Testers & Test Leads
Material Type: PlasticItem Weight:0.5 kg

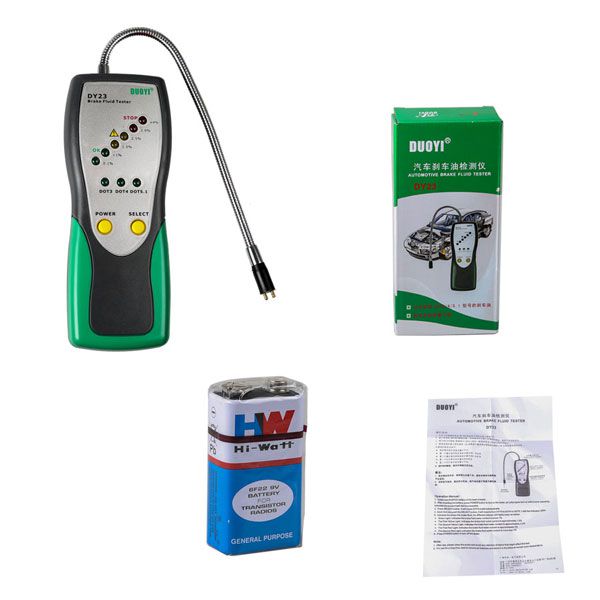

Package Includes:

1pc x Duoyi DY23 Automotive Brake Fluid Tester Digital Brake Fluid Inspection

Go to Buy: Duoyi DY23 Automotive Brake Fluid Tester Digital Brake Fluid Inspection
