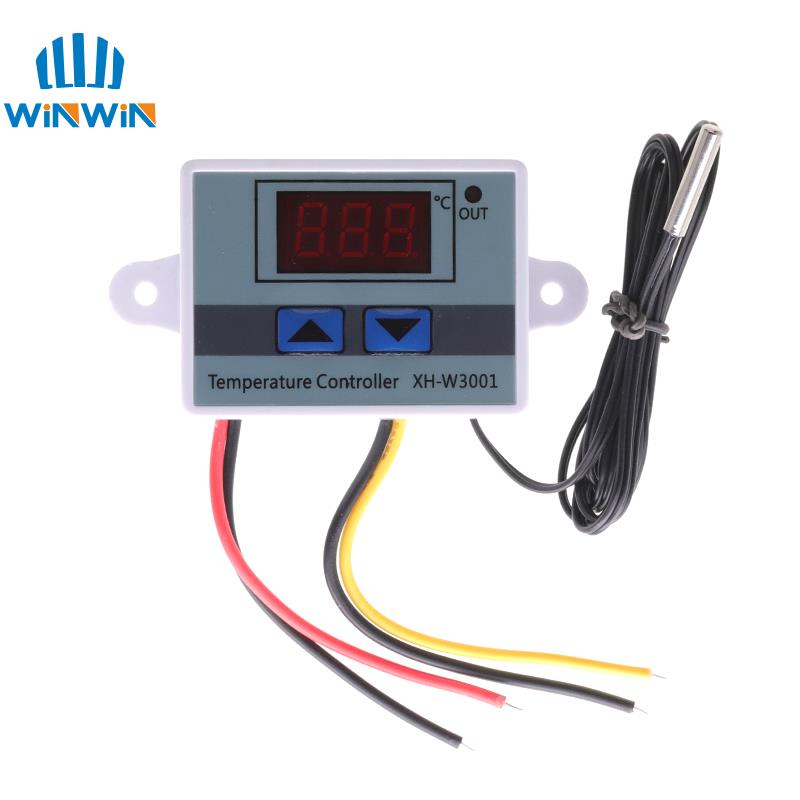

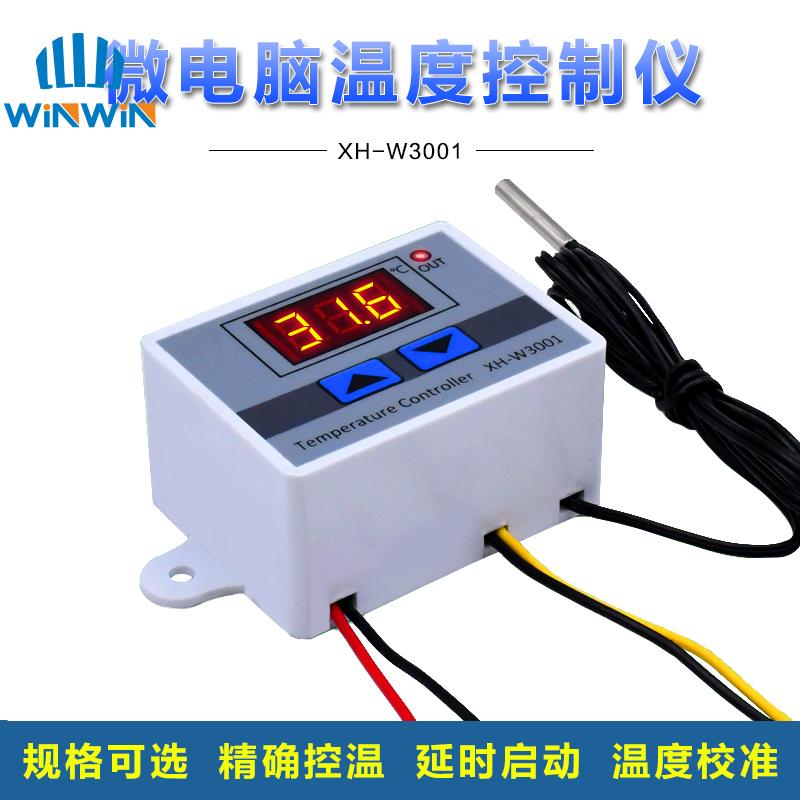

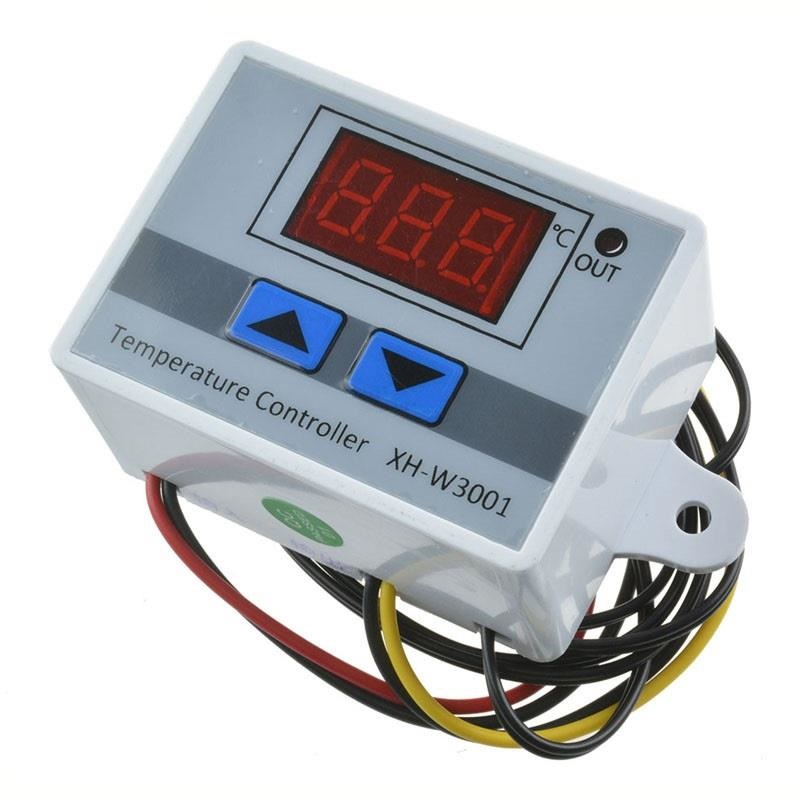

images of 10A 12V 24V 220VAC Digital LED Temperature Controller XH-W3001 For Incubator Cooling Heating Switch Thermostat NTC Sensor

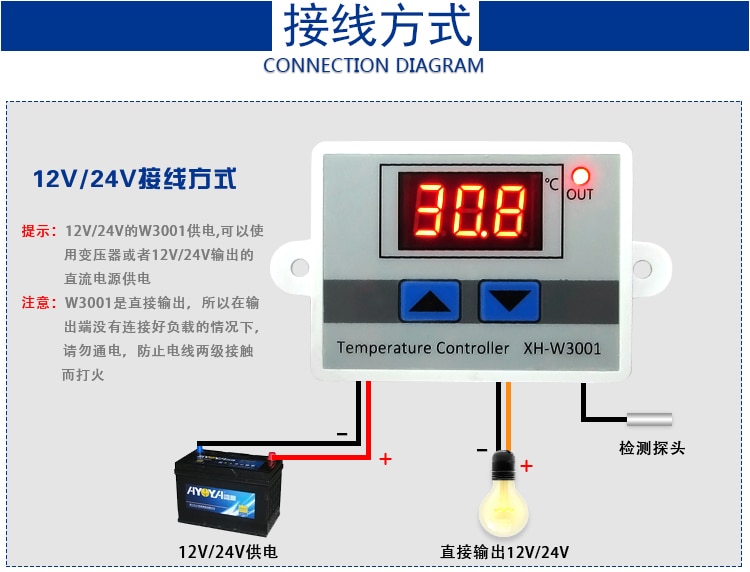

Please do not connect the AC contactor!
The back cover will be sent randomly in both Chinese and English! ! Please note that this does not affect use! ! !

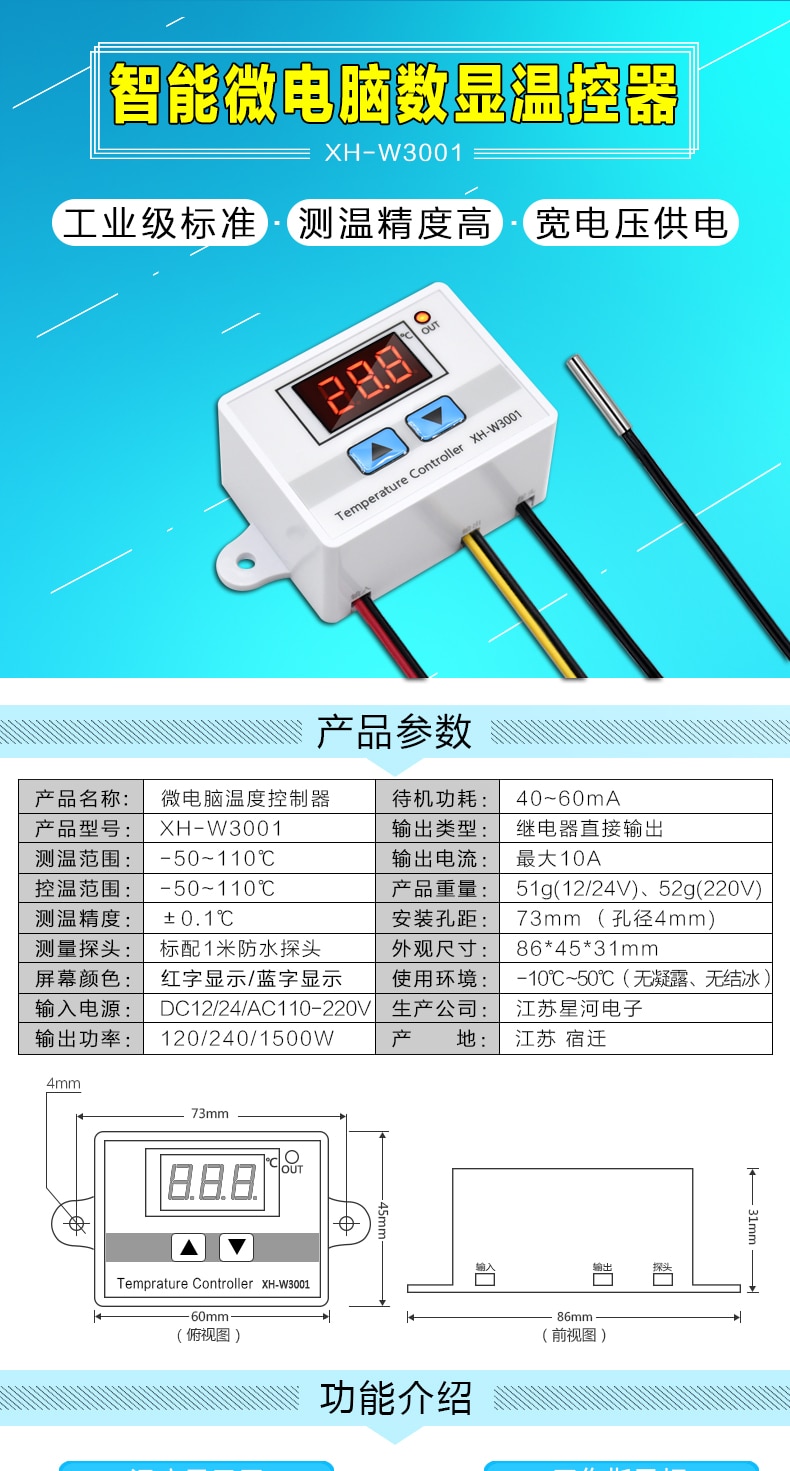

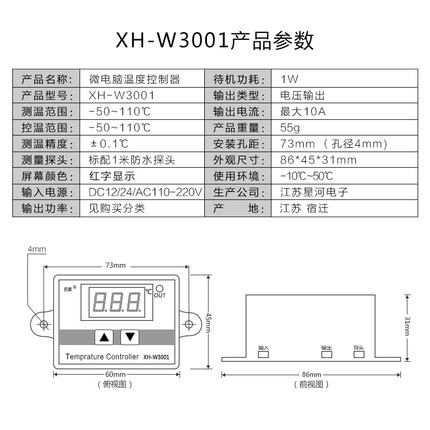

Item type: Digital temperature controller

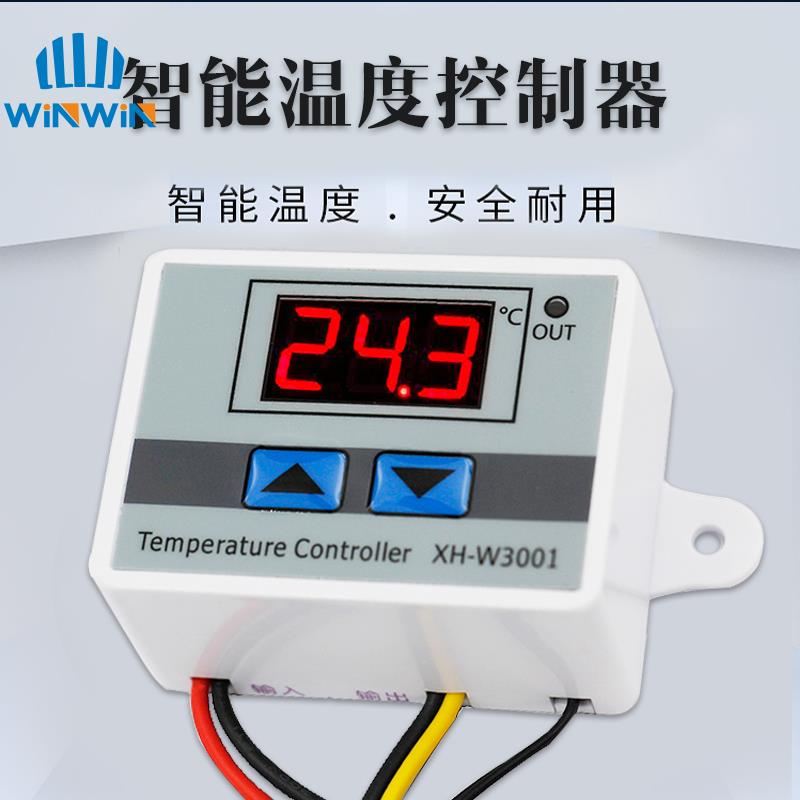

Model: XH-W3001
Output Type: Direct Output
Output capacity:10A max

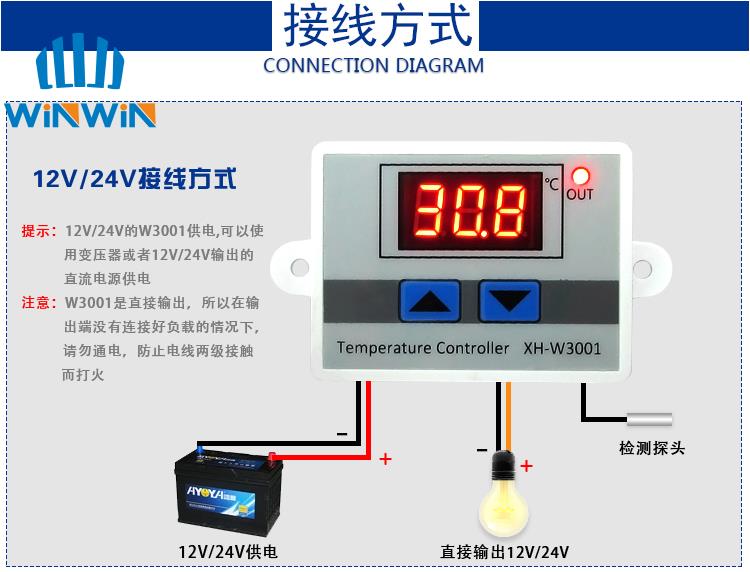

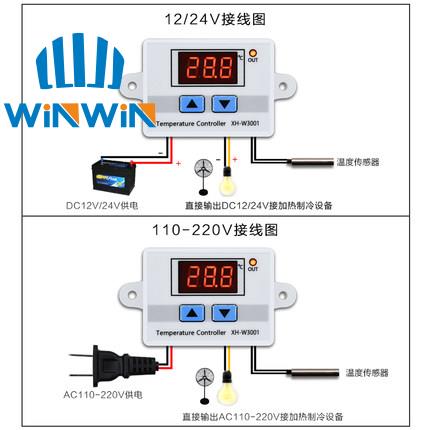

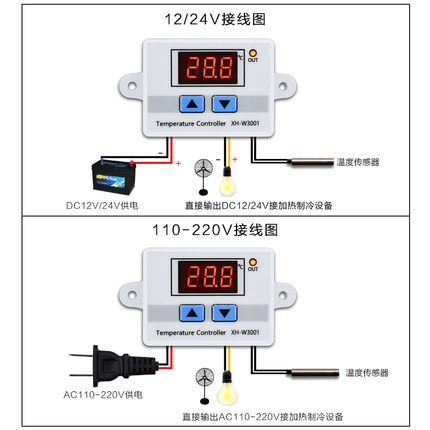

Power Supply: DC12V,DC 24V,AC 220V
Load power:120/240/1500W
Temperature Measurement Range: -50° C~110° C
Temperature Control Range: -50° C~110° C
Temperature Control Precision: 0.1° C
Input measurement: NTC10K waterproof probe L = 1 meter waterproof
How to set
1. Press up button show the starting temperature.
2. Long press UP button the temperature display Flashing , Press the UP or Down button.
3. Set the start temperature value.
4. Press Down button show the Stop temperature.
5. Long press Down button the temperature display Flashing , press the UP or Down.
6. Button Set the stop temperature value
