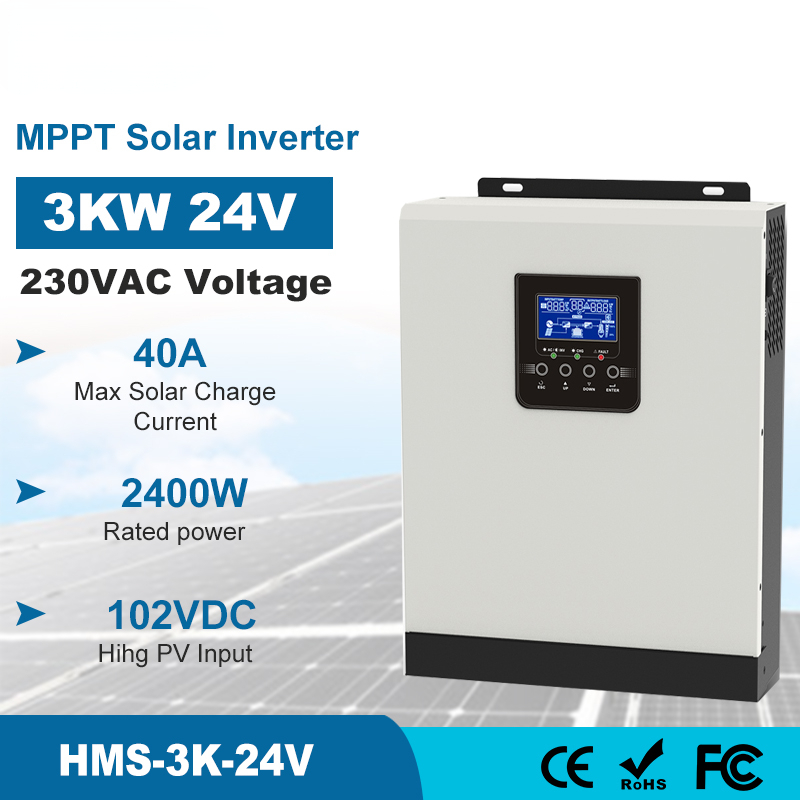

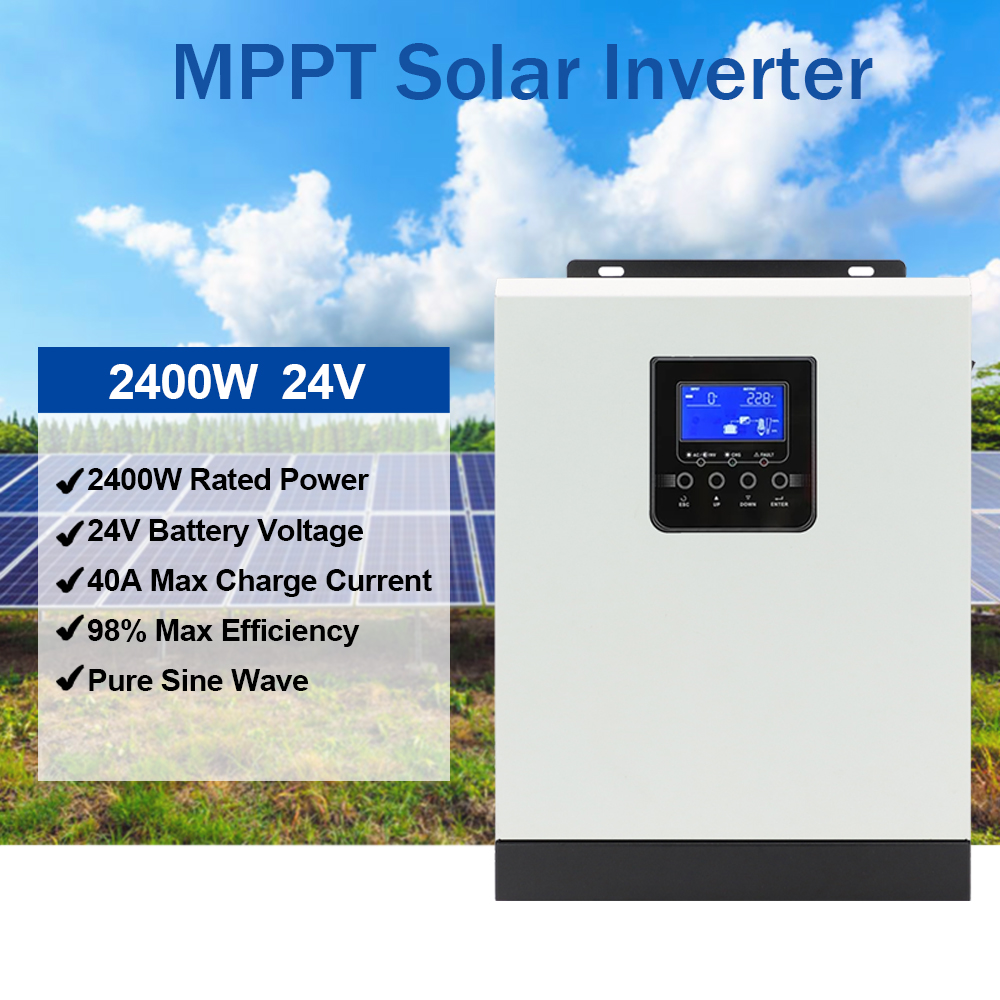

Hybrid Solar Inverter 3000VA 2400W Pure Sine Wave DC 24V AC 220VAC MPPT Solar Inversor Build In 40A Solar Controller &AC Charger
Hybrid Solar Inverter 3000VA 2400W Pure Sine Wave DC 24V AC 220VAC MPPT Solar Inversor Build In 40A Solar Controller &AC Charger is a one of our Hybrid Solar Inverter Tools, you can buy Hybrid Solar Inverter 3000VA 2400W Pure Sine Wave DC 24V AC 220VAC MPPT Solar Inversor Build In 40A Solar Controller &AC Charger from ukobd2.com.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150
images of Hybrid Solar Inverter 3000VA 2400W Pure Sine Wave DC 24V AC 220VAC MPPT Solar Inversor Build In 40A Solar Controller &AC Charger

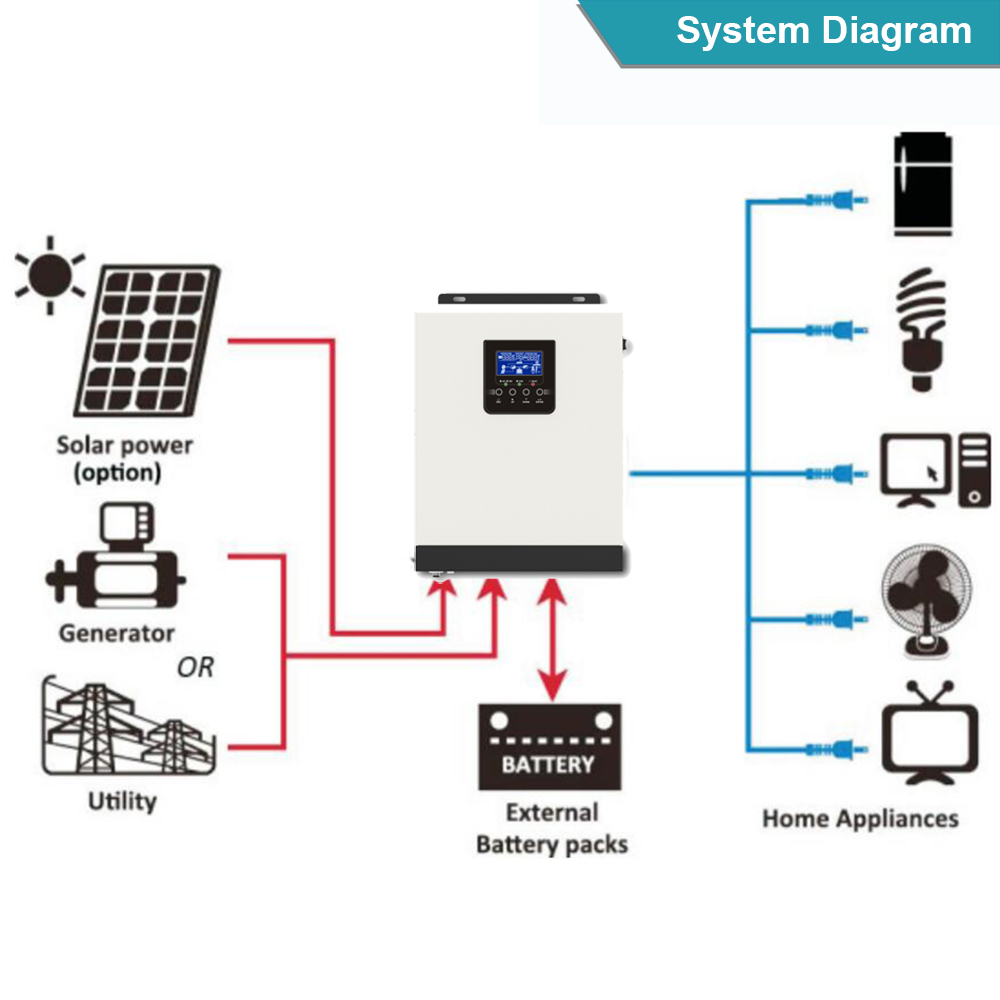

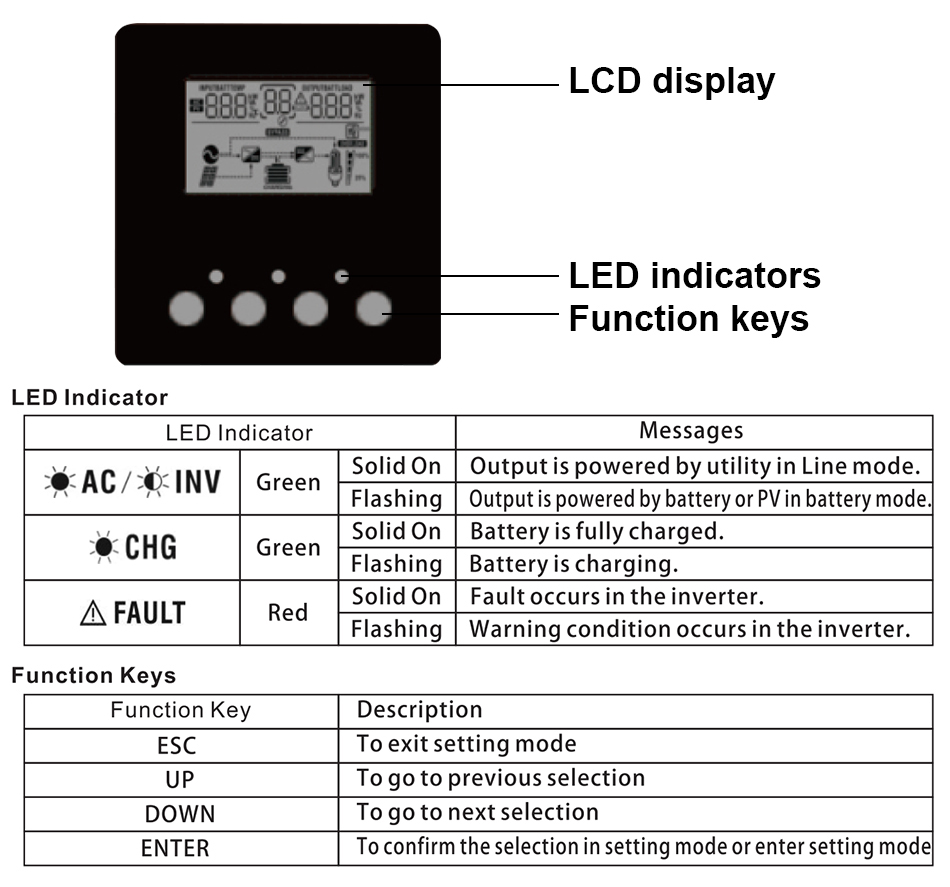

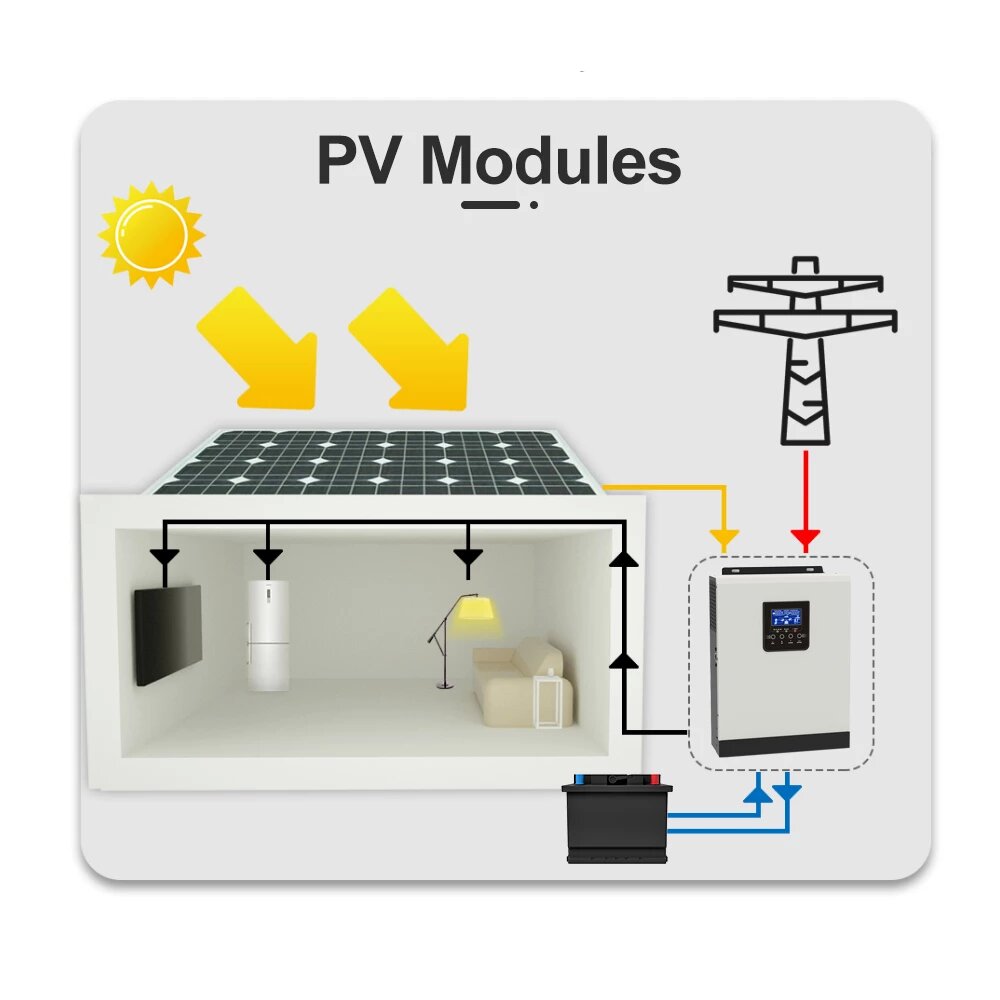

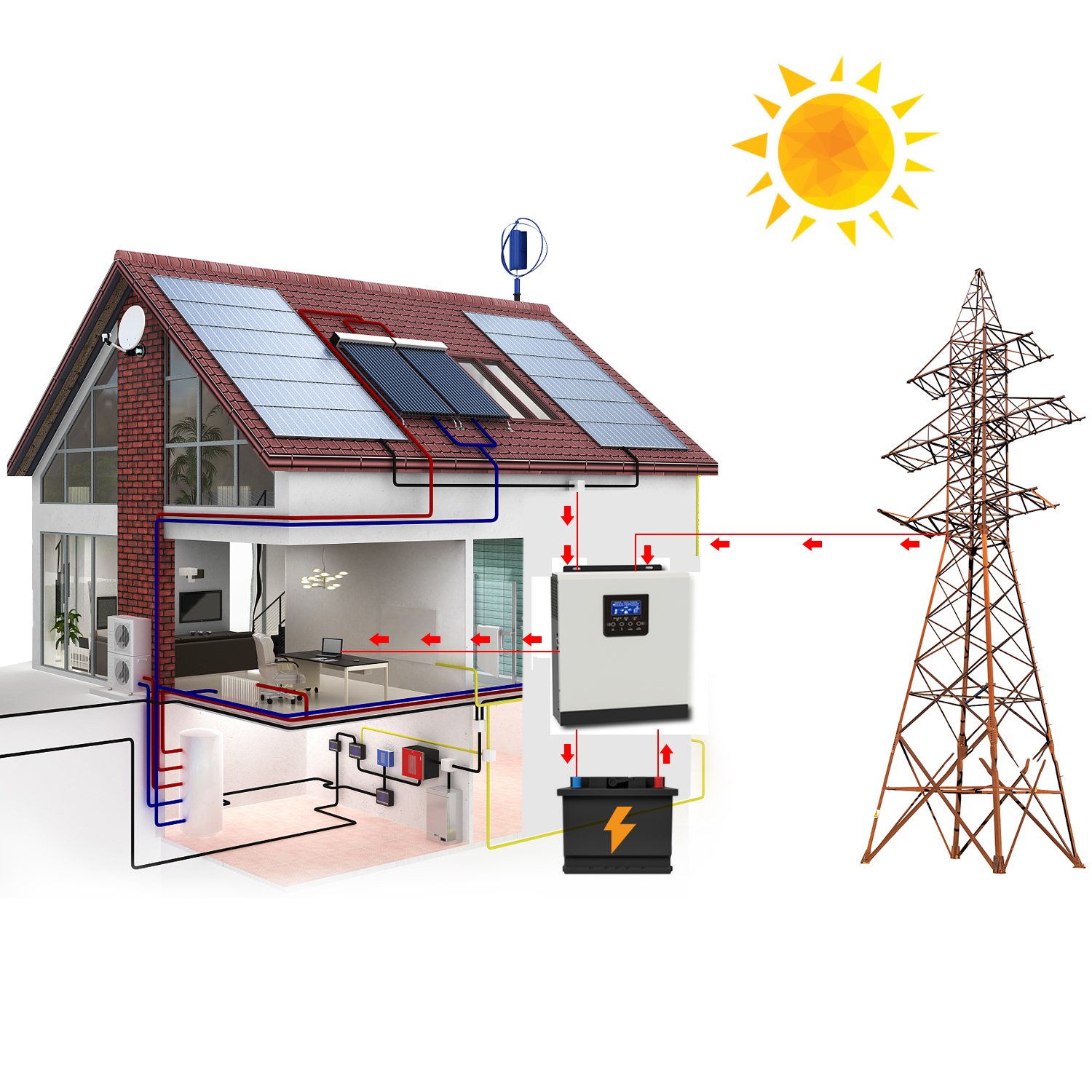

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Feature:
1.Pure sine wave inverter
2.Buit-in MPPT solor charge controlier
3.Selectable input voltage range for home appliances and personalcomouters.
4.Selectable charging current based on applications
5.Configurable AC/Solar input priority via LCD setting
6.Compatible to mains voltoge or generotor power
7.Auto restart while AC is recovering
8.Overfoad ond short circuit protection
9.Smart battery charger design for optimized battery performance
10.Cold start funtion

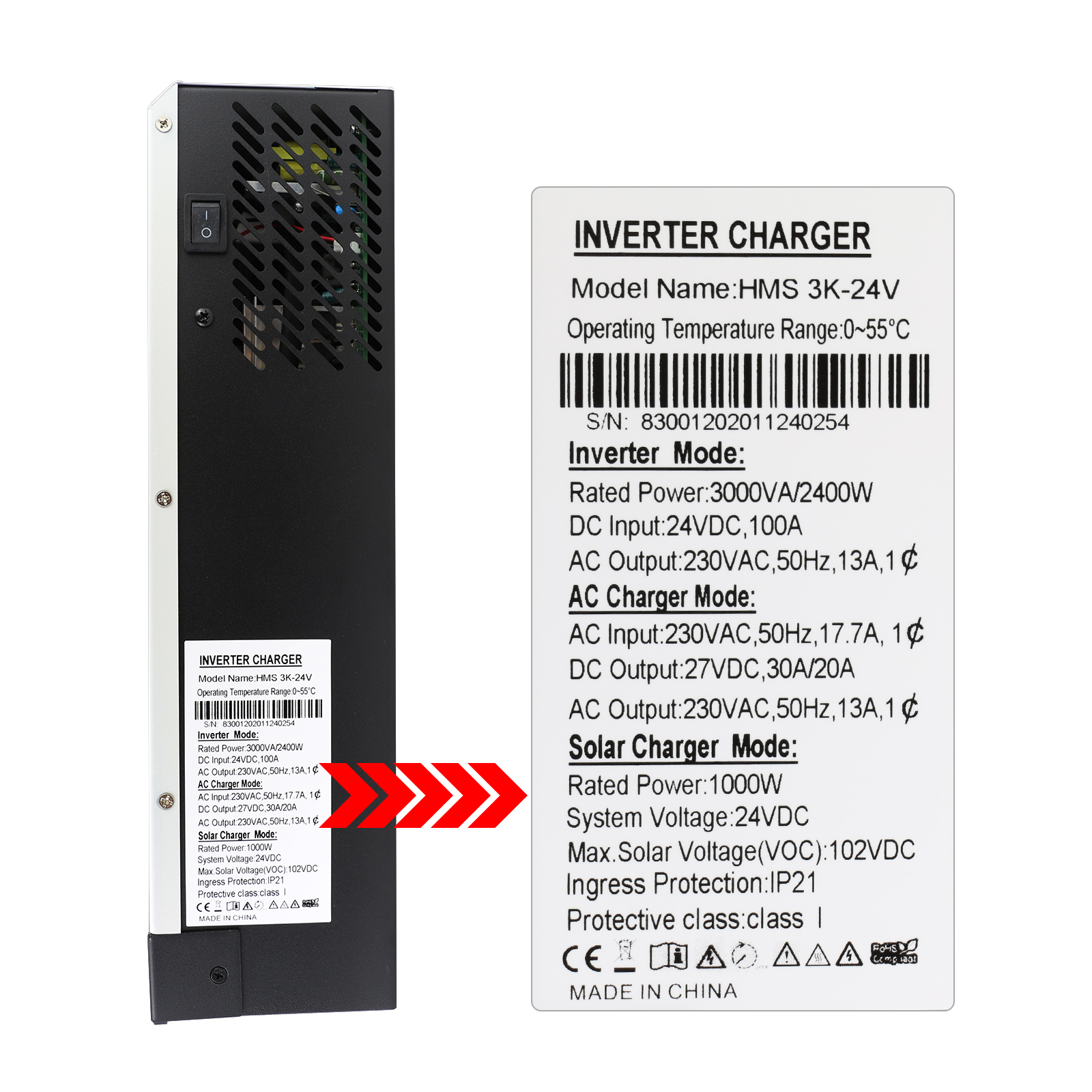

| Model | HMS 3K-24V |
| Rated Power | 3000VA/2400W |
| Frequency Range | 50Hz/ 60Hz (Auto detection) |
| Voltage Waveform | Pure Sine Wave |
| Input | |
| Input Voltage | 230Vac |
| DC Input Voltage | 24V |
| Selectable Voltage Range | 170-180VAC(For Personal Computers) |
| Selectable Voltage Range | 90-280VAC(For Home Appliances) |
| Max Charging Current | 40A |
| Output | |
| AC Voltage | 230Vac |
| Rated Output Power | 2.4KW |
| Transfer Time | 10ms typical (UPS);20ms typical (Appliances) |
| Battery& AC Charger | |
| Battery Voltage | 24VDC |
| Floating Charging Voltage | 27VDC |
| Solar Charger | |

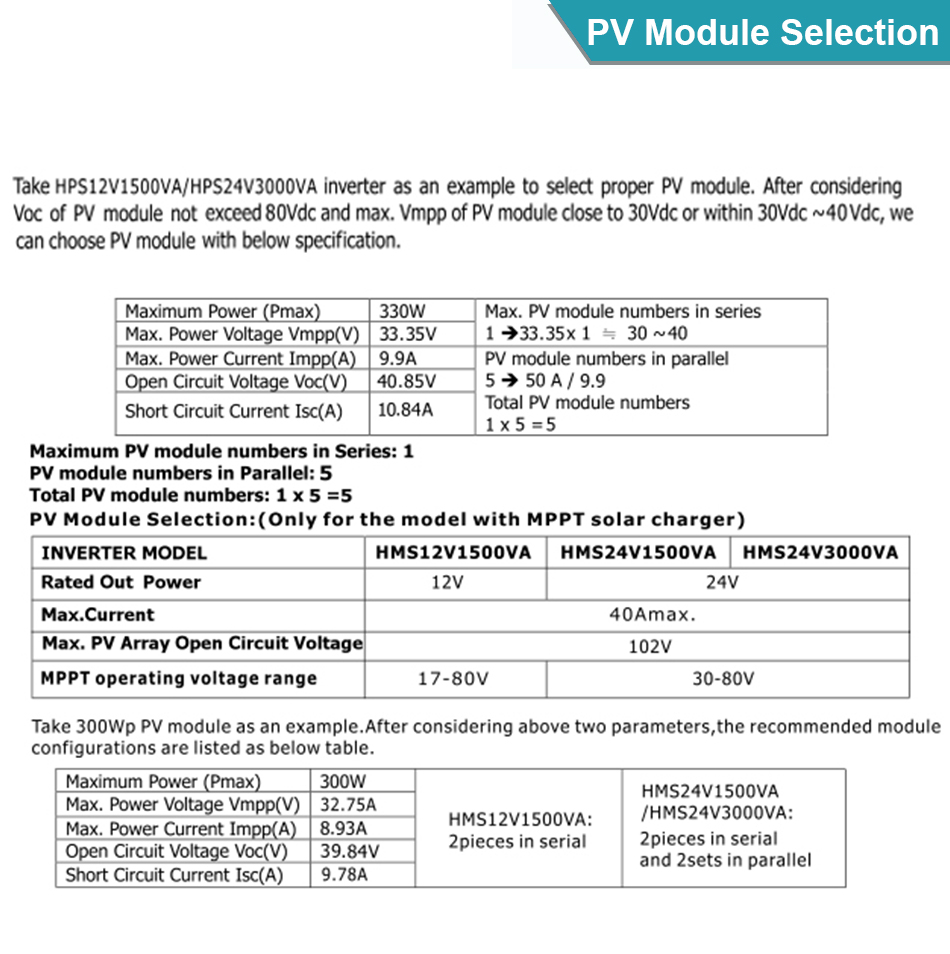

| Max. PV Array Power | 1000W |
| Maximum PV Array Open Circuit Voltage | 102V |
| General Specifications | |
| Safety Certification | CE |
| Operat Temperature Range | U10°Cto50°C |
| Storage temperature | 15°C~ 60° C |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Dimension (D*W*H), mm | 305*272*100mm |
| Net Weight, kg | 6.5KG |
