Mobile Phone Control Car Start Engine Remotely Keyless Entry System Ignition Start Stop Button Alarm With Autostart Remote start

Mobile Phone Control Car Start Engine Remotely Keyless Entry System Ignition Start Stop Button Alarm With Autostart Remote start is a one of our Mobile Phone Control Car Start Engine Tools, you can buy Mobile Phone Control Car Start Engine Remotely Keyless Entry System Ignition Start Stop Button Alarm With Autostart Remote start from ukobd2.com.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150

images of Mobile Phone Control Car Start Engine Remotely Keyless Entry System Ignition Start Stop Button Alarm With Autostart Remote start

Mobile Phone Control Car Start Engine Remotely Keyless Entry System Ignition Start Stop Button Alarm With Autostart Remote startMobile Phone Control Car Start Engine Remotely Keyless Entry System Ignition Start Stop Button Alarm With Autostart Remote startMobile Phone Control Car Start Engine Remotely Keyless Entry System Ignition Start Stop Button Alarm With Autostart Remote startMobile Phone Control Car Start Engine Remotely Keyless Entry System Ignition Start Stop Button Alarm With Autostart Remote startMobile Phone Control Car Start Engine Remotely Keyless Entry System Ignition Start Stop Button Alarm With Autostart Remote startMobile Phone Control Car Start Engine Remotely Keyless Entry System Ignition Start Stop Button Alarm With Autostart Remote start

Product Features And Parameters:

Model - UTE-808-LY main function:

1. Use your phone to unlock or lock the car
2. Use your phone to start or stop the engine
3. One-button start/stop
4. Remote start/stop
5. When the car is locked, the windows are automatically closed (the original car needs to have the function of electrically closing the windows and have a controllable circuit)
6. Mute anti-theft settings
7. Smart handbrake detection
8. Smart oil pump start detection
9. Remote opening of the trunk (requires the original car's own trunk motor)
10. Remote control car search (horn sound, blinking indicator light)
11. Remote control unlock/lock car
12. Anti-theft alarm function
13. Step on the foot brake to automatically lock the door after starting, and automatically unlock after turning off
14. The alarm notification of the original car horn (the original car is required to have a control line, and an alarm horn can be installed)
15. Power-off memory function
16. Emergency reset function
17. The remote control starts for 10 minutes, and the timer closes
18. Collision Alarm
19. Engine lock

Host specifications:
Ambient temperature: -40c- +80c; atmospheric pressure 86-106KPa
Relative humidity: 10%-95%.
Operating Voltage. DC12V +/- 3V
Quiescent current: <15mA
Output current: ACC/ON/START=30A; turn signal=5A

Remote control:
Working voltage: 3V
Quiescent current: <5uA
Battery model: CR2032
High frequency: 868MHZ

packing list:
2* Remote control key
1* Ignition system controller
4* Install the wiring harness
1* Start stop button
2* induction antenna
1* manual
1* Collision sensor
1* LED light
1*Reset switch
1*Anti-theft breaker

Mobile Phone Control Car Start Engine Remotely Keyless E

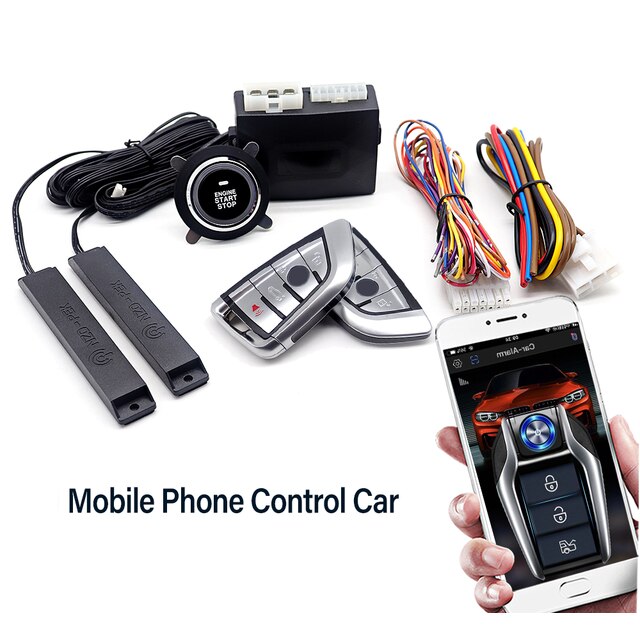

Model - PKE SG-LY main function:

1. Use mobile APP to control car lock/unlock
2. Use mobile phone APP to control engine start/stop
3. Engine lock function (if the remote control is out of range, the engine cannot be started)
4. Engine button start/stop
5. Remote start and stop
6. Smart hand brake detection
7. Intelligent oil pump start detection
8. Remote opening of the trunk (requires the original car to bring its own trunk motor)
9. Remote car search (the horn sounds and the direction light flashes to prompt)
10. Remote unlock/lock
11. PKE keyless entry function, automatically unlock at a place 1.5-3 meters away from the car, and automatically lock at a place 3-5 meters away from the car
12. PKE temporarily closed
13. RFID identification
14. Anti-theft alarm function (Illegal door opening alarm, stepping on the brake to trigger an alarm prompt)
15. Central control lock automation (automatically lock by stepping on the brake after starting, and automatically unlock after flameout)
16. The original car horn alarm notification (the original car is required to have a control line, and an alarm horn can be added)
17. Power-off memory
18. Emergency reset function
19. Remote start for 10 minutes without other operations, then automatically turn off

Specification:
Ambient temperature: -40c-+ 80c; 86-106 kpa atmospheric pressure
Relative humidity: 10% -95%
Working voltage: DC12V +/- 3V
High frequency: 433.92MHZ, low frequency: 125KHZ

Configuration details:
2*remote controls
1*Host
2*Install the wiring harness
1*One key start button
2*Induction antenna
1*Instruction

Mobile Phone Control Car Start Engine Remotely Keyless E

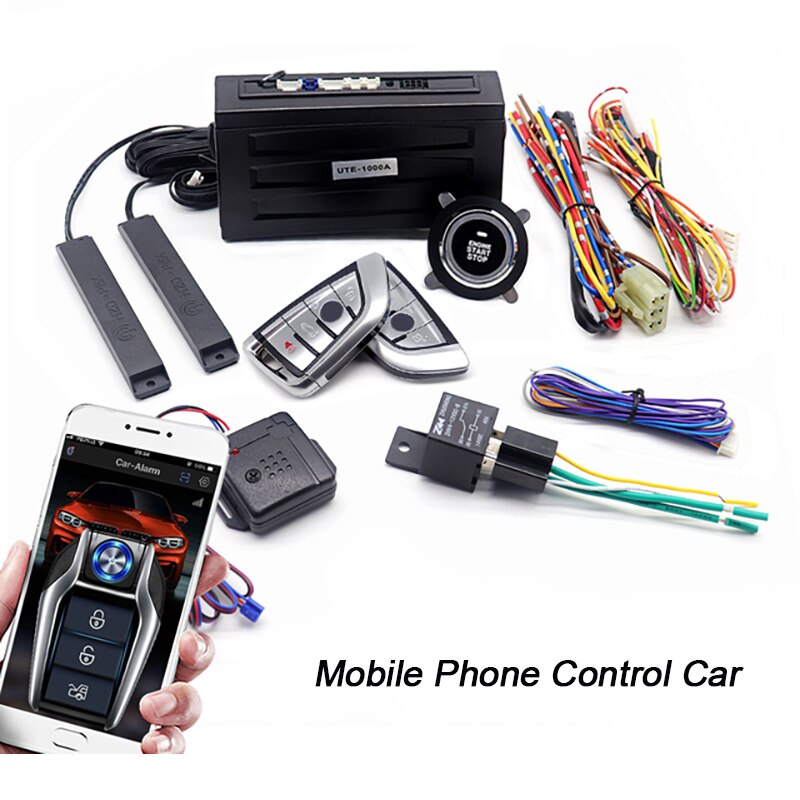

Model - UTE-1000-LY main function:

1. Use your phone to unlock or lock the car
2. Use your phone to start or stop the engine
3. Engine lock function (if the remote control key is not in range, the engine cannot be started)
4. One-button start/stop
5. Remote start/stop
6. When the car is locked, the windows are automatically closed (the original car has the function of electrically closing the windows and has a controllable circuit)
7. Adapt to diesel vehicles by selector switch
8. Smart handbrake detection
9. Smart oil pump start detection
10. Open the trunk remotely (requires the original car's own trunk motor)
11. Remote control car search (horn sound, blinking indicator light)
12. Remote control unlock/lock car
13. PKE keyless comfortable entry function, automatically unlock at 1.5-3 meters away from the car, and automatically lock the door at 3-5 meters away from the car
14. PKE induction type temporary shutdown function
15. RFID recognition function
16. Anti-theft alarm function (Illegal opening the door, stepping on the foot brake to trigger an alarm prompt).
17. Step on the foot brake to automatically lock the door after starting, and automatically unlock after turning off
18. The alarm notification of the original car horn (the original car is required to have a control line, and an alarm horn can be installed)
19. Power-off memory function
20. Emergency reset function
21. The remote control is activated for 10 minutes and turned off regularly
22. Collision Alarm

Host specifications:
Ambient temperature: -40c- +80c; atmospheric pressure 86-106KPa
Relative humidity: 10%-95%.
Operating Voltage. DC12V +/- 3V
Quiescent current: <15mA
Output current: ACC/ON/START=30A; turn signal=5A
High frequency: 868.35MHZ, low frequency: 125KHZ

Remote control:
Working voltage: 3V
Quiescent current: <5uA
Battery model: CR2032
High frequency: 868.35MHZ

Packing list
2* Remote control key
1* Ignition system controller
4* Install the wiring harness
1* Start stop button
2* induction antenna
1* manual
1* Collision sensor
1* Anti-theft breaker

Mobile Phone Control Car Start Engine Remotely Keyless E

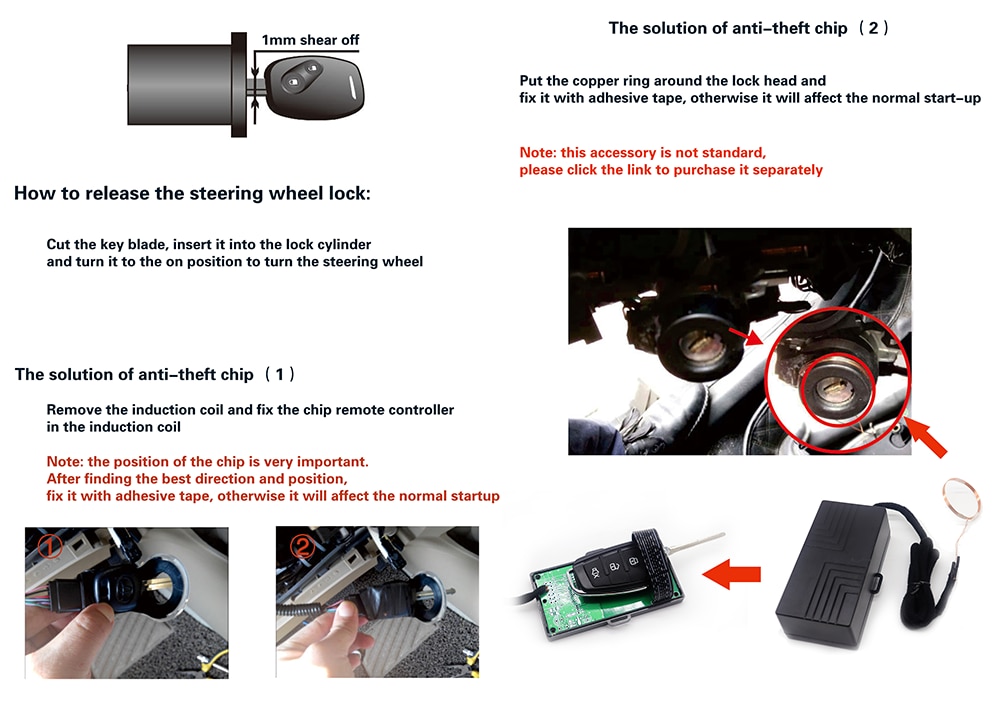

Matters Needing Attention (1)

Mobile Phone Control Car Start Engine Remotely Keyless E
Mobile Phone Control Car Start Engine Remotely Keyless E

Matters Needing Attention (2)

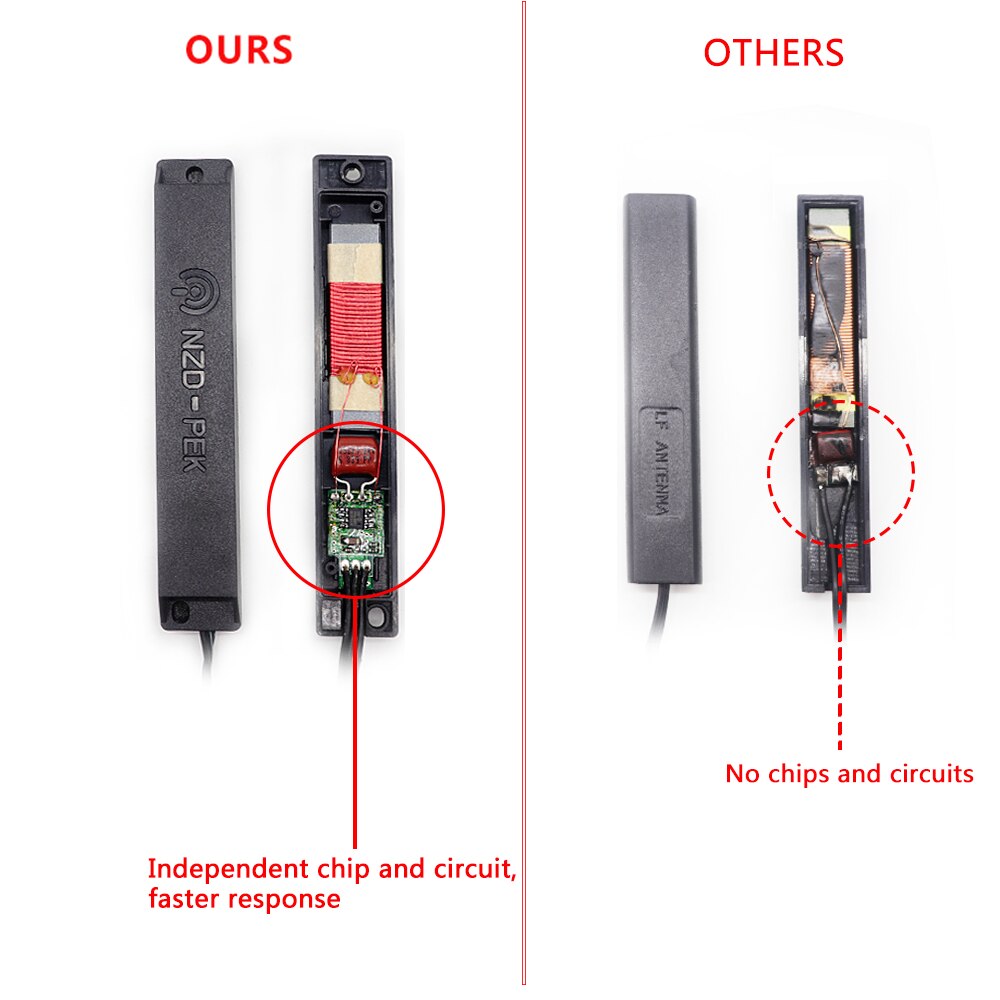

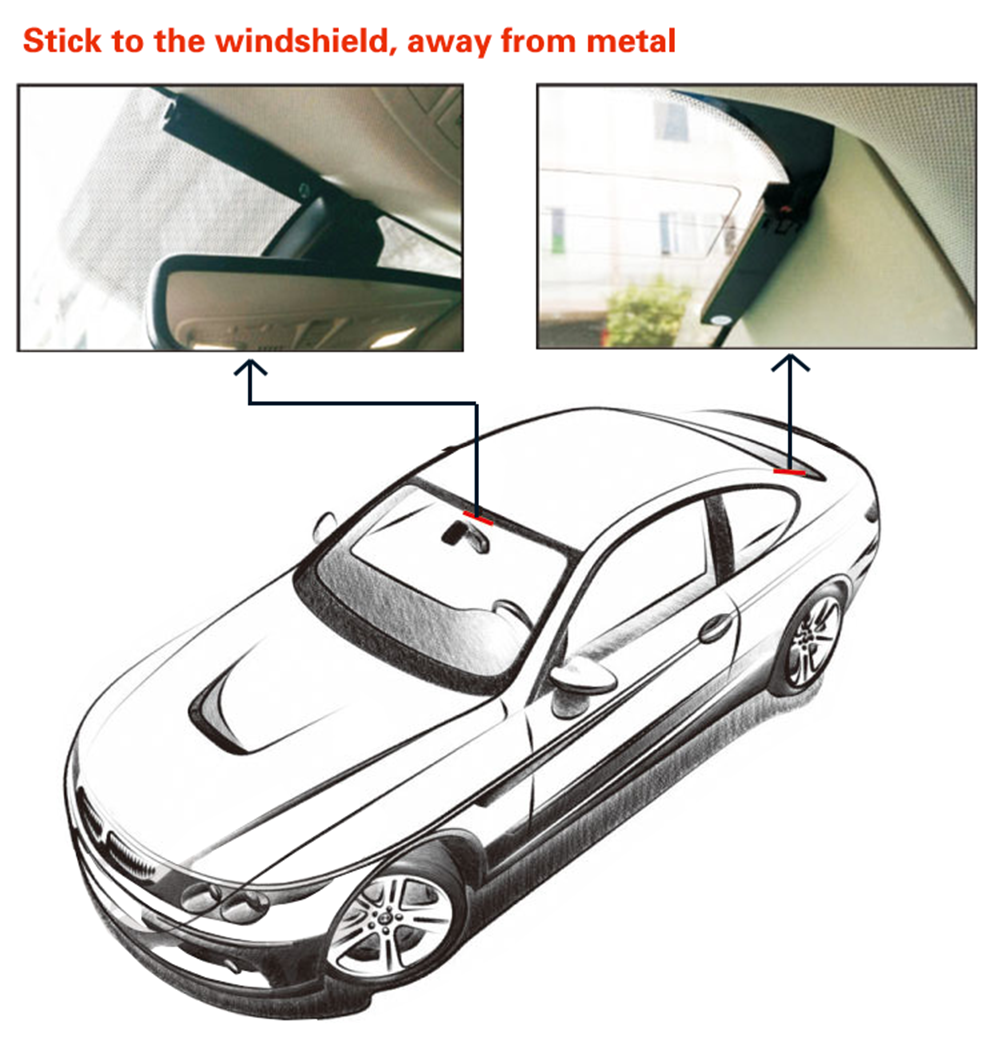

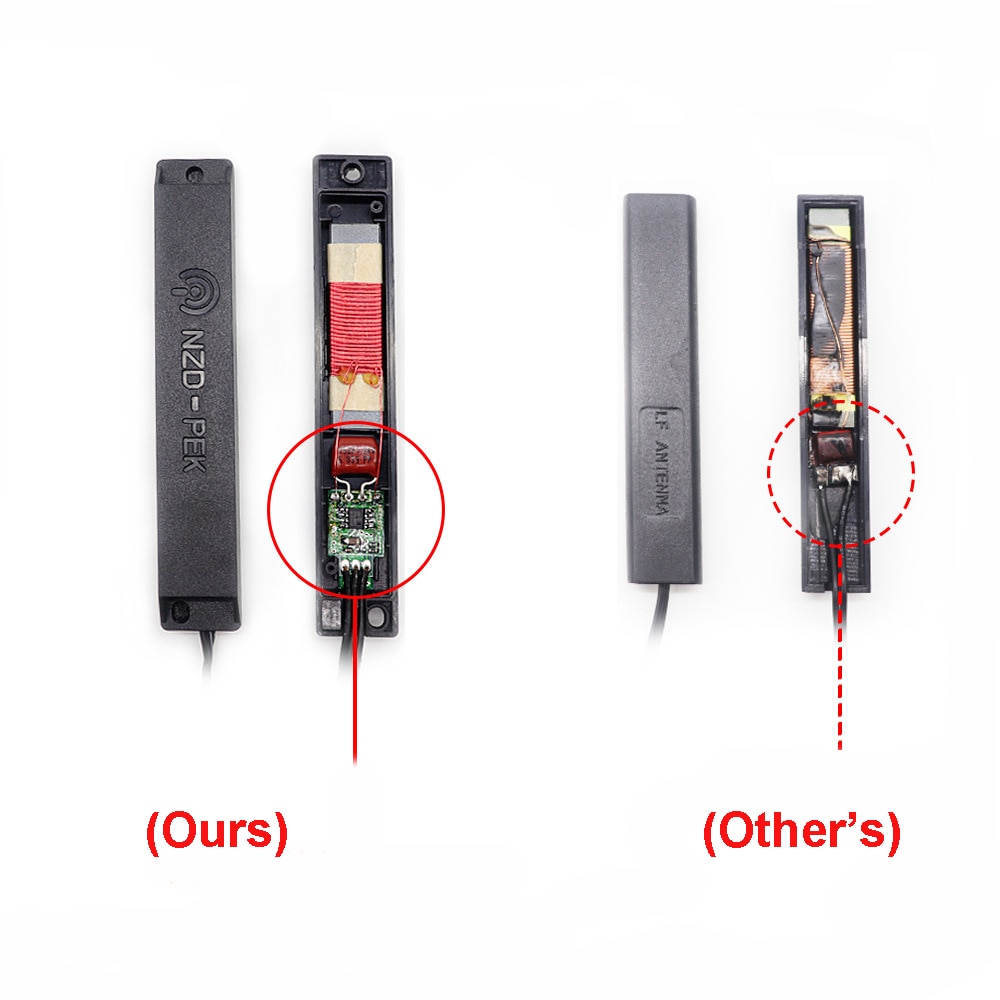

Please place the PKE induction antenna as follows

Mobile Phone Control Car Start Engine Remotely Keyless E

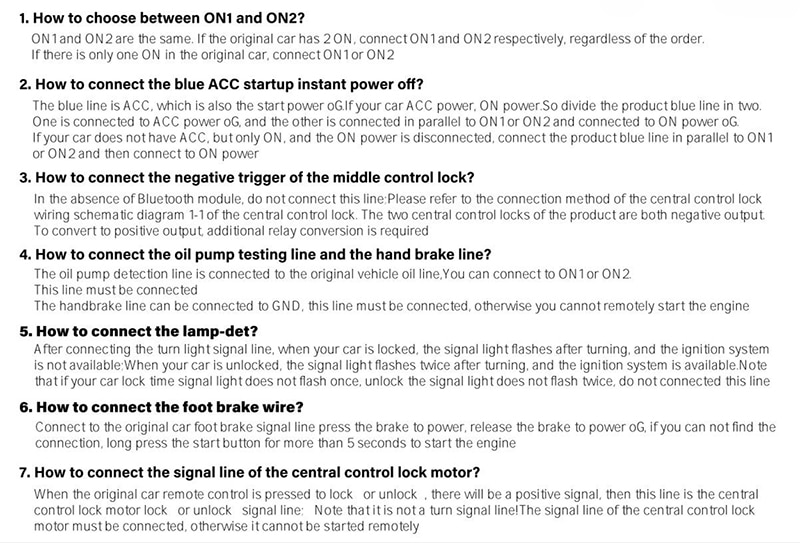

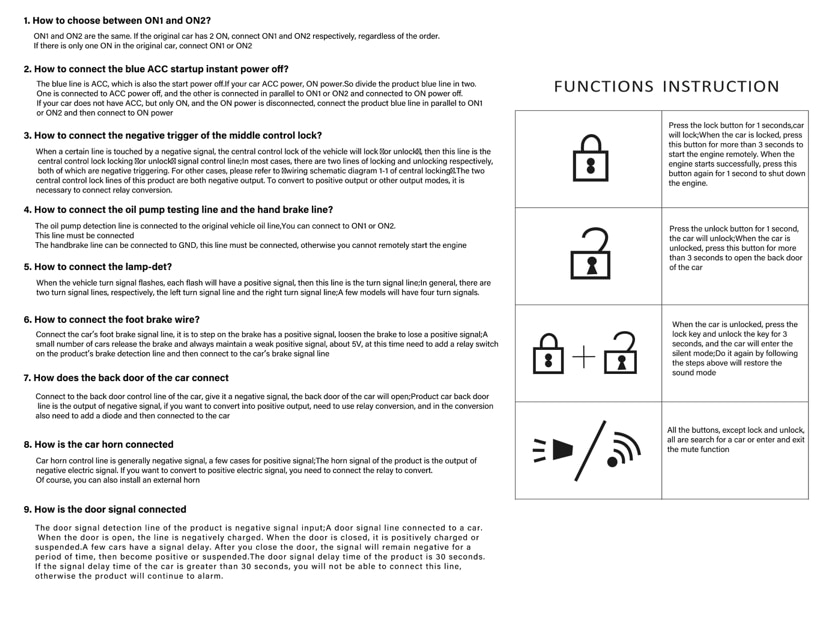

Q&A about installation:

1. What types of cars can be installed in this product?

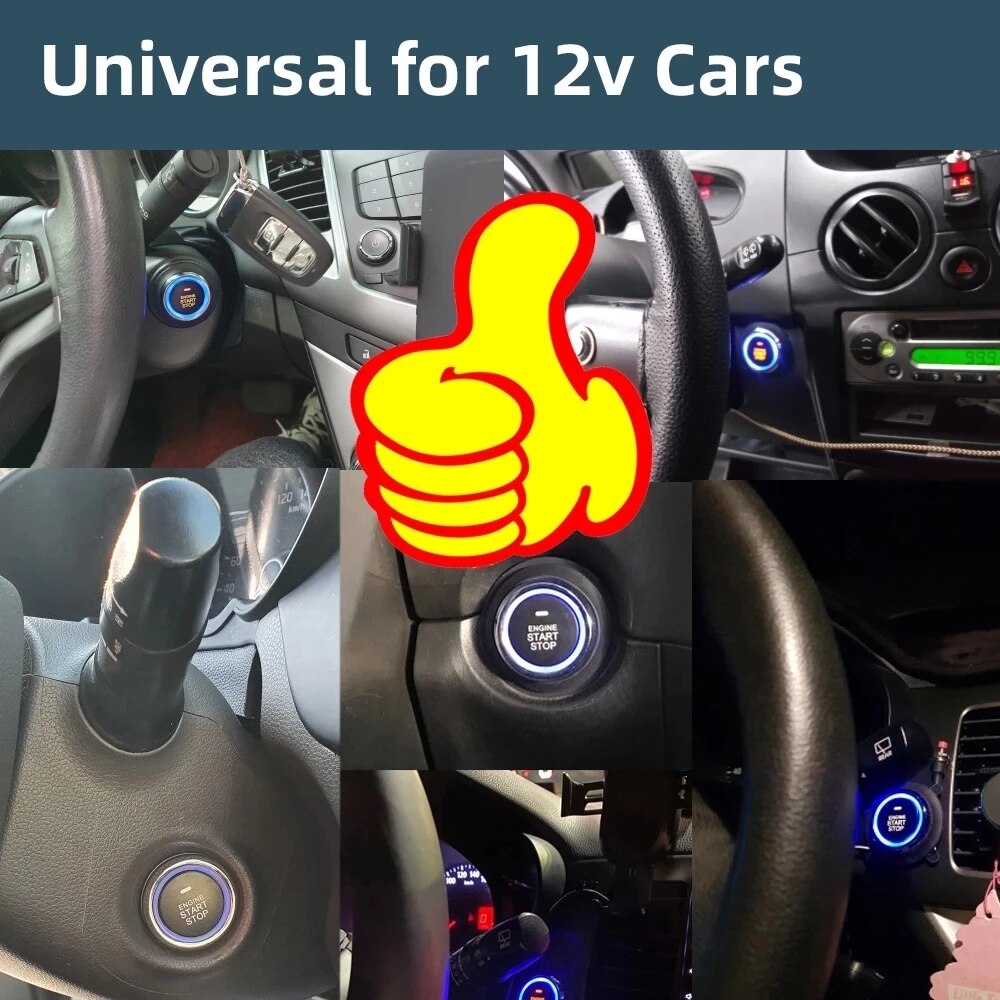

It fits most 12V cars and will not be installed if your car already has a button start,

In addition, if it is a luxury car with a lot of electronic auxiliary equipment, then this product may not be fully compatible, you can consult the seller, we have a better and more compatible product

2. Will my car become unsafe if I install this product? because it will lose its original anti-theft capability

This product has the function of anti-theft, after the correct installation, when the vehicle is locked, it is impossible to use the button to start the engine in the car.

3. How to choose between ON1 and ON2?
ON1 and ON2 are the same. If the original car has 2 ON, connect ON1 and ON2 respectively, regardless of the order.
If there is only one ON in the original car, connect ON1 or ON2.

4. How to connect the blue ACC startup instant power off?
The blue line is ACC, which is also the start power off.If your car ACC power, ON power.So divide the product blue line in two.
One is connected to ACC power off, and the other is connected in parallel to ON1 or ON2 and connected to ON power off.
If your car does not have ACC, but only ON, and the ON power is disconnected, connect the product blue line in parallel to ON1
or ON2 and then connect to ON power.

5. How to connect the oil pump testing line and the hand brake line?
The oil pump detection line is connected to the original vehicle oil line,You can connect to ON1 or ON2.
This line must be connected
The handbrake line can be connected to GND, this line must be connected, otherwise you cannot remotely start the engine.

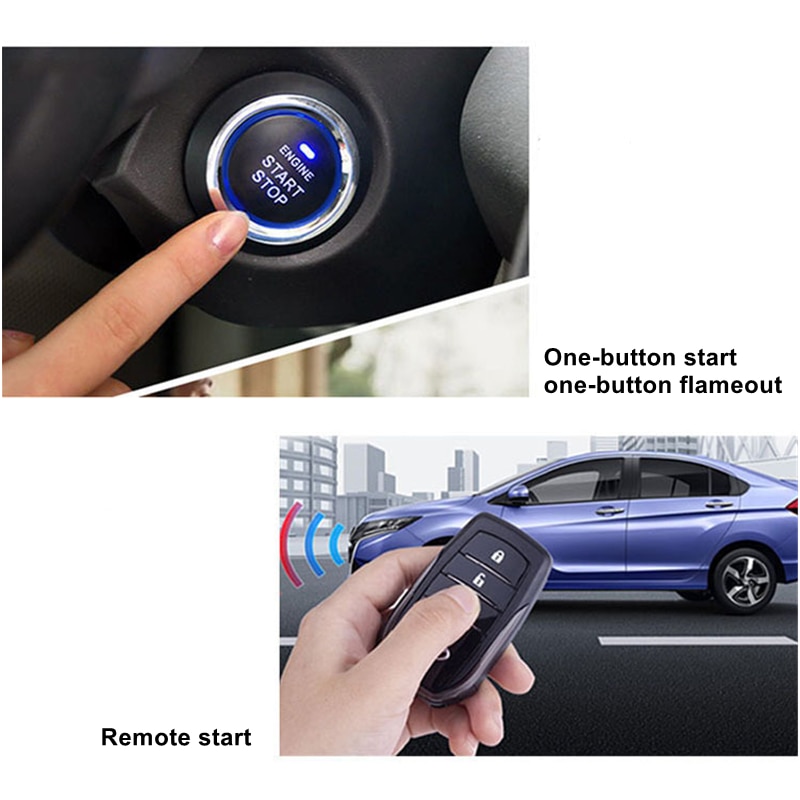

How to start and stop?

start 1:when the brake is pressed the light of the start button will flash,at this time,press the button to start the engine,if the button is pressed continuously the engine will continue to start;

start 2:start the engine by holding the button for more than 5 seconds without pressing the brake

stop 1:press the brake and then press the button to shut off the engine

stop 2:hold the button for more than 5 seconds without applying the brake to shut off the engine

Mobile Phone Control Car Start Engine Remotely Keyless E

How to use APP

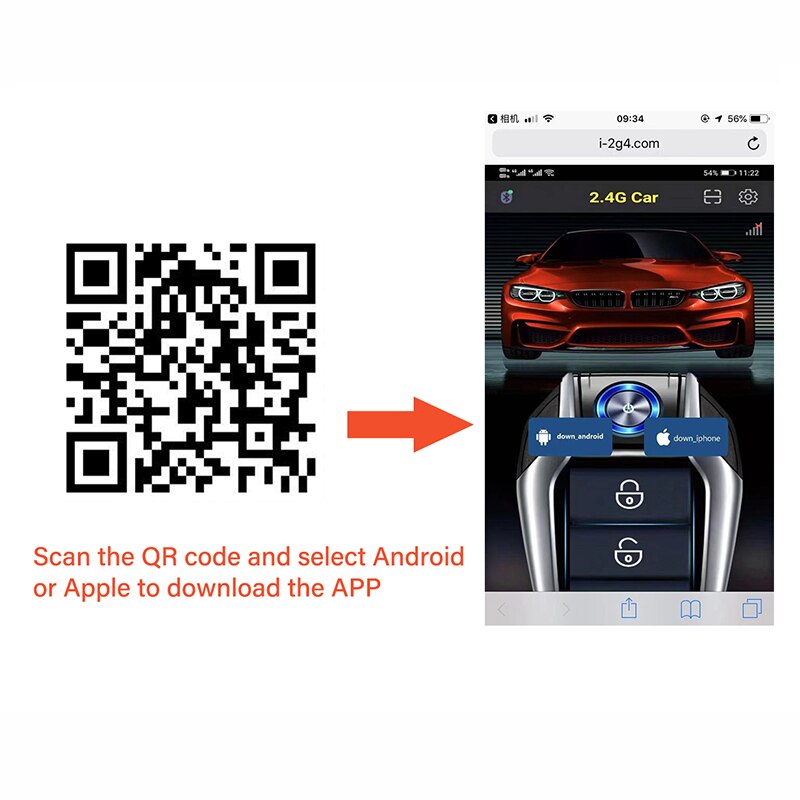

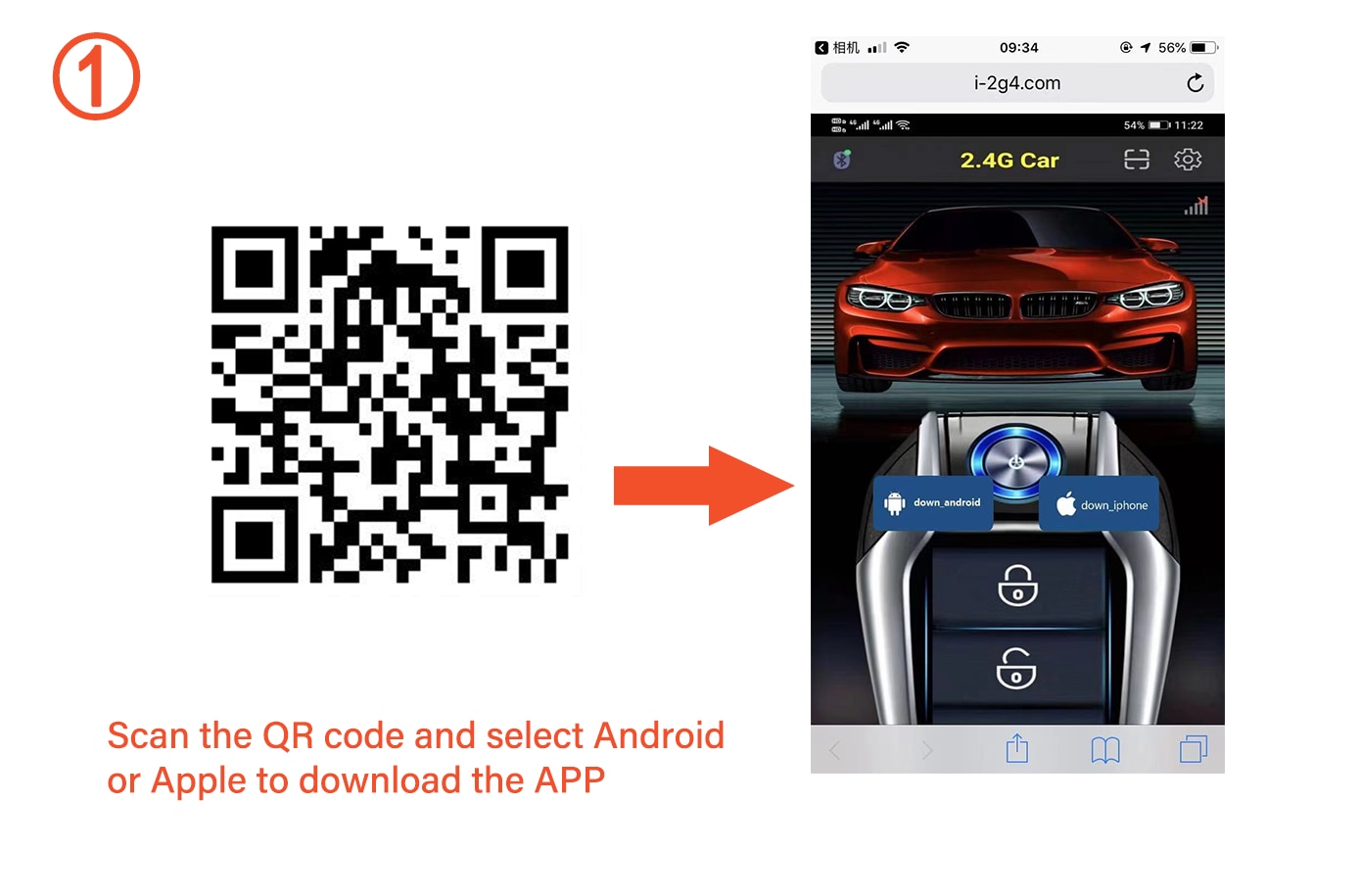

1.Scan the QR code and select Android or Apple to download the APP

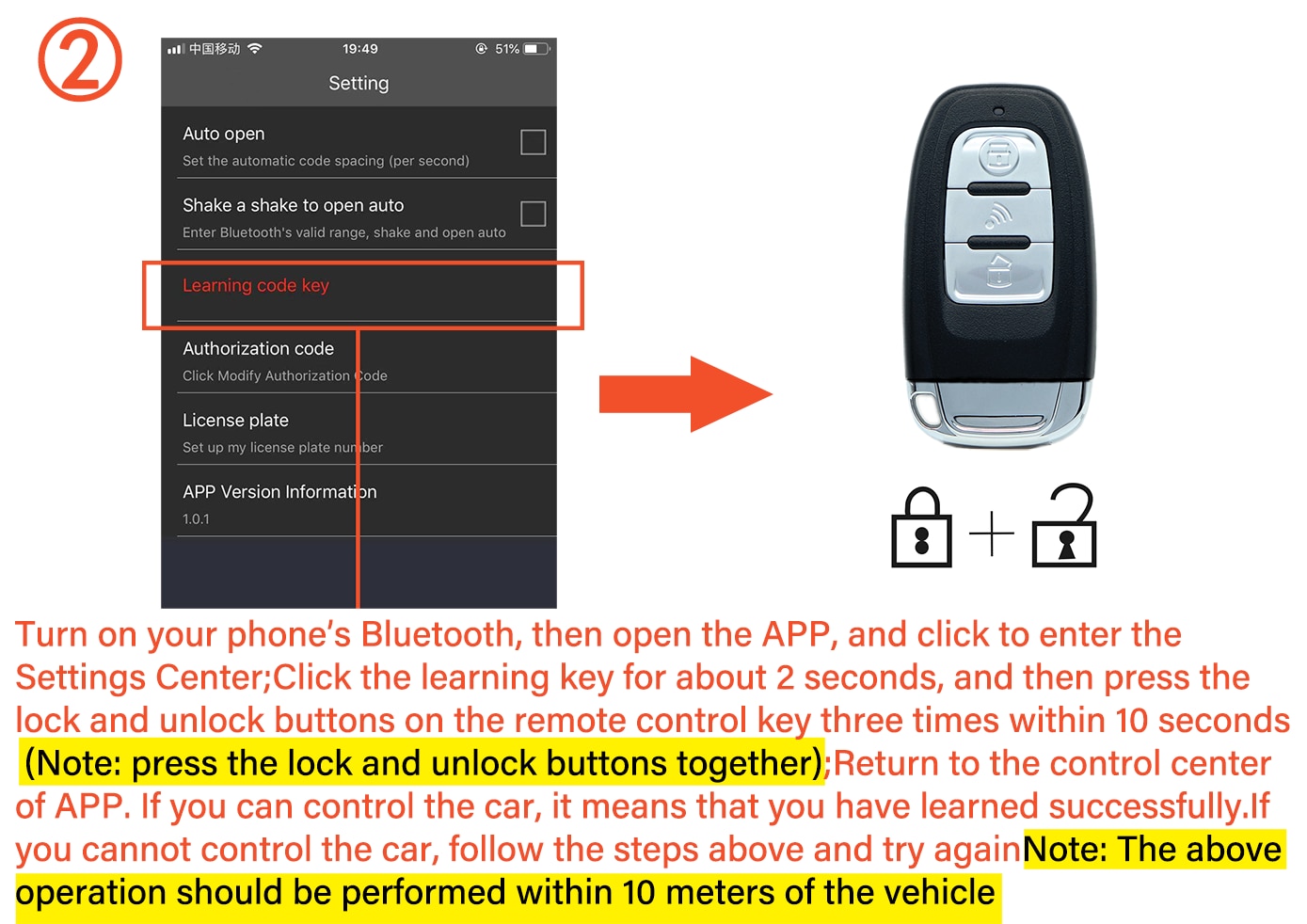

2.Turn on your phone’s Bluetooth, then open the APP, and click to enter the Settings Center;Click the learning key for about 2 seconds, and then press the lock and unlock buttons on the remote control key three times within 10 seconds (Note: press the lock and unlock buttons together);Return to the control center of APP. If you can control the car, it means that you have learned successfully.If you cannot control the car, follow the steps above and try againNote: The above operation should be performed within 10 meters of the vehicle

3.Make sure your phone's Bluetooth is turned on, and you have performed the steps (2) to successfully learn the key. Now, you can use the APP to control the car to lock, unlock, open the trunk, mute mode, and start the engine.
Note: 1. When the car exceeds a certain range, it cannot receive the signal sent by the APP;2. Please press each button on the APP for about 2 seconds to send the control command

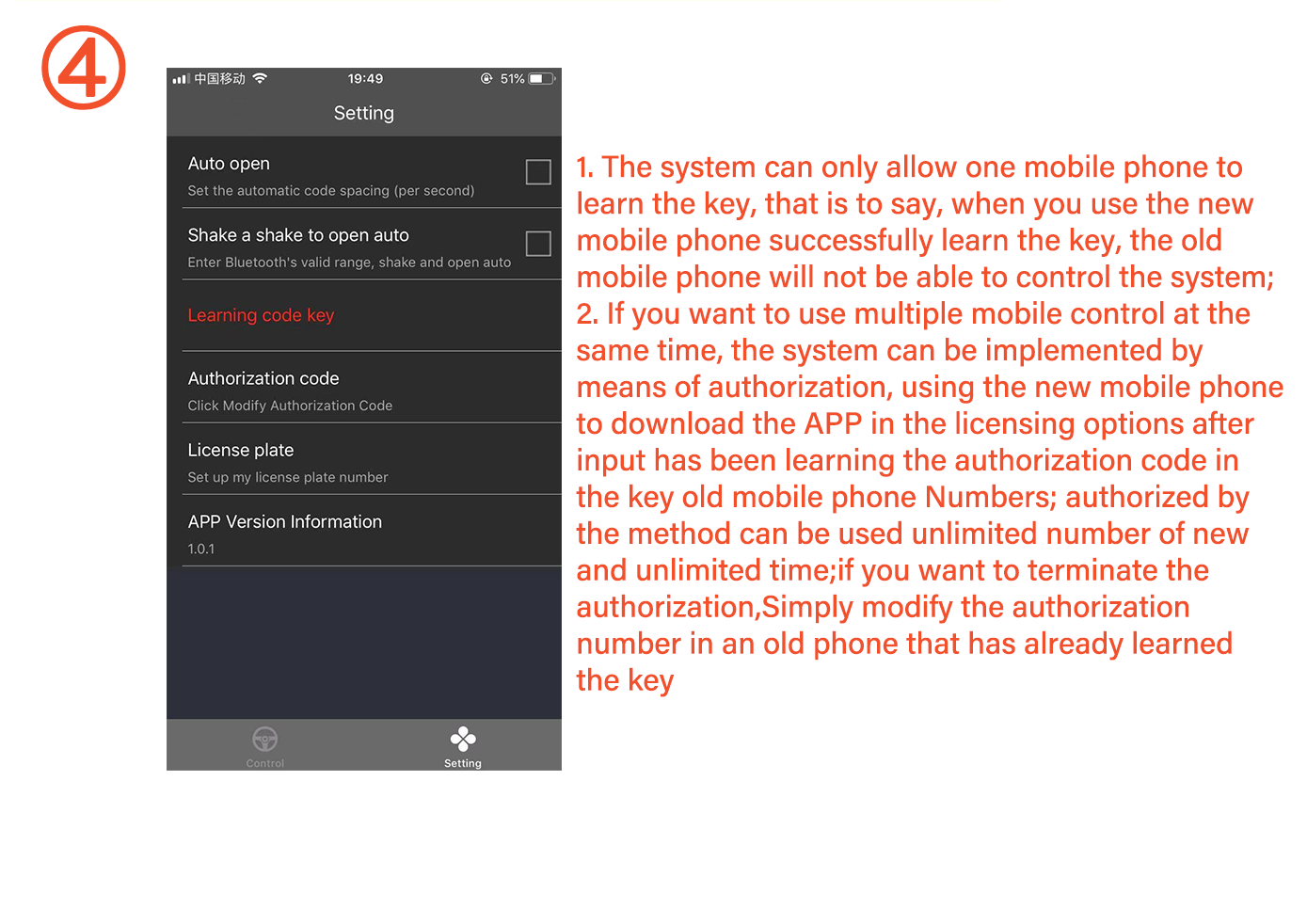

4.The system can only allow one mobile phone to learn the key, that is to say, when you use the new mobile phone successfully learn the key, the old mobile phone will not be able to control the system;

5. If you want to use multiple mobile control at the same time, the system can be implemented by means of authorization, using the new mobile phone to download the APP in the licensing options after input has been learning the authorization code in the key old mobile phone Numbers; authorized by the method can be used unlimited number of new and unlimited time;if you want to terminate the authorization,Simply modify the authorization number in an old phone that has already learned code.
