Autel MaxiTPMS TBE200 (Tire Brake Examiner) brings tire and brake disc inspection into the modern age with quick and accurate (measuring accuracy of 0.1 mm) wear measurements. Measure tread depth/brake disc wear without removing wheels.
Autel MaxiTPMS TBE200E EU Tire Brake Examiner Laser Tire Tread Depth Brake Disc Wear 2in1 Tester Work with ITS600E is a one of our TPMS Tools, you can buy Autel MaxiTPMS TBE200E EU Tire Brake Examiner Laser Tire Tread Depth Brake Disc Wear 2in1 Tester Work with ITS600E from ukobd2.com.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150
images of Autel MaxiTPMS TBE200E EU Tire Brake Examiner Laser Tire Tread Depth Brake Disc Wear 2in1 Tester Work with ITS600E
Autel MaxiTPMS TBE200E Tire Brake Examiner – 2022 Newest Laser Tire Tread Depth & Brake Disc Wear 2-in-1 Tester
Autel MaxiTPMS TBE200E (Tire Brake Examiner) brings tire and brake disc inspection into the modern age with quick and accurate wear measurements (measuring accuracy of 0.1 mm). Measure tread depth and brake disc wear without removing wheels. It's a wand-like, laser-enabled device that scans tire and brake disc surfaces to determine the condition and need for service or replacement. The TBE200 provides wear analysis and displays the results along with service recommendations on its 1.65-inch high-resolution Super Retina touchscreen AMOLED display. The full-color graphical interface illustrates wear levels and provides actionable service advice, including tire and brake disc replacement, tire rotation, and 4-wheel alignment.
Notice: Lifetime free update
Autel MaxiTPMS TBE200E Features

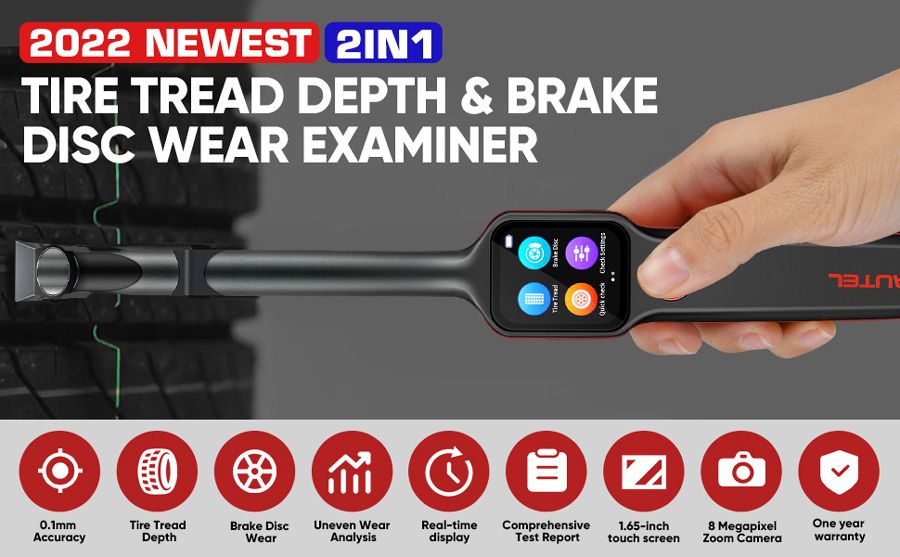

1. 2022 Newest 2-in-1 Tire & Brake Examiner – Autel TBE200E
MaxiTPMS TBE200 is a laser-based (0.1 mm accuracy) tire tread depth and brake disc wear 2-in-1 examiner. The Autel TBE200E is the upgraded version of the TBE100E, adding features such as DOT scanning, tire expiration notices, tire recall lookup, and the ability to take photos of tire wear and damage. Equipped with a 1.65” AMOLED Super Retina touchscreen, dual cameras, real-time tire health and uneven wear analysis, full tread measurement, support for nearly all tire types, and comprehensive test reporting (requires ITS600E).
2. Tire Tread Depth & Brake Disc Wear Testing
Why choose the TBE200E? The Autel MaxiTPMS TBE200E is not only a laser inspector with 0.1 mm measuring accuracy, but it also displays measurements graphically. This makes it convenient for technicians and repair shops to assess tread depth and brake disc wear without wheel removal. The Autel TPMS TBE200E provides four visual wear status indicators—Gray, Green, Yellow, and Red—to represent degrees of tire or brake wear, offering clear analysis to ensure driving safety.
3. Real-Time Tire Health Analysis
The Autel TBE200E tread depth reader delivers real-time wear analysis, displaying measurement data curves and service recommendations on its 1.65-inch high-resolution Super Retina AMOLED touchscreen. The full-color graphical display illustrates wear conditions and advises on necessary services, including tire and brake disc replacement, tire rotation, and 4-wheel alignment. Additional functions like DOT scanning, tire expiration alerts, and recall lookups make accessing tire data easier than ever.
4. Enhanced Performance with the ITS600E
The TBE200E achieves optimal performance when paired with the ITS600E TPMS tool. When used together, the TBE200E leverages the ITS600E’s larger screen to collect tire tread and brake disc wear data, combining it with TPMS information to generate comprehensive vehicle health reports. These detailed reports cover both service areas and can be printed for customer presentation or retained as service records.
5. Wide Vehicle Coverage & One-Year Warranty
The Autel TBE200E TPMS tool supports 99% of vehicles—including passenger cars, off-road vehicles, and commercial vehicles—and is compatible with nearly all major tire brands (Goodyear, Continental, Bridgestone, Dunlop, etc.). The TBE200E comes with a one-year warranty and a 100% risk-free purchase guarantee, making it an ideal choice for professionals and enthusiasts alike.
Tire Tread Depth & Brake Disc Wear – Meet Your Needs
Tire Tread Depth
Using laser technology, the Tire Tread application analyzes tire wear without removing the tires. Simply place the tool on the tire surface—the device projects a laser beam and sends wear measurements to the display with 0.1 mm accuracy. Results are shown graphically. The application offers two check modes: “All Treads” and “Single.” Users will be prompted to select their preferred mode upon starting the test.
Brake Disc Check
This function measures brake rotor surface wear independently of tire tread depth assessment. To use it, place the tool’s magnetic tip on the rotor at a 90-degree angle so the laser spans from the hub to the disc edge. Swipe left to view data for each brake rotor. A reading of 0.1 indicates 0.1 mm (1/10th of a millimeter) of surface wear. The typical replacement threshold is 1.0 mm of material loss—rotors showing lower values are in good condition.
How to Use the Autel TBE200E
Easy to Use – The Autel MaxiTPMS TBE200E features one-button operation, making it a reliable helper for vehicle tire and brake maintenance.
- Power On: Long-press the power button to turn on the tool.
- Tire Tread Check: On the Main Job screen, tap the Tread Check icon and place the tool on the tire surface. Short-press the power button. Ensure the laser line is perpendicular to the tire grooves. Real-time data appears on-screen; swipe left to view details.
- Interpret Results: Wear status is color-coded: Gray = untested, Green = good condition.
- Calibration: On the Main Job screen, tap Calibration, place the magnetic head on the calibration table, and press the power button. Wait 1–2 minutes for completion.
Calibration Frequency: Recommended every two months. Recalibrate immediately if the tool is dropped, mishandled, or shows measurement deviations.
Autel TBE200E Supports 99% of Vehicles for Safe Driving
The Autel TBE200E laser TPMS tool is compatible with passenger cars, off-road vehicles, and commercial vehicles. It works with almost all tire types available on the market, including Goodyear, Continental, Bridgestone, Dunlop, and more.
Autel MaxiTPMS TBE200E vs. TBE100
| Feature | Autel MaxiTPMS TBE200E | Autel MaxiTPMS TBE100 |
|---|---|---|
| Tire tread depth / brake disc wear measurement | ✓ | ✓ |
| Laser measurement | ✓ | ✓ |
| Measurement accuracy (0.1 mm) | ✓ | ✓ |
| Real-time measurement data | ✓ | ✓ |
| Replacement & maintenance suggestions | ✓ | ✓ |
| Comprehensive Test Report (requires ITS600) | ✓ | ✓ |
| Scan DOT | ✓ | X |
| Tire expiration notice | ✓ | X |
| Tire recall lookup | ✓ | X |
| Take photos of tire wear and damage | ✓ | X |
Autel MaxiTPMS TBE200E Specifications
- Recommended Use: Indoor
- Processor: 4x ARM Cortex-A35 (1.5 GHz)
- Memory: 1GB RAM LPDDR3 & 4GB ROM
- Display: 1.65-inch AMOLED capacitive touchscreen with 348×442 resolution
- Connectivity:
- Wi-Fi
- USB 2.0, Type C
- Camera: CMOS WXGA, 1 megapixel & 8 megapixel, 30fps
- Audio Output: Beep
- Power and Battery:
- 3.7 V/3000 mAh 18650 lithium-ion battery
- Charges via 5 V AC/DC power supply
- Tested Battery Life: Around 8 hours of continuous use
- Battery Charging Input: 5 V/1.5 A
- Power Consumption: 300 mA (AMOLED on with default brightness) @3.7 V
- Operating Temperature: -10 to 45°C (14 to 113°F)
- Storage Temperature: -20 to 60°C (-4 to 140°F)
- Dimensions (W × H × D): 283.0 mm (11.14”) × 39.0 mm (1.54”) × 33.5 mm (1.32”)
- Net Weight: 188 g (0.41 lb.)
Autel MaxiTPMS TBE200E Package Contents
- Autel MaxiTPMS TBE200E × 1
- Calibration Table × 1
- Power Adapter × 1
- Type C USB Cable × 1
- Quick Reference Guide × 1
- Packing List × 1
- Carrying Case × 1
