UNI T Tester Digital Multimeter
The UT191E/T is a high-reliability, high-security, full-featured handheld industrial multimete, wholesale UNI-T Tester Digital Multimeter.
UNI-T Tester Digital Multimeter Profesional UT191T UT191E True RMS Auto Range DMM 20A Ammeter 600V Count 6000 DC AC Capacitor is a one of our UNI T Tester Digital Multimeter Tools, you can buy UNI-T Tester Digital Multimeter Profesional UT191T UT191E True RMS Auto Range DMM 20A Ammeter 600V Count 6000 DC AC Capacitor from ukobd2.com.
Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150

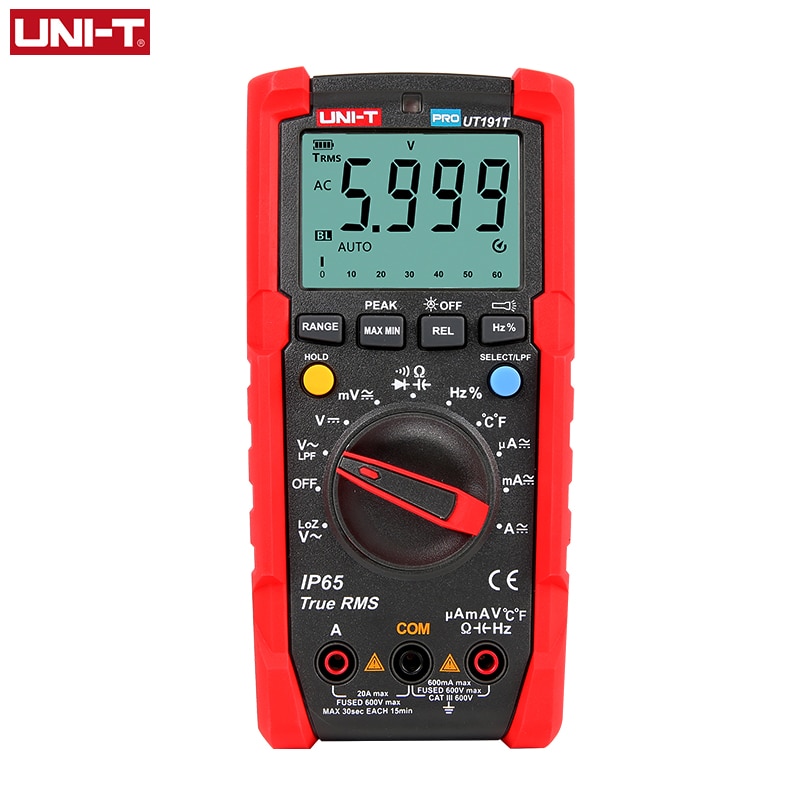

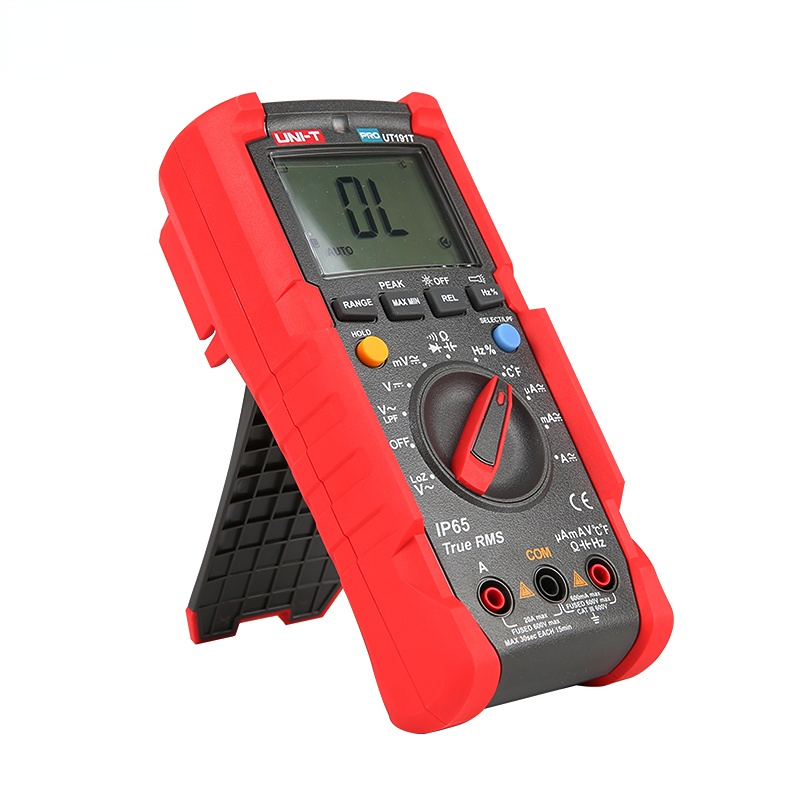

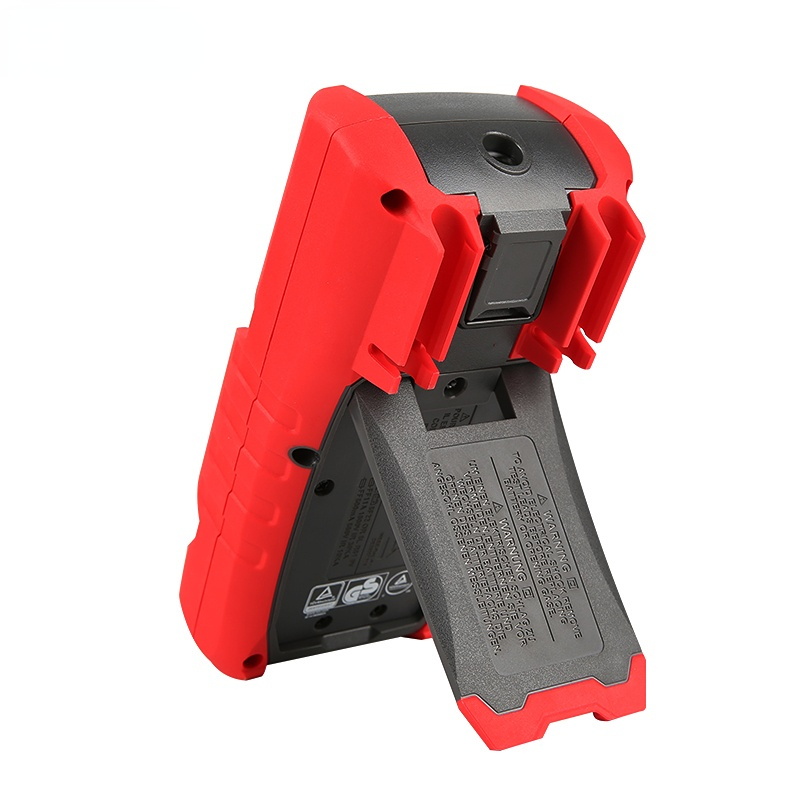

images of UNI-T Tester Digital Multimeter Profesional UT191T UT191E True RMS Auto Range DMM 20A Ammeter 600V Count 6000 DC AC Capacitor
Applications:
Parameter
| Specifications | Range | UT191E | UT191T |
| DC voltage (V) | 600V | ±(0.5%＋3) | ±(0.5%＋3) |
| AC voltage (V) | 600V | ±(0.7%＋3) | ±(0.7%＋3) |
| LoZ ACV (V) | 600V | ±(2%＋5) | ±(2%＋5) |
| ACV LPF | 600V | ±(2%＋5) | ±(2%＋5) |
| DC current (A) | 20A | ±(0.8%+3) | ±(0.8%+3) |
| AC current (A) | 20A | ±(1%+3) | ±(1%+3) |
| Resistance (Ω) | 60MΩ | ±(0.8%+2) | ±(0.8%+2) |
| Capacitance (F) | 60mF | ±(3%+5) | ±(3%+5) |
| Frequency (Hz) | 10Hz~1MHz | ±(0.1%+4) | ±(0.1%+4) |
| Duty cycle | 0.1%~99.9% | ±(2%＋5) | ±(2%＋5) |
| Temperature (℃) | -40℃~400℃ (0.1°C resolution) |
| ±(1%+20) |
| Temperature (℉) | -40℉~752℉ (0.2°F resolution) |
| ±(1%+40) |
| ACV peak hold |
| ±(2%+100) | ±(2%+100) |
| Peak current detection |
| ±(3%+100) | ±(3%+100) |
| Features | |||
| Display count | 6000 | ||
| Sampling rate | 3 times/second | ||
| Analog bar graph | 31 sections | ||

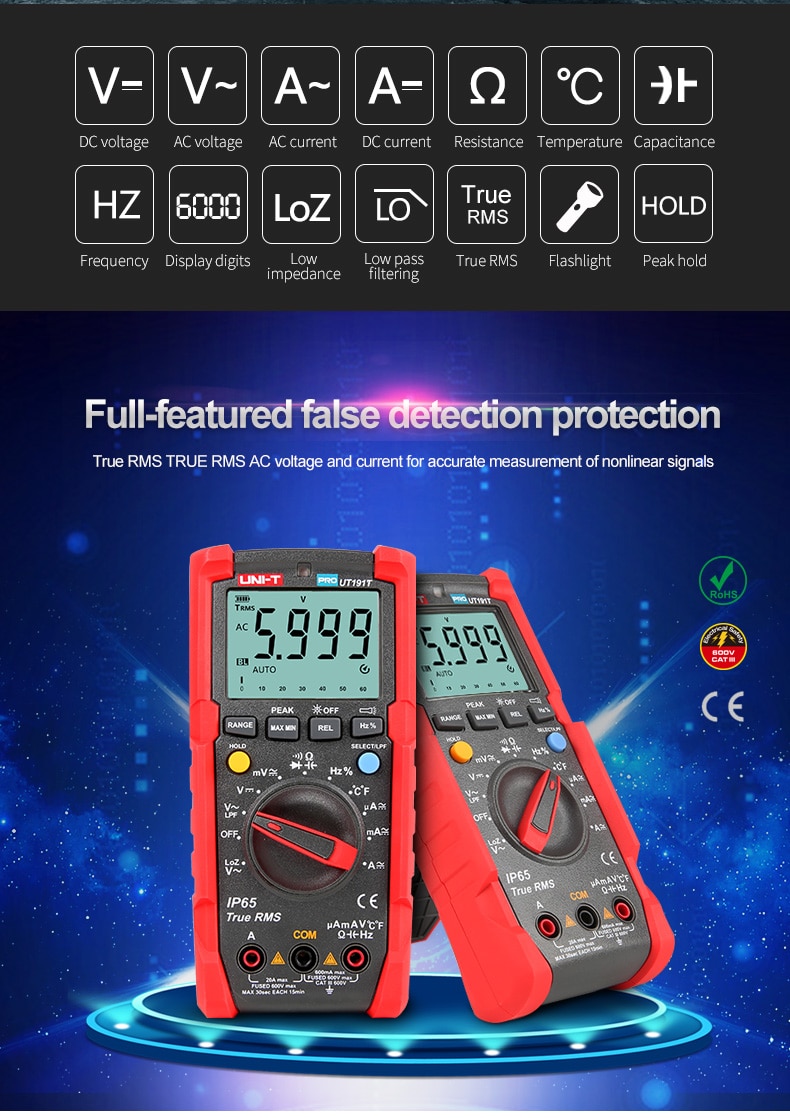

| True RMS | √ | ||
| AC voltage frequency response | 45Hz~400Hz | ||
| AC current frequency response | 45Hz~400Hz | ||
| Diode/Continunity test | √ | ||
| Auto/Manual range | √ | ||
| Auto power off | √ | ||
| Low battery indication | √ | ||
| Data hold/MAX/MIN | √ | ||
| Function selection (SELECT) | √ | ||

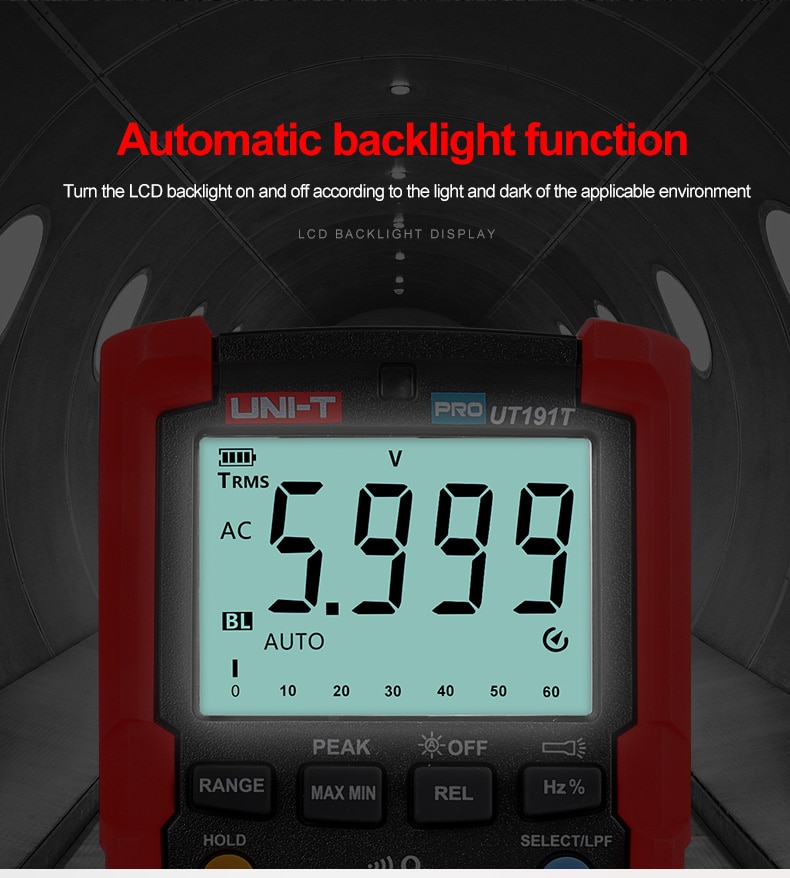

| Flashlight/Auto backlight | √ | ||
| 2m drop test/IP65 | √ | ||
| General Characteristics | |||
| Power | 9V battery（not included) | ||
| LCD size | 58mm x 42mm | ||
| Product net weight | Red and grey | ||
| Product color | 428g | ||
| Product size | 180mm x 87mm x 59mm | ||

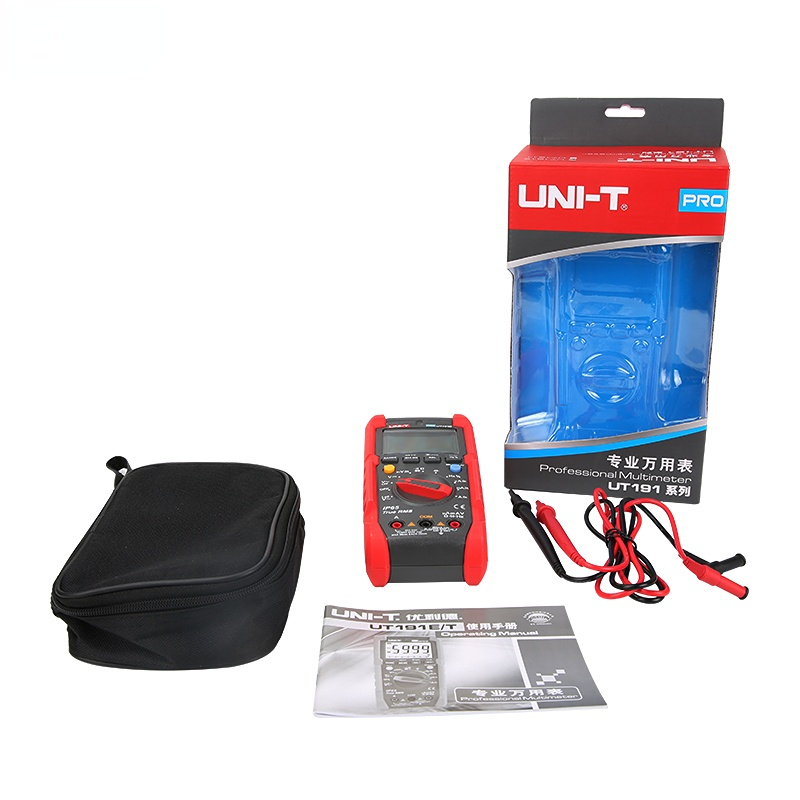

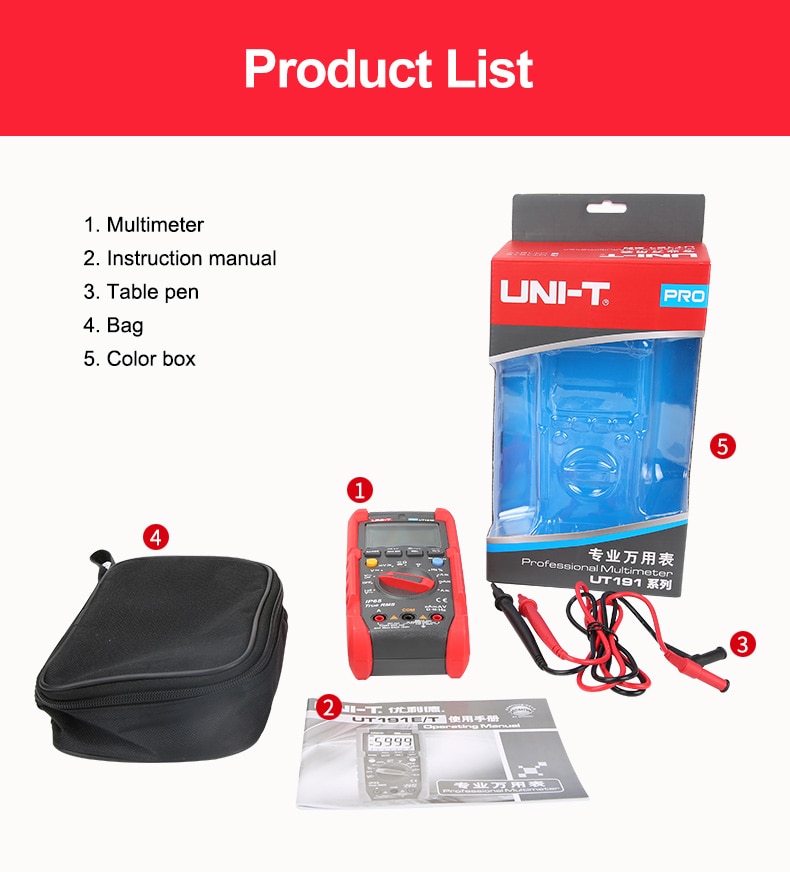

| Standard accessories | Test lead, carrying bag, point contact temperature probe (UT191T) | ||
| Standard individual packing | Gift box, English manual | ||
