VIDENT iMax4301 VAWS V-A-G OBD Diagnostic Service Tool Supports 9 Special Functions
Description

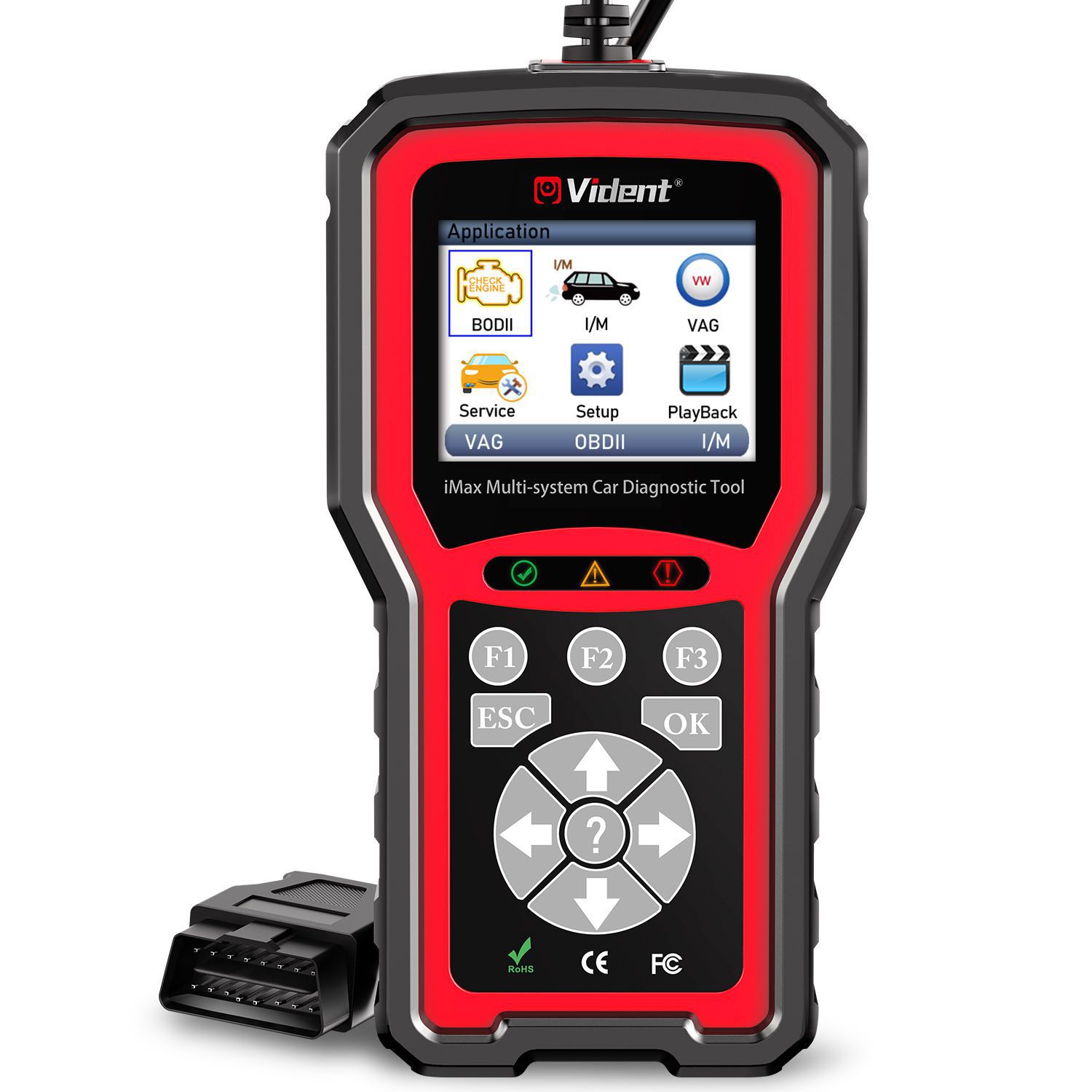

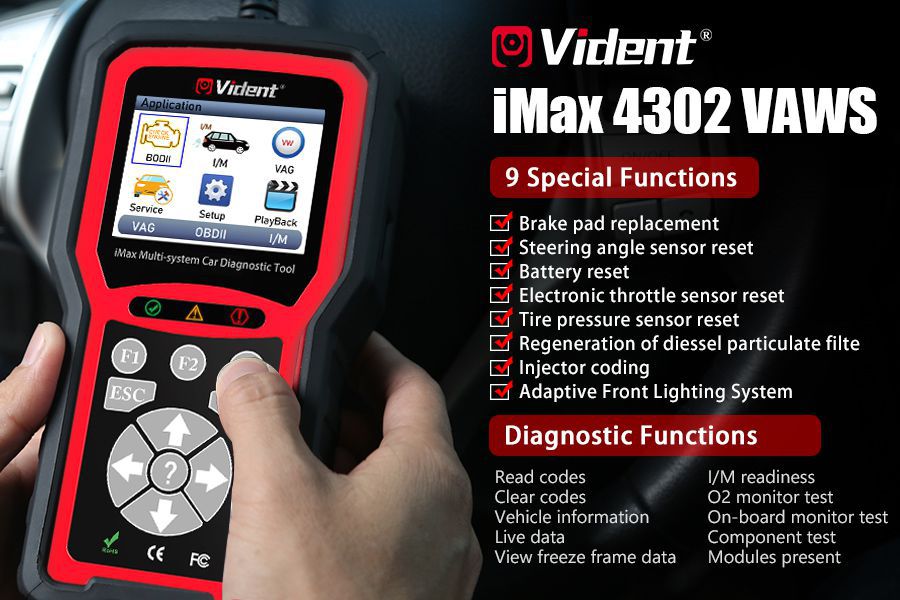

VIDENT iMax4301 VAWS is a professional multi-system car diagnostic tool designed for Audi, Volkswagen, Skoda, Seat, Bentley, Bugatti, and Lamborghini. It is compatible with most petrol and diesel vehicles from 2001 onwards that are OBDII compliant.
Key Features
- VAG Diagnosis for Single Brand on Most Models (OBDII-16DLC)
- Read & Clear DTC
- Read Live Data
- ECU Information
- Freeze Frame
- Oil Service Reset
- Electronic Parking Brake (EPB) System Maintenance
- Battery Replace Test (BRT)
- Diesel Particulate Filter (DPF) Regeneration Control System
- Throttle Position Sensor (TPS) - Electronic Throttle Sensor Reset
- Steering Angle Sensor (SAS) Calibration
- Prime Fuel Pump (PFP)
- Adaptive Front Lighting System (AFS)
- Tire Pressure Sensor Reset (TPMS)
- Injector Coding
- I/M Readiness Test
- Data Playback and Print
- Full Speed Upgrade via PC
- TFT LCD Display (320*240 resolution)
- Lifetime Free Software Update

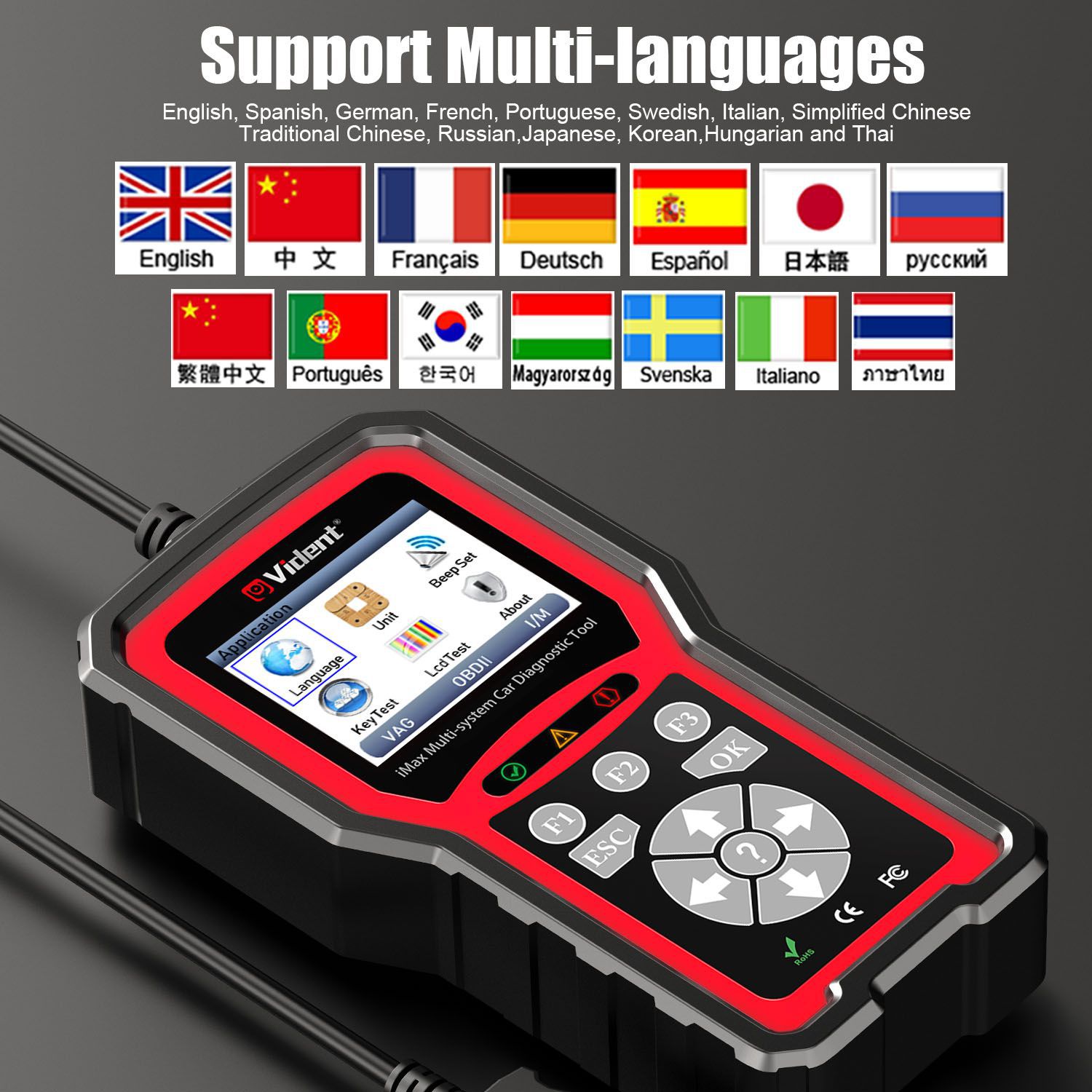

- Multilingual Support: English, French, German, Spanish, Italian, Dutch, Polish, Swedish, Portuguese, Russian, and more

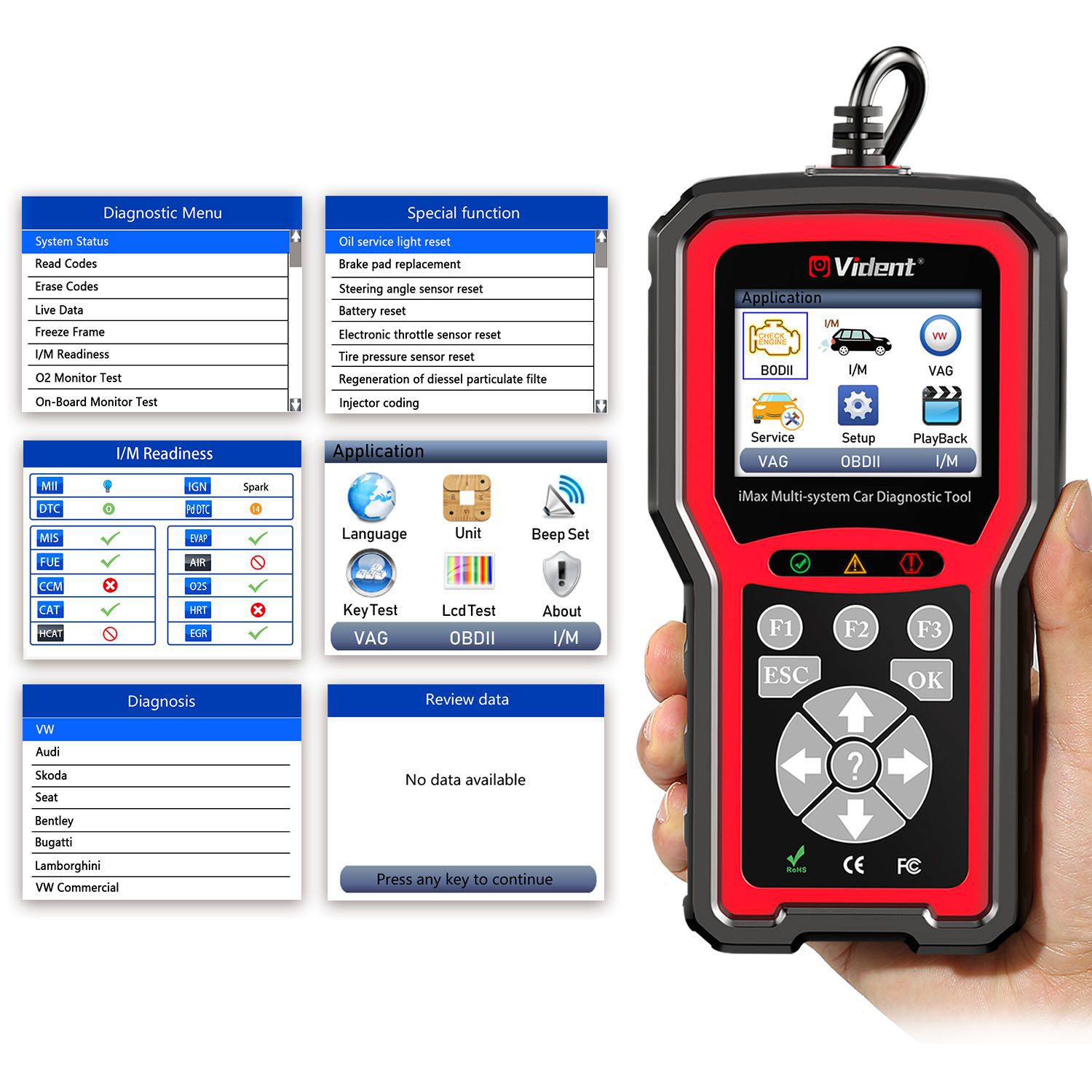

Function List
- Reads and clears trouble codes across electronic systems including engine, transmission, ABS, airbag, body, and chassis
- Supports OBDII/EOBD (Ten Modes of Operation)
- Full ECU Diagnosis
- Oil Service Reset
- Electronic Parking Brake (EPB) System Maintenance
- Battery Replace Test (BRT)
- Diesel Particulate Filter (DPF) Regeneration Control System
- Throttle Position Sensor (TPS) - Electronic Throttle Sensor Reset
- Steering Angle Sensor (SAS) Calibration
- Battery Replace Test (BRT)
- Prime Fuel Pump (PFP)
- Adaptive Front Lighting System (AFS)
- Tire Pressure Sensor Reset (TPMS)
- Injector Coding
- Compatible with most VAG models equipped with OBDII-16 DLC
Supported Vehicle Brands and Models
Compatible with most VAG models from 1996 and newer:
Volkswagen: Lamando, Golf, Santana, NF, Scirocco, Jetta, Lavida, Beetle, EOS, Bora, Rabbit, Sagitar, Vento, Touran, New Beetle, Convertible, Caddy, Passat, CC, Magotan, Phaeton, Tiguan, Beetle, Voyage, Saveiro, Polo, Sharan, Touareg, Kombi, etc.
Audi: A1, A2, A3, A4, A5, A6, A7, A8, Cabriolet, Q2, Q3, Q5, Q7, Q8, S3, S4, S5, S7, R8, TT, etc.
Skoda: Citigo, Fabia, Octavia, Rapid, Roomster, Superb, Yeti, Kodiaq, Kamiq, etc.
Seat: Leon, Toledo, Exeo, Altea, Arosa, Ibiza, Cordoba, Alhambra, Inca, Mii, etc.
Bentley: Arnage, Azure, Brooklands, Continental Flying Spur, Continental GT, Mulsanne
Bugatti: Veyron
Lamborghini: Aventador, Gallardo, Huracan

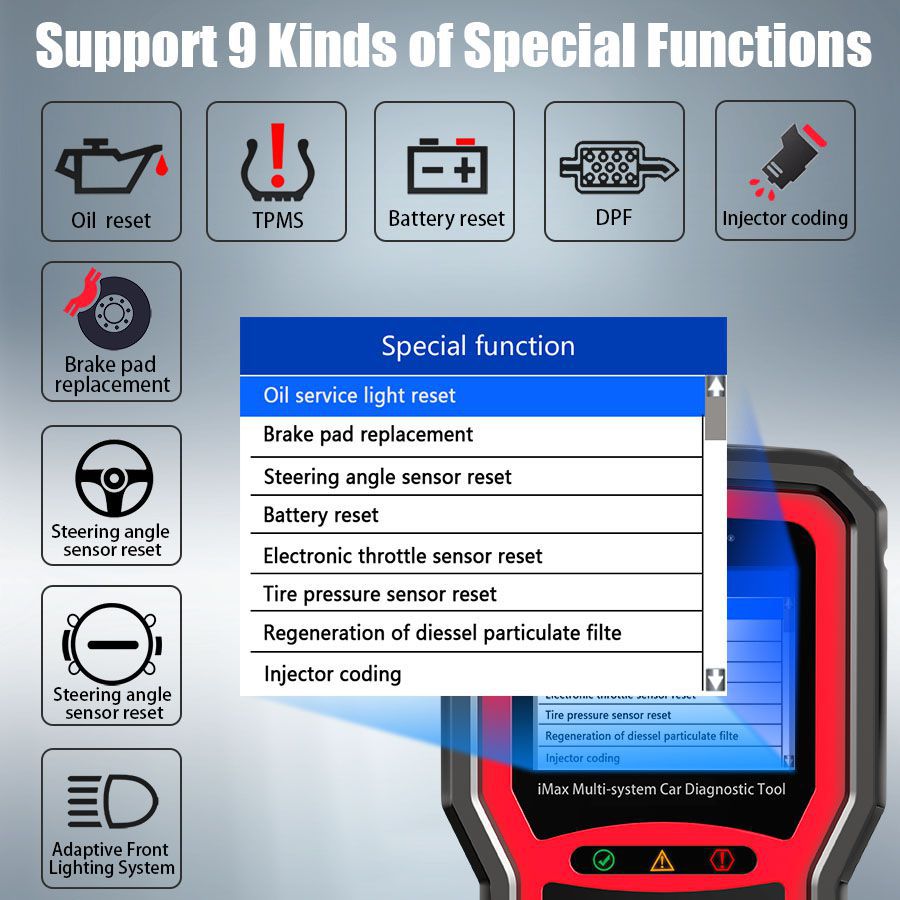

Special Function Details
Oil Service Reset
Service Lamp Reset
- If the service lamp is illuminated, vehicle service is required. After servicing, reset the driving mileage or time to turn off the lamp and initiate a new service cycle.
- Use VIDENT tools to reset the service lamp after changing engine oil or components monitoring oil life.
Electronic Parking Brake (EPB) System Maintenance
Brake Pad Replacement
- When brake pad wear triggers the sensor, a signal is sent to the onboard computer. After replacing the pads, reset the system to prevent alarms.
- Reset is required when:
- Brake pads and wear sensors are replaced
- Brake pad indicator lamp is on
- Sensor circuit short is repaired
- Servo motor is replaced
Battery Replace Test (BRT)
Battery Matching
- Reset the battery monitoring unit to clear old fault data and re-establish accurate monitoring based on current battery status.
- Required when:
- Main battery is replaced – prevents false detection and restores auxiliary functions like auto start/stop, sunroof, and power windows.
- Battery monitoring sensor is replaced – ensures accurate electric quantity monitoring and avoids incorrect instrument panel readings.
Diesel Particulate Filter (DPF) Regeneration Control System
DPF Regeneration
- Periodically burns off particulate matter (PM) through high-temperature combustion or catalyst-assisted methods to maintain filter performance.
- Required when:
- Bleed pressure sensor is replaced
- PM trap is removed or replaced
- Fuel additive injector is replaced
- Catalytic oxidizer is replaced
- DPF regeneration MIL is on after maintenance
- DPF control module is replaced
Throttle Position Sensor (TPS) – Throttle Matching
Throttle Matching
- Initialize throttle actuator so ECU recalibrates idle and throttle control for accurate intake regulation.
- Required when:
- ECU is replaced or memory is lost
- Throttle assembly is replaced
- Intake passage is cleaned or replaced
- Throttle cleaning alters airflow characteristics
Steering Angle Sensor (SAS) Calibration
Steering Angle Reset
- Establish a zero reference point when the vehicle is moving straight. This allows the ECU to accurately calculate left and right steering angles.
- Required after:
- Replacing the steering angle sensor
- Replacing steering components (gearbox, column, tie rod, knuckle)
- Performing four-wheel alignment
- Recovering from body damage
Prime Fuel Pump (PFP)
- Tests Prime Fuel Pump function.
- Air can enter fuel lines during diesel system servicing, causing starting issues. This function helps prime the system to remove air.
Adaptive Front Lighting System (AFS)
Headlamp Matching
- Initializes the adaptive headlight system, which adjusts lighting angle based on speed, body posture, and ambient light conditions.
Tire Pressure Sensor Reset (TPMS)
Tire Pressure Reset
- After tire maintenance and the TPMS light activation, reset the system to clear warnings and restore normal operation.
- Required after:
- Tire pressure correction
- Tire replacement or repair
- TPMS sensor replacement
- Installation of TPMS-capable tires
Injector Coding
- Write or rewrite actual injector codes into the ECU to ensure precise fuel injection per cylinder.
- Required after replacing ECU or injectors to allow proper recognition and fuel control.

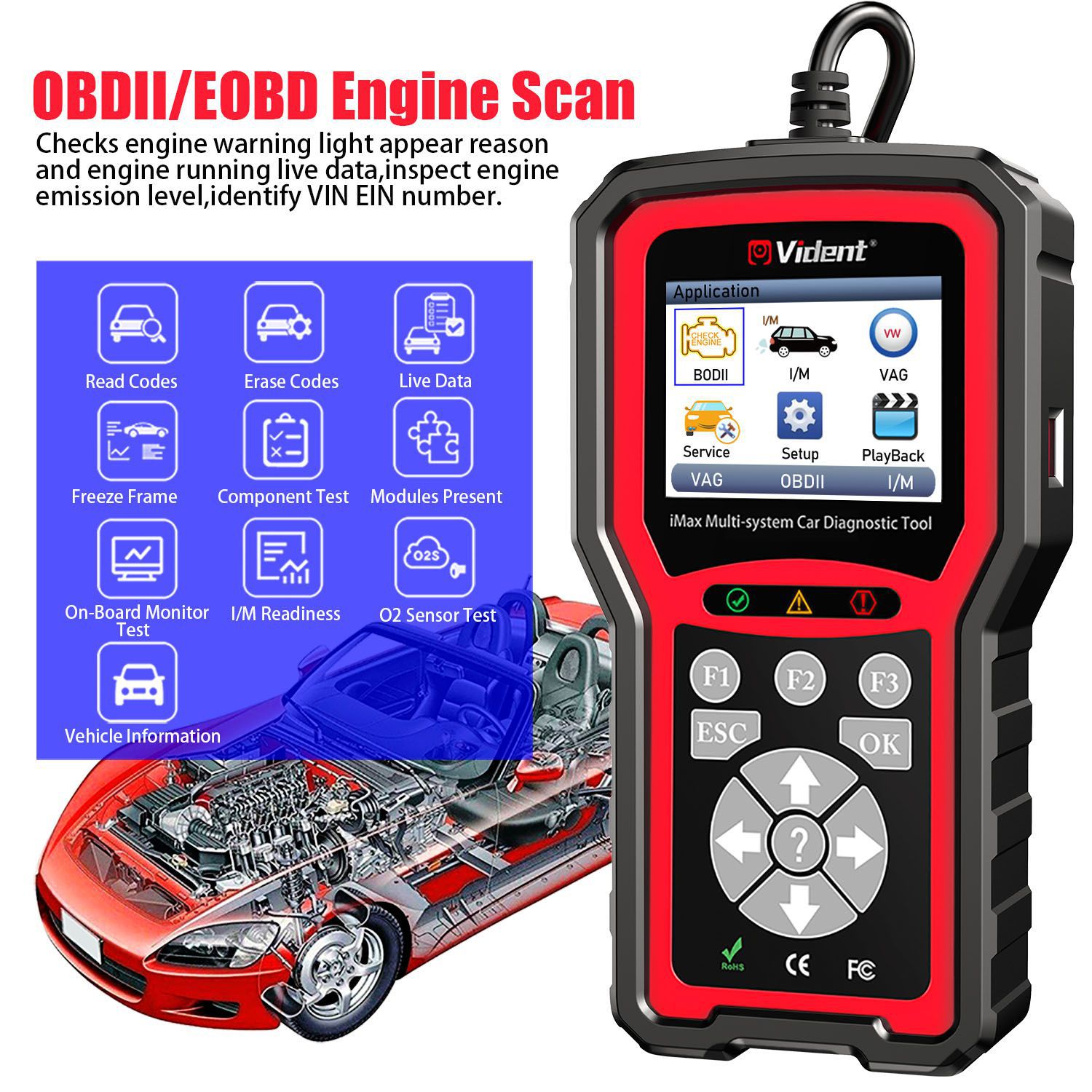

OBDII Functions for All OBDII-Compatible Vehicles
- Read Codes: Retrieve generic (P0, P2, P3, U0) and manufacturer-specific (P1, P3, U1) permanent and pending DTCs.
- Erase Codes: Clear stored diagnostic trouble codes.
- Determine MIL: Turn off Check Engine Light (MIL) after clearing codes and resetting monitors.

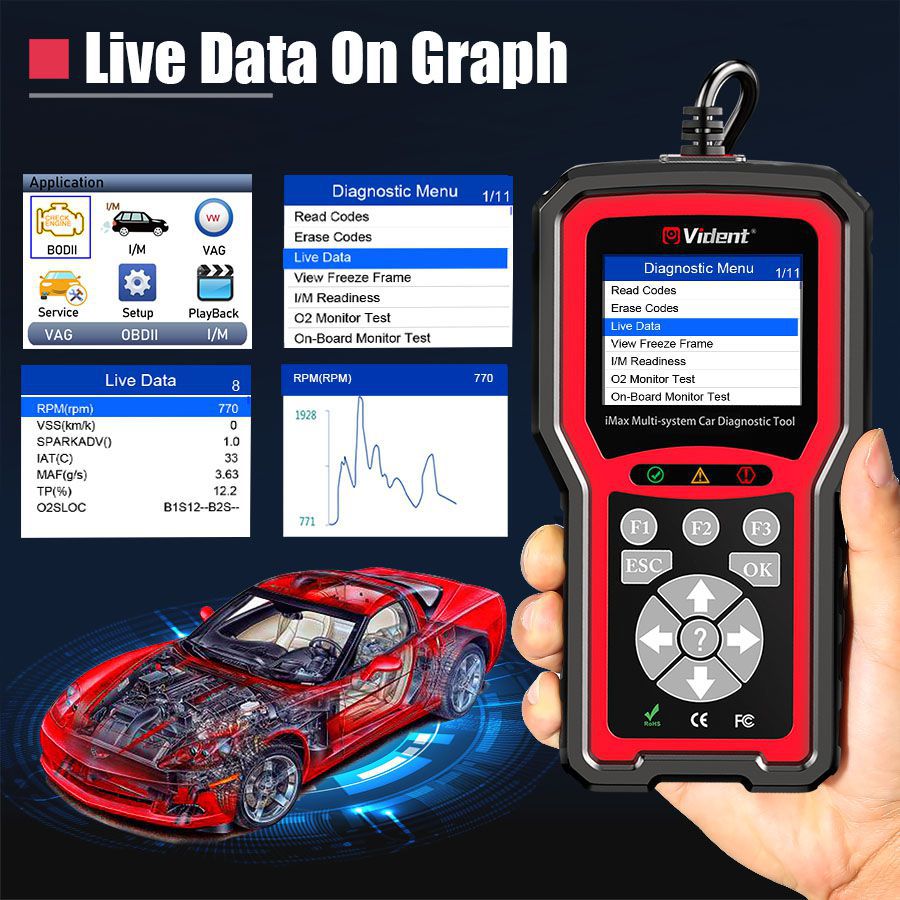

- DataStream: View real-time PCM data with color graphing and fast refresh rates.

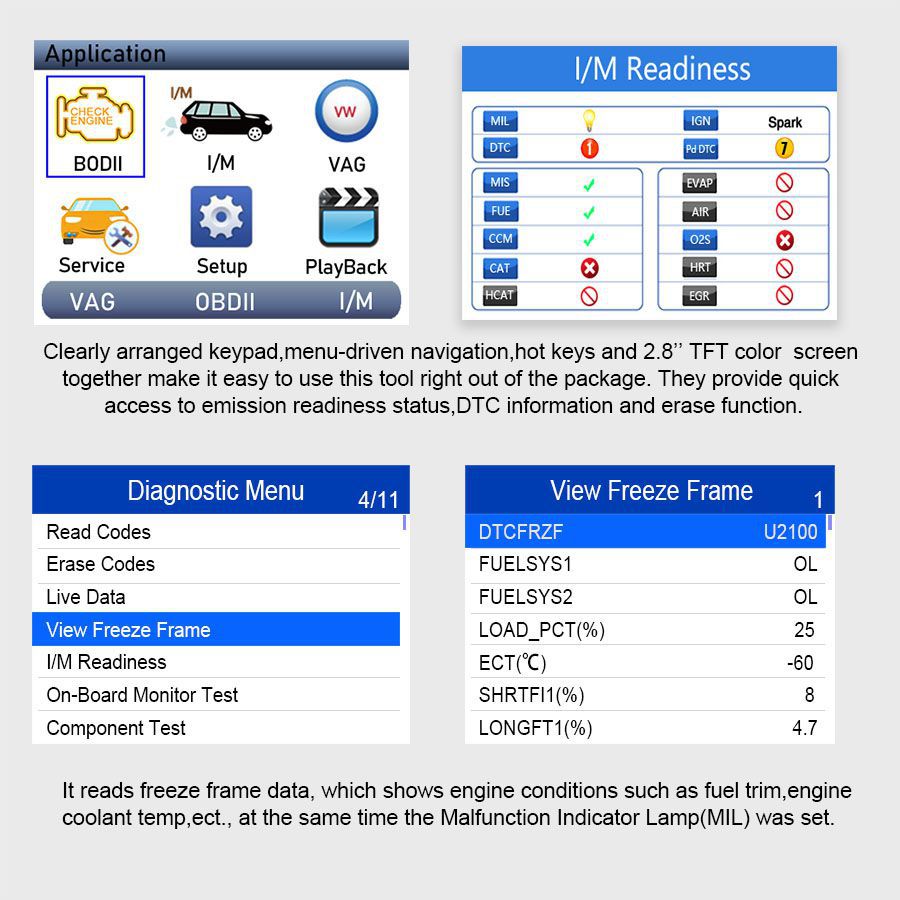

- Freeze Frame Data: Access snapshot of vehicle conditions at the moment an emission-related fault occurred.

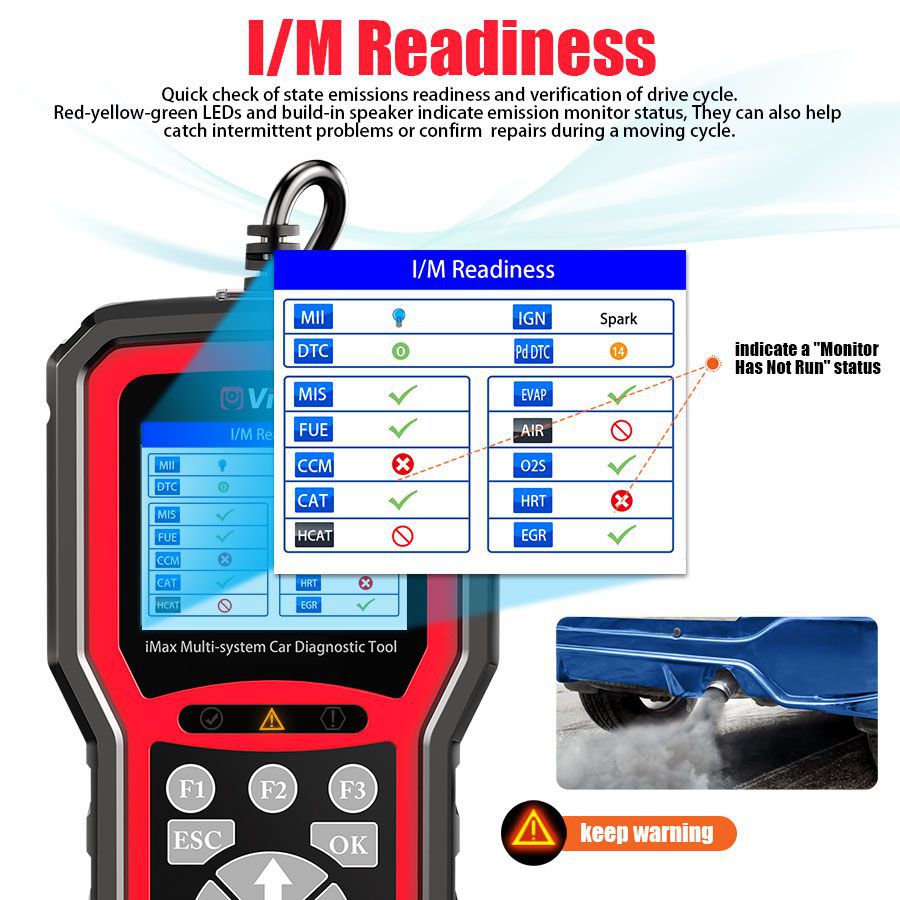

- I/M Readiness Test: Check if emissions systems are ready for inspection and maintenance testing.
- O2 Sensor Test: View results of recent O2 sensor tests from the vehicle’s computer.
- Evap System Test: Initiate leak test for the EVAP system (follow vehicle manual for procedures).
- On-Board Monitoring: Read diagnostic monitoring results for specific components/systems.
- Vehicle Information: Display VIN, CVN, and other vehicle data.
- Comprehensive Help: Includes OBD parameters, mode explanations, DTC search, and more.

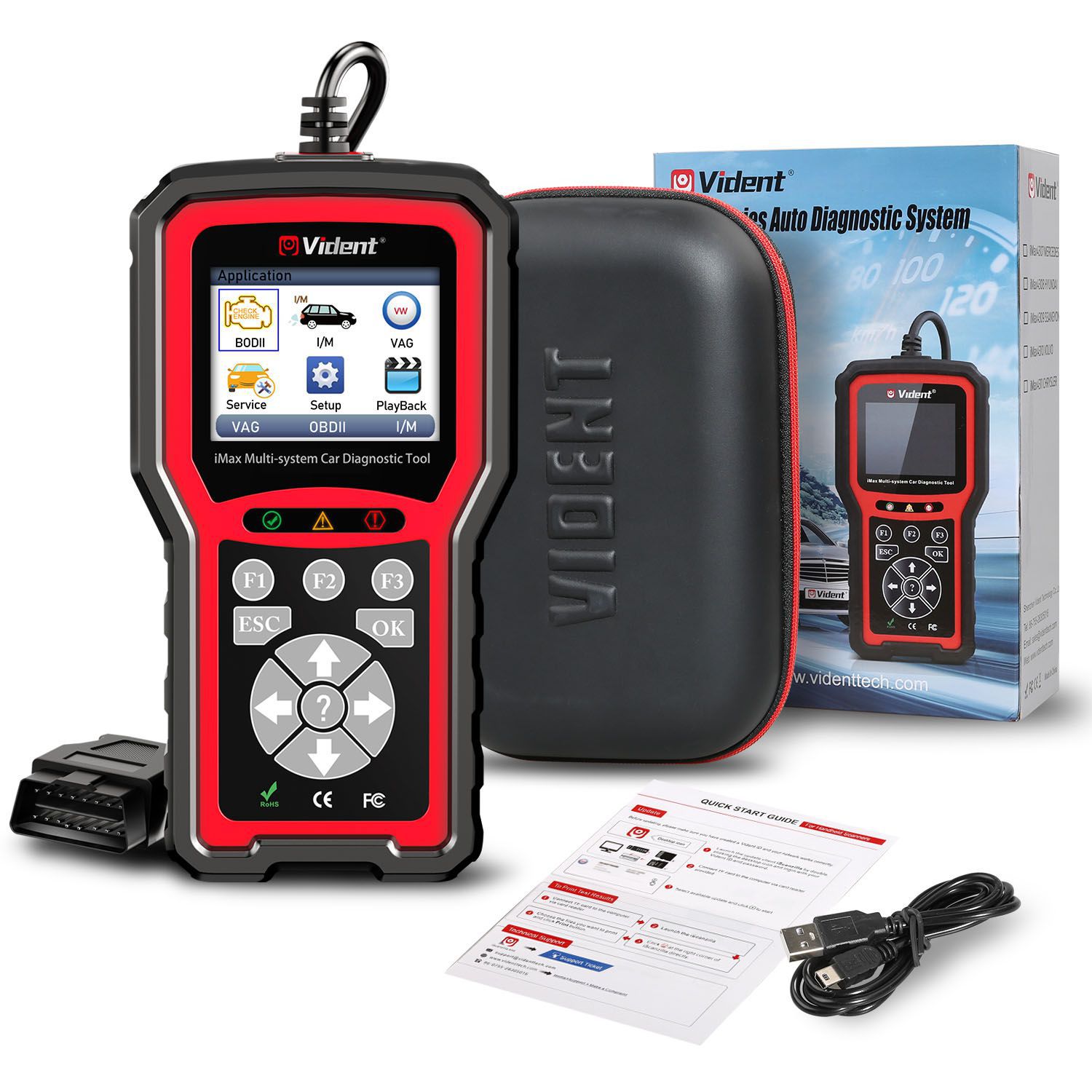

Package Contents
- 1pc x VIDENT iMax4301 VAWS Main Unit
- 1pc x User Manual
- 1pc x USB Cable
