Ad-Blue-obd2 Emulator Box designed to disable Ad-Blue-obd2 system used in trucks, buses and other heavy vehicles with EURO 4/5 exhaust emission rates Ad-Blue-obd2 Emulator Box bypasses electronic module of the Ad-blue-obd2 system on vehicle.

Truck Ad-blue-obd2 Emulator for MAN is a one of our man adblueobd2 emulator Tools, you can buy Truck Ad-blue-obd2 Emulator for MAN from ukobd2.com.

Wholesale Top quality VAS6154, GM Tech2, VCM II For Ford, Handy Baby II Car Key Chip Copier, CDP DS150

images of Truck Ad-blue-obd2 Emulator for MAN

Truck Ad-blue-obd2 Emulator for MANTruck Ad-blue-obd2 Emulator for MANTruck Ad-blue-obd2 Emulator for MAN

MAN Ad-blue-obd2 Emulator, Trucks and other heavy vehicles

Note: all the operations with the f738 fuse must be done with the dashboard switched off(key off).

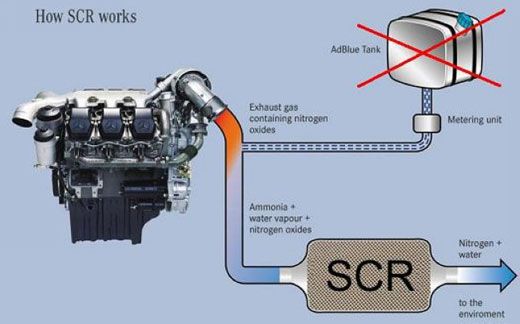

Ad-blue-obd2 Emulator Box designed to disable Ad-blue-obd2 system used in Trucks, buses and other heavy vehicles with EURO 4/5 exhaust emission rates Ad-blue-obd2 Emulator Box bypasses electronic module of the Ad-blue-obd2 system on vehicle.

Its very easy to fit Ad-blue-obd2 Emulator Box to any Truck or bus equipped with Ad-blue-obd2 system and it will override Ad-blue-obd2 system instantly, it will stop the usage of Ad-blue-obd2 liquid. Ad-blue-obd2 Emulator Box disables Ad-blue-obd2 system electronics gently so there will be no power loss of the engine or any warnings on the dashboard and in diagnostic system.

This device works without interfering to work of other electronic systems of the vehicle. Ad-blue-obd2 Emulator Box has a wide range of supported vehicle models and there is only one version of emulator for all supported trucks, just upload the necessary program to the Ad-blue-obd2 Emulator Box and you can install it on any supported truck.

MAN Ad-blue-obd2 Emulator INSTALLATION

The connections details diagram and wire colours refer to MAN TGX18-440 Year 2009, but the main procedure of the minusblue module does not vary. Before proceeding make sure no faulty codes are memorised in the original ECU, Ad-blue-obd2 liquid is higher than the reserve level and the truck batteries are disconnected from the system.

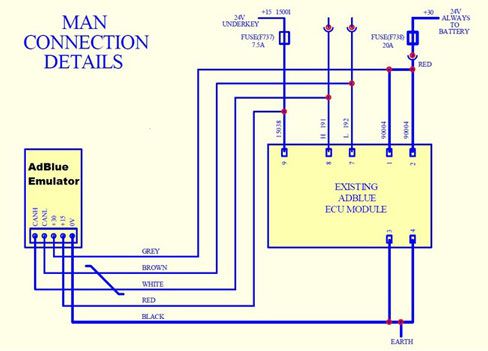

MAN Ad-blue-obd2 Emulator WIRING

5 conductors:

1) RED(+15). To be connected to a 24V source enabled when the engine key is in the ON position. This connection will supply power to the minusble Module when the engine key is on(dashboard on).

2) BLACK(0V). To be connected to an earth.

3) GREY(+30). To be connected to a 24V supply always available to the existing Ad-blue-obd2 system (F738 protection fuse and the Ad-blue-obd2 system).

4) WHITE(CAN H). To be connected to CAN H of the system.

5) BROWN(CAN L). To be connected to CAN L of the system.

The connections must be made under the box of the connectors located under the protection cover of the radiator(driver and passenger side).

MAN Ad-blue-obd2 Emulator ACTIVATION

The minusblue module and the original Ad-blue-obd2 module CANNOT both be activated at the same time, the GREY ACTIVATION WIRE(+30) is to enable the minusblue module working.

It is important to connect the GREY ACTIVATION WIRE(+30) to a 24V source always available(battery), moreover, the soldering operation must be done between the 20A fuse(F738) and the existing Ad-blue-obd2 module.

If you want to stop and exclude the original Ad-blue-obd2 module from working, all that needs to be done is to remove the F738 fuse before starting the engine.

The minusblue module will automatically be activated. To re-instate the original Ad-blue-obd2 module, all that needs to be done is to reinstall F738 fuse before starting the engine. The minusblue module will automatically be de-activated.

SELF LEARNING

When the minusblue module is fully connected to the electrical circuit of the original ad-blue-obd2 module, and after identification of the F738 fuse controlling the power feeding to the original ad-blue-obd2 module the truck batteries can be Re-connected.

The minusblue module aquires the inputs from the CANBUS the first time the dashboard is turned on(key on but engine still off).

1) Make sure the F738 fuse is inserted.

2) Turn on the dashboard(key on) and verify that the red led is on.

3) After approx 1 minute the red led will turn off and the green led will Turn on.

4) Switch off the dashboard(key off).

After this procedure the minusblue module will be activated whenever the dashboard is turned on(key on).

The result will be:

1) If the F738 fuse is installed the original ad-blue-obd2 system will be working. Both red and green leds will be on.

2) If the F738 fuse is not installed the original ad-blue-obd2 system will not be working and the minusblue module will be activated. Both red and green led will be flashing.

NOTE: ALL THE OPERATIONS WITH THE F738 FUSE MUST BE DONE WITH THE DASHBOARD SWITCHED OFF(KEY OFF).

LED FUNCTION ON - OFF

KEY OFF:- RED OFF, GREEN OFF - NO POWER FEEDING.

KEY ON:- RED OFF, GREEN OFF - TRUCK NOT SELECTED.

KEY ON:- RED ON, GREEN OFF - WAITING FOR SELF-LEARNING.

KEY ON:- RED OFF, GREEN ON - LEARNING COMPLETED.

KEY ON:- RED ON, GREEN ON - DATA SAVED, MODULE NOT ACTIVATED.

KEY ON:- RED PULSE, GREEN PULSE - DATA SAVED, MODULE ACTIVATED


truck-ad-blue-emulator-for-man-obd365

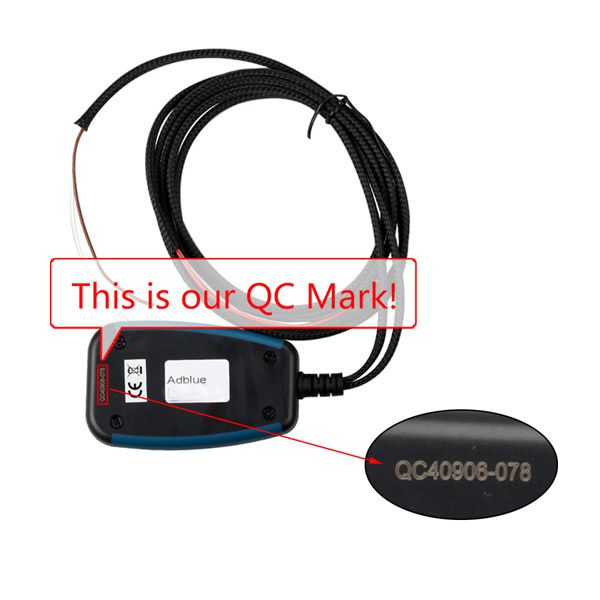

When this box connected Ad-Blue-obd2 system of the truck would be fully emulated, no errors related to Ad-Blue-obd2.

The box can be fast and easy installed to truck. You can disconnect it, reset and install into another truck.

truck-ad-blue-emulator-for-man-obd365-1

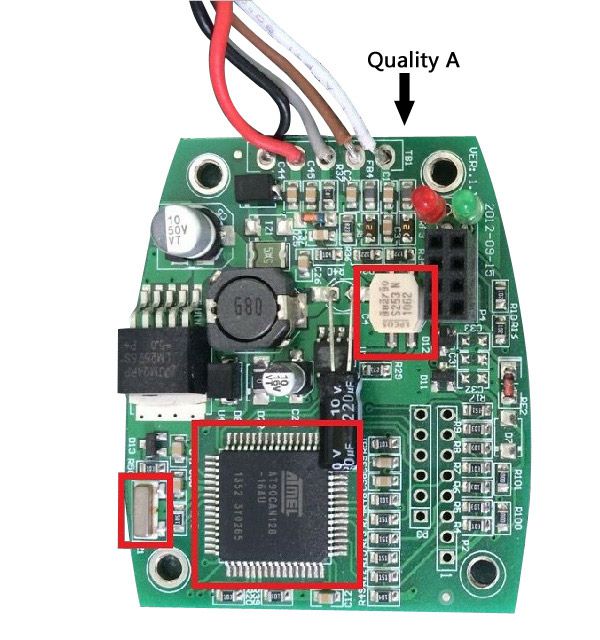

PCB Board:

truck-ad-blue-emulator-for-man-pcb-obd365

Package including:

1pc x Truck Ad-blue-obd2 Emulator for MAN

Go to Buy: Truck Ad-blue-obd2 Emulator for MAN
