Thanks for purchasing CVM-VM10-K2 PRO Multi-functional Smartphone Video Kit.
To ensure bring you a good using experience, please read this manual book
carefully before using and correctly install and operate.

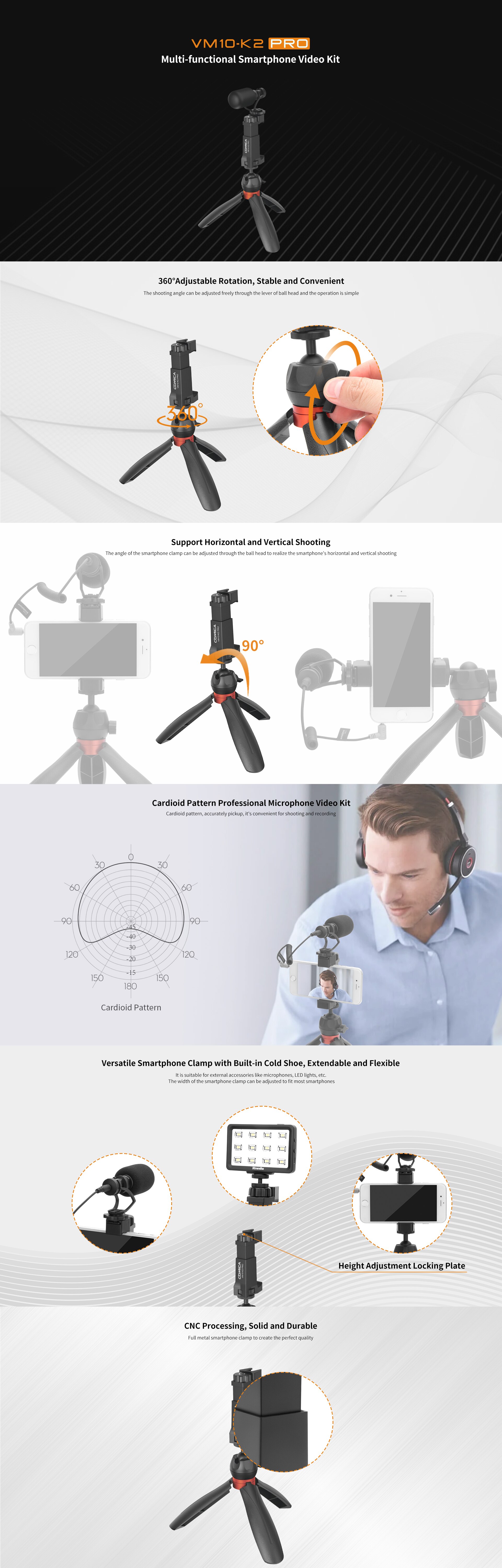

Main Features
. Support Horizontal and Vertical Shooting
. 360°Adjustable Rotation, Stable and Convenient
. Cardioid Pattern Professional Microphone Video Kit
. Versatile Smartphone Clamp with Built-in Cold Shoe, Extendable and Flexible
. CNC Processing, Solid and Durable
Notice
.Do not use this equipment in the vicinity of heat source or interference source
.This product belongs to high-precision instruments,please avoid falling,collision or pounding
.Do not use the equipment in rain or in a damp environment to avoid short-circuitdanger
Packing List
1.Microphone

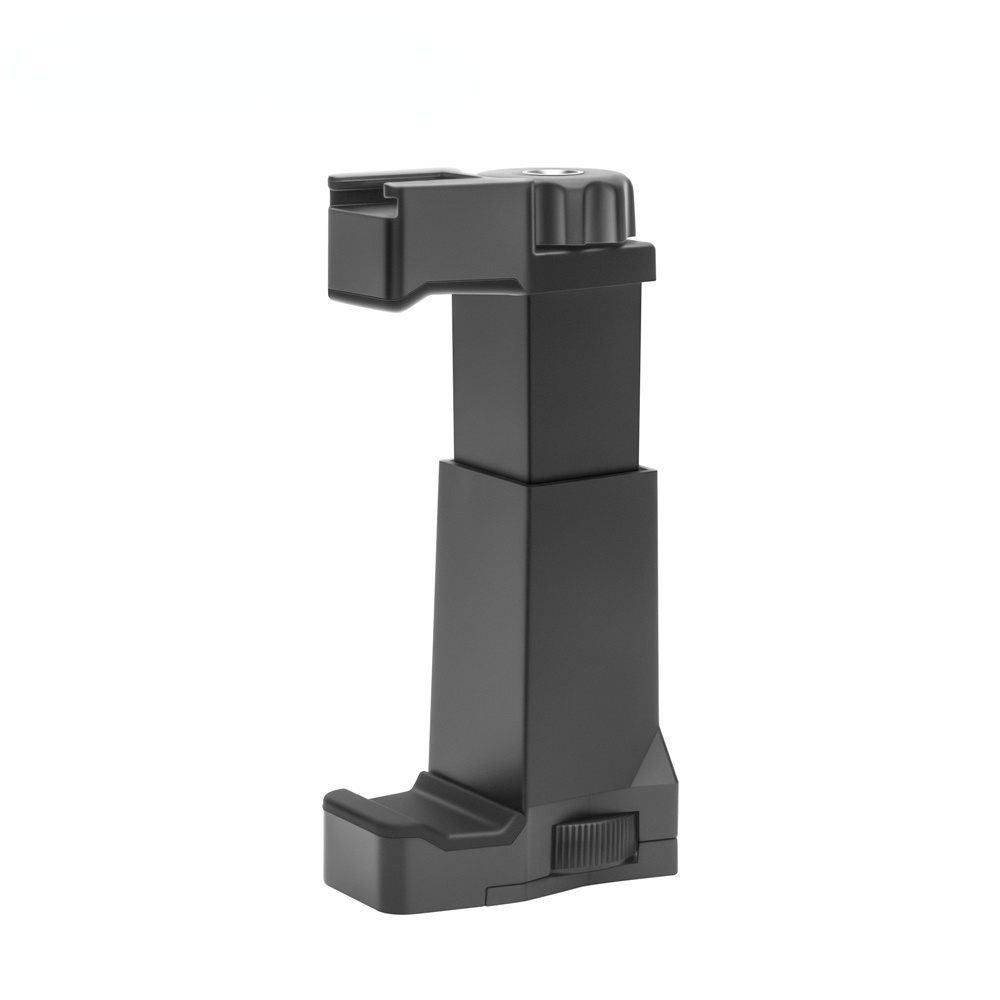

2. Smartphone Holder
3. Ball Head
4. Tripod
5. 3.5mm TRS - TRRS Audio Cable
6. Wind Muff
7. Carry Case
8. User Manual
9. Warranty Card
Technology Parameters
| Polar Pattern | Cardioid |
| Frequency Response | 60Hz~20kHz |
| S/N | >75dB |
| Maximum SPL | >105dB |
| Sensitivity Range | -33dB±2dB |
| Operating Voltage | 1V~10V DC |
| Output Interface | 3.5mm |
| Dimensions | Φ21mm x 85mm |
| Net Weight | 34.2g |
| Operating temperature | 0~50℃ |
