AS926 Digital laser photo Tachometer Non Contact Tach RPM Rotational Speed Meter Speedometer Photoelectric Tachometer Tester Motors

Product Specifications

Brand Name

Smart Sensor

Model

AS926

Material:

ABS PLastic

Display:

LCD Backlight Display

Temperature Range:

0℃~50℃ / 32℉~122℉

Measuring Range:

100RPM ~ 30000RPM

Resolution:

0.1RPM at 100~999.9RPM,

1RPM at 1000~30000RPM

Accuracy:

±(0.05%+1 digit)

Measuring Distance:

50~400mm / 2~16in

Time Base:

6MHz Crystal Oscillator

Test Range Select:

Automatic Switching

Sampling Time:

0.8s(over 60RPM)

Power Consumption:

Approx. 50mA

Power Supply:

3 x1.5V AAA Battery(not Included)

Working Temperature:

0℃~50℃(32℉~122℉)

Data Clearing

Yes

Data Hold,/Data Storage

Yes

MAX. Value, Min. Value

Yes

Battery Status Indication

Yes

Power Consumption:

Approx. 50mA

Product Weight/Size

69g/ 50* 26*135mm

Packing Weight/Size

101g/ 21.5 * 14.5 * 3.3cm

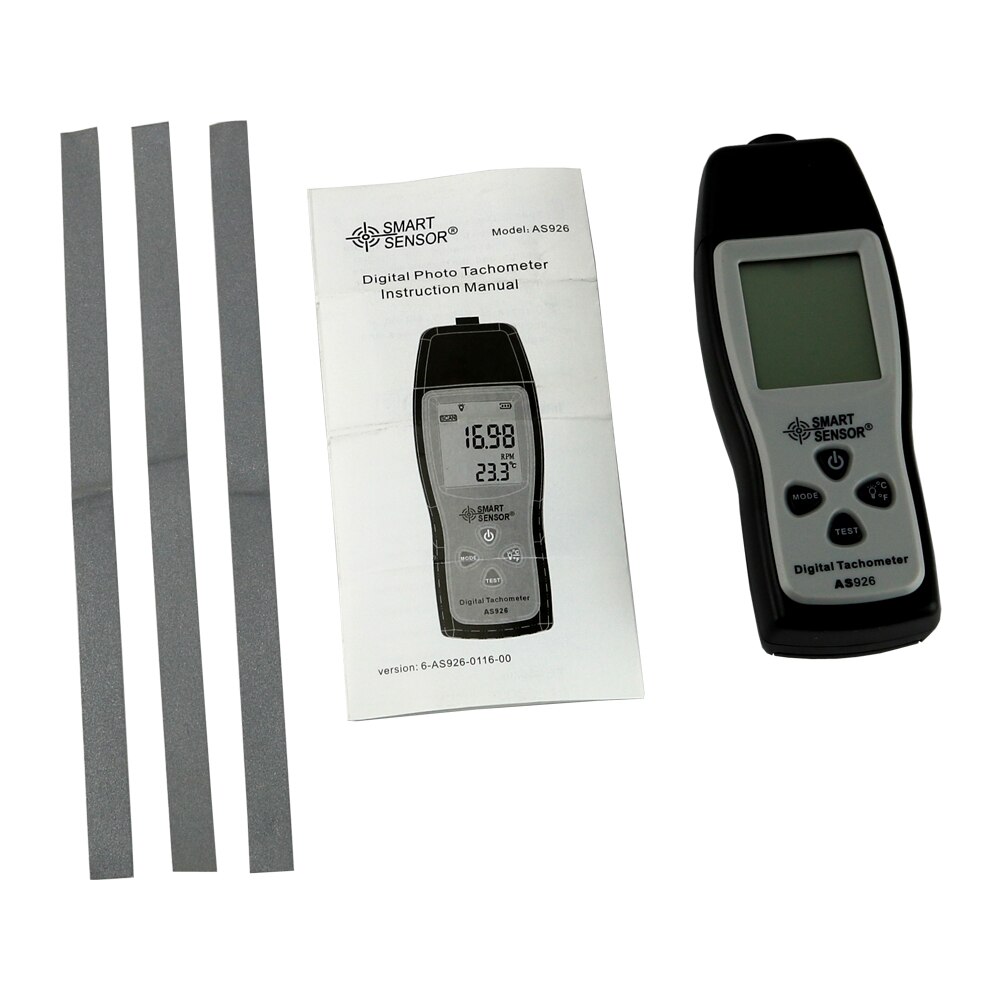

Packing Contents:

1 * Digital Tachometer 3 * Reflective Tape Marks 1 * User Manual(English)

Diagram Description

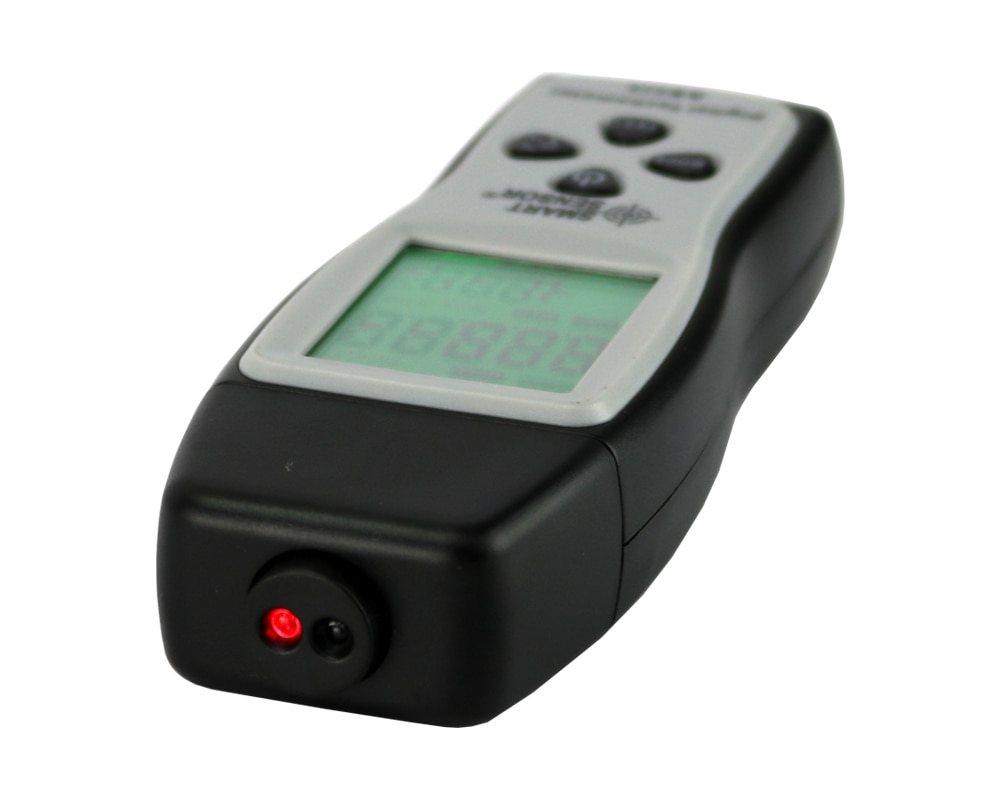

1.Laser Beam
2.LCD display

3.°C / °F backlight
4.Test button
5.ON/OFF button
6.Mode button

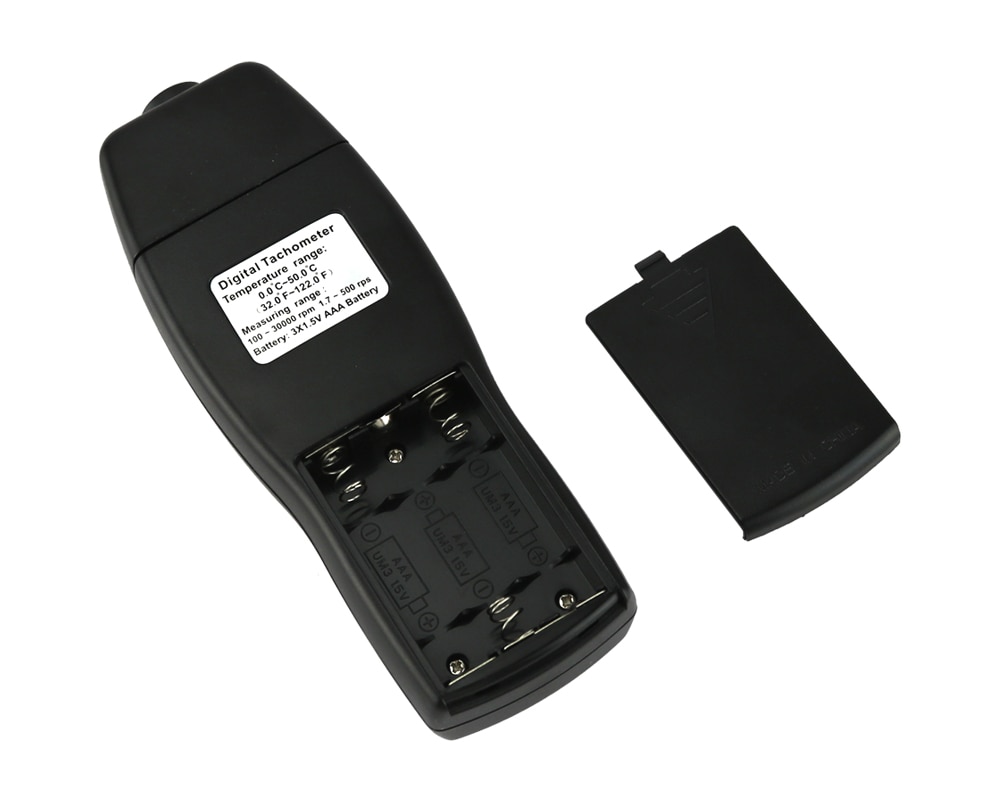

7.Battery door
