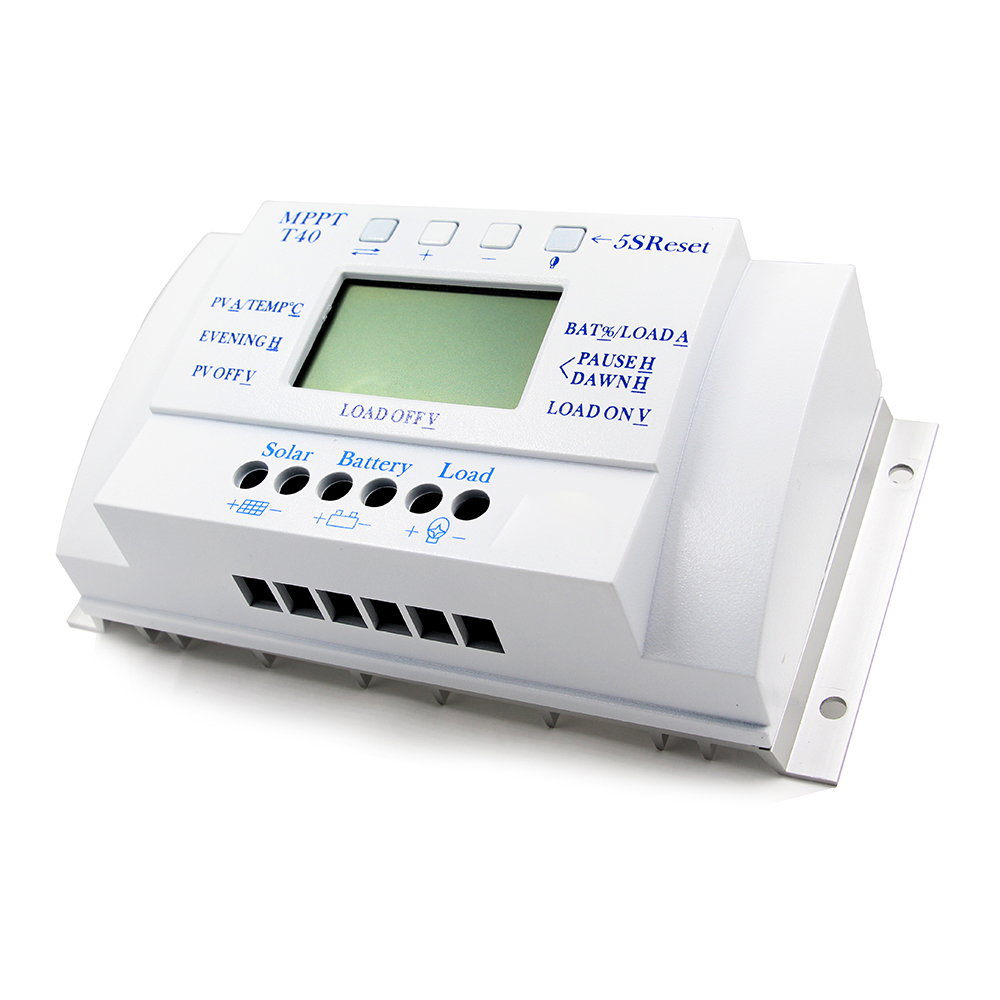

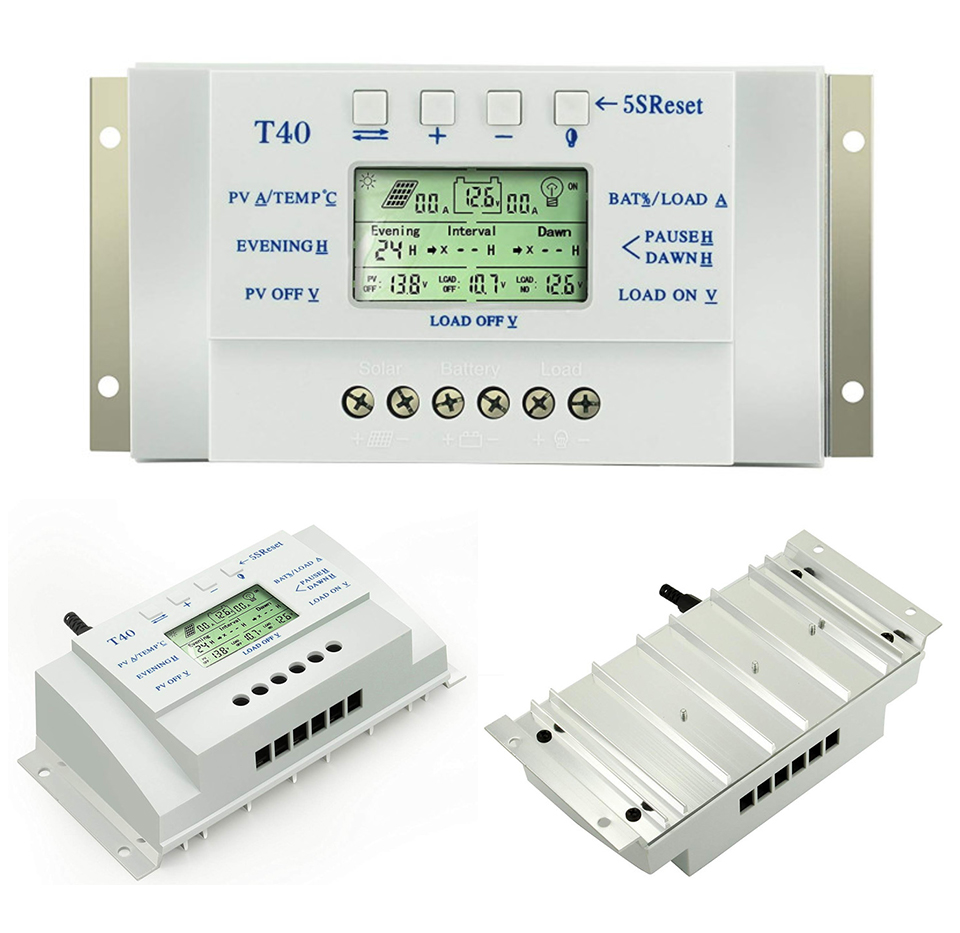

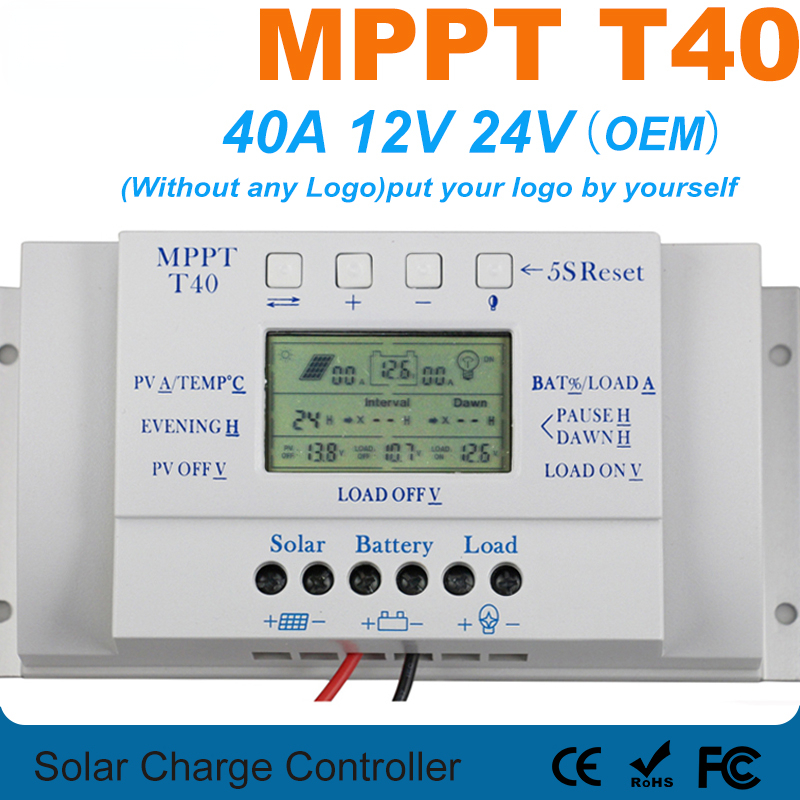

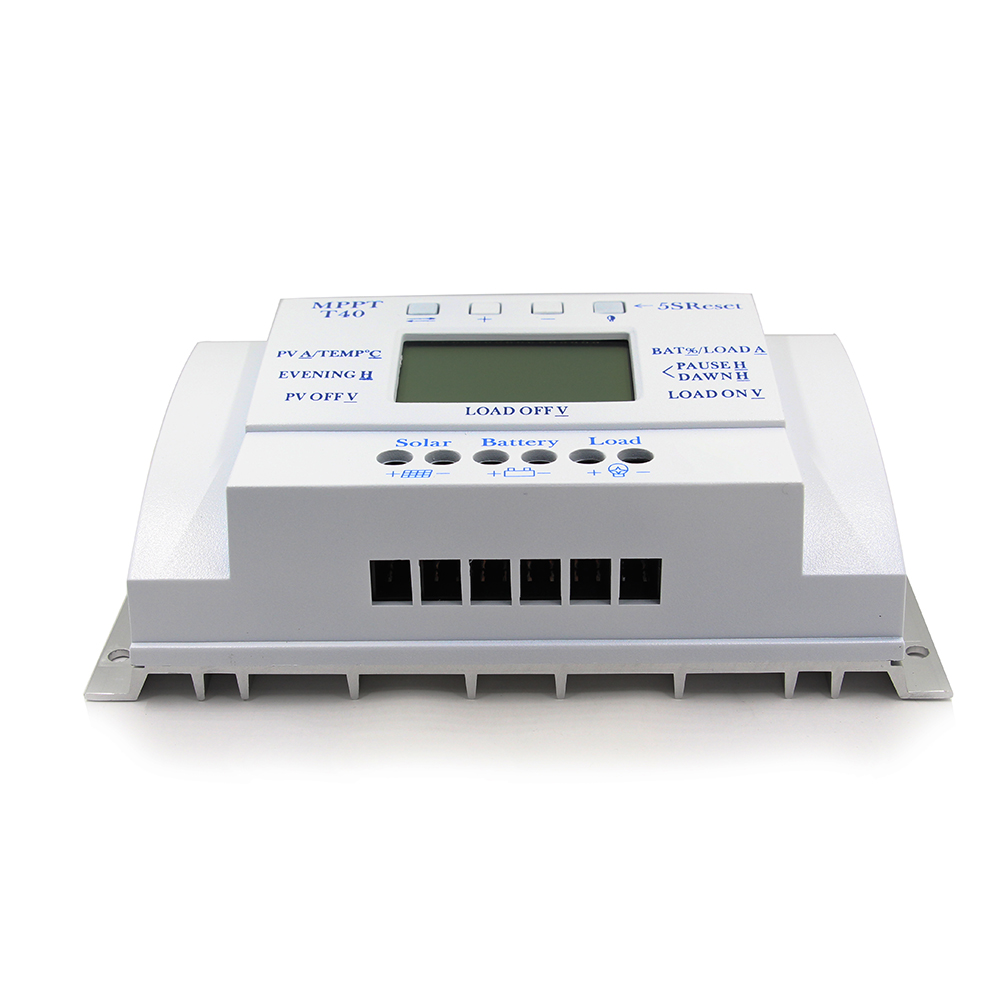

T40 40ASolar Charge Controller Dual timer

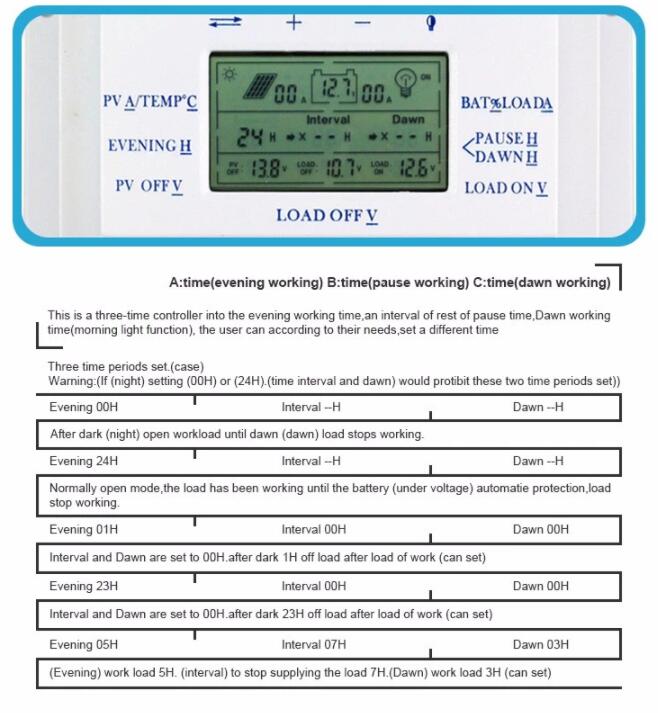

This is a three-time controller into the evening working time,an interval of rest of pause time,Dawn working time(morning light function), the user can according to their needs,set a different time
Package including:
1PCS 40A Solar Contorller T40
1PCS User Manual
1PCS Temperature Sensor
This is a compatible MPPT charge controller PWM intelligent/efficient/energy saving,he not only has efficient MPPT controller charging function to automatically track the maximum power point,10%-30% higher than the ordinary controller chargingefficiency,also has standby energy saving,more than 30% energy than ordinary controller,the standby power consumption of only 10mA-15mA.
Note:It is high quality compatible MPPT + PWM Solar Controllers ,not 100% Ture MPPT
"T"series of an intelligent,multi-purpose solar charge controller
| LCD screen display | Battery reverse discharge protection |
| Easy operation interface | Battery reverse polarity protection |
| MPPT+ PWM charging mode | Battery under voltage protection |
| Parameter user can reset Overload | Short-circuit protection |

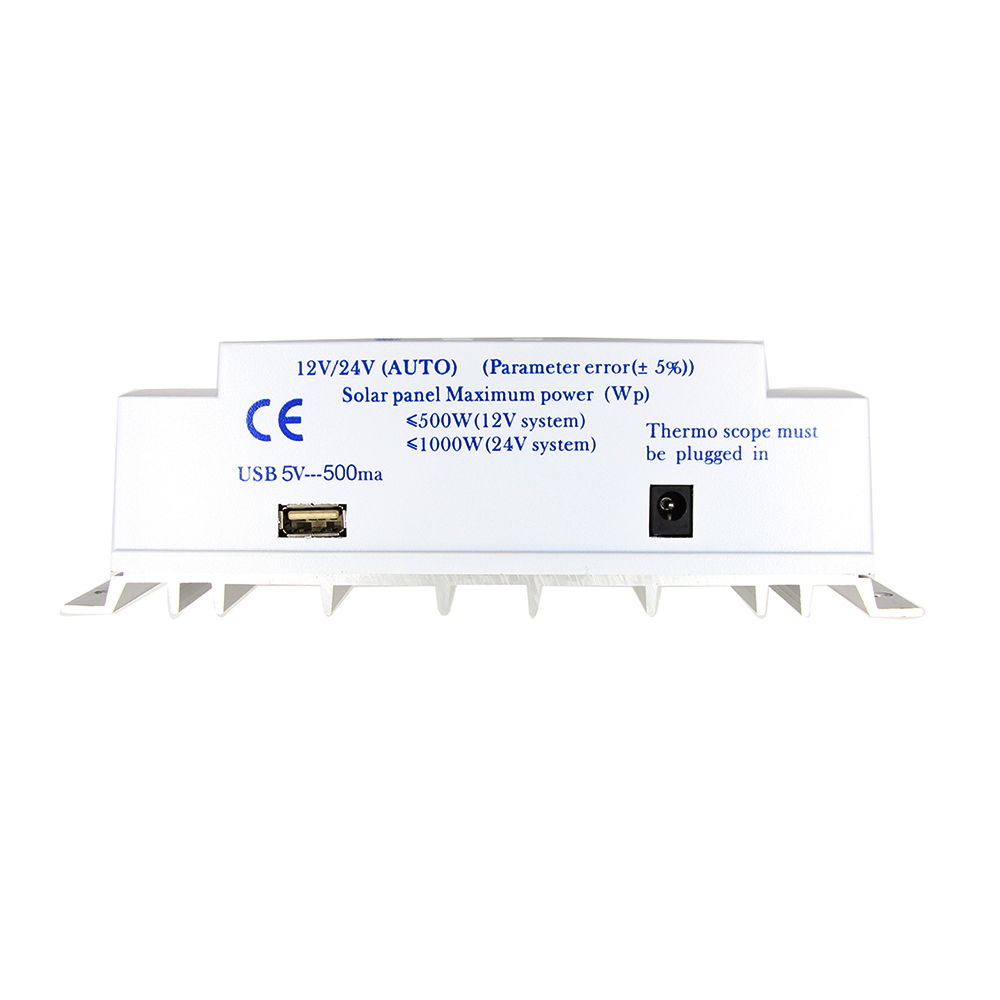

| A key to restore the factory settings | USB 5V charging 500mA for mobile phone |
| A key to open and close the load | Automatic temperature compensation function |
| Only One Screen to show all the charging information. |

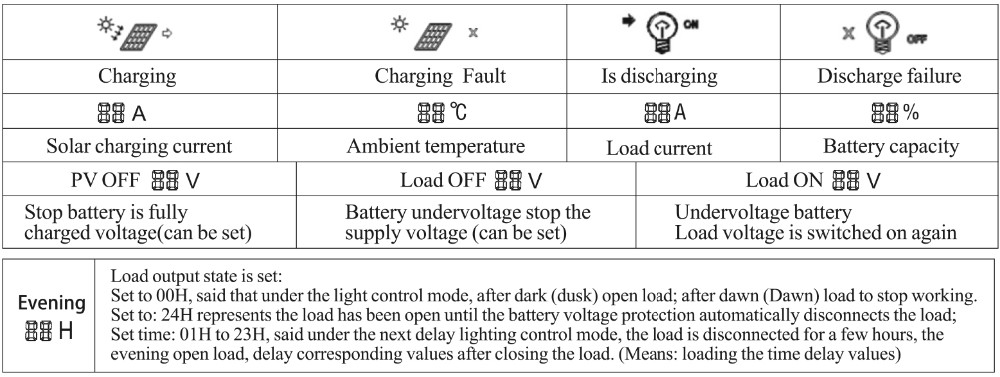

LCD Operating interface description :
Parameter table:
| Parameters/Model | T10 | T20 | T30 | T40 |
| Maximum Power Current | 10A | 20A | 30A | 40A |
| Installation Lin mm2 | 4mm2 | 8mm2 | 10mm2 | 12mm2 |
| Installation Line(AWG) | 10 (AWG) | 8(AWG) | 7(AWG) | 6(AWG) |
| Battery capacity configuration | 100AH | 200AH | 300AH | 400AH |
| Dimensions | 143×89×46 mm | 187*97*61 mm | ||
| System load loss | ≤13mA | |||
| Loop Buck | ≤100mV | |||
| Battery float voltage | 13.8V 12V system /27.6V 24V system | |||
| Battery under voltage) protection | 10.6V 12V system /21.2V 24V system | |||
| Battery (under voltage) recovery voltage | 12.6V 12V system /25.2V 24V system | |||
| Charge mode | Compatible MPPT+PWM | |||
| Operating Temperature | -10~60°C | |||
| Storage Temperature | -30~70°C | |||
| Humidity requirements | ≤90%, No condensation | |||
| Temperature compensation | -4mV/Cell/°C | |||
| Temperature Probe (built components) | NTC 100K thermistats | |||
| Maximum open circuit voltage of the solar panel | 18V-24V 12V system 36V-48V 24V system) | |||
| Solar panels maximum open circuit voltage (V) | ≤48V | |||
| (Cases) 12V system standard configuration | ||||
| The peak voltage of the solar cell panel | 18V-25V | 18V-25V | 18V-25V | 18V-25V |
| Peak power of solar cell panel | 50W-130W | 100W-260W | 200W-380W | ≤500W |
| Model | T10 | T20 | T30 | T40 |
| Link | ||||
