Features

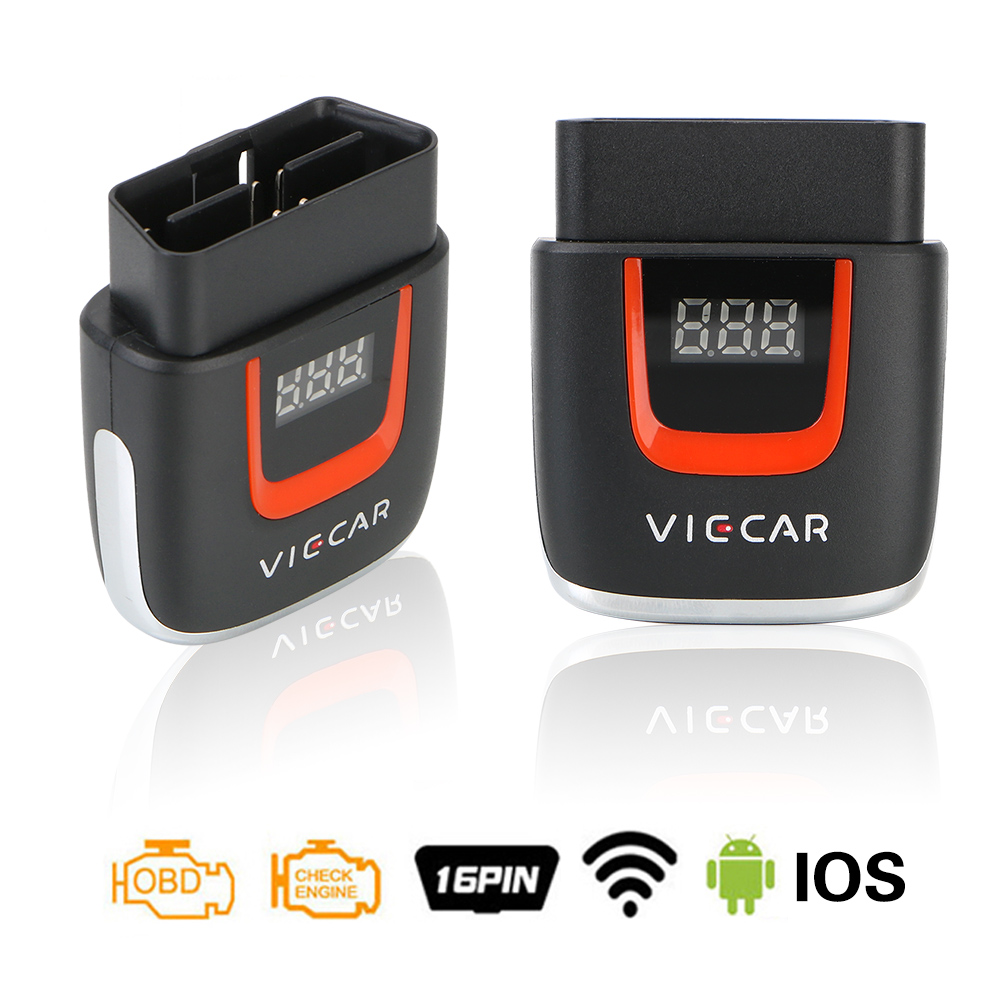

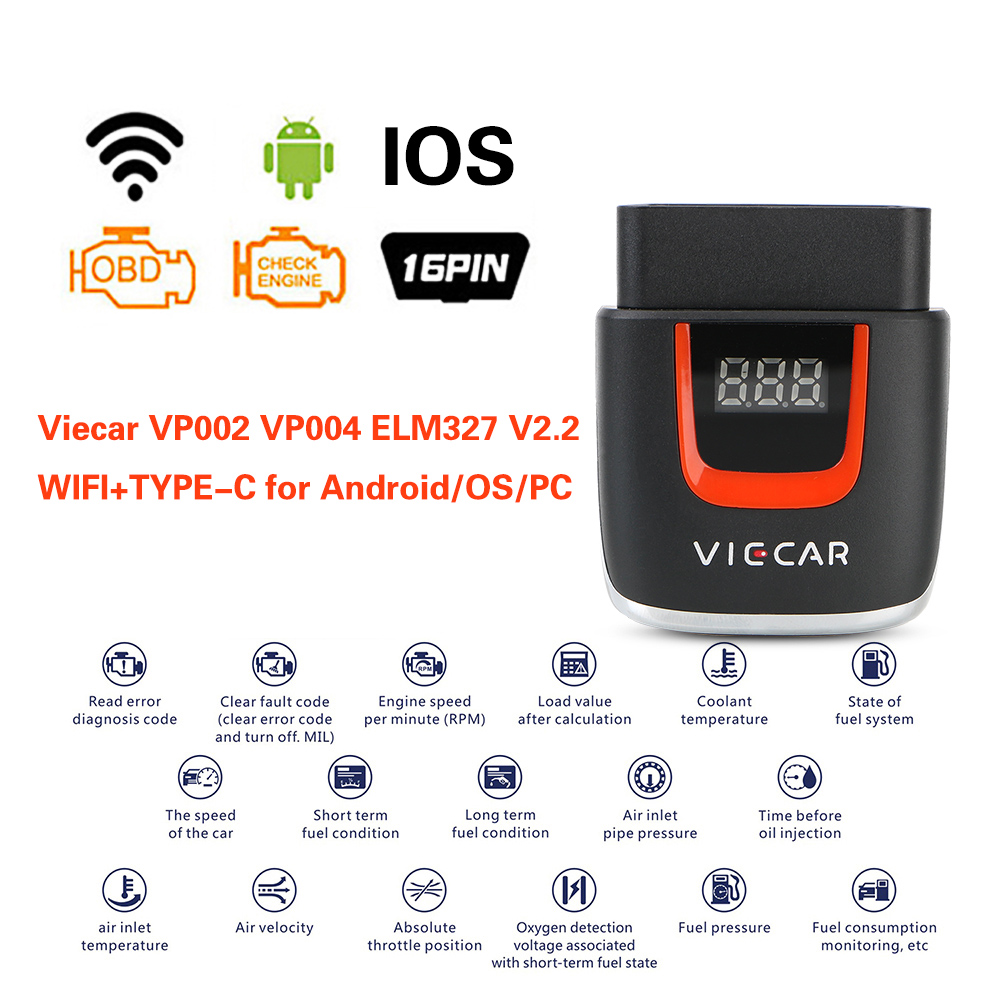

- Product Name: Vircar ELM327 V2.2 VP002/VP004

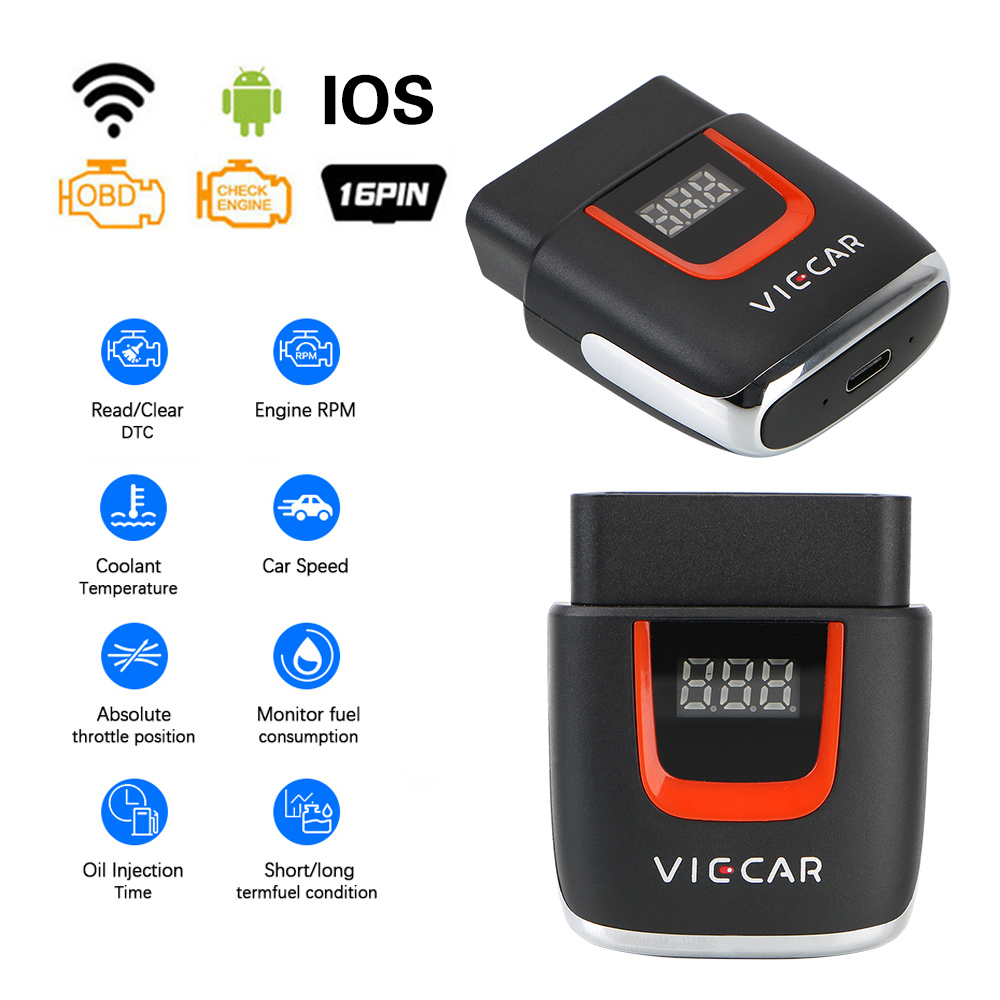

- Connection Method: VP002 (WIFI) / VP004 (WIFI + Type-C)
- Supported Systems: Android / iOS; PC requires Type-C connection
- Firmware Version: V2.2 (improved over V1.5 and V2.1)

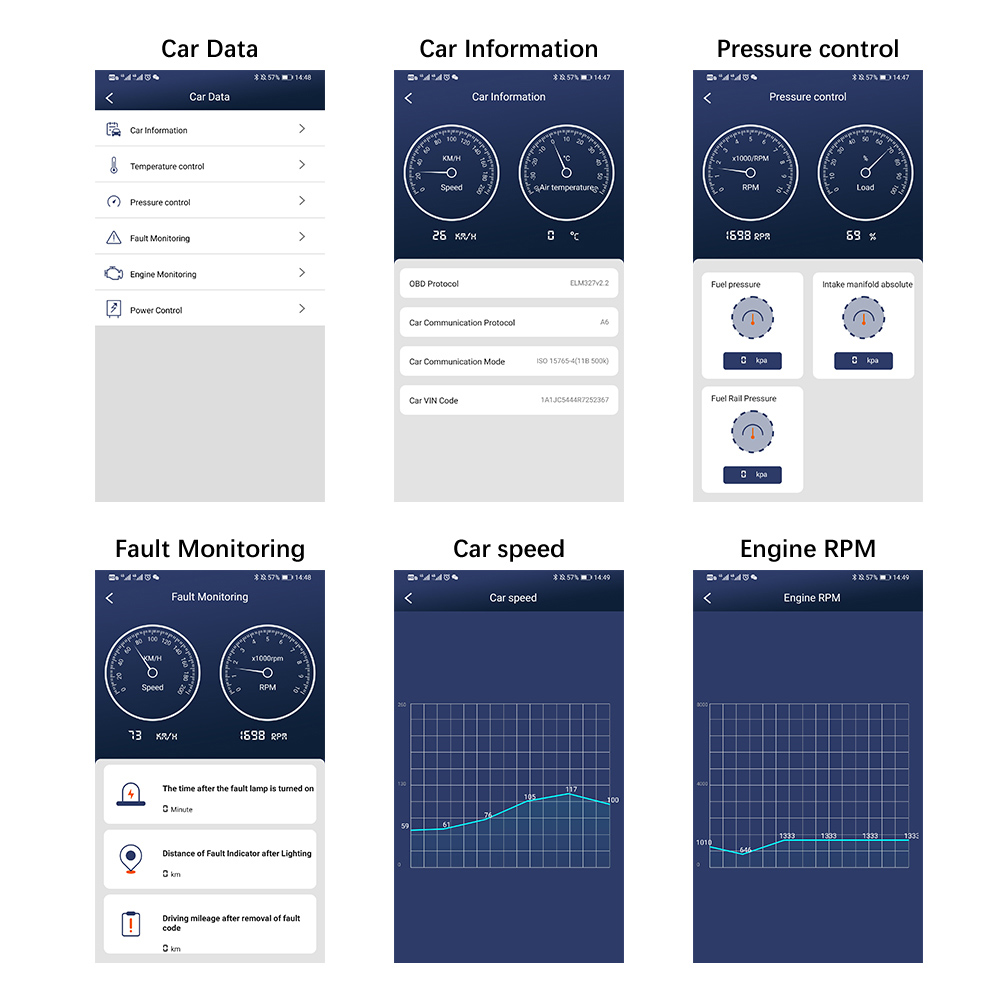

- Compatible Applications:
- Android: Vicar, Torque, Dash Command, Auto Doctor
- iOS: Vicar, Auto Doctor, Dashcommand, EOBD

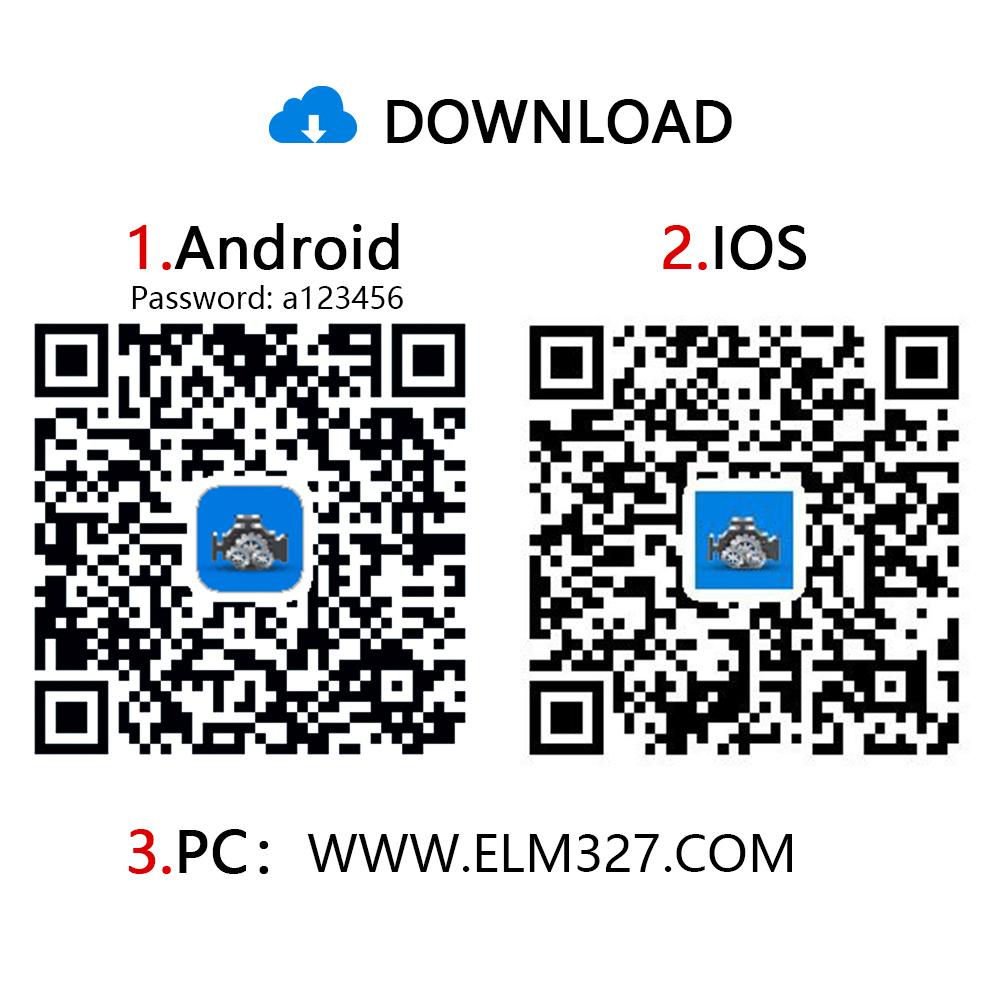

- Windows: ScanMaster – download QR code for Original Viecar software

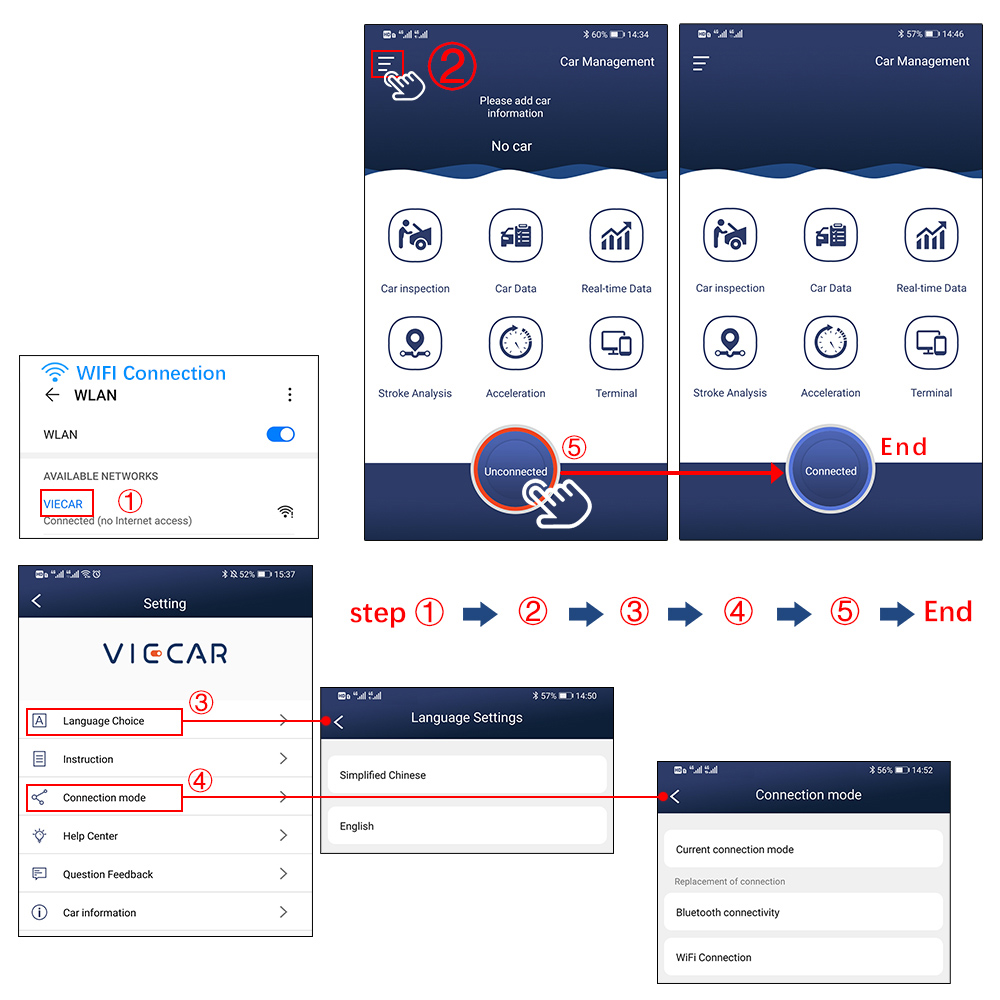

- Access Credentials:
- Android password: a123456
- iOS does not require a password
- PC software available at: WWW.ELM327.COM

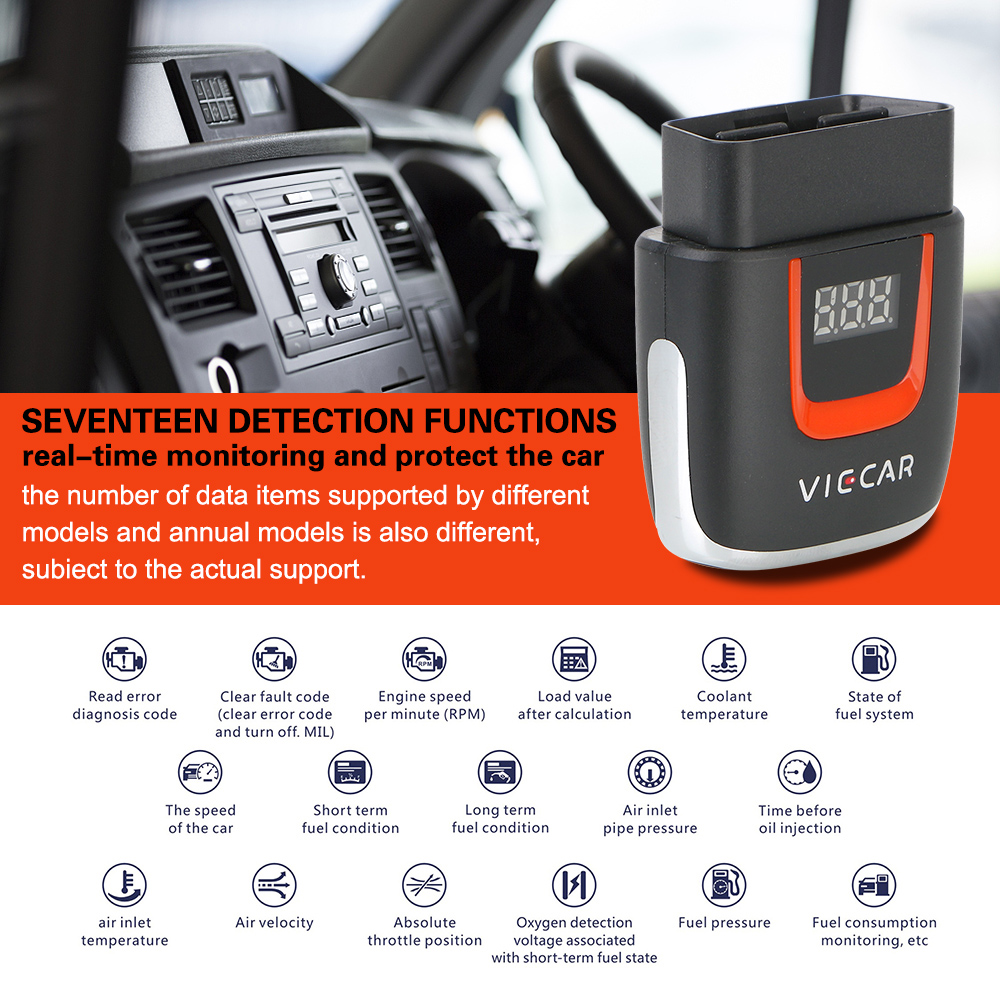

- Remarks: The number of data items supported may vary by vehicle model year; actual support is subject to the device's capabilities.
Product Description
- The VP001–VP004 series are OBD diagnostic tools featuring WIFI, Bluetooth 4.0, and/or USB Type-C connectivity, offering flexible transmission options based on user selection.
- Dual-mode data transmission via WIFI and Bluetooth 4.0, with optional USB 2.0 support.
- Supports nine protocols compliant with OBD II / EOBD standards.
- Wide power supply range: 9–36V DC, with reliable overcurrent and overvoltage protection.
- Includes standby low-power mode to safeguard vehicle battery life.
- Features a digital display showing real-time voltage and current for enhanced user experience.
Supported Protocols
- SAE J1850 PWM (41.6 Kbaud)
- SAE J1850 VPW (10.4 Kbaud)
- ISO 9141-2 (5 baud init, 10.4 Kbaud)
- ISO 14230-4 KWP (5 baud init, 10.4 Kbaud)
- ISO 14230-4 KWP (fast init, 10.4 Kbaud)
- ISO 15765-4 CAN (11-bit ID, 500 Kbaud)
- ISO 15765-4 CAN (29-bit ID, 500 Kbaud)
- ISO 15765-4 CAN (11-bit ID, 250 Kbaud)
- ISO 15765-4 CAN (29-bit ID, 250 Kbaud)
Specifications
- SSID: Viecar
- Firmware Version: V2.2
- Main Control Chip: PIC18F25K80
- Software Platform: Supports Android, iOS, and Windows
- Working Voltage: DC 9–36V
- Working Current: 40mA
- Standby Current: 5mA
- Operating Environment: -20°C to 65°C
- Storage Temperature: -40°C to 80°C
- Material: ABS plastic with plating finish
- Protocols Supported: 9 OBD II Standard Protocols
Package Included
- 1 x Automotive Diagnostic Tool
