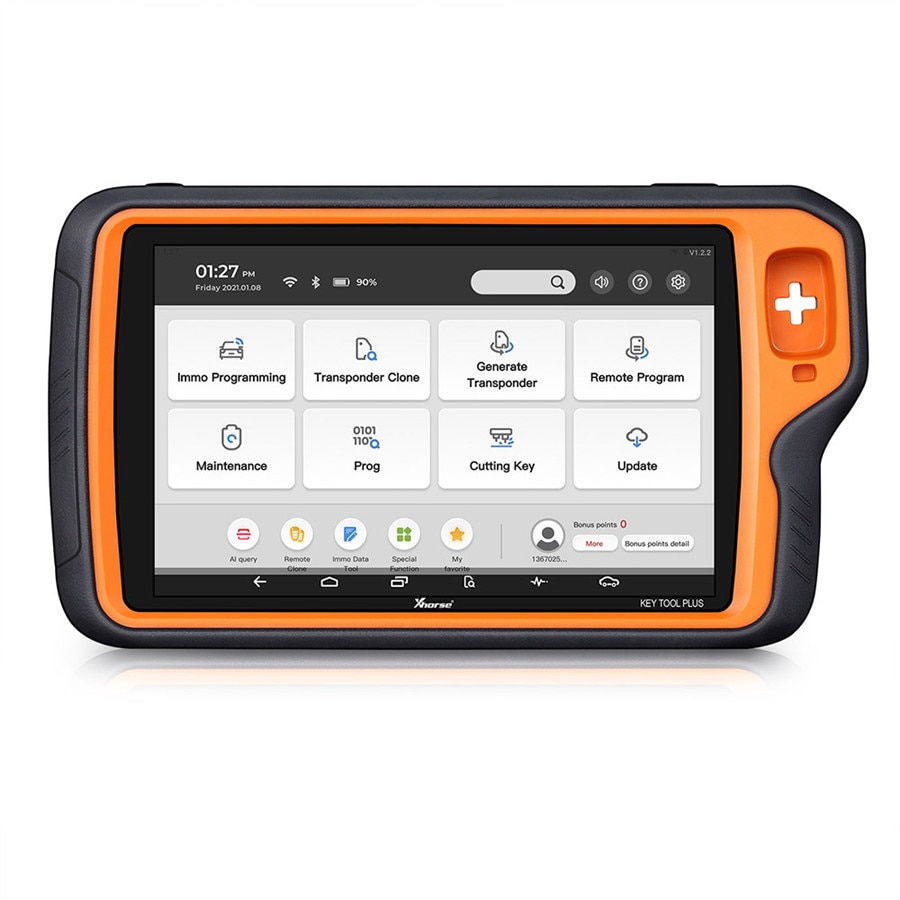

Xhorse VVDI Key Tool Plus Pad All-in-One Full Configuration

Notes:

1. No longer supports VAG OBD Helper Function
2. Language Supported: English Only at This Time

Key Tool Plus Highlights

• Lifetime Free Online Updates
• Full Configuration Global Version
• Supports Toyota H Smart Key AKL Without Emulator
• 4GB RAM + 128GB ROM – Large Storage Capacity, Powered by 8-Core High-Performance Processor
• Enhanced in 4 Key Areas: Data Processing, Instruction Completion, Execution Operation, and Strong Stability
• Complete Automotive Programming Anywhere – No Need for Laptop or Mobile Phone
• All-in-One Functions: Combines capabilities of VVDI2, VVDI MB, Key Tool Max, and Mini Key Tool (Note: Does not include all functions of VVDI2 and VVDI MB, only select features)
• Integrated Immobilizer Programming for Luxury Vehicles (BMW, mercedes-Benz, Audi, VW) and Common Key Programming & Car Diagnosis on a Single Platform
• Binds with Xhorse Key Cutting Machines (Condor XC-Mini, Condor XC-Mini Plus, Dolphin XP005, Dolphin XP007) to Earn Daily Free BGA Tokens and Bonus Points:
  • Copy 48/96 Bit Transponders – 100 Points
  • mercedes Calculation – 200 Points
  ID48 and online mercedes key password reading require tokens, but both actions earn Xhorse bonus points.

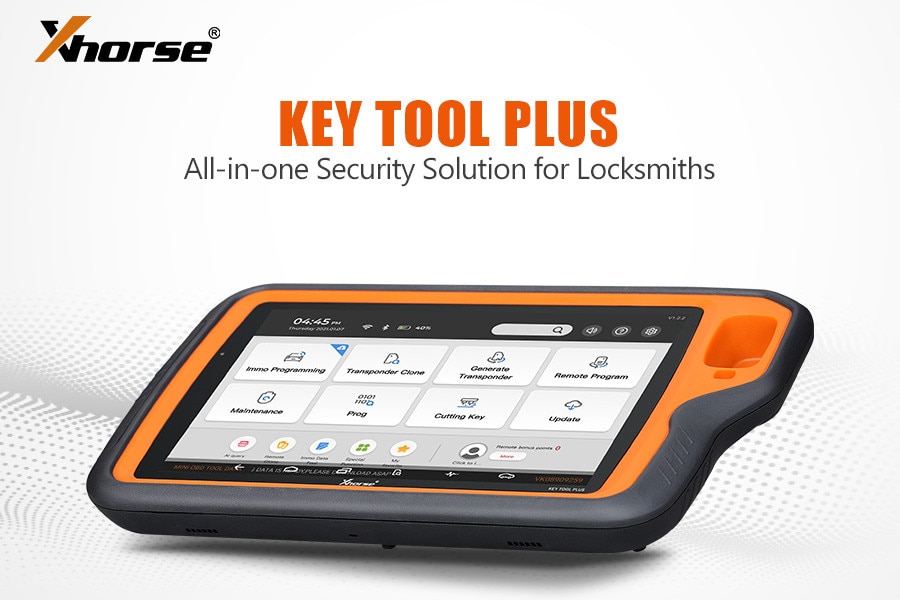

KEY TOOL PLUS: All-in-One Security Solution for locksmiths

CoMBines immobilizer programming for luxury cars like BMW, Mercedes-Benz, Audi, and Volkswagen, along with standard Key Programming and car diagnostics in one unified platform. Never before have so many professional functions been this accessible.

KEY TOOL PLUS Has It All

A powerful coMBination of essential tools in one device: Computer, Mobile Phone, Tablet, Immo Programmer, Remote Maker, Transponder Generator, Programmer, and Frequency Tester.

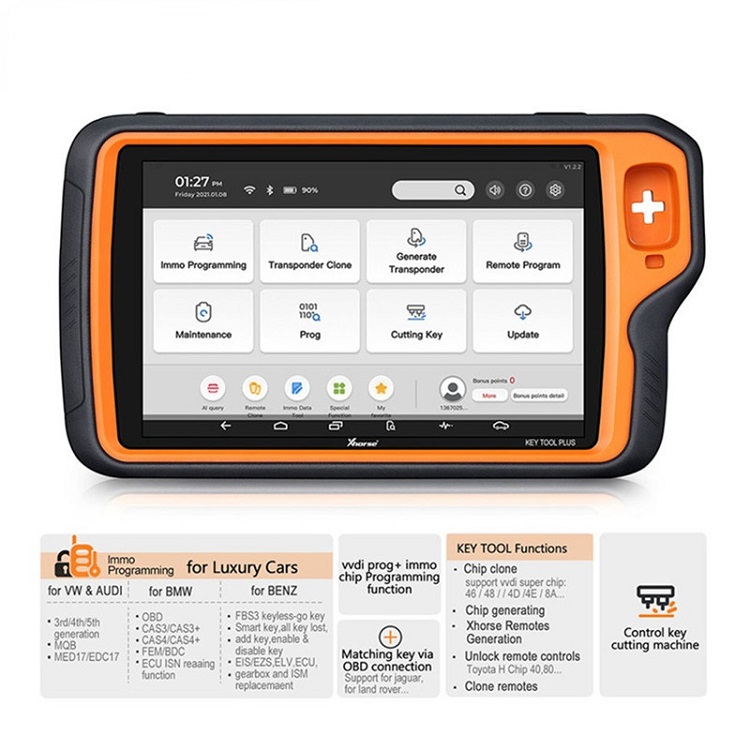

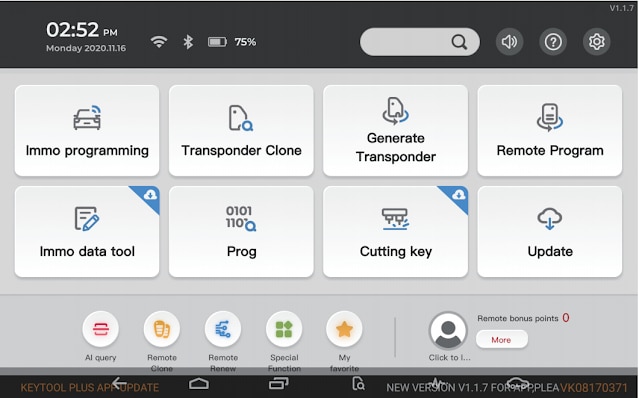

Main Functionalities

• Luxury Cars IMMO Programming
• Ordinary Cars IMMO Programming
• Remote Programming
• Transponder Operations
• File Make Key
• Prog Function
• Maintenance Functions
• Control Xhorse Key Cutting Machines
• More Functions Coming Soon

Outfitted to Outperform – Serve Your Work the Best

• 4GB RAM + 128GB ROM – Ample storage capacity
• 8-Core High-Performance Processor
• Faster than most standard smart devices
• Significant improvements in:
  • Data Processing
  • Instruction Completion
  • Execution Operation
  • Strong Stability

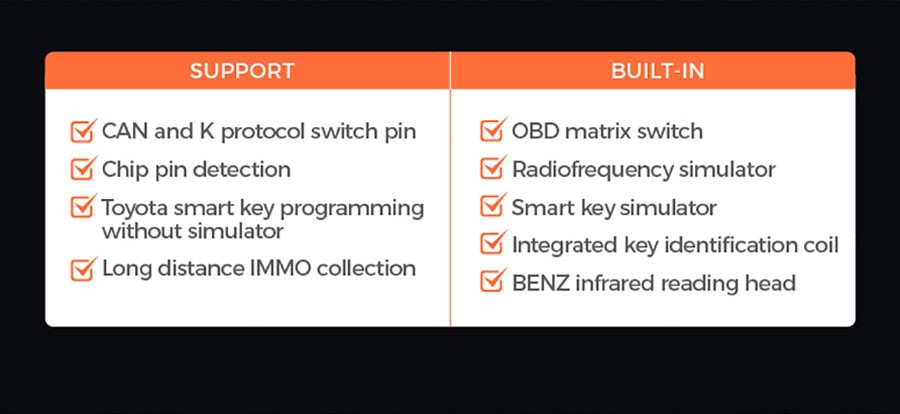

Supported Features

External Support:

• CAN and K Protocol Switch Pin
• Chip Pin Detection
• Toyota Smart Key Programming Without Simulator
• Long-Distance IMMO Collection

Built-In Components:

• OBD Matrix Switch
• Radiofrequency Simulator
• Smart Key Simulator
• Integrated Key Identification Coil
• Benz Infrared Reading Head

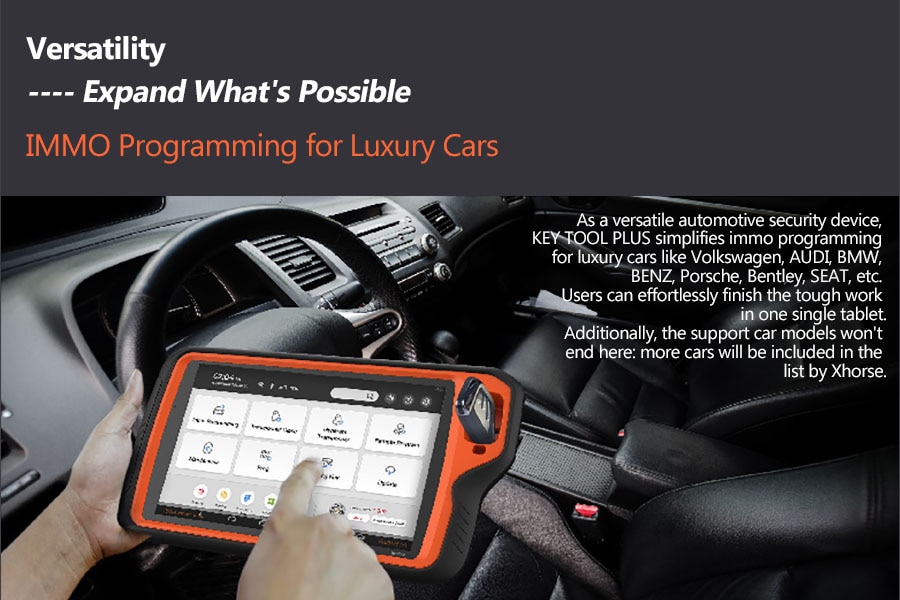

Versatility – Expand What's Possible

IMMO Programming for Luxury Cars

As a versatile automotive security tool, KEY TOOL PLUS simplifies immobilizer programming for high-end vehicles including Volkswagen, Audi, BMW, Mercedes-Benz, Porsche, Bentley, SEAT, and more. Users can complete complex tasks efficiently using a single tablet.

New vehicle models are continuously added by Xhorse to expand compatibility.

For VW & Audi IMMO Programming

Supports:

• 3rd, 4th, and 5th Generation Systems
• MQB Platform
• MED17 / EDC17 ECUs

KEY TOOL PLUS delivers comprehensive solutions including key programming, key learning, ECU coding/adaption/replacement, and diagnostic functions—effectively resolving common challenges in VW and Audi immobilizer systems.

For BMW IMMO Programming

Extremely Cost-Effective, Surprisingly Professional

Supports:

• CAS1, CAS2, CAS3, CAS3+, CAS4, CAS4+ OBD Key Learning
• FEM/BDC Key Programming
• File Make Key
• ECU ISN Reading
• ECU and CAS Synchronization

Getting the job done has never been easier.

For Mercedes-Benz IMMO Programming

User-Demand-Oriented, Innovation-Driven

Offers full-featured, professional security solutions for Mercedes-Benz, including:

• FBS3 Keyless-Go Smart Key Programming
• All Keys Lost Scenarios
• Adding or Disabling Keys
• EIS/EZS, ELV, ECU, Gearbox, and ISM Replacement Support

Mighty: Beyond Your Imagination

Other Car Models Supported

• Toyota
• Honda
• Mazda
• Ford
• Cadillac
• Land Rover
• Peugeot
• Kia
• Buick
• Chevrolet
• Volvo
• Mitsubishi
• Nissan
• Suzuki

KEY TOOL PLUS supports immobilizer programming for thousands of global car models, covering the vast majority encountered by professional locksmiths—ensuring efficiency and convenience in daily operations.

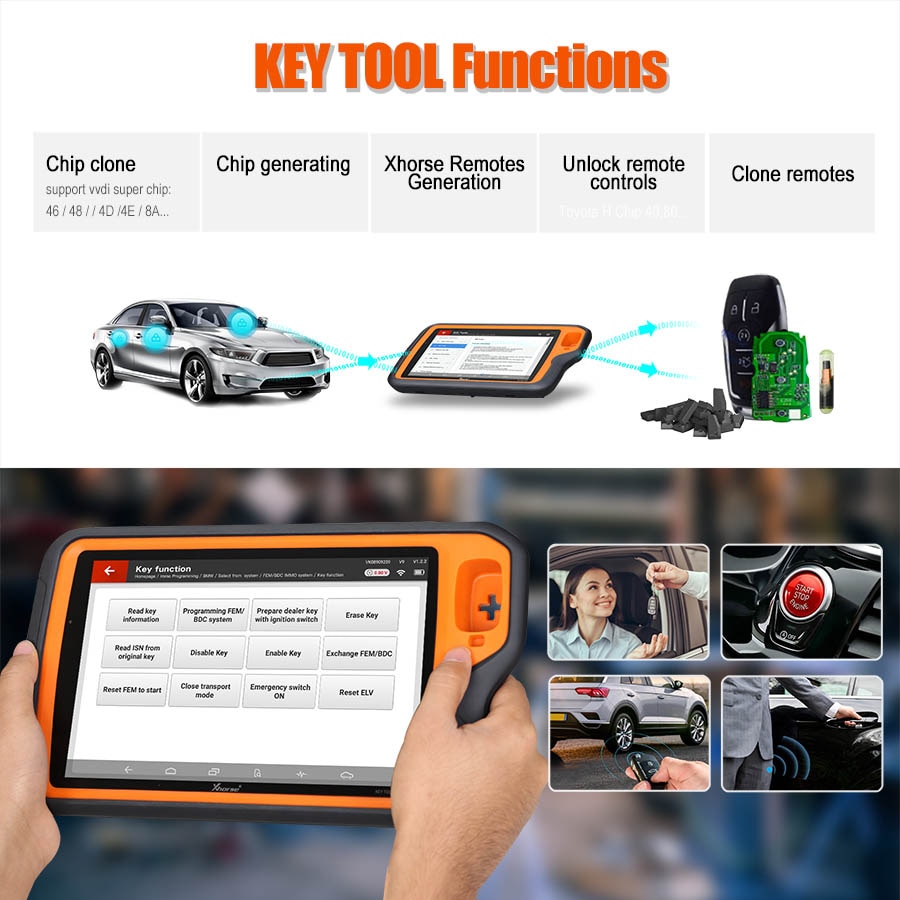

All KEY TOOL Functions in One Tablet

All-in-One Design – Reduce Device Clutter

• Transponder Clone
• Remote Clone
• Transponder Generation
• Remote Generation
• Transponder Reading
• Remote Renew
• Frequency Detection
• IC/ID Clone
• More Functions Coming Soon

Examples: OBD Diagnosis and MQB49 IMMO Programming recently released. Future updates expected to support DOIP, CAN-FD, and Toyota 8A Smart Key.

Combined for Ultimate Convenience

Designed to consolidate multiple tools into one compact device, delivering unmatched portability and ease of use.

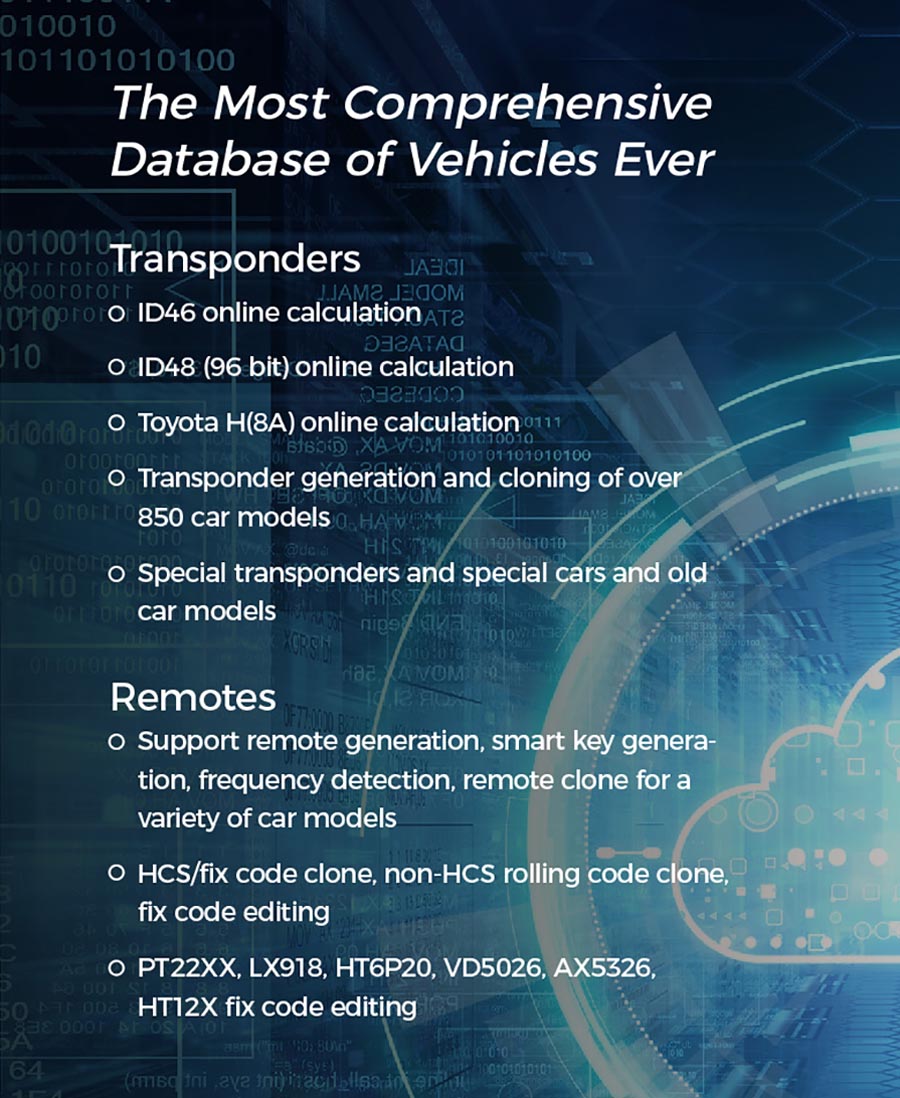

The Most Comprehensive Vehicle Database

Transponders

• ID46 Online Calculation
• ID48 (96-bit) Online Calculation
• Toyota H (8A) Online Calculation
• Supports Transponder Generation and Cloning for Over 850 Car Models
• Covers Special Transponders, Special Vehicles, and Legacy Models

Remotes

• Remote and Smart Key Generation
• Frequency Detection
• Remote Cloning
• HCS/Fixed Code Clone
• Non-HCS Rolling Code Clone
• Fixed Code Editing (PT22XX, LX918, HT6P20, VD5026, AX5326, HT12X)

Revolutionary Function – Solve Programming Dilemmas

IMMO Data Tool (File Make Key)

For vehicles where key programming cannot be completed via OBD-II due to immobilizer protection, KEY TOOL PLUS offers the advanced "File Make Key" function. This allows users to add keys by generating transponders directly from data read from the car’s immobilizer module.

Example: Magotan/CC 48 Transponder File Make Key

Supported Brands: Audi, Jaguar, Volvo, Ford, BMW, Land Rover, Buick, Kia, Bentley, Peugeot, Cadillac, Toyota, Honda, Porsche, Chevrolet, Nissan, and more.

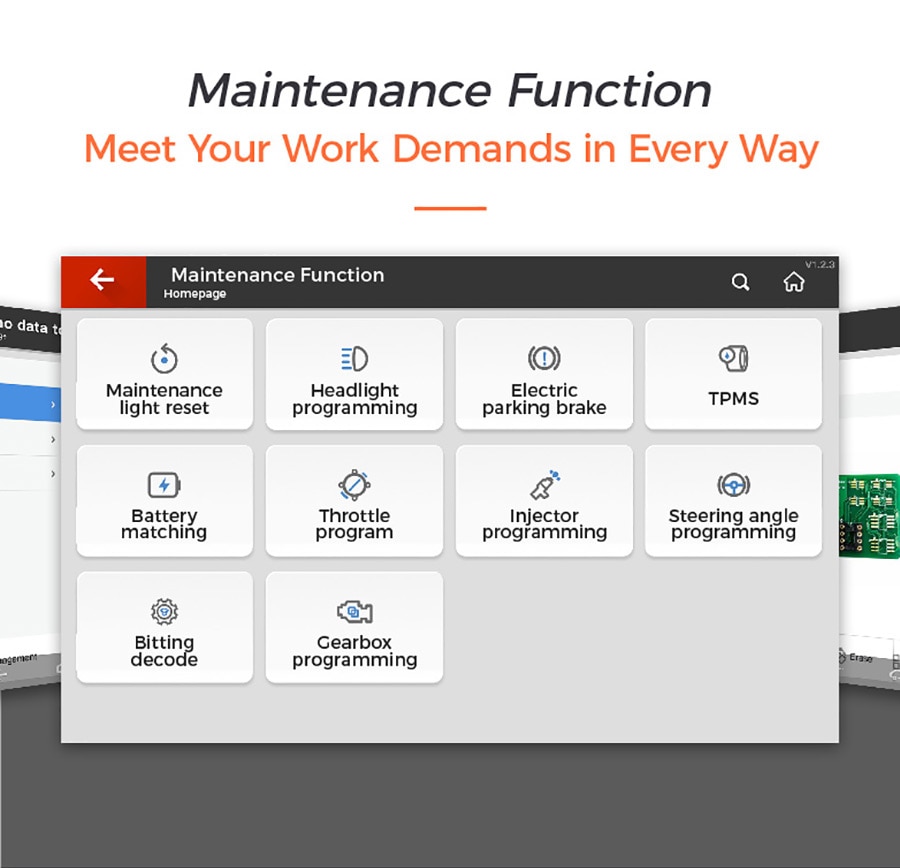

Maintenance Function

Meets diverse service needs with support for:

• Maintenance Light Reset
• Electric Parking Brake
• TPMS
• Battery Matching
• Throttle Programming
• Injector Programming
• Steering Angle Programming
• Bitting Decode
• Gearbox Programming
• Headlight Programming

Additional maintenance functions will be released soon.

A Programmer As Well: Simply Stronger, Reliably Effective

Prog Function

KEY TOOL PLUS includes a solder-free Prog function, enabling direct reading and writing of common modules and chips across various car models—an integrated solution pioneered by Xhorse.

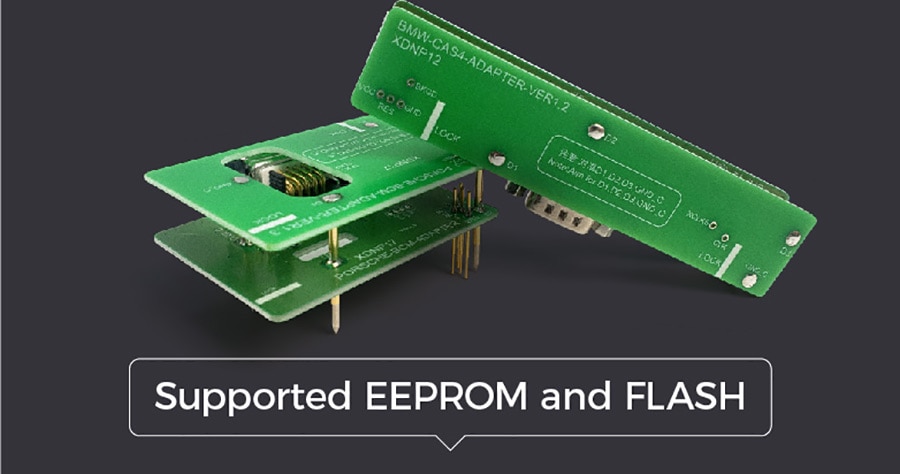

Supported EEPROM and FLASH Chips

• ATMEL
• MITSUBISHI
• WINBOND
• CATALYST
• ST
• XICOR
• MICROCHIP
• SEIKO
• XHORSE
• MXIC
• TOSHIBA

Supported Modules

• BMW: CAS3, CAS3+, CAS4, CAS4+, FEM, FRM, BDC
• Mercedes-Benz: EIS/EIZ
• Land Rover: RFA
• Porsche: BCM
• Volvo: CEM, KVM
• BMW/Audi/VW: ECU and more
• Honda/Hyundai/Kia: MB91F Dashboard

High-Tech Made Simple

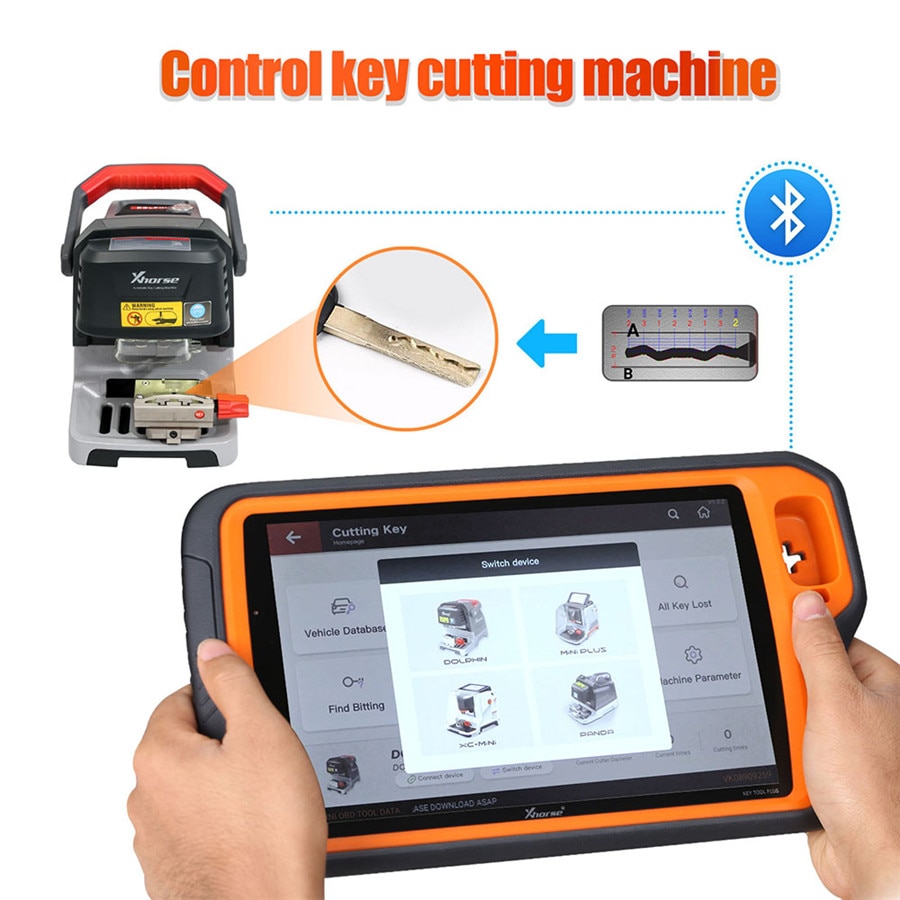

Keep Your Key Cutting Machine Under Control

Compatible with Xhorse key cutting machines (Condor, Dolphin, Panda, and more), KEY TOOL PLUS acts as a dedicated operation screen—eliminating the need for smartphones or external controllers.

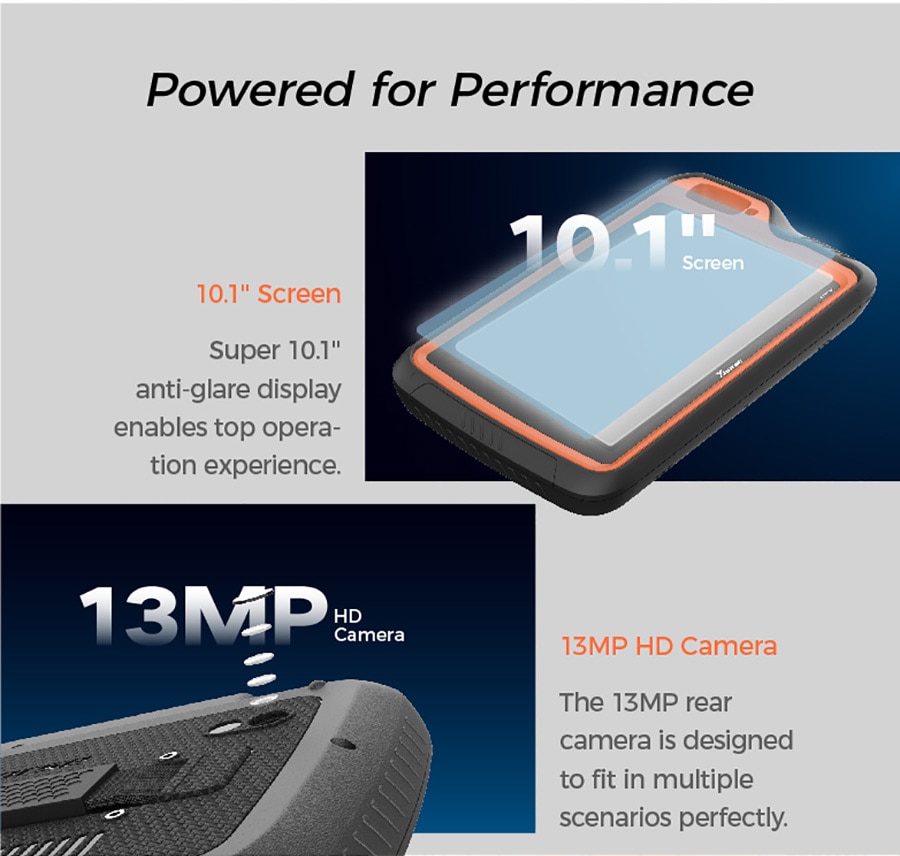

Powered for Performance

• 10.1” HD Anti-Glare Screen: Optimized for visibility and usability
• 13MP HD Rear Camera: Ideal for documentation and precision work
• 10,000mAh Battery: Long-lasting power with PD3.0 Fast Charging
• OBD Power Supply Support
• PD3.0 Fast Charge
• Bluetooth 5.0
• Wi-Fi 2.4G / 5G

Legal Notice

Trademarks and trade names mentioned are the exclusive property of their respective owners. They are used solely for identification purposes to help users quickly associate products. This document is intended exclusively for professional locksmiths using Xhorse products.

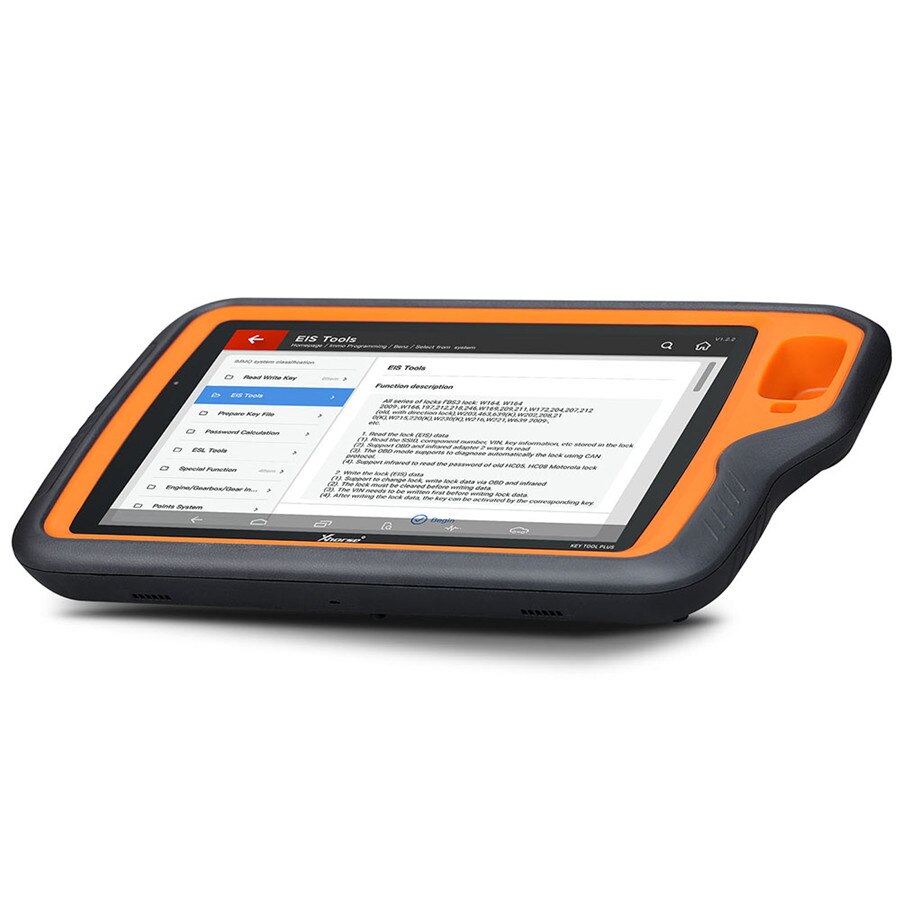

What Is KEY TOOL PLUS?

KEY TOOL PLUS delivers an all-in-one security solution for locksmiths. Easily perform automotive programming anywhere without carrying a laptop or phone. Supports immobilizer programming for luxury brands like BMW, Mercedes-Benz, Audi, and VW. Also enables control of Xhorse-developed key cutting machines—reducing costs and streamlining workflows. Advanced features continue to be added for greater convenience.

Why Is It Out of the Ordinary?

We Adopt a Super Advanced Processor

• 4x Cortex-A53 up to 2.3GHz
• 4x Cortex-A53 up to 1.8GHz
• Memory: 4GB | Storage: 128GB
• Resolution: Up to FHD+ (2,400 x 1,080)

The KEY TOOL PLUS features a highly integrated application processor with built-in Bluetooth, FM, WLAN, and GPS modules. This advanced platform combines modem and application processing subsystems for seamless voice, data, and audio/video transmission.

Powerful Functions

• Supports DOIP
• Supports CAN-FD
• CAN and K Protocol Switch Pin
• Chip Pin Detection
• Toyota Smart Key Programming Without Simulator
• Long-Distance IMMO Collection

Built-In Components

• OBD Matrix Switch
• Radiofrequency Simulator
• Smart Key Simulator
• Integrated Key Identification Coil
• Benz Infrared (IR) Reading Head

We Provide an All-in-One Automotive Solution

We Make It Fit for More Luxury Car Brands

Supports IMMO programming for luxury brands including Mercedes-Benz, BMW, Audi, and VW, as well as common brands like Toyota, Honda, Mazda, and Ford.

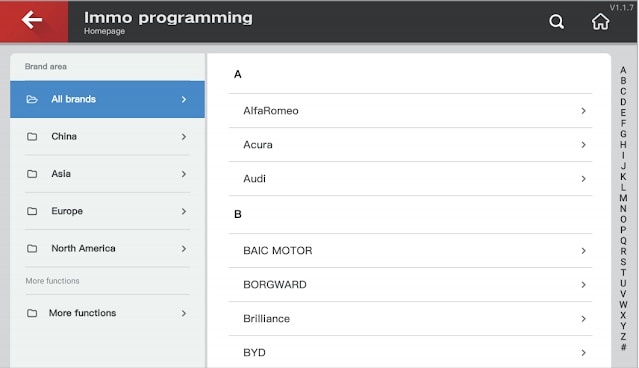

KEY TOOL PLUS supports over 20,000 car models worldwide. Select vehicles by brand region, name, or A-Z search directly from the IMMO programming interface—making navigation fast and intuitive.

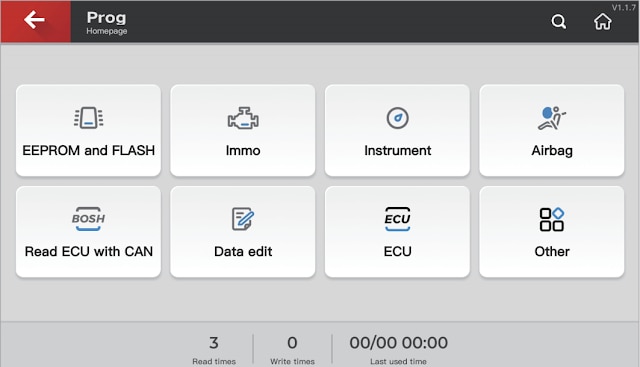

We Incorporate Prog Function

KEY TOOL PLUS supports reading and writing common modules and chips, covering EEPROM, FLASH, IMMO, Instrument, Airbag, and ECU systems.

Note: Certain functions require specific adapters and model prompts. Available only on the advanced edition.

What Can Be Done With Prog Function?

• EEPROM Read/Write: Compatible with most transponders on the market
• BMW IMMO Module Programming: CAS3, CAS3+, CAS4, CAS4+, BDC, FRM, FEM
• Land Rover RFA Module Reading and IMMO Programming
• Porsche BCM Programming
• Read ECU via CAN: Audi, BMW, Volkswagen
• Instrument Programming: Honda, Kia, Hyundai

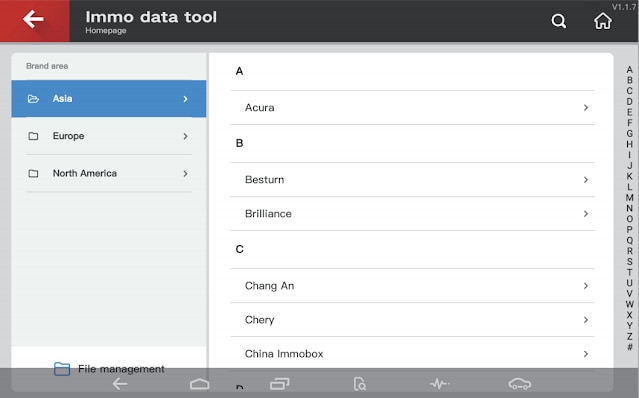

We Improve the IMMO Data Tool (File Make Key)

Some vehicles restrict OBD-based key programming due to immobilizer protection. The “File Make Key” feature resolves this by allowing key generation from immo module data.

[File Make Key generates a bootable transponder from a data file. Users must read immo data with a compatible device. On some models, data rewriting to the immo box may be required.]

Supports File Make Key for numerous common car models and motorcycles. Search by brand, region, or alphabetical list for quick access.

We "Liberate" Your Application Interface

Control Xhorse Key Cutting Machines

KEY TOOL PLUS fully controls Xhorse machines (Condor, Dolphin, Panda), serving as a standalone operation screen—freeing you from mobile devices.

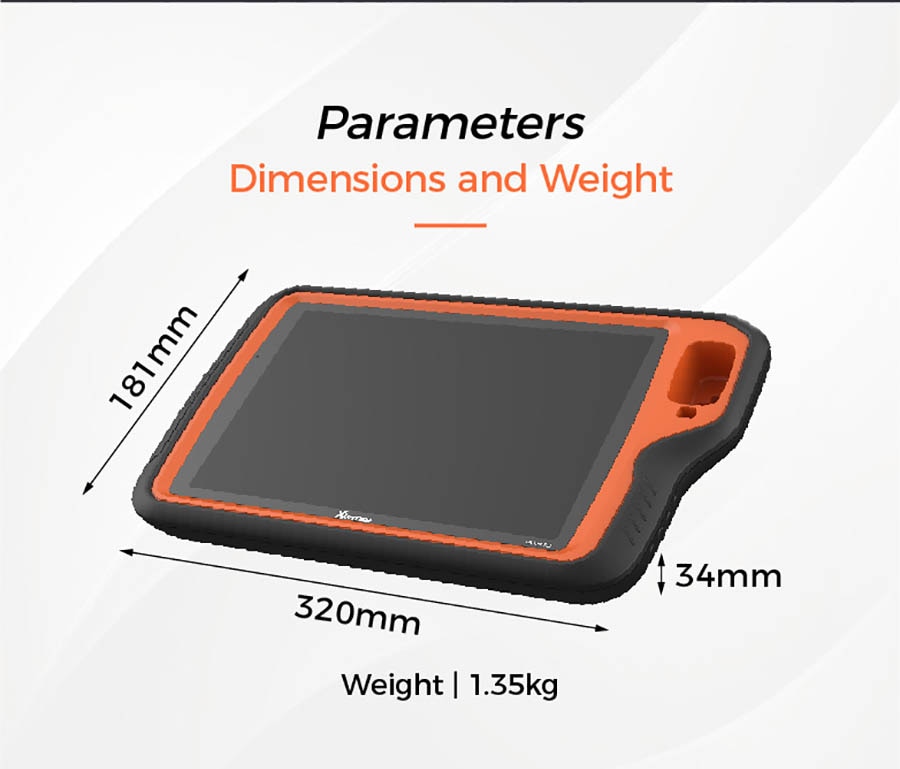

Specifications

• CPU: 8-core 2GHz
• RAM + ROM: 4GB + 128GB
• Operating System: Android 9.0
• Screen Size: 10.1" HD Anti-Glare, Anti-Fingerprint
• Rear Camera: 13.0MP HD
• Battery Capacity: 10,000mAh
• Charging: 30W Super Fast Charge (PD3.0)
• Bluetooth: 5.0
• Wi-Fi: 2.4G / 5G

Port Descriptions

• Light Sensor: Detects ambient brightness
• Detection Coil: Supports 125KHz (low), 13.56MHz (medium), 300–900MHz (high) frequencies
• Supports reading, writing, cloning of common IMMO transponders
• Supports reading common ID and IC transponders
• Supports frequency detection for vehicle remotes
• Immo Transponder Placement Hole: For vehicle immobilizer transponders
• USB Charging Port: Standard Type-C, supports 5V DC input and fast charging
• PS2 Port: For remote programming
• DB15 Port: Supports standard and optional programming adapters
• DB25 Port: For OBD matching
• Benz Infrared (IR) Port: Reads FBS3/FBS4 smart keys and supports Benz IR reader
