ALBABKC AC990 Maxiscan Fault Code Reader Diagnostic Scan Tool

Multi-Language User Interface

Supports up to 13 languages: Spanish, Portuguese, Korean, Japanese, Italian, Hebrew, German, French, Finnish, English, Dutch, Danish, and Chinese.

Compliance & Standards

Application layer fully complies with ISO 15031 and is compliant with SAE J1979.

Diagnostic Capabilities

Fully functional Mode$01~Mode$09 operation.

Supports a large number of vehicles made by 70 manufacturers.

DTC Support

DTC includes generic (P0, P2, P3, B0, U0 and C0) & manufacturer specific (P1, P3, B1, B2, U1 and C1, C2) codes.

Detailed DTC Library

DTCs are explained in easy-to-understand words rather than obscure jargon. Online help information is available for 80% of all the DTCs, which shows the probable cause of the code.

Physical Specifications

• Main Unit: 190mm × 93mm × 30mm
• LCD: 128×64 Black Mask LCD
• Visible View: 67mm × 40mm
• Cable: J1962 120cm
• Package: Paper board box
• Size: 295mm × 152mm × 65mm
• Unit Weight: 198g
• Cable Weight: 116g
• Package Weight: 160g
• Gross Weight: 490g

Supported Protocols

• SAE J1850 PWM
• SAE J1850 VPW
• ISO9141
• KWP FAST INIT
• KWP 5BAUD INIT
• CAN 11BIT 500K
• CAN 29BIT 500K
• CAN 11BIT 250K
• CAN 29BIT 250K
• CAN_USER1 11B 125K
• CAN_USER1 29B 125K
• CAN_USER2 11B 50K
• CAN_USER2 29B 50K

Full CAN BUS support for new cars
11 Bit and 29Bit CAN
Capable of communicating with multi-ECU System

Key Features

1. Color Options: Scarlet, dark blue, Pearl Blue, Green Blue, Metal Black, Orange
2. LCD: 3 inch black mask LCD, wide visible area, high contrast. The contents are readable even in strong sunshine.

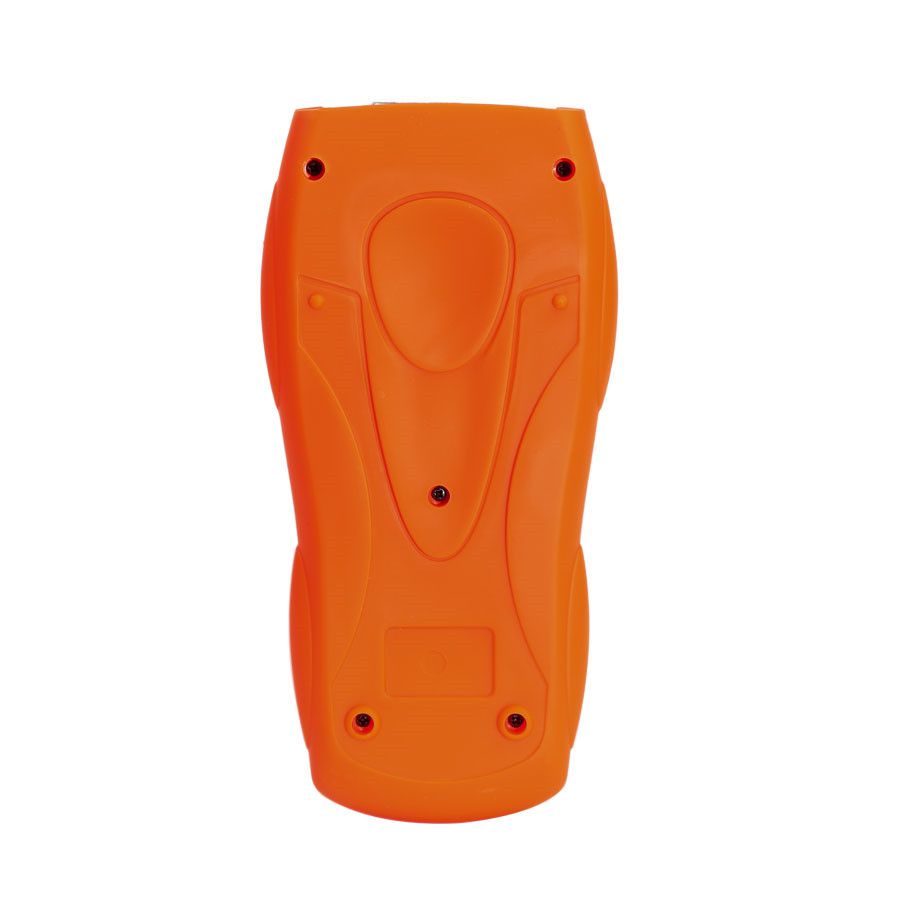

3. Housing: ABS+PC Engineer Plastic Housing (passed 6-meter free fall test). Patent No.: 200830010963.5.
4. Harmless fade-resistant paint.
5. Rubber oil sprayed housing; slide, dirty, and vibration proof.
6. Passed EMI/EMC test.
7. High quality PET 6-key film keypad. (3M harmless glue)
8. CE, FCC, RoHS Certified
9. Support manually input DTC Look-up
10. Read DTCs
11. Clear DTCs
12. Data stream
13. Freeze Frame
14. I/M Readiness
15. O2 Monitor Test
16. On-Board Mon. Test
17. Component Test
18. Vehicle Info.
19. Modules Present
20. Unit of Measure
21. State Emission
22. Read All DTCs
23. Read Stored DTCs
24. Read Pending DTCs
25. Detailed help information
26. Capable of showing probable cause of a DTC.
27. Up to 161 data items, each of them is with online help information.
28. Reset engine MIL
29. This operation will erase all DTCs, freeze frame data, oxygen sensor data, and reset IM Monitors and MIL.

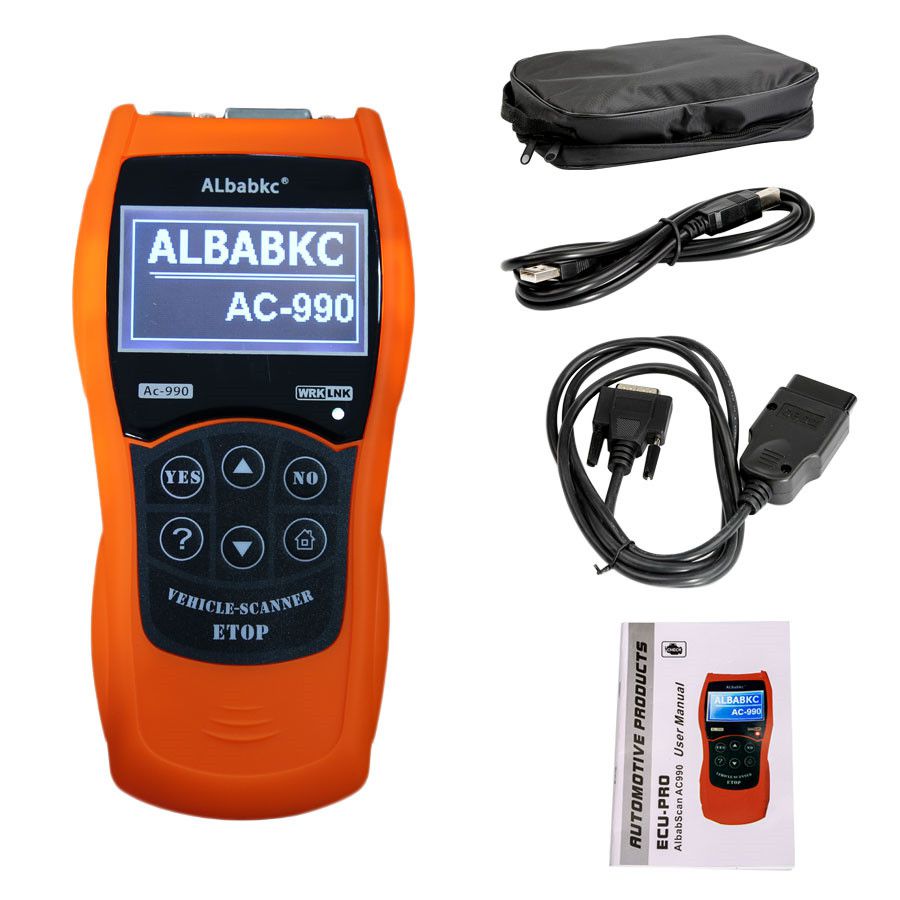

Package Contents

• 1pc × AC990 Host
• 1pc × Handleiding

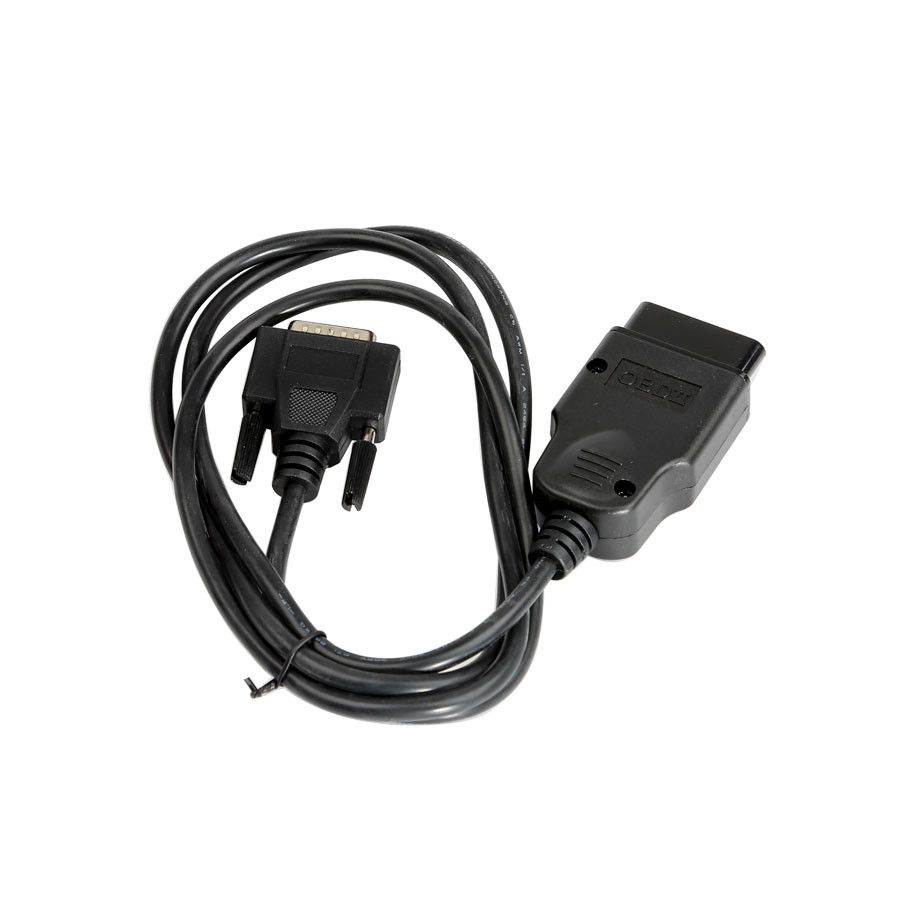

• 1pc × adapter kabel

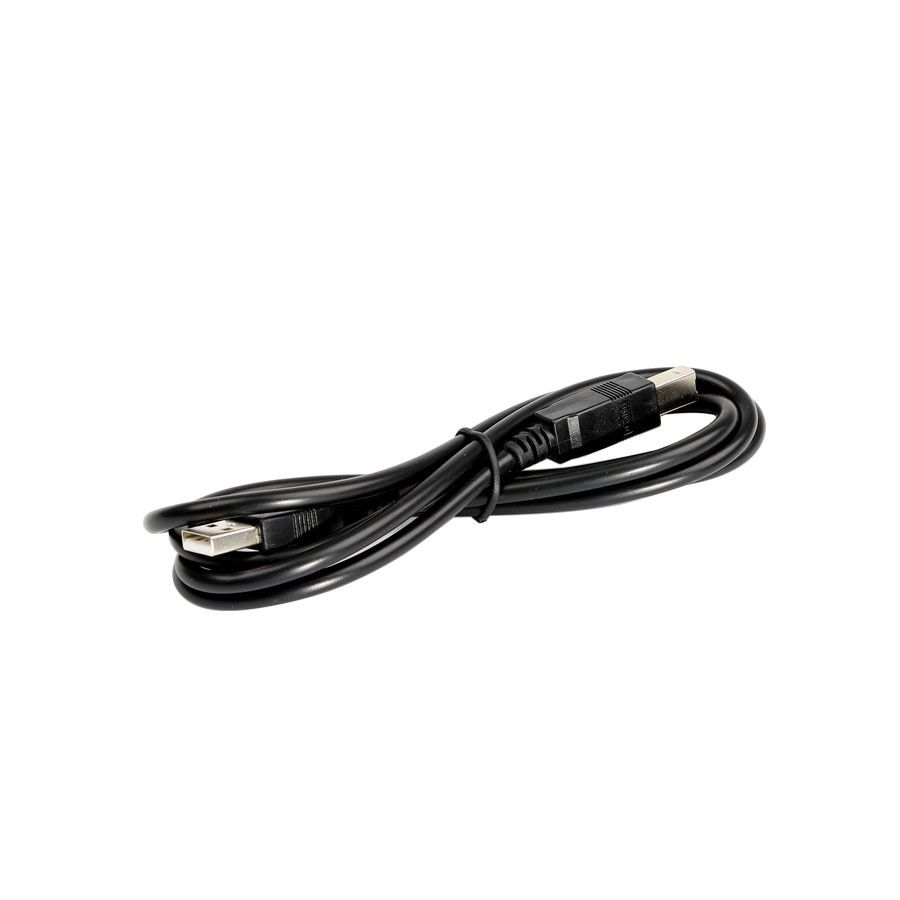

• 1pc × usb-kabel
