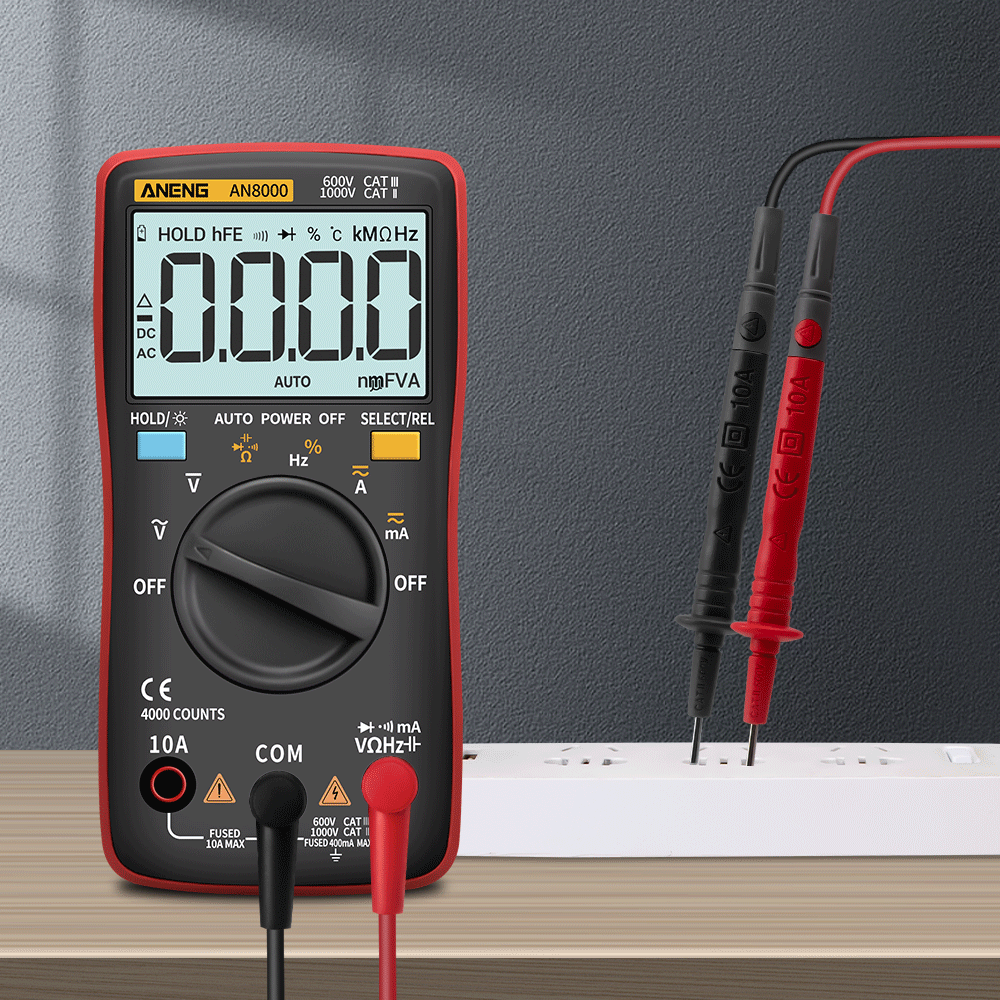

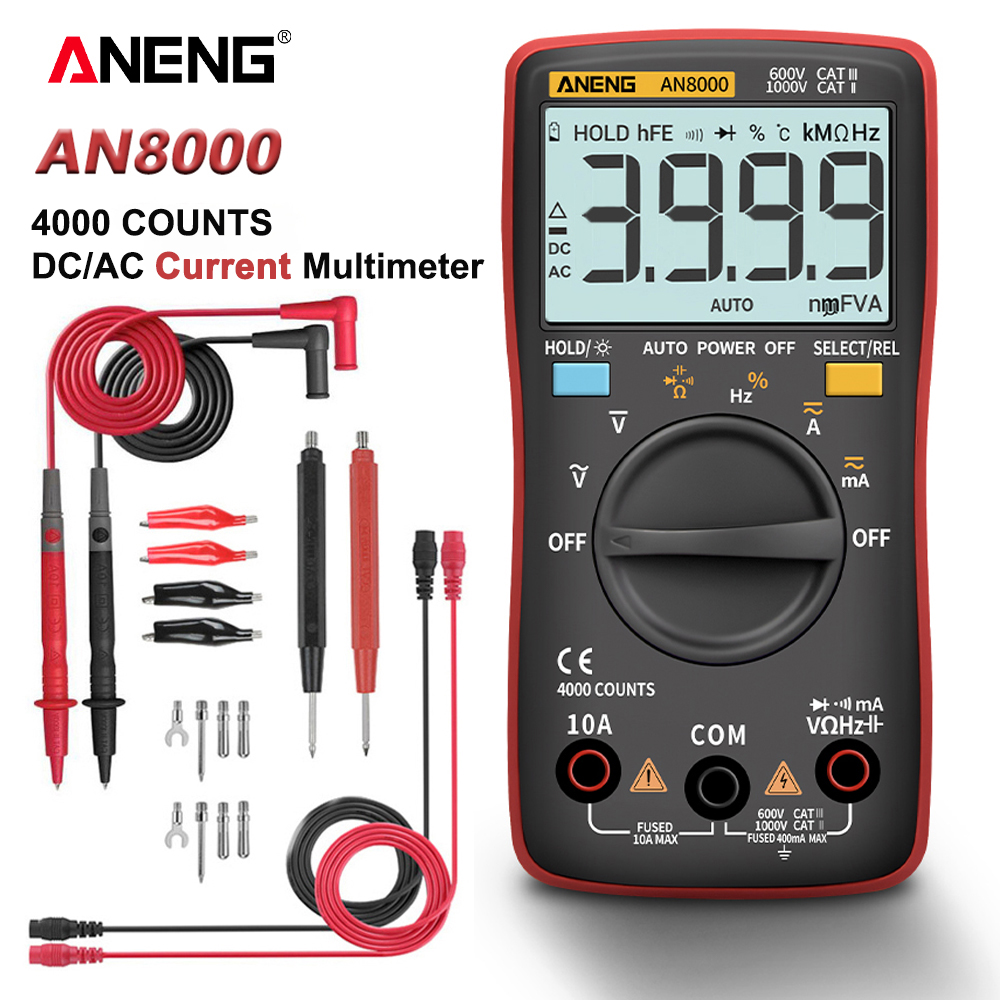

ANENG AN8000 Digital Multimeter 4000 counts profesional capacitor tester esrs meter richmeters inductance meter digital tester

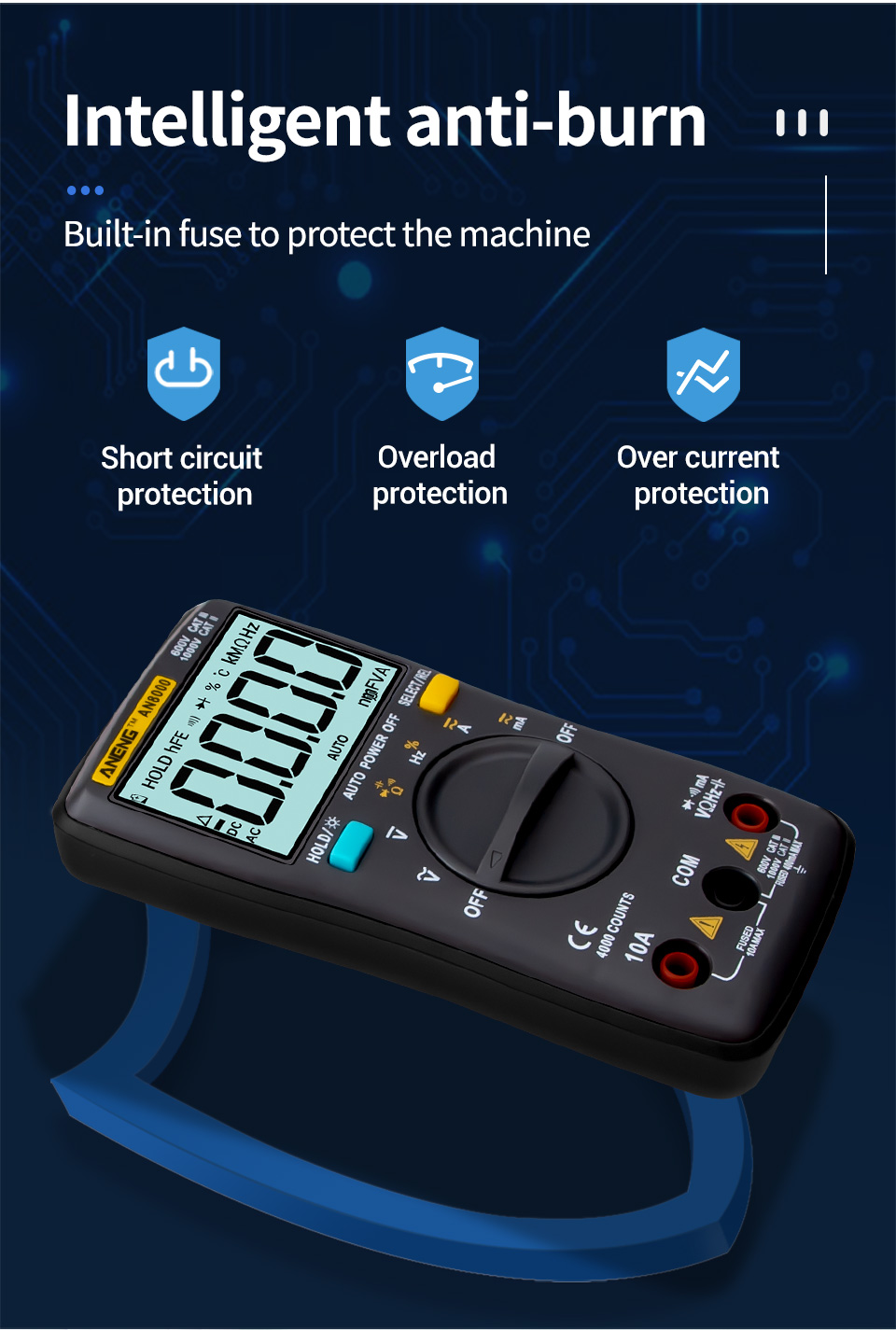

ANENG AN8000 Digital DC AC Voltage Current Multimeter

Resistance Diode Capacitance Temperature Tester Multimeter

Feature:
Auto Range

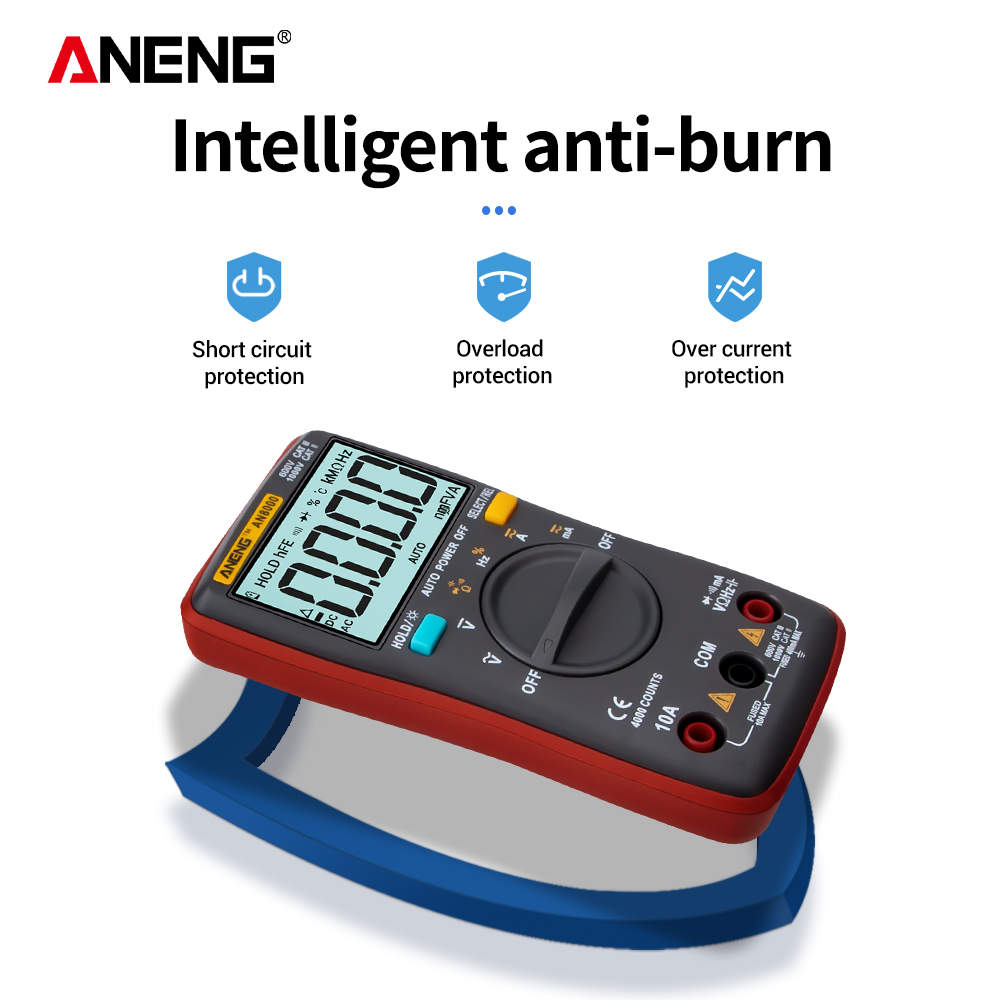

550V protection in Resistance.Capacitance and Frequency ranges

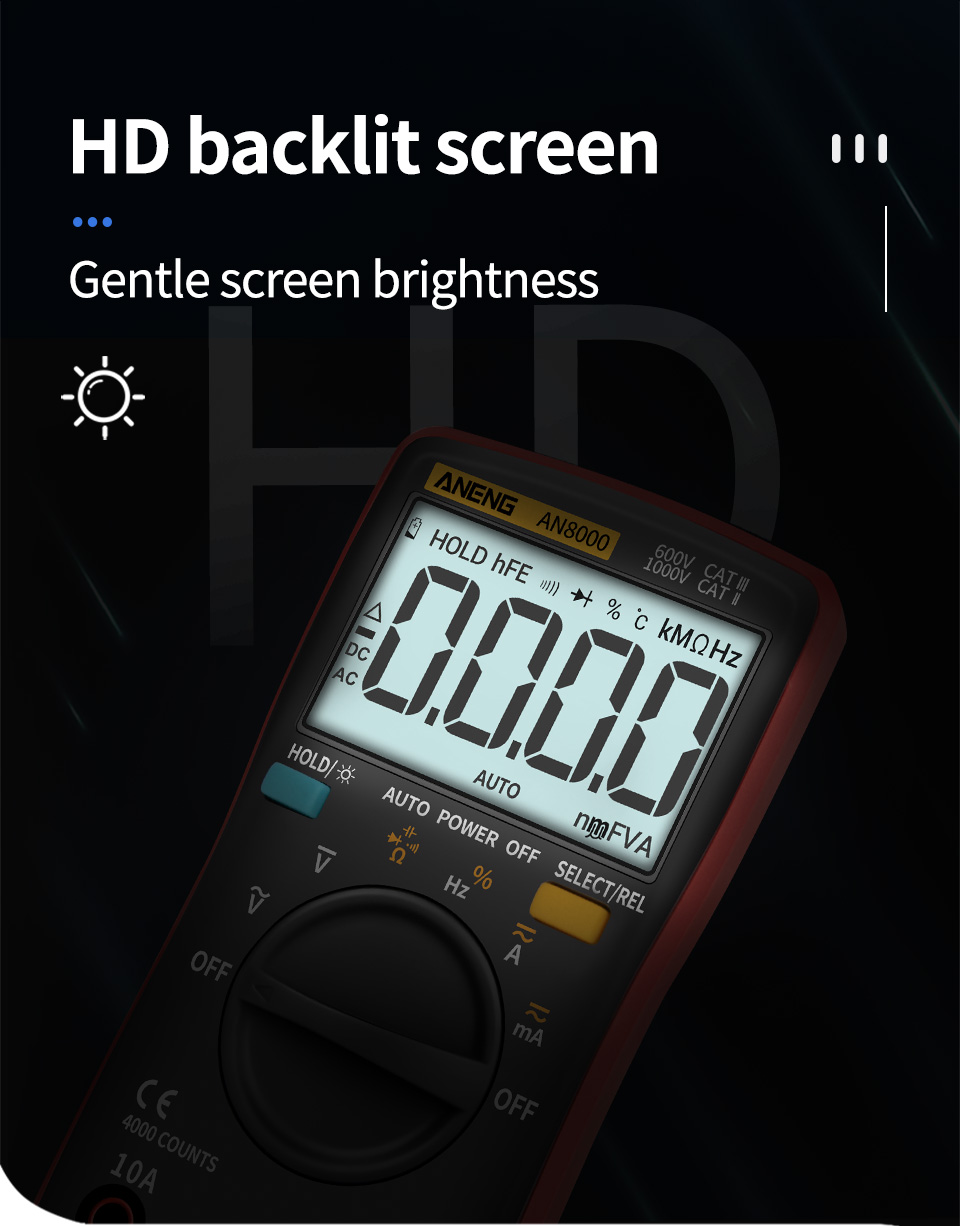

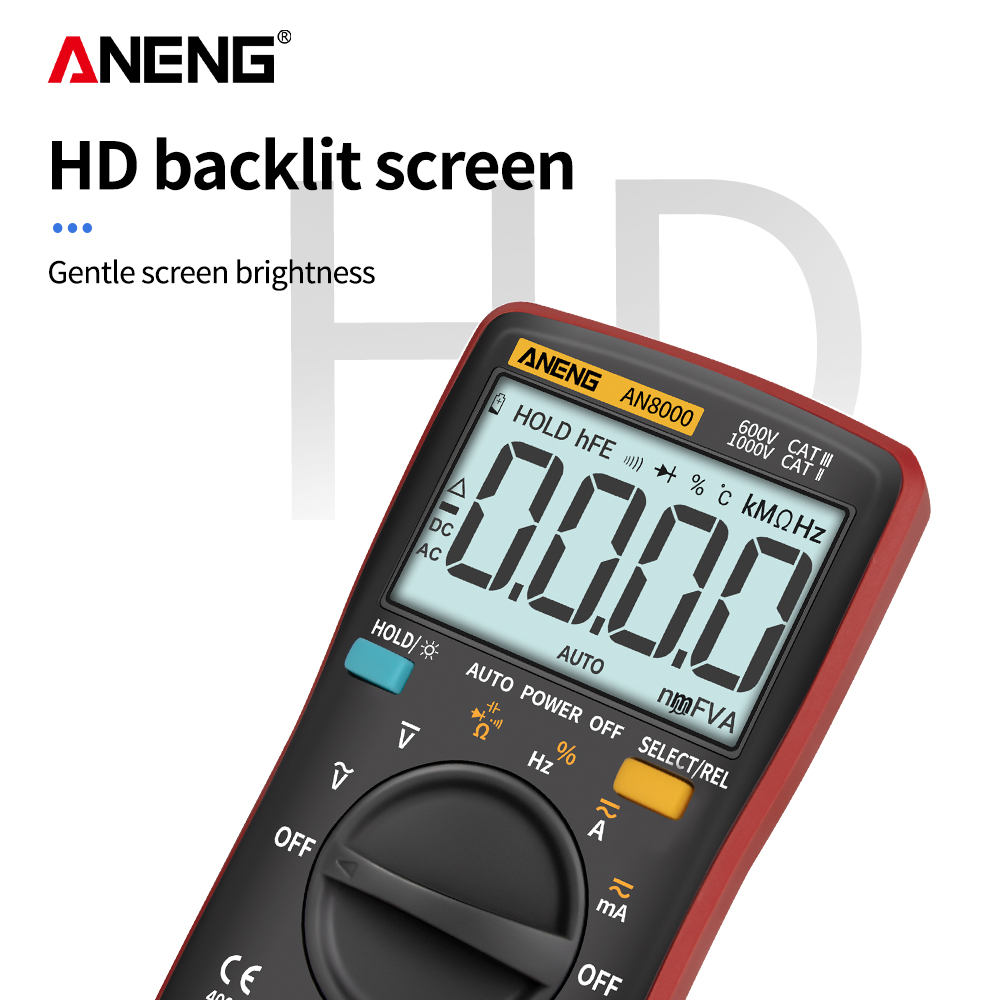

Large LCD display,MAX display 4000 counts
Sample rate: 3 times per second
backlight/Data hold/Relative measurement/Polarity identification/Low voltage indication/Auto power off

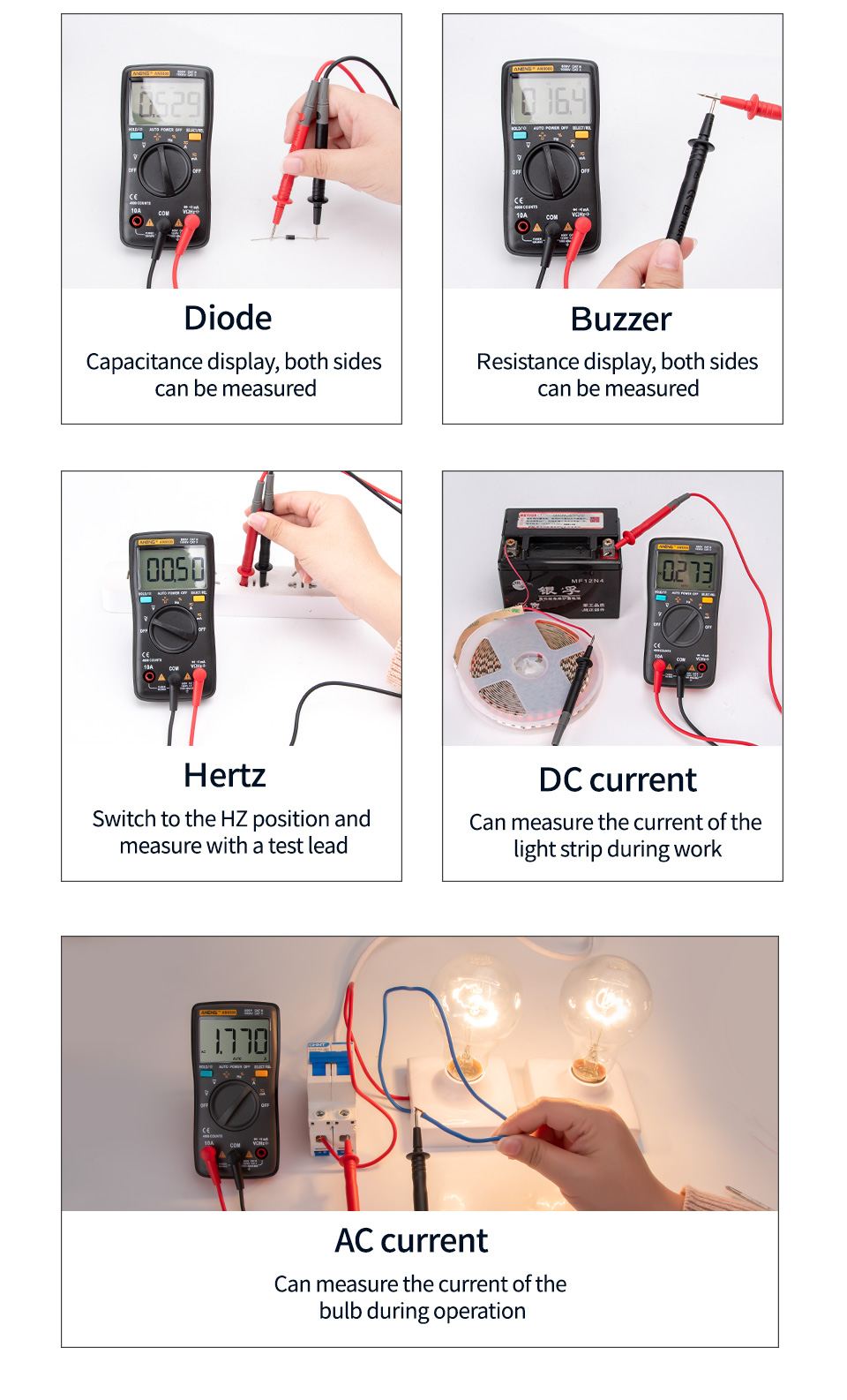

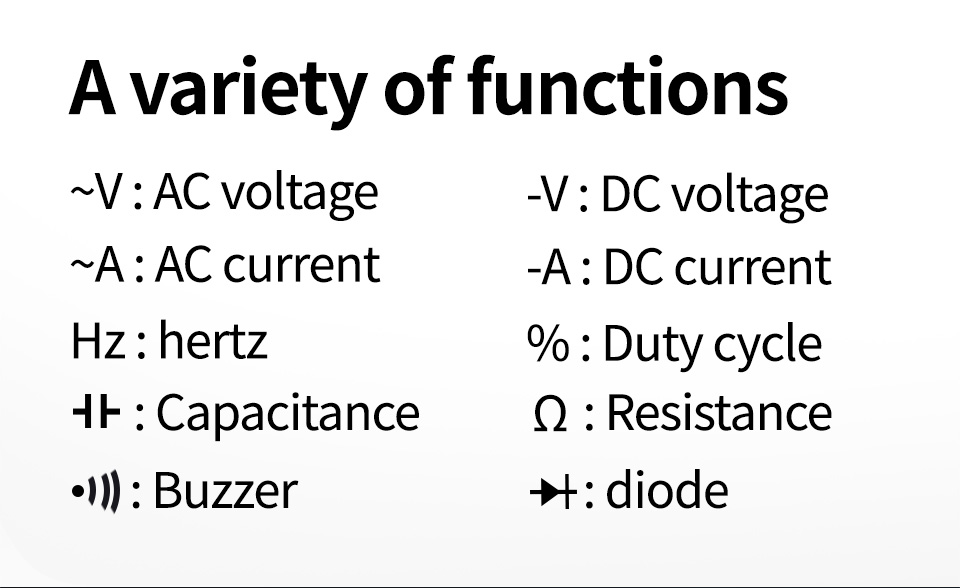

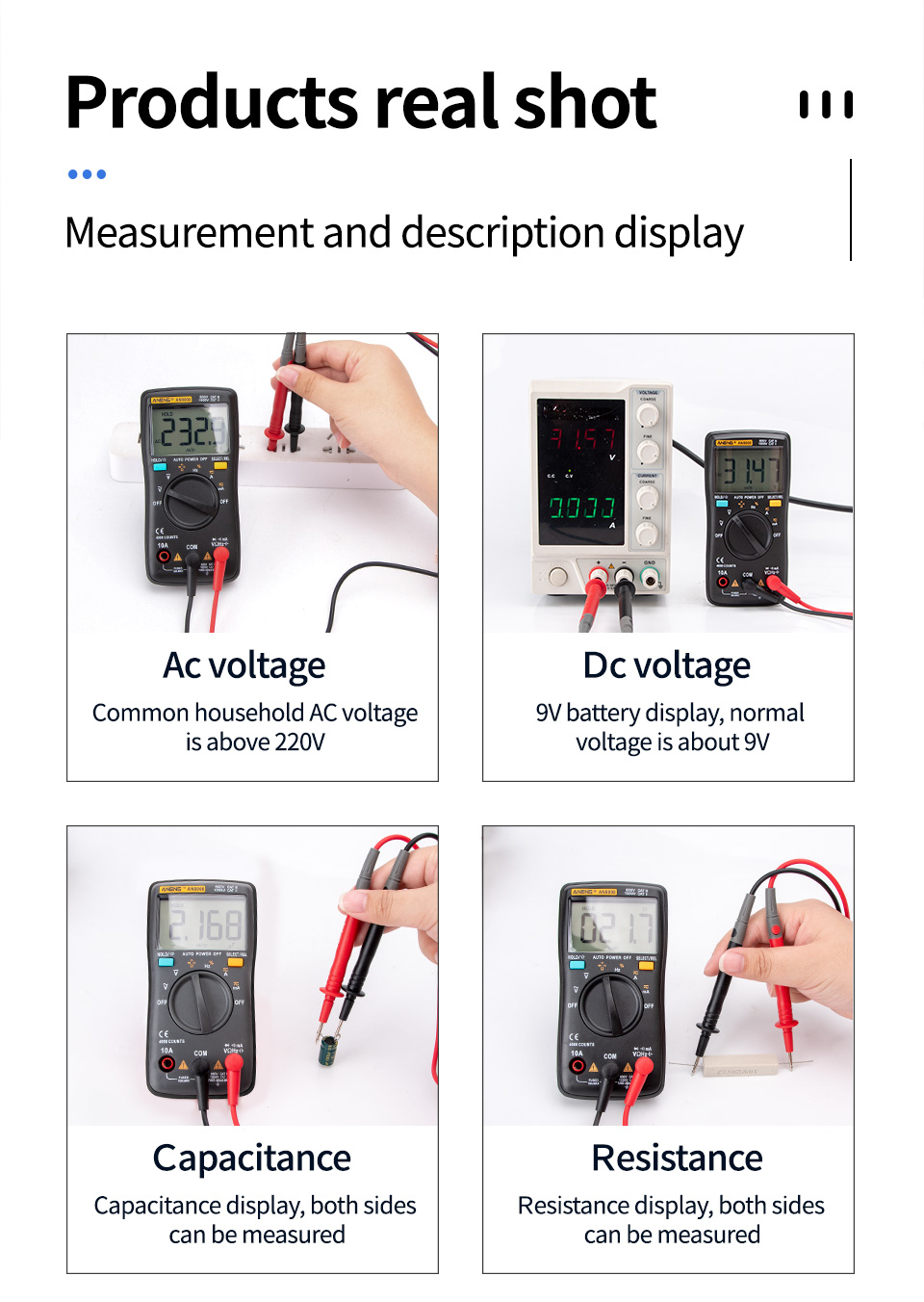

Main measurements:AC/DC Voltage, AC/DC Current,Resistance,Capacitance,
Diode and Continuity Testing,Frequency and duty cycle.
* Frequency:1Hz to 10MHz
* Capacitance :0.004nF to 200uF

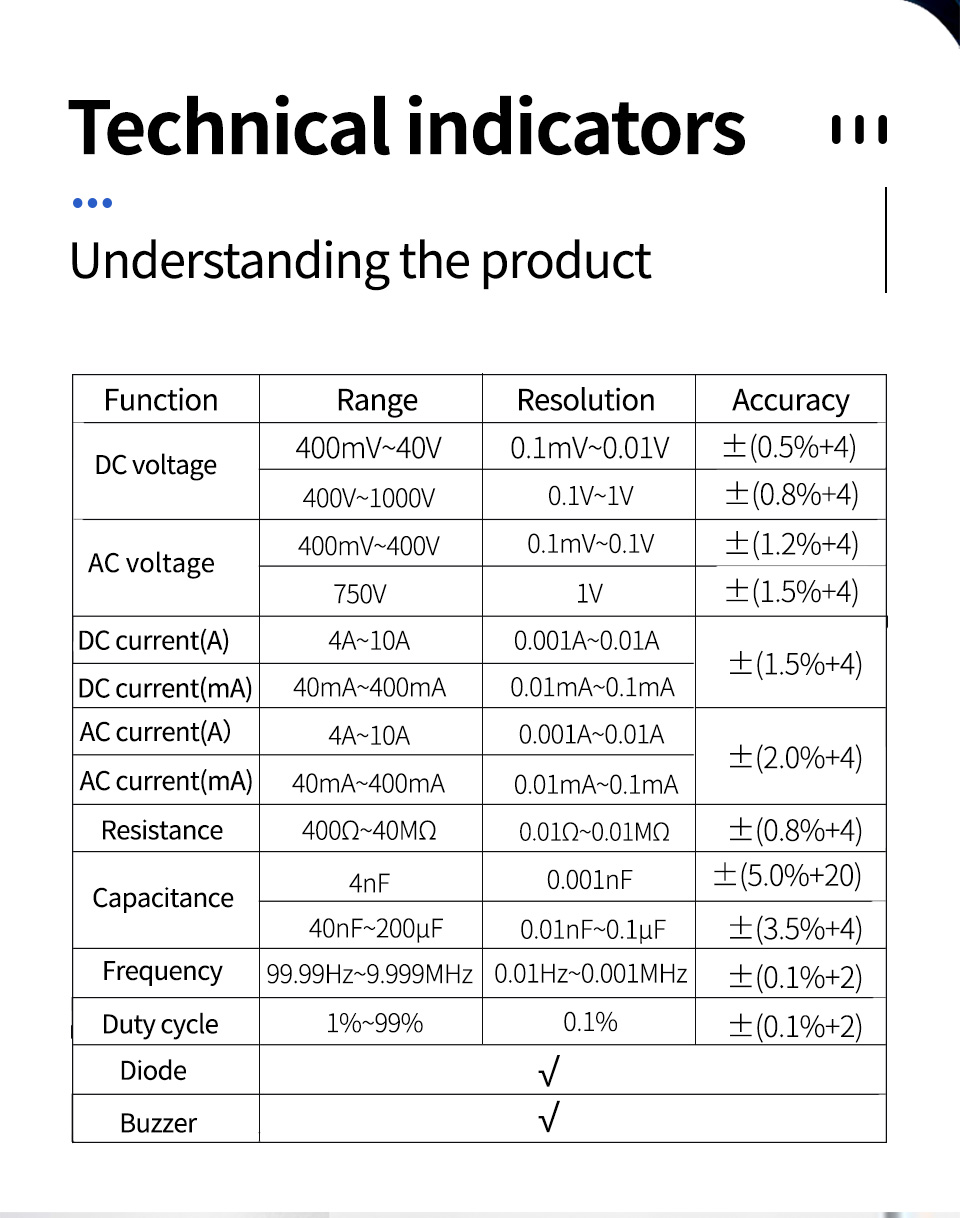

Specification:
Capacitance :0.004nF-200uF(±3.5%+4)
DC volts:400mV/4V/40V(±0.5%+4),400V/600V(±0.8%+4)
AC volts: 400mV(±1.5%+4), 4V/40V/400V(±1.2%+4),600V(±1.5%+4)
DC current:40mA/400mA(±1.0%+4),10A(±1.5%+4)
AC current:40mA/400mA/10A(±2.0%+4 ,50-200Hz)
Resistance :400Ω/4K/40K/400K/4M(±0.8%+4),40MΩ(±2.0%+4)
Frequency:99.5/999.5/9.999k/99.99k/999.9k/9.999MHz (±0.08%+2)
Duty cycle:0.1% to 99.9%(±0.08%+2)
Measurement mode: △Σmode
Over range indication: OL
Working environment: 0~40°, relative humidity < 80%
Power supply voltage: 3V (AAA x2 Pcs 1.5V) (Battery not included)

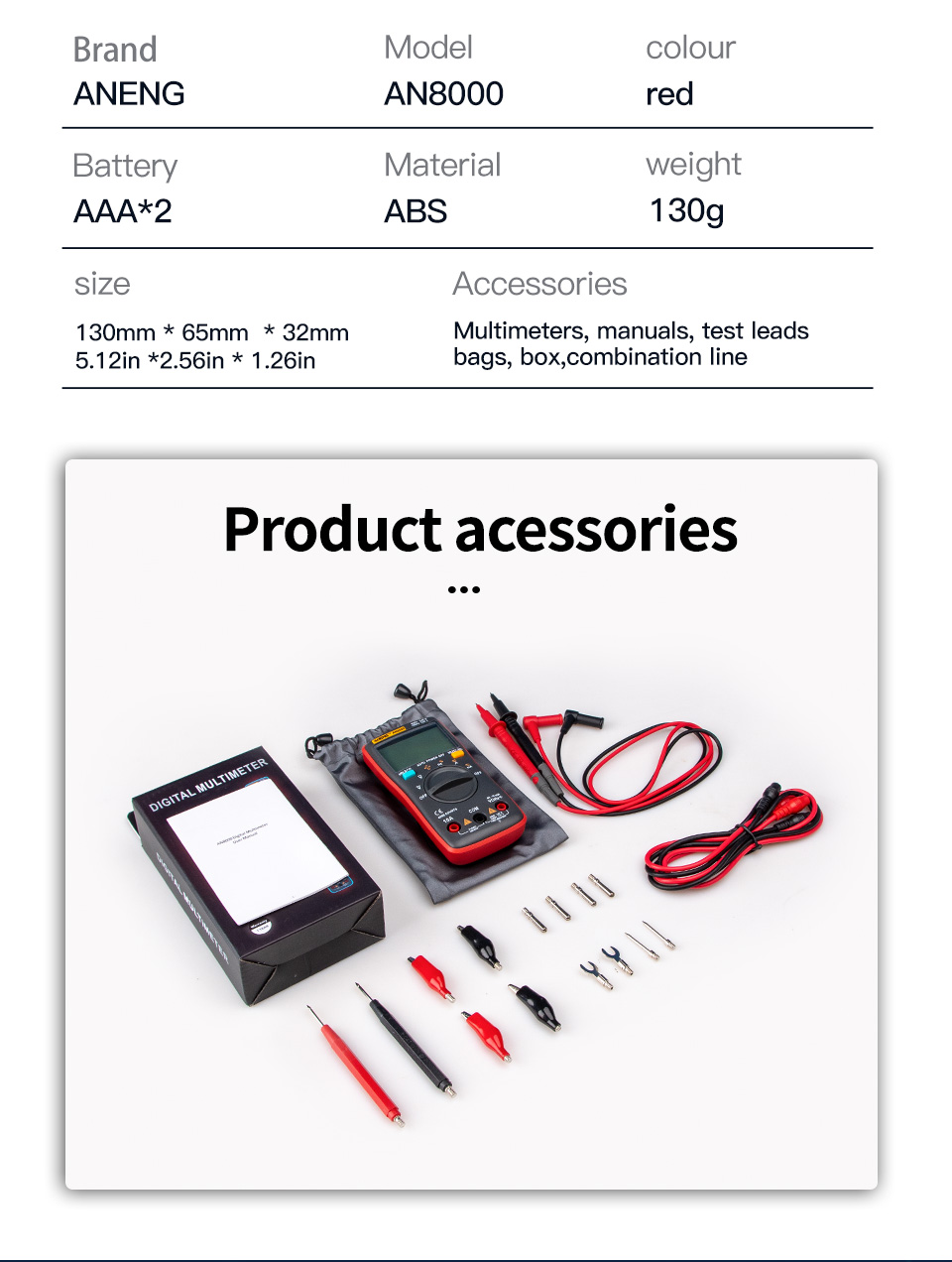

Package Included:
1* Combination line
1* Manual
1* Standard wire
1* Bag

1 * Multimeter
