ANENG CG01 Coating Thickness Gauge Measuring FE/NFE 0.1micron/0-1500 Car Paint Film Thickness Tester Russian Manual Paint Tool
This coating thickness gauge integrates the functions of a magnetic thickness gauge and an eddy current thickness gauge, and can be used to measure the thickness of coatings on ferrous and non-ferrous metal substrates.
Item No. COBD210951 Price Down Notice
- Shipping:
- Airmail Post
Estimated delivery time: 7-45 working days.See details» - Returns:
- Return for refund within 7 days,buyer pays return shipping.Read details »
- Support:
- Online Chat WhatsApp Skype Ask a question
- Product Details
- Product's Reviews
- Write a Review
- Related Products

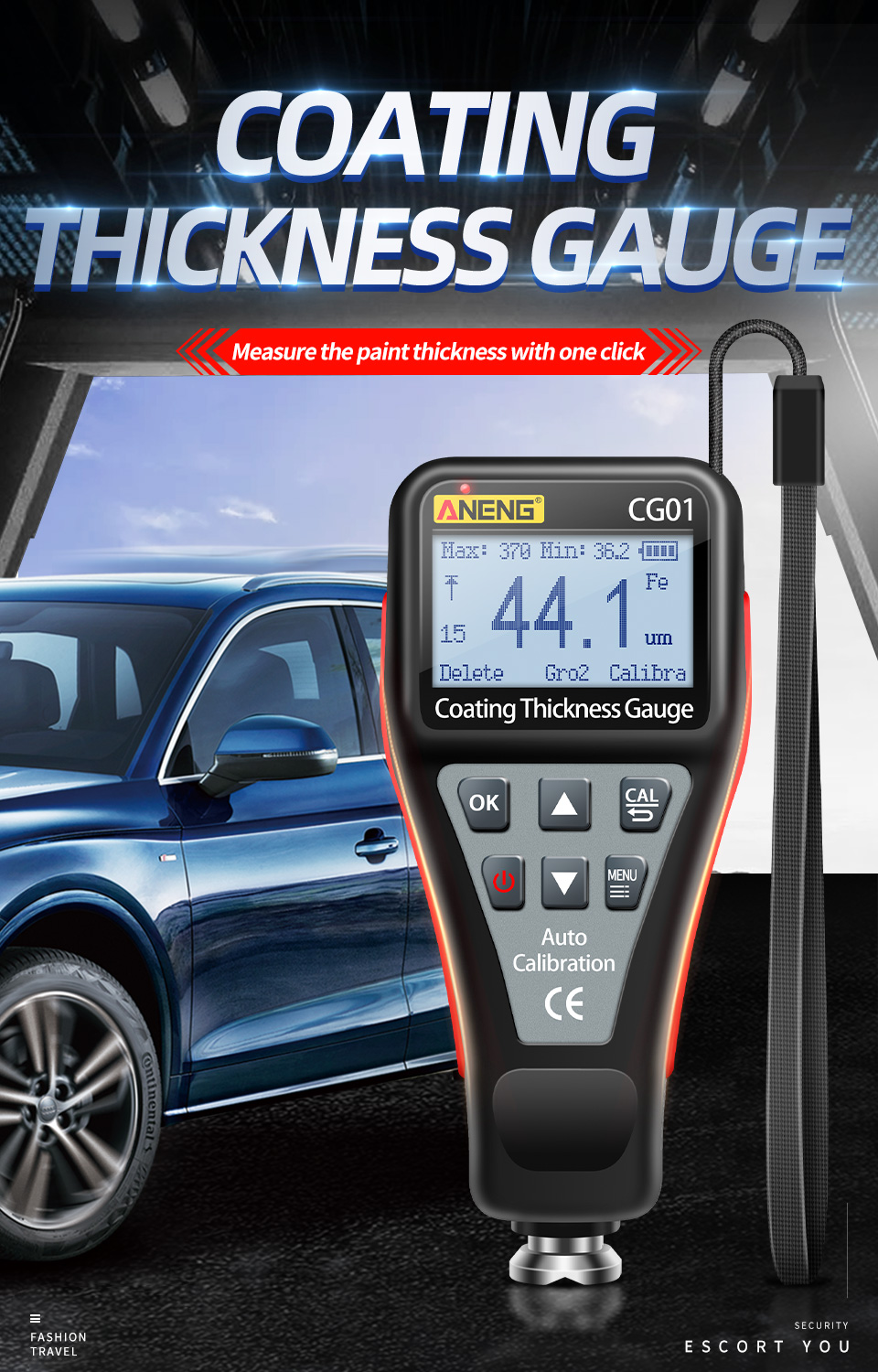

ANENG CG01 Thickness Gauge Meter Digital Backlight LCD Thickness Meter Car Paint Thickness Tester Coating
Introduction:
This coating thickness gauge integrates the functions of a magnetic thickness gauge and an eddy current thickness gauge, and can be used to measure the thickness of coatings on ferrous and non-ferrous metal substrates. The dual-function built-in probe is used to automatically identify iron-based or non-ferrous-based materials, and select the corresponding measurement method for accurate measurement.
Features:
1. This meter can measure the thickness of the surface coating of magnetic metal (iron-based) and non-magnetic metal (non-ferrous).
2. High measuring accuracy and wide measuring range: 0~1500um (0~59.0mil).
3. Dot matrix LCD liquid crystal display, you can see the data clearly even when the backlight is turned off during the day, and it saves electricity. In addition, the backlight can adjust the brightness.
4. With gravity sensing function, it can automatically rotate the content of the display to keep the direction consistent with gravity, making it easy to read the measurement data.
5. With 6 groups of data group storage function, it is convenient to count and compare the data and deviation of different parts.
6. It has a 4-point smooth calibration function, which makes the measured data more accurate.

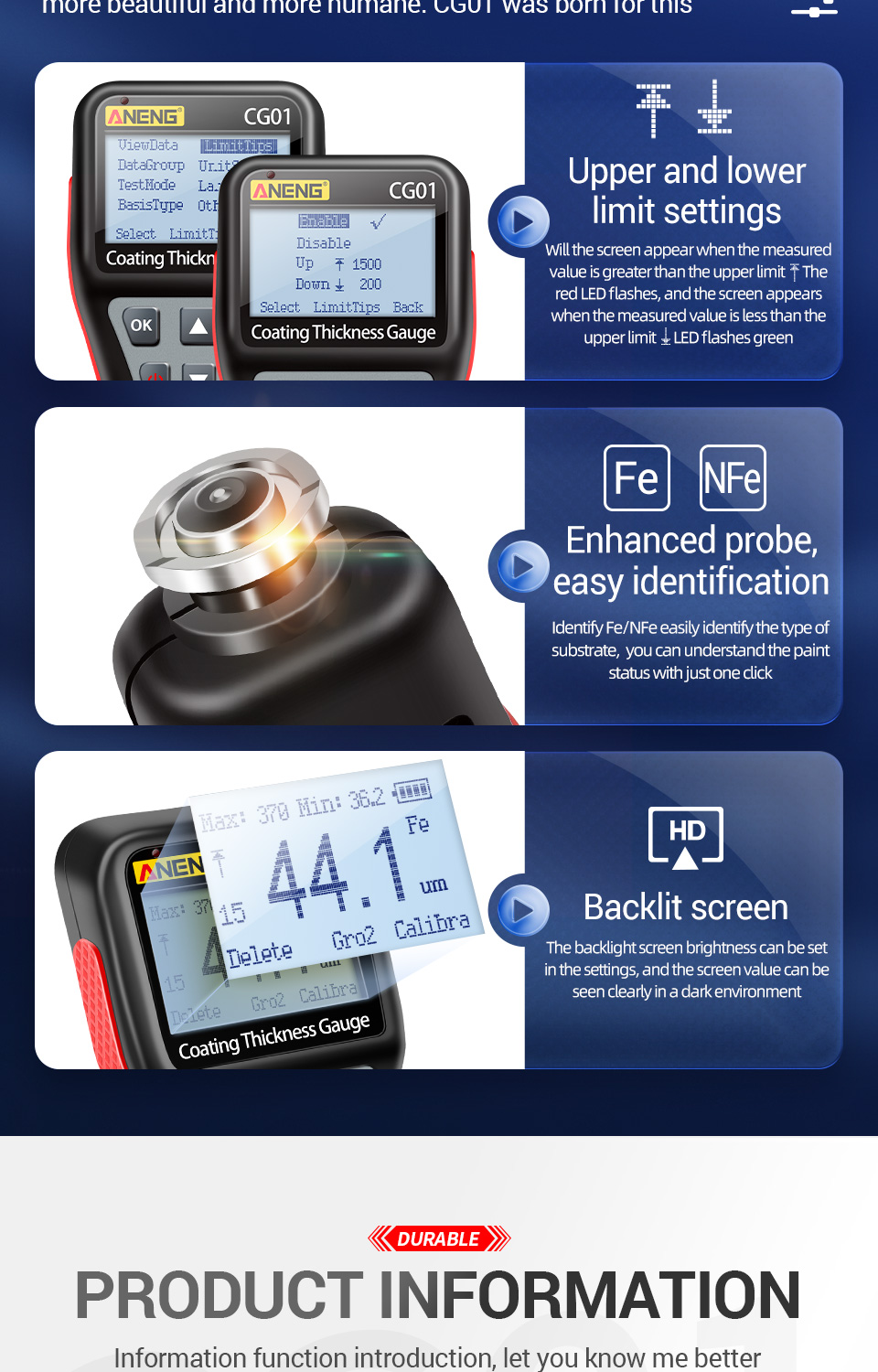

7. With upper and lower limit setting and prompt function, the red and green two-color LED lights can flash, and the display screen prompts the state of over limit.

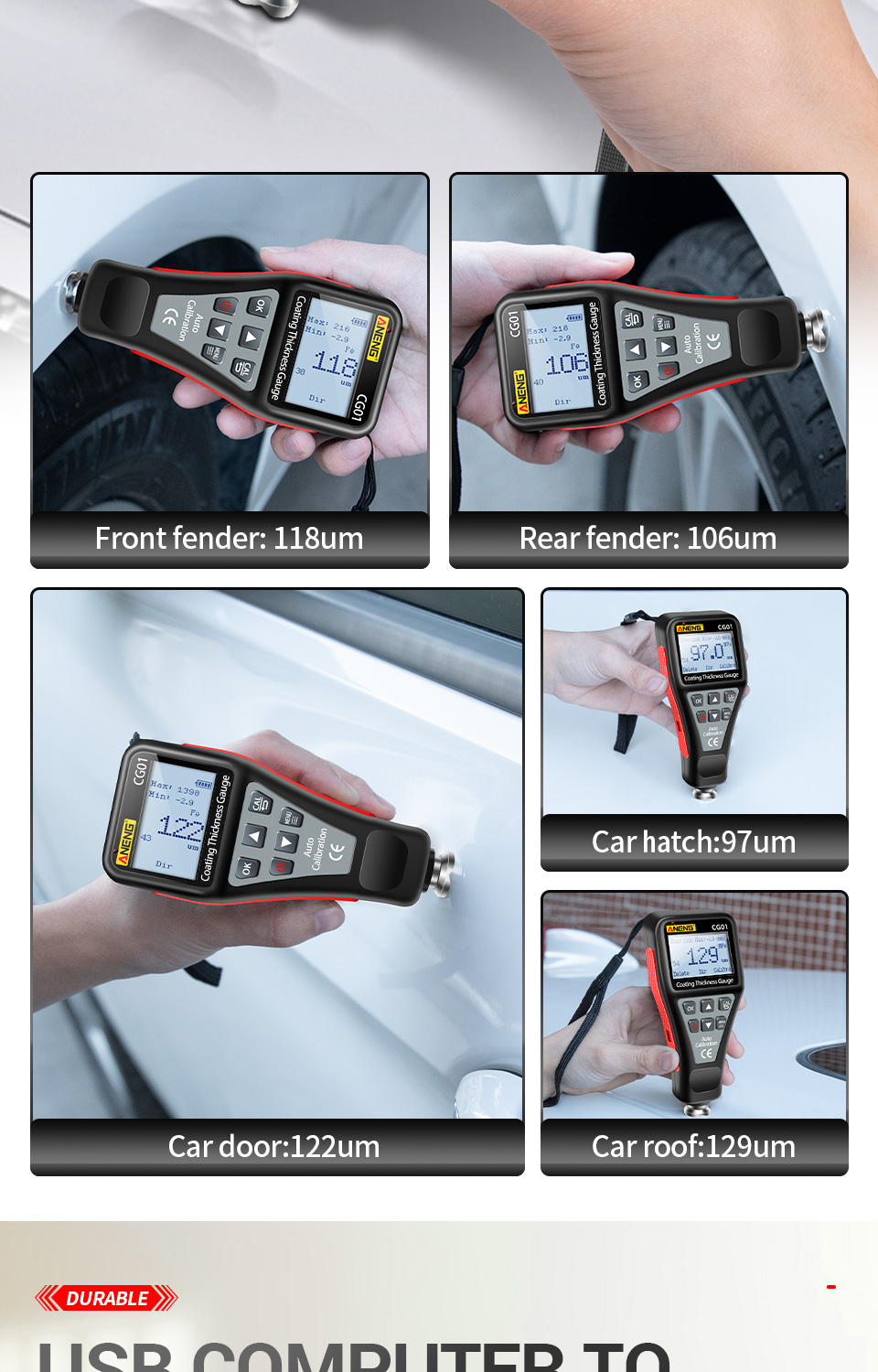

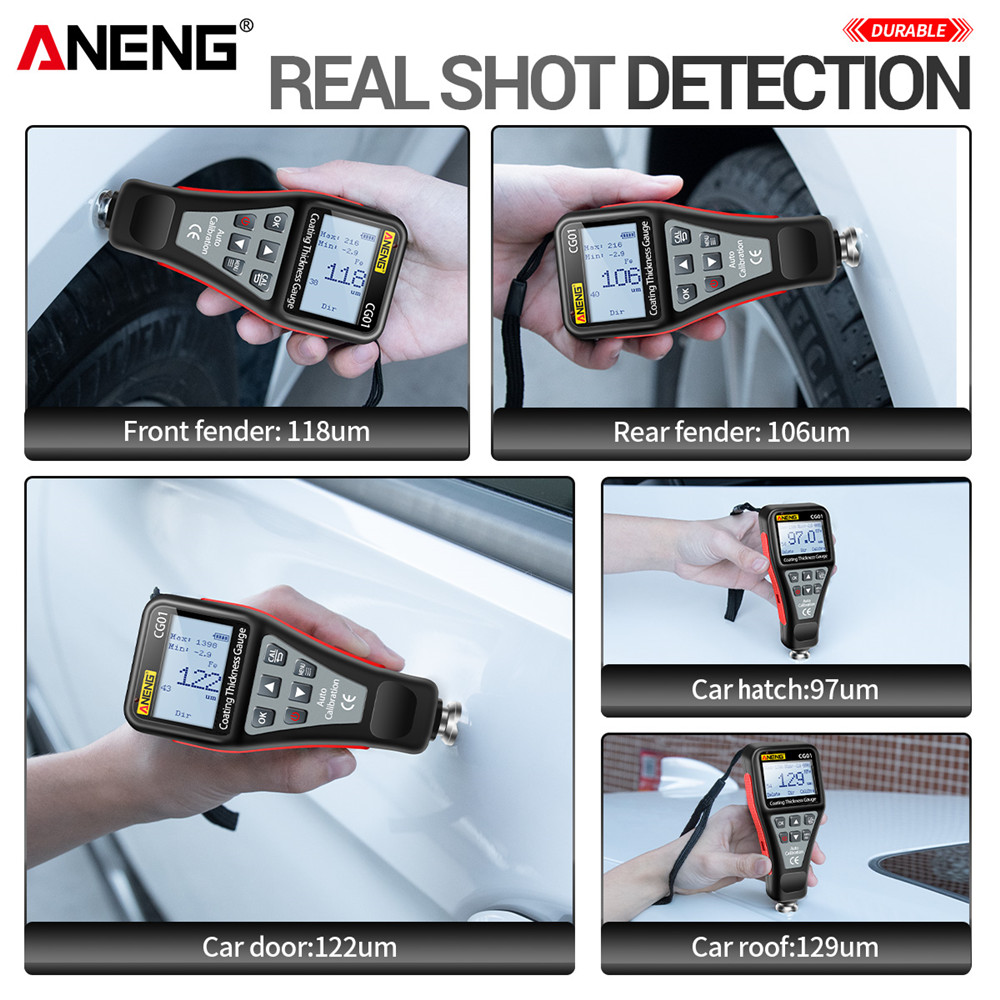

8. It is suitable for coating, metal processing, sales measurement, automobile paint inspection, second-hand automobile, accident vehicle assessment and other industries.

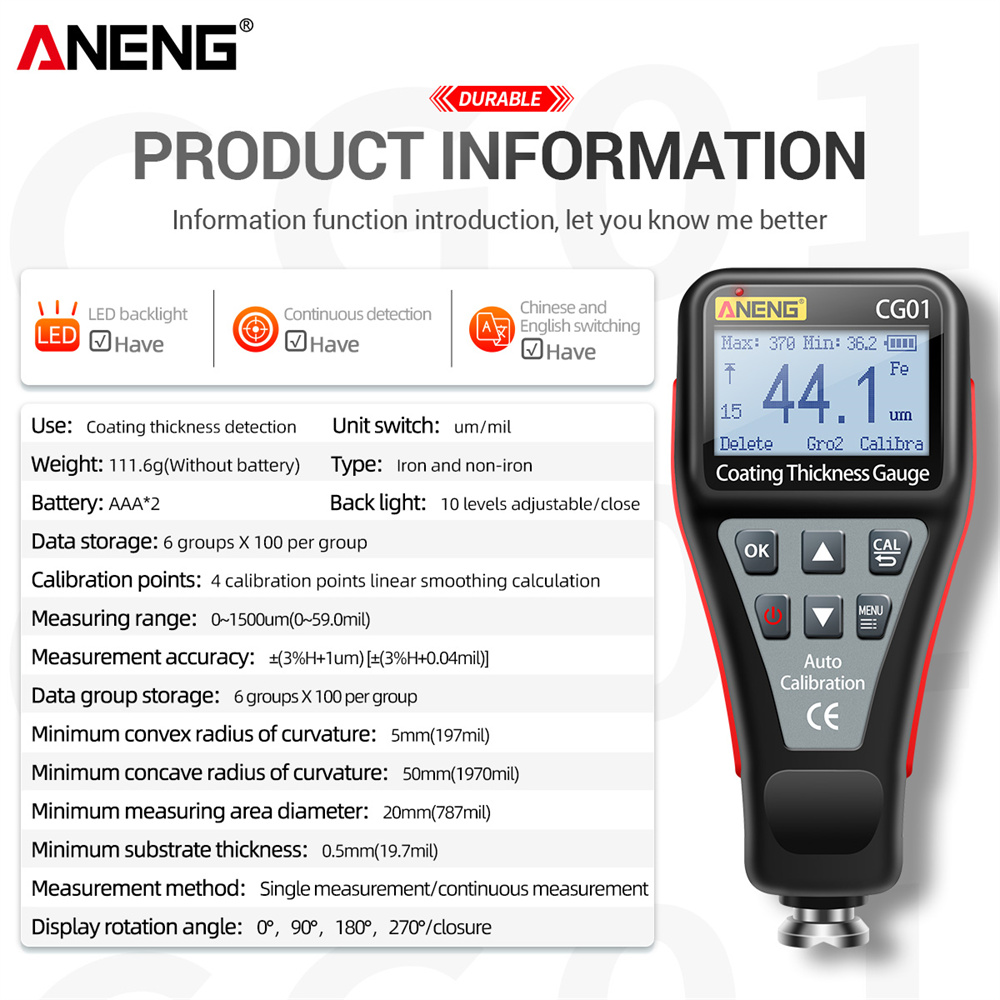

Specification:
1. Type of iron base: magnetic metal iron base (FE)/non-magnetic metal non-ferrous base (NFE)/automatic identification.
2. Measuring range: 0~1500um (0~59.0mil).
3. Measurement accuracy: ±(3%H+1um)[±(3%H+0.04mil)].
4. Measurement method: single measurement/continuous measurement.
5. Statistics function: maximum value/minimum value/average value/variance.
6. Number of calibration points: 4 calibration points are calculated linearly and smoothly.
7. Data group storage: 6 groups x 100 per group.
8. Minimum convex curvature radius: 5mm (197mil)
9. The minimum radius of curvature of the concave surface: 50mm (1970mil)
10. The smallest measuring area diameter: 20mm (787mil)
11. Minimum substrate thickness: 0.5mm (19.7mil)
12. Display rotation angle: 0°, 90°, 180°, 270°/close
13. Unit conversion: um/mil.
14. Upper and lower limit range: 0~1500um (0~59.0mil) freely set/close.
15. Backlight brightness: 10 levels adjustable/closed.
16. Power supply battery: 2 AAA batteries.
17. Low battery reminder: lower than 2.4V.
18. Automatic shutdown: Automatic shutdown without any operation within 3 minutes.

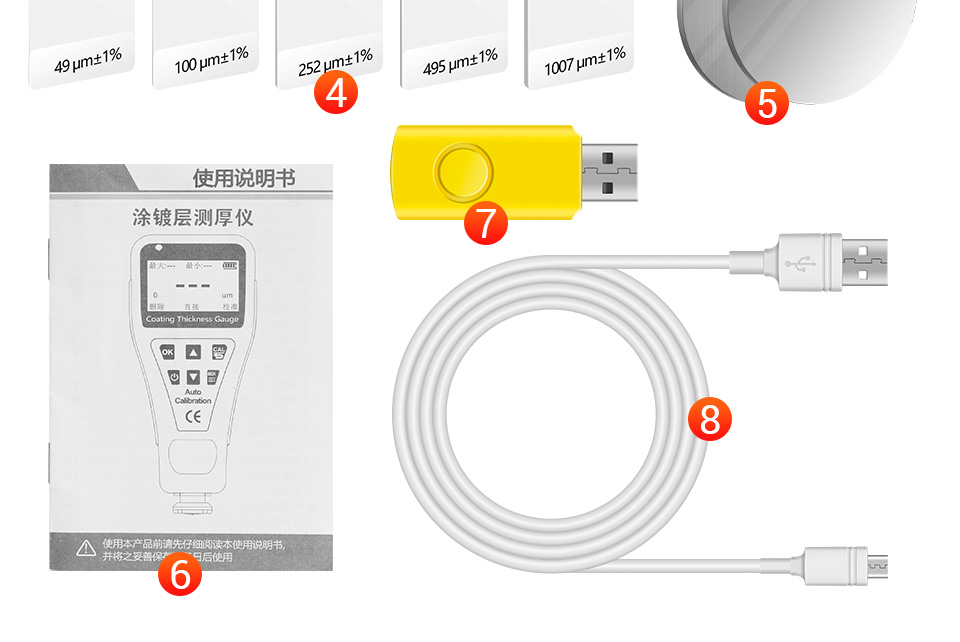

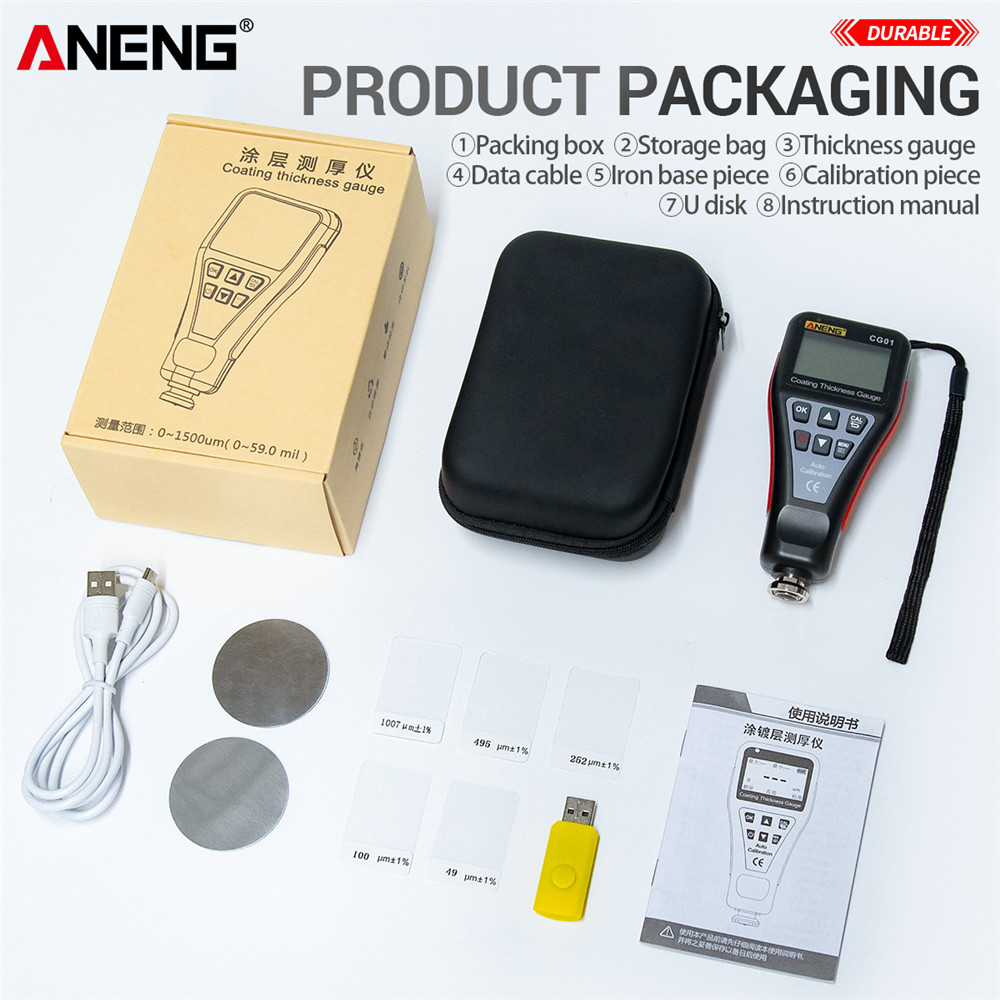

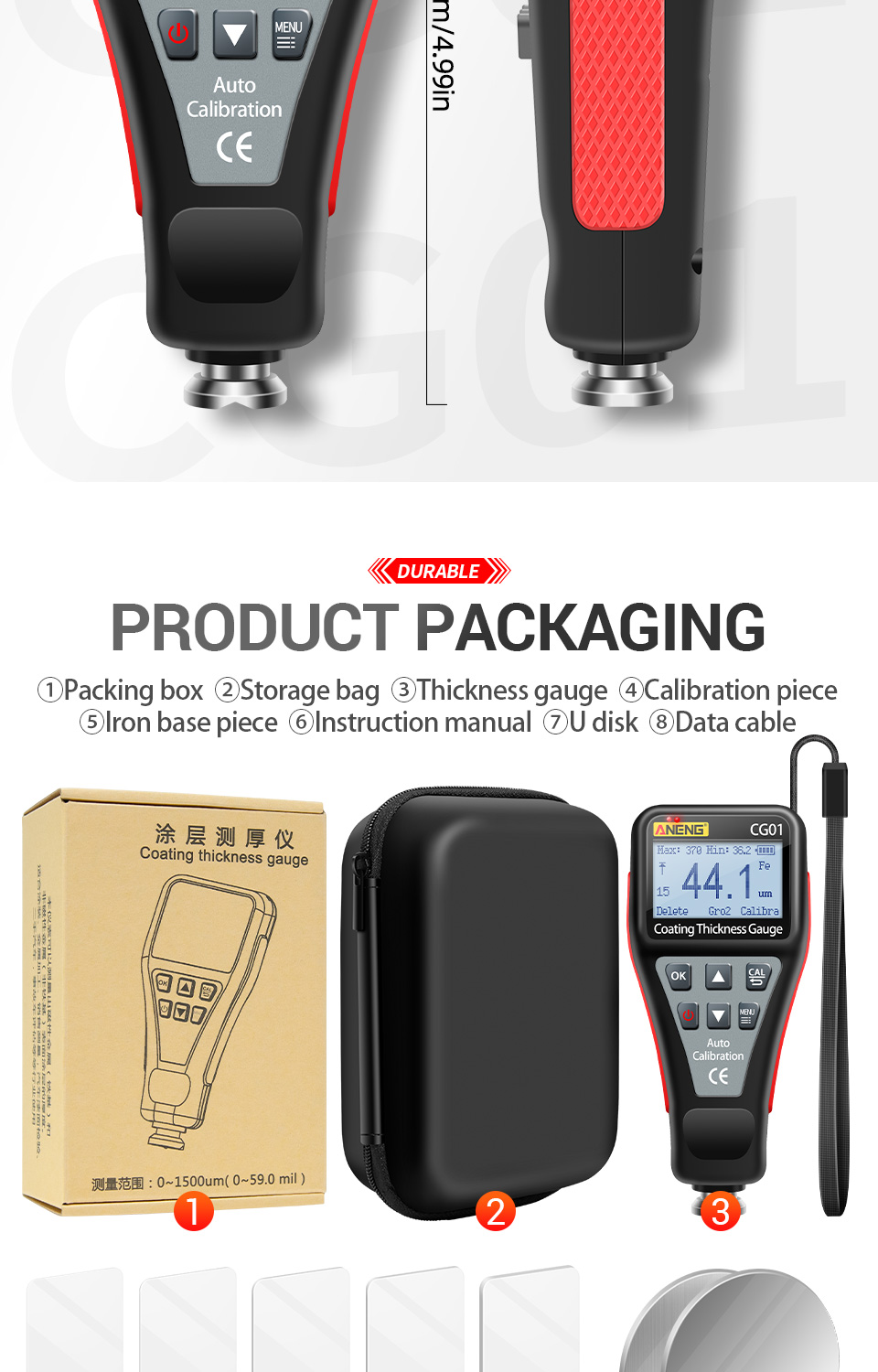

Packge inclued:
1* CG01 Thickness gauge(without batteries)
2* Iron base piece

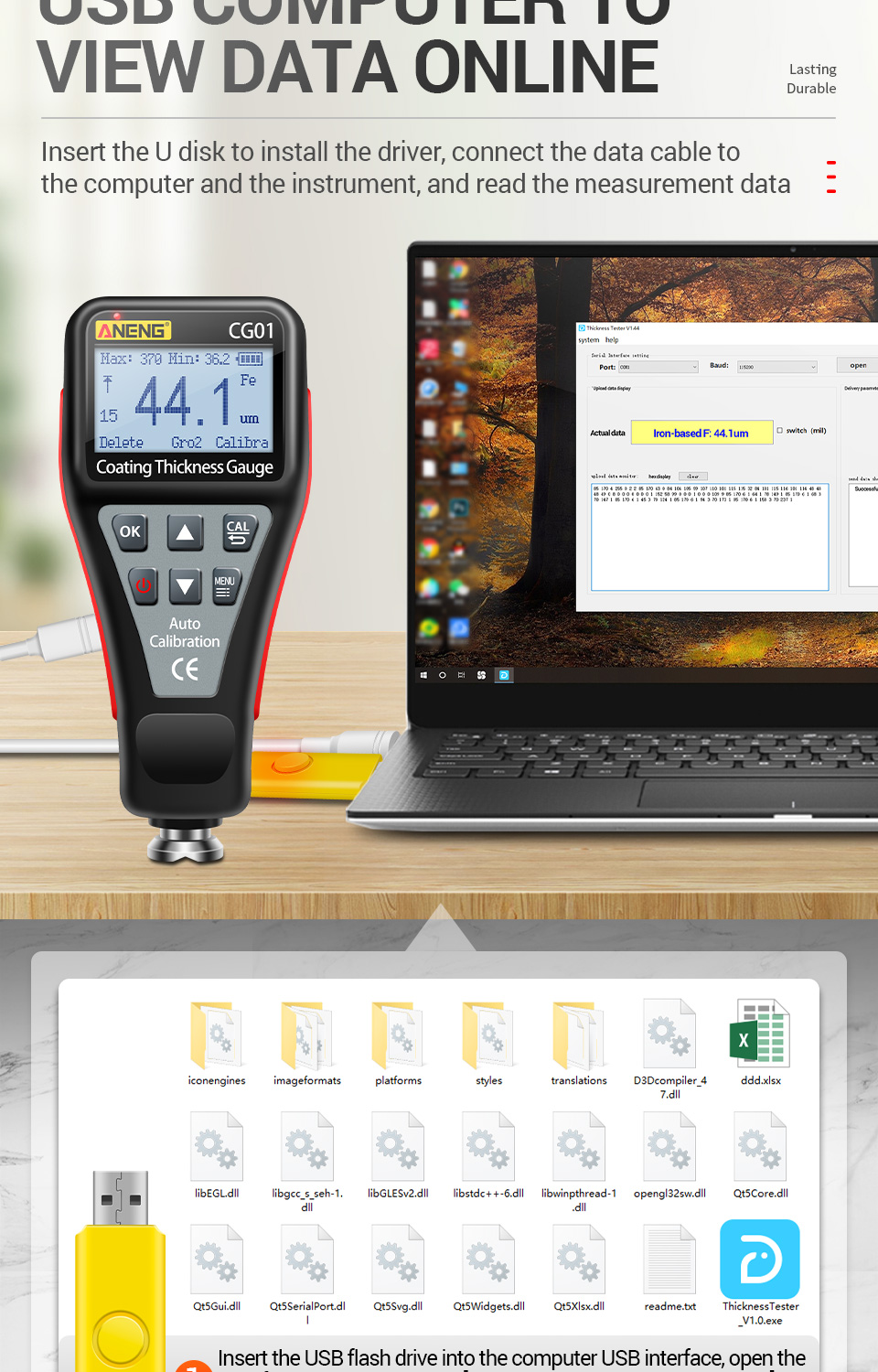

1* U disk

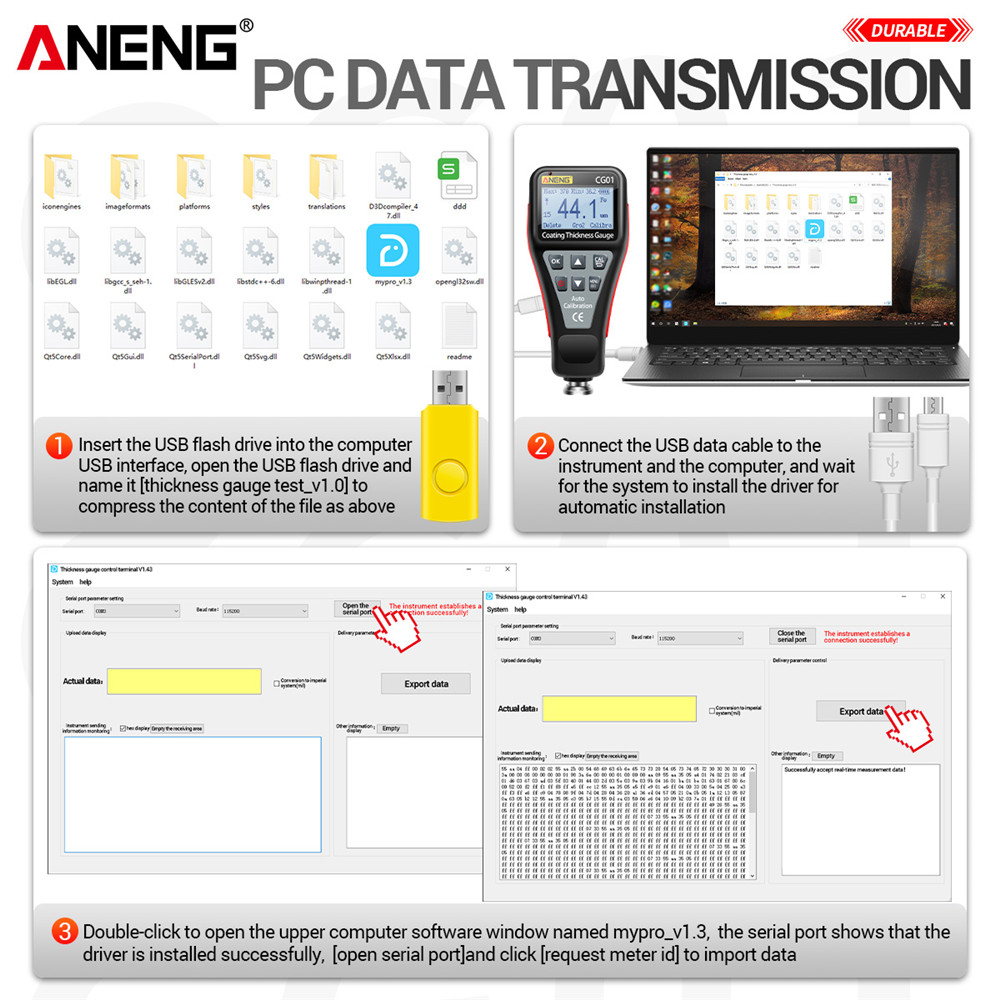

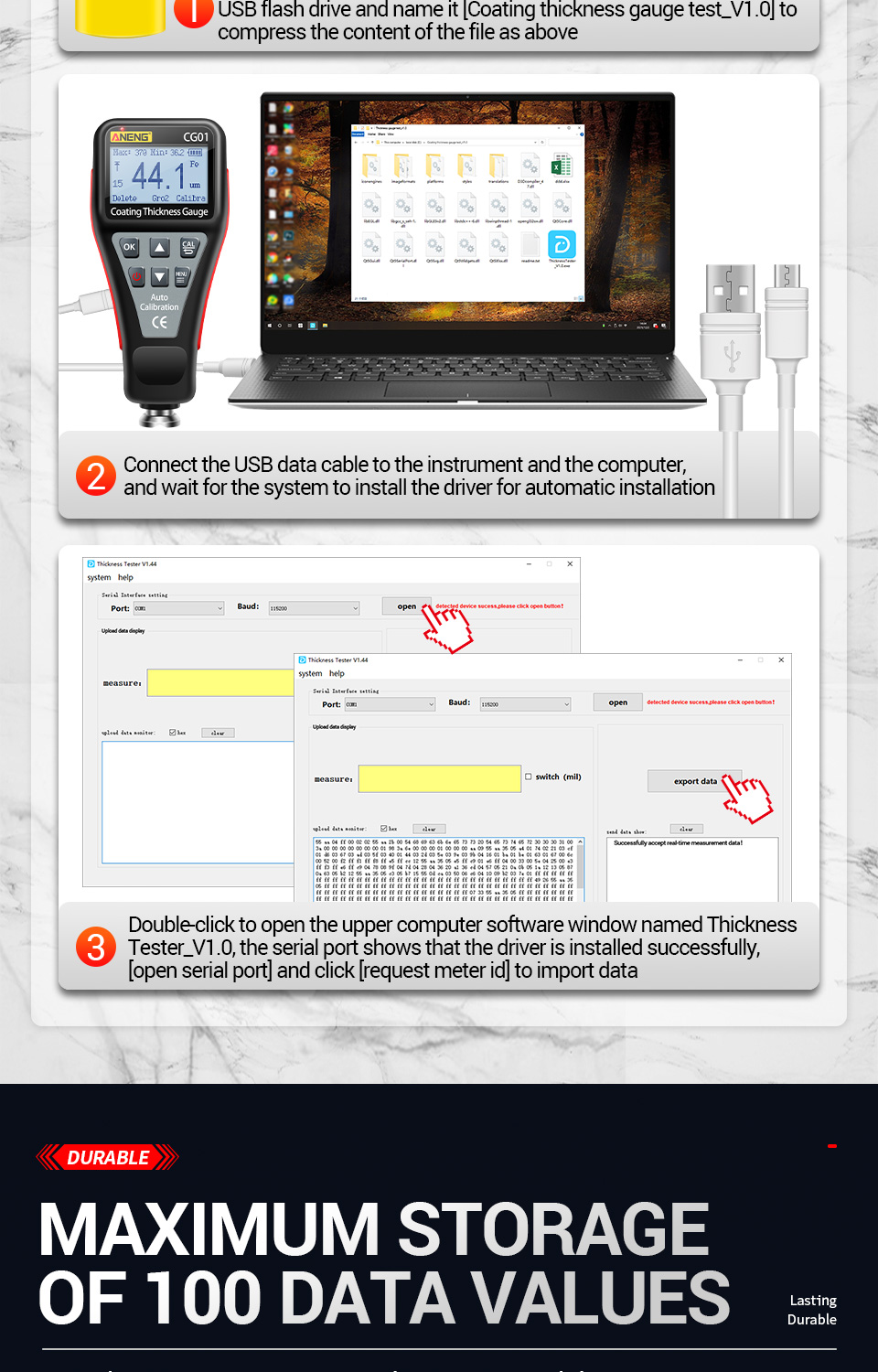

1* Data cable
5* Calibration piece
1* Packing box(chose by option)
1* Storage bag
1* Instruction manual
This coating thickness gauge integrates the functions of a magnetic thickness gauge and an eddy current thickness gauge, and can be used to measure the thickness of coatings on ferrous and non-ferrous metal substrates. The dual-function built-in probe is used to automatically identify iron-based or non-ferrous-based materials, and select the corresponding measurement method for accurate measurement.
Features:
1. This meter can measure the thickness of the surface coating of magnetic metal (iron-based) and non-magnetic metal (non-ferrous).
2. High measuring accuracy and wide measuring range: 0~1500um (0~59.0mil).
3. Dot matrix LCD liquid crystal display, you can see the data clearly even when the backlight is turned off during the day, and it saves electricity. In addition, the backlight can adjust the brightness.
4. With gravity sensing function, it can automatically rotate the content of the display to keep the direction consistent with gravity, making it easy to read the measurement data.
5. With 6 groups of data group storage function, it is convenient to count and compare the data and deviation of different parts.
6. It has a 4-point smooth calibration function, which makes the measured data more accurate.
7. With upper and lower limit setting and prompt function, the red and green two-color LED lights can flash, and the display screen prompts the state of over limit.
8. It is suitable for coating, metal processing, sales measurement, automobile paint inspection, second-hand automobile, accident vehicle assessment and other industries.
Specification:
1. Type of iron base: magnetic metal iron base (FE)/non-magnetic metal non-ferrous base (NFE)/automatic identification.
2. Measuring range: 0~1500um (0~59.0mil).
3. Measurement accuracy: ±(3%H+1um)[±(3%H+0.04mil)].
4. Measurement method: single measurement/continuous measurement.
5. Statistics function: maximum value/minimum value/average value/variance.
6. Number of calibration points: 4 calibration points are calculated linearly and smoothly.
7. Data group storage: 6 groups x 100 per group.
8. Minimum convex curvature radius: 5mm (197mil)
9. The minimum radius of curvature of the concave surface: 50mm (1970mil)
10. The smallest measuring area diameter: 20mm (787mil)
11. Minimum substrate thickness: 0.5mm (19.7mil)
12. Display rotation angle: 0°, 90°, 180°, 270°/close
13. Unit conversion: um/mil.
14. Upper and lower limit range: 0~1500um (0~59.0mil) freely set/close.
15. Backlight brightness: 10 levels adjustable/closed.
16. Power supply battery: 2 AAA batteries.
17. Low battery reminder: lower than 2.4V.
18. Automatic shutdown: Automatic shutdown without any operation within 3 minutes.
Packge inclued:
1* CG01 Thickness gauge(without batteries)
2* Iron base piece
1* U disk
1* Data cable
5* Calibration piece
1* Packing box(chose by option)
1* Storage bag
1* Instruction manual
