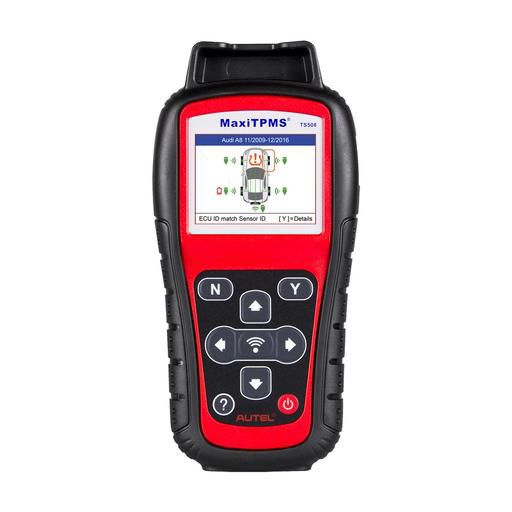

Autel MaxiTPMS TS508K TS508 Pre Tire Pressure Monitoring System Reset TPMS Replacement Tool

Language Support

Autel TS508K supports multiple languages: English, French, Spanish, German, Dutch, Swedish, Polish, Korean, Japanese, and Italian.

Key Features

• Vehicle-specific database covering Domestic, Asian, and European models
• Auto selection of frequency for fast scanning
• Two TPMS service modes:
  • Quick Mode: Designed for fast installations in tire and wheel shops
  • Advanced Mode: For diagnosing, repairing, and replacing TPMS in repair shops
• TPMS status screens for easy diagnosis
• Color-coded ID matching display
• Low sensor battery indicator
• Code notification with on-screen definitions
• Access to relearn procedures via the help button
• Batch programming: Program up to 16 sensors simultaneously with one touch
• Programs vehicle ECU to learn sensor IDs and positions
• Activates all magnetic, frequency, and tire deflation-triggered sensors using 125 kHz continuous or modulated wave signals
• Receives both 315 MHz and 433 MHz signals
• Reads and writes sensor IDs from vehicle ECU
• Reads and clears TPMS diagnostic trouble codes (DTCs) and resets the Malfunction Indicator Light
• Wirelessly programs Autel MX-Sensors (315 MHz or 433 MHz)
• Checks Remote Keyless Entry (Key FOB) transmissions
• Reads sensor data including IDs, tire pressure, temperature, and battery condition
• Provides OEM part numbers and relearn information
• Displays sensor relearn procedures specific to different OEM sensors
• Shows OEM sensor information based on vehicle make, model, and year
• Displays OBD port locations for test vehicles
• Pre-selection process enables faster activation and diagnostics
• Provides visual and audible confirmation that sensors are functioning properly
• Intuitive navigation with step-by-step on-screen instructions
• Proper LF signal prevents interference from other RF signals
• Built-in rechargeable 3.7 V Li-polymer battery
• Automatic power-off to extend battery life
• Multilingual support: English, French, Spanish, and more
• Free lifetime software updates via USB connection
• Ergonomic design with durable housing and protective rubber boot
• TFT color display (320 x 240 dpi)
• 8.0" LED capacitive touchscreen with 1024 x 766 resolution

Technical Specifications

• Battery Life: ≥5 years
• Operating Temperature: -40°C to +125°C
• Storage Temperature: -40°C to +150°C
• Operating Humidity: 90%
• Operating Frequency: 433 MHz
• Pressure Monitoring Range: 100 to 900 kPa
• Pressure Reading Accuracy: ±10 kPa
• Temperature Reading Range: -40°C to +125°C
• Temperature Reading Accuracy: ±5°C
• G Sensor Reading Accuracy: ±15%
• Transmission Power: 5–8 dBm
• Battery: 3.0 V
• Dimensions (W x H x D): 54.2 mm x 29.4 mm x 19.1 mm (Snap-in Sensor)
• Weight (Without Valve): 15.6 g (Snap-in Sensor)

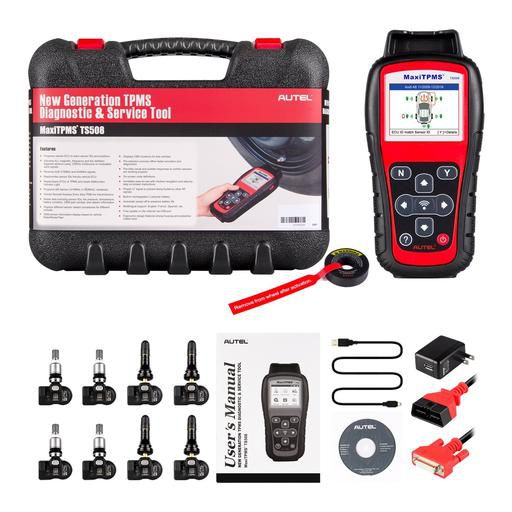

Package Contents

• 1 x MaxiTPMS TS508 TPMS Tool
• 1 x OBD II Cable
• 1 x USB Cable
• 1 x Magnet
• 1 x AC Adapter
• 1 x CD
• 1 x Carry case
• 1 x User manual
