FY19S 9999 Counts Digital Multimeter High Precision Digital Multimetro NCV Smart Auto Ranging AC/DC Multi Tester
- Shipping:
- Airmail Post
Estimated delivery time: 7-45 working days.See details» - Returns:
- Return for refund within 7 days,buyer pays return shipping.Read details »
- Support:
- Online Chat WhatsApp Skype Ask a question
- Product Details
- Product's Reviews
- Write a Review
- Related Products

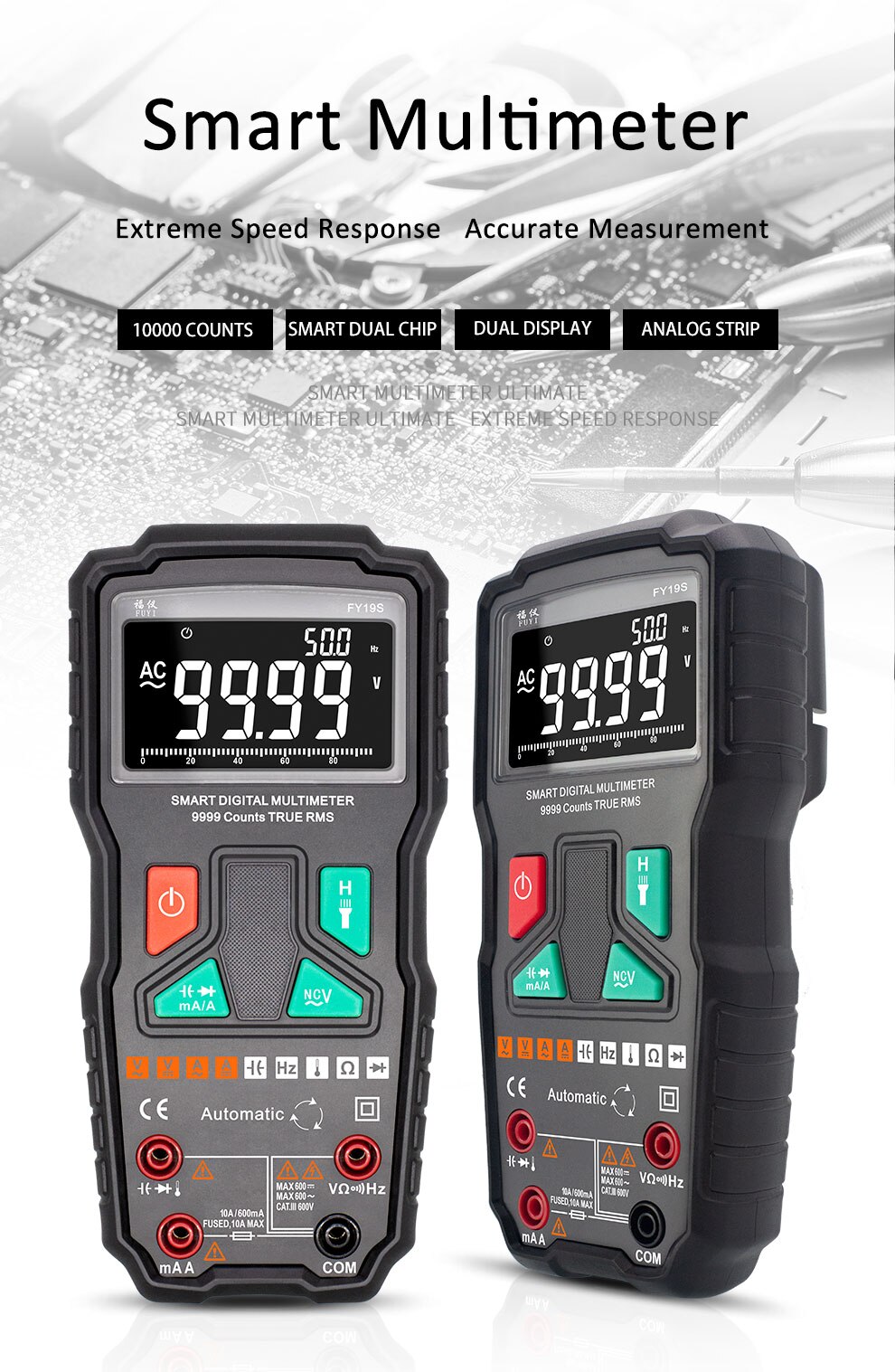

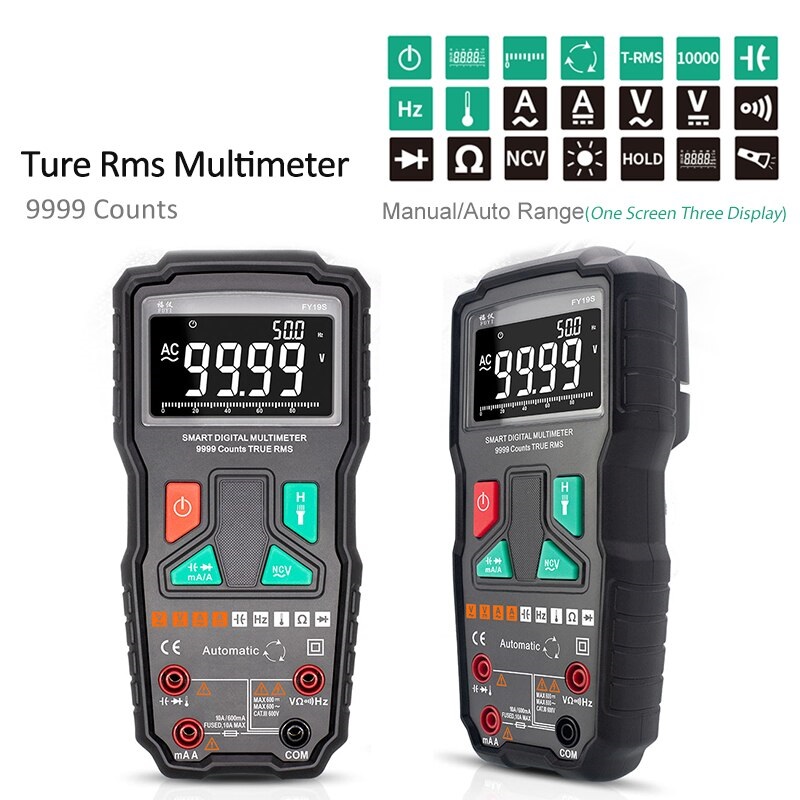

FY19S Intelligent Multimeter

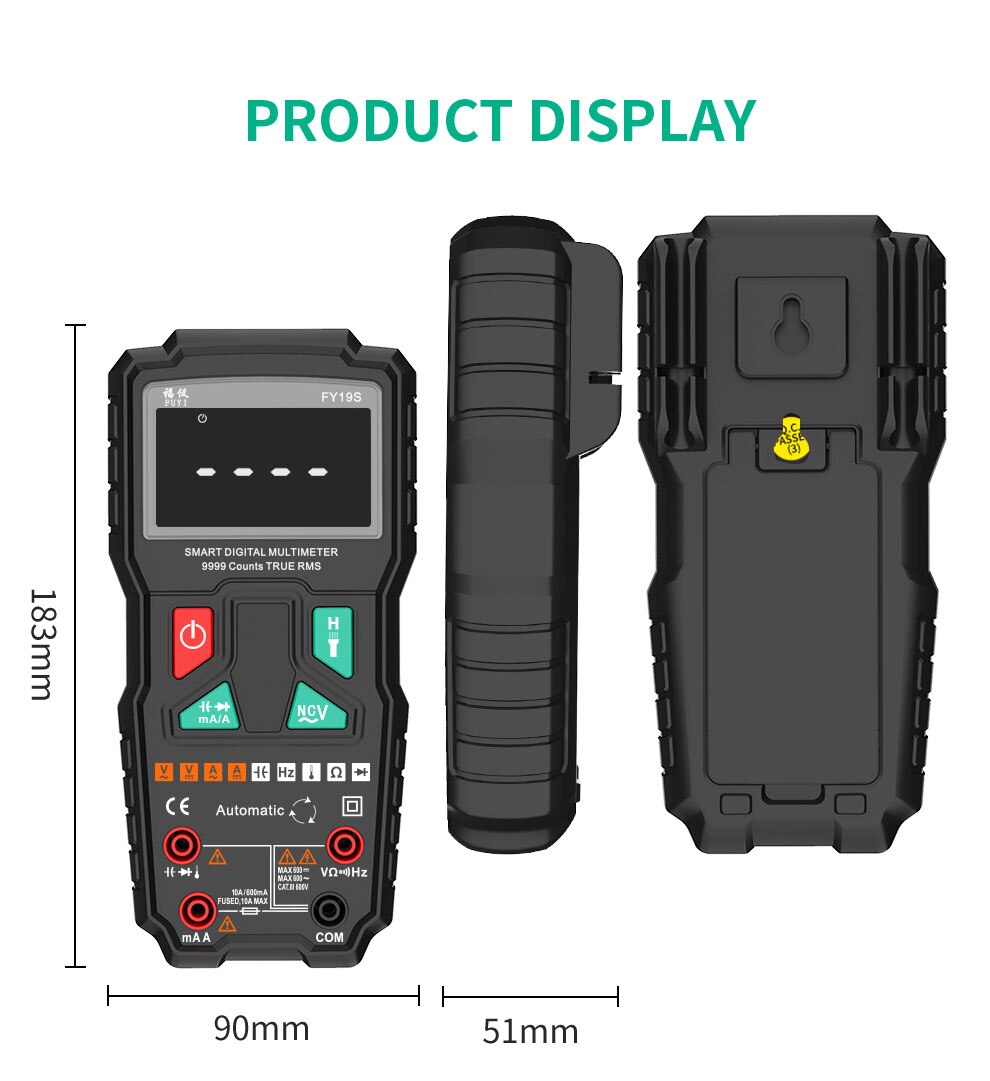

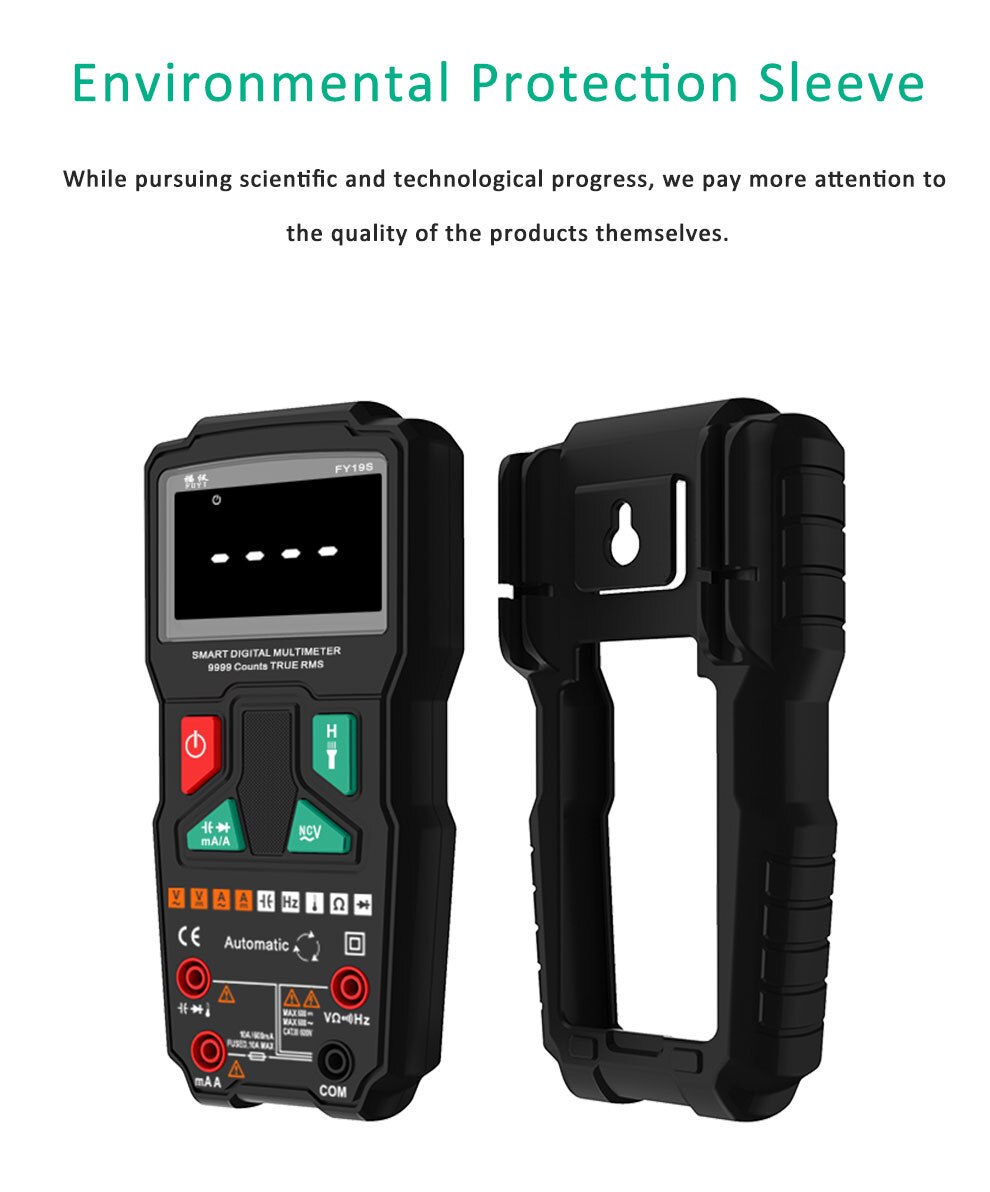

a.Practical design. The soft rubber shell is comfortable and non-slip. The two test lead holes on the back make it easy to carry. There is a support frame at the bottom with a maximum extension angle of 60°, which is very convenient for viewing the screen display during use.

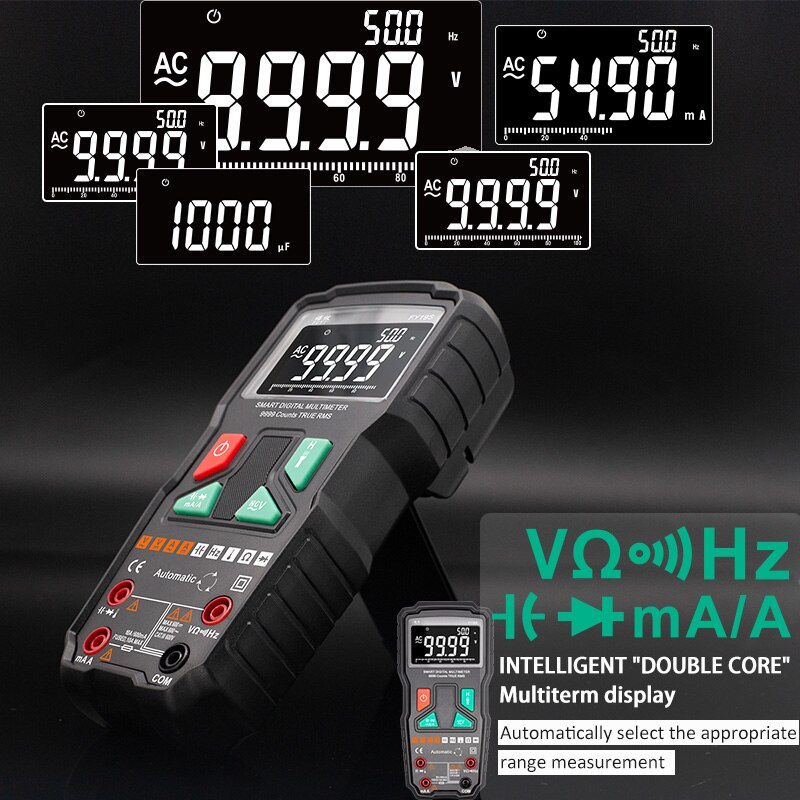

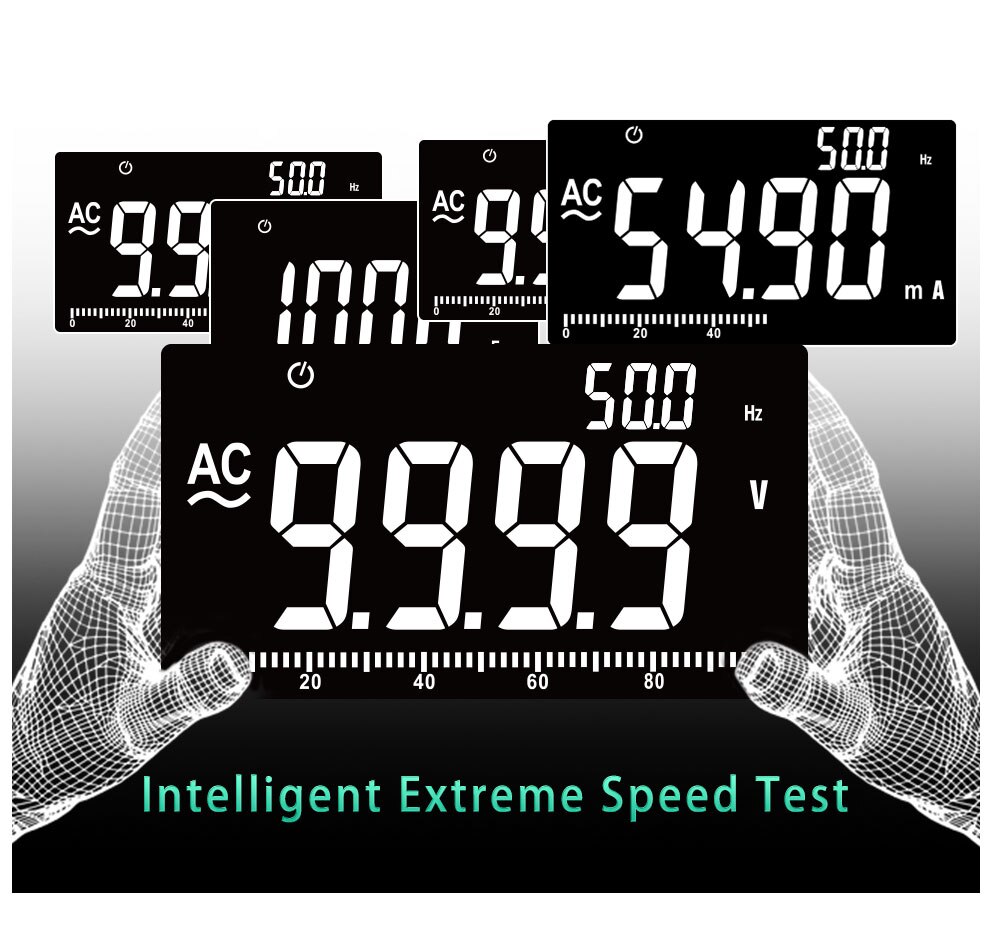

b.Advanced reverse display screen. Different from the traditional black text on a white background, the reverse display screen is white text on a black background, the display is clearer and more delicate, and supplemented by a 2.8-inch large screen, the user experience is more comfortable.
c.9999counts and automatic range. The large counting range gives this product a large measuring range and high resolution. It can fully meet the needs of daily use. Compared with the traditional manual range multimeter, the automatic range does not need to manually switch gears. The operation is very simple and convenient. At the same time, thanks to the high-performance chip, the automatic range switching speed is also very fast.

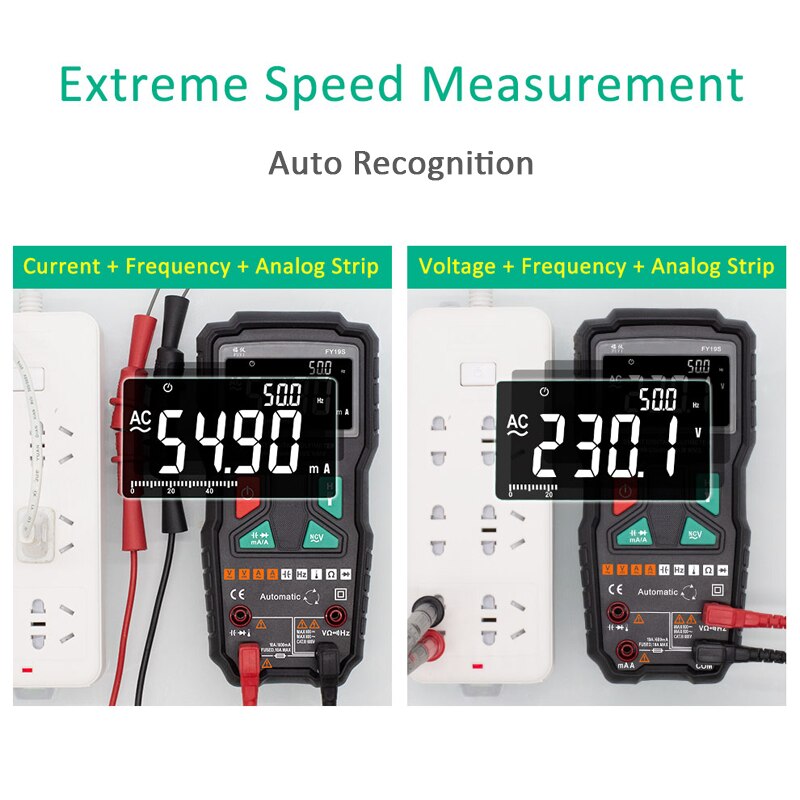

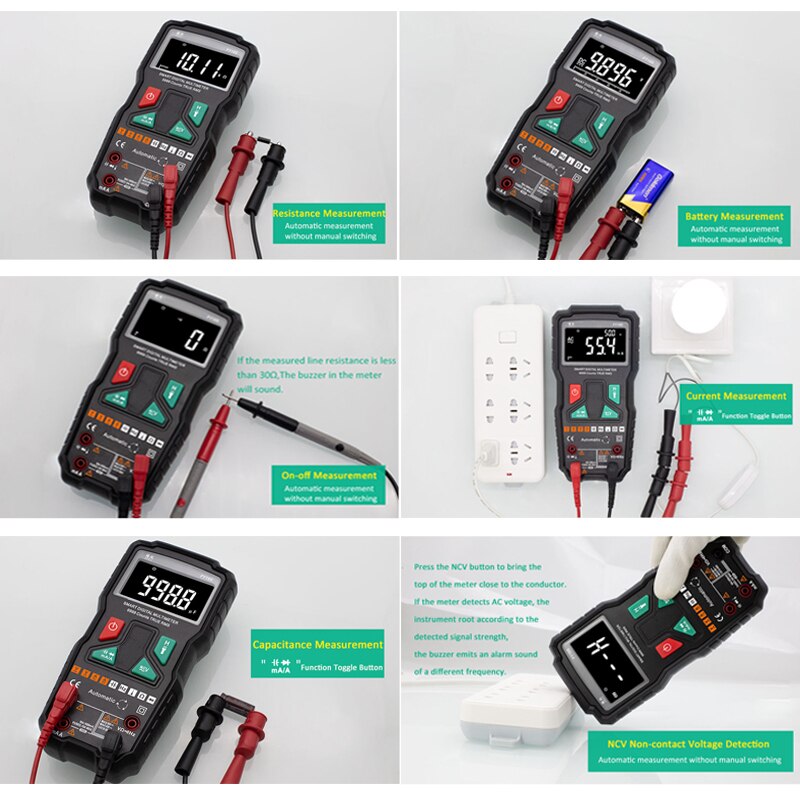

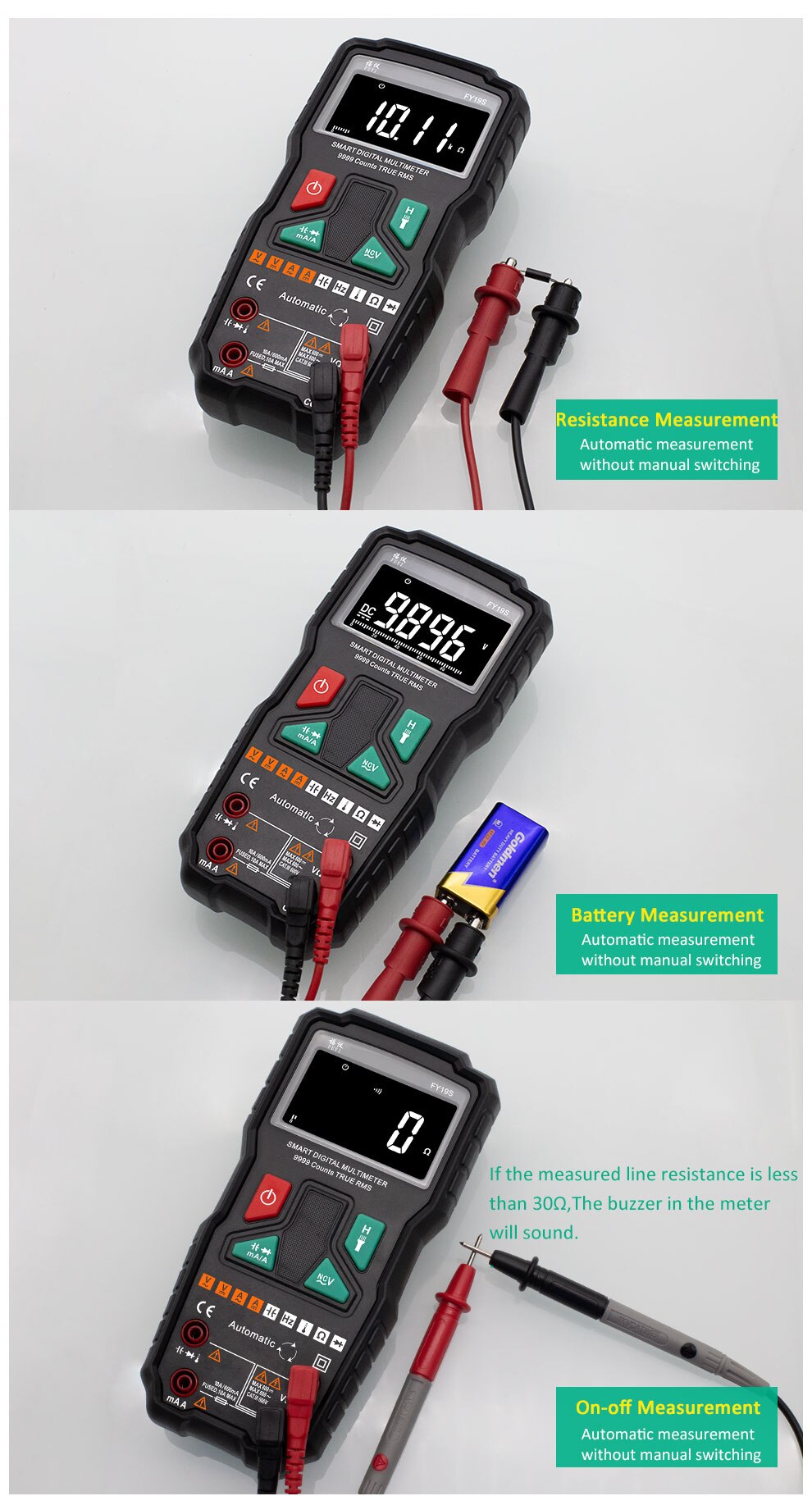

d.Intelligent function switching. When measuring voltage, resistance, continuity, and frequency, you only need to plug in the test pen, and then measure the target, the product will automatically switch to the gear of the corresponding function. When measuring other functions, you only need to gently press the same key to switch between different functions. Make the product use more efficient and more convenient.

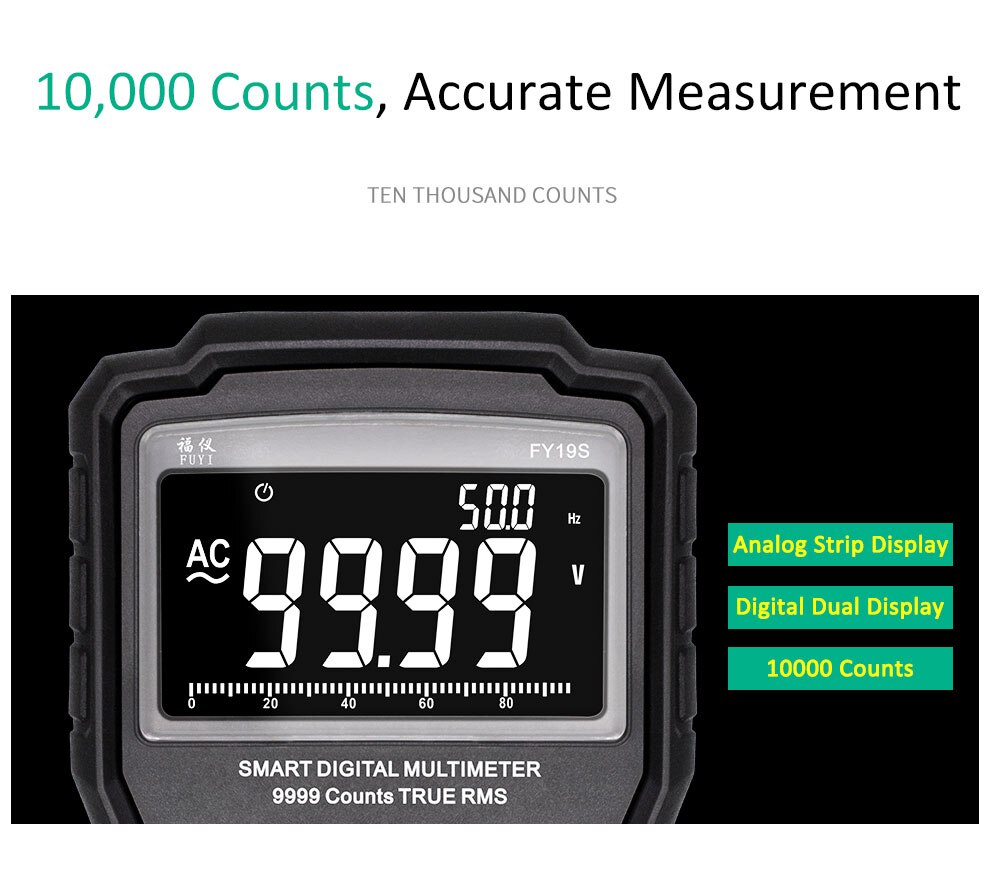

e.Unique analog bar. When using this product, the screen will not only display the measured value, but also provide a reference data bar to help the user have a simple and intuitive judgment on the measurement.

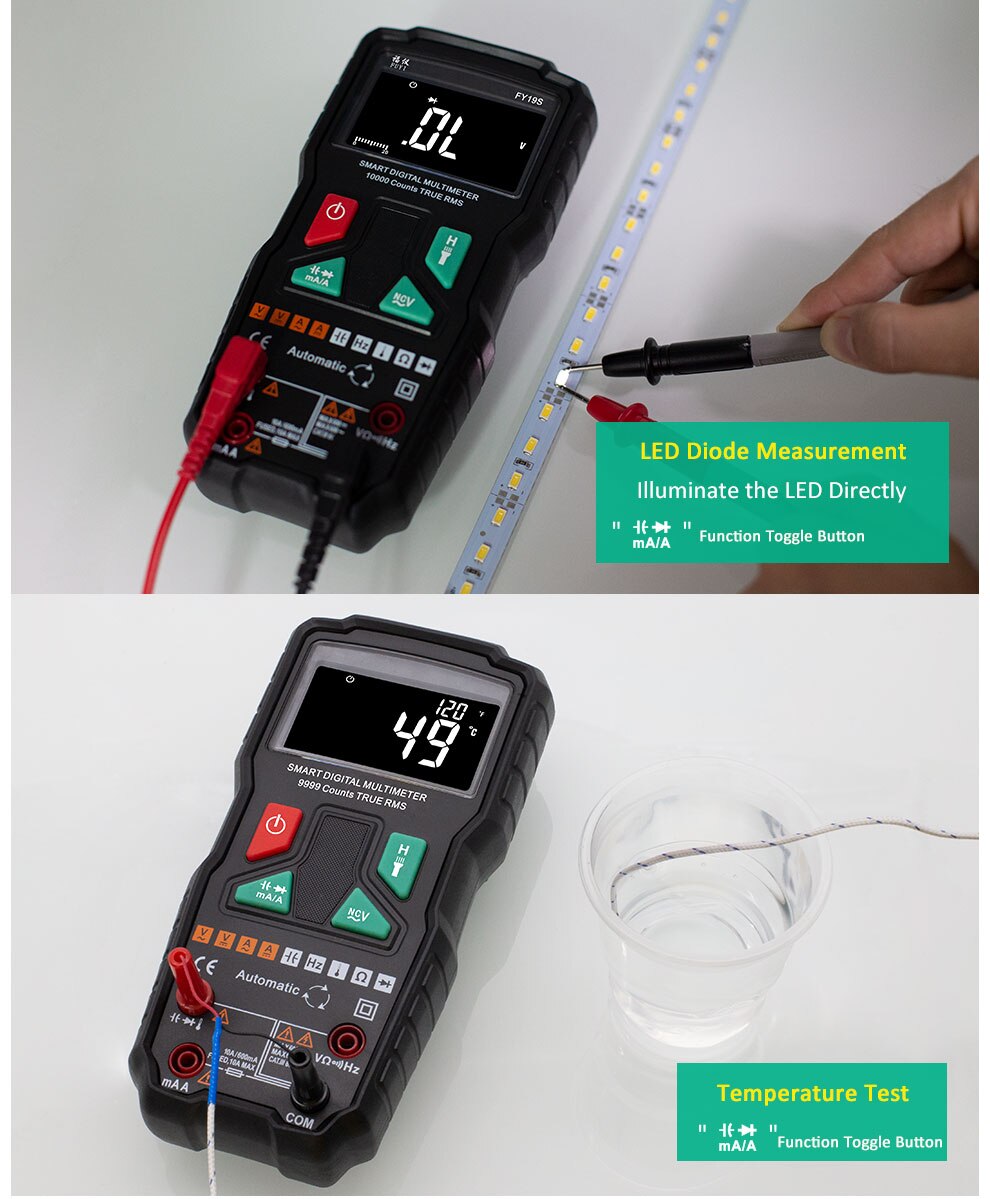

f.Temperature measurement. This product also has the function of measuring temperature through the K-type probe (included in the package), which is convenient for users to measure the temperature of various liquid or gas. And the measurement range is very wide, the lowest measurement temperature can reach -20 ℃(-4℉), the highest can reach 1000 ℃(1832℉).
g.True RMS measurement. The measurement results obtained by the RMS measurement method are more accurate, especially for the measurement target with no regular waveform. The traditional measurement method is to take the high and low peak values within a cycle to get the average value, and the measurement error is large.

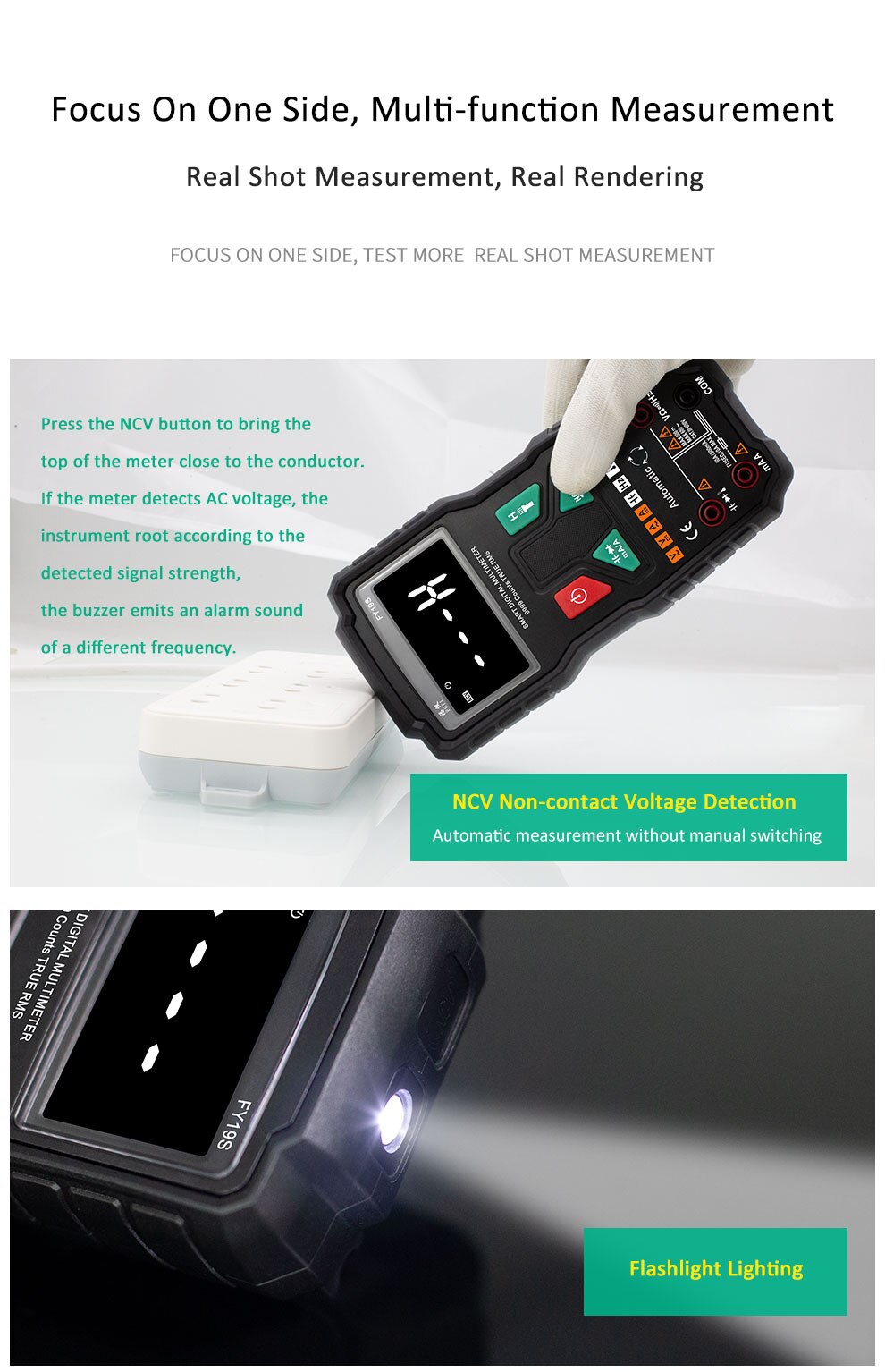

h.NCV Test. This product has a non-contact voltage detection function. The voltage level of different wires can be judged in a non-contact way. For example, when you need to distinguish between the neutral wire and the live wire, you only need to turn on this function, which is very convenient and does not need to cut the insulation layer of the wires. This product is equivalent to a multimeter plus a non-contact voltage test pen.

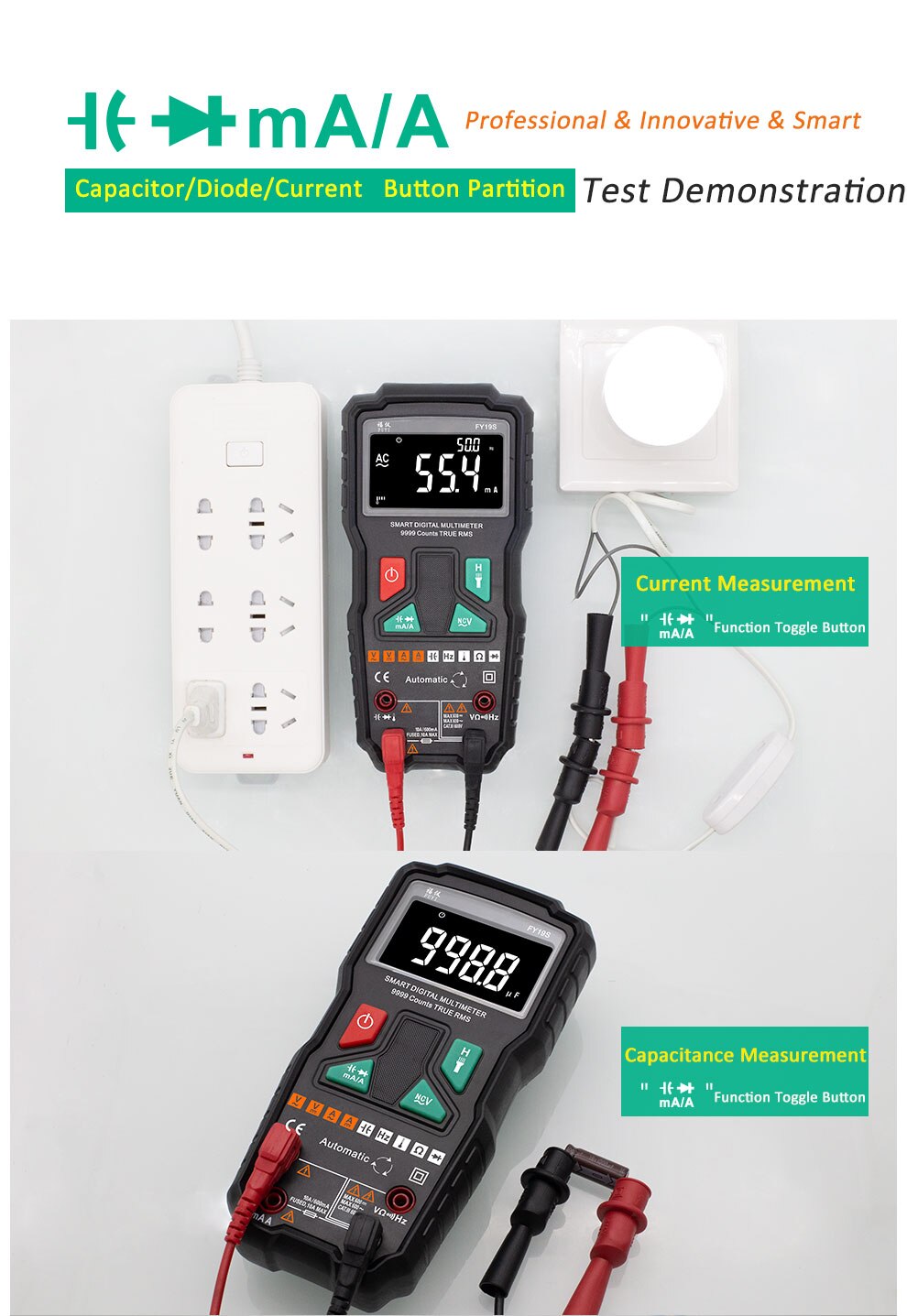

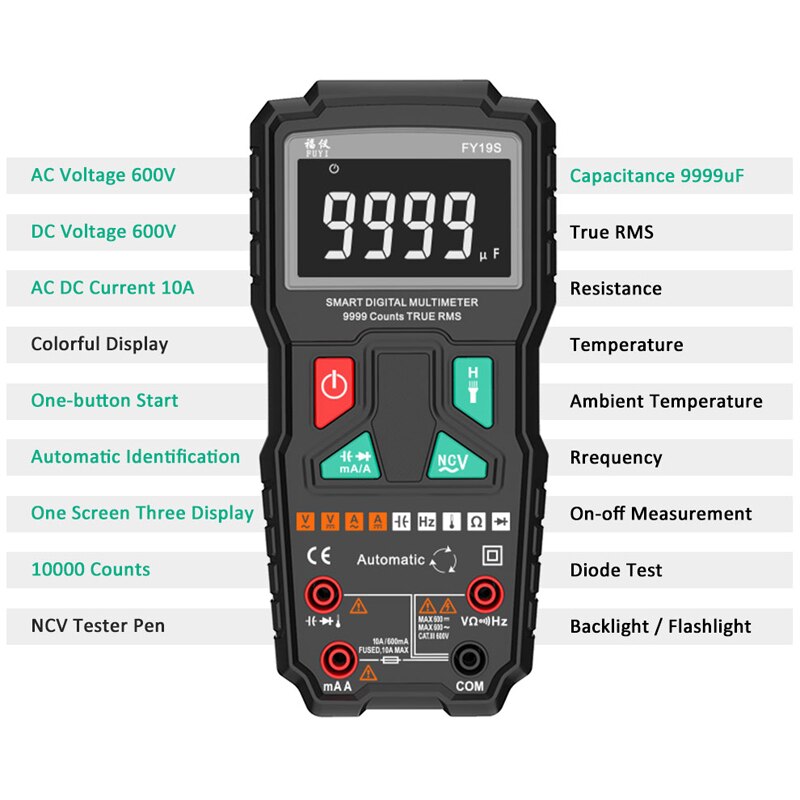

i.Rich frequently-used functions. In addition to the above features, this product has the following functions: AC and DC voltage measurement, AC and DC current measurement, capacitance measurement, resistance measurement, diode measurement, frequency measurement, continuity test, distinguishing neutral and live wire, data retention, flashlight, Automatic shut-down, etc. Don't worry about the lack of a certain function in daily use.

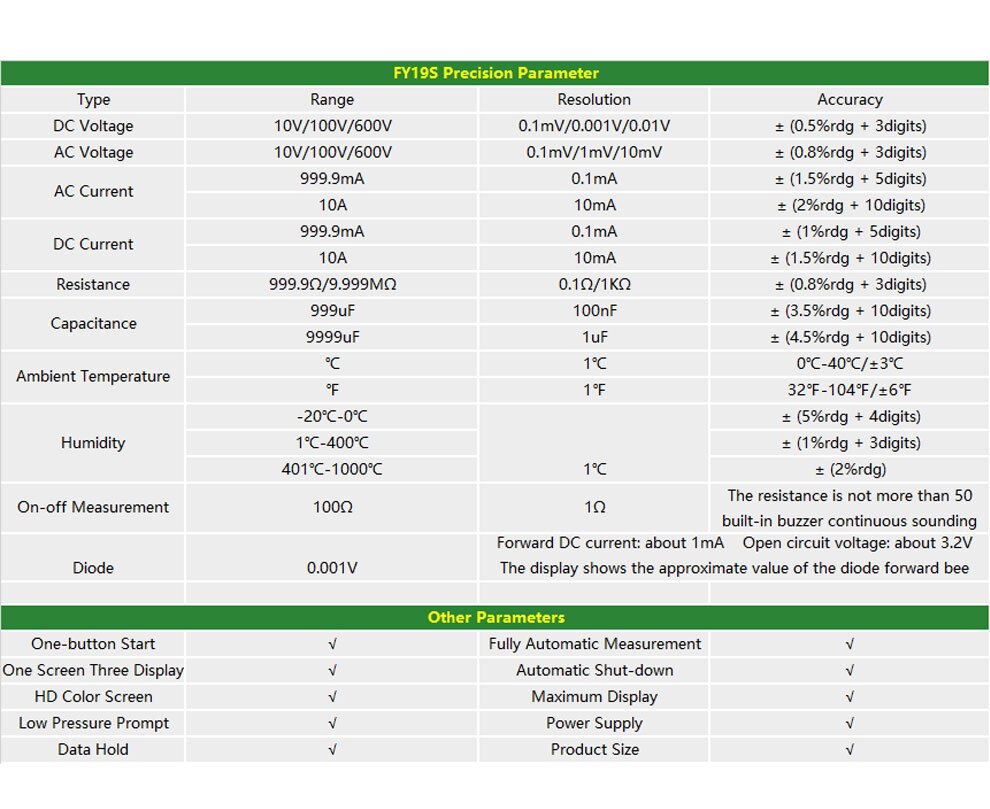

Range switching | Auto range |
Measuring way | True RMS |
Maximum Display | 9999Counts |
AC and DC voltage measurement range | 0.01mV-600V |
AC and DC current measurement range | 0.1mA-10A |
Capacitance measurement range | 100nF-9999μF |
Resistance measurement range | 0.1Ω-9.999MΩ |
Frequency measurement range | 40Hz-1KHz |
Temperature measurement range | -20℃~1000℃ / -4℉~1832℉ |
NVC test | YES |
Diode test | YES |
Continuity test | YES |
Flashlight | YES |
Automatic Shut-down | YES |
Neutral and live wire judge | YES |
Low Battery Icon | YES |
Overload protection | YES |

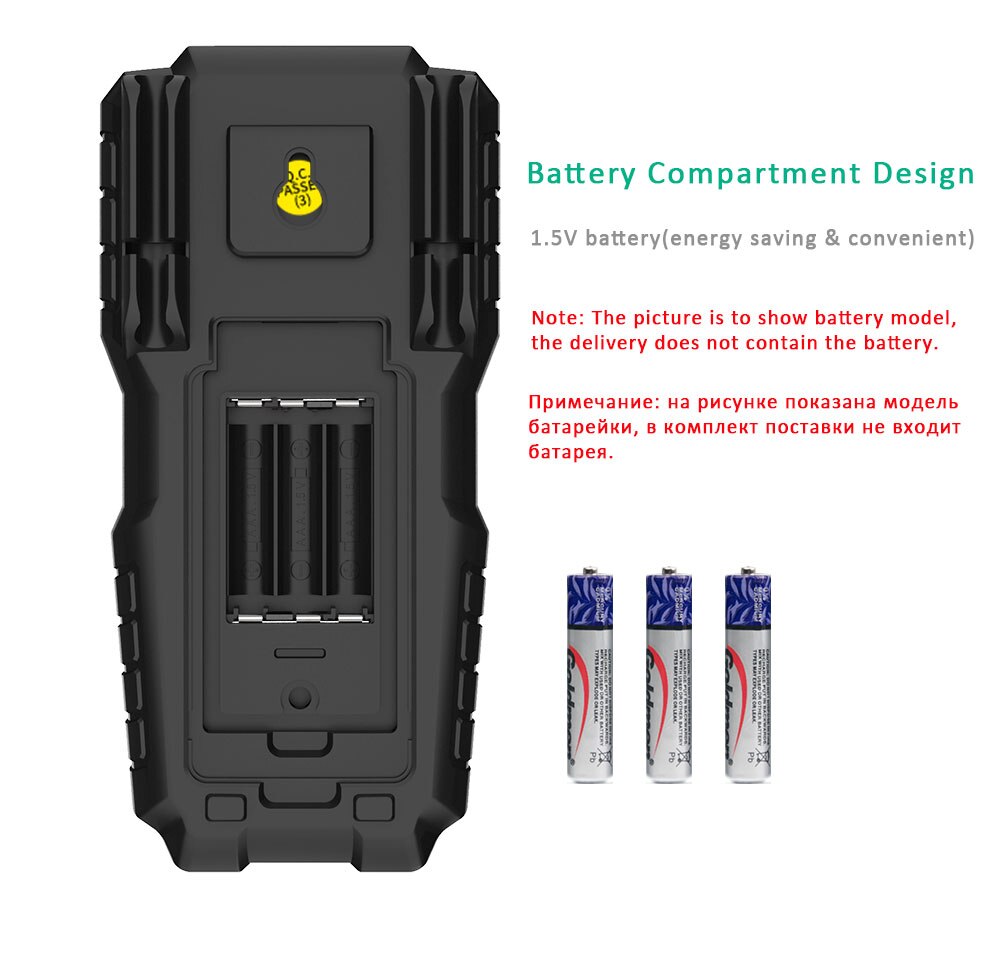

Power | 3*AAA Battery(Not included) |
Security level | CATⅢ 600V |
Certifications | CE FCC ROHS |

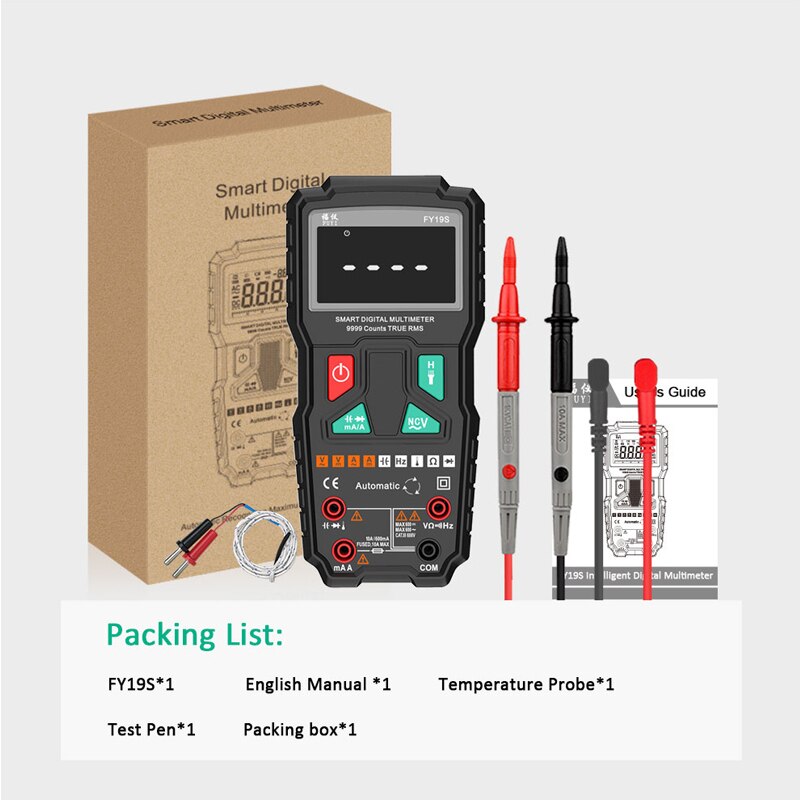

1 * Intelligent multimeter
1 * Test leads
1 * K-type probe
1 * Screwdriver
1 * User's Manual
1 * Portable bag
1 * Kraft box
a.Do not measure targets that exceed the specified range.
b.Do not touch the metal part of the test pen with your hands when the test pen is connected to the measurement target.
c.When the measured voltage exceeds 30V, please make sure your finger is on the protective cover of the test lead.
d.When switching functions, please remove the test leads from the previous target.
e.Do not store or use in high temperature, highhumidity, flammable and explosive environment.
