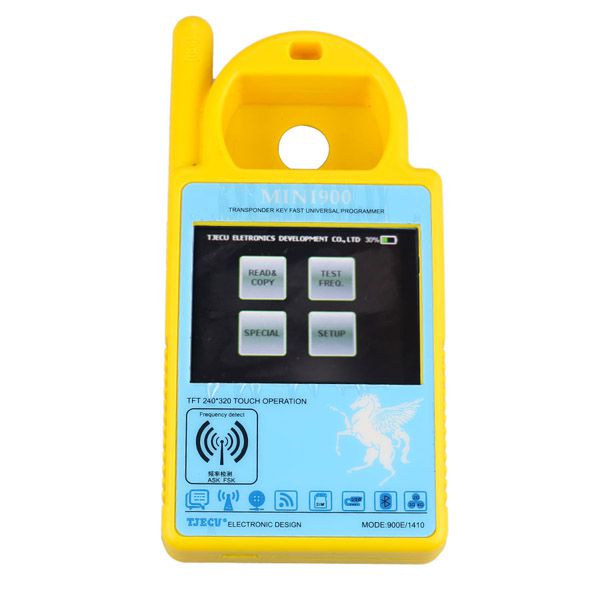

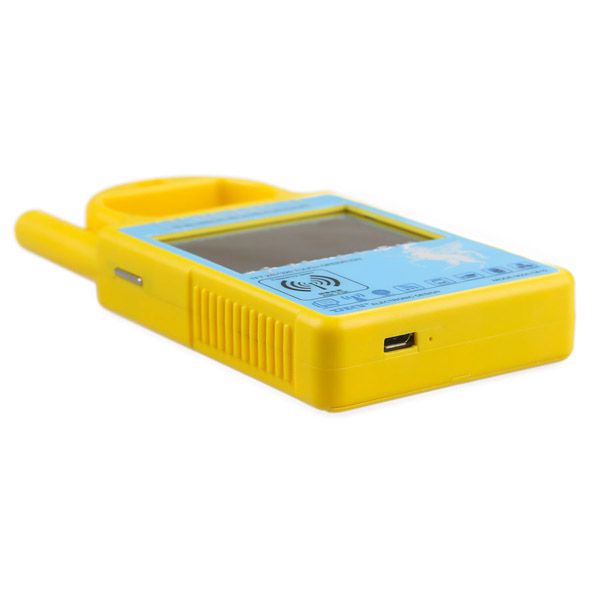

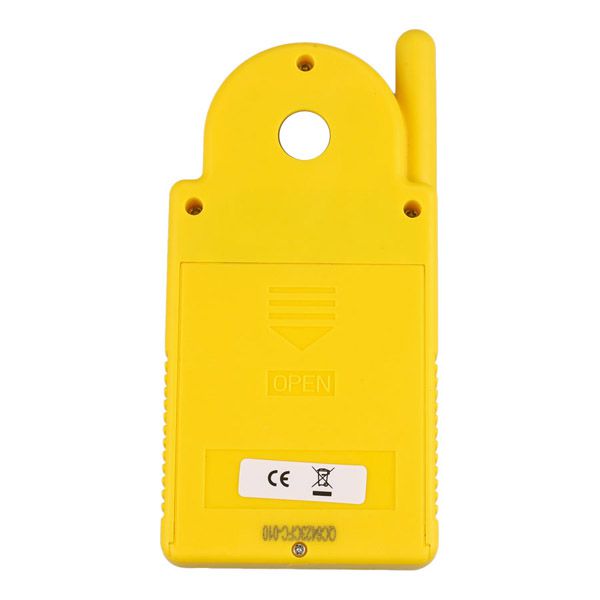

ND900 Mini Transponder Key Programmer

Top Reasons to Choose the ND900 Mini Key Programmer

• RFID identification at 125 kHz, 134.2 kHz, and 13 MHz
• RF data reception from 27 MHz to 900 MHz
• RF radio frequency identification supporting all types of remote controls
• RF data transmission for simulating and testing all kinds of remote controls
• Supports various vehicle anti-theft fault detection and matching verification
• Portable design with super-long standby time
• Supports four GSM frequency bands: 850/900/1800/1900 MHz
• Equipped with GSM/GPRS SIM capability
• USB 2.0 connectivity
• Bluetooth 4.0 support
• Note: Product improvements may result in specification changes

Smart ND900 Mini Transponder Programmer Overview

• Directly copies 4C and similar chips, including Toyota 4D67
• Supports copying of 4D chips
• Recognizes and unlocks locked ID48 transponders
• Supports copying of 46 chips
• Clones Toyota G chips

Main Features of the Smart ND900 Mini Transponder Programmer

Function 1: Chip Code Reading and Toyota G Chip Identification

1. Reads chip codes for 11, 12, 13, 33, T5, 40, 41, 42, 44, 45, 46, 48, 4C, 4D, 8C, and 8E chips, with detailed format support for ID48 and 4D chips.
2. Identifies Toyota “G” chip keys (model year 2010, chip type 4D-72) and indicates whether the key is a main or secondary key. Future updates will include identification for Chinese vehicles.

Function 2: Toyota Smart Key Data Reading

Identifies Toyota smart keys and reads their stored data.

Function 3: Chip Copying Capability

Supports copying of chips 11, 12, 13, 33, T5, 41, and 42, as well as partial support for 44 and 45 chips. Using "FREE" dedicated chips (CN1 for 4C, CN2 for 4D), it can directly copy non-battery 4C and 4D chips.

Function 4: Unlimited Key Code Storage

When connected to compatible Chinese PC software, it enables unlimited storage of read key code data.

Function 5: Chip Programming Support

Includes built-in HITAGETI functionality to program ID46 Renault Crypto chips.

Function 6: ECU-Free Benz W140 Activation

Activates transponder chips for Mercedes-Benz W140 models without removing the ECU.

Function 7: ID48 Chip Unlocking

Unlocks standard ID48 chips, excluding crypto-locked variants.

Function 8: Hyundai and Kia Pin Code Calculation

Calculates pin codes for Hyundai and Kia vehicles (pre-2007 models) using the last six digits of the VIN.

Function 9: Multi-Vehicle Key Programming and Pin Code Support

Supports key activation and pin code calculation for over 60 vehicle types. Fully programs all Fiat key types (11, 13, 33) and handles three anti-theft configurations for 48 chips.

Function 10: Enhanced Honda, CR-V, Civic, and Mitsubishi 46 Chip Support

Upgraded to identify HONDA_46, CRV_46, CIVIC_46, and Mitsubishi 46 chips. Enables reprogramming of standard 60 chips into variants 66, 67, 68, 71, and 74.

Function 11: CN1 (4C) and CN2 (4D) Chip Copying and Expandable Functions

Upgraded to copy CN1 (4C) and CN2 (4D) chips (dimensions: 6 mm × 12 mm × 4 mm). Supports software updates, including future features like electronic gate induction card copying.

Function 12: Comprehensive ID46 Chip Copying Support

Can copy all ID46 chips, including those used in: BMW, Acura, Honda CR-V/FIT (new), Accord (2008), Civic, Mazda/Haima, Mitsubishi, Buick/GMC Cruze, Chery Tiggo/A3, Nissan (Tiida, Teana, Livina, Sylphy, Qashqai, Q35), Brilliance, Peugeot/Citroën (307, 206), Triumph Senna 406 (2001), Picasso, Suzuki Swift/SX4, Land Rover Freelander, and Geely-specific 46 chips.

Function 13: 4D Chip Copying

Supports copying of 4D transponder chips.

Function 14: Toyota G Chip Cloning

Clones Toyota G series transponder chips.

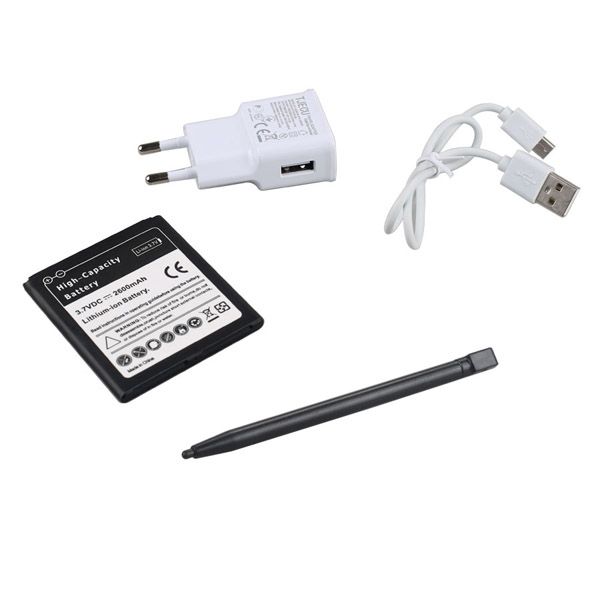

Package Contents

• 1 × ND900 Mini Key Programmer
