OBDSTAR H110 VAG I+C for MQB VAG IMMO+KM Tool Support NEC+24C64 and VAG 4th 5th IMMO

OBDSTAR H110 VAG I+C for MQB – NEC+24C64 & 4th/5th Gen IMMO Tool

OBDSTAR H110 is the first device released in China specifically designed for VAG MQB platforms. Equipped with an RFID adapter, it offers a reliable solution for 4th and 5th generation Volkswagen Group immobilizer systems. Combining IMMO programming and cluster calibration functions, the H110 is ideal for use in automotive repair shops, aftermarket services, professional technicians, and individual users.

Key Features of OBDSTAR H110 VAG I+C

• First device launched in China for VAG MQB systems
• Designed for MQB platform applications
• Supports NEC+24C64 chips (2014–present), including older models
• Enables both immobilizer programming and dashboard (cluster) calibration

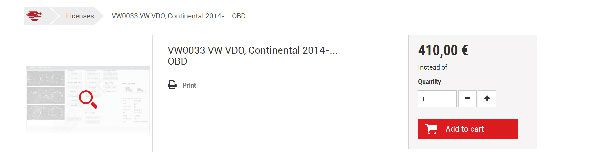

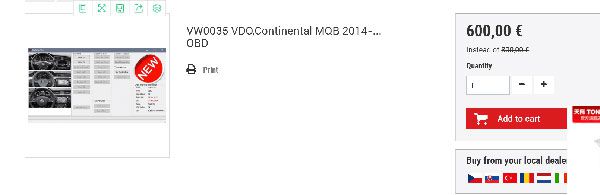

• Cost-effective solution compared to similar tools – see comparison chart above

Supported Vehicle Documentation

obdstar-h110-vag-immo-car-list.pdf (49.3K)
obdstar-h110-vag-cluster-calibrate-car-list.pdf (87.8K)

Hardware Specifications

Cluster Calibration – Supported Vehicles

Audi

• Audi MQB 35XX (2014.06–)
• Audi A3 (2014.06–)
• Audi Q2 (2014.06–)

Note: Supports Continental and VDO dashboards only. Chinese Johson and virtual cockpit displays are not supported.

Volkswagen

• VW MQB 35XX (2014.06–)
• GOLF SPORTSVAN (2014.06–)
• GOLF7 (2014.06–)
• GOLF PASSAT B80 (2014.06–)
• GOLF POLO (2014.06–)
• Tiguan (2014.06–)
• Touran (2014.06–)

Note: Supports Continental and VDO dashboards only. Chinese Johson and virtual cockpit displays are not supported.

Škoda

• Skoda MQB 35XX (2014.06–)
• Skoda Fabia (2014.06–)
• Skoda Rapid (2014.06–)
• Skoda Octavia (2014.06–)
• Skoda Superb (2014.06–)

Note: Supports Continental and VDO dashboards only. Chinese Johson and virtual cockpit displays are not supported.

SEAT

• Seat MQB 35XX (2014.06–)
• Seat IBIZA (2014.06–)
• Seat TOLEDO (2014.06–)
• Seat LEON (2014.06–)

Note: Supports Continental and VDO dashboards only. Chinese Johson and virtual cockpit displays are not supported.

For complete details on supported vehicles for immobilizer programming and cluster calibration, please refer to the attached car list documents.

Immobilizer Programming – Supported Vehicles

2nd – 3.5th Generation IMMO (17 Dashboard & 25 Immobiliser)

• 17 Dashboard
• 25 Immobiliser

4th Generation IMMO

• Audi A1: NEC+24C64 (2013, 2014.6–)
• Audi A3 / TT / R8: CDC+24C32 / 3217 / 3297
• Audi A4 RB4 / RB8
• Audi Q3: NEC+24C64 (2013 models, 2014.06–)
• Audi Q7 / A6L (C6): 9S12DT(G)128, 9S12DT256
• VW / Škoda / SEAT: CDC+24C32
• VW / Škoda / SEAT: NEC+24C32
• VW / Škoda / SEAT: 2013 Johnson
• VW / Škoda / SEAT: Motorola 9S12XHZ512
• VW / Škoda / SEAT: NEC+24C64
• VW / Škoda / SEAT: NEC+95320
• VW / Škoda / SEAT: NEC+35XX
• VW: Magotan / CC

5th Generation IMMO

• Audi A4L / A5 / Q5
• Audi A6 / A7 / A8
• VW New Touareg

Remote & Central Locking Functions

• 09 Central Control
• B5 Central Door Lock (KWP1281)
• 46 Central Comfort Module (KWP1281)
• 46 Central Comfort Module (CAN Bus)

PIN Code Reading Support

• 17 Dashboard: Jetta, Passat, Bora
• Golf, Sharan, Polo, Lavida (3.5)
• Sagitar 3.5 (2007–, 2006)
• Touran 3.5
• Caddy 3.5
• VW (2007–)
• 25 Immobiliser
• 01 Engine

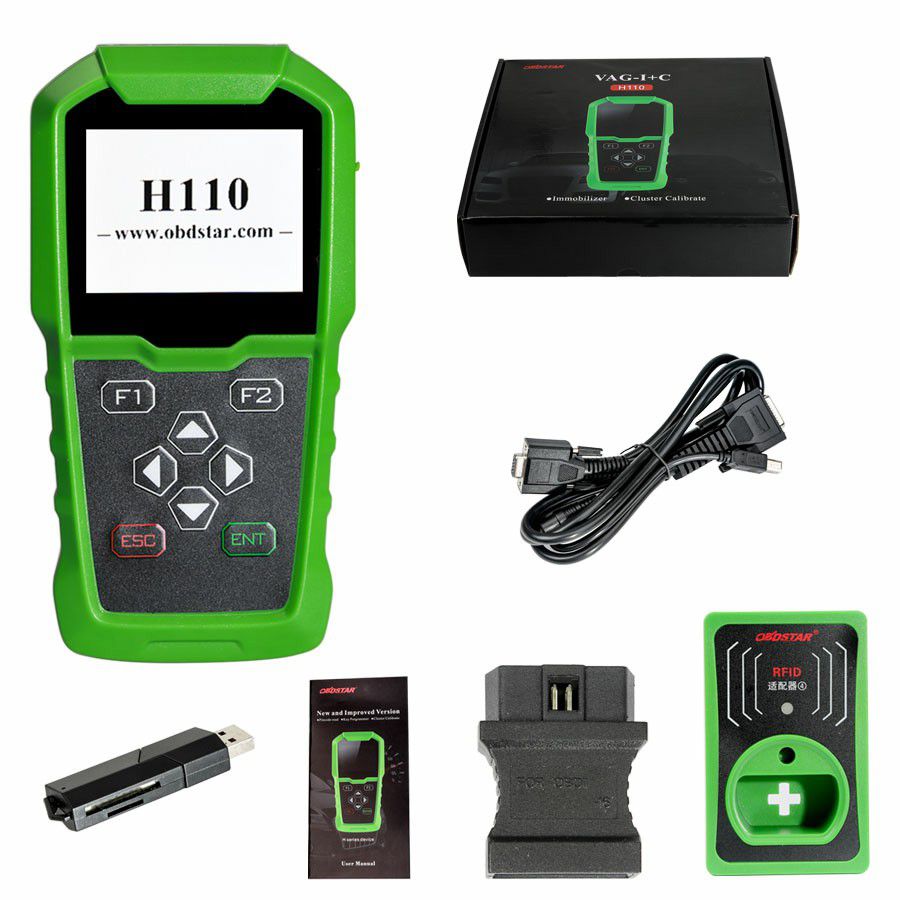

Package Contents

• 1pc × H110 Host

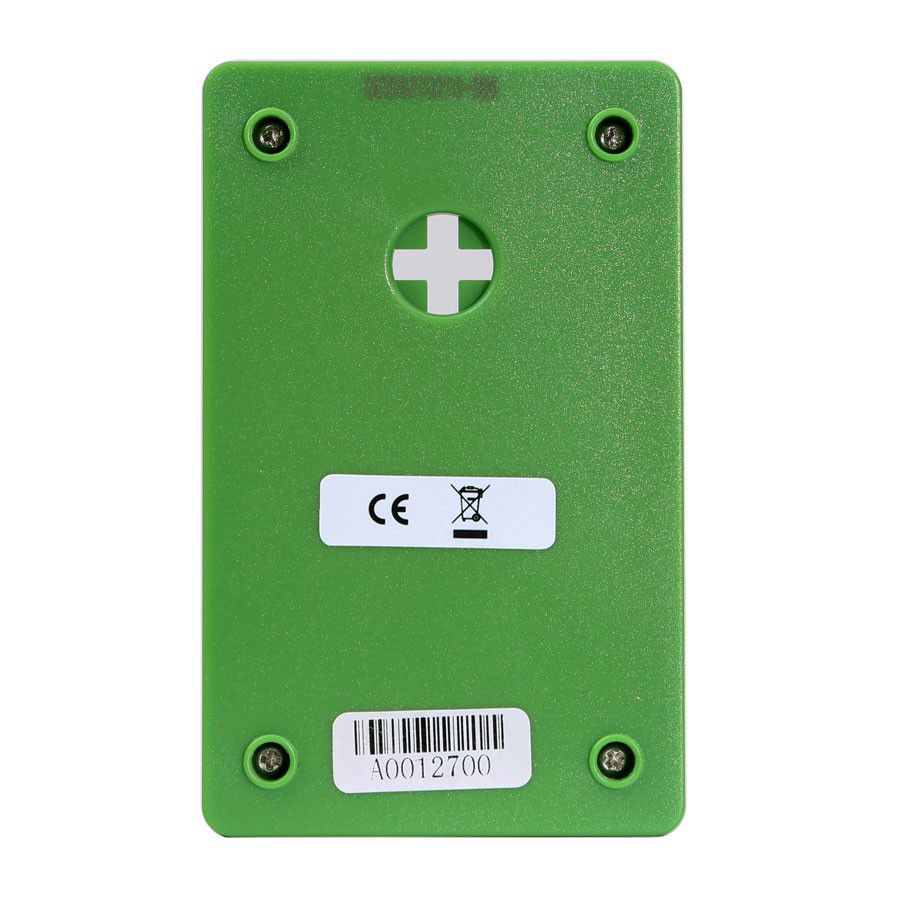

• 1pc × RFID Adapter
• 1pc × OBD 16-pin Adapter
• 1pc × Main Cable
• 1pc × User Manual
