TC64 Type-C color LCD USB Power Meter Tester Digital Current Tester Voltage Detector, Capacity of Power Bank Type-C Tester

TC64 Type-C color LCD USB Power Meter Tester Digital Current Tester Voltage Detector, Capacity of Power Bank

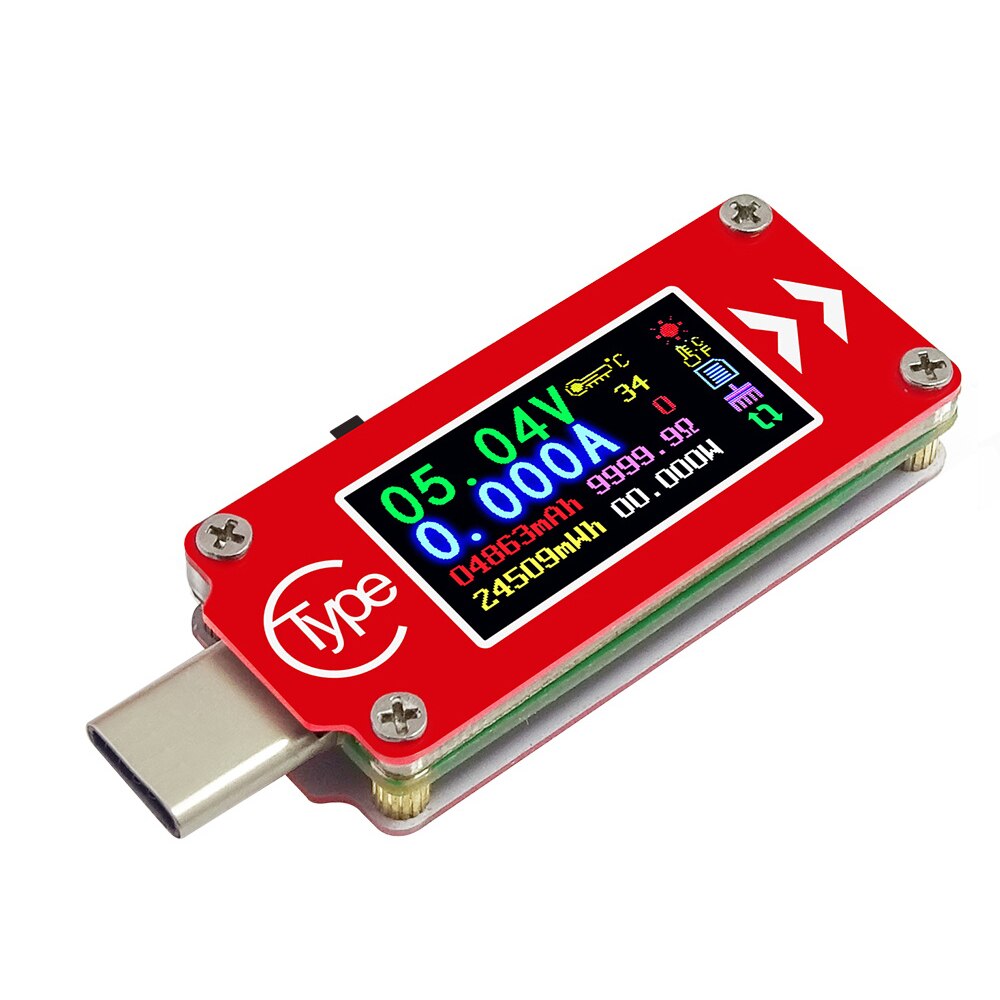

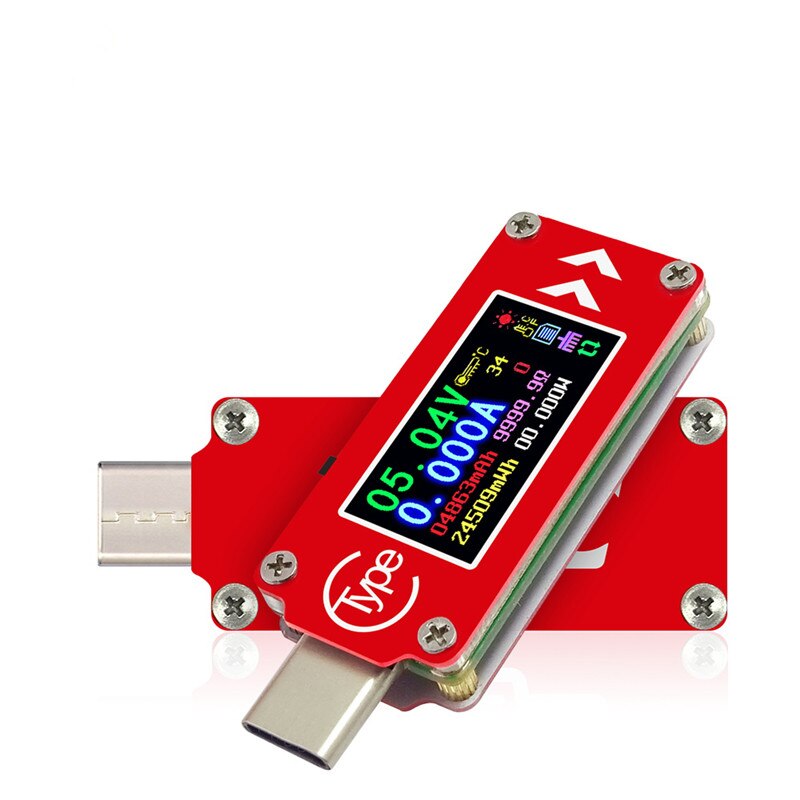

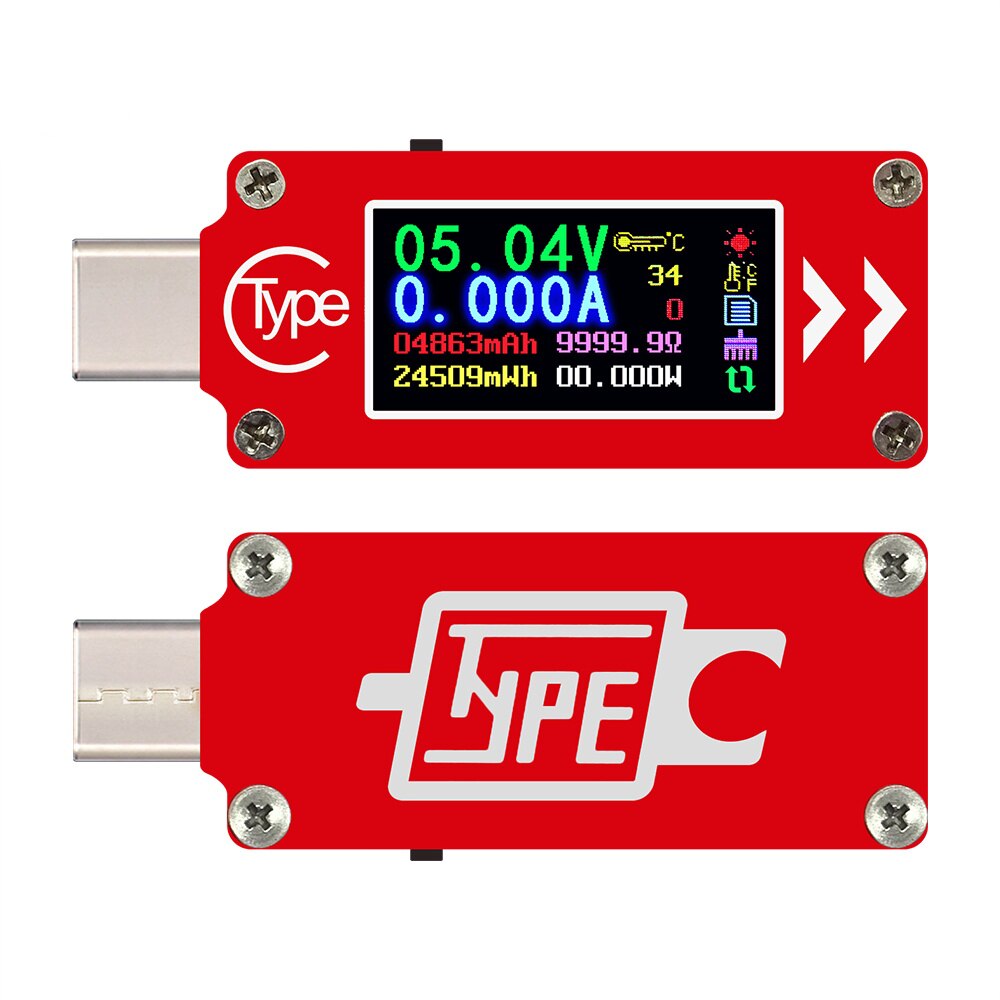

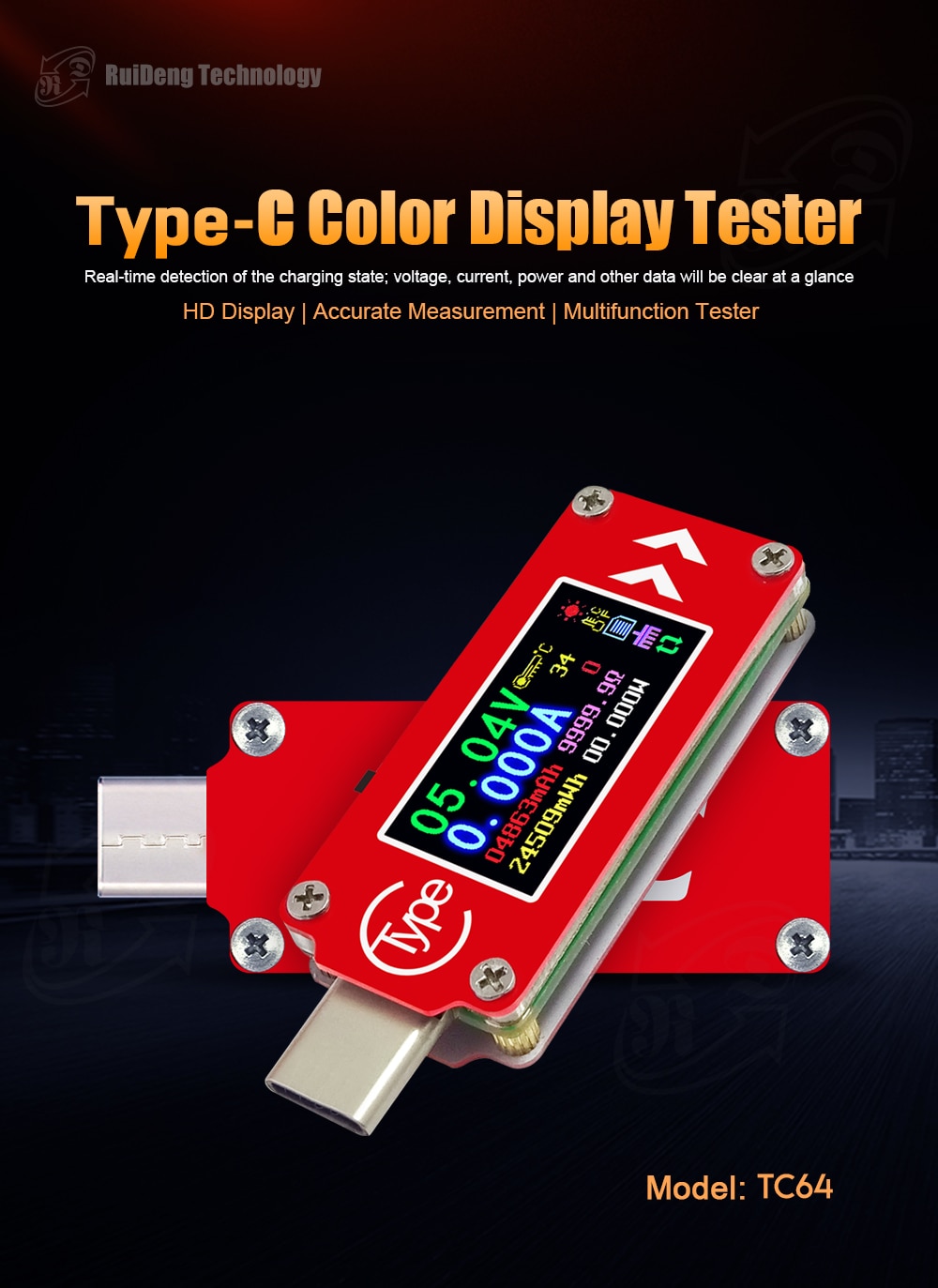

Type-C Full-Color LCD Display Tester

-Model : TC64

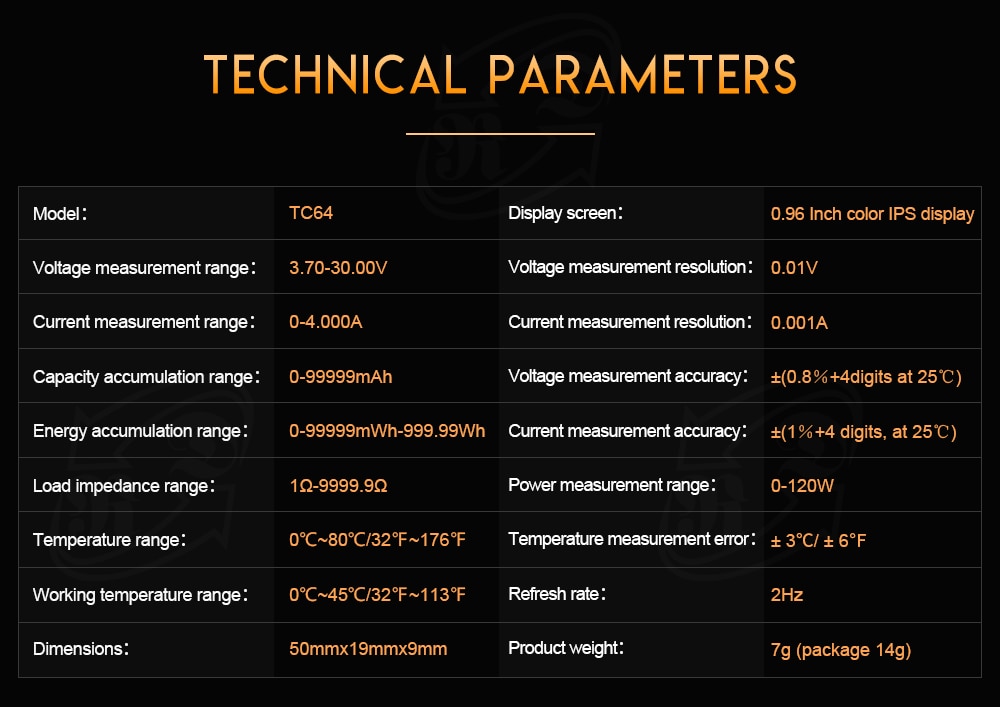

Technical Parameter:

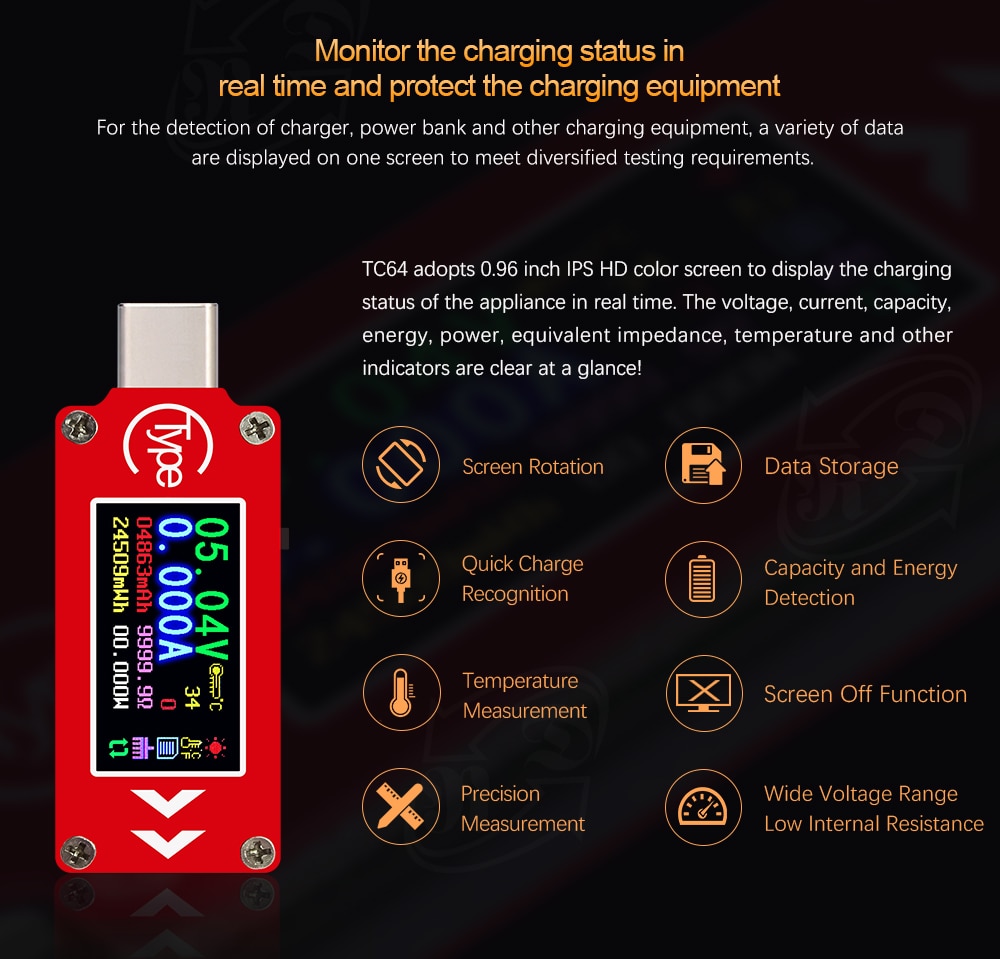

Product Model:TC64 Display screen:0.96 Inch color LCD display

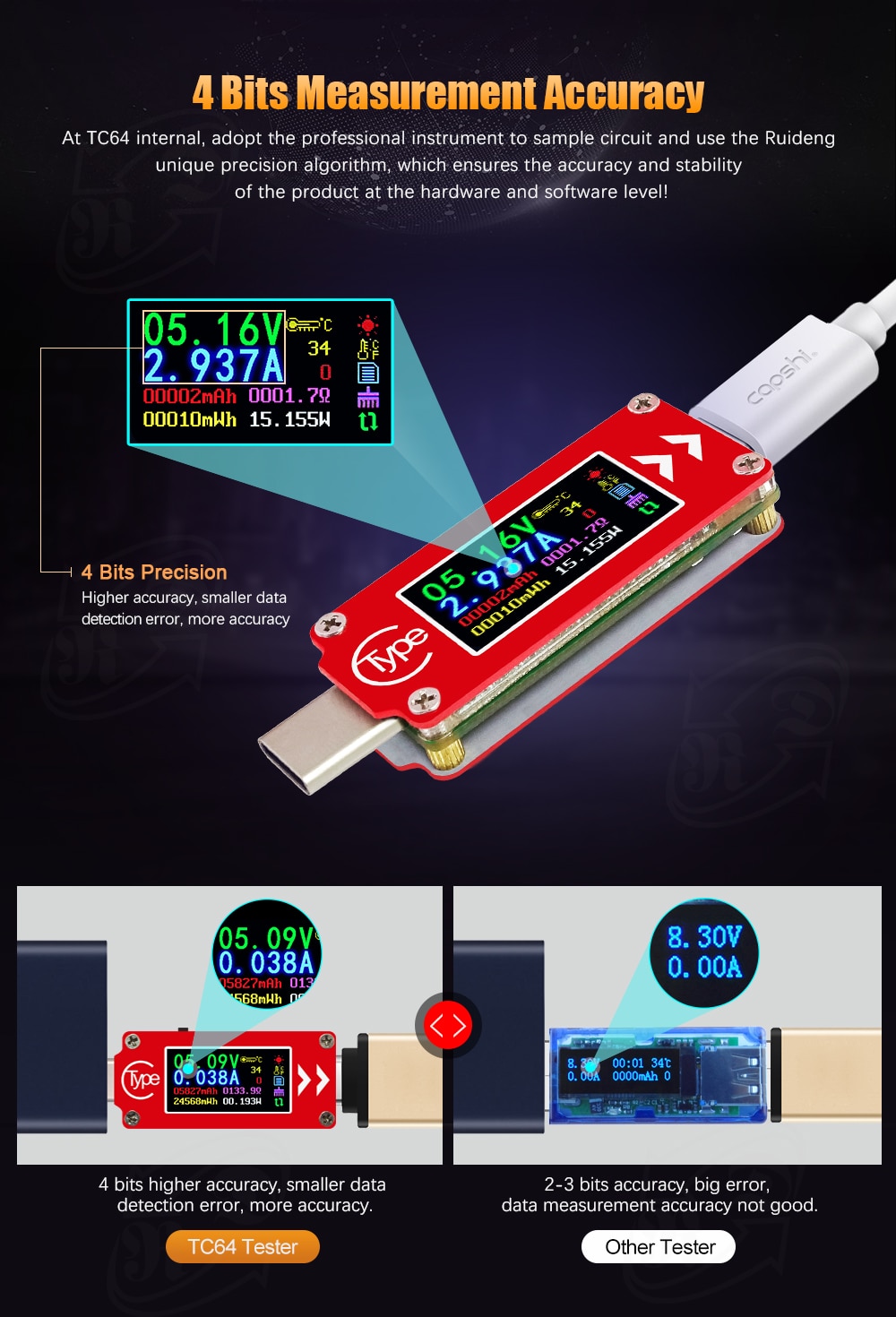

Voltage measurement range:3.70-30.00V Voltage measurement resolution:0.01V

Current measurement range:0-4.000A Current measurement resolution:0.001A

Capacity accumulation rannge:0-99999mAh Voltage measurement accuracy:±(0.8％+4digits at 25℃)

Energy sccumulation range:0-99999mWh 999.99Wh Current measurement accuracy: ±(1％+4 digits, at 25℃)

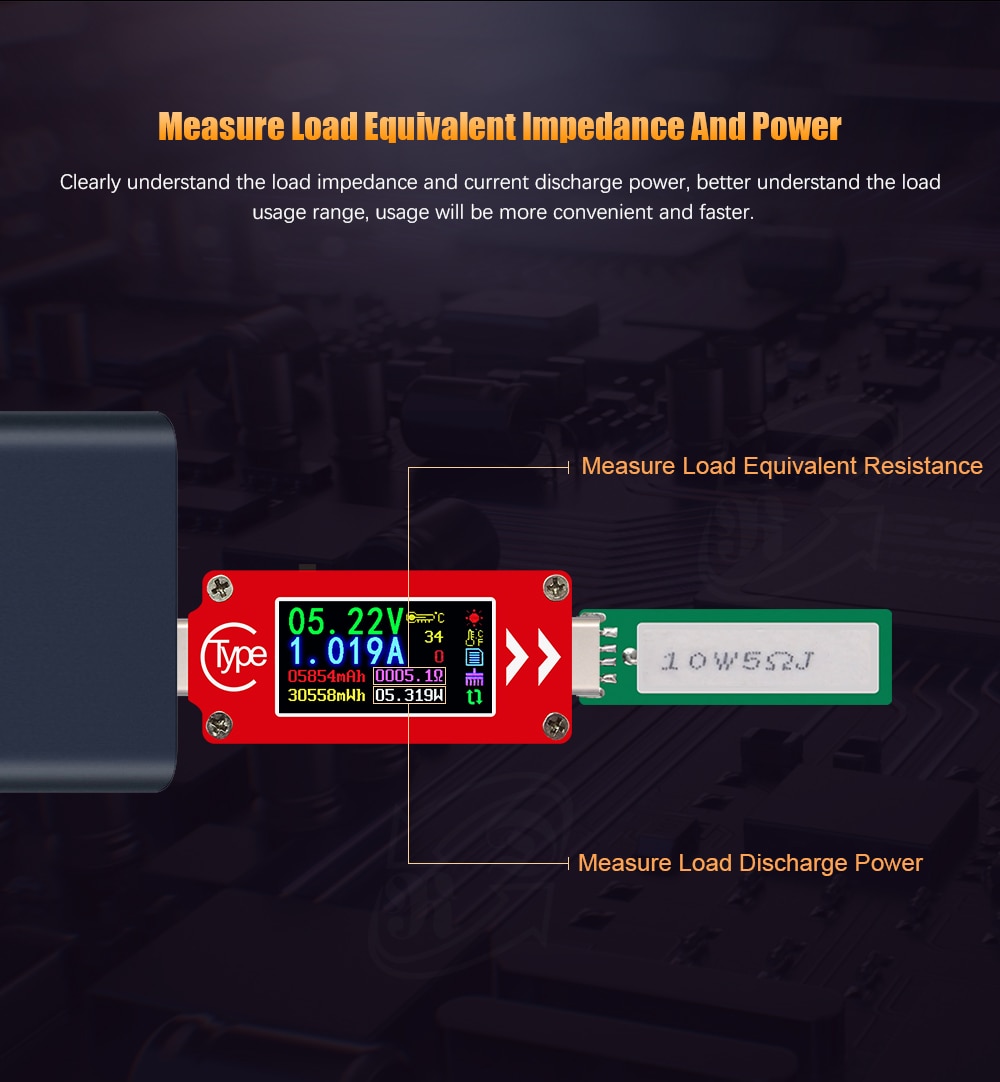

Load impedance range: 1Ω-9999.9Ω Power measurement range:0-120W

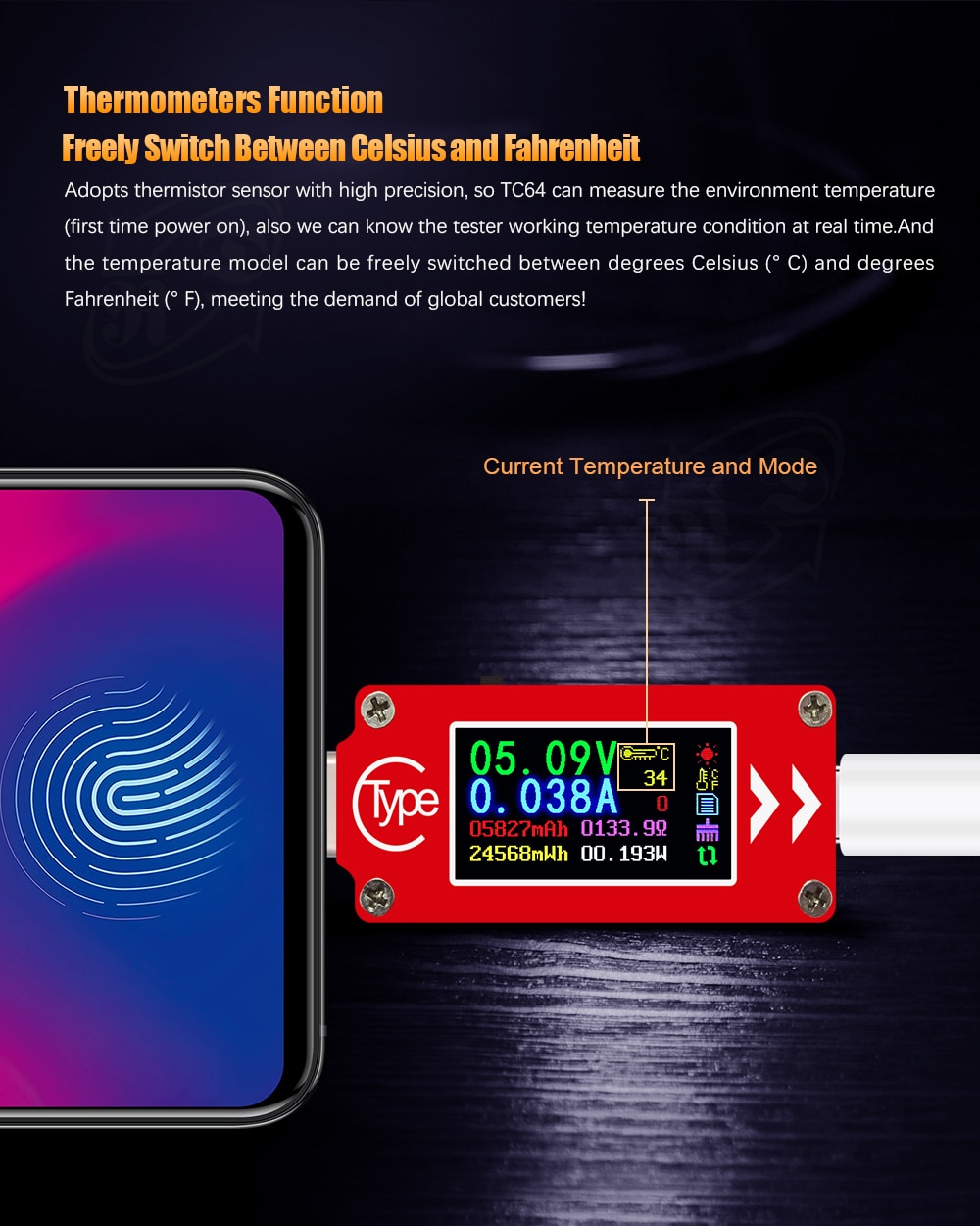

Temperature range:-0℃~80℃/32℉~176℉ Temperature measurement error:±3℃/±6℉

Working temperature range: 0~45℃/32℉~113℉ Product size:50mmx19mmx9mm

Refresh rate:2Hz Product weight:7g( With packaging 14g)

Quick charge recognition mode:QC2.0、QC3.0、APPLE 2.4A/2.1A/ 1A/0.5A、Android DCP、SAMSUNG

Note:

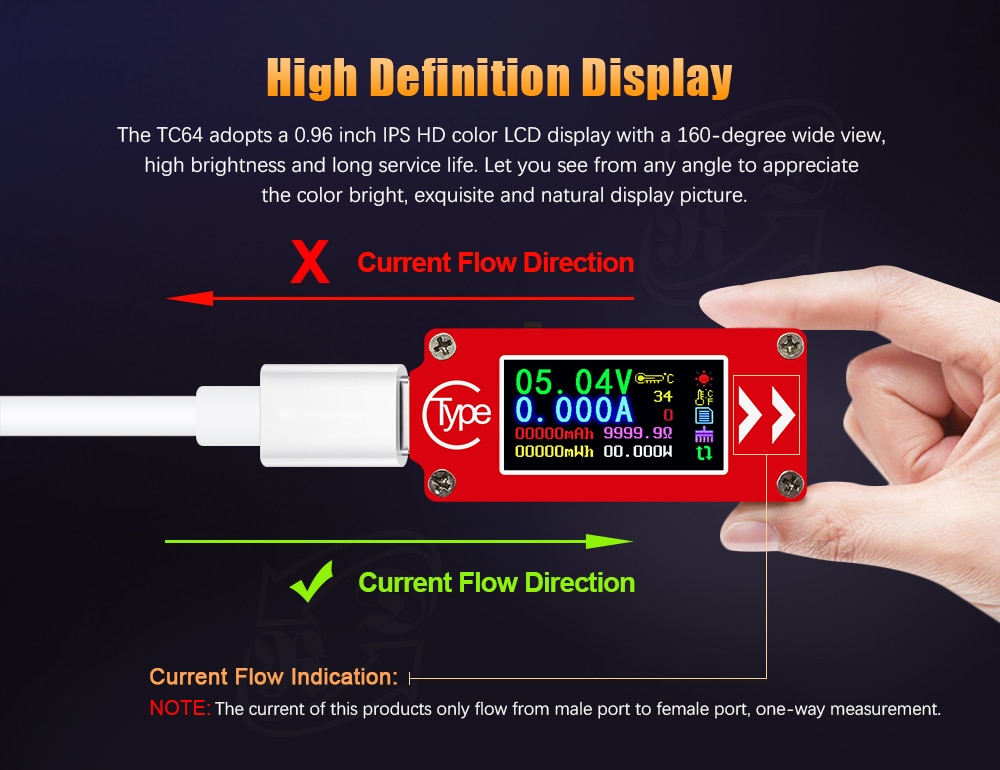

1, The product current only flow from male connector to female connector (one-way current), the reverse is still energized but the current is shown to be 0. Pay attention when using.

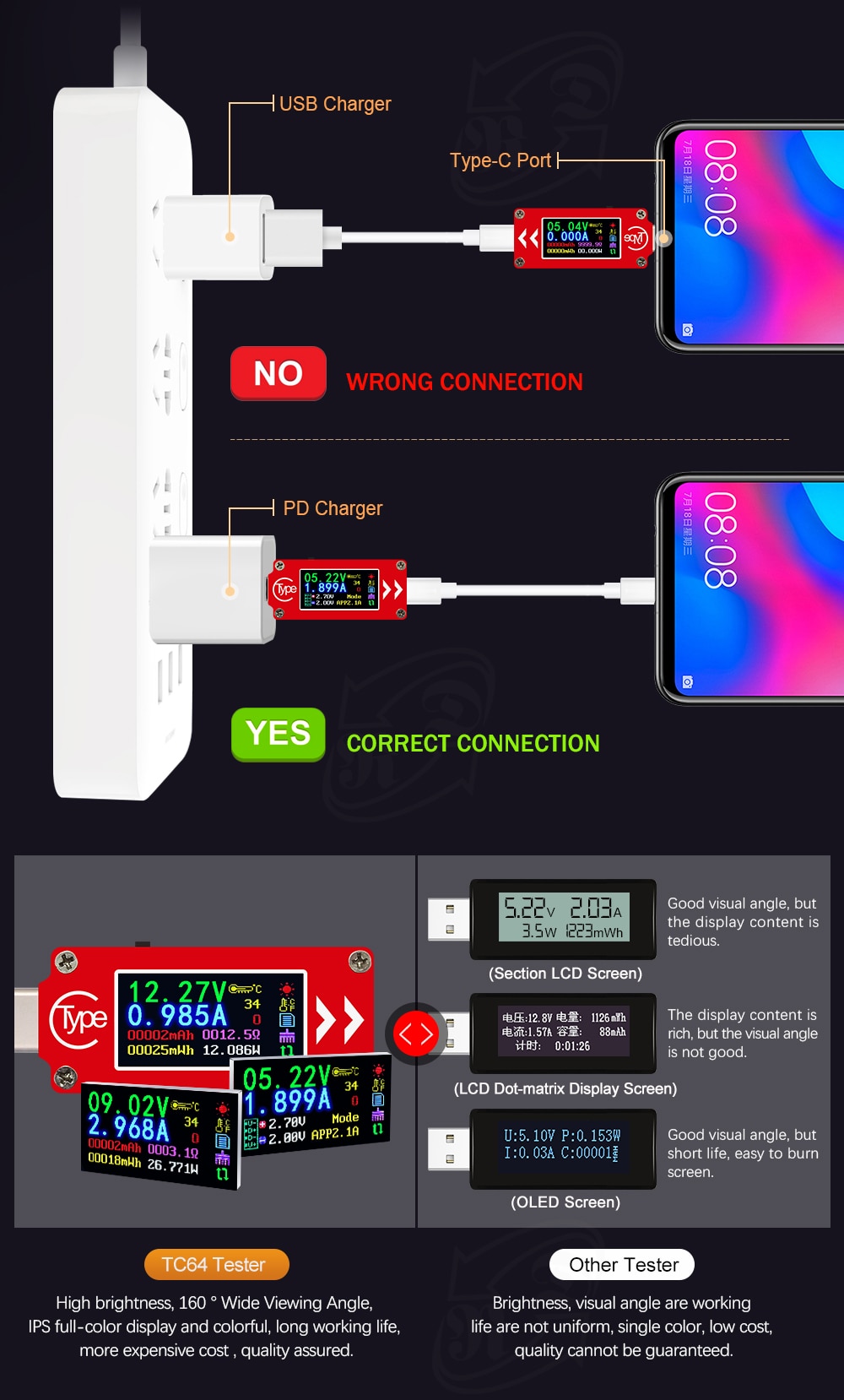

2, if you use our TC64 meter to connect phone, you must have PD charger , or have many converter cable ..

2, Type-C port is full function port , support Type-C fast charge and most all type-c device , but not Type-c identity resistance (no type-c trigger)

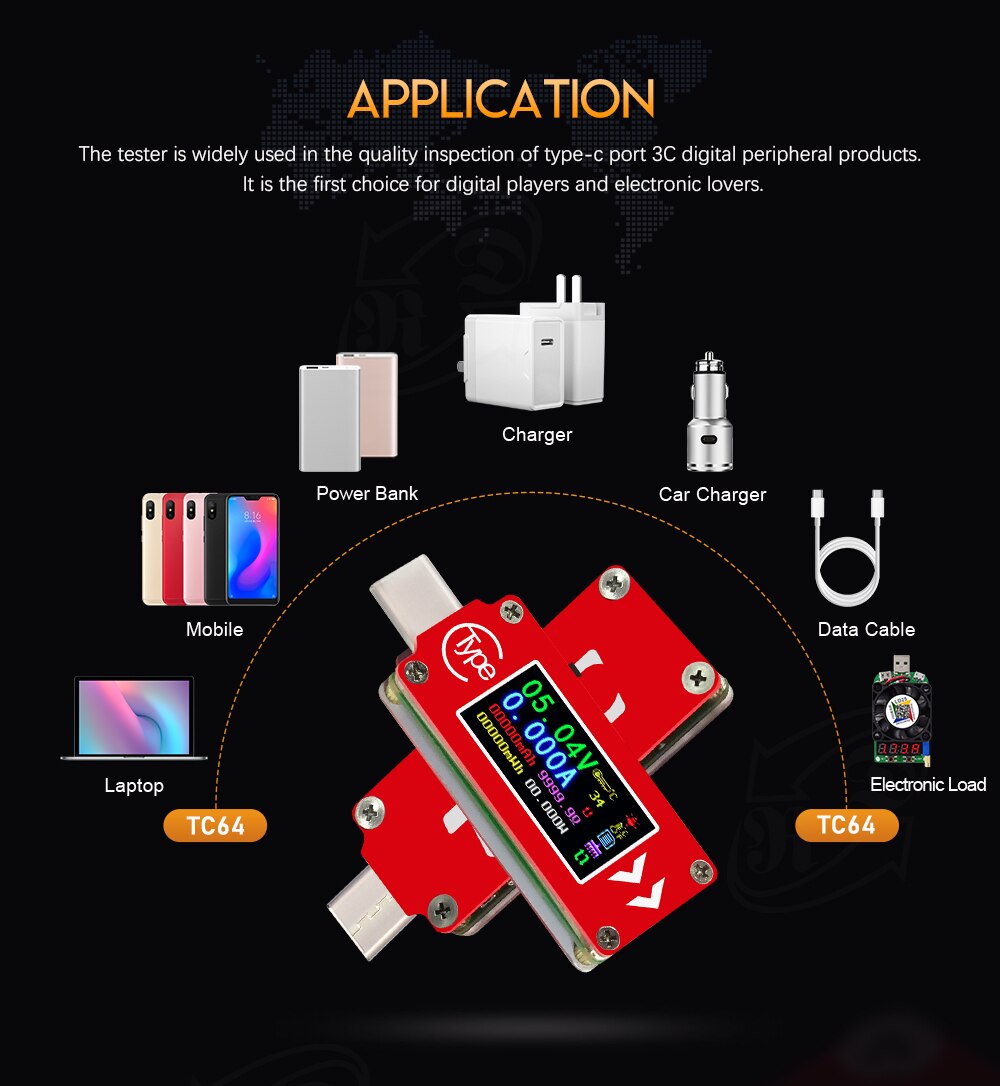

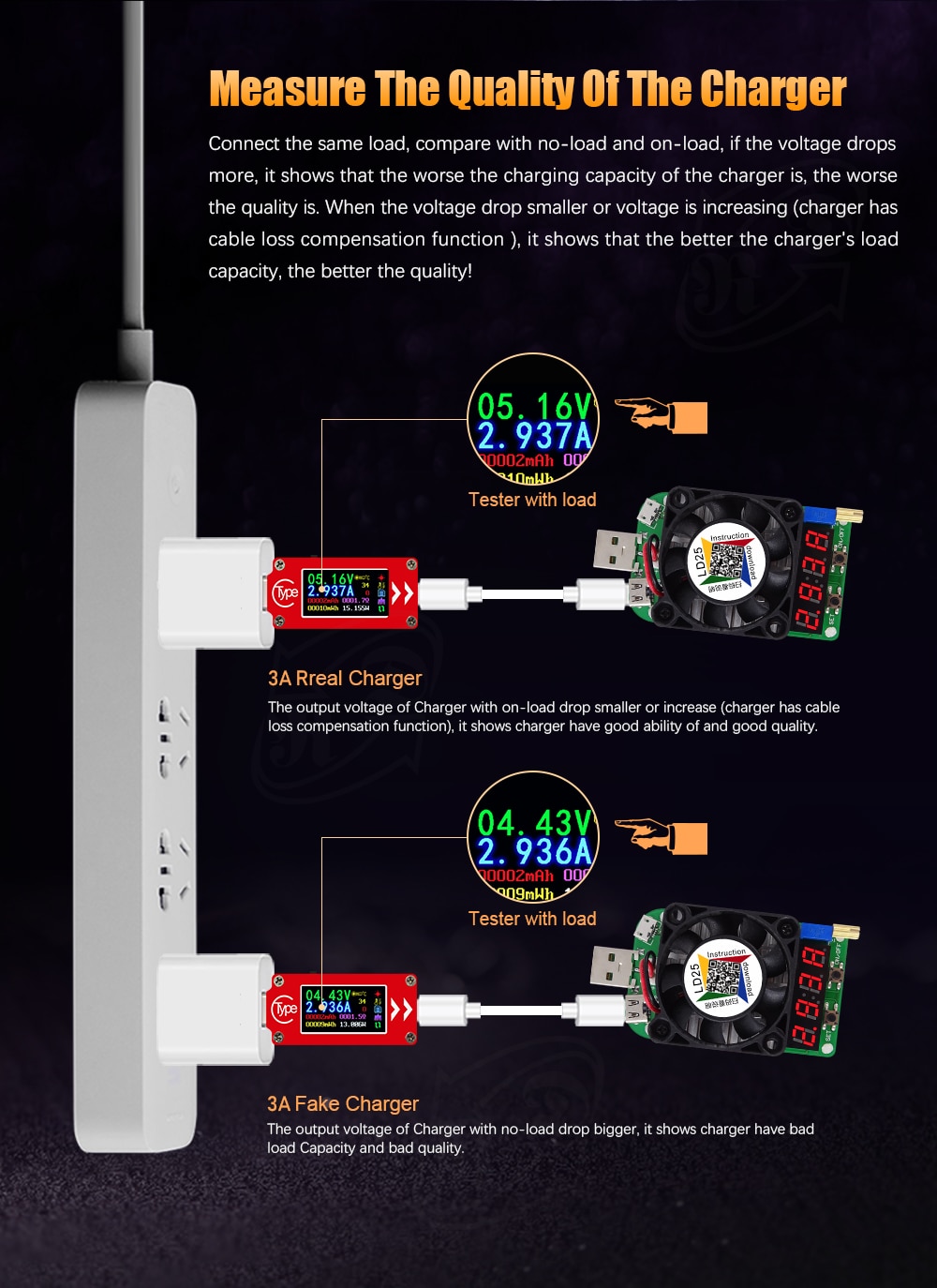

3, Application: PD charger measurement; PD car charger measurement; Type-C U flash measurement, and etc.

Show:

1, User manual: http://www.mediafire.com/folder/1ne1rbus2zxzc/TC64

2. Description video : https://www.youtube.com/watch?v=x1rUT5rOgSA
