UNI-T Smart Digital Multimeter UT61E-II 1000V AC DC Voltage Tester Ammeter True RMS Capacitor Frequency Meter Auto Range
  • UNI-T Smart Digital Multimeter UT61E-II 1000V AC DC Voltage Tester Ammeter True RMS Capacitor Frequency Meter Auto Range
  • UNI-T Smart Digital Multimeter UT61E-II 1000V AC DC Voltage Tester Ammeter True RMS Capacitor Frequency Meter Auto Range
  • UNI-T Smart Digital Multimeter UT61E-II 1000V AC DC Voltage Tester Ammeter True RMS Capacitor Frequency Meter Auto Range
  • UNI-T Smart Digital Multimeter UT61E-II 1000V AC DC Voltage Tester Ammeter True RMS Capacitor Frequency Meter Auto Range
  • UNI-T Smart Digital Multimeter UT61E-II 1000V AC DC Voltage Tester Ammeter True RMS Capacitor Frequency Meter Auto Range
  • UNI-T Smart Digital Multimeter UT61E-II 1000V AC DC Voltage Tester Ammeter True RMS Capacitor Frequency Meter Auto Range
UNI-T Smart Digital Multimeter UT61E-II 1000V AC DC Voltage Tester Ammeter True RMS Capacitor Frequency Meter Auto Range
UNI-T Smart Digital Multimeter UT61E-II 1000V AC DC Voltage Tester Ammeter True RMS Capacitor Frequency Meter Auto Range
UNI-T Smart Digital Multimeter UT61E-II 1000V AC DC Voltage Tester Ammeter True RMS Capacitor Frequency Meter Auto Range
UNI-T Smart Digital Multimeter UT61E-II 1000V AC DC Voltage Tester Ammeter True RMS Capacitor Frequency Meter Auto Range
UNI-T Smart Digital Multimeter UT61E-II 1000V AC DC Voltage Tester Ammeter True RMS Capacitor Frequency Meter Auto Range
UNI-T Smart Digital Multimeter UT61E-II 1000V AC DC Voltage Tester Ammeter True RMS Capacitor Frequency Meter Auto Range

UNI-T Smart Digital Multimeter UT61E-II 1000V AC DC Voltage Tester Ammeter True RMS Capacitor Frequency Meter Auto Range

UNI-T Smart Digital Multimeter UT61E-II 1000V AC DC Voltage Tester Ammeter True RMS Capacitor Frequency Meter Auto Range, wholesale UNI-T Smart Digital Multimeter, buy UNI-T Smart Digital Multimeter from ukobd2.com
Item No. COBD210750 Price Down Notice
In Stock
Price:
US$127.00/ piece
Discount Price:
US$82.88/ piece 35%
Quantity:

Shipping:
Airmail Post
Estimated delivery time: 7-45 working days.See details»
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat WhatsApp Skype Ask a question

Related Accessories/Similar Items

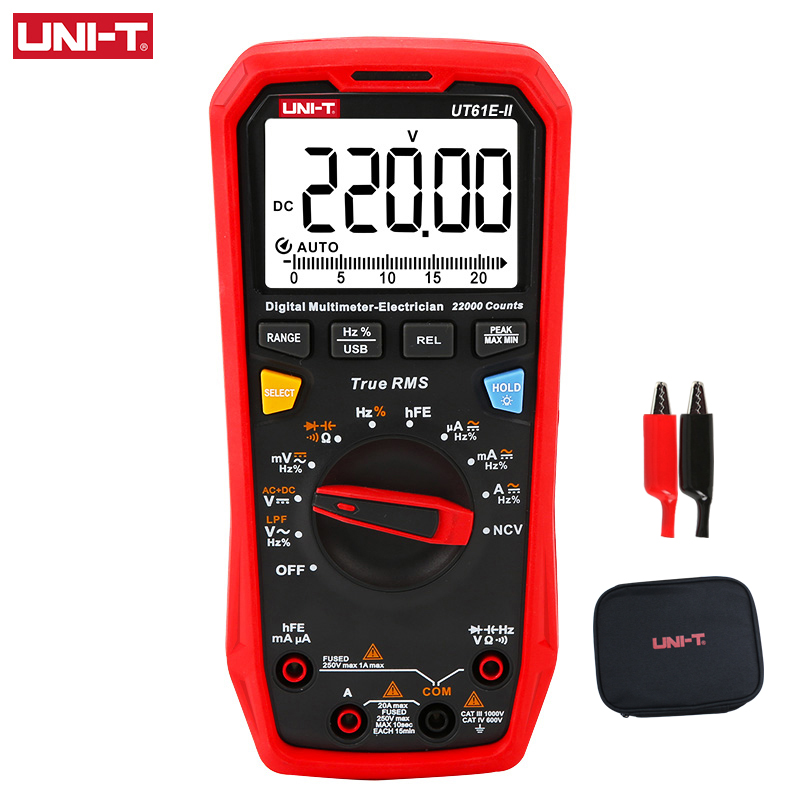

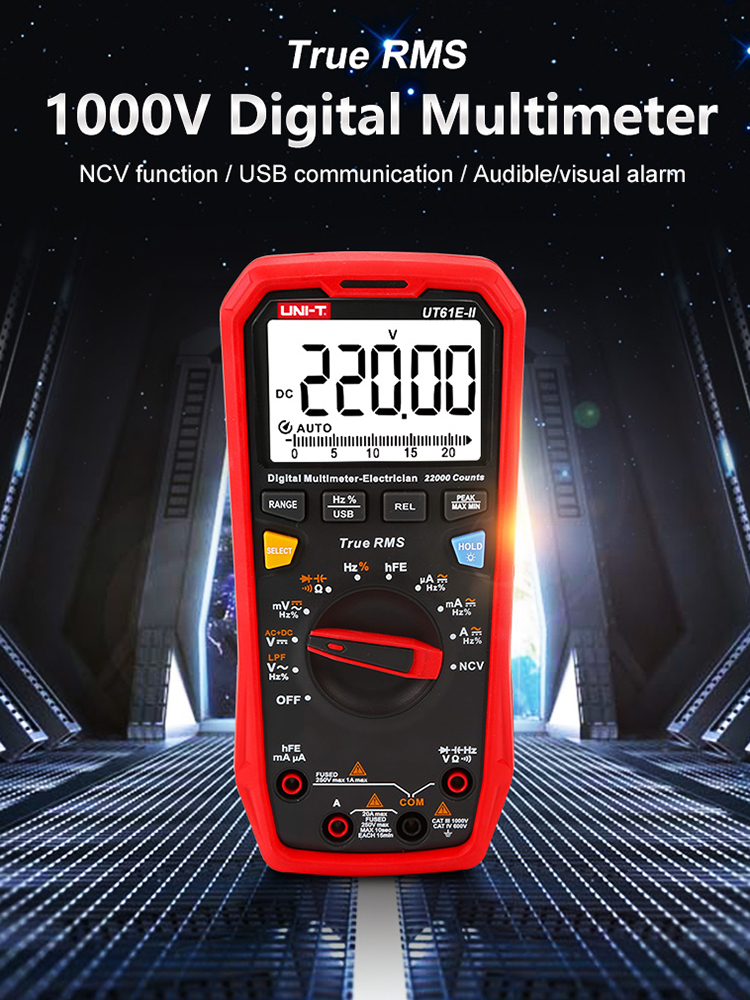

UT61E-II 1000V AC DC Digital Multimeter

UT61E-II are reliable true RMS digital multimeters with display counts 22,000 . It can measure up to 1000V AC/DC. Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.

Features

● True RMS
● Data hold/backlight
● Max/Min/Relative mode
● USB communication
● Input protection
● Diode/continuity test
● NCV (audible/visual alarm)
● LPF ACV
● ACV+DCV
● Transistor hFE
● Peak Hold
● The product has a large-size cloth bag that can hold more tools

Parameter

Specifications

Range

UT61B-II

UT61D-II

UT61E-II

Safety ratings

CAT III 1000V/CAT IV 600V

AC voltage (V)

1000V

±(1%+3)

±(1%+3)

±(0.8%+10)

DC voltage (V)

1000V

±(0.5%+3)

±(0.5%+3)

±(0.05%+5)

AC current (A)

10A

±(1.2%+5)

20A

±(1.2%+5)

±(0.8%+10)

DC current (A)

10A

±(1%+2)

20A

±(1%+2)

±(0.5%+10)

Resistance (Ω)

60MΩ

±(1%+2)

±(1%+2)

220MΩ

±(0.5%+10)

Capacitance (F)

60mF

±(3%+5)

±(3%+5)

220mF

±(3%+5)

Frequency (Hz)

10MHz

±(0.1%+4)

±(0.1%+4)

220MHz

±(0.01%+5)

Duty cycle (%)

0.1%~99.9%

±(2%+5)

±(2%+5)

±(2%+5)

Temperature (℃/℉)

-40℃~1000℃

±(1%+3)

-40℉~1832℉

±(1%+6)

Display count

6000

6000

22000

Bandwidth (Hz)

40Hz~500Hz

40Hz~1kHz

40~10kHz

LPF ACV

LoZ ACV

ACV+DCV

Transistor hFE

Peak Hold

Analog bar

31

31

46

General Characteristics

Power

1.5V battery (R03) x 4(No include)

Product net weight

350g

Product size

190mm x 90mm x 50mm

Standard accessories

Test leads, USB cable, temperature probe (UT61D-II),multi-purpose socket (UT61E-II), English manual,Alligator clip,cloth bag

Standard individual packing

Gift box, cloth bag

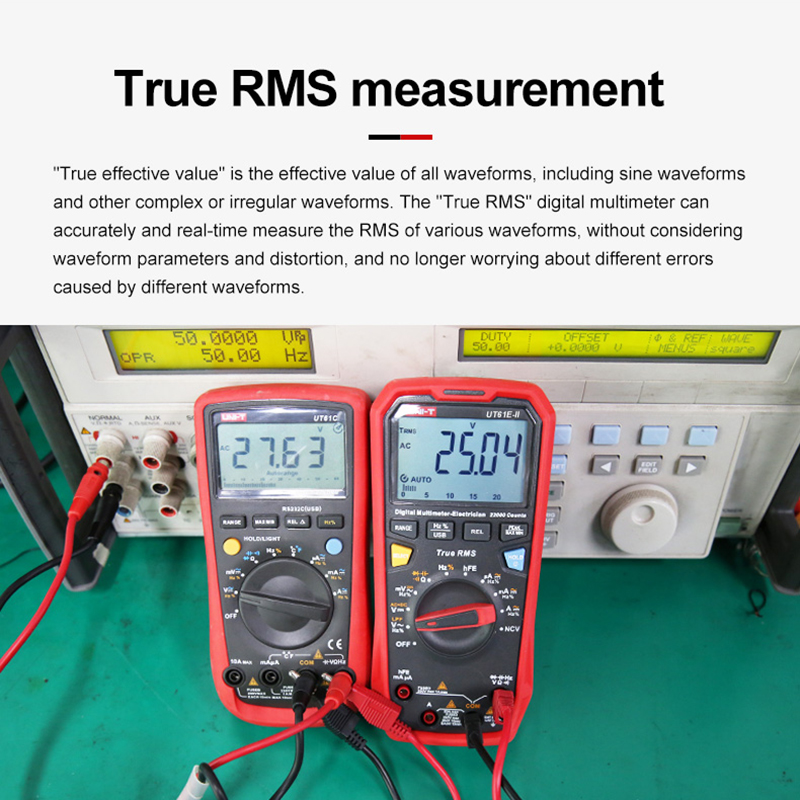

True RMS

AC+DC mixed signal voltage measurement

Measuring AC+DC signals can reduce equipment failure due to DC runt, and AC signals can also be observed during the time of DC measurement.

LPF measurement(Only UT61E-II)

Low-pass filtering: low-frequency signals can pass normally, while high-frequency signals are blocked and weakened. Avoid the test results caused by high-frequency signal interference and keep hopping and fail to obtain test results.

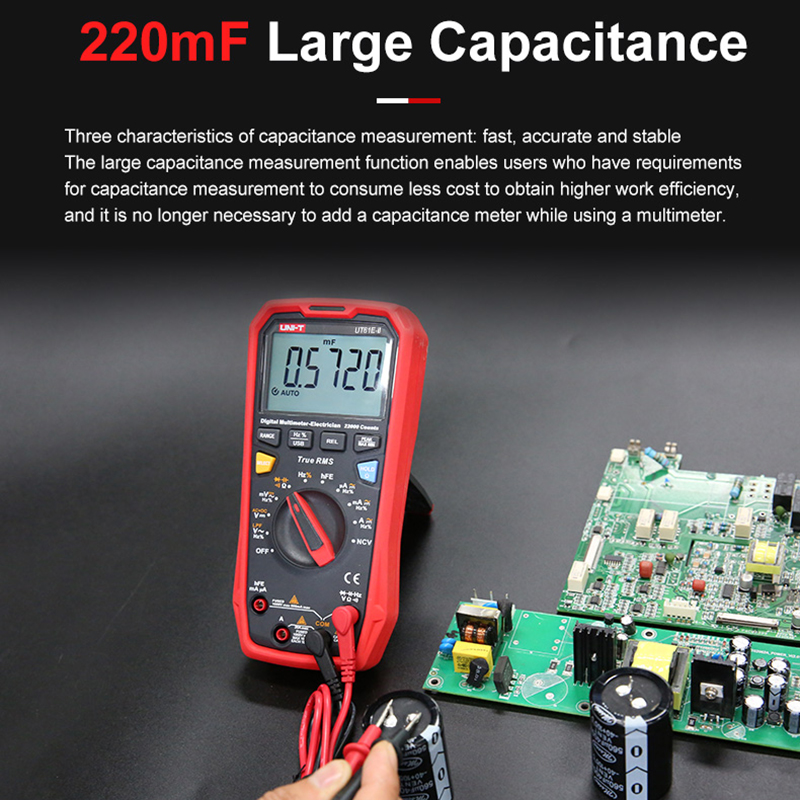

220 mF large capacitance

USB communication function

Real-time data transmission and storage

LoZ voltage measment(Only UT61D-II)

LoZ low impedance input: it can measure residual current (virtual voltage) to avoid misjudgment or potential safety hazards

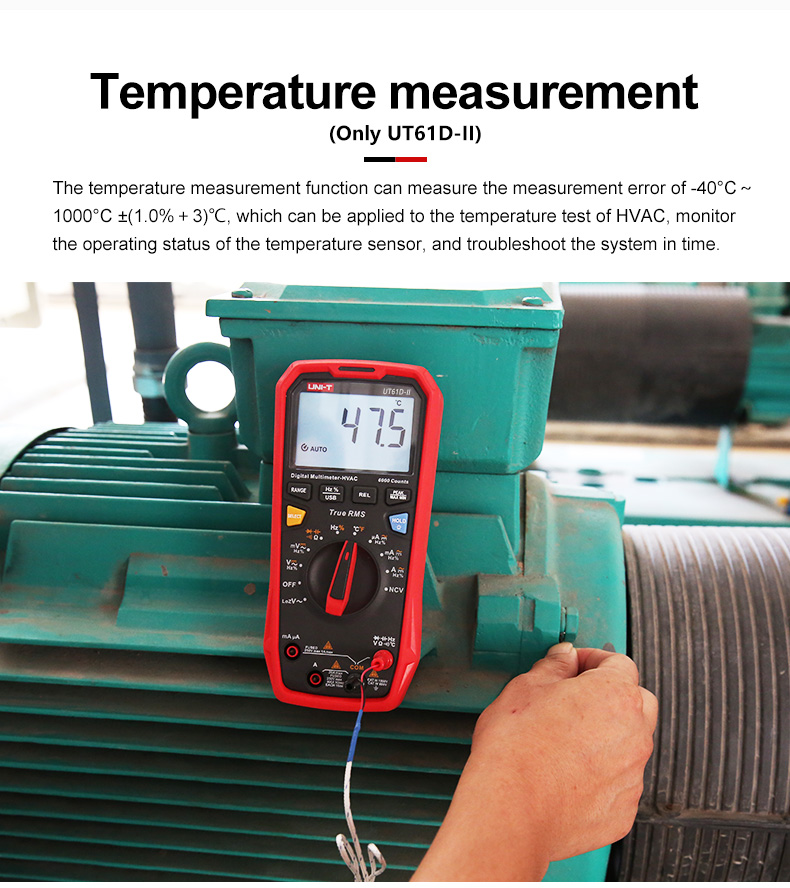

Temperature measurement(UT61D-II)

The product comes with a large-size cloth bag that can hold more tools
