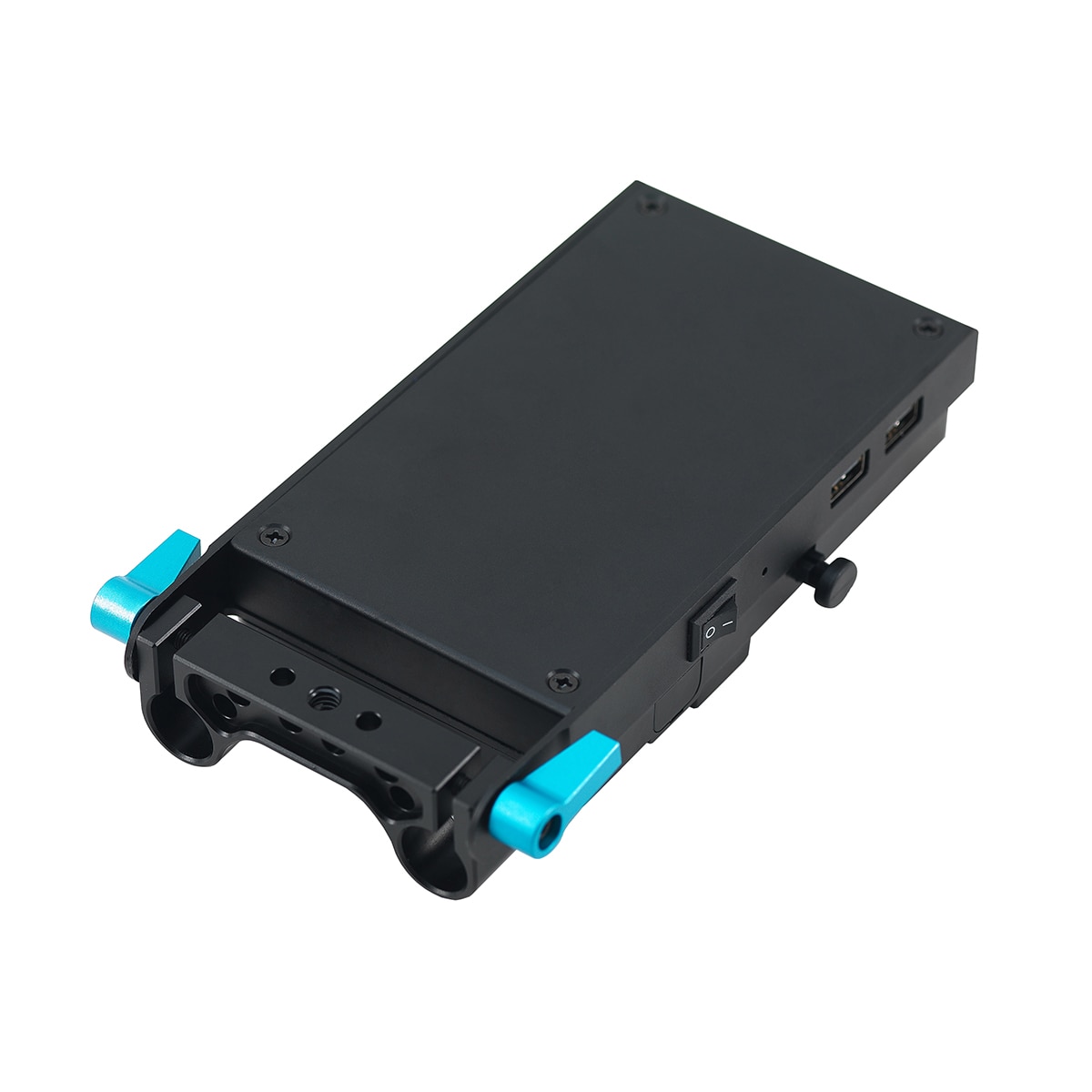

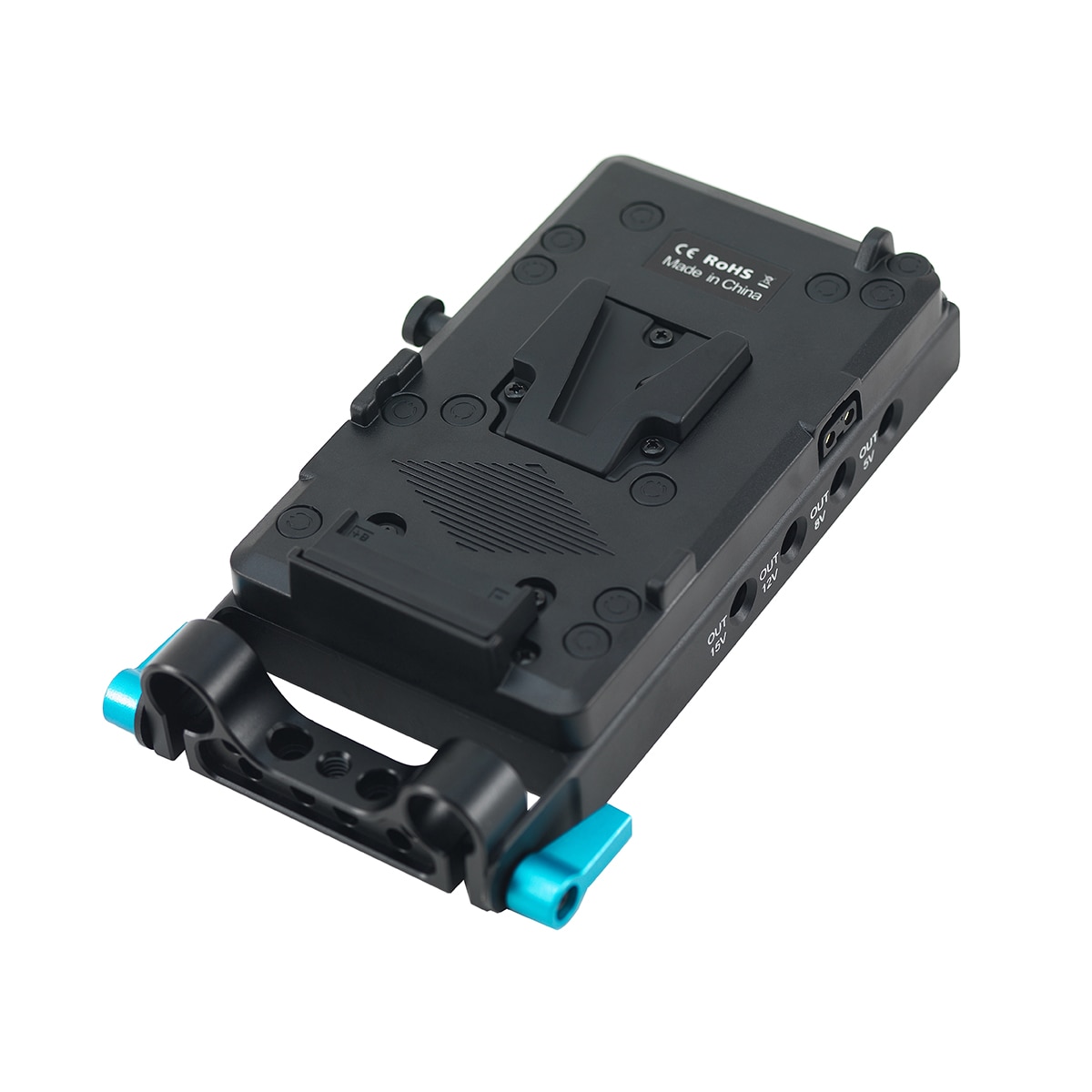

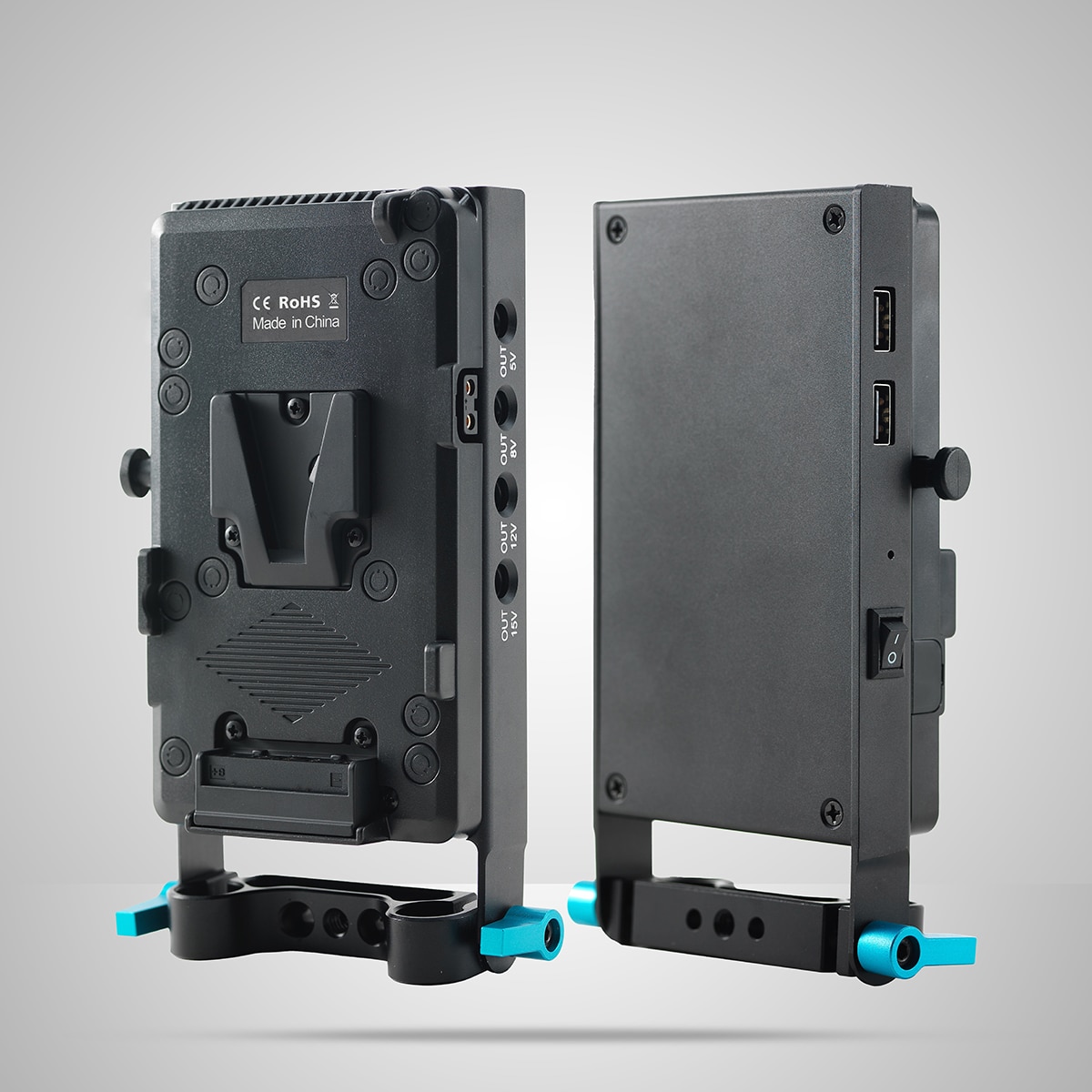

WY-VG3 Power Supply System V Mount Battery Plate Adapter for Sony A9 A9R A9S A7R3 A7M3 A7S3 A7III A7R4 A7M4 A6600 A7C FX3

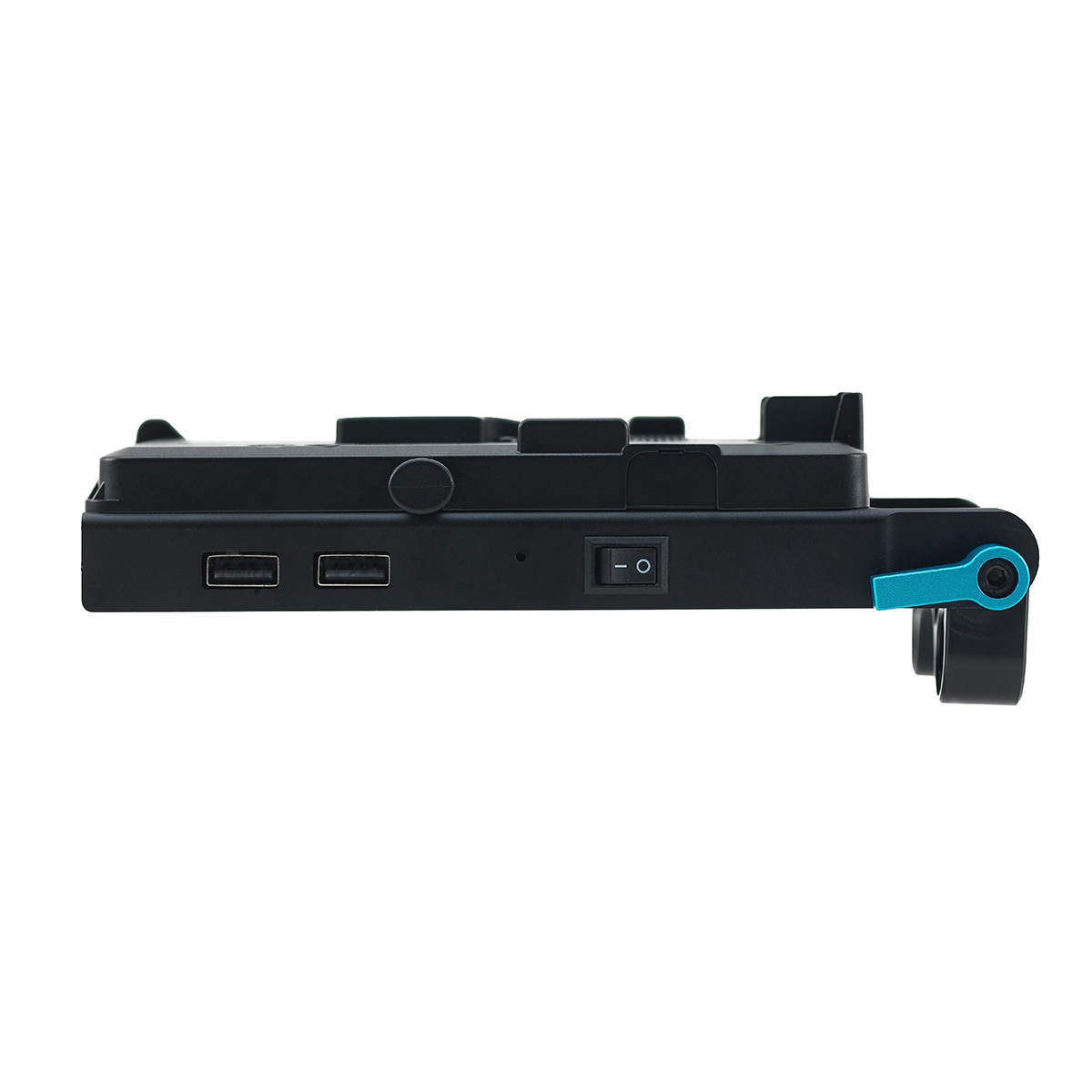

WY-VG3 is a power supply system using Sony V-mount batteries, with overheating shutdown and current limit protection, low-power standby mode, high-efficiency conversion IC and other functions; with independent power switch, power indicator, It displays red when working normally;
and converts the V port battery to DC15V, DC12V, DC8V, DC5V and USB5V. Among them, DC15V can power the camera, DC12V can power the monitor and camera, and DC8V can power the SLR/micro-single camera. Power supply, USB5V can charge mobile phones and tablets, and DC5V can supply power to radio equipment, microphones, microphones and other devices. It is a practical and efficient multi-function V-mount battery power supply system.

Model:WY-VG3-FZ100

Input voltage: 14.8V (following battery)

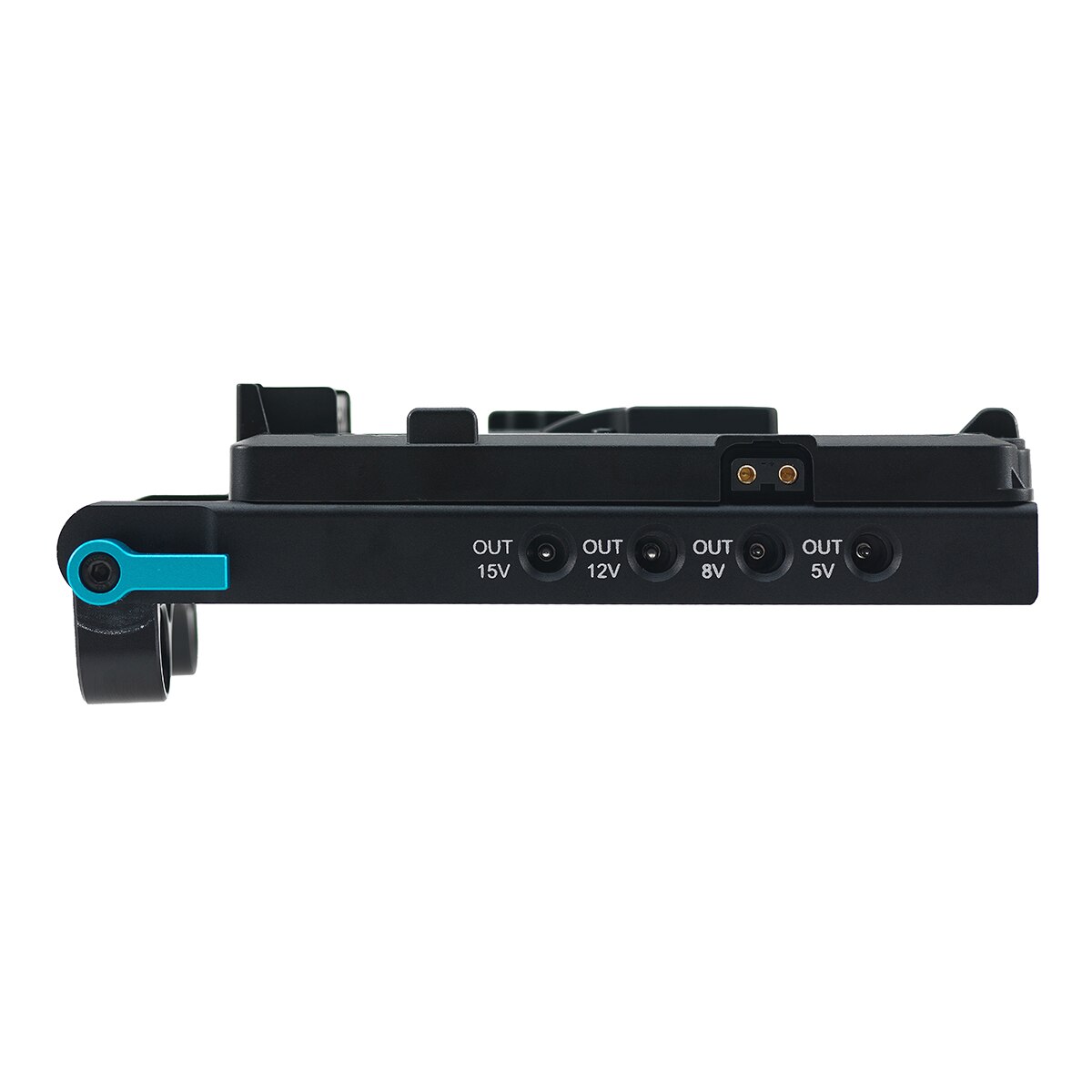

Output voltage①: USB 5V/2A

Output voltage②: DC 5V/2A (DC5.5*2.1mm/inside positive and outside negative)

Output voltage③: DC 8V/3A (DC5.5*2.1mm/inside positive and outside negative)

Output voltage④: DC 12V/2A (DC5.5*2.5mm/inside positive and outside negative)

Output voltage ⑤: DC 15V/3A (DC5.5*2.5mm/inside positive and outside negative)

Output voltage ⑥: D-TAP 14.8V

Diameter of catheter clamp: 15mm

Product gross weight: 610g (±5g)

Packing size: 185*110*70mm

Applicable battery: V-mount battery

Applicable models: for Sony A9、A9R、A9S、A7R3、A7M3、A7S3、A7III、A7R4、A7M4、A6600、A7C、FX3...

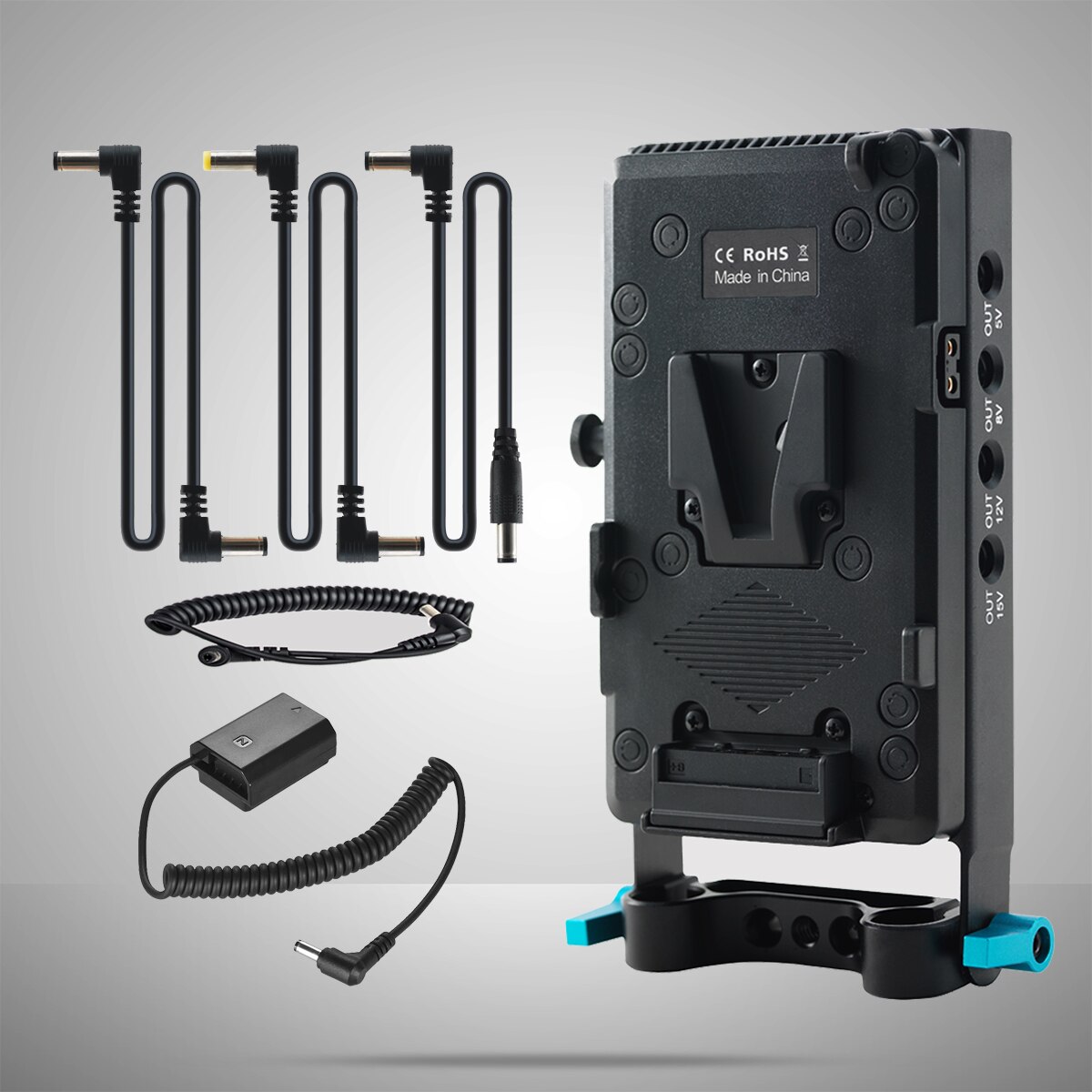

WY-VG3 power supply system + 15mm conduit clamp*1

DC5.5*2.5mm to DC5.5*2.5mm straight cable*1

DC5.5*2.1mm to DC5.5*2.1mm straight cable*1

DC5.5*2.1mm to DC4.0*1.7mm straight cable*1

DC5.5*2.5mm to DC5.5*2.5mm spring wire*1

NP-FZ100 fake battery DC5.5*2.1mm straight cable*1
