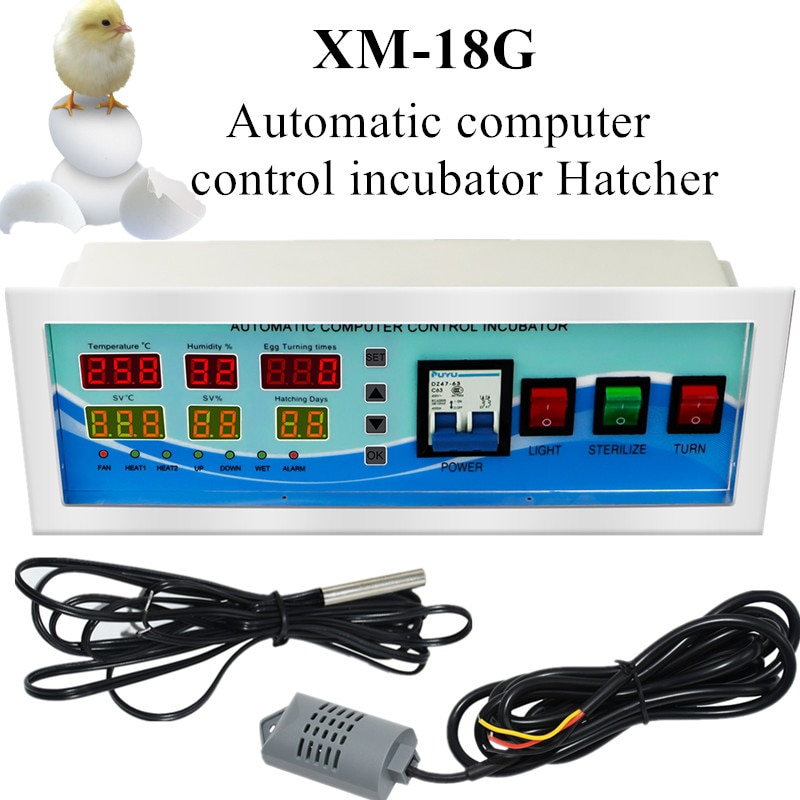

XM-18G Automatic Egg Incubator Controller computer control incubator Hatcher Temperature Humidity Sensors Egg Hatcher Controller

Description:

The automatic multi-function incubator researched and produced by our company uses the more popular microcomputer-based technology (using the latest micro-electronics technology and new components),equiping with the imported digital temperature sensor and France moisture sensitive capacitance humidity sensor,which makes this instrument miniaturization,intelligent,high measurement accuracy.This incubator is stable and reliable,time-saving,labor-saving,and easy-to-use.It is the ideal incubation equipment for propagation of poultry and rare birds and small and medium-sized hatchery.

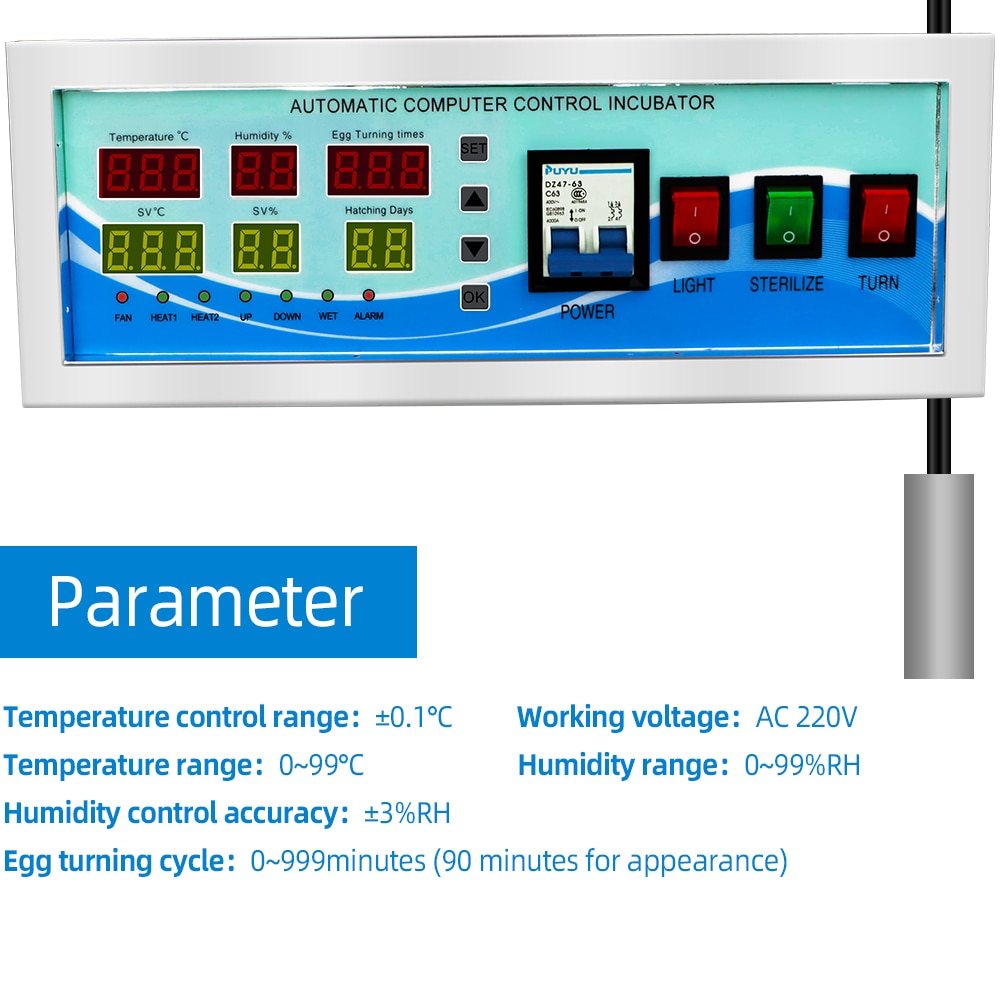

Main Technical Index:

1.Temperature Measuring Range: 0-99℃

2.Temperature Measurement Accuracy: ±0.1℃

3.Humidity Measurement Range: 0—99%RH

4.Humidity Accuracy: ±3%RH

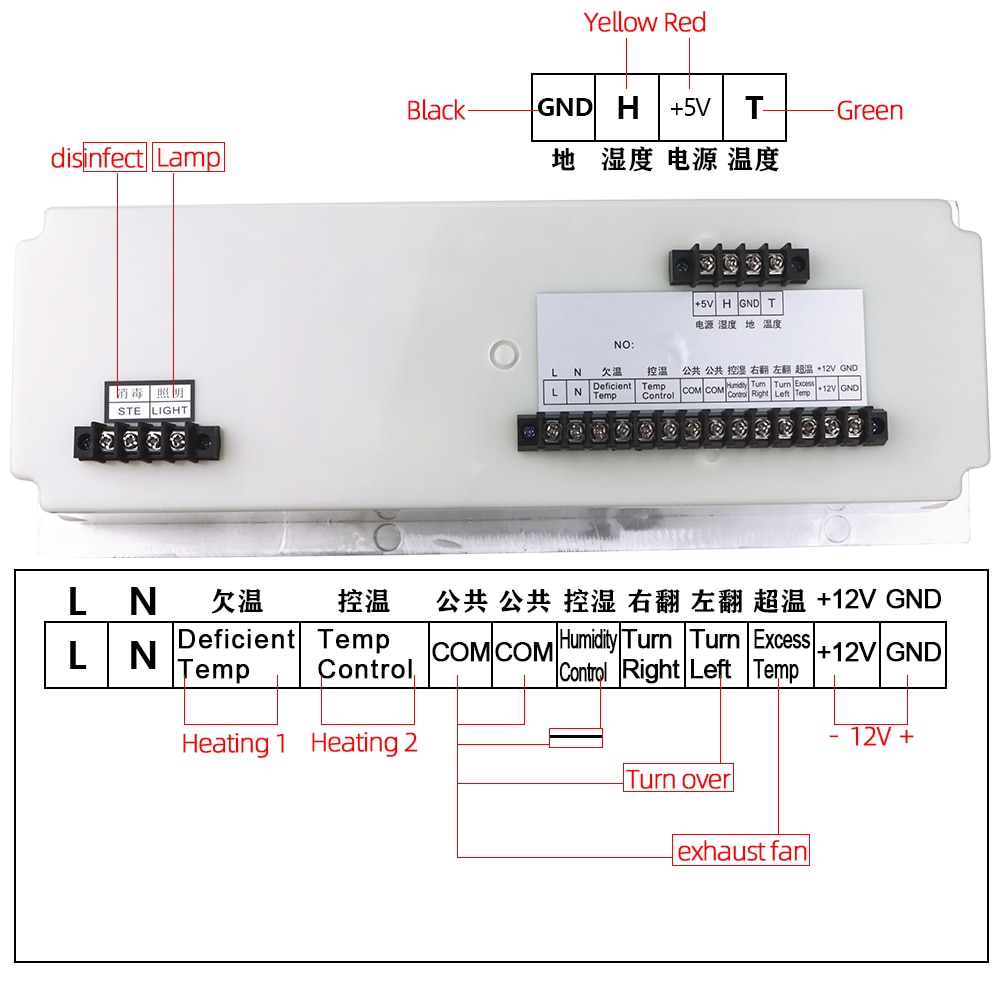

5.Number of signal-output: 7, (over-temperature, temperature control, insufficient temperature, egg left-turning, egg right-turning, humidity control, alarm)

6.The maximum output load current: temperature control, insufficient temperature ≤ 8A/AC220V, over-temperature, egg left-turning, egg right-turning, humidity control, alarm ≤ 1A / AC220

7.Number of egg-turning: the maximum record is 999 times.

8.cycle of egg-turning: adjustment of 0 – 999 minutes (the factory default is 90 minutes)

9.egg-turning time: adjustment from 0 to 999 seconds (the factory default is 180 seconds)

10.ventilation cycle: from 0 to 999 minutes(the factory default is 120 minutes)

11.ventilation time: from 0 to 999 seconds (the factory default is 30 seconds)

12.Temperature measurement length: About 2 meters

Working Condition:

1.Working Voltage: AC 220V

2.Relative Humidity: less than 85% RH

3.Environment Temperature: -10℃ - 60℃

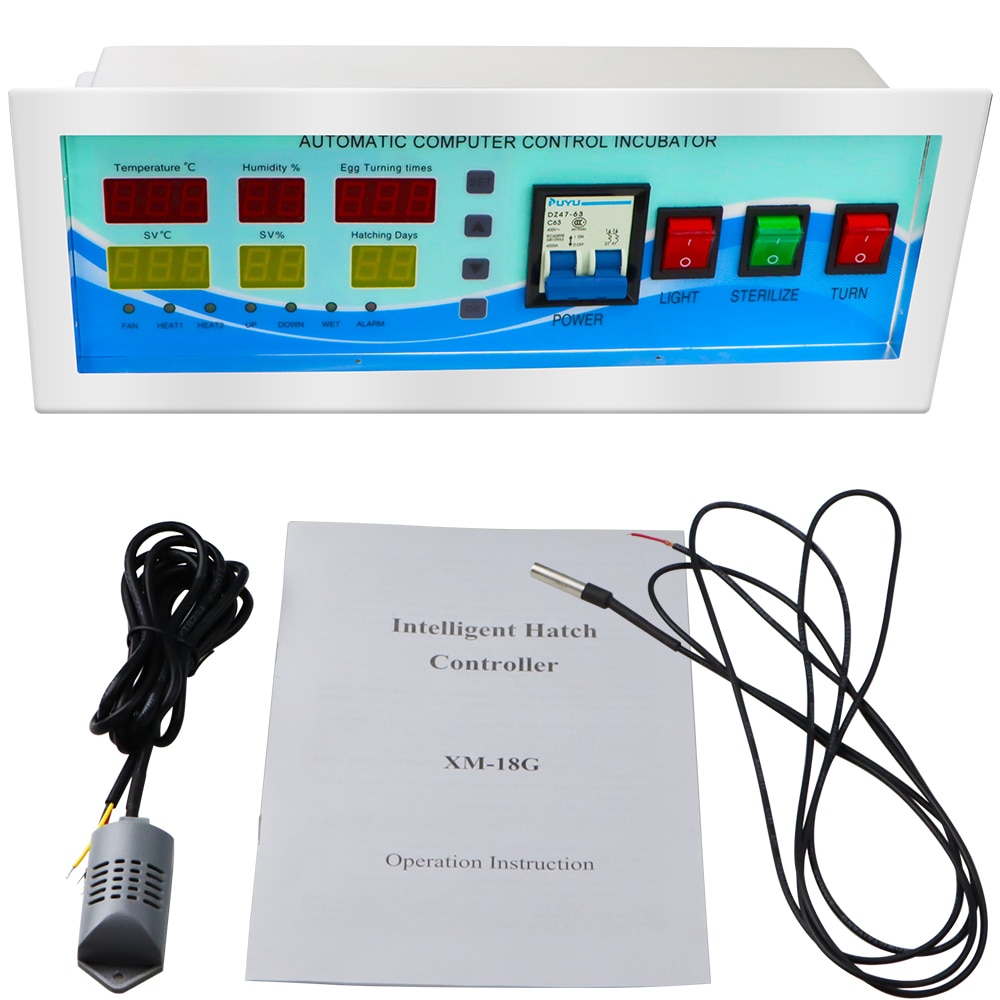

Package Include:

1 x Incubator Controller

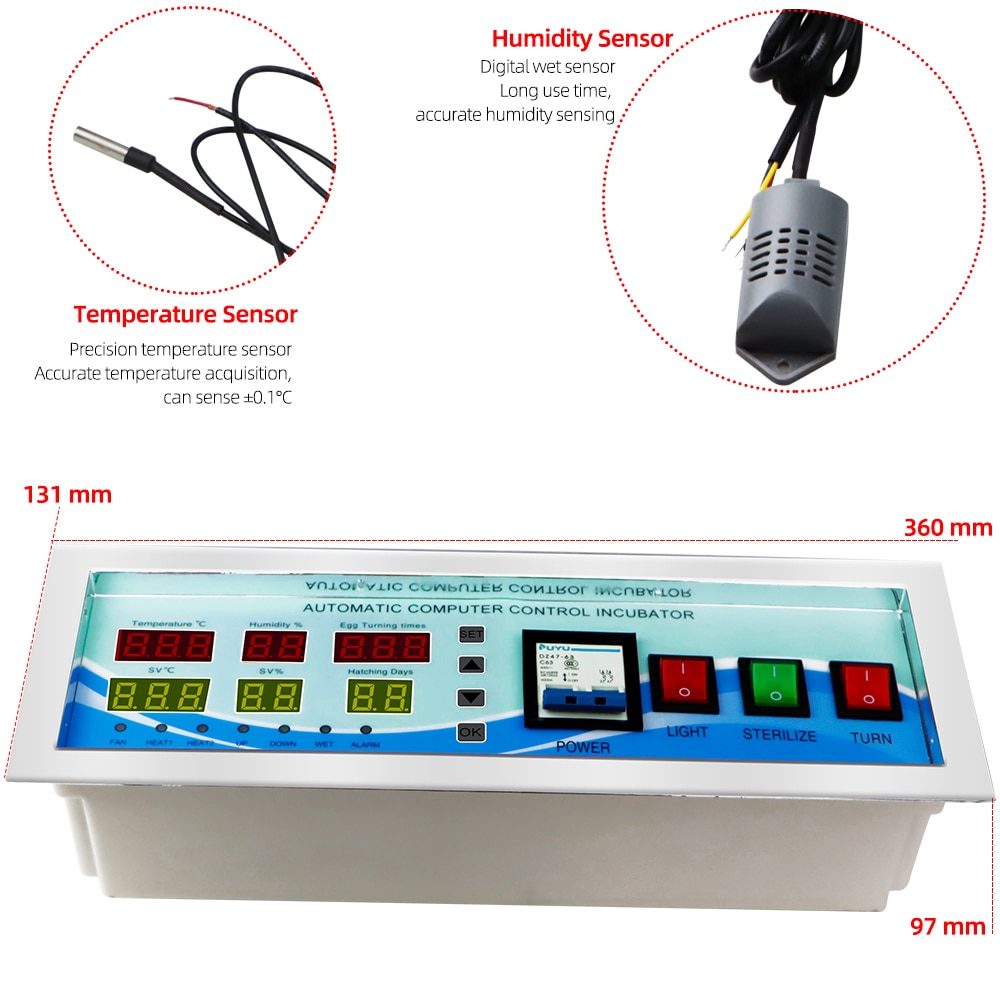

1 x Temperature sensor

1 x Humidity sensor

1 x Operational Manual
