Yanhua Mini ACDP-2 Module 38 with BMW BDC2 Keys Learning Bench Platform and LF Smart Key Antenna Remote Control Receiver

Yanhua Mini ACDP-2 Module 38 with BMW BDC2 Keys Learning Bench Platform and LF Smart Key Antenna Remote Control Receiver

Bundle Package: Yanhua Mini ACDP-2 Module 38 + BMW BDC2 Keys Learning Bench Platform + LF Smart Key Antenna Remote Control Receiver
Perform BMW G series all keys lost programming.

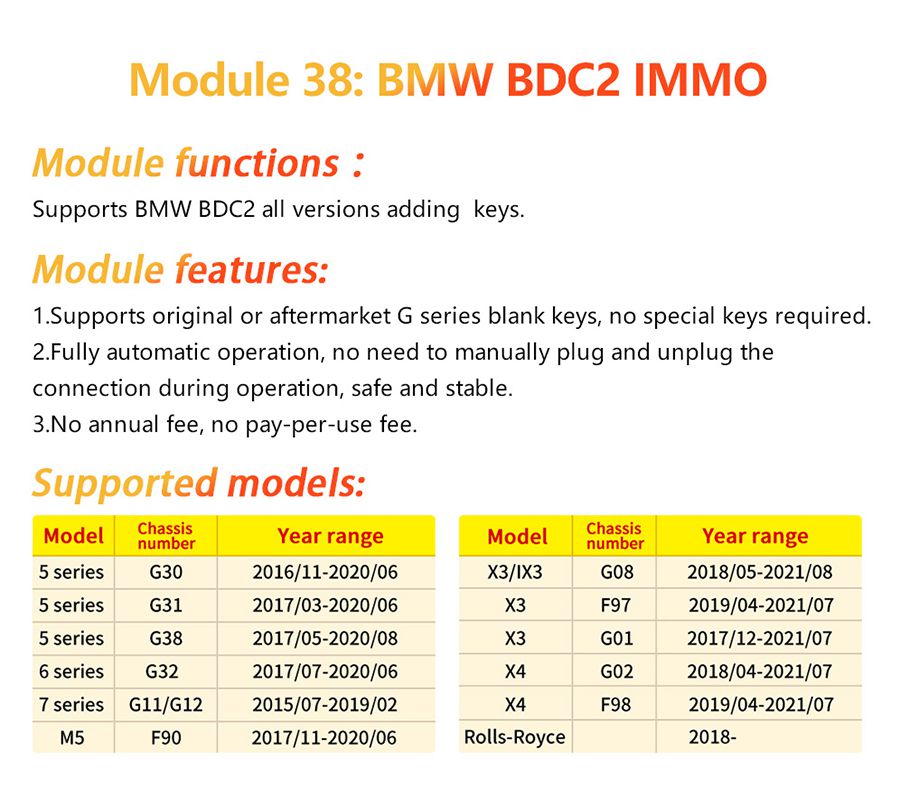

Yanhua Mini ACDP-2 Module 38 for BMW G Series BDC2 Immobilizer Matching and Key Adding

Module Features:

Supports key addition for all versions of BMW BDC2.
BMW BDC2 Mileage reset. Reset mileage menu is under "Add key" function.
BMW BDC2 Module Refresh.
BMW BDC2 Module Copy Replacement.

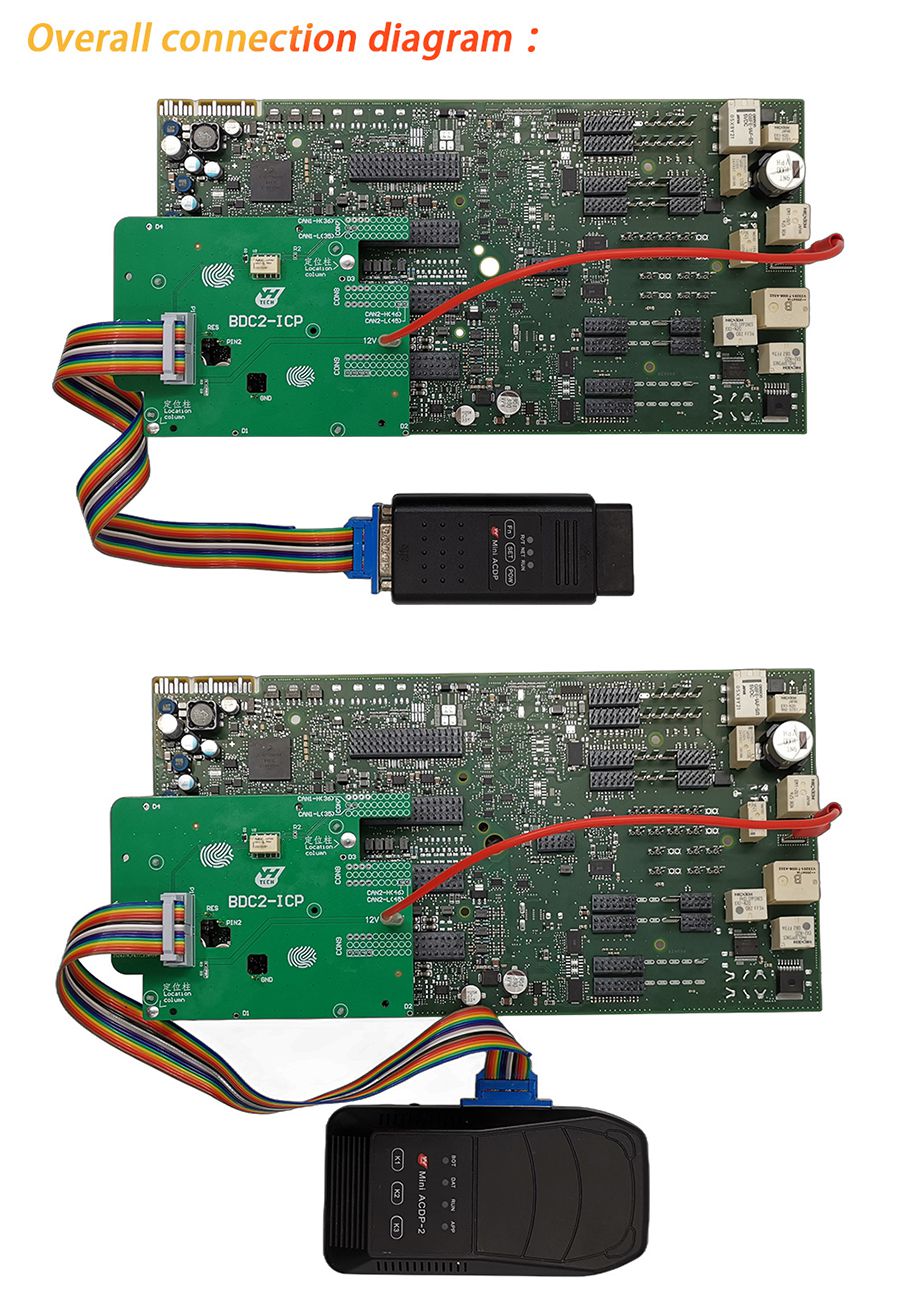

Just need to insert the interface board to the BDC2 module directly.
Fully automatic operation, no need to manually plug and unplug the connection during operation, safe and stable.
Supports original key and aftermarket key. Both US and EU regions.
Supports BDC2 all keys lost, need to use Yanhua BMW BDC2 test platform.
Module 38 will get free update of BDC3 add key license (requires Yanhua BDC2/BDC3 BCP interface Board).
NEW Update in Nov.2025: Supports Modify IMMO Data,VIN Modify, Delete/Add Key ID, Modify ISN Data
No annual subscription.

Notice:
Need work with Yanhua ACDP-2 Programmer

Key Advantages:

Compatible with both OEM and aftermarket G-chassis blank keys—no specialized keys required.
Fully automated operation—no manual cable connection/disconnection during the process, ensuring safety and stability.
No annual fees or per-use charges—one-time solution with zero hidden costs.

Supported Models:

Model	Chassis Number	Year Range
5 Series	G30	2016/11-2020/06
5 Series	G31	2017/03--2020/06
5 Series	G38	2017/05-2020/08
6 Series	G32	2017/07-2020/06
7 Series	G11/G12	2015/07-2019/02
M5	F90	2017/11-2020/06
X3/IX3	G08	2018/05-2021/08
X3	F97	2019/04-2021/07
X3	G01	2017/12-2021/07
X4	G02	2018/04-2021/07
X4	F98	2019/04-2021/07
Rolls-Royce		2018-

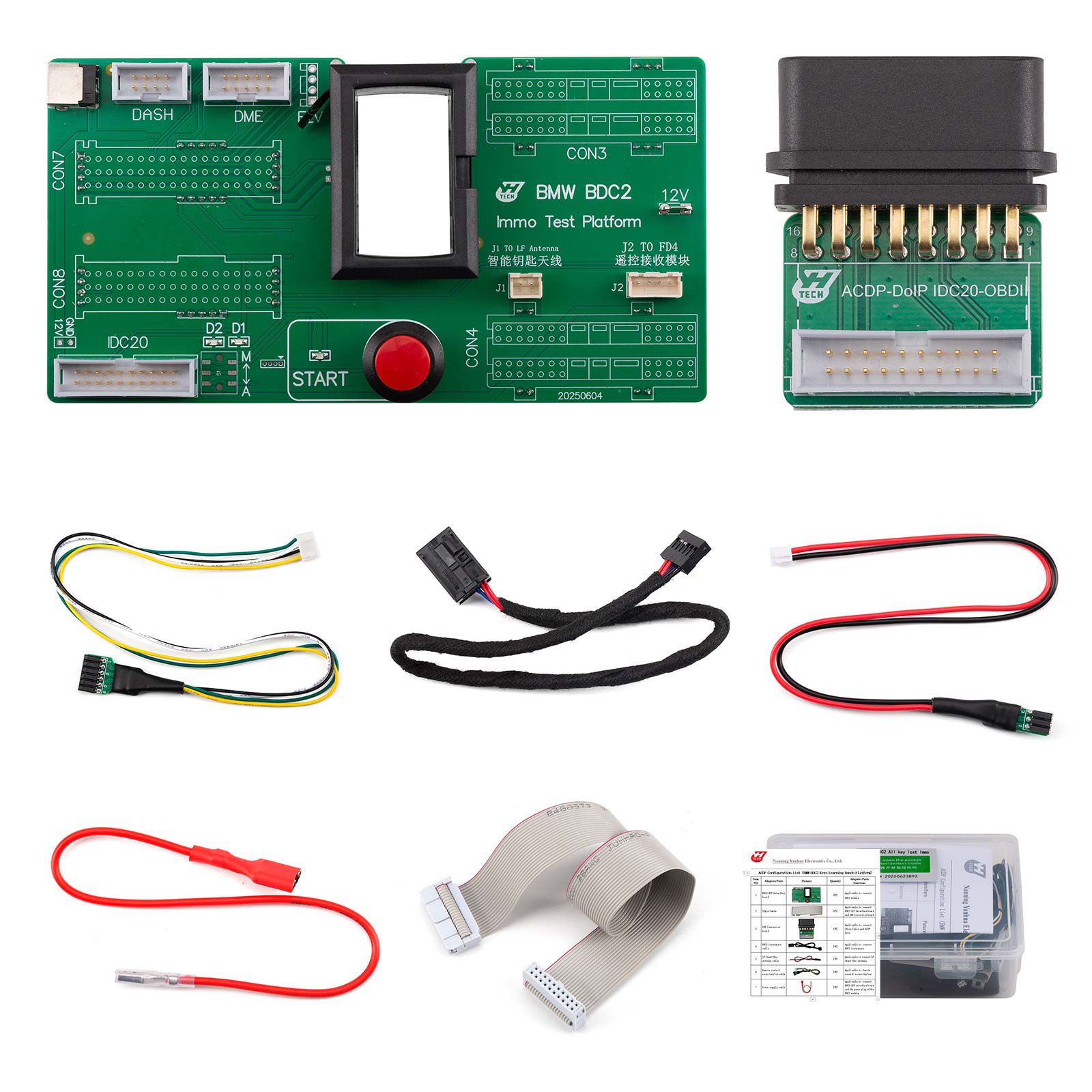

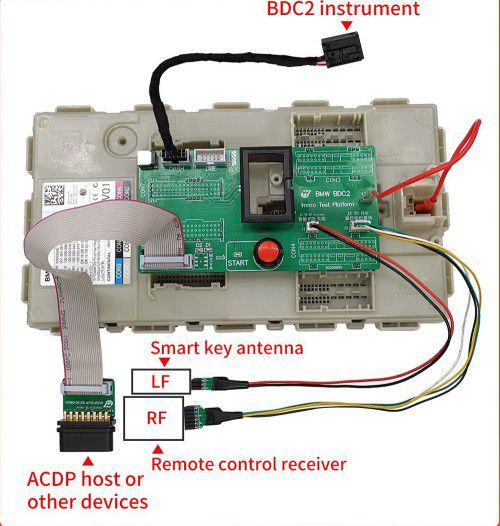

Yanhua BMW BDC2 Keys Learning Bench Platform Work with Module38 For All Key lost

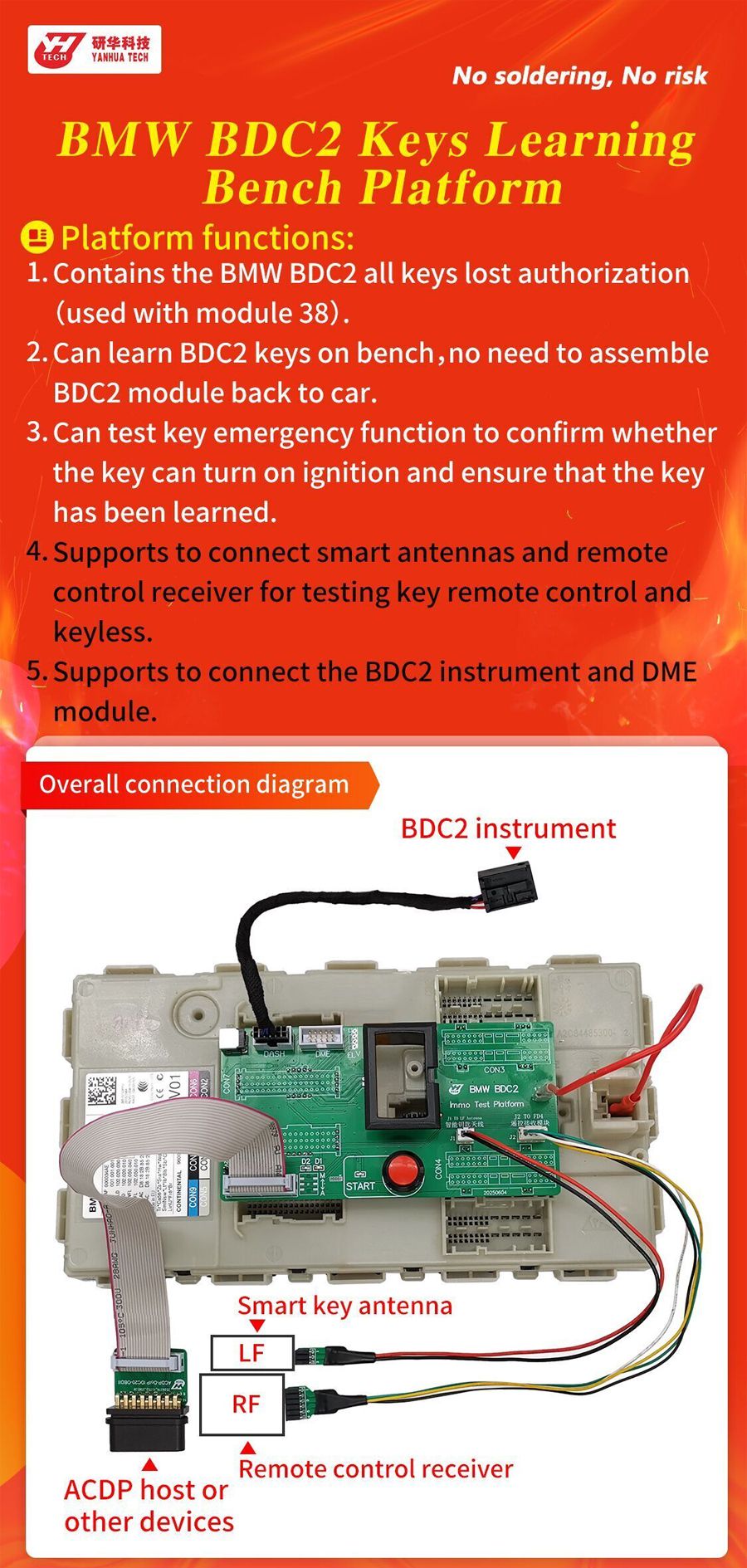

Platform Functions:

1. Contains the BMW BDC2 all keys lost authorization（used with module 38）
2. Can learn BDC2 keys on bench, no need to assemble BDC2 module back to car.
3. Can test key emergency function to confirm whether the key can turn on ignition and ensure that the key has been learned.
4. Can connect smart antennas and remote control receiver for testing key remote control and keyless.
5. Can connect the BDC2 instrument and DME module.

Platform Features:

1. Compatible with any device that supports the BDC2 module.
2. The interface board replaces manual wiring, which is safe, convenient, simple and efficient.

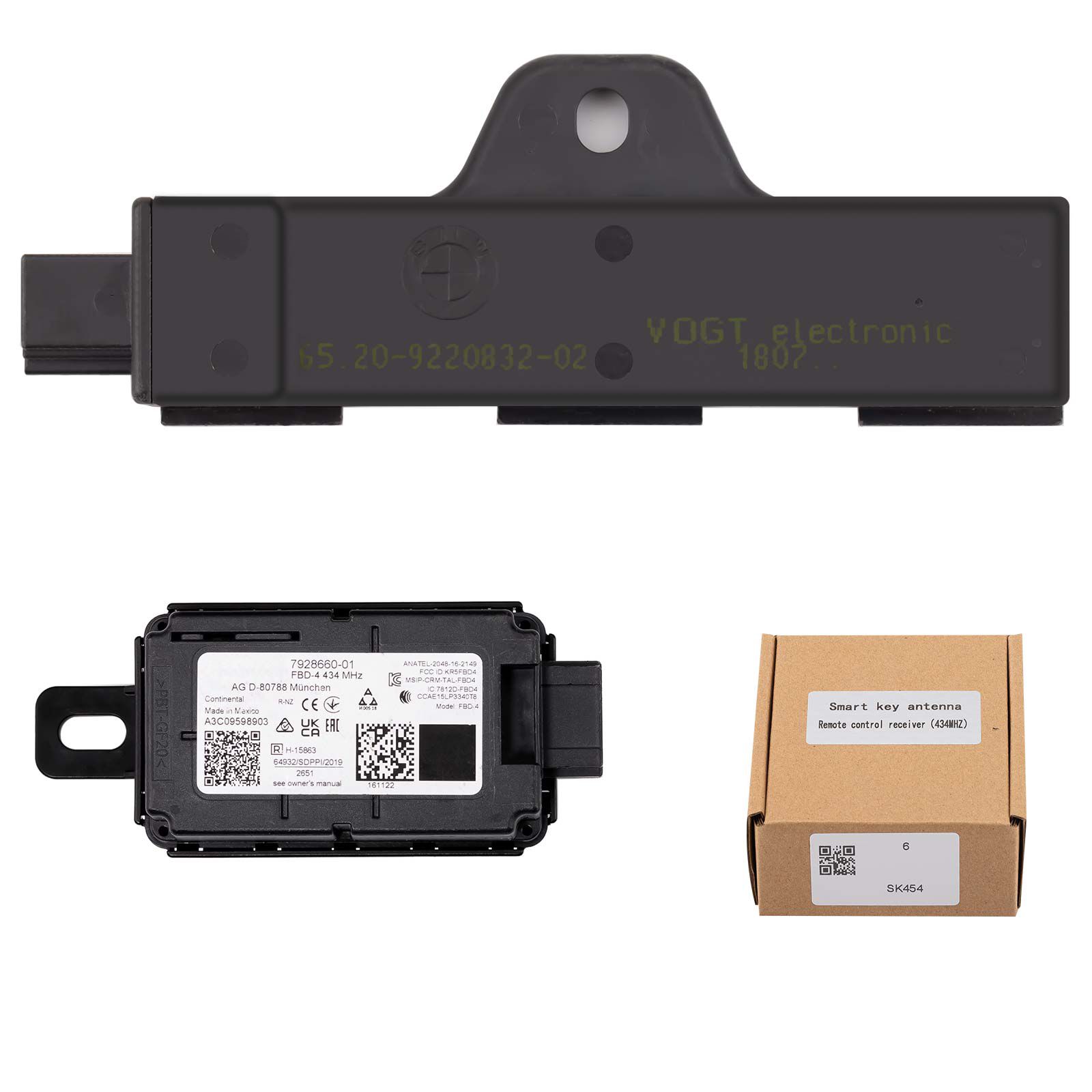

Second-hand Dismantled Car Parts Smart Key Antenna + Remote Control Receiver (434MHZ)

The black part marked the red box below is the LF key antenna.
It is used with ACDP Module 38 + BDC2 AKL test platform to perform BMW G series all keys lost programming.

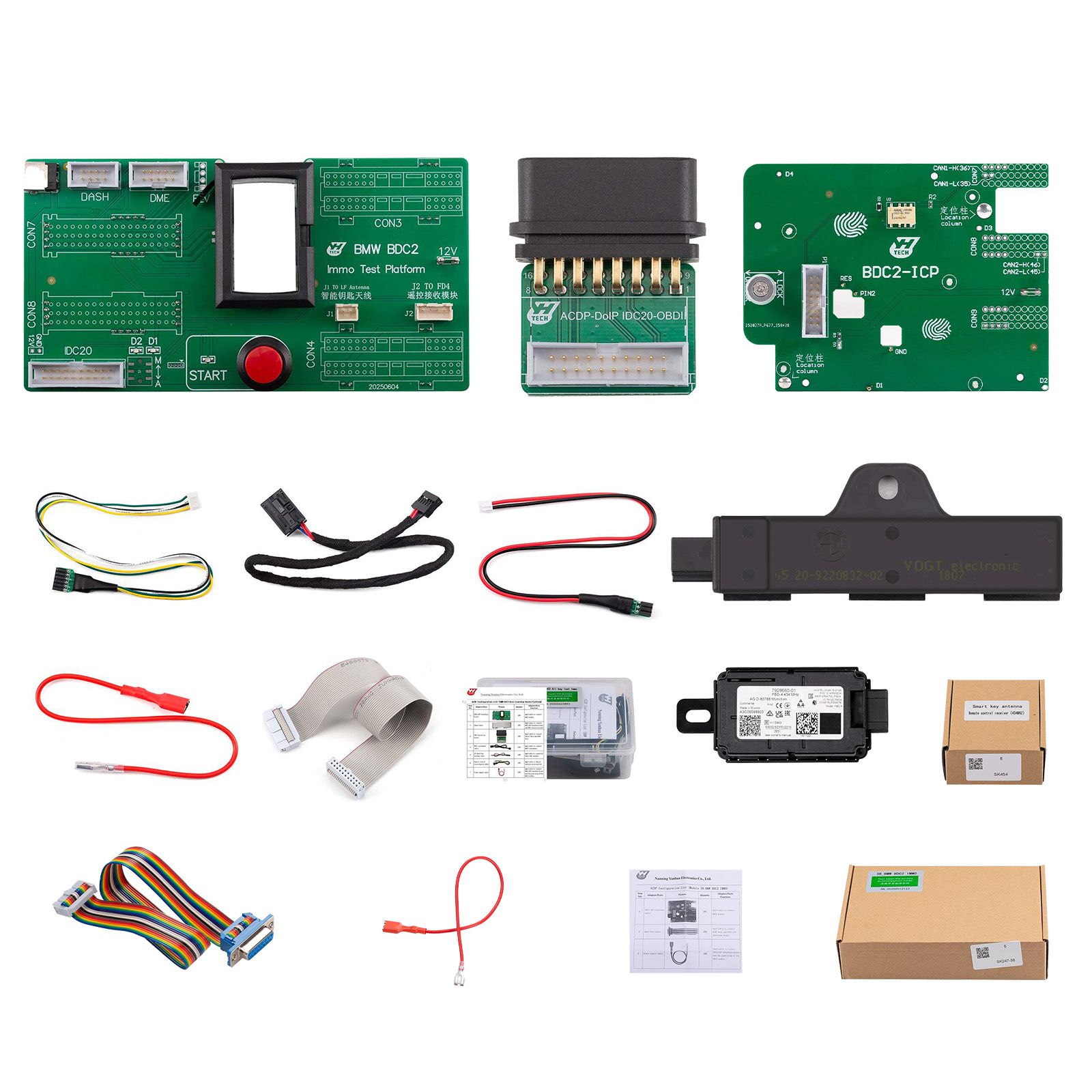

Package includes:

ACDP Configuration List (BMW BDC2 Keys Learning Bench Platform):

Item No.	Adapters/Parts	Quantity	Adapters/Parts Functions
1	BDC2-ICP Interface board	1pc	Applicable to connect BDC2 module
2	20pin Cable	1pc	Applicable to connect BDC2-ICP Interface board and OBD Conversion board
3	OBD Conversion board	1pc	Applicable to connect 20pin Cable and ACDP host.
4	BDC2 instrument cable	1pc	Applicable to connect BDC2 instrument
5	LF Smart Key antenna cable	1pc	Applicable to connect LF Smart Key antenna.
6	Remote control receiving box cable	1pc	Applicable to Remote control receiving box.
7	Power supply cable	1pc	Applicable to connect BDC2-ICP interface board and the power plug of the BDC2 module.

1pc x Second-hand Smart Key Antenna
1pc x Second-hand Remote Control Receiver(434MHZ)
