all-sun EM5812 Modern digital cable length meter 4 1/2 digit display automatic temperature compensation 20 pre-set wire gauge


NOTE: The package content is not included battery.


We send parcel by China Post Air,the policy is that the parcel must be not included the battery,


if it has battery, will not get through the custom.

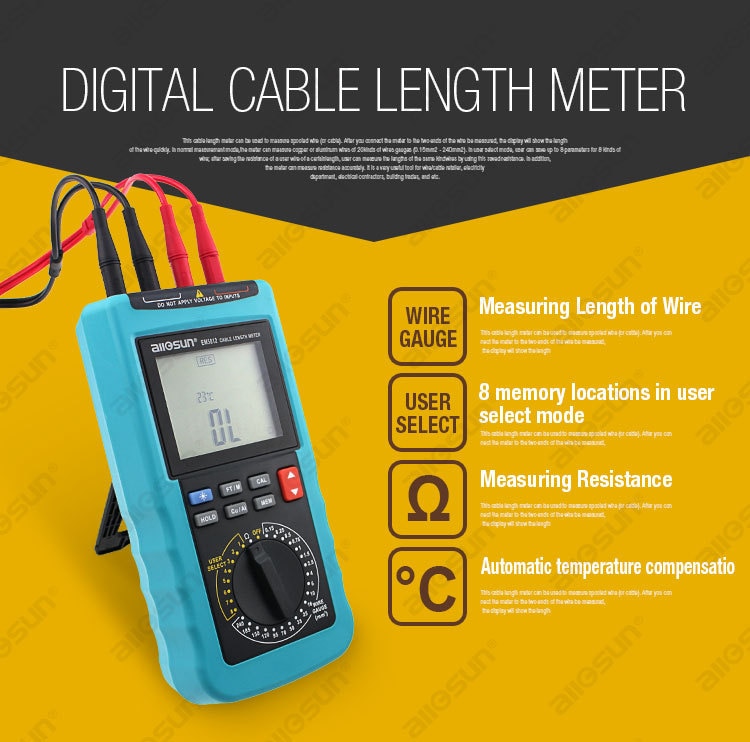

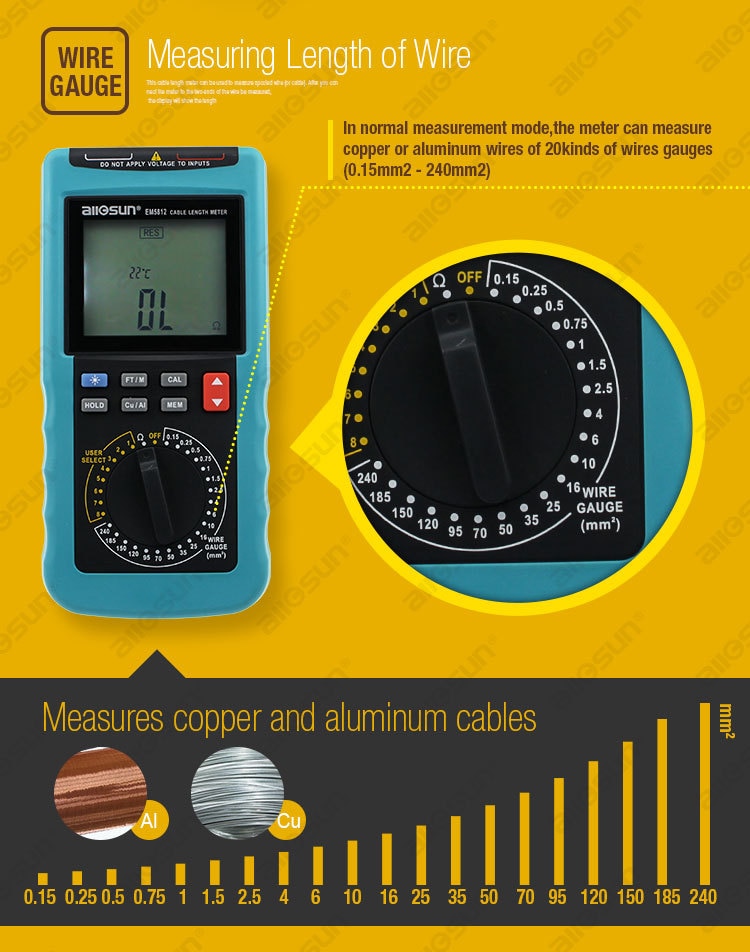

This cable length meter can be used to measure spooled wire (or cable). After you connect the meter to the two ends of the wire to be measured, the display will indicate the length of the wire quickly. In normal measurement mode, the meter can measure copper or aluminum wires of 20 kinds of wire gauges. In user select mode, user can save up to 8 parameters for 8 wire samples; after saving the resistance of a copper or aluminum wire of a certain length, user can measure the lengths of other wires of the same kind by using this saved resistance. In addition, the meter can measure resistance accurately. It Is a very useful tool for wire/cable retailer, electricity department,electrical contractors, building trades, and etc.













FEATURE


1. Built-in buzzer, backlight and 4 1/2-digit display


2. Reads in feet and meters


3. Measures copper and aluminum cables

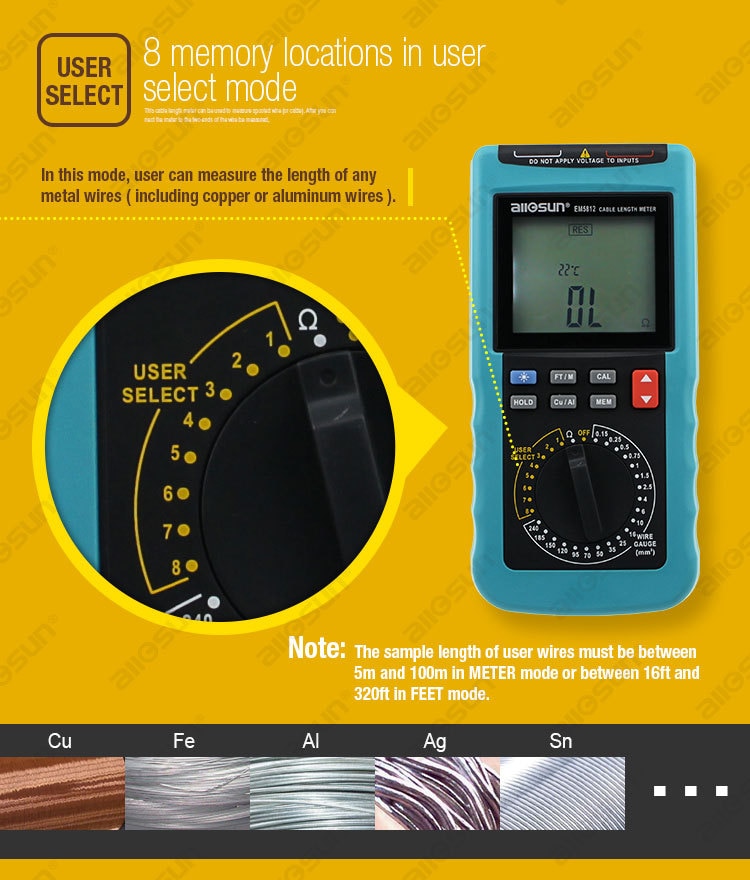

4. 8 memory locations in User Select mode


5. 20 pre-set wire gauge settings:


18AWG, 16AWG, 14AWG, 12AWG, 10AWG, 8AWG, 6AWG, 4AWG, 2AWG, 1/0, 2/0, 3/0, 4/0, 250kcmil, 350kcmil, 400kcmil, 500kcmil, 600kcmil, 750kcmil, 1000kcmil

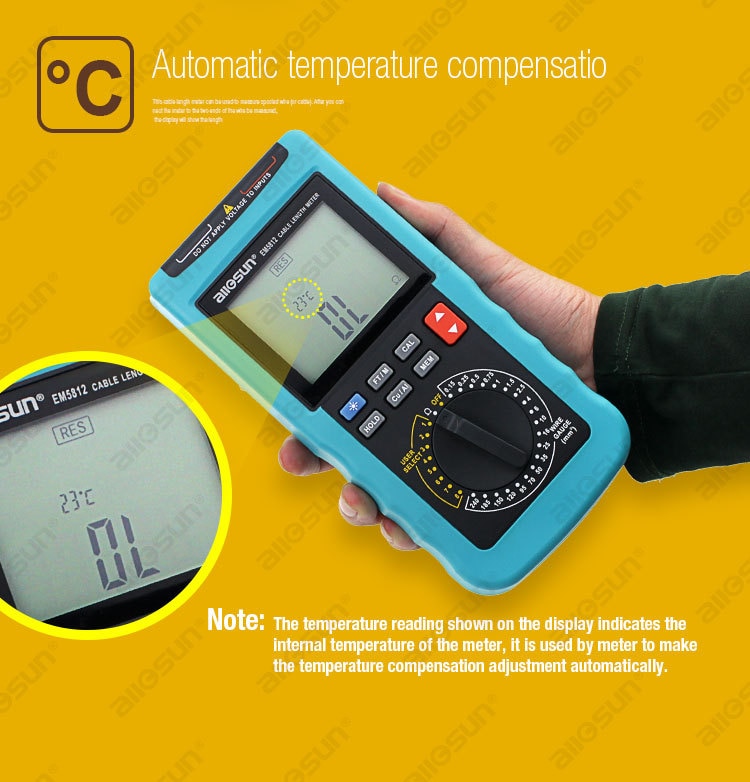

6. Automatic temperature compensation

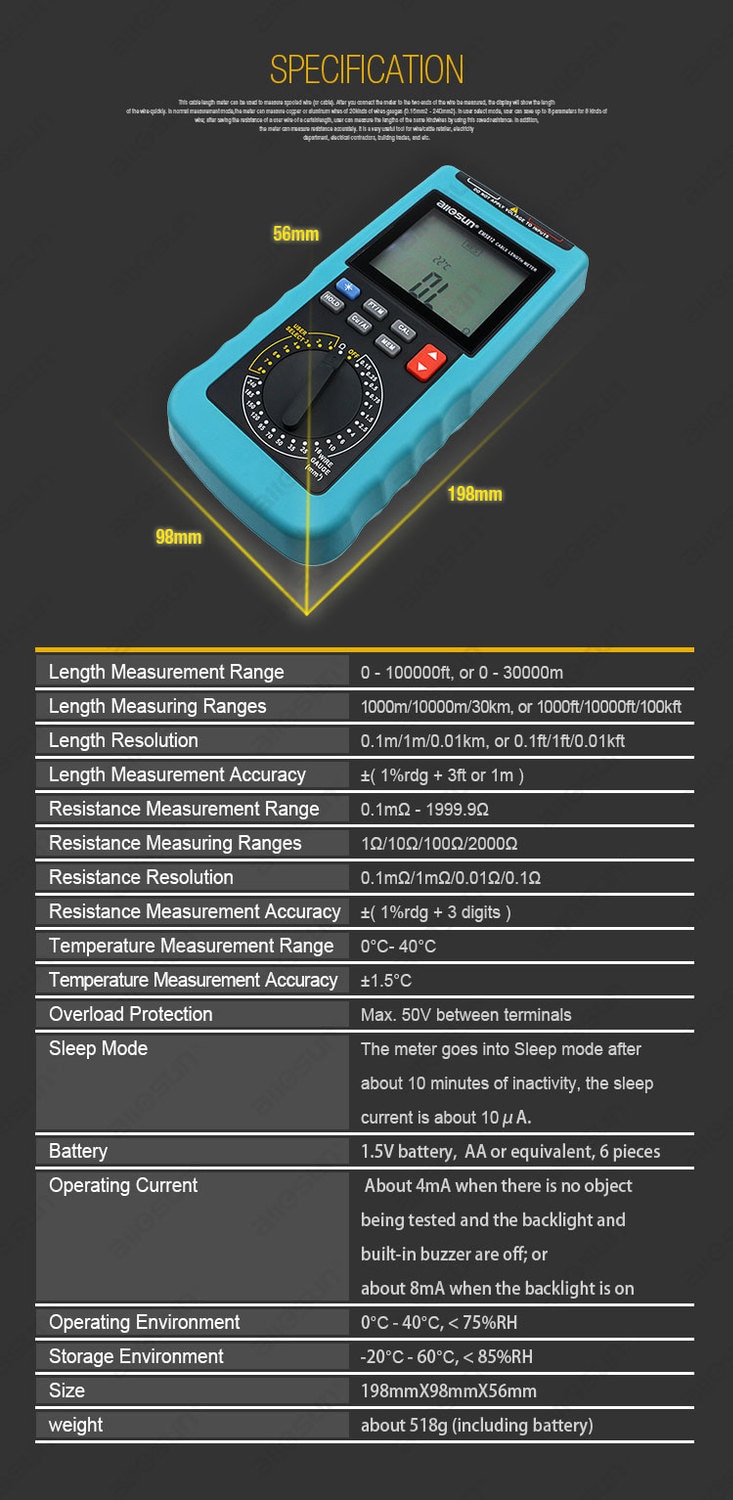

SPECIFICATION


Length Measurement Range: 0 - 100kft, or 0 - 30km


Length Measuring Ranges: 1000ft/10000ft/100kft, or 1000m/10000m/30km


Length Resolution: 0.1ft/0.001kft/0.01kft, or 0.1m/0.001km/0.01km


Length Measurement Accuracy: ± ( 1%rdg + 3ft or 1m )

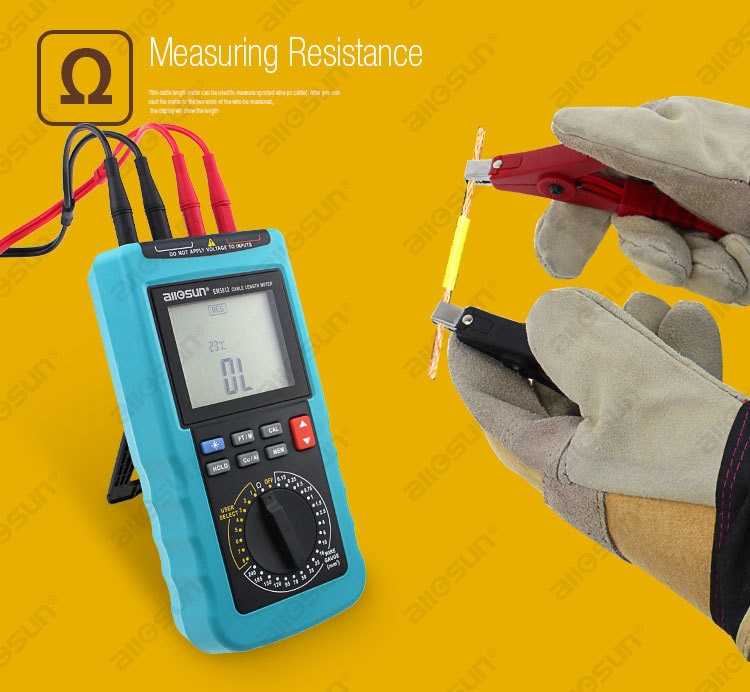

Resistance Measurement Range: 0.01mΩ - 1999.9Ω


Resistance Measuring Ranges: 200mΩ/2Ω/20Ω/200Ω/2000Ω


Resistance Resolution: 0.01mΩ/0.1mΩ/0.001Ω/0.01Ω/0.1Ω


Resistance Measurement Accuracy: ± ( 1%rdg + 3 digits )


Temperature Measurement Range: 0 degree - 40 degree


Temperature Measurement Accuracy: ± 1.5 degree


Overload Protection: Max. 50V between terminals


Sample Wire Length in User Select Mode: 16.0 - 320.0ft,or 5.0 - 100.0m


Battery: 1.5V battery, AA or equivalent, 6 pieces(NOT INCLUDED).


Sleep Mode: The meter goes into Sleep mode after about 10 minutes of inactivity


Operating Current: About 5mA when no object is being tested and both the backlight and built-in buzzer are off


Operating Environment: 0 degree - 40 degree, < 75%RH


Storage Environment: -20 degree - 60 degree, < 85%RH


Size: 201mmX98mmX56mm


Weight: About 510g

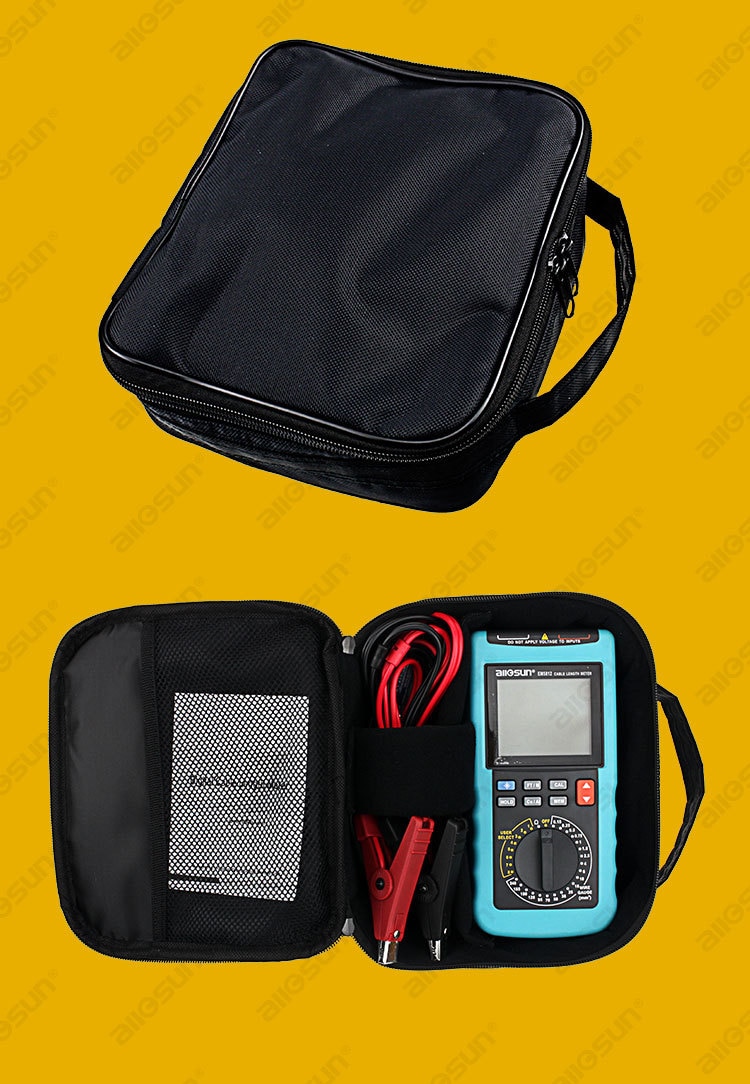

ACCESSORIES


Manual: 1 piece


Test Lead With Alligator Clip: 1 set


Copper Rod: 1 piece
