100% Original Autel G-BOX2 Tool for mercedes Benz all key lost – Works with Autel MaxiIM IM608/IM508

Highlights of Autel G-BOX2

• Supports mercedes-Benz all key lost scenarios with faster password calculation
• Works with both IM608 and IM508 when used with XP400
• Enables faster reading of mercedes ECU data and EIS password calculation
• Supports Mercedes DAS3 EIS/EZS for all keys lost procedures
• Reduces reading time of W204 ECU data and W207 EIS by over 85%
• No need to remove and reinsert the key for W221 & W164 models after 2009

Autel G-BOX2 Description

The G-BOX2 enables fast mode operation both on-vehicle and on the bench when all keys are lost for Mercedes-Benz vehicles using DAS3 EIS/EZS systems. It significantly reduces processing time and eliminates the need for repeated key insertion and removal.

The G-BOX2 can read and access most Bosch-manufactured engine control units, including EDS/ME x17 series engines used in BMW and Volkswagen vehicles. This functionality supports adaptation procedures when all keys are lost and the engine has been replaced.

The G-BOX2 is fully compatible with Autel’s advanced diagnostic tablets that support IMMO and key programming functions.

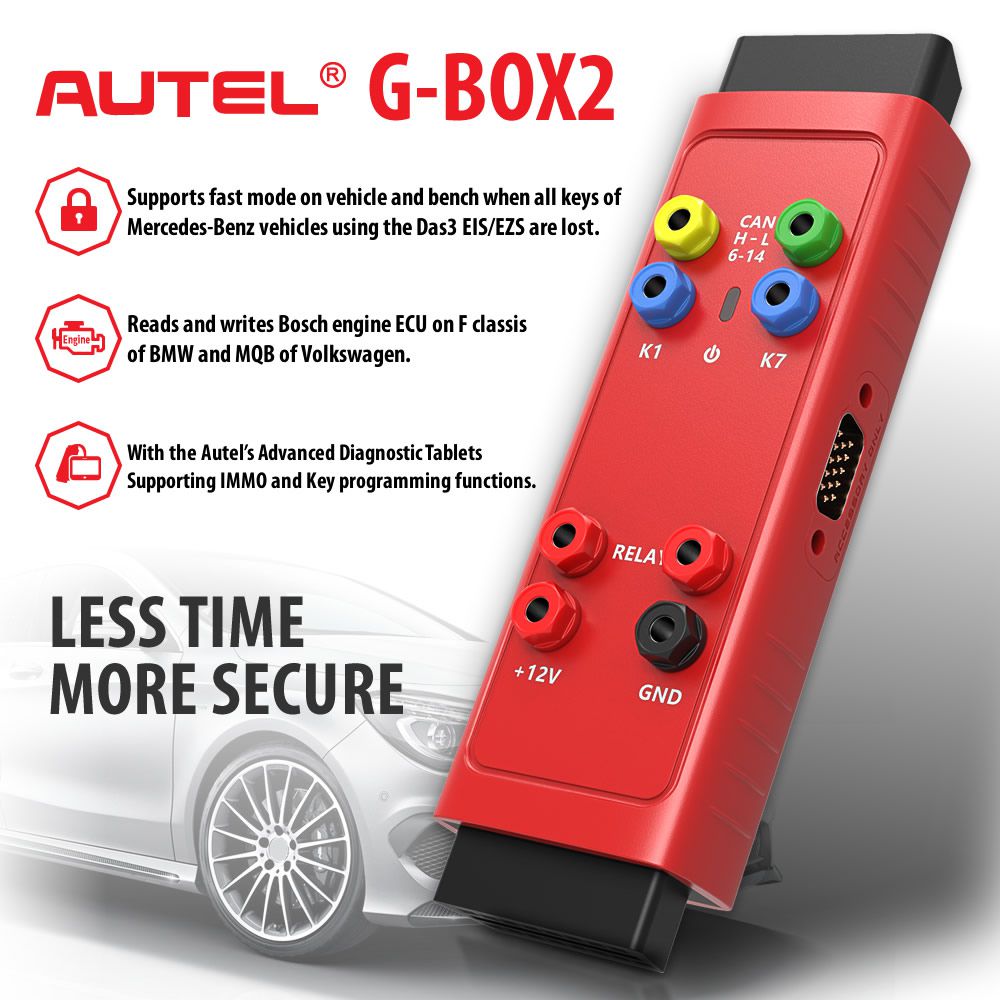

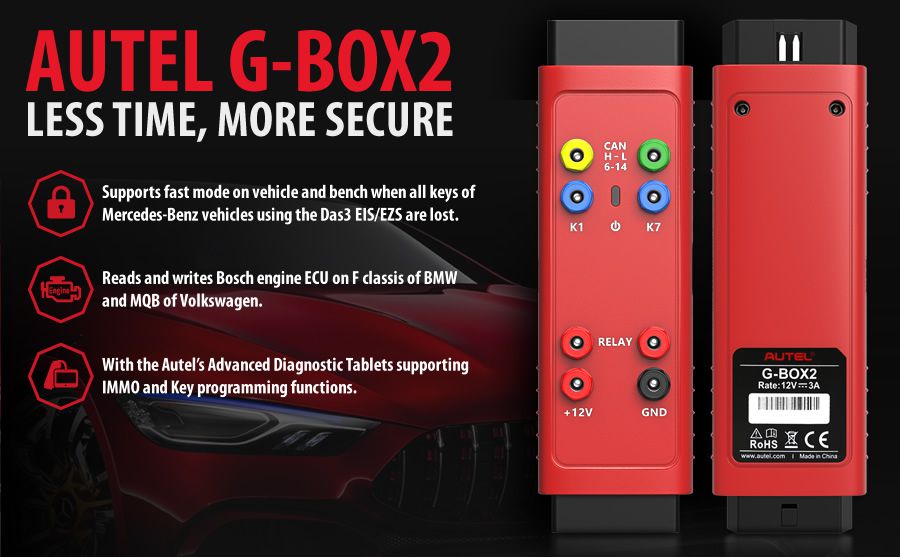

Less Time, More Secure

• Supports fast mode on vehicle and bench for Mercedes-Benz vehicles with DAS3 EIS/EZS when all keys are lost
• Reads and writes Bosch Engine ECUs on BMW F-Class and Volkswagen MQB platforms
• Integrates seamlessly with Autel’s advanced diagnostic tablets supporting IMMO and key programming functions

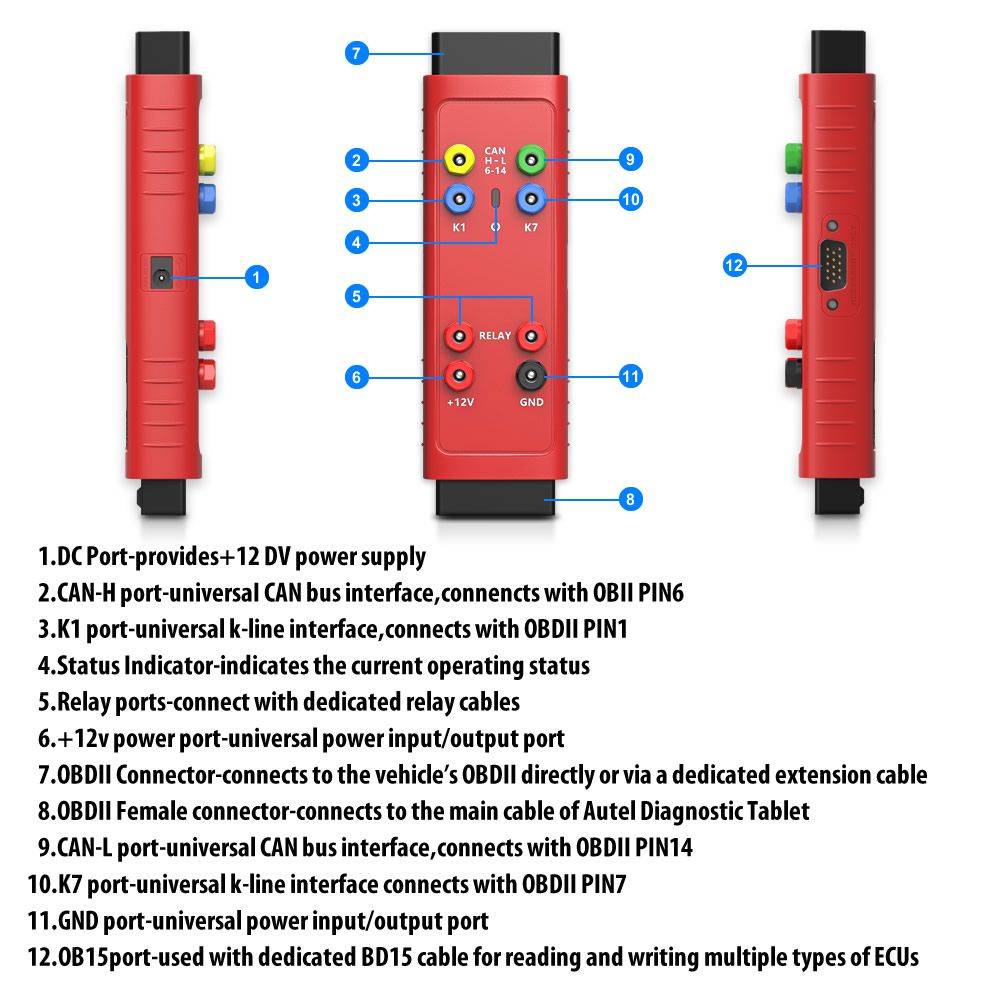

Autel G-BOX2 Product Display

1. DC Port – Provides +12V DC power supply.
2. CAN-H Port – Universal CAN bus interface, connects with OBDII Pin 6.
3. K1 Port – Universal K-Line interface, connects with OBDII Pin 1.
4. Status Indicator – Indicates the current operating status.
5. Relay Ports – Connect with dedicated relay cables.
6. +12V Power Port – Universal power input/output port.
7. OBDII Connector – Connects directly to the vehicle's OBDII port or via a dedicated extension cable.
8. OBDII Female Connector – Connects to the main cable of Autel diagnostic tablet.
9. CAN-L Port – Universal CAN Bus interface, connects with OBDII Pin 14.
10. K7 Port – Universal K-Line interface, connects with OBDII Pin 7.
11. GND Port – Universal ground/power input/output port.
12. DB15 Port – Used with dedicated DB15 cable for reading and writing multiple types of ECUs.

How to Use Autel G-BOX2

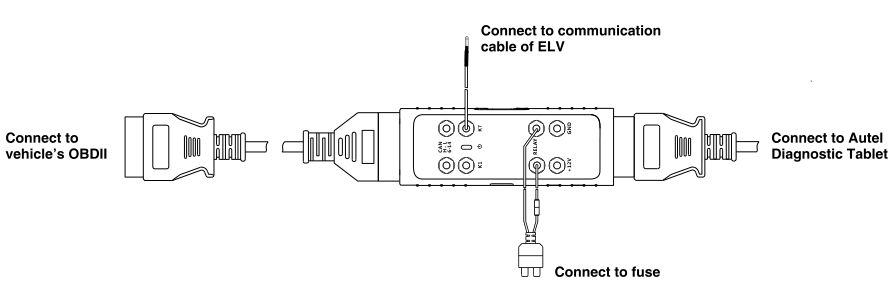

OBDII Operation When All Keys of Mercedes-Benz Vehicle Are Lost

Use OBDII access on Mercedes-Benz vehicles manufactured after 2009 with W204, W207, W216, and W164 EIS systems.

How to Perform OBD Procedure When All Keys of Mercedes-Benz Vehicle Are Lost

This method is suitable for Mercedes-Benz W204, W207, W216, and W164 EIS systems produced after 2009.

How to Perform Bench Procedure When All Keys of Mercedes-Benz Vehicle Are Lost

This method is suitable for all Mercedes-Benz EIS systems already supported by Autel Diagnostic Tablets.

How to Connect Autel G-BOX2 – Step by Step

1. Plug the G-Box into the Mercedes-Benz EIS using the included DB15 cable.
2. Connect a 12V DC power adapter to the DC port of the G-Box.
3. Connect the G-Box to the Autel Diagnostic Tablet (MaxiIM IM608, IM508).

Autel G-BOX2 Package Included

• 1pc × Autel G-BOX2
• 1pc × DB15 Cable
• 1pc × K-Line Cable
• 1pc × Fuse Cable
• 2pcs × Fuse (5A)
• 2pcs × Clamp Cable

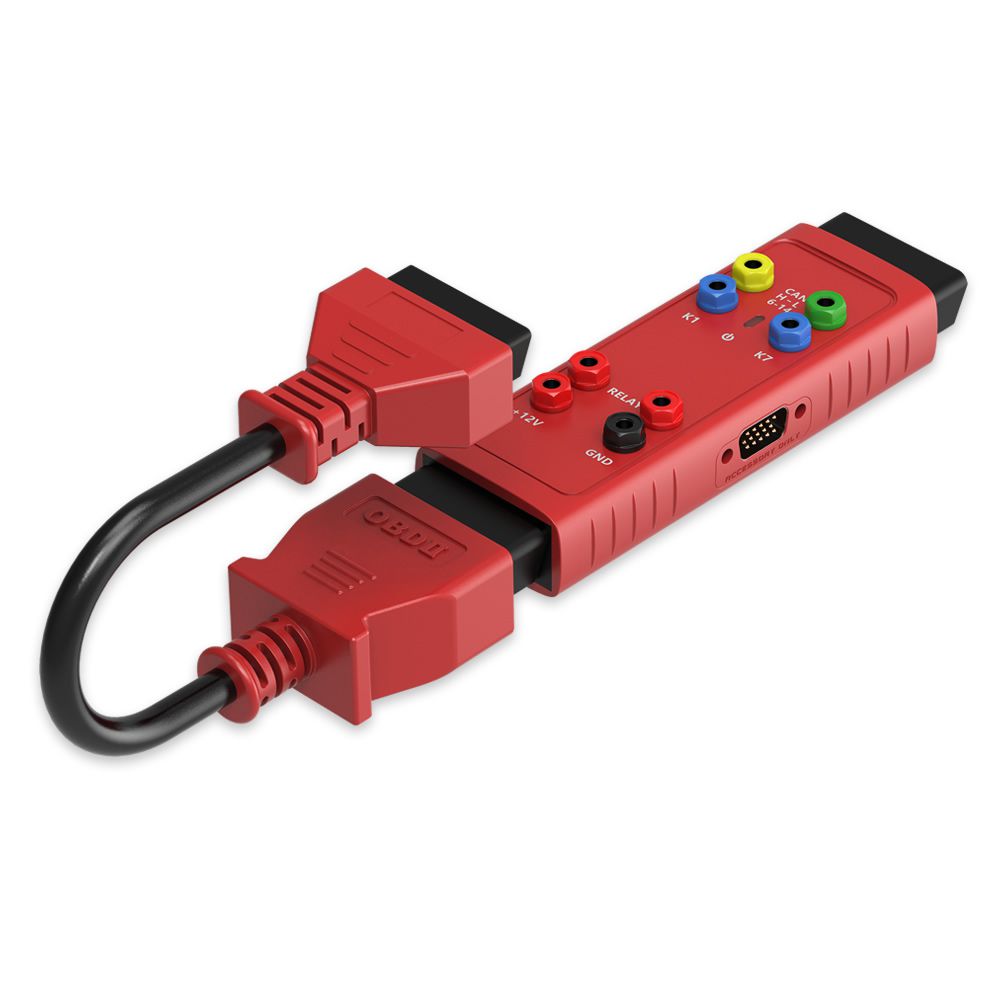

• 1pc × OBDII Extension Cable
• 1pc × Quick Reference Guide
