Autel TPMS Diagnostic and Service Tool MaxiTPMS TS601 is the most powerful and functional tool in the market. It can fully diagnose TPMS problem, activate TPMS sensors and reprogramming the vehicle's ECU.
Item No. COBD219
5 stars, 9 reviews.
In Stock
Price:
US$385.00/ piece
Discount Price:
US$349.00/ piece 9%
Quantity:

Shipping:
Free ShippingStandard Flat Rate Shipping Service
Estimated delivery time: 7-45 working days.See details»
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat Ask a question

Autel TPMS Diagnostic and Service Tool MaxiTPMS TS601

Language:
English

Update: Free update online forever

How to update Autel MaxiTPMS TS601 Tool?

Take out the SD Card from your device and insert the card to a PC, use the PC Suite included on the product CD to update.



Features:

Reads activated sensor data including sensor ID, tire pressure, temperature, battery condition, OE part number, relearn information
Activates ALL magnetic, frequency and tire deflation triggered sensors using 125KHz continuous or modulated wave signals
Reads, records and playbacks TPMS live data, including tire pressure, signal status, temperature, battery status, etc.
Incredibly easy to use with intuitive navigation and step-by-step on-screen instructions
Provides visual and audible responses to confirm sensors are working properly
Reads / clears codes of TPMS system and resets malfunction indicator light
Capable of programming single tires for Chrysler, Renault, and Citroen
Graphs vehicle with 4 or 5 wheels to simplify the diagnostic process
Ergonomic design features strong housing and protective rubber boot
Pre-selection process offers faster activation and diagnostics
Checks Remote Keyless Entry (Key FOB) for transmissions
Programs vehicle ECU to learn sensor IDs and positions
Proper LF signal to prevent being fooled by other RF signals
Receives both 315MHz and 433MHz signals
Reads / writes sensor ID from vehicle ECU
Performs actuation tests and special functions
Free update on the internet via USB port
Retrieves TPMS ECU information
On-screen code definitions
Built-in rechargeable Li-polymer battery
Automatic power-off to preserve battery life

autel-ts601-1
autel-ts601-2
autel-ts601-3
autel-ts601-4
autel-tpms-ts601-1
autel-tpms-ts601-2
autel-tpms-ts601-3

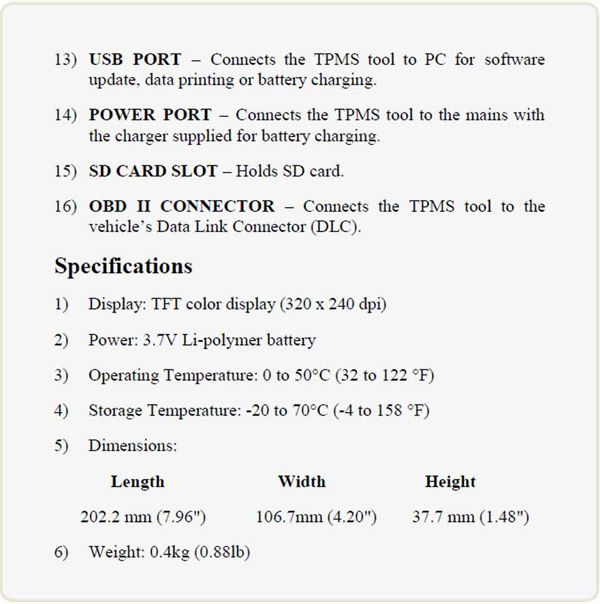

Autel TS601 Specifications:

Display TFT color display (320 x 240 dpi)
Power 3.7V Li-polymer battery
Operating Temperature 0 to 50°C (32 to 122 °F)
Storage Temperature -20 to 70°C (-4 to 158 °F)

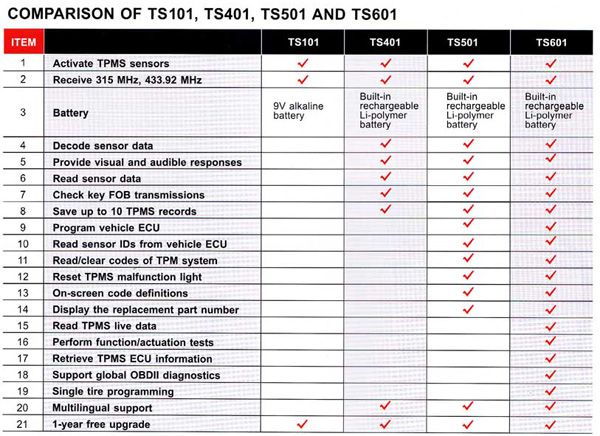

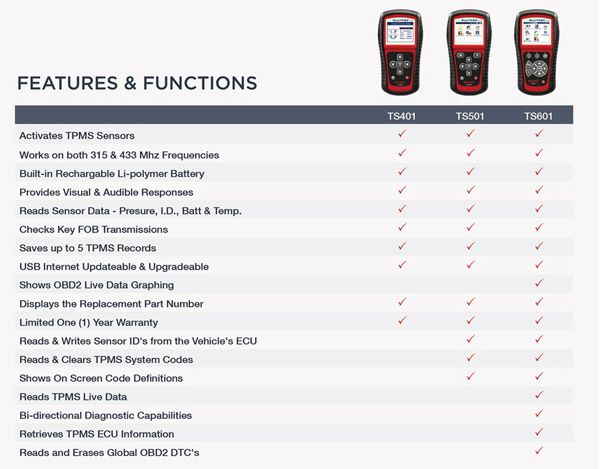

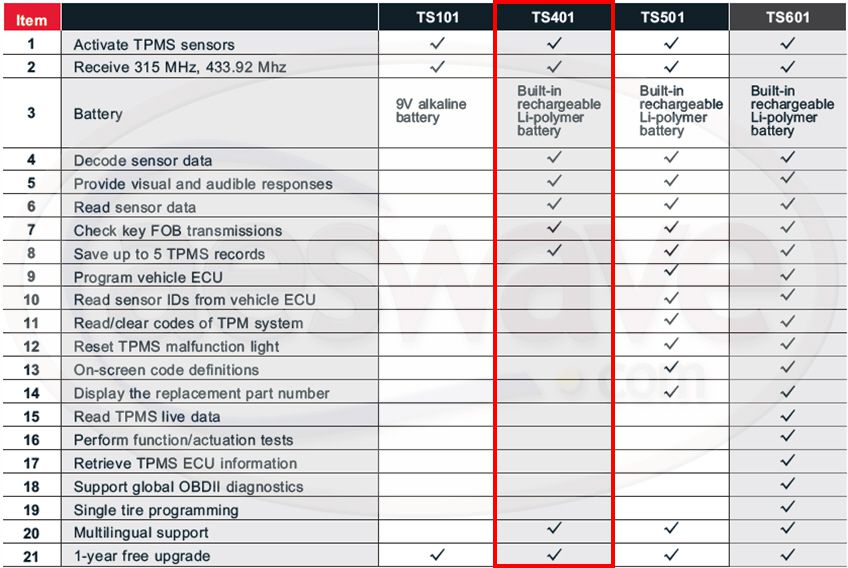

Autel TPMS Tool series TS401, TS501 and TS601 Comparison:

autel-tpms-comparison
autel-tpms-comparison-2

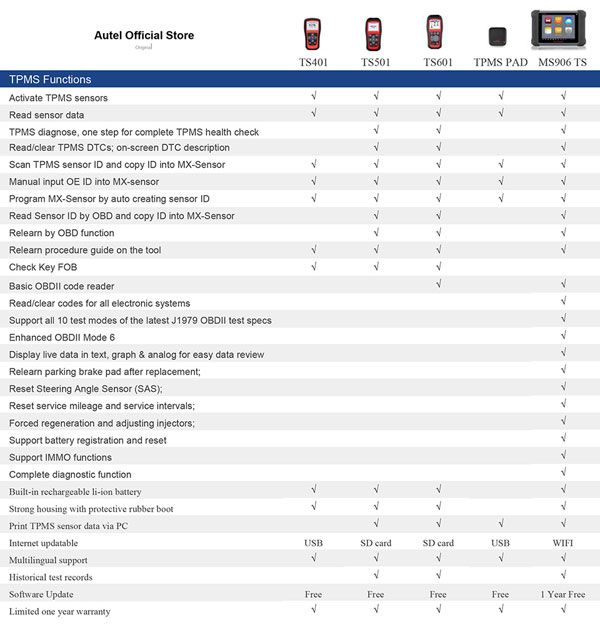

Autel TS601 vs. TPMS PAD vs. MaxiSYS MS906TS
autel-tpms-tools

Package List:

1 x TS601 main unit

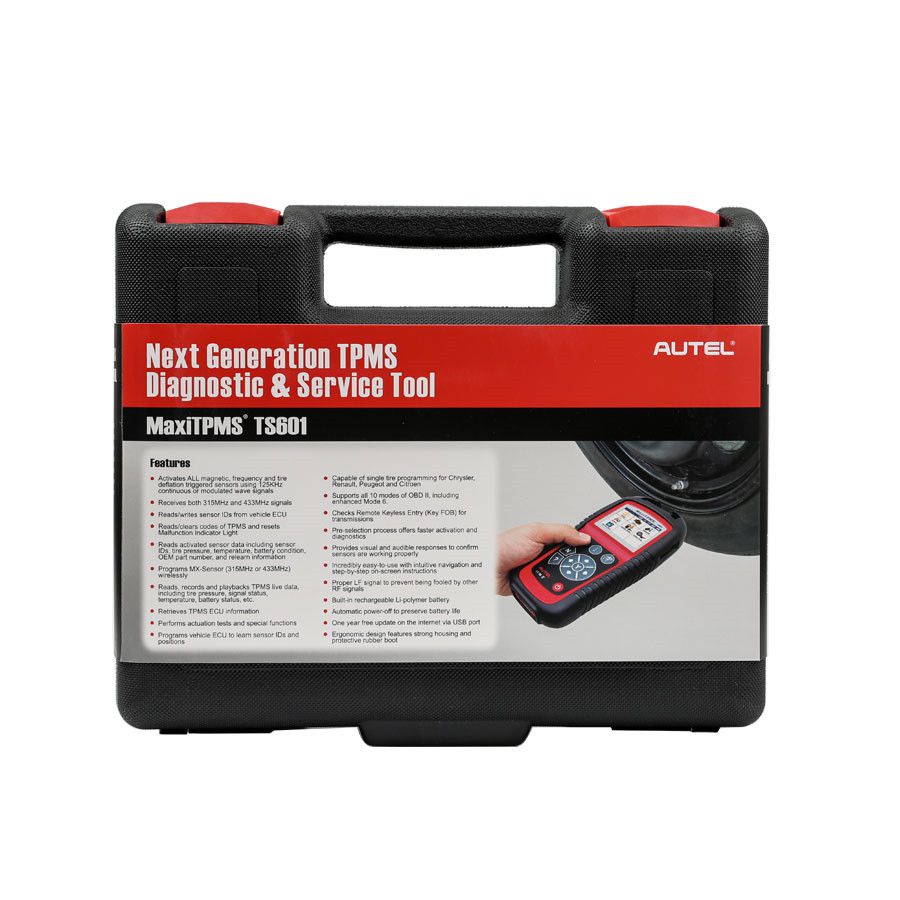

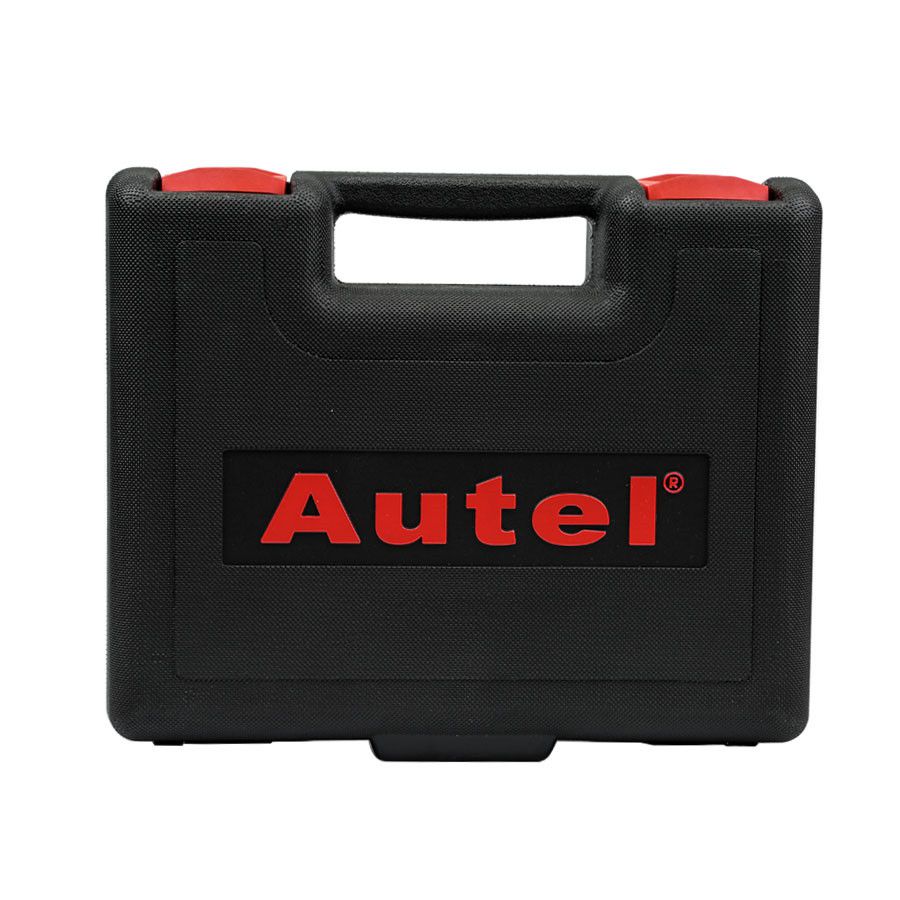

1 x Carry case
1 x SD Card
1 x CD

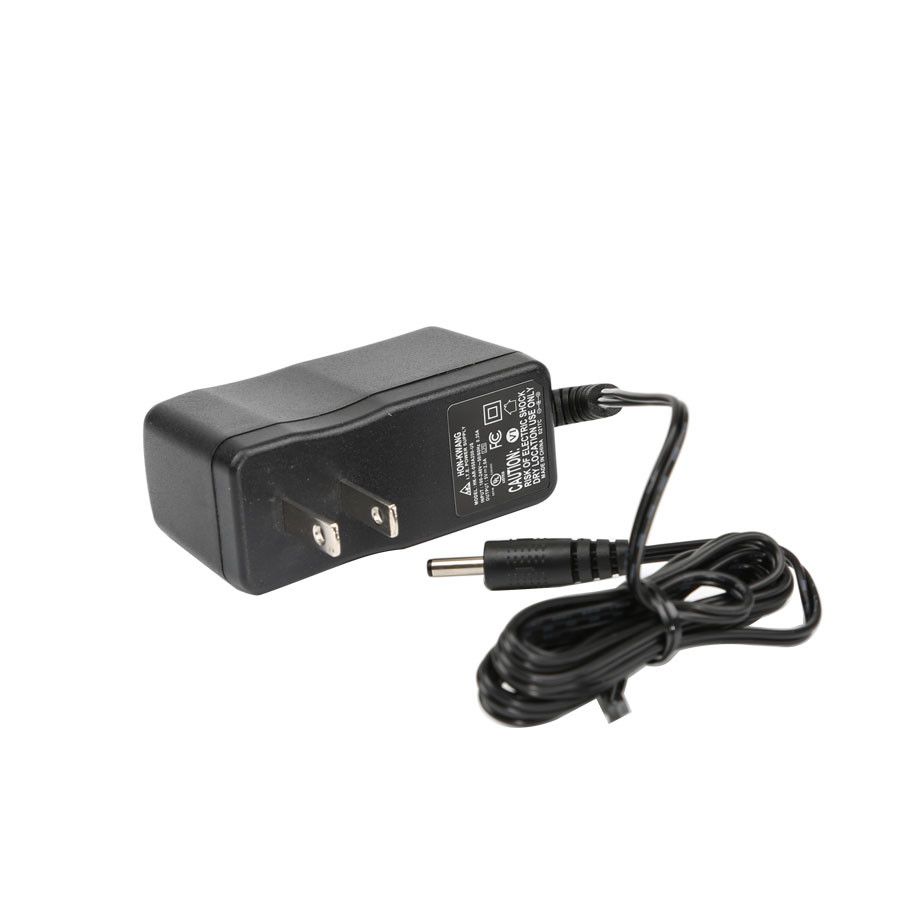

1×Charger
1×Magnet
1×OBDII Cable
1×User's Manual
1xUSB Cable
