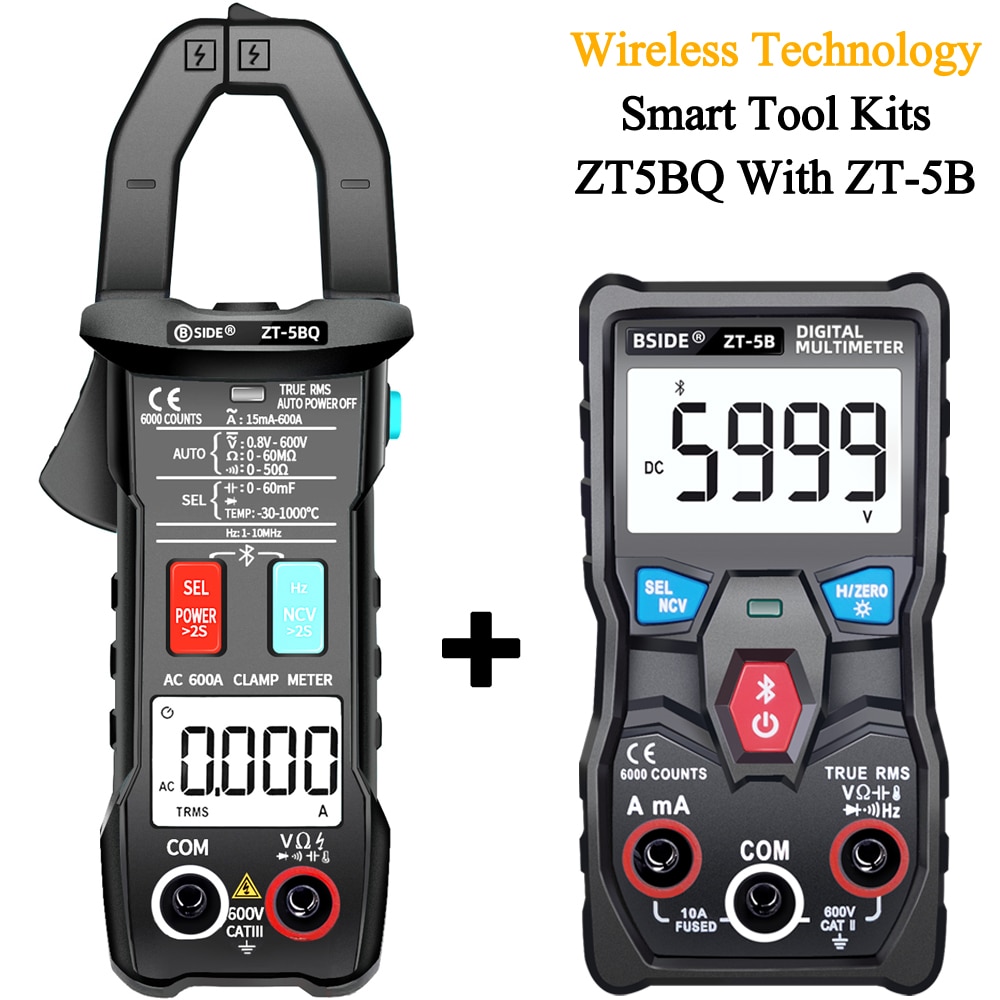

Digital Clamp meter ZT-5BQ/ZT-5B Wireless Technology Smart multimeter True RMS Voltmeter Ammeter Auto Rang Capacitor NCV Tester

Product introduction:

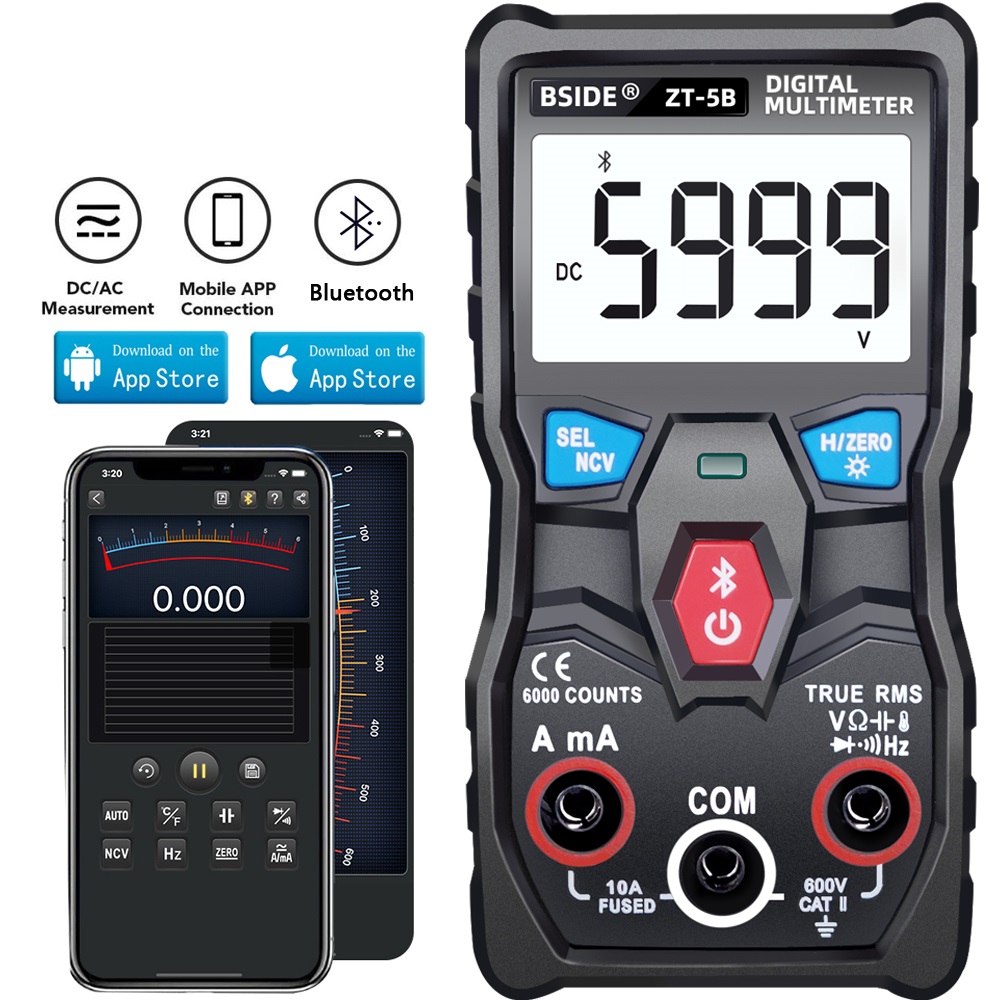

ZT-5B is a Ultra-portable Bluetooth smart multimeter.

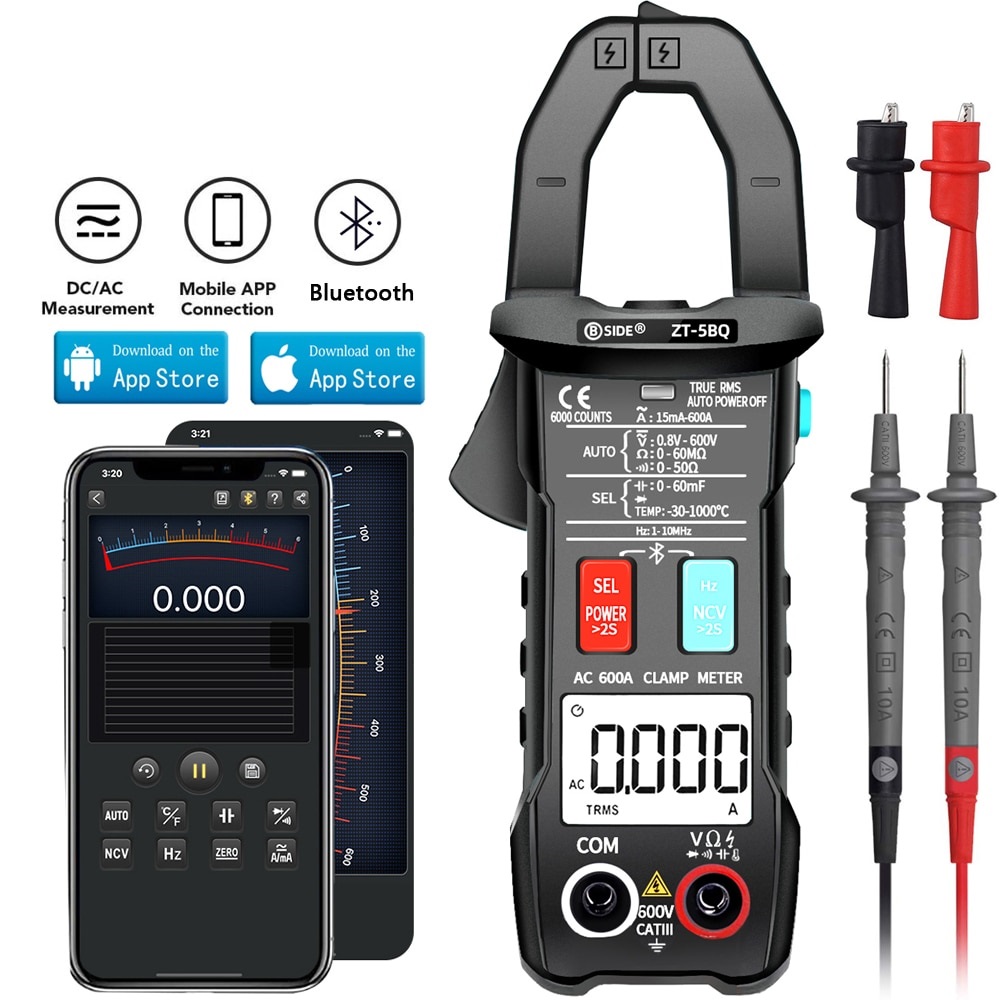

ZT-5BQ is a AC current 600A Bluetooth smart Clamp meter.

Which can intelligently identify voltage, resistance and continuity measurements. In the basic measurement, we do not need to shift.

It is the first multimeter that can be used perfectly with Deniu 1.0.

Product advantages:

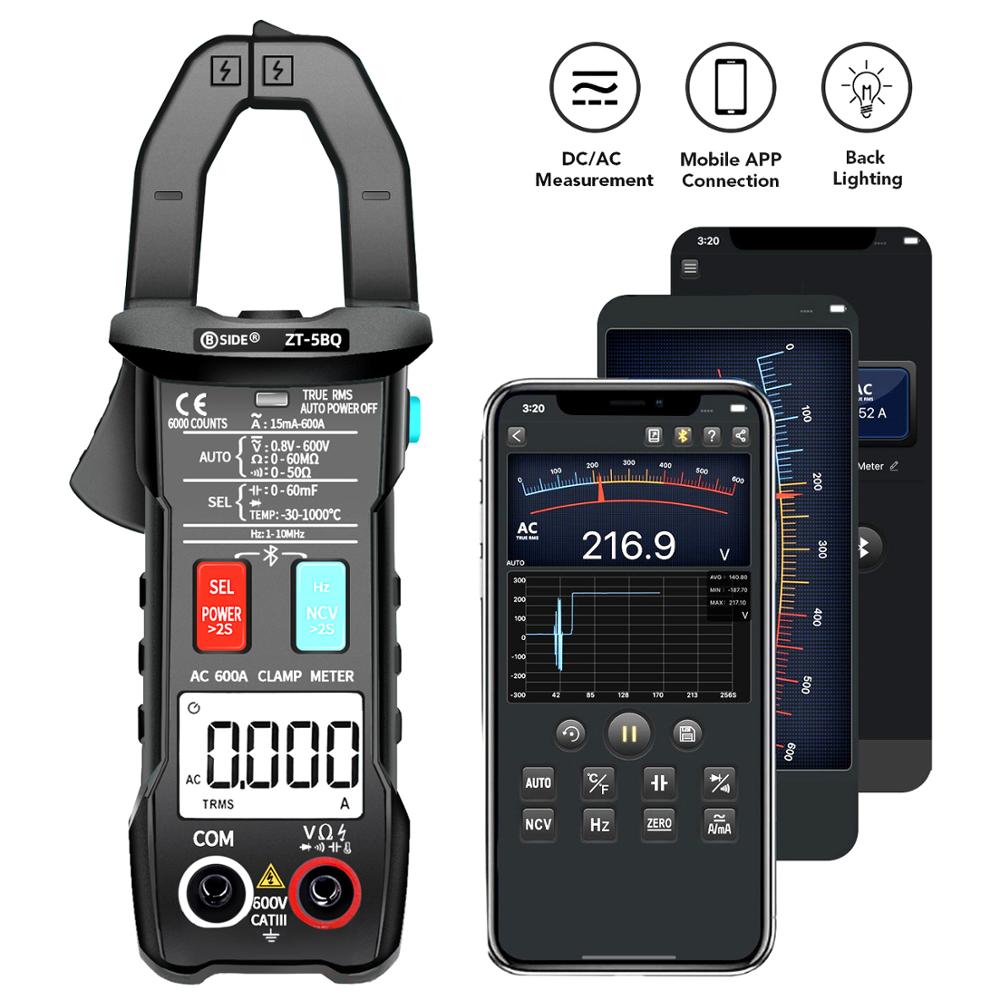

1. Bluetooth connection: mobile phone can directly control the multimeter.

2. More applications of measurement data: data recording, data graphics, data sharing, data storage and export, threshold alarm.

3. Multi-meter collaboration: APP can connect four Bluetooth multimeters and simultaneously monitor the measurement data of the four multimeters in real time.

4. Intelligent calculation function: use multimeter data to quickly calculate mathematical formulas such as power.

5. Remote assistance: real-time remote screen synchronization, easy zero-distance communication, and ultra-distance real-time monitoring.

6. Find a master-multimeter user communication platform
Five major categories: home appliance repair, electrician knowledge, circuit synthesis, Q & A, and fan discussions.

Order Notice:

The APP download site is as follows. Favorite friends can download in advance. Thank you!

https://multimeter.szoyi.com:8081/share/index.html

ZT-5B Specifications:

Display: 6000 counts

DC voltage: 6V/60V/600V ±(0.5%+3)

AC voltage: 6V/60V/600V ± (1.0%+3)

DC current: 999.9mA/9.999A ±(1.0%+4)

AC current: 999.9mA/9.999A ±(2.0%+3)

Capacitance: 6nF±(5.0%+20); 60nF/600nF/6uF/60uF/600uF ±(3.5%+4); 6mF ±(5.0%+5)

Resistance: 6KΩ ±(1.5%+3); 60KΩ/600KΩ/6MΩ ±(1.0%+3); 60MΩ ±(1.5%+3)

Frequency: 6Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz ±(1%+2)

Temperature: -20~1000℃ / -4~1832℉ ±(3%+5)

NCV (Non-contact Voltage Detection): Yes

Diode Test: Yes

Continuity: Yes

Power: 1.5V AAA * 2

Size:120mm*61mm*28mm

Weight: 117g

ZT-5BQ Specifications:

Display: 6000 counts

DC voltage: 6V/60V/600V ±(0.5%+3)

AC voltage: 6V/60V/600V ± (1.0%+3)

AC current: 600mA/6A/60A/600A±(2.0%+3)

Capacitance: 6nF±(5.0%+20);
60nF/600nF/6uF/60uF/600uF ±(3.5%+4); 6mF ±(5.0%+5)

Resistance: 6KΩ ±(1.5%+3); 60KΩ/600KΩ/6MΩ ±(1.0%+3); 60MΩ ±(1.5%+3)

Frequency: 6Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz ±(1%+2)

Temperature: -20~1000℃ / -4~1832℉ ±(3%+5)

NCV (Non-contact Voltage Detection): Yes

Diode Test: Yes

Continuity: Yes

Power: 1.5V AAA * 2

Size:170mm*61mm*28mm

Weight: 117g

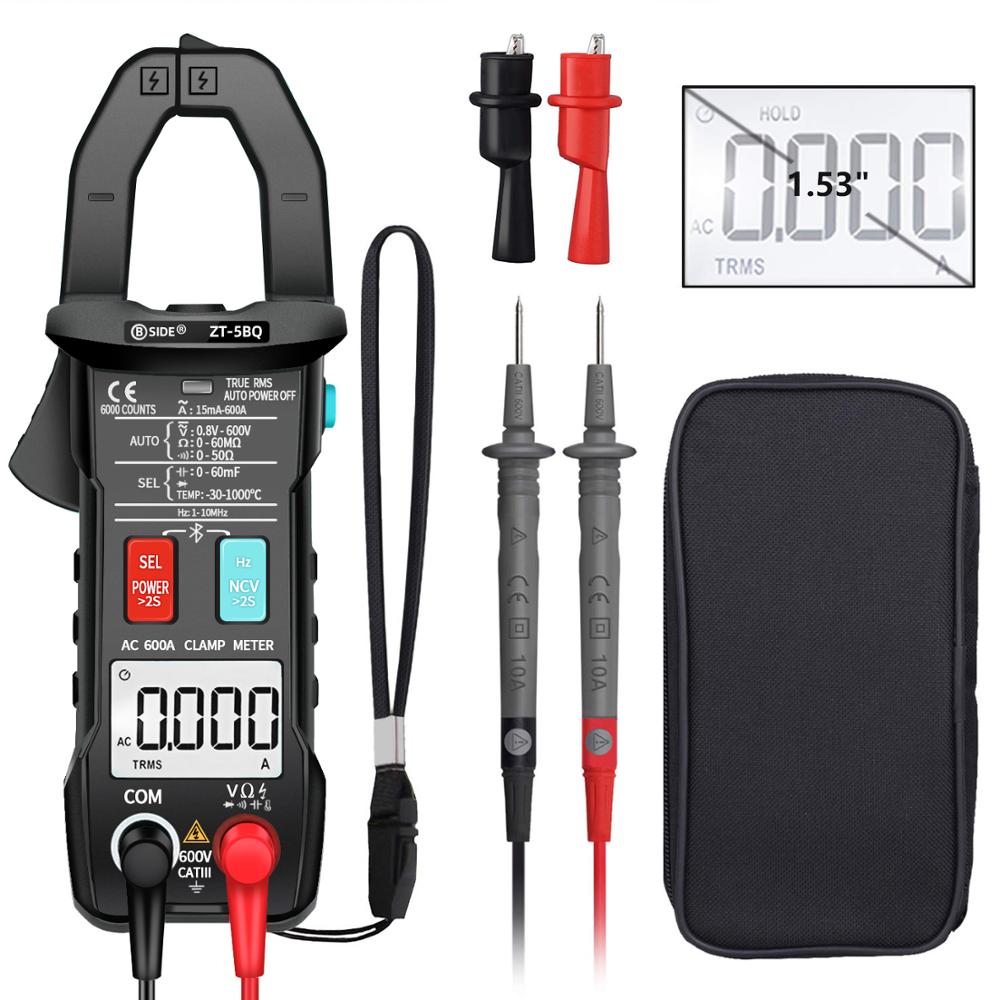

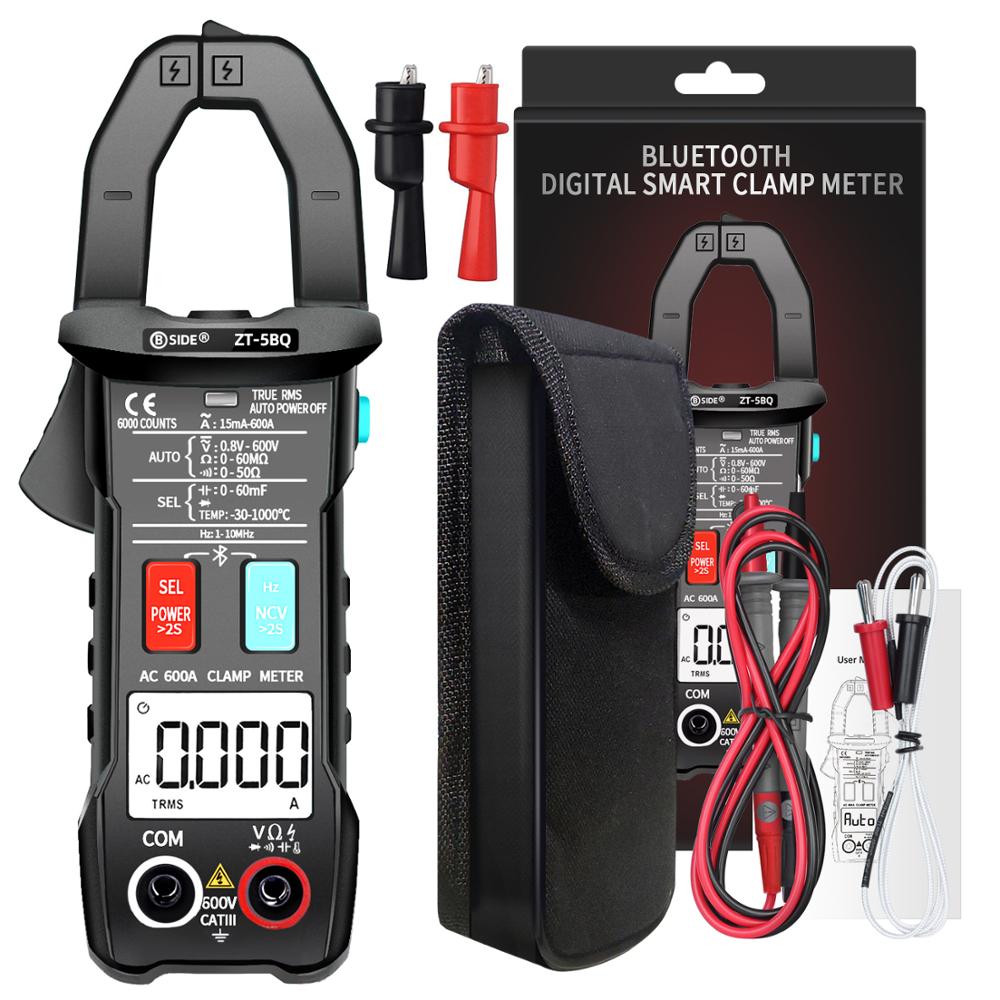

Package Includes:

1 * ZT-5B/ZT-5BQ Wireless Multimeter

1 * Probes 1 * Thermocouple

1 * User Manual 1 * Color box
