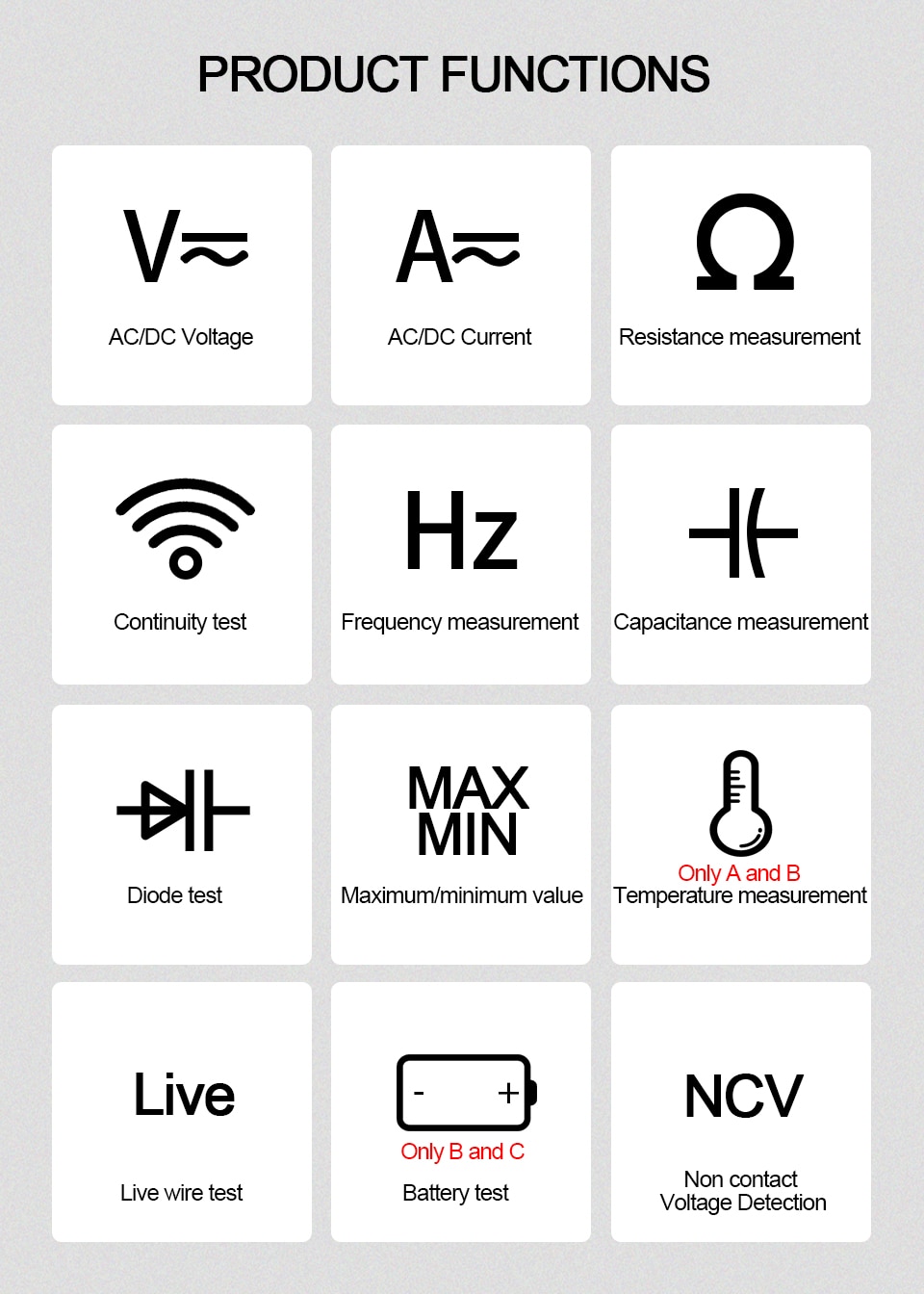

Multimeter is an Professional Multimeter which can measure AC and DC voltage, AC and DC current, resistance, capacitance, continuity, diode, NCV,etc.; It is the best choice for professional electrician, engineer, electronic enthusiast or family use, Wholesale Digital Multimeter
Item No. COBD27666 Price Down Notice
In Stock
Price:
US$61.98/ piece
Discount Price:
US$29.13/ piece 53%
Option:
  • GD108A Auto range
  • GD108B with Temp
  • GD108C Basic
Quantity:

Shipping:
Airmail Post
Estimated delivery time: 7-45 working days.See details»
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat WhatsApp Skype Ask a question

Related Accessories/Similar Items

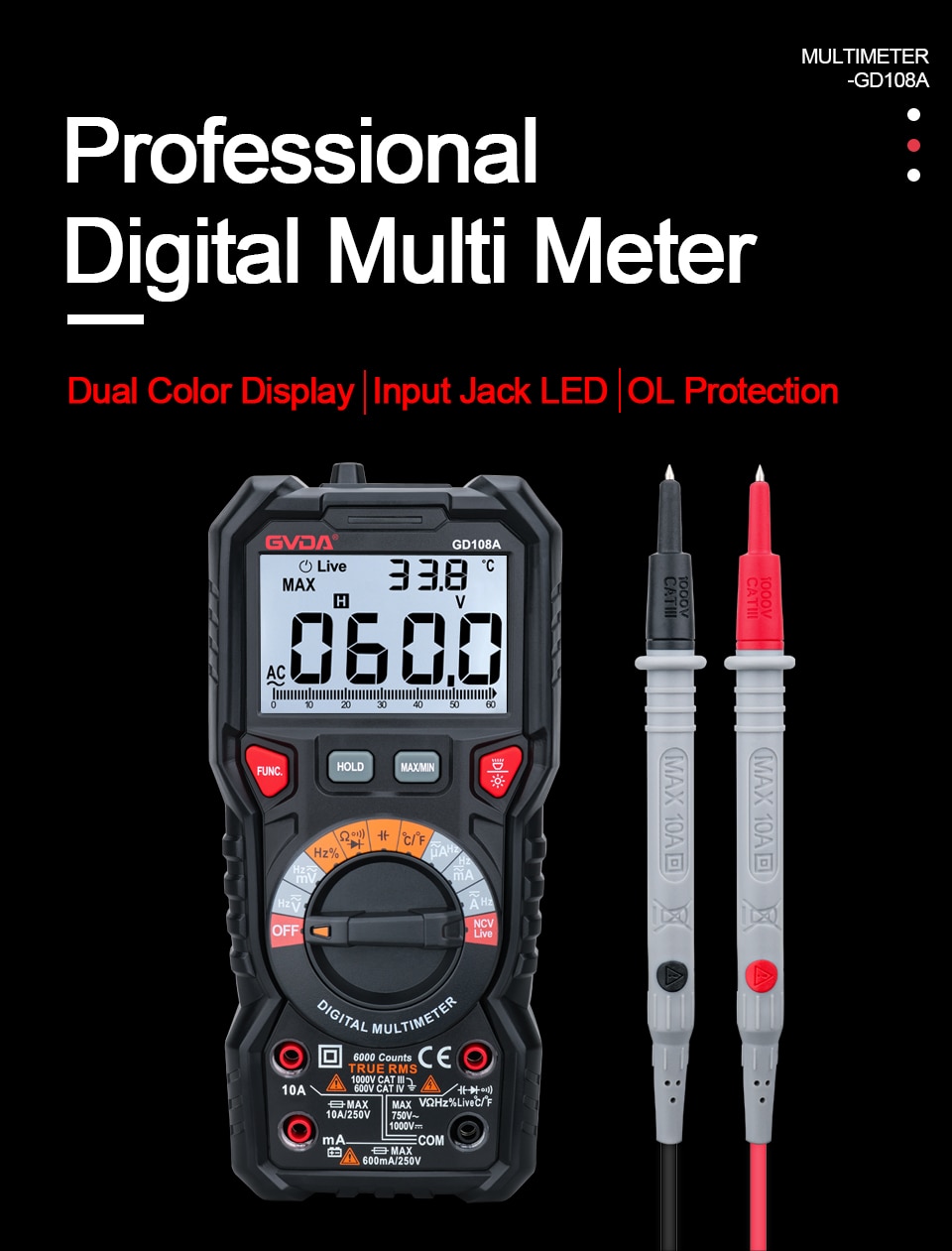

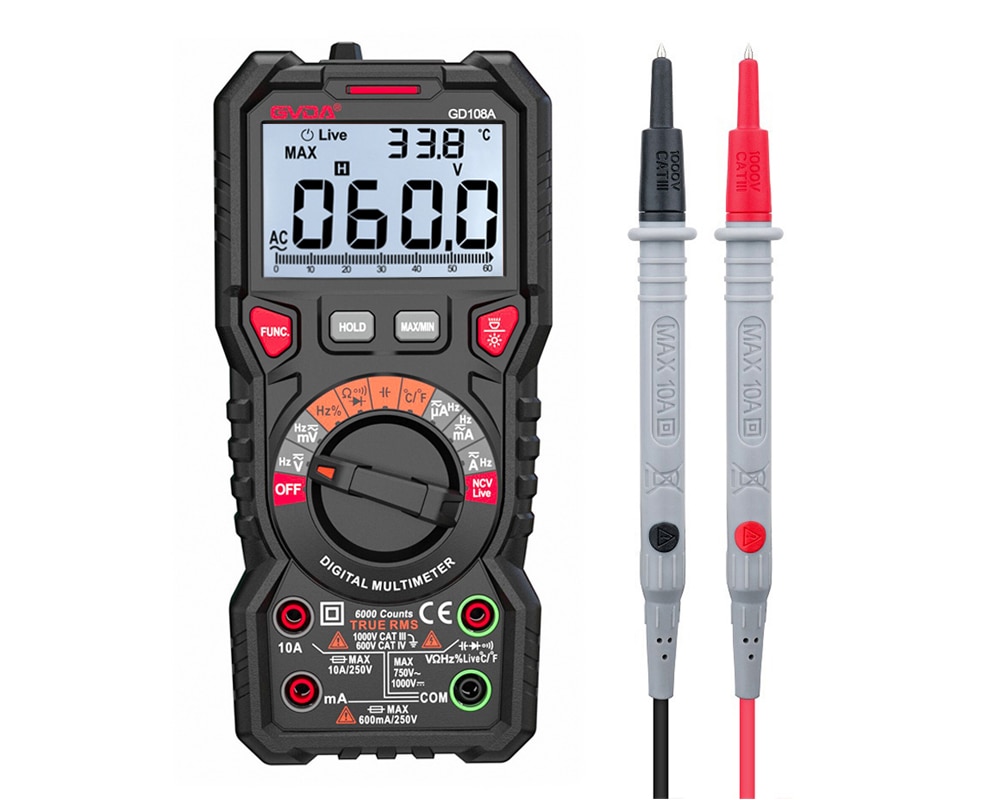

GVDA NEW Professional Digital Multimeter 6000 Counts Multimetro 1000V 10A AC DC Ohm Hz NCV Live Temperature Duty Voltage Meter

GVDA Multimeter is an Professional Multimeter which can measure AC and DC voltage, AC and DC current, resistance, capacitance, continuity, diode, NCV,etc.; It is the best choice for professional electrician, engineer, electronic enthusiast or family use

Product Features

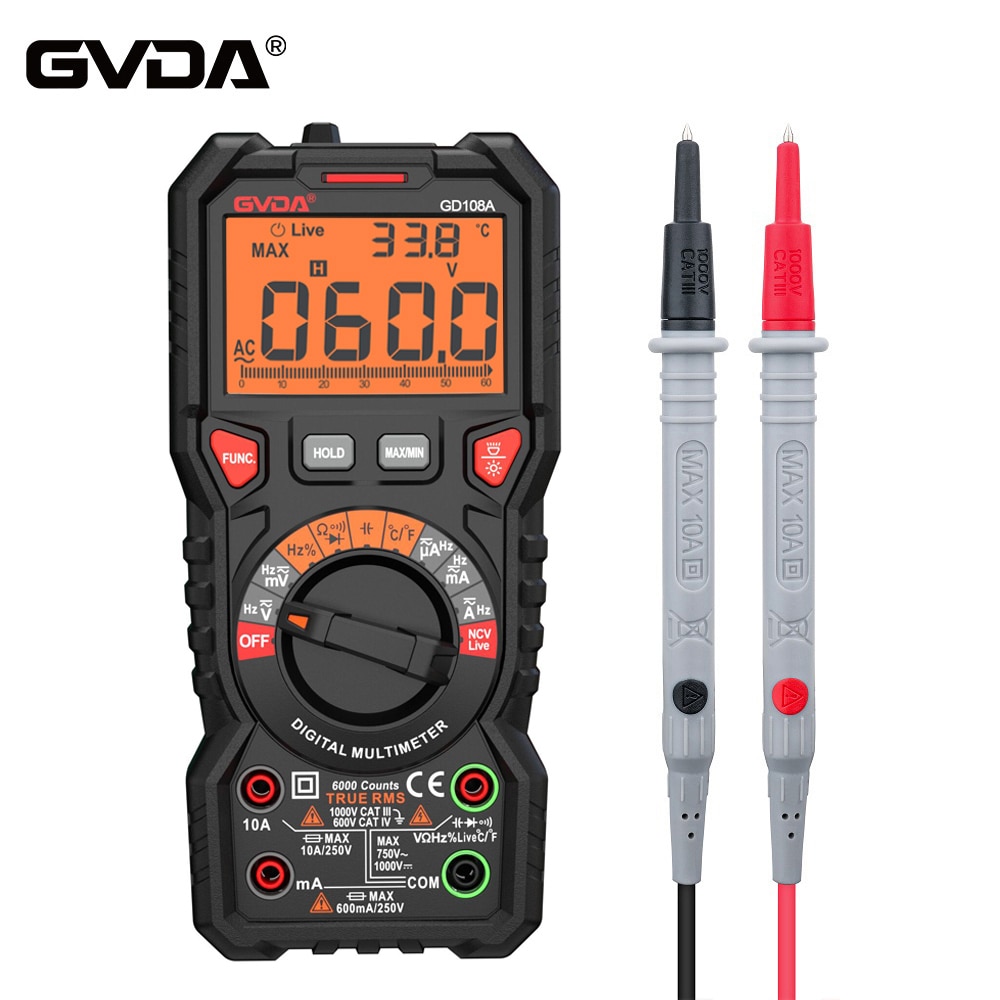

1) GD108Adual Color LCD ScreenGD108B/C is Large LCD display
2) Maximum display: Maxium 6000 Counts display
3) GD108A isAuto range, GD108B/C:Manual Range
4) Sampling Rate: About 3 times per second
5) Over range display: the highest position shows "OL"
6) Low voltage display: low battery indication
7) Working environment: (0-40)°C,relative humidity <80%
8) Power Supply: 2x1.5V Batteries ( NOT include)

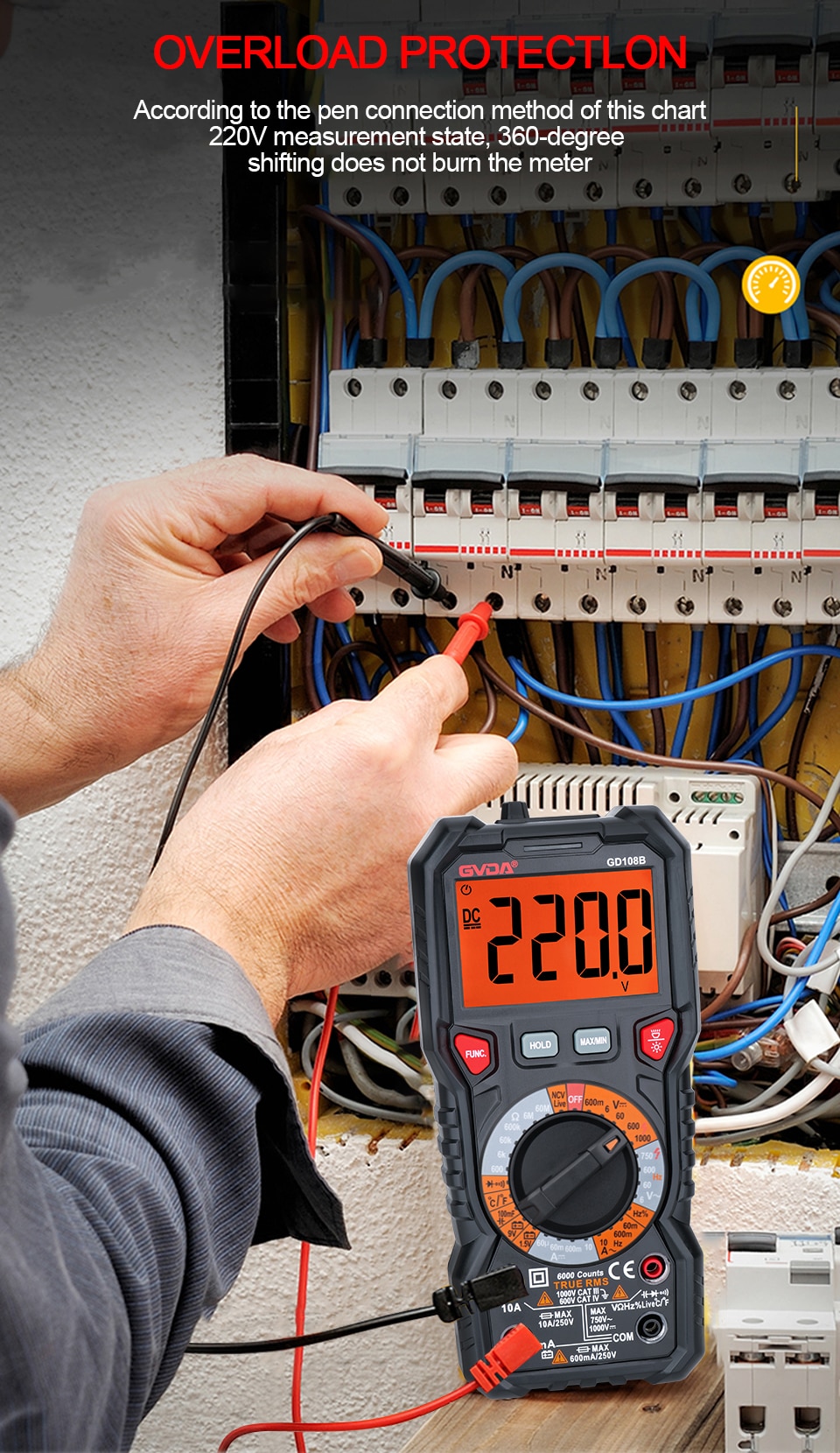

9) It is a stable performance, high precision, high reliability clear readings, and overload protection.

Technical Details


DC Voltage:

GD108A/B/C : 600mV/6V/60V/600V/1000V (±(0.5%+3)

AC Voltage:

GD108A: 600mV ±(1.0%+5) 6V/60V/600V/750V ±(1.0%+5)

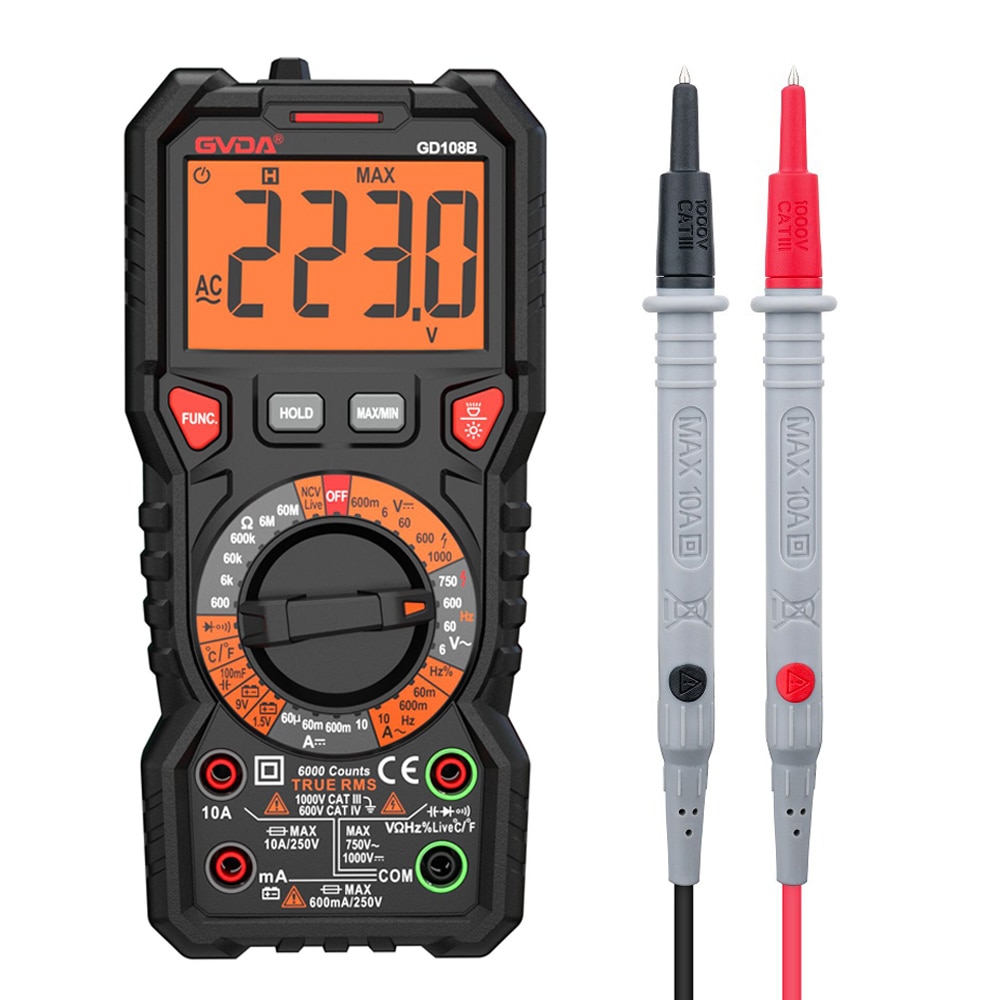

GD108B: 6V/60V/600V/750V ±(1.0%+5)

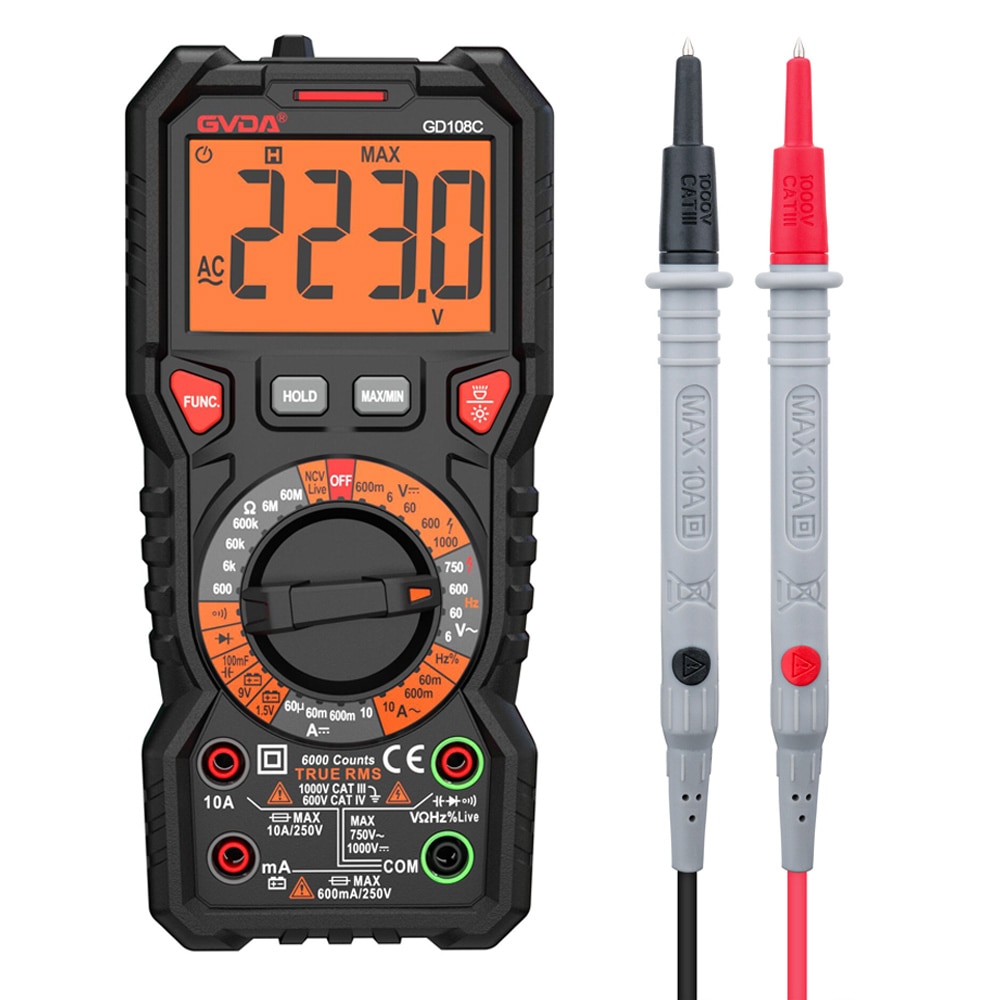

GD108C: 6V/60V/600V/750V ±(0.8%+5)

DC Current:

GD108A: 600uA/6000uA/60mA/600mA ±(0.8%+3) 6A/10A ±(1.2%+3)

GD108B/C: 10A ±(1.2%+3)

AC Current:

GD108A: 600uA/6000uA/60mA/600mA ±(1.0%+3) 10A ±(1.5%+3)

GD108B/C: 60mA/600mA ±(1.0%+3) 10A ±(1.5%+3)

Temperature

GD108A: 40°C~1000°C ±(1.0%+3) -40°F~1832°F ±(1.0%+3)

GD108B: (°C/°F):-40°C~1000°C ±(1.0%+3) -40°F~1832°F±(1.0%+3)

GD108C: NOT

Resistance:600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ±(0.8%+3)

Capacitance:10nF/100nF/1μF/10μF/100μF/1mF/10mF ±(4.0%+3) 100mF:±(5.0%+5)

Frequency:10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(1.0%+3)

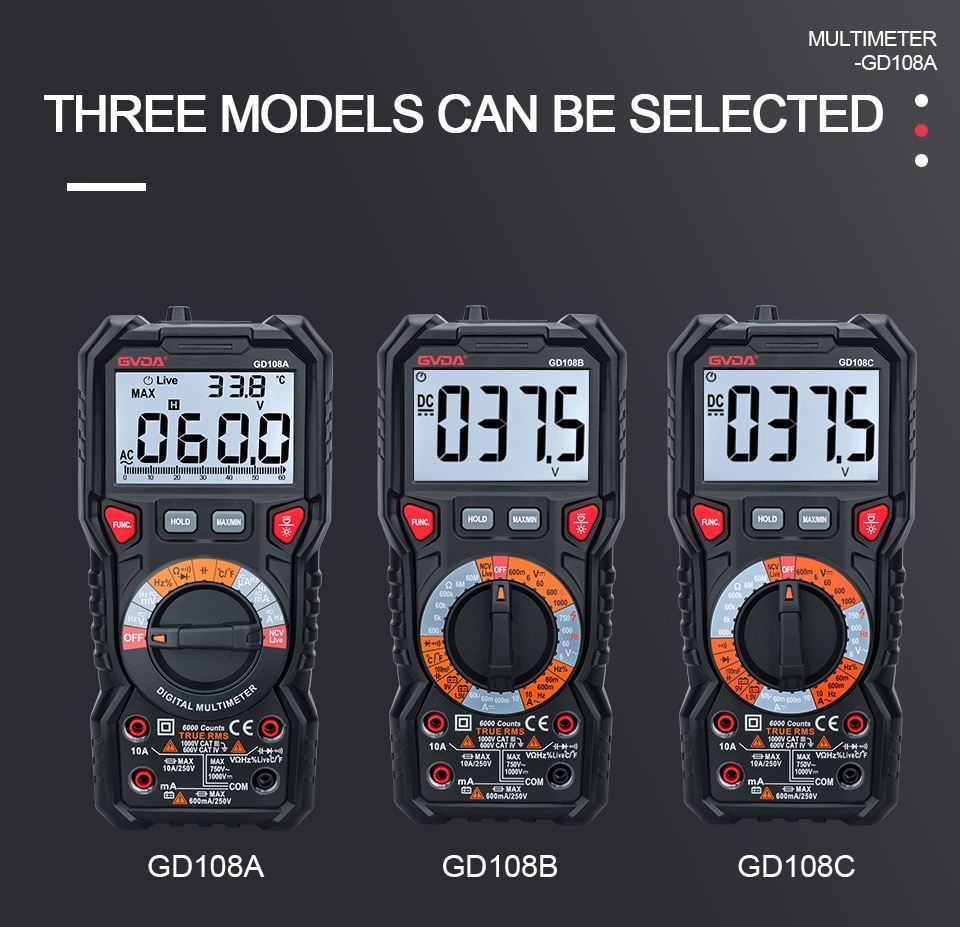

Auto/Manual range:GD108A: Auto Range/ GD108B / GD108C :Manual Range

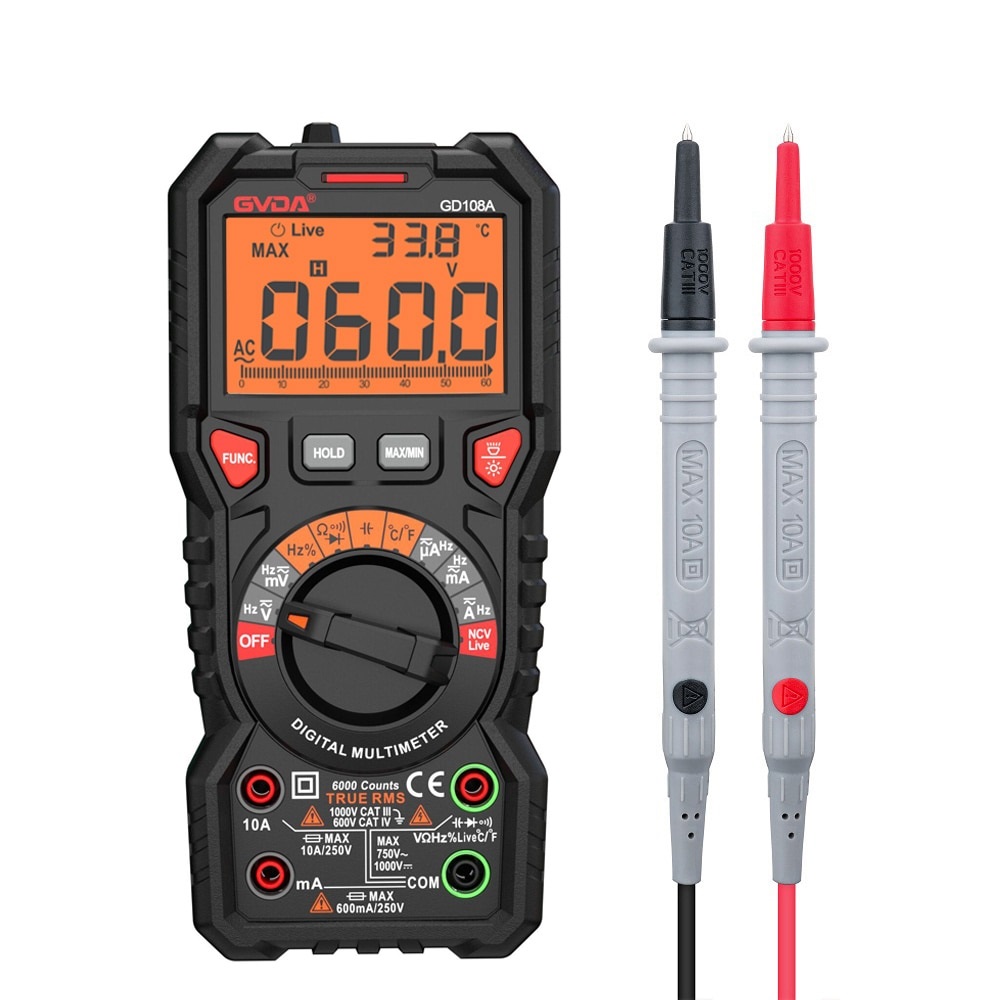

Display:GD108A: Dual Color LCD Screen GD108B/GD108C: LCD Display

Bargraph:only for GD108A

Battery test(1.5V/9V): Only for GD108B / GD108C

Duty:1%~99% ±(1.0%+2)

Counts:6000 Counts

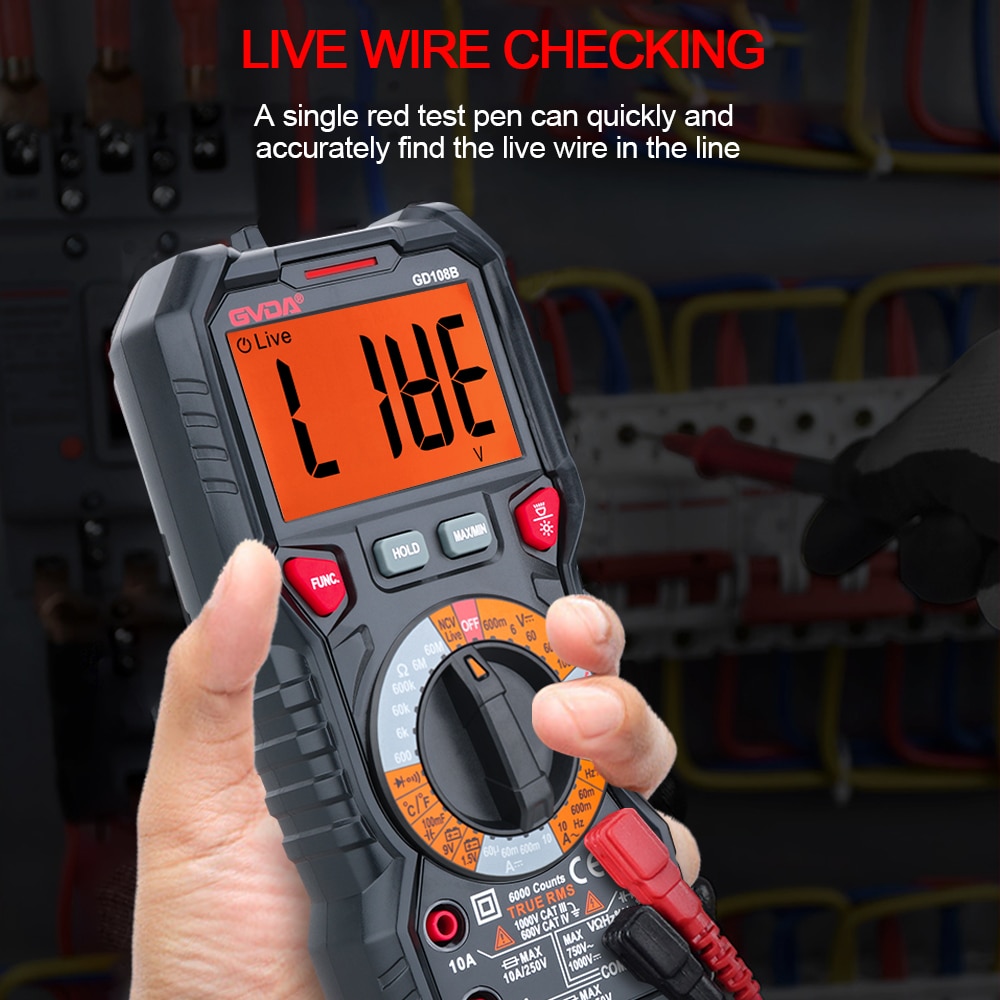

Live Test:Yes (sound and light alarm)

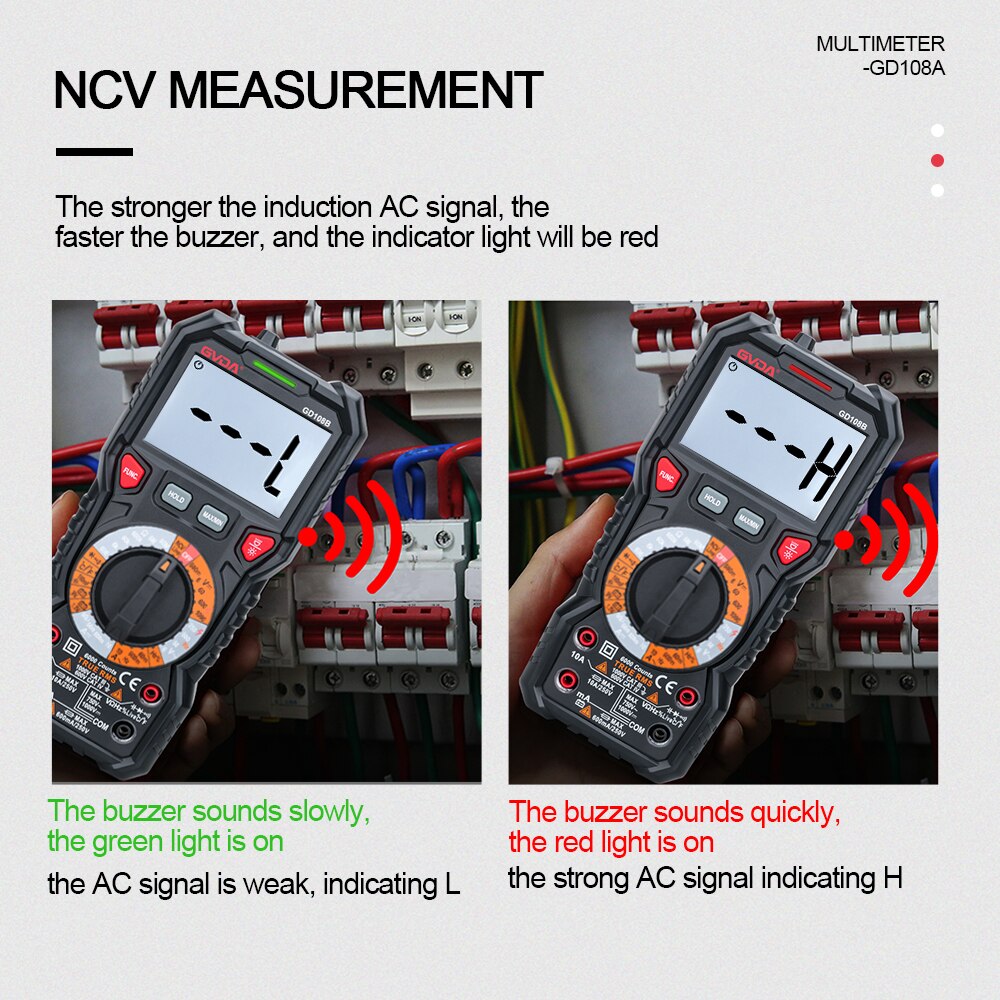

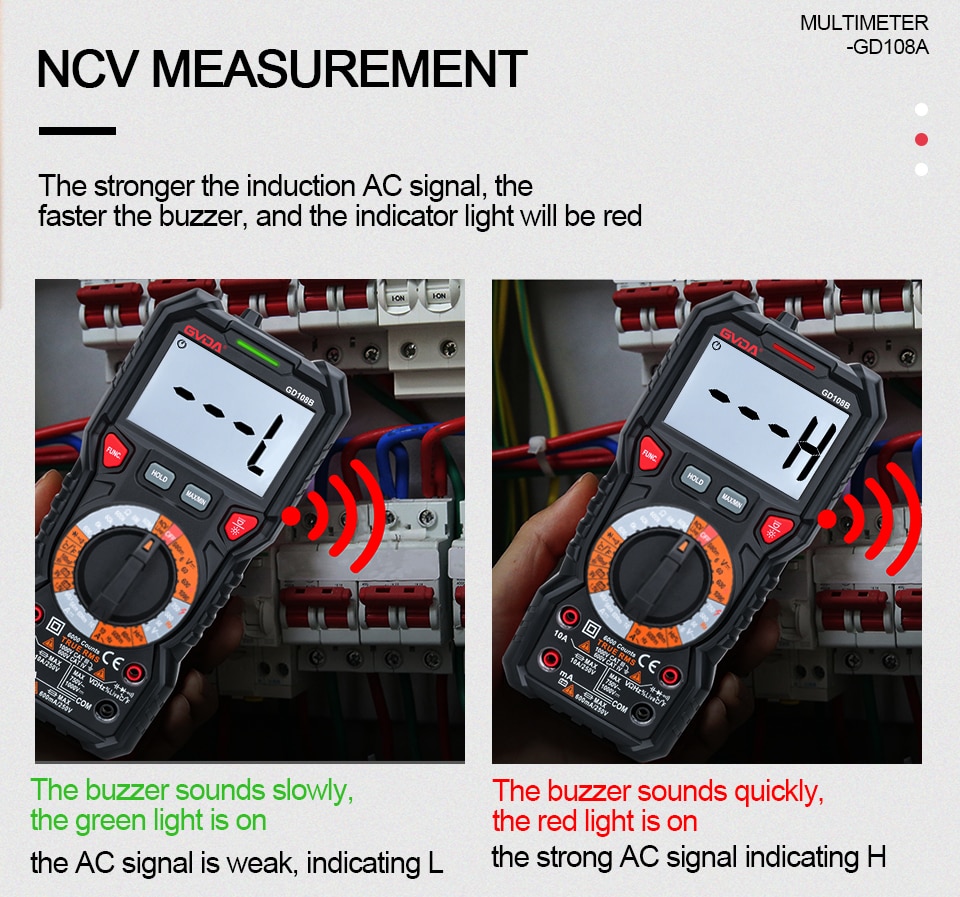

NCV: Yes (sound and light alarm)

Diode Test:Yes

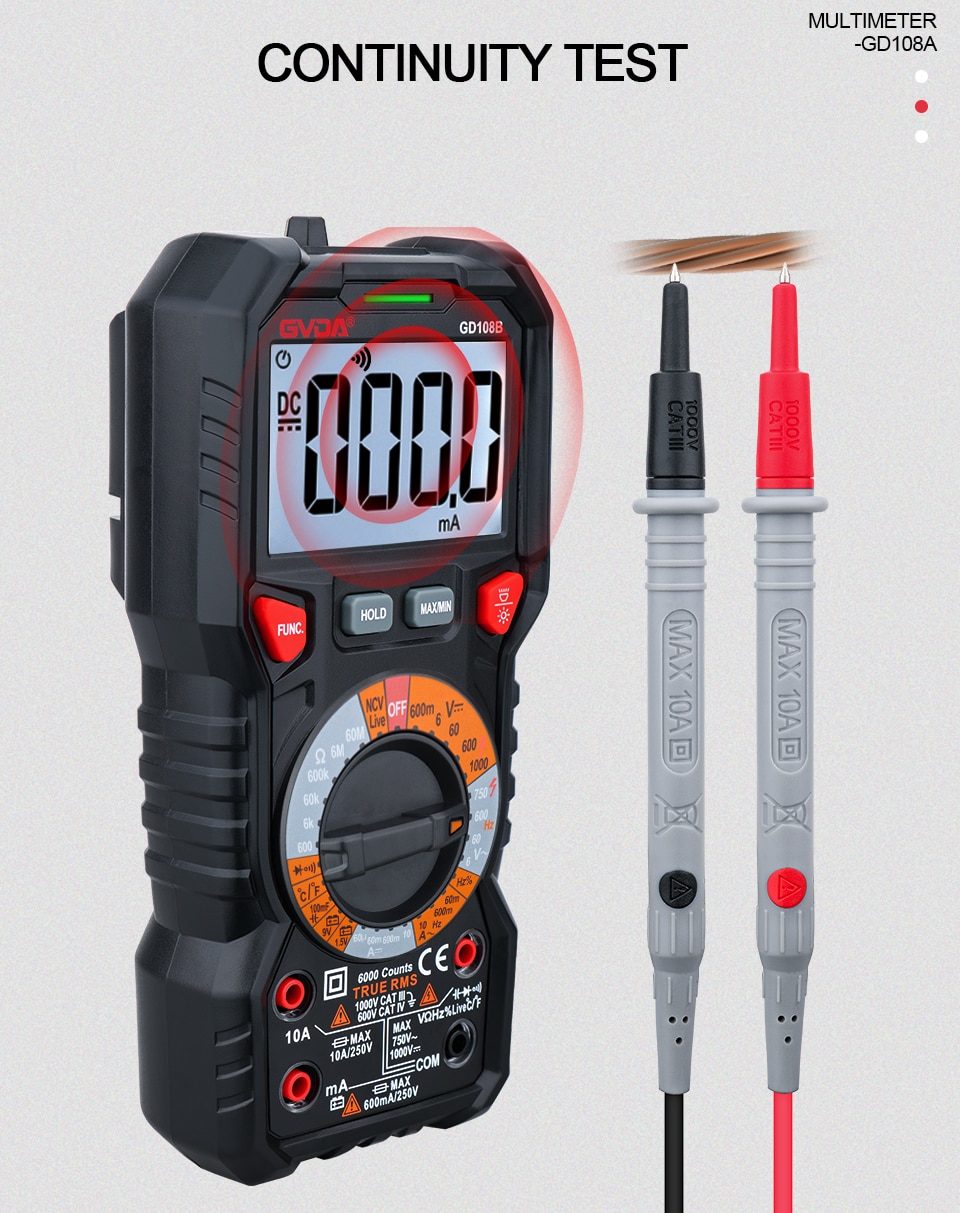

Continuity: Yes (sound and light alarm)

Max/Min Hold: Yes

Data Hold: Yes

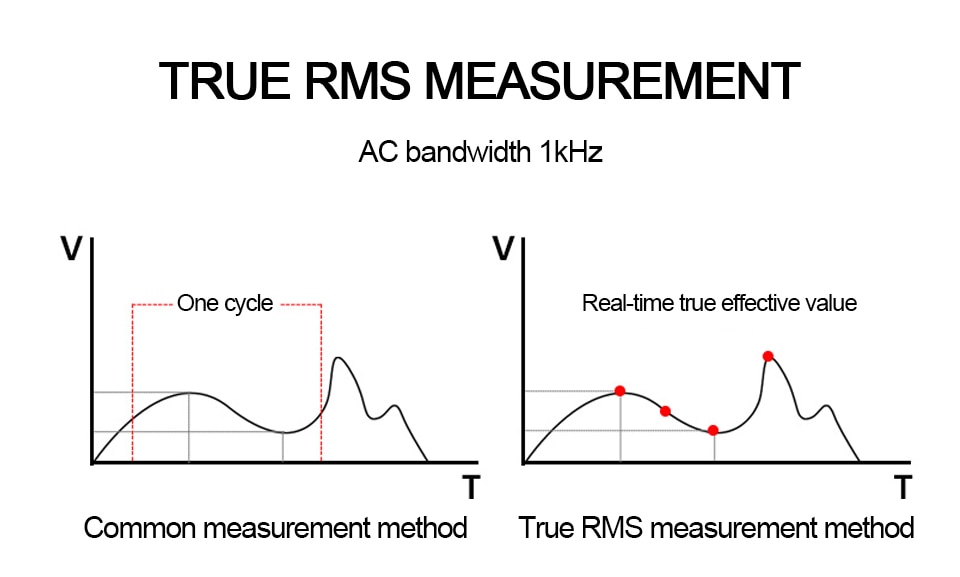

True RMS: Yes

Bandwidth:1kHz

Low Battery Indication: Yes

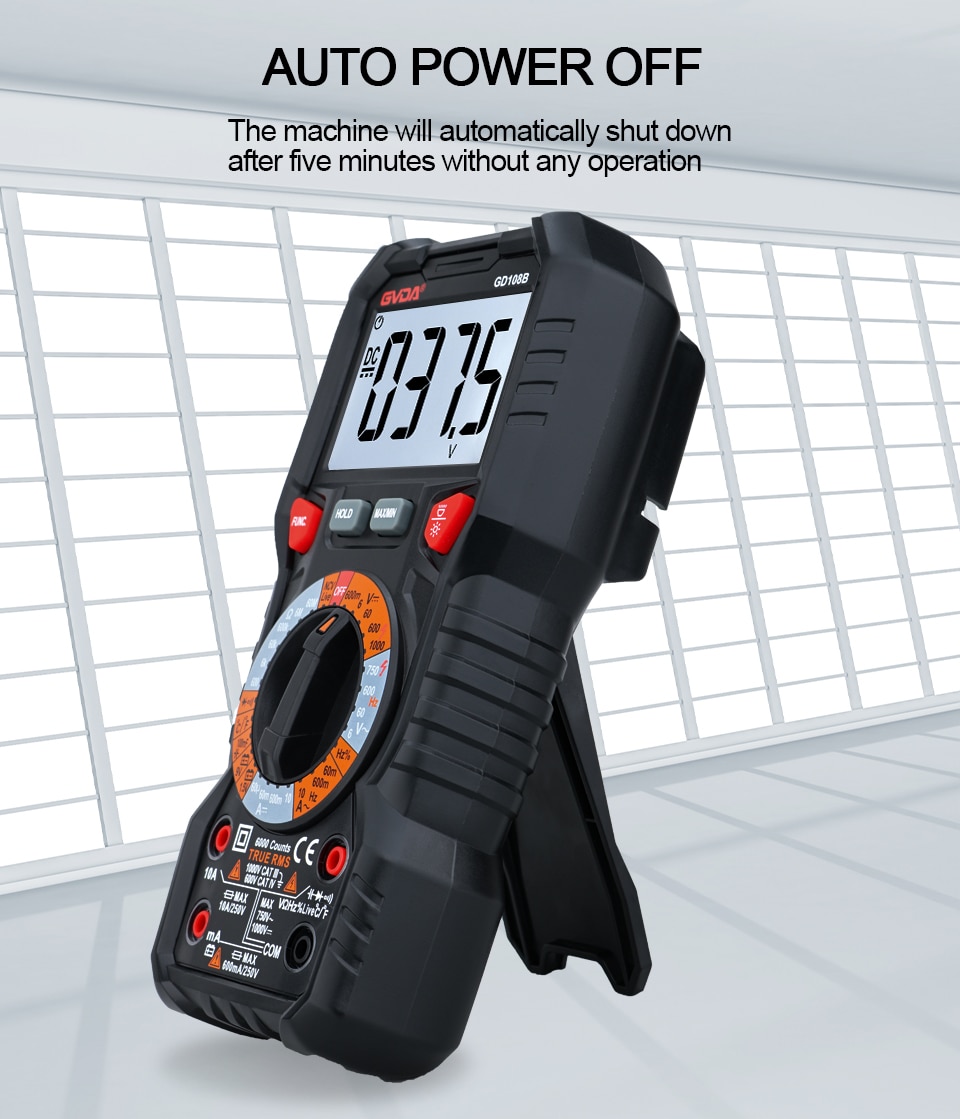

Auto Power Off: Yes

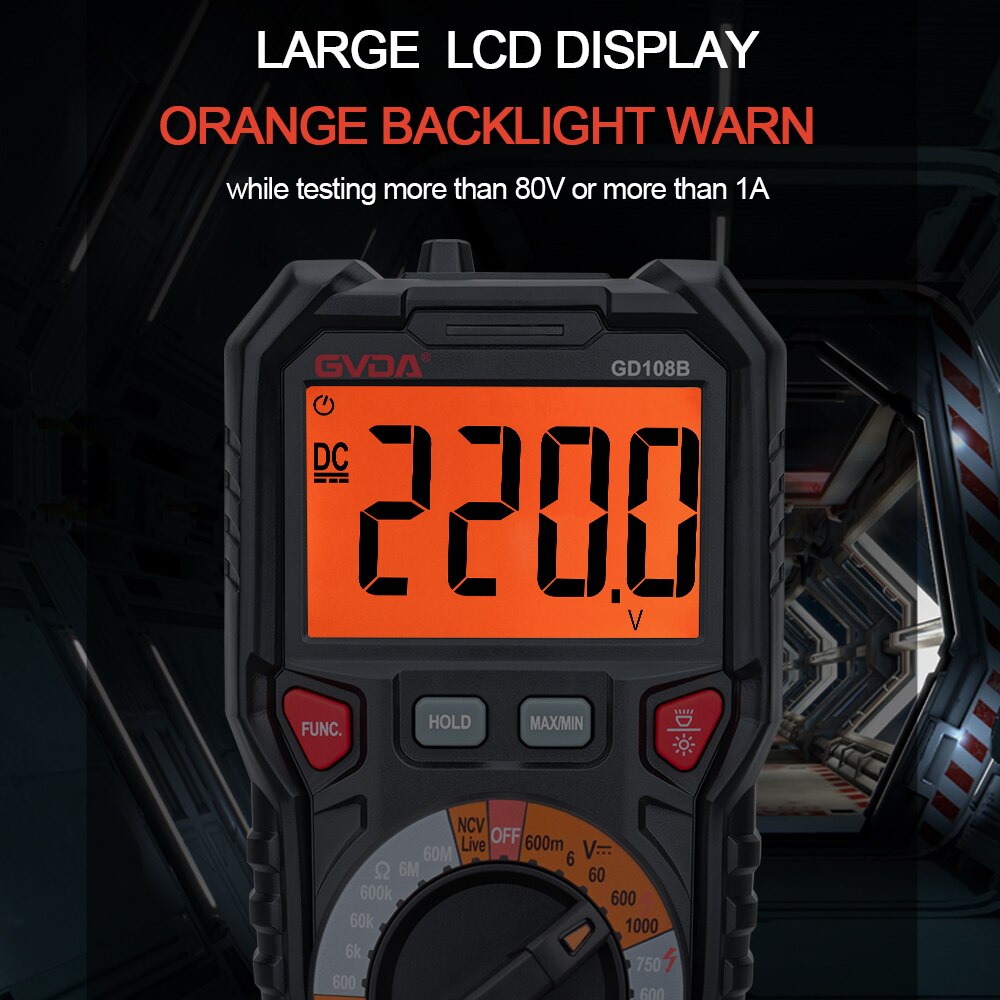

Backlight: Double Color

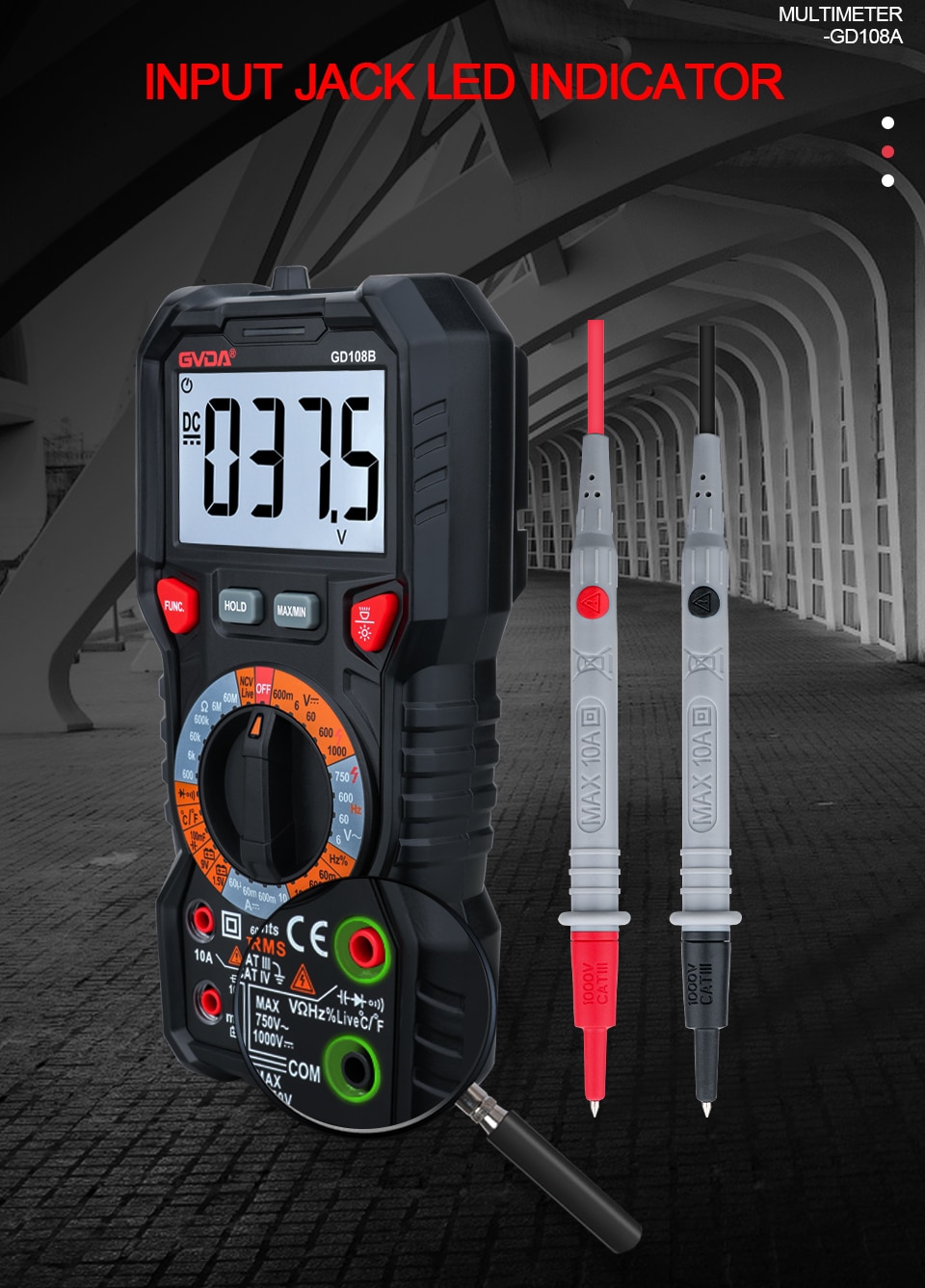

Input Jack : LED Indicate

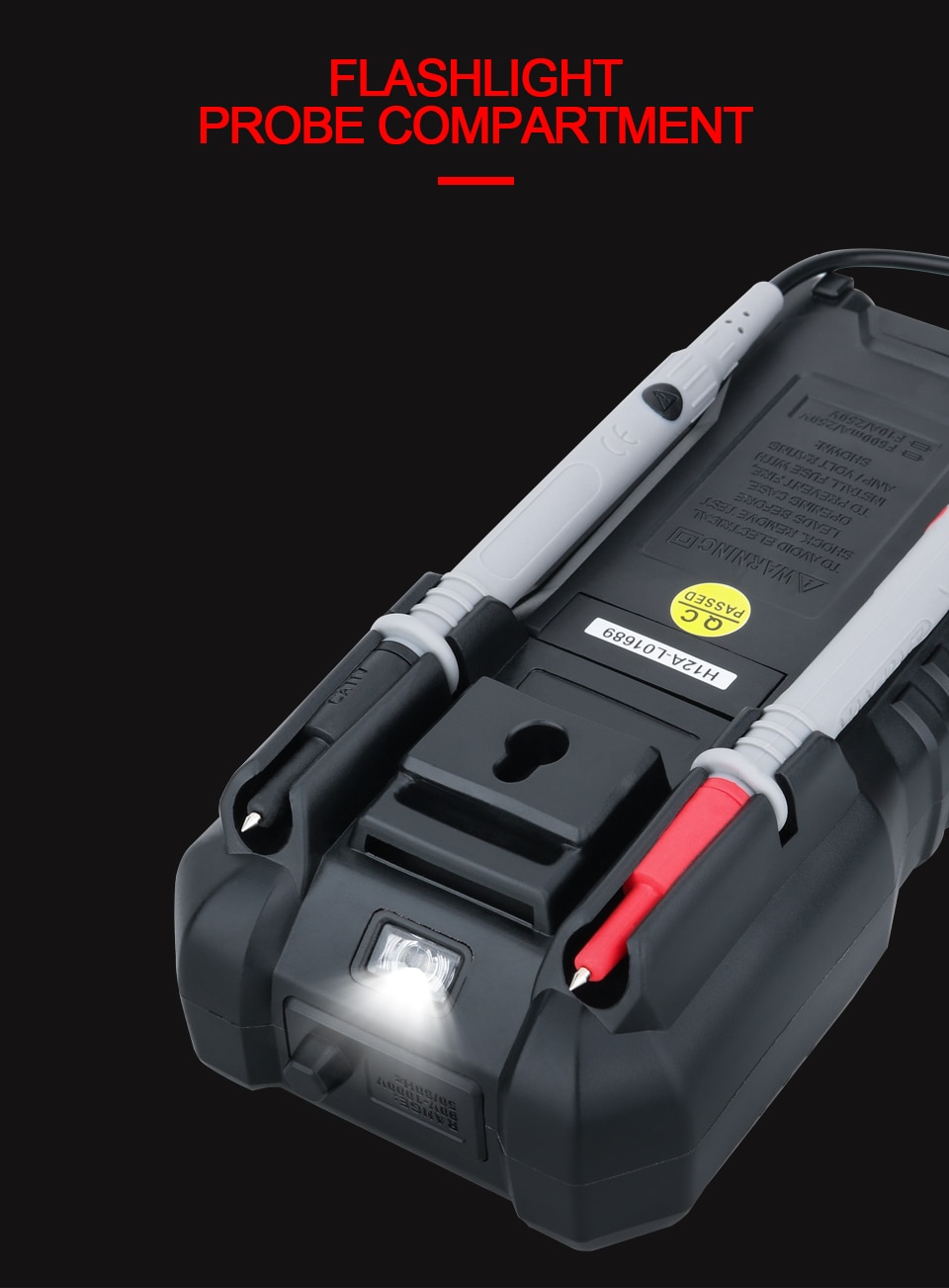

Work Light:√

Power:2xAA Batteries

Produce Weight / Size: Approx. 350g / 188 x 88 x 58mm

Safety Rating:EN61010-1,-2-030 EN61010-2-033, EN61326-1 CAT III 1000V,CATIV 600V

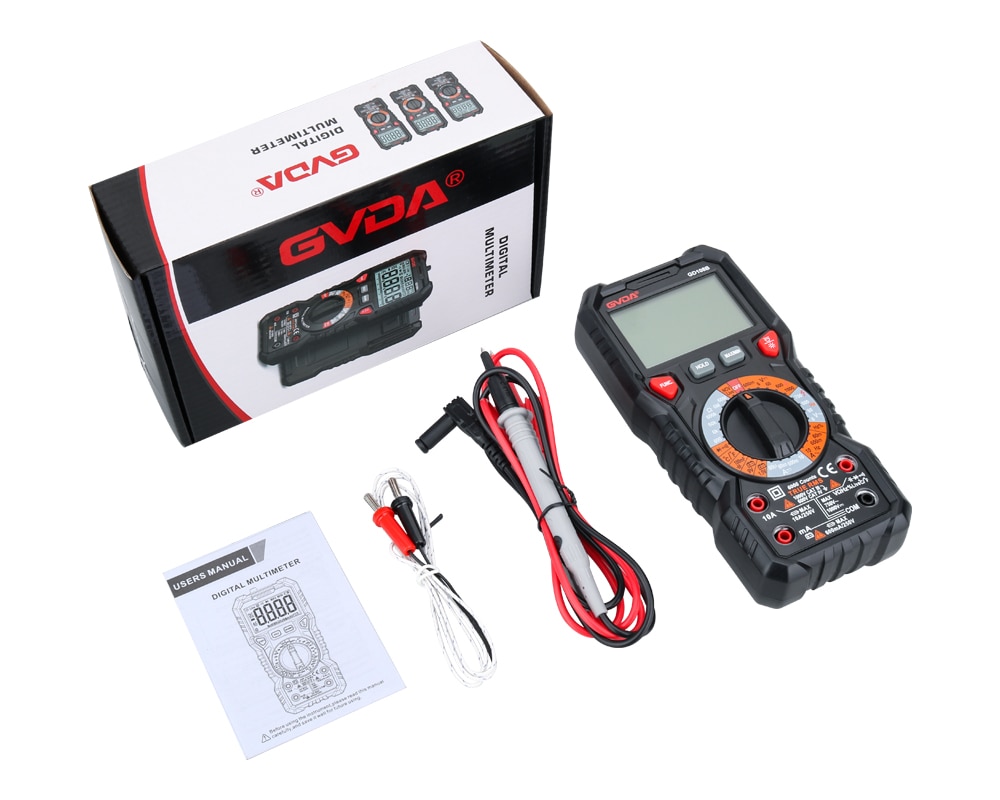

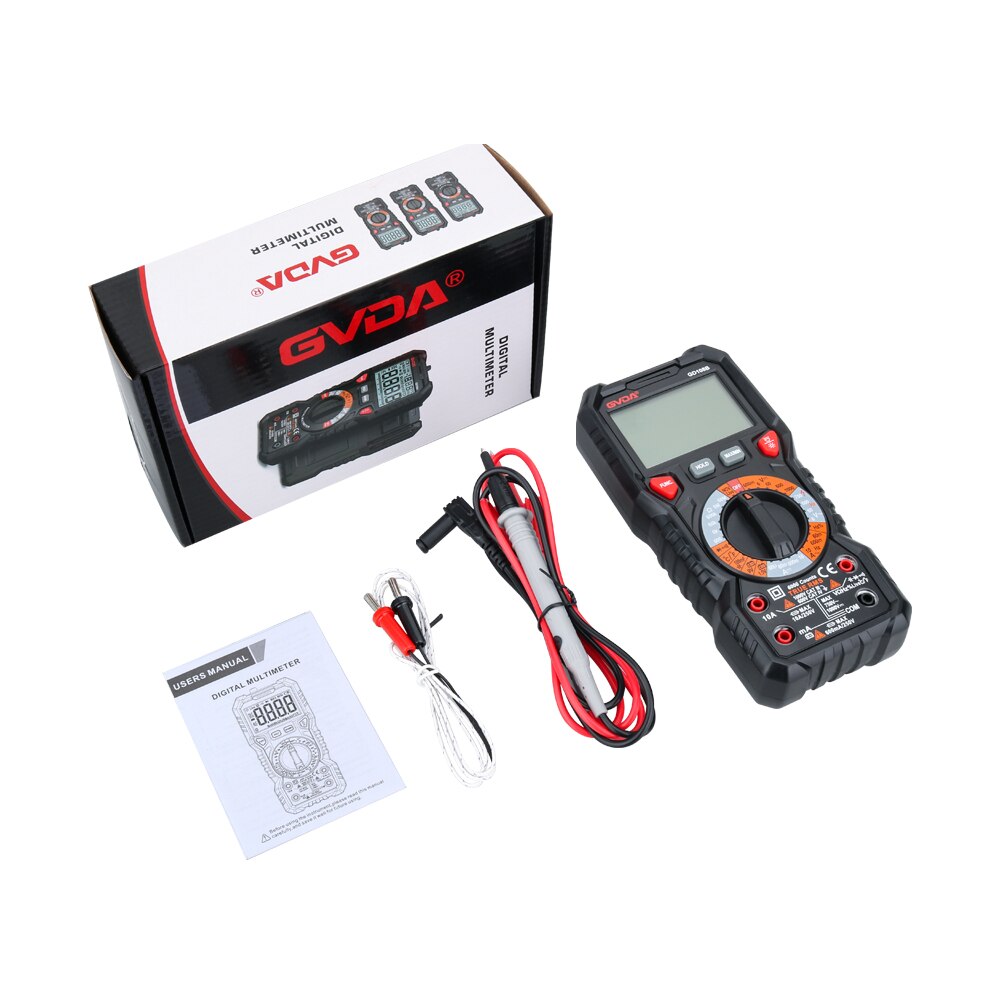

Paking Contents:


1PC Digital Multimeter

1PC User manual

1pc Test Pen
