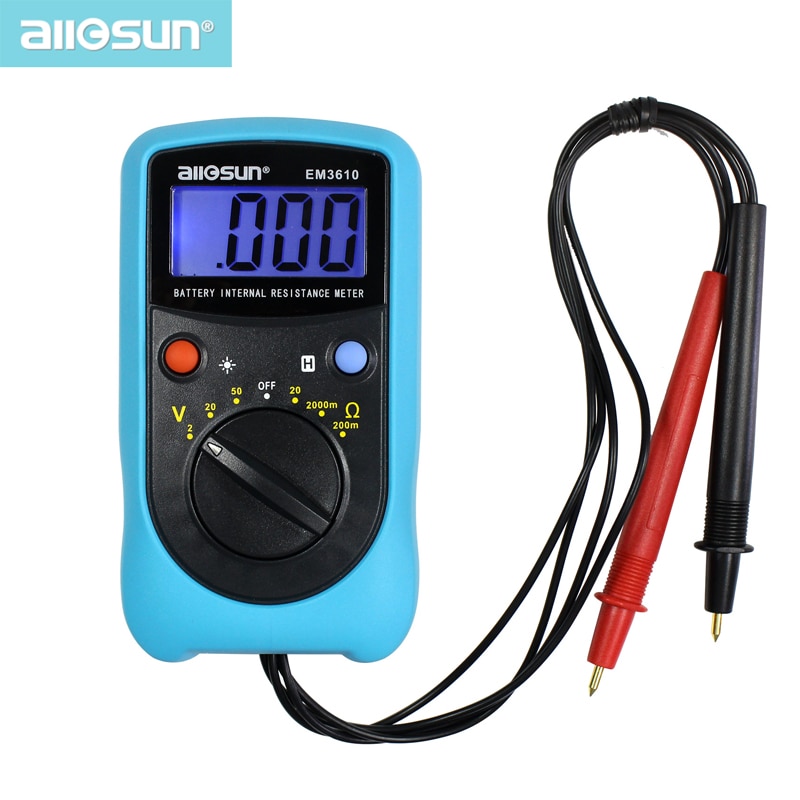

EM3610 Battery Internal Resistance Meter Battery Voltage Temperature Coefficient Automotive Tester

EM3610 Battery Internal Resistance Meter Battery Voltage Temperature Coefficient Automotive Tester

Note :This package does not include batteries.
Due to new rules of China Post Air, parcels must not include batteries,otherwise it will not get through the custom.

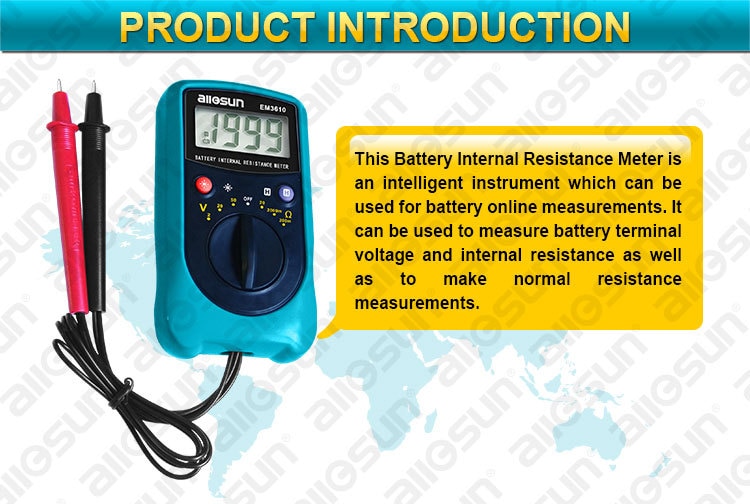

> This battery Internal Resisitance Meter is an interlligent instrument which can be
used for battery online measurements.

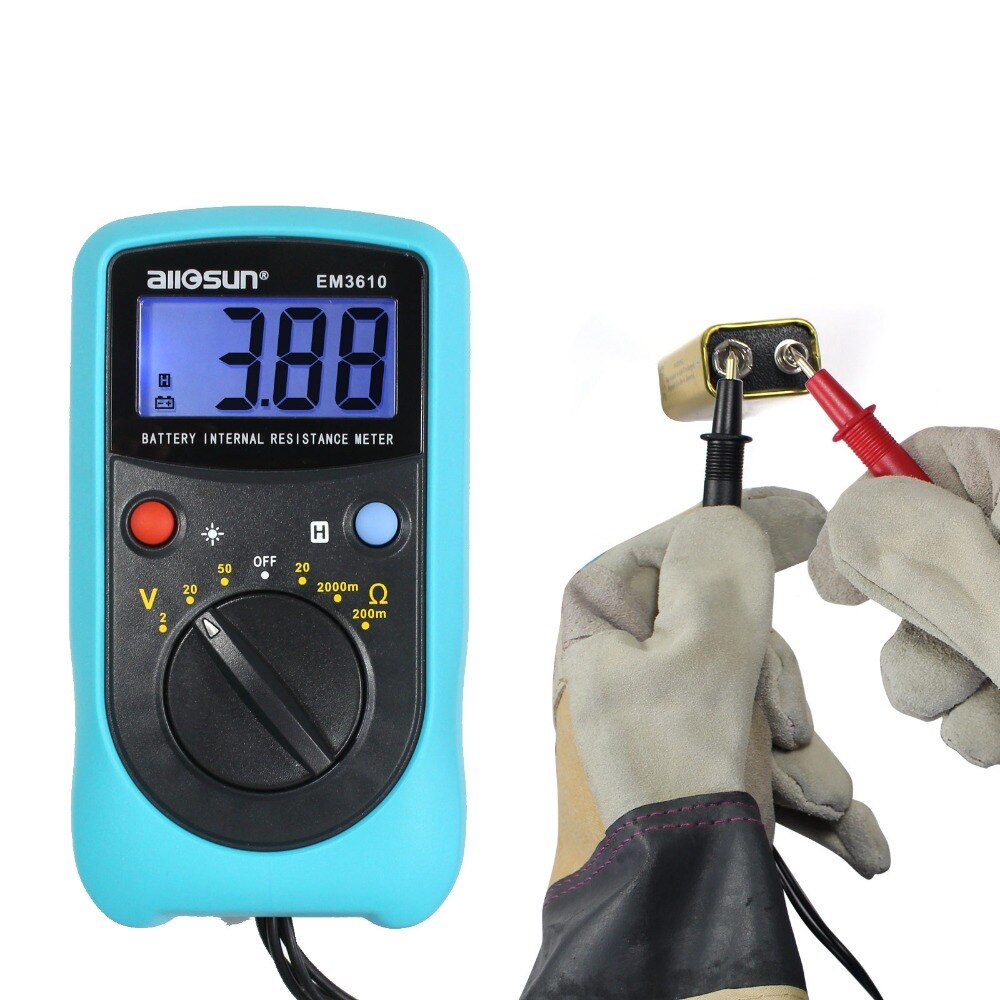

> It can be used to measure battery terminal voltage and internal resistance as
well as to make normal resisitance measurements.
> This internal resisitance is measured with the internaltional standard AC signal
(1000Hz ±10%) by means of four-wire method to eliminate the impact of the
resistance of the test leads on the measured valus, and the battery voltage can
also be measured by the same connection method.
> It is applicable for measurements of internal resistance of Lithium-ion, nickel-
hydroxide, lithium-mangance cells or assembled battery.

GENGRAL SPECIFICATION
Only figure"1" shown on the display.
Negative Polarity Indication:"-"shown on the display automatically
Operating Environment:temperature:0-40,relative humidity:<80% RH
Temperature Coefficient:
0.1x(specified accuracy)/degree(<18 or >28 degree)
Storage Environment:temperature:-10 to 45 degree,relative humidity:<85%RH
Battery:9V battery,6F22 or equivalent,1 piece

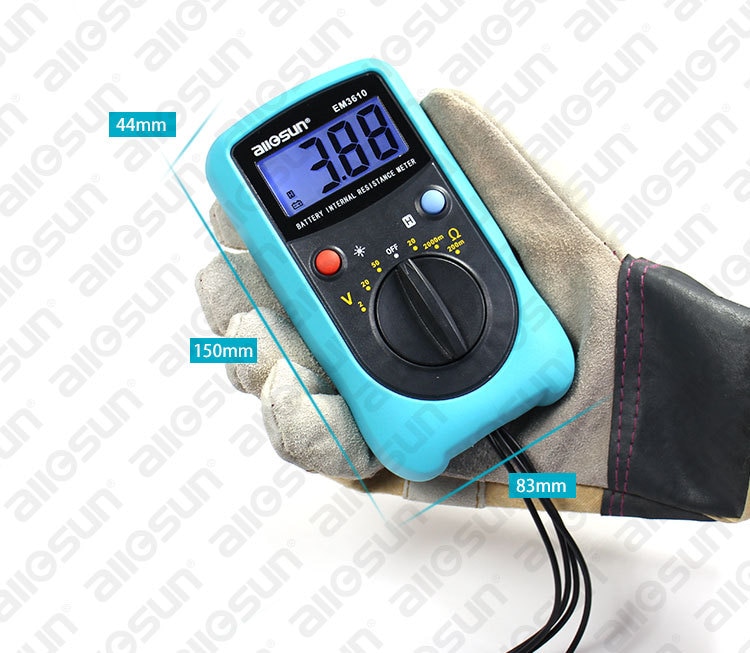

Size:150X83X44mm(only mainbody)
Weight:About 315g(including battery)

SPECFICATION
Accuracy is specified for a period of one year after calibration and at 18 degree to 28 degree,with relative humidity <75%,Accuracy specifications take the form of:+-(%of Reading)+(number of Least Significant Digits)

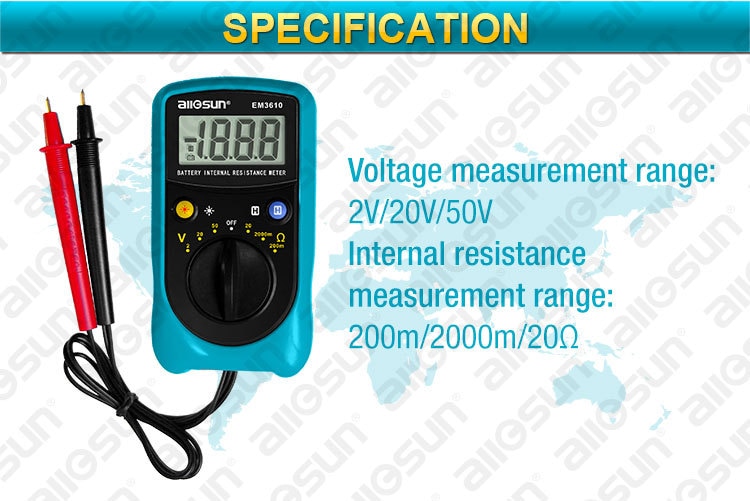

Battery Voltage

Range	Resolution	Accuracy
0~1.999V	1mV	+-(1%+2)
2.00~19.99V	10mV
20.0~50.0V	100mV

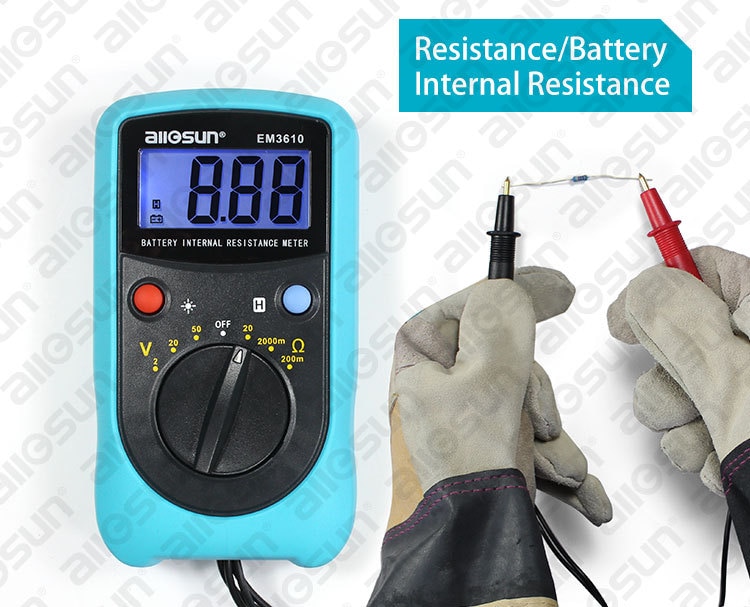

Resistance/Battery Internal Resisitanc

Range	Resolution	Accuracy
0~199.9mΩ	1.0mΩ	+-(3%+5)
200mΩ~1999mΩ	10mΩ
