MPPT Solar Charge Controller 20A 30A 40A 50A Solar Regulator 12V 24V For Max 1320W Input lithium Battery With BT-2 RM-6 LCD

This product adopts industry-leading Power Catcher MPPT technology,enables maximum energy tracking for solar panel and llows the controller to quickly and accurately track the maximum power point of PV array in any environment.
Wholesale MPPT Solar Charge Controller
Item No. COBD211097 Price Down Notice
In Stock
Price:
US$94.42/ piece
Discount Price:
US$54.99/ piece 42%
Current:
Controller Type:
Quantity:

Shipping:
Express Shipping Service
Estimated delivery time: 3-15 working days.See details »
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat WhatsApp Skype Ask a question

MPPT Solar Charge Controller 20A 30A 40A 50A Battery Regulator Charger 12V 24V for Max 1320W Input Bluetooth Display Charger

Overview:

This product adopts industry-leading Power Catcher MPPT technology,enables maximum energy tracking for solar panel and llows the controller to quickly and accurately track the maximum power point of PV array in any environment.This product can be connected to an external LCD screen or Bluetooth communication module and PC Upper Computer for dynamic display of operating status, operating parameters, controller logs, control parameters, etc. Adopting standard Modbus communication protocol and providing overall electronic fault self-test and powerful electronic protection functions which minimize components damage due to installation error and system failure.

Features:

1.Due to an advanced digital power technology, the circuit energy conversion efficiency is as high as 98%.

2.It provides an active charging voltage regulation feature. At battery open circuit or lithium battery BMS overcharge protection, the controller battery terminal will output the rated charging voltage value.

3.Available in multiple battery types and support charging procedures of various types of batteries such as lithium battery, colloidal battery, sealed battery, vented battery, lithium battery, etc.

4.A current-limited charging mode is available. When the power of solar panel is too large and the charging current is higher than the rated valve, the controller automatically reduces the charging power so that the solar panel can operate at the rated charging current.

5.Support automatic identification of lead-acid battery voltage. External LCD screen or Bluetooth module can be connected for viewing of equipment operating data and status, and modification of controller parameters is supported.

6.Support standard Modbus protocol to meet communication needs in different occasions.

7.Built-in over-temperature protection mechanism.

8.Temperature compensation and automatic adjustment of charge and discharge parameters help to improve battery life.

9.Solar panel short circuit protection, battery open circuit protection and TVS lightening protection etc

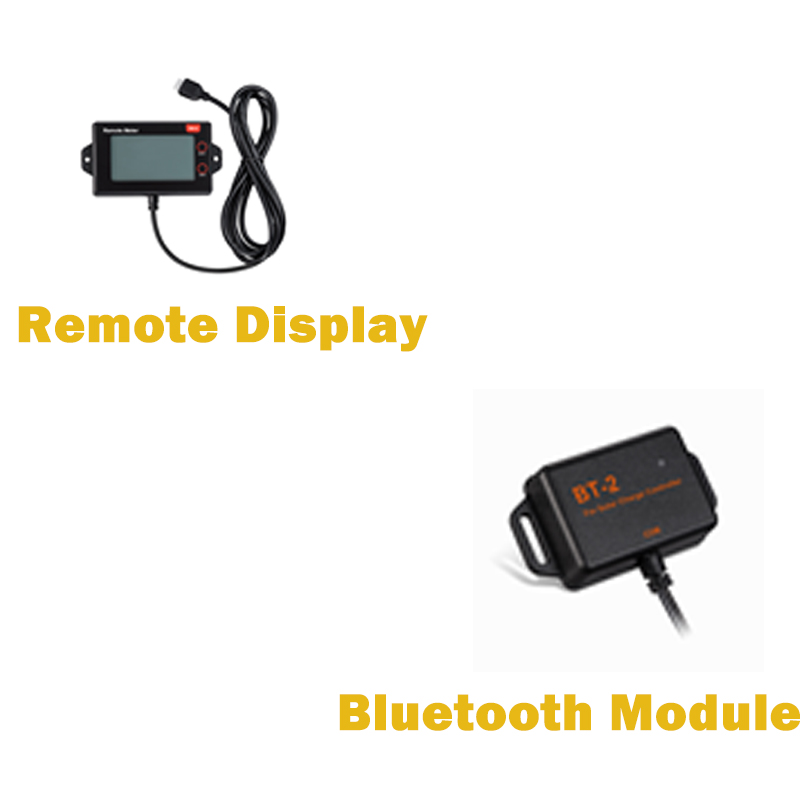

Remote Display and Bluetooth:

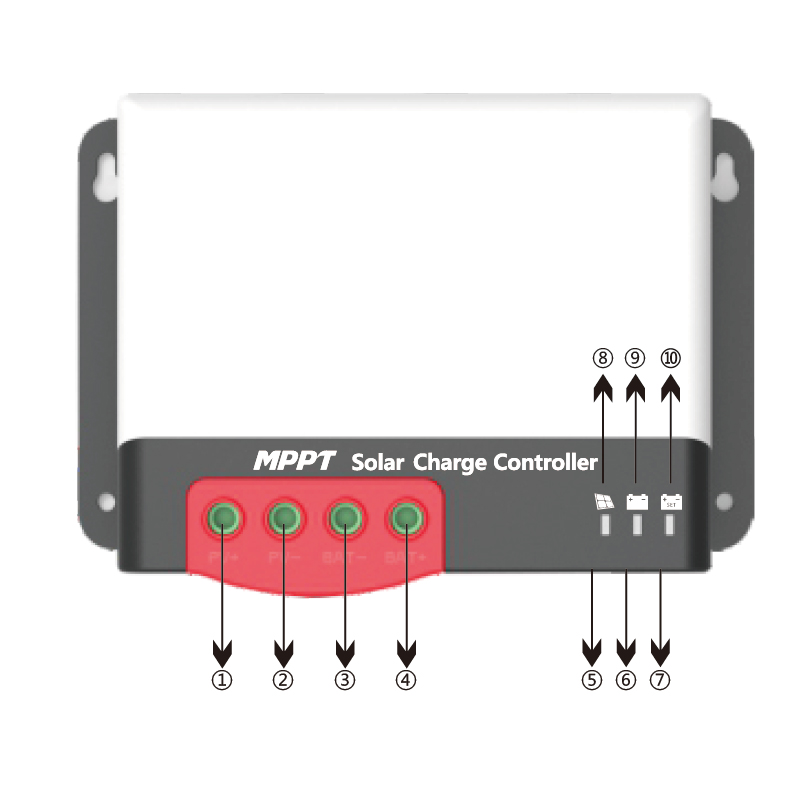

Appearance:

No.

Names

No.

Names

Solar panel "+" interface

Communication Interface

Solar panel "-" interface

Operation keys

Battery "-" interface

PV charging indicator

Battery "+" interface

Battery Capacity Indicator

External temperature sampling interface

Battery type indicator

Protection:

Waterproofing protection: Rating: IP32

Input power limited protection: When the power of solar panel is higher than the rated value, the controller will limit the power of solar panel within the rated power range to prevent damage by over current, and the controller enter the current-limiting charge.

Battery reverse polarity protection: If the battery polarity is reversed, the system will not work but it will not burn out the controller.

PV input end voltage is too high: If the voltage at the PV array input end is too high, the controller will automatically shut off the PV input.

PV input end short circuit protection: If the voltage at the PV array input end is short circuited, the controller will turn off charging; after short circuit is removed, charging will automatically recover.

PV input reverse polarity protection: When the polarity of PV array is reversed, the controller will not be damaged, and normal operation will continue after wiring error is corrected.

Night reverse charging protection: Prevent battery discharge through the solar panel at night.

TVS lightning protection

Over-temperature protection: When temperature of the controller exceeds the set value, it will reduce charging power or stop charging.

Parameter:

Items

Parameters

Model

MC2420N10

MC2430N10

MC2440N10

MC2450N10

System voltage

12V/24V

Zero load loss

<10mA

Battery voltage

9V~32V

Maximum PV open

circuit voltage

92V(25℃);100V(Lowest ambient temperature)

Maximum power point

voltage range

(Battery voltage +2V) ~ 72V

Rated charging current

20A

30A

40A

50A

Maximum PV input power

260W/12V

520W/24V

400W/12V

800W/24V

550W/12V

1100W/24V

660W/12V

1320W/24V

Charging conversion

efficiency

≤98%

MPPT tracking efficiency

>99%

Temperature compensation

coefficient

-3mv/℃/2V(default); Lithium battery features no temperature compensation

Operating temperature

-35℃ ~ +60℃

IP rating

IP32

Weight

650g

830g

1040g

1335g

Communication mode

TTL series communication

Altitude

≤ 3000 meters

Dimensions(mm)

150*105.6*61.5

150*105.6*67.5

183*127*65.5

183*127*69.5
