V2016.3 ICOM A2+B+C Diagnostic & Programming Tool For BMW,Supports WIFI,Second generation of BMW ISTA Diagnose and programming system. The best tool of BMW ICOM.
Item No. COBD252
5 stars, 9 reviews.
In Stock
Price:
US$529.00/ piece
Discount Price:
US$519.00/ piece 2%
Quantity:

Shipping:
Standard Flat Rate Shipping Service
Estimated delivery time: 7-45 working days.See details»
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat Ask a question

V2016.3 ICOM A2+B+C Diagnostic & Programming Tool For BMW With WIFI

Top 6 Reasons to Get ICOM A2+B+C for BMW:

1. Software Version: V2016.3 (only for English+German+Chinese, other languages version is still V2015.7).
2. Equipped with WIFI for wireless function.
3. Supports for a new Intel adapter function.
4. Supports almost 95% laptop in the world with Intel chip( I3/I5/I7 series) and have 4GB memory

5. Supports BMW and MINI vehicles from old to latest 2015 for full system diagnose and reprogramming function.

6. Supports Multi-Language in diagnose and programming, also TIS diagram circuit:
English/ German/ Russian/ Korean/ Chinese/ Spanish/ French/ Italian/ Portuguese/ Swedish/ Dutch/ Greek/ Japanese/ Thai.

Software version:

ISTA-D:3.54.12
ISTA-P: 3.58.0.500
VIN: 2016.02.15

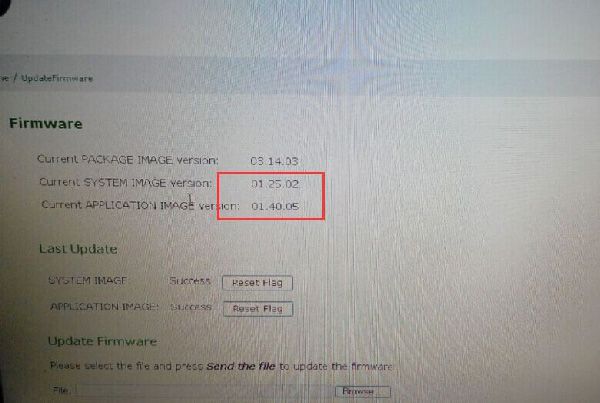

Haraware Version:

ICOM-PF-CORE 03.14.03
ICOM-Boot: 01.25.02
ICOM-Application: 01.40.05

bmw icom hardware version

ICOM A2 System Requirements:

1. Dual-Core Processor, recommended I3 above.
2. More than 4G of memory.
3. we recommend Lenovo ThinkPad X200, X230, X230T, X61T, T410, X61,Dell D630, E49 etc.

ICOM A2+B+C Special Features Compared with ICOM:

1. The modified ICOM A2 for vehicles with OBD access receives a significantly more powerful processor and more storage capacity.
2. Robust aluminium case will help to avoid damage when using in harsh environments.
3. To protect the MOST connector, the ICOM B for vehicles with optical MOST access will be equipped with a soft cover made of rubber instead of the former plastic cap.
4. The ICOM C for old series with a diagnostics socket will be additionally equipped with an approx. 20 cm long cable, which facilitates the connection of the ICOM A2 and makes storage in the engine compartment easier.
5. BMW ICOM A2+B+C supports BMW cars till 2015 year. Supports BMW & MINI full system diagnose and offline programming.

ICOM A2+B+C Functions:

1. A2 - OBD diagnostic supporting MOST, D-CAN and K-CAN protocols
2. B - diagnostic via MOST bus, and have connection to A-interface via USB connection.
3. C - 20-pin cable for old models.

Notice:

1. When doing programming function, please use Wlan cable to connect the device and laptop, do not use Wifi connection.
2. For customers who want to test cars stably or need re-equip cars, we suggest using V2015.01 SSD ICOM Software.
(please leave message on your order to notify us and pay the money difference when making order if you need V2015.01 SSD Software)
3. No Network And No Connection With The Original Server When You Use The BMW ICOM Software HDD, Otherwise It Will Be Damaged, And Have To Send Back For Repair

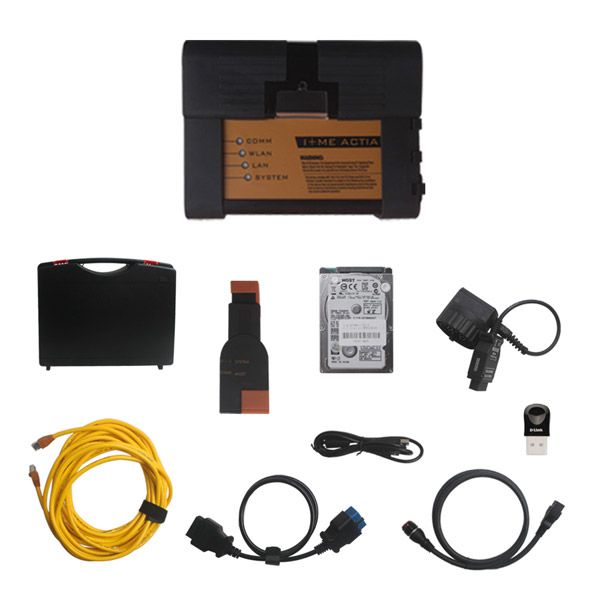

ICOM A2+B+C Package List:

1pc x ICOM A2 Interface for BMW
1pc x ICOM B Most for BMW
1pc x 20pin Cable for BMW

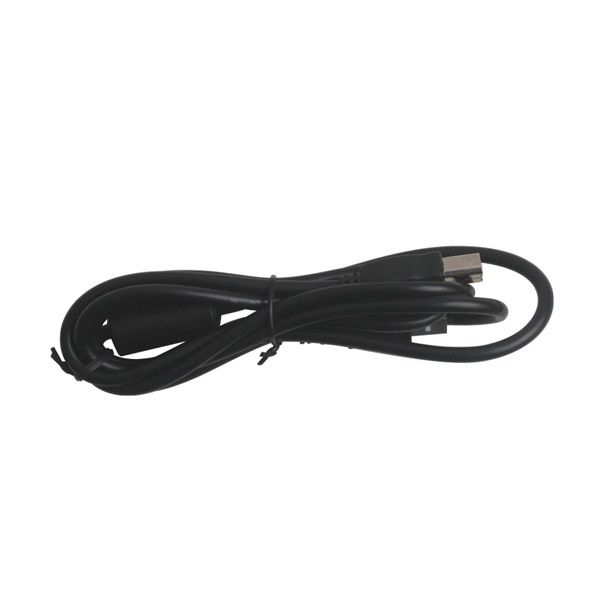

1pc x USB Cable

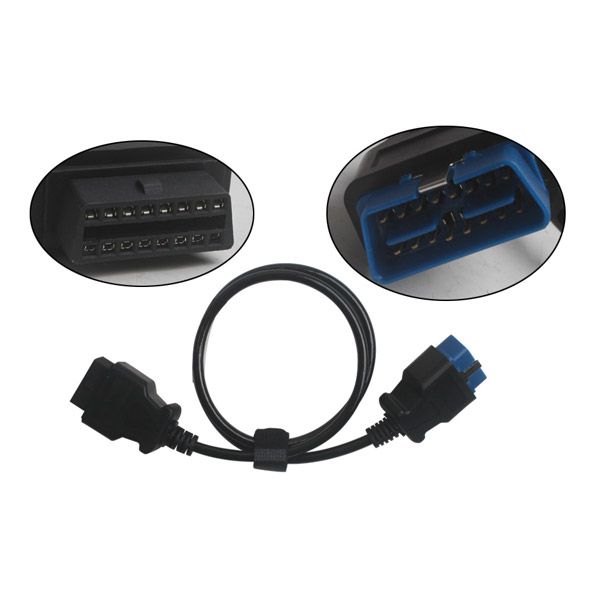

1pc x OBD2 Cable
1pc x LAN Cable
1pc x D-link USB WIFI adapter

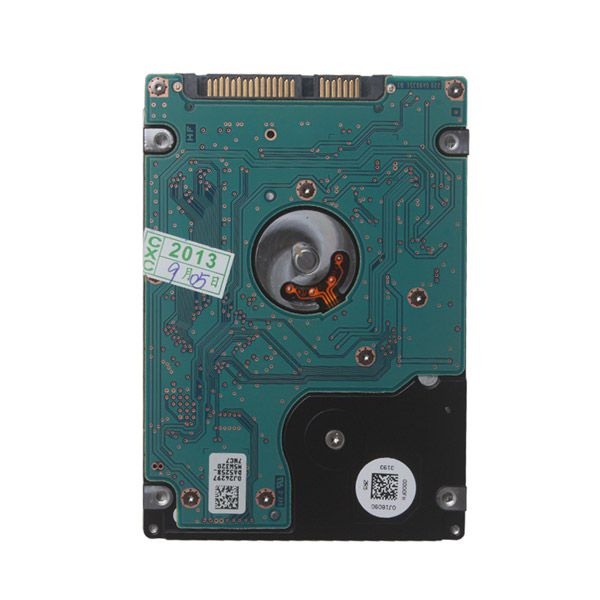

1pc x Software HDD

How to install/configure BMW ICOM USB WIFI D-link?

1. Insert WIFI USB D-link into the computer via USB port
WIFI BMW ICOM A2
2. Turn off the computer built-in WIFI or additional WIFI resources. Make sure only BMW ICOM WIFI USB exist on the computer. Meanwhile, disable both Internet network and local area connection.
3. Then power on computer.
4. Open “Network Connections” program to check there is no other existing Internet and Local Area connection.
NOTE: Do not disable DWA-131 which is the ICOM WIFI USB. If it displays “X” mark, ignore it.
WIFI BMW ICOM A2

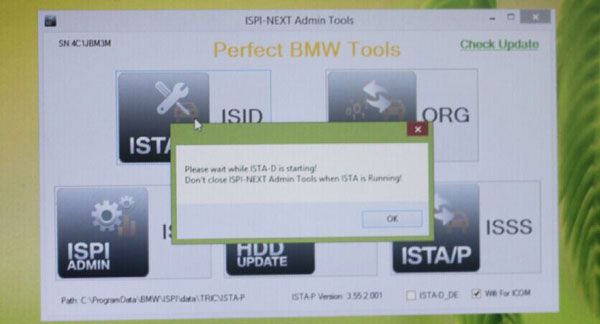

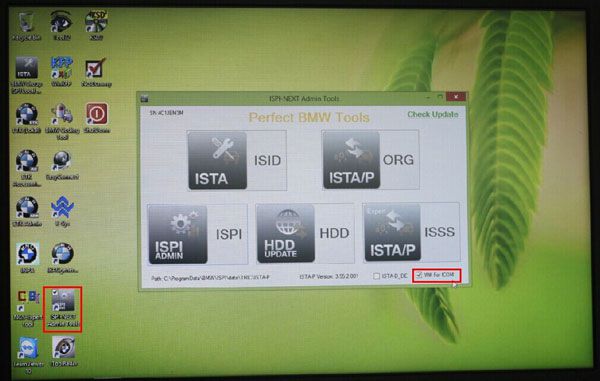

5. Run BMW ICOM Rheingold ISTA-D ISTA-P software, tick “WIFI for ICOM”
WIFI BMW ICOM A2

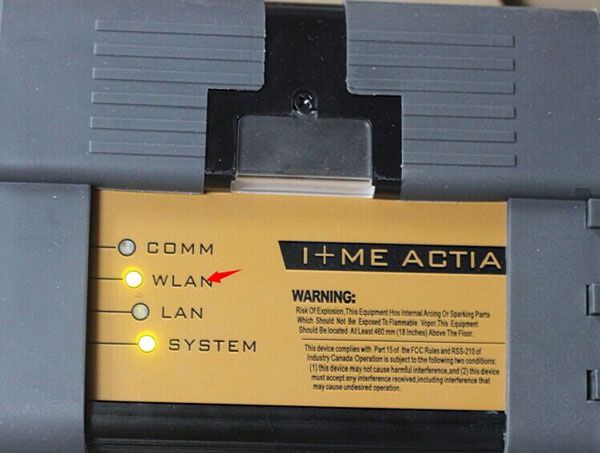

6. Connect BMW ICOM A2 emulator connector with vehicle. Wait 20-60 seconds until the BMW ICOM A2 WLAN indicator stops flashing or flashes slowly which indicates that well communication is built between WIFI USB adapter and BMW ICOM A2 WIFI.
WIFI BMW ICOM A2
7. Start using BMW ICOM ISTA-D diagnostic or ISTA-P programming software. Press OK to continue.
WIFI BMW ICOM A2

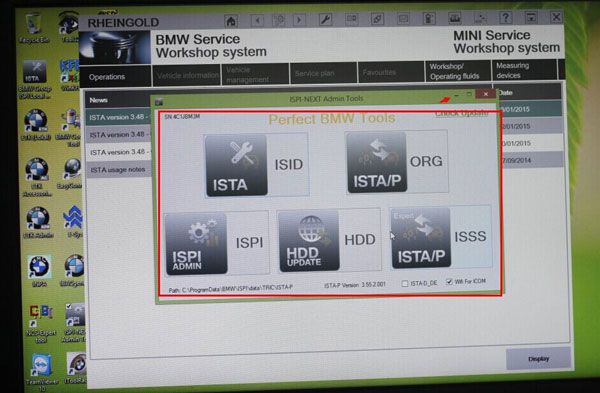

8. The ISTA-D, ISTA-P, ISPI, ISSS etc program cannot be turn off, but only be miniaturized.
WIFI BMW ICOM A2

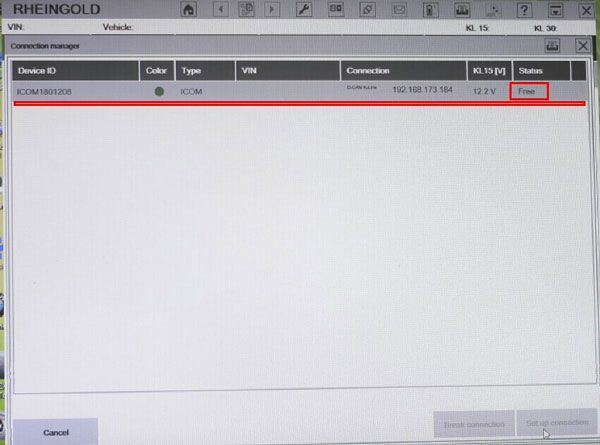

9. The WIFI BMW ICOM diagnostic system device is recognized by computer. WIFI wireless diagnostic and programming function are activated.
WIFI BMW ICOM A2
WiFi Connection Display:

wifi connection display

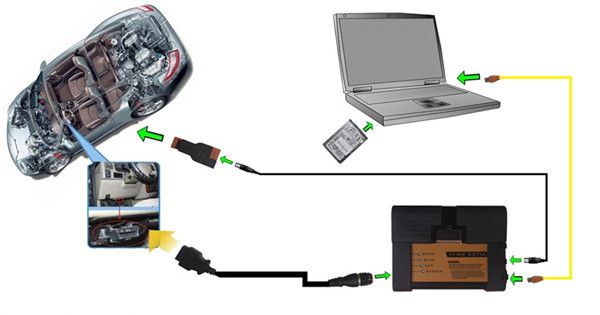

Wired connection diagram:

connect display
What should you pay attention for usage:

1) Password: New hdd does not have hdd password. For old version hdd. First password is "BMW", just ignore second password, do not fill anything

2) Software for HDD is encrypted. Do not change anything setup on this software. Such as crack the software, or copy the software of hdd to other place, or change display Mode, such as some part is Hidden, do not change it display status. Just directly install and use the software.

3) No Network And Also No Connection With The Original Server When You Use The BMW ICOM Software HDD, Ortherwise It Is Will Be Damaged,And Need You Send Back For Repair

4) It comes with D-link adapter and Software HDD, they have the same serial number, you must use the software HDD and D-link together. HDD and D-LINK works together only when they have the same serial number. If you lost anyone of them, you need to buy the new set.

5) NEVER TRY TO CRACK OR COPY OUR HDD.

How to change the language for BMW ICOM diagnostic tool?

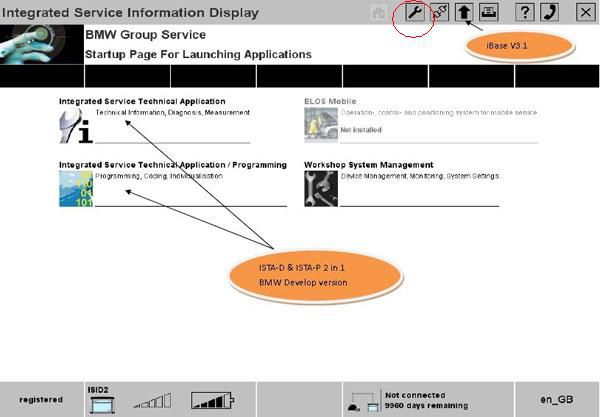

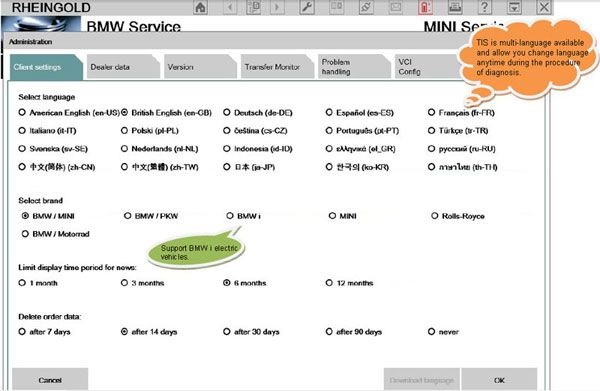

1) Enter the BMW icom software, you will see this interface, click the icon which appearance is wrench, then you will see the other language:
wifi-bmw-icom-a2-b-c-diagnostic-programming-tool-language-chaging
Then choose the language you want:
wifi-bmw-icom-a2-b-c-diagnostic-programming-tool-language-chaging-2
Then save the language setting. Go to diagnose and programming fucntion. You can also setup and save the language you need.

FAQ:
Q:What's the password of BMW ICOM A2 Wifi?
A:First password is BMW,second password no need put anything.
Q: Can you tell me the difference tool of the 2014.09 BMW ICOM A2 + B + C diagnosis and programming Tool with other BMW ICOM device?
A: The 2014.09 BMW ICOM A2+B+C Diagnostic & Programming Tool(SP168) can support wifi function. The other tool BMW ICOM can not do it. There is one wifi chip is the interface.
Q:I want to find one device to do the diagnostic of the BMW530 DA 2003. Can you recommend me one?
A:You can try the BMW ICOM A2 series.
Q: If the BMW ICOM A2+B+C Diagnostic & Programming Tool can do the Programming Control Template EGS?
A: Yes, it can do.
Q: May I connect it to original BMW sever?
A: No, please pay much attention: make sure disconnect network and do not connect it to original Server, otherwise it will be damaged and fianlly you have to send it back to us for repair, it is not cost-effective.
Q: I get the V2014.12 BMW ICOM A2 interface and HDD,but get this error"database version mismach, the found database version are not compatible", could you help?
A: Please set the ISTA/D language as Amercian English.
