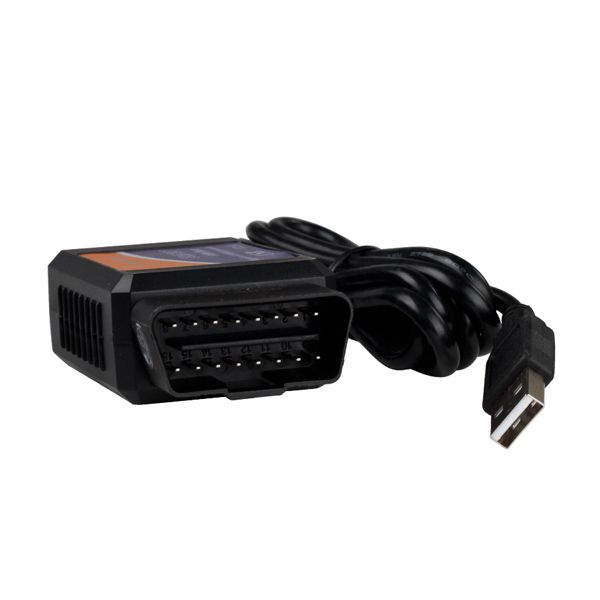

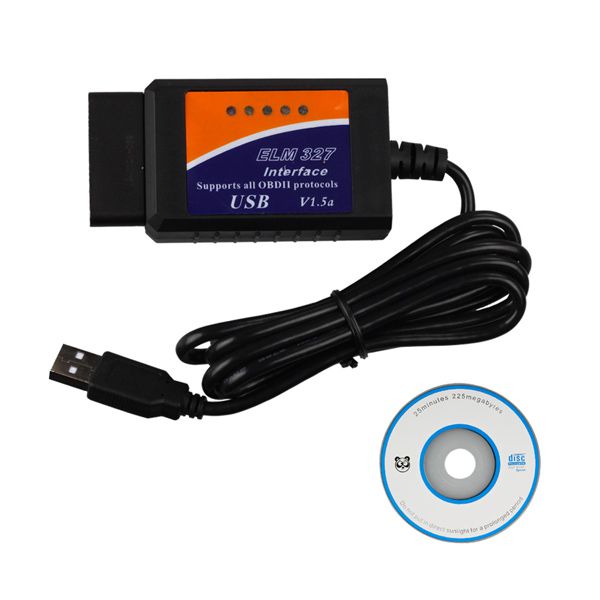

ELM327 V1.5 Plastic OBDII EOBD CANBUS Scanner Software V2.1 without FT232RL Chip
ELM327 V1.5 Plastic OBDII EOBD CANBUS Scanner can translate all the hard work of protocol into a simple ASCII character based view. Via the included serial cable, ELM327 V1.5 is used as an interface to connect virtually all OBD-II compliant vehicles to a PC for on-board diagnostics (OBD). Such vehicles are VW, Audi, Seat, Skoda, Opel, Vauxhall, Alfa, Mercedes, Smart, Renault, BMW, Peugeot, Citroen, Lotus, Ford, Rover, Aston Martin, Ferrari, etc.
Item No. COBD2860 Price Down Notice
- Shipping:
- Airmail Post
Estimated delivery time: 7-45 working days.See details» - Returns:
- Return for refund within 7 days,buyer pays return shipping.Read details »
- Support:
- Online Chat WhatsApp Skype Ask a question
- Product Details
- Product's Reviews
- Write a Review
- Related Products
ELM327 V1.5 Plastic OBDII EOBD CANBUS Scanner without FT232RL Chip
Top 6 Reasons to Get USB ELM327 V1.5:
1. Newest Software Version: V2.1, Hardware version: V1.5
2. Supports 9 protocols in all - ISO 9141-2 and ISO 14230-4 as well as CAN Bus ISO 15765-4.
3. Internal EEPROM can remember the last protocol.
4. Precision-moulded diagnostic connector made to fit all VW/Audi vehicles, even those with "tight" trim around diagnostic socket.
5. USB port.
6. Voltage input monitors your vehicle's battery.
How To Use USB ELM327:
1. Turn the car's ignition switch ON. No need to start the engine.
2. Start the software program, click "Options", select the correct communications port.
3. Your interface now works! Make sure the software can reliably access all the control modules that it should in your car.
USB ELM327 V1.5 Technical Specification:
ELM327 Based - Datasheet
OBDII Plug: J1962 16-Pin Male (to Car)
USB Port : (to Computer or PDA)
High quality UL certified USB Cable (equivalent to CE).
CAN (ISO 15765-4)
ISO 9141-2
ISO 14230-4
Automatically searches for the correct protocol or can be configured manually.
USB Port
Serial Interface uses AT commands to look like a modem.
Status LED
Length with USB Lead : 1.5 metres
What's New for elm327 plastic 1.5:
General Items:
RS232 baud rates to 500 Kbps
Adaptive Timing automatically adjusts ST timeouts
Power up to AT MA is selectable
Source (tester) address can be changed
Can reset all PPs with a jumper
Receive addresses can be independently set
Power Control with a low power standby mode
A 4800 baud ISO option
A non-volatile memory location for storing user data
CAN extended addressing support
You can now perform ISO/KWP bus initializations without having to send a request
An SS command allows searching through the OBD protocols sequentially
A new TA command allows the Tester Address to be easily changed
Factory calibration for the voltage reading circuit can be easily restored
ISO 9141 and ISO 14230:
The slow initiation address can now be varied
Control over key word checking
KWP protocols can now transmit 3 or 4 byte headers
CAN:
New J1939 protocol
Two user-definable CAN protocols
Improved error handling and recovery
Extended addressing support
Package including:
1pc x ELM327 V1.5 Interface
1pc x CD Driver
