Topdon Phoenix Plus Car Diagnostic Tool OBD2 II Full Function Diagnostic
Item No. COBD26307 Price Down Notice
In Stock
Price:
US$1,899.00/ piece
Discount Price:
US$1,690.00/ piece 11%
Quantity:

Shipping:
Express Shipping Service
Estimated delivery time: 3-15 working days.See details »
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat WhatsApp Skype Ask a question

TOPDON Phoenix Plus- All System + 28 Reset Services+ECU Coding

TOPDON Phoenix Plus In keeping with aftermarket requirements to handle complex modern vehicle issues, TOPDON Phoenix Plus is unveiled being the latest addition to our Phoenix family. Now begin with this all-in-one diagnostic tool to have everything you need to diagnose, research, and manage any issues at fingertips with its smooth logical workflow, where fully optimized easy-to-use software allows advanced OE-level diagnostics of online ECU coding, complete bi-directional functions, access to all vehicle modules, etc. equipped with the latest Android 10.0, preparing you to take on the toughest jobs with confidence.

Topdon Phoenix Plus Car Diagnostic Tool

Global Version, No IP limited.

It is global version, no IP limited. You can use it everywhere in the world.

2 Years Free Update Online

It is easy to do update by One-Click on the tablet via wifi connection. All supported car brands softwares are included, you don't need to buy softwares separately. After two years, you can still use it without update. It will not be locked. If you want to buy update service after two years, we can give you a discount on it.

Supported Languages

English, French, Spanish, German, Russian, Italian, Portuguese, Traditional Chinese, Japanese.

ECU Coding

Phoenix Plus offers the ECU Coding feature, which is not available in conventional code readers, to allow you: -To perform the customer individual customization of the car such as setting alarms, doors locking, and outdoor lighting, etc., to improve vehicle performance, or stimulate high-end car functions. -To alter the configuration when a component is replaced, so the new actuators can be recognized by related vehicle systems. -To enable multiple car systems to recognize each other, and so the actuators can start to work.
Topdon Phoenix Plus Car Diagnostic Tool

Active Test

With this diagnostic tool's Active Test, you can output the command into the ECU in order to turn on/off actuators, to find faults in the subsystems of your car effortlessly, without using the vehicle’s control: [ Turn on the radiator fan | Modulate the throttle | Open/close windows | Operate mirrors | Turn on/off the lights | Turn on/off the sound horn | Test door lock … ]

Topdon Phoenix Plus Car Diagnostic Tool

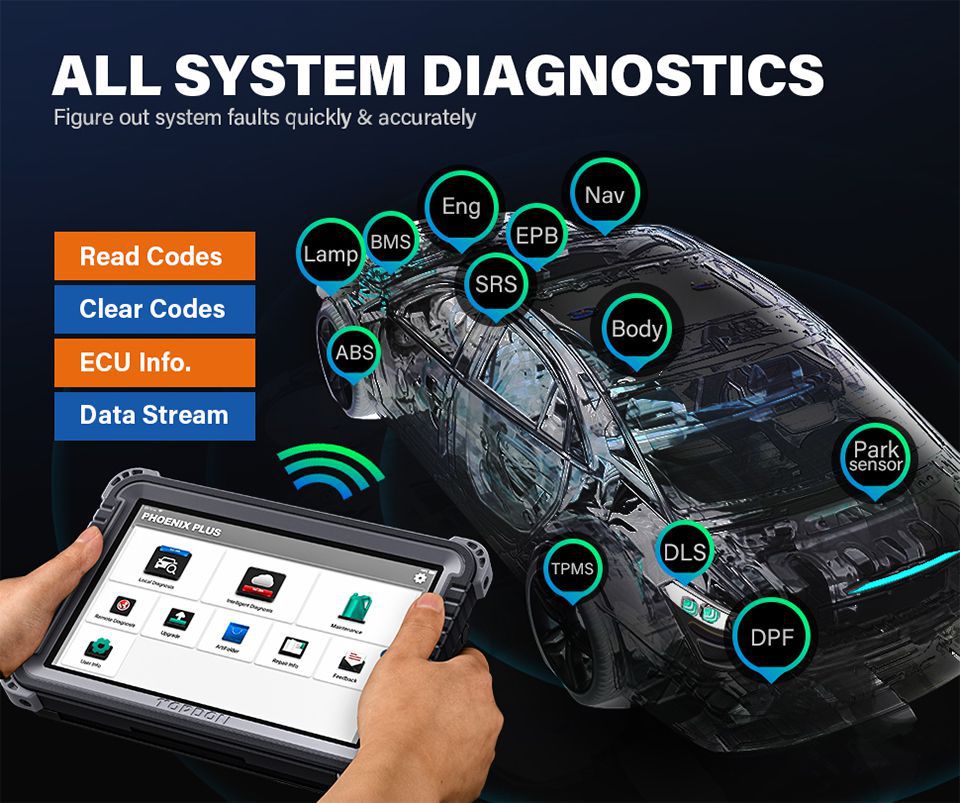

All Systems Diagnoses

This diagnostic scanner can establish a data link to all systems and subsystems of the vehicle being serviced to:

-Retrieve ECU information of the tested control units including unit type, version numbers, and other specifications, etc.

-Read & erase DTCs to locate problem areas and clear the codes.

-View Live Data of each parameter item.

The following is a list of modern vehicle systems that this scan tool can get access to:

-Engines / Auto Transmission / Airbags / Immobilizer / Key Coding / ABS / Cruise Control / Instruments / Self Leveling Suspension systems

-Seats / Doors / Gateway / Steering Angle / Air Suspension / Body Systems / Electronic Power Steering & Motor Assisted / Power Steering / Tyre Pressure / Rain Sensors / 4WD System

-Stabilizer / Intelligent Parking Assist/Door Motors / Audio Systems / Air Conditioning / Tiptronic / Anti Theft / Soft Top / Headlamp Leveling / Central Locking / Automatic Clutch / DPF Reset

-Electric Windows / Plip Programming / Heated Rear Window / Xenon Headlights / Wash Wipe / Fuel Burning Heater / Transfer Box / Seat Memory / Oil Life Service Reset / Sliding Doors / Electronic Throttle

-Navigation System / Rollover Sensor / Cruise Control / Multi Function Steering Wheel / Aux Heating / Electronic Parking Brake / Clutch Electronics ... and more.

This comprehensive scanning process is able to locate the faulty systems and retrieve the DTCs related easily. So you can work on all parts of the vehicle systems to enhance the performance, save energy, reduce emissions, and everything else.

Topdon Phoenix Plus Car Diagnostic Tool
Topdon Phoenix Plus Car Diagnostic Tool

28+ Special Reset Functions

1. Oil Reset Service

-Close the oil service light and reset service mileage & service interval after replacing the engine oil.

2. Steering Angle Calibration

-Clear memories of the previous steering angle sensor and store the replaced one.

3. Electronic Parking Brake Reset

-Reset the new electronic parking brake for braking wheels safely again.

4. Battery Register & Battery Maintenance

-Perform a reset on the vehicle battery for clearing the fault information and re-match the battery.

5. ABS Bleeding

-Get a firm brake pad after air exhaustion.

6. Electronic Throttle Position Reset & Learn

-Initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately.

7. Diesel Particulate Filter (DPF) Regeneration

-Clear particulate matter from the DPF filter to stabilize the filter performances

8. Tire Pressure Monitor System Reset

-Relearn TPMS sensors so that new sensors can be recognized by ECU.

9. Tooth Learning

-Finish tooth learning after changing crankshaft in the car engine, so the new part can be used.

10. Anti-Theft Matching (IMMOBILIZER)

- Add a new programmed key. PIN code is required.

11. Injector matching

-Write the new injector numbers into the ECU for accurate communication and injection control.

12. AFS Reset

It detects the light of the environment, then decides whether to automatically turn on the headlights or not. It can also adjust the headlights in time by monitoring the driving speed and body posture of the vehicle.

13. EGR Adaption

Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.

14. Gearbox Matching

Test the gearbox based on the driving conditions after the gearbox is disassembled or repaired, for a more comfortable and ideal shift quality.

15. Sunroof Service

Set the sunroof lock switch to be on / off according to weather, temperature, and memory.

16. SUS Reset

When the body height sensor and control module in the air suspension system are replaced or the level of the car is wrong, this function needs to be performed to level the body height sensor.

More Functions

Windows Calibration, Seats Calibration, Tire Reset, Language Change, A/F Reset, Coolant Bleed, Transport Mode, NOx Sensor Reset, Dblue Reset, Stop/Start Reset. You can find 15 kinds of commonly used reset functions in the reset menu, and other special functions in the car brand diagnostic softwares menu. And more...


Wide Vehicle Coverage across the Global

-American Cars Buick; Cadillac; Chevrolet; Chrysler; Dodge; Ford; GM; Hummer; Jeep; Lincoln; (BRAZIL) BX-Fiat; BX-GM

-European Cars: Abarth; Alfa Romeo; Audi; Bentley; BENZ; BMW; Bugatti; Citroen; Dacia; EU-Ford; Ferrari; Fiat; Jaguar; Lamborghini; Lancia; LandRover; Maserati; Maybach; Mini; Opel; Peugeot; Porsche; Renault; Rolls-Royce; Rover; Saab; Seat; Skoda; Smart; Sprinter; Vauxhall; Volvo; VW; (UKRAINE) ZAZ; (RUSSIA) GAZ; IZH; PAZ; SEAZ; UAZ; VAZ

-Asian Cars (JAPAN) Acura; Daihatsu; Honda; Infiniti; Isuzu; Jpisuzu; Lexus; Mazda; Mitsubishi; Nissan; Nissan GTR; Scion; Subaru; Subaru; Suzuki; Tlisuzu; TOYOTA; (KOREA) Daewoo; Hyundai; KIA; Samsung; Ssangyong; (CHINA) Baic; Beijing; Changan; Changan-Ford; Changcheng; Changhe; Chsuzuki; DF Peugeot; DF Honda; DF Nissan; DF XK; Flyer,BYD; Fukang; Futian,Foton; Geely; Gonow; GZ Honda; Hafei; Haoqing; HC BMW; Hmada; Huachen; Isuzu,JMC; Jacty; Jianghuai; Jiao; Jinlong; Joylong; Lifan; Liuwel-TY; Luxgen; NJ Fiat; Qirul-TY,chery; Qoros; Saicmg; Spark-TY; TJ TOYOTA; Trumpchi GAC; Weili; Xiaokang Dongfeng; Xili,Faw Tianjin; Xinkai; YQ Mazda; Zhongshun; Zhongtai,Zotye; Zhongxing; (INDIA) Mahindra; Maruti; Tata; (MALAYSIA) Perodua; Proton; (IRAN) MVM

-Australian Cars Au-Ford; Holden

Discover More User-Friendly Features

Remote Diagnosis

Users can carry out the remote diagnosis to ask for the remote control from other LAUNCH diagnostic tools (including but not limited to V+ 4.0), which are equipped with the remote diagnosis module as well, or from a PC client technician. This has realized the reality that a mechanic can diagnose an abnormal vehicle, which is even thousands of miles away.

Record & Playback

Another great feature about this automotive diagnostic scanner is that, it would allow you to view the Live Data Stream, and to record the data in Waveform. This would save you the hassle of reading through and digesting all the information which is being presented to you. You can even playback these data, for better analysis and rectification as well as the future use.

Share Report via Wi-Fi

Rather than taking the additional hassle, with this LAUNCH scanner, you would easily be able to share the diagnostics report to your clients or technicians via Wi-Fi. They would take a look at the full, clear and accurate diagnostic report, and then understand about what would need to be done. No more Googling unreliable fixes that would waste your energy.

Online Repair Resources

Over 1600 vehicle models' service & repair information, handbook, repair case and operation skills are included.

Health Report Generate and Share

With LAUNCH X431 V+, you can generate a full system Diagnostic Report by ONE-CLICK. The reports can be emailed to the office or directly to your customer. You can also print out the vehicle health report card.

Topdon Phoenix Plus Car Diagnostic ToolTopdon Phoenix Plus Car Diagnostic ToolTopdon Phoenix Plus Car Diagnostic ToolTopdon Phoenix Plus Car Diagnostic ToolTopdon Phoenix Plus Car Diagnostic Tool

Specifications

Operating System: Android 10.0

CPU: 2.0GHz Quad-core

Display: 10.1” Touch Screen (1280*800 Resolution)

RAM: 4GB

ROM: 64GB

Connectivity: ŸWi-Fi (802.11 b/g/n) / Bluetooth 5.0

Camera: 8.0MP Rear-Facing Camera with AF

Audio Output: Built-in Speakers

Input Voltage: DC 5V/2.5A

Working Temperature: 0℃~50℃ (32~122℉)

Storage Temperature: -20℃~ 60℃ (-4~ 140℉)

Built-in Battery: 6000mAh

Dimension: 277.3*190.8*44.5mm (10.92*7.51*1.75 inch)

Weight: 1555g (54.85 oz)
Topdon Phoenix Plus Car Diagnostic ToolTopdon Phoenix Plus Car Diagnostic ToolTopdon Phoenix Plus Car Diagnostic ToolTopdon Phoenix Plus Car Diagnostic Tool

Package List for Phoenix Plus

1*Phoenix Plus

1*VCI Dongle

1*OBDI Adapter BOX Transfer Line

1*OBDII Extension Cable

1*Cigarette Lighter Cable

1*Type-C to USB Cable

1*Battery Clamps/Cable Set

1*Power Adaptor

1*User Manual

1*Password Envelope

1*Non-16pin Adaptor Cable Kit:

-BENZ-38

-FIAT-3

-NISSAN-14+16

-BMW-20

-CHRYSLER-6

-GM/VAZ-12

-HONDA-3

-MITSUBISHI/HYUNDAI-12+16

-TOYOTA-17 -TOYOTA-22

4*Fuse (φ5*20mm)

2*Fuse (φ6*30mm)
