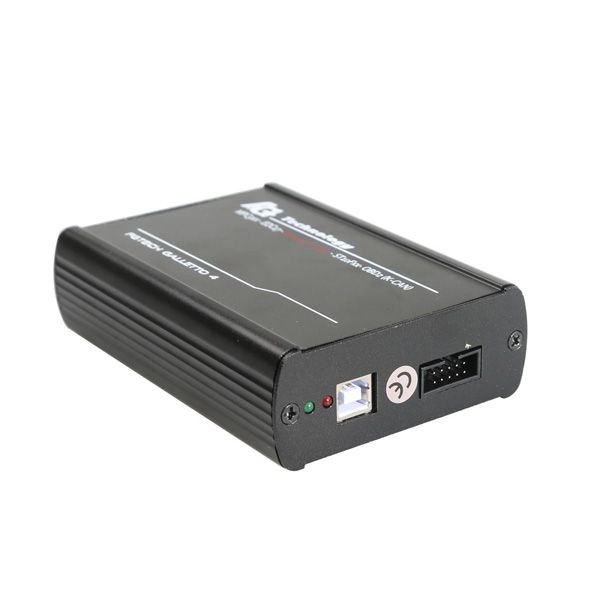

FGTech Galletto 4-Master V54 BDM-OBD is a famous chip tuning tool for all cars, trucks, motorcycles, Marine, BDM MPCxx, BDM Boot Mode Tricore, checksum. It supports multi-language, and not only works as FGTech Galletto 4-Master, but also works as BDM-OBD.
Item No. COBD21156
5 stars, 9 reviews.
In Stock
Price:
US$69.99/ piece
Discount Price:
US$49.99/ piece 29%
Quantity:

Shipping:
Free ShippingStandard Flat Rate Shipping Service
Estimated delivery time: 7-45 working days.See details»
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat Ask a question

Latest Version FGTech Galletto 4 Master V54 BDM-Tricore-OBD Function
Top 6 Reasons to Get FGTech Galletto 4:

1. Newest version: V54 ,Unlock version, use directly, no need activation
2. Supported languages: English/Italian/German/French/Spanish/Portuguese/Czech/Turkish

3. Supports windows xp, more friendly than Fgtech v53, much easier to operateFGTech Galletto QC mark
4. FGTECH V54 PCB board: Specially designed

5. Supports Tricore Function

6. Supported ECU List After Test

FGTech Galletto v54 Description:

FGTech Galletto 4-Master this new system developed with high-speed USB2 technology is the fastest and most secure product on the market, it is easy to install and use,. Our system comes furnished complete with all Car, Truck, Motorbike, Marine, BDM MPCxx, checksum.
Notice: FGTech V54, only update the firmware, not software

FGTech Galletto 4 Boot Mode System:

NEW JTAG - BDM - MOTOROLA - FREESCALE - INFINEON
Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 - Mair 8GMF
New Delphy DCM3.5xx DCM3.7xx TRW
Motorola Freescale MPC 555/556/561/562/563/564/565
Motorola MC 68332 - MC YQQCU - MC 68377 Trionic 5/7/8 GM-OPEL-SAAB
Motorola MC 68376 Campi 01 Lamborghini - Lotus
Motorola MC 68336 MEMS D5 ROVER
Motorola ZC 439615 - ZC 439507 IAW FIAT - VAG
New Line OBD protocols VPM GM - Hummer-Corvette-Munstang-Blazer-Cadilac
New Line OBD protocols Tx-Rx - Subaru - Mitsubischi - Hitachi - Denso ecu
FGTech Galletto 4 Automatic Checksum:
All old protocols included from Bosch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / Denso
Boot Mode C167x / ST10, Boot Mode Infineon With password Bosch , Siemens
Motorola MC68332 - MCYQQCU - MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507
Motorola Freescale MPC 555/556/561/562/563/564/565
Freescale MPC 5553/5554/5565/5566
BDM
5-30V Car / Industrial Vehicles, L line / K line KWP, CAN
Can Bus V2.0 50Kb > 1000Kb
J1850 VPW PWM GM -FORD
Rx Tx RS232,
RS 485,
Automatic setup Pull up K-L line 250, 500, 1000 ohm,
Automatic setup termination Can bus 0, 60,120 ohm,
FGTech Galletto Master Version:
Recovery Mode Complete
Function scan tool to clear DTCs
Function scan tool to erase the DTC
Control voltage of the car battery in real time
Check tension of battery car in real time

Supported vehicles, motorcycles, Trucks and tractors:

Vehicles:

Alfa Romeo, Audi, BMW, Cadillac, Chevrolet, Chrysler, Citroen, Corvette, Dacia, Dodge, Ferrari, Fiat, FORD, Honda, Hummer, Hyundai, Isuzu, Jaguar, Jeep, Kia, Lancia, Land Rover, Maserati, Mazda, Mercedes, Mini, Mitsubishi, Nissan, OPEL, Peugeot, Porsche, Renault, Rover, SAAB, Seat, Skoda, Smart, Ssangyong, Suzuki, Toyota, Volvo, Volkswagen. (For full list contact us)

Motorcycles:

Aprilia, Ducati, Gilera, Moto Guzzi, Moto Guzzi, Moto Guzzi, Piaggio, Piaggio. (For full list contact us)

Trucks & tractors:

Astra, Case, Claas, DAF,, Deutz Fahr, Fendt traktorius, Hürlimann, John Deere, Iveco, Iveco Marine, Lamborghini, Landini, MAN, Massey Ferguson, MC Cormik, Mercedes, New Holland traktorius, Nissan, Renault, Same, Scania, SISU varikl?, Steyr, Valtra traktorius, VW, Volvo Penta, Volvo.

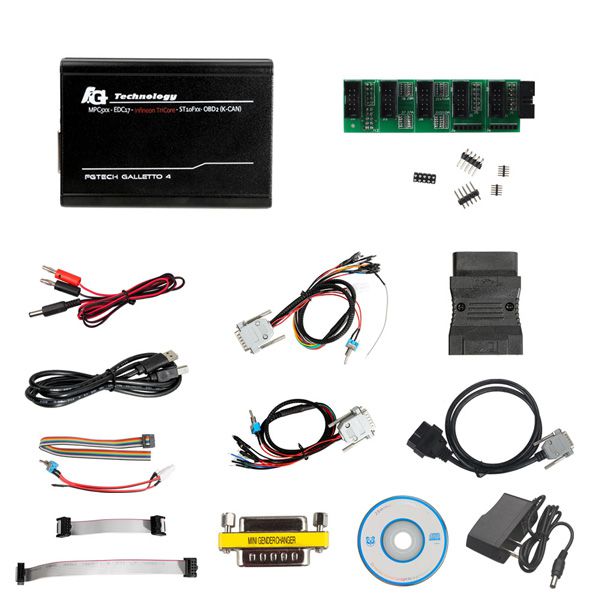

Galletto V54 Package including:
1pc x New version main interface
1pc x ECU cable for boot
1pc x Adapter for BDM to CMD with bdm cables
3pcs x BDM adapters
6pcs x BDM connectors
2pcs x Power cable
1pc x OBD2 cable
1pc x USB cable (1.5meter)
1pc x CD (2012 version SW -MASTER, documents pdf, pictures, etc.)
FG Tech Galletto BDM Connection

fgtech-galletto-4-master-connection-guide-1

FG Tech Galletto Boot Connection

fgtech-galletto-4-master-boot-connection-guide
FGTech Galletto OBD Cable Connection

fgtech-galletto-4-master-obd-cable-connection
FgTech v54 Success and Failure List:
EDC16u34 (VAG) Read/Write ok (OBD)
EDC16U1 (VAG) Read/Write ok (OBD)
MED9.1 (VAG) Read/Write ok (ODB)
Trionic8 (SAAB 9-3) READ/WRITE OK (OBD)
EDC16P (VAG) Read/Write ok (OBD)
EDC15V (VAG) Read/Write ok (OBD)
EDC17CP14 03L906022G Read/Write ok (OBD and boot mode)
EECV 1.8tddi read/write ok
VAG
AUDI ME 7.1.1 3.0 v6 read ok – awaiting flash
fiat multijet
mjd 6f3 diesel read/write all ok
renualt megane
siemens s3000 read hitachi mcu/write ok
EDC15C13 (Renault) Read/Write ok (K-line on bench and boot mode)
DDCR (Nissan Almera 1.5DCI) OBD read/write OK
Mercedes w211 2.2 cdi edc16c3 obd, ecu data ok read/write fail! Bdm read ok
edc16c39 obd r/w ok
edc16c39 bdm r/w ok
edc16c9 bdm r/w ok
astra J 2009 denso galletto jtag NOT ok (but ktag r/w same ecu ok with jtag)
mitsubishi grandis
edc16u31 obd r/w ok
renault megane /laguna
sagem3000 obd r/w ok
BMW 3/5/7 series
edc16c31/35 obd r/w ok
edc17 in boot mode ok
psa
edc16c34 obd r/w ok
dcm 3.4 obd r/w ok
ford
edc16c34 and delphi ECUs obd r/w ok
vag
edc15 / my galletto can not read program shout down (I use kess)
edc16 obd r/w generally ok
edc17 in boot mode ok
edc17 boot mode ok
Audi S3 Med9.1 r/w (OBD) ok
Mercedes GLK Delphi CRD2 r/w (OBD) ok
Peugeot 207 EDC16C34 r/w (OBD) ok
Merc w212 crd 3.7 obd. OK
BMW E87 116D 2.0 EDC17C06 Bootmode r/w ok
BMW E83 3.0d ODB r/w ok
ME 7.5 (VW 1.8T AWT) Read ok / Write ok (OBD)
Merc Viano EDC16 C2. OBD. Ok
VW Golf5 1.4 TSi
ecu MED17.5.1 Boot mode r/w ok
I test clone work ok
sirius32N,EMS3132,EMS3134 in boot-mode read/write OK.
Mazda 5 2.0D 2005 Denso RF7K read/write OBD ok
Mazda 6 2.0D 2006 Denso RF8J read/write OBD ok
Peugeot 308 1.6 HDI 2013 Siemens SID807 EVO read/write BOOT ok
BMW X6 3.0D 2012 and 2013 (306 and 245hp)BOSCH EDC17CP45 read/write BOOT ok
Mistubichi Pajero 3.2DID 2013 Denso 4M41 and 4D56 read/write JTAG RENESAS ok
Mercedes W203 320CDI EDC16cp31 r/w ok (OBD)
Audi q7 3.0TDI – ok
BMW e46 2.0D 150km EDC16c31- ok
BMW E90 2.0D 163km EDC16c35- ok
Chevrolet Captiva 2.0D 150km – ok
Renault Trafic 2.5D EDC15 – ok
Mercedes B180CDI EDC15c32 – ok
Mercedes B200CDI – ok
VW Golf4 102km – edc15 – ok
Skoda Octavia 1,9TDI 105km EDC16 – ok
Citroen Jumpy 2.0D Simens 802A – ok
Ford Focus 2.0D 136 PSA Simens 802 – ok
Mini One 1.6 90km – ok
BDM
Mercedes B180&B200 CDI – ok
Q7 3.0tdi – ok
BMW one – ok
Landrover /Jaguar EDC17CP11 read out in boot mode ok
BMW 330d EDC15C4 read ok/write ok via OBD
Mercedes vito 111 EDC16C31 read ok/write ok via OBD
Mercedes vito 120 EDC16C31 read ok/write ok via OBD
bmw e90 edc 17cp reading ok write fail. boot mode ok!
vag edc17cp14 read/write in boot mode ok, read in OBD ok
vag pcr2.1 read/write OBD ok, PCR2.1 unlock via bootmode ok
vag edc16cp34 obd read/write ok
fiat/iveco edc16c39 obd read/write ok
edc16u31/34 obd read/write ok, BDM read/write ok
Mercedes Vito 2.2CDI 2012 Delphi CRD2.x (OBD) read / write ok
Siemens BMW MSS54 BDM R/W OK OBD not tested (will probably work)
Siemens BMW MSS54HP BDM R/W OK only with AMD Chip/Not ST EEPROM, WILL NOT READ PROPERLY/WRITE
If you change ST chips to another EEPROM works fine wit HP unit
OBD
ALFA ROMEO
· edc15c7
· ME 7.3.1
· edc16c39
· edc16c39 read time 40 MINUT!
· id Alfa 147 immo off (k line /boot mode)
BMW
· edc16c31 obd
· BMW X5 2007 3.0TDI
· EDC16 OBD
· BMW 525 (E39)
· BMW 320D E46
· bmw e90
FIAT
· Grande Punto read 1_3 MJT 75 hp
MERCEDES
· EDC15C5
· edc5c2
· delphi CRD2
OPEL
· EDC16c9
· Opel Corsa-D CAN
PSA
· edc15c7 boot mode (ID problems)
· EDC 16C34
· EDC16c3 K line
· edc16c34
RENAULT
· Renault Delphi 2007 k-line
VAG
· edc15v
· EDC15-P
· edc15
· Golf Plus 2006 2.0TDI
· EDC16U34
· A4 2.0 tdi 2008
· Skoda octavia vrs 2005
· EDC15P K lINE
· VW crafter READ
· VW Golf5 1.9TDI
· Audi A6 V8 4.2l Petrol (over OBD fuse for dash fuse 11 or 15 , but it worked after pulling the fuse for dash and it went 100%)
· med9.1
· edc17cp14
· EDC17
· But edc17cp20, edc17cp44, etc, etc same year, have tricore protected active, and if you write in obd, ecu bloqued.
BMW E70 3.0D EDC16 (BDM)
bmw. edc16c35 (BDM)
Opel EDC16c9 (BDM)
iveco edc16 BDM (BDM)
Audi A6 (TRICORE BOOT)
Fgtech Galletto V54 What not work:
i have FG Tech v54, with one cannot read Subaru Impreza 2.0d, with another one read/write ok, Denso ECU.

FGTech Galletto V54 FAQ:

Q1: FGTech Galletto 4 can cancel EGR gestion via OBD?
A1: Sorry, at present it still can not do this function, it just can read and write the Data of Engine ECU

Q2: I have got my package. but the CD is broken, where and how can i get the software?
A2: I am really sorry for this. Please download FG Tech Galletto 2 V54 Software

Q3: Can Fgtech V53 update directly to Fgtech Galletto 4? and use Fgtech Galletto 4 software?
A3: Sorry, it can not update directly. If you want fgtech v54, you need to buy new fgtech.

Q4: Can Fgtech V54 do this ecu Bosch EDC16 BMW(P3)?
A4: Yes, it can do.

Q5: After i install the software. it ask me to update it. can i ?
A5: Please do not update it. just close that notice.
