Cheapest V19 VAS 5054A Bluetooth Scanner for VW/AUDI/SKODA/SEAT with OKI Chip
  • Cheapest V19 VAS 5054A Bluetooth Scanner for VW/AUDI/SKODA/SEAT with OKI Chip
  • Cheapest V19 VAS 5054A Bluetooth Scanner for VW/AUDI/SKODA/SEAT with OKI Chip
  • Cheapest V19 VAS 5054A Bluetooth Scanner for VW/AUDI/SKODA/SEAT with OKI Chip
  • Cheapest V19 VAS 5054A Bluetooth Scanner for VW/AUDI/SKODA/SEAT with OKI Chip
  • Cheapest V19 VAS 5054A Bluetooth Scanner for VW/AUDI/SKODA/SEAT with OKI Chip
  • Cheapest V19 VAS 5054A Bluetooth Scanner for VW/AUDI/SKODA/SEAT with OKI Chip
  • Cheapest V19 VAS 5054A Bluetooth Scanner for VW/AUDI/SKODA/SEAT with OKI Chip
Cheapest V19 VAS 5054A Bluetooth Scanner for VW/AUDI/SKODA/SEAT with OKI Chip
Cheapest V19 VAS 5054A Bluetooth Scanner for VW/AUDI/SKODA/SEAT with OKI Chip
Cheapest V19 VAS 5054A Bluetooth Scanner for VW/AUDI/SKODA/SEAT with OKI Chip
Cheapest V19 VAS 5054A Bluetooth Scanner for VW/AUDI/SKODA/SEAT with OKI Chip
Cheapest V19 VAS 5054A Bluetooth Scanner for VW/AUDI/SKODA/SEAT with OKI Chip
Cheapest V19 VAS 5054A Bluetooth Scanner for VW/AUDI/SKODA/SEAT with OKI Chip
Cheapest V19 VAS 5054A Bluetooth Scanner for VW/AUDI/SKODA/SEAT with OKI Chip

Cheapest V19 VAS 5054A Bluetooth Scanner for VW/AUDI/SKODA/SEAT with OKI Chip

The VAS 5054A is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers, support diagnose for Audi, VW, Skoda, Seat, Lamborghini and Bently.
Item No. COBD2238
5 stars, 9 reviews.
Out of Stock
Price:
US$55.00/ piece
Discount Price:
US$49.00/ piece 11%
Quantity:

Shipping:
Free ShippingStandard Flat Rate Shipping Service
Estimated delivery time: 7-45 working days.See details»
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat Ask a question

V19 VAS 5054A Bluetooth Scanner for VW/AUDI/SKODA/SEAT with OKI Chip
qc mark

Top 4 Reasons to Get VAS 5054A:
1. Software version: VAS-PC V19
2. With OKI Chip
3. Language: English
4. Add new car models Bentley and Lamborghini

(Note: The 5054a Item No. SP33-D only works with VAS-PC V19 software, CANNOT work with newer ODIS)
Computer Windows System Requirements:
Windows System Language: American English
Windows XP(xp2/xp3)
System C:// have to be NTFS format
C:// need to have at least 10GB space for installing VAS5054A
Bluetooth version
.
The integrated Bluetooth interface connects the vehicle with a notebook, desktop PC or test system.
No cables are needed for vehicle diagnostics using the VAS 5054.
The range of the wireless Bluetooth connection is 5 to 10 meters,depending on the environment and the type of Bluetooth adapter used on the PC side.
The Serial Port Profile (SPP) is used for data transfer via Bluetooth. Different Bluetooth security levels are supported.
Specification:
The vehicle protocols are handled directly in the VAS 5054A.
This ensures fast response times and a reliable real-time behavior independently of the PC operating system. Every time a connection is established, the VAS 5054A software is identified with the version installed on the application PC. The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.
The diagnostic application and the associated Diagnostic Base System are installed on the application PC.
The diagnostic base system can access the VAS5054a via Bluetooth or USB.
Access via Bluetooth: After a connection to the VAS 5054A has been set up, the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile). The Diagnostic Base System uses this COM port to communicate with the VAS 5054A.You need to specify this port when you install the diagnostic application.
Access via USB: You can also connect the VAS 5054A to the application PC by using the supplied USB cable. Windows detects the VAS 5054A through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application. Setup of the VAS 5054A is then complete and the device is ready for use by the diagnostic application.
VAS 5054A Supported Protocol:
K line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO 11898-3)
J1850 (SAE J1850)

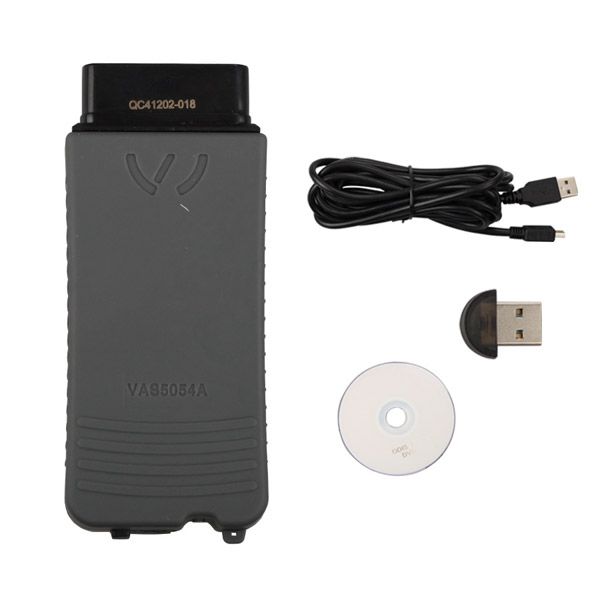

Package list:
1pc x VAS 5054A main unit
1pc x USB Cable

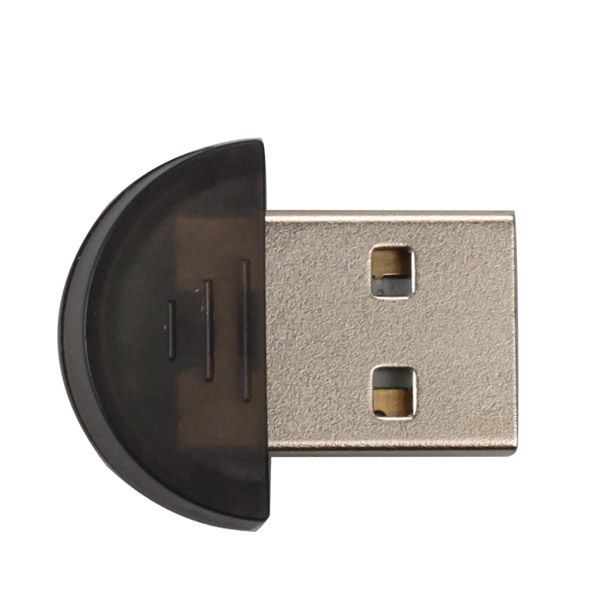

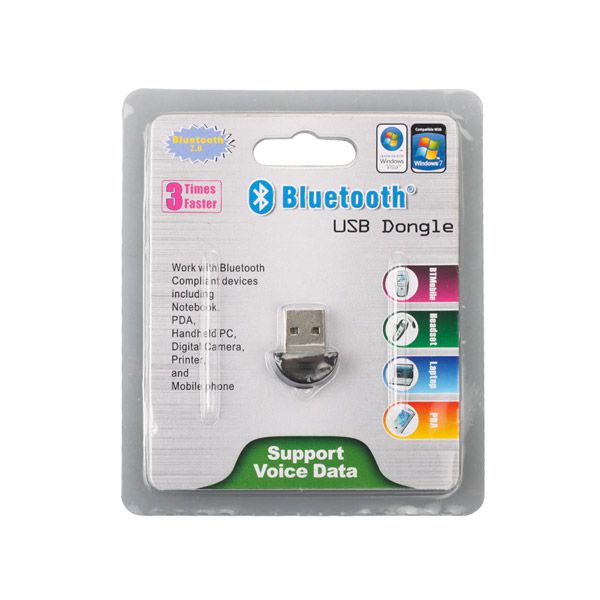

1pc x USB Bluetooth Adapter
1set x CD Software
1pc x Carrying Case

VAS 5054A Software Display:

vas-5054a-software-display-1
vas-5054a-software-display-2
vas-5054a-software-display-3
vas-5054a-software-display-4
VAS 5054A PCB Board:

sp33-d-vas-5054a-scanner-board-1
