VBOX-BMW Diagnostic Tool including BMW whole vehicle(E series and F series chassic) diagnostic analysis, including read the faulty code. read the history code, read ECU information, read VIN information, clear faulty code.
Item No. COBD2161
5 stars, 9 reviews.
In Stock
Price:
US$119.00/ piece
Quantity:

Shipping:
Standard Flat Rate Shipping Service
Estimated delivery time: 7-45 working days.See details»
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat Ask a question

VBOX-BMW VBOX BMW E Series and F Series Diagnostic Tool
VBOX-BMW Software system support: Window XP/7/8/10 32bit or 64 bit
Language: English
Update: Online Update

How to use VBOX-BMW?

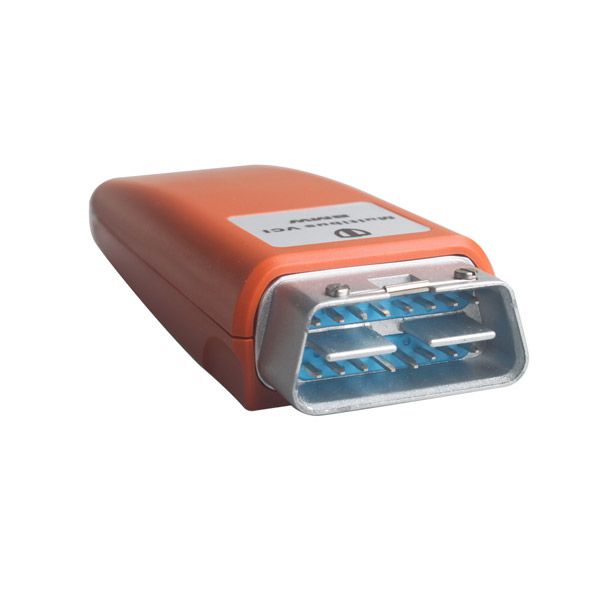

1. Connect to hardware, insert the box into OBD interface(You can find the OBD interface on the left side down of the seat). Connect the box with internet reticle and computer reticle interface, red light sparkling.)

Hardware lights instruction
LED status Status instruction
Red light sparkling hardware working ok
Green light sparkling data communication status
2. Decompression zip package to local computer folder, run the UDBMW.exe install application. According to the next step to the installation is complete.
Running UDBMW desktop shortcut, The first run you need authorization code, Returns the application display of seeds to distributors, You will get the activation code.

how-to-use-vbox-bmw

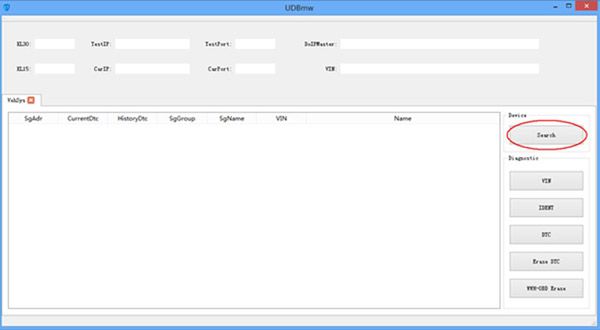

3. Press Search button to find your device.

how to use vbox bmw scanner

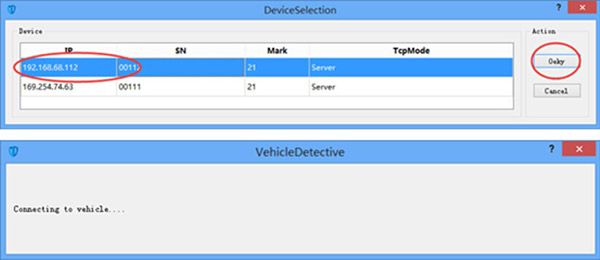

4. Select one device and press okey button.Then the program will automatically detect available vehicle.

how to use vbox bmw diagnostic tool

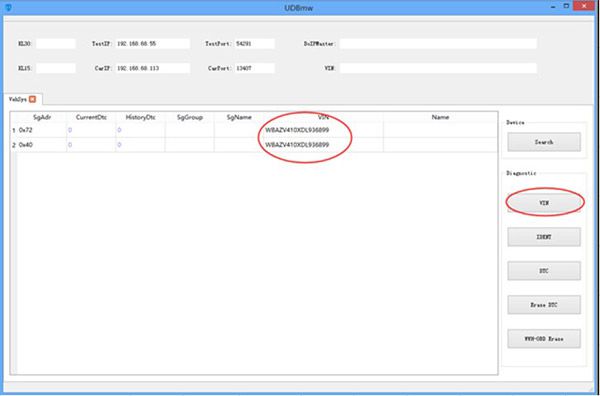

5. Press VIN Button to read VIN number of the vehicle.

vbox bmw using instruction

6. Press IDENT Button to read Ecu information.

how to use vbox scanner

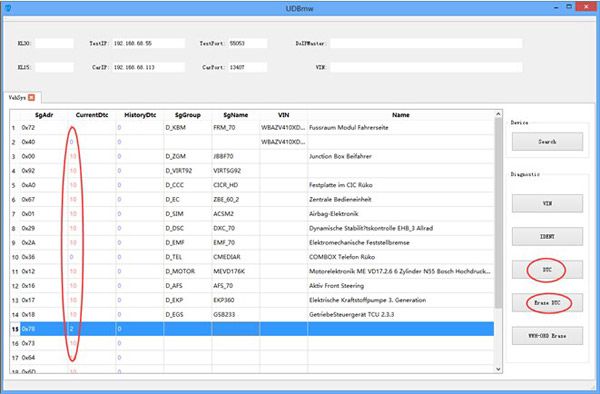

7. Press DTC Button to read “Diagnostic Trouble Code”.

8. Press Erase DTC Button to clear “Diagnostic Trouble Code


how to use vbox scaner for bmw

9. Check the DTC detail information.

how to use vbox bmw scanner
VBOX BMW SCANNER using method

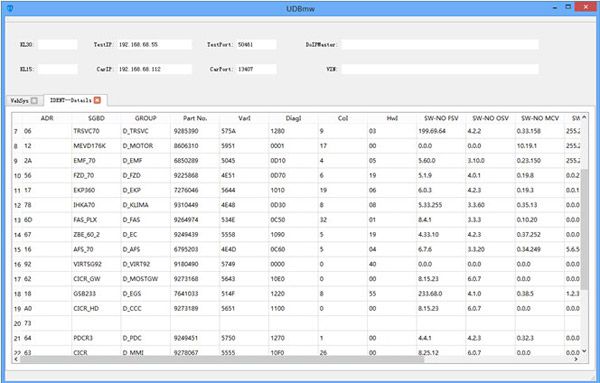

10. Check ECU detail information.

How to use vbox scanner

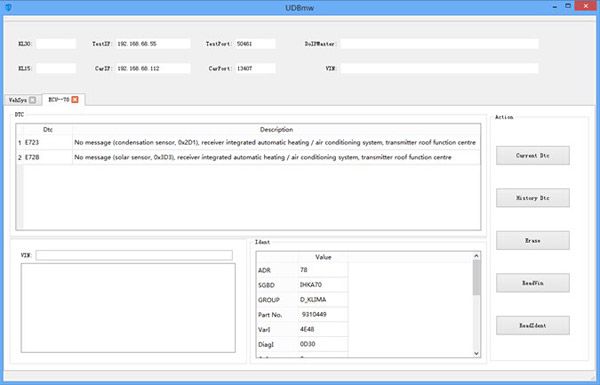

11. Double click “current fault code number”, enter single ECU.Read fault code number history fault code number, clean up code number, read vehicle identification number and ECU detail information, press current “current fault code number and history fault code number” to clean up the fault code numbers.

VBOX BMW SCANNER USING INSTRUCTION

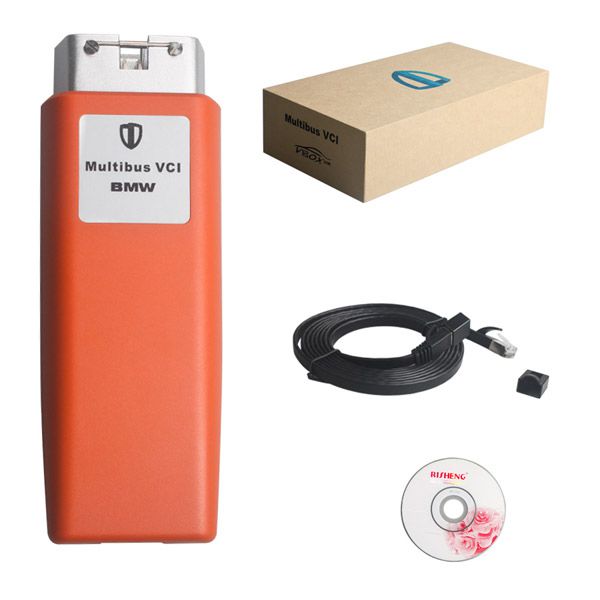

VBOX-BMW Package Including:

1pc x VBOX-BMW Host

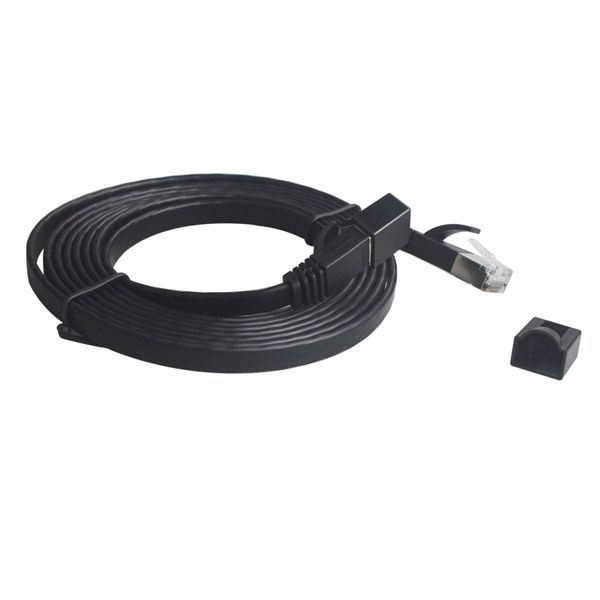

1pc x VBOX-BMW usb cable
1pc x CD
