ViewStar 10A Solar Charge and Discharge Controller 12V 24V Auto Universal LCD Controller Dual USB PWM Regulator VS1024AU

Overview:

The ViewStar AU controller is a PWM charge controller with built in LCD display that adopts the most advanced digital technique. The multiple load control modes enable it can be widely used on solar home system, traffic signal, solar street light, solar garden lamp, etc.

Features:

Adopt high quality components of ST,IR and Infineon, make sure product using lifespan

Terminals have UL and VDE certification, the product is more safer and more reliable

Controller can work continuously at full load within the environment temperature range from -25 to 55 ℃

3-Stage intelligent PWM charging:Bulk, Boost/Equalize, Float

Support 3 charging options: Sealed, Gel, and Flooded

LCD display design, dynamically displaying device’s operating data and working condition

Double USB design, the power supply charge for electronic equipment

With humanized button settings, operation will be more comfortable and convenient

Multiple load control modes

Energy statistics function

Battery temperature compensation function

Extensive Electronic protection

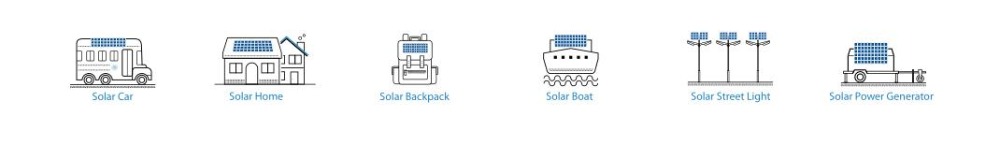

Application:

Technical specifications:

Model

VS1024AU

VS2024AU

VS3024AU

VS4524AU

VS6024AU

Nominal system voltage

12/24VDC Auto

Battery input voltage range

9V~32V

Rated charge current

10A

20A

30A

45A

60A

Rated discharge current

10A

20A

30A

45A

60A

Max. PV open circuit voltage

50V(24V System) 25V(12V System)

Max. PV open circuit power

120W(12V System)

240W(12V System)

360W(12V System)

540W(12V System)

720W(12V System)

240W(24V System)

480W(24V System)

720W(24V System)

1080W(24V System)

1440W(24V System)

Battery type

Sealed(Default) / Gel / Flooded

Equalize Charging Voltage

Sealed:14.6V/ Gel: No/ Flooded:14.8V

Boost Charging Voltage

Sealed:14.4V/ Gel:14.2V/ Flooded:14.6V

Float Charging Voltage

Sealed/Gel/Flooded:13.8V

Low Voltage Reconnect Voltage

Sealed/Gel/Flooded:12.6V

Low Voltage Disconnect Voltage

Sealed/Gel/Flooded:11.1V

Self-consumption

≤9.2mA/12V;≤11.7mA/24V

Temperature compensation

-3mV/°C/2V(25°C)

Charge circuit voltage drop

≤0.29V

Discharge circuit voltage drop

≤0.16V

Working environment temperature

-25°C~+55°C

Relative humidity

≤95%, N.C.

Enclosure

IP30

Grounding

Common Positive

USB output

5VDC/2.4A(Total)

Overall dimension(mm)

142x85x41.5

160x94.9x49.3

181x100.9x59.8

194x118.4x63.8

214x128.7x72.2

Mounting dimension

130x60mm

148x70mm

172x80mm

185x90mm

205x100mm

Mounting hole size

Φ4.5mm

Φ5mm

Terminals

4mm /12AWG

10mm /8AWG

16mm /6AWG

25mm2/4AWG

Buy Now

Click

Click

Click

Click

Click

Optional Accessory


Item

Remote Temperature Sensor RTS300R47K3.81A

Line length

3m

Rated resistance(Thermistor)

47K

Connector

3.81mm/2P

Testing temperature

-55°C~+125°C

Buy Now

Click

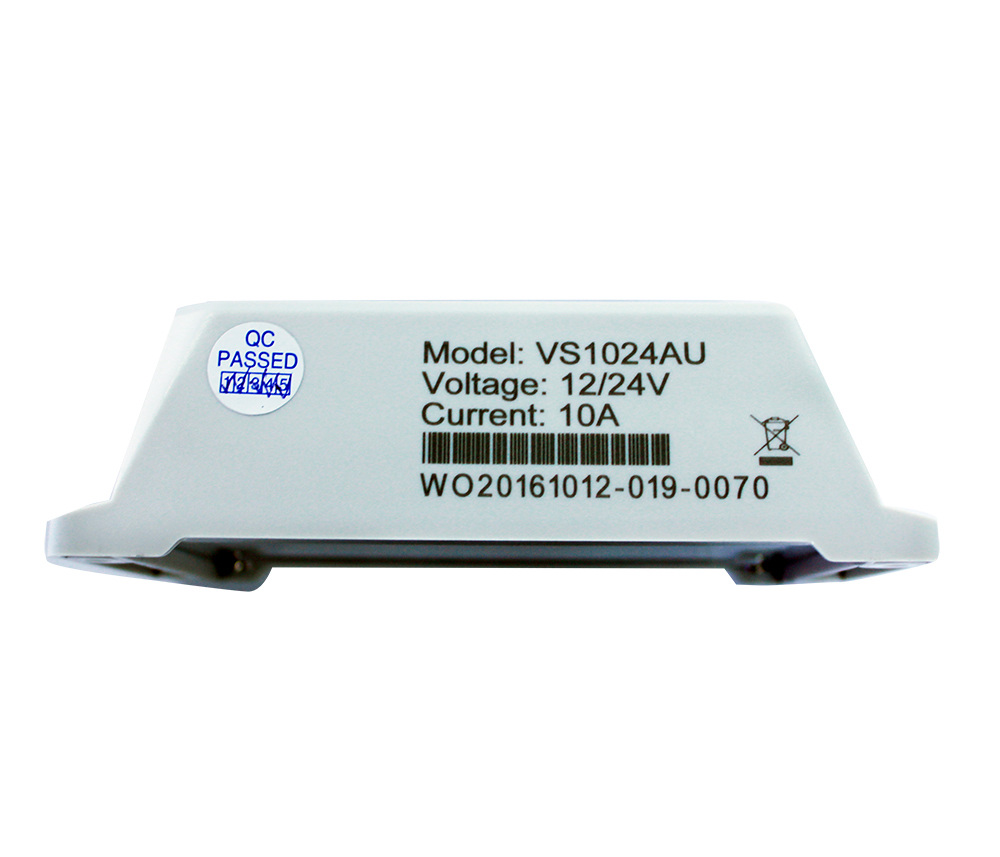

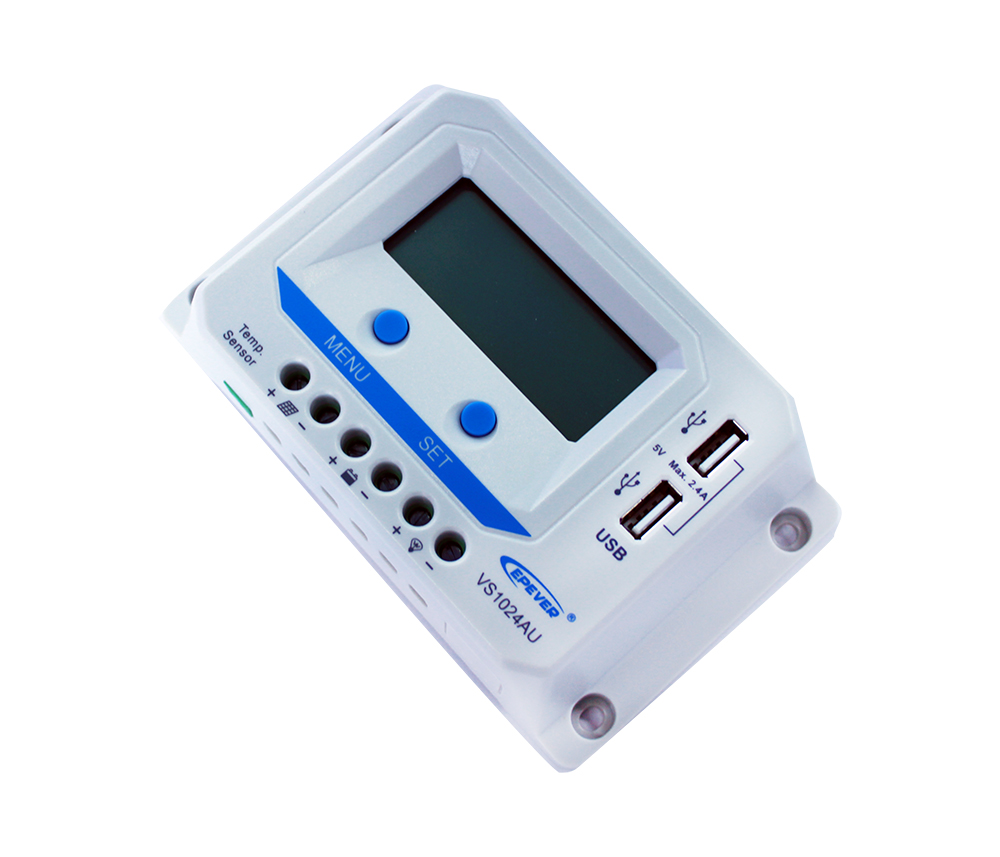

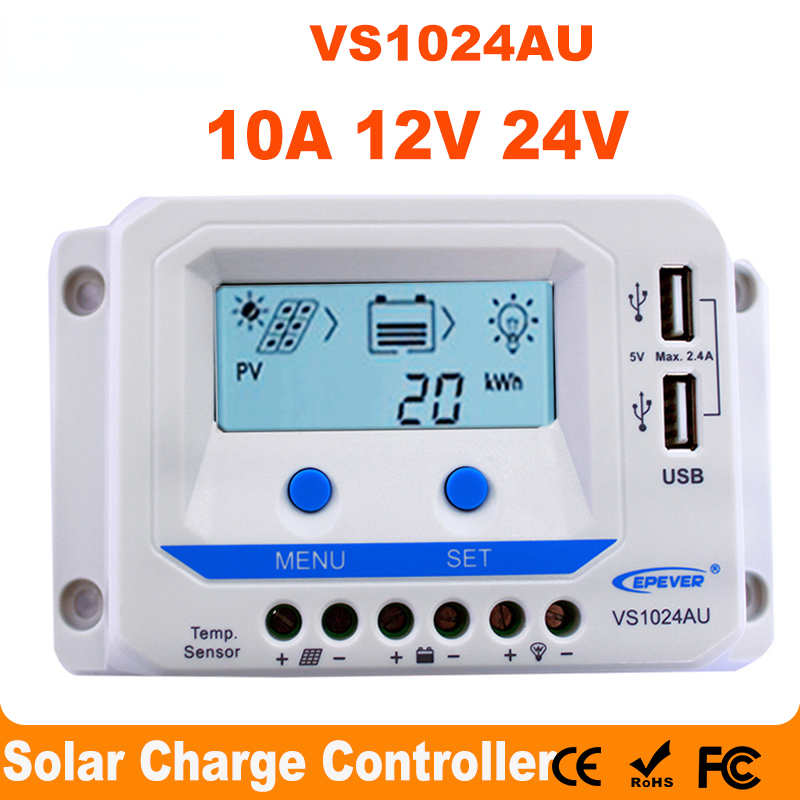

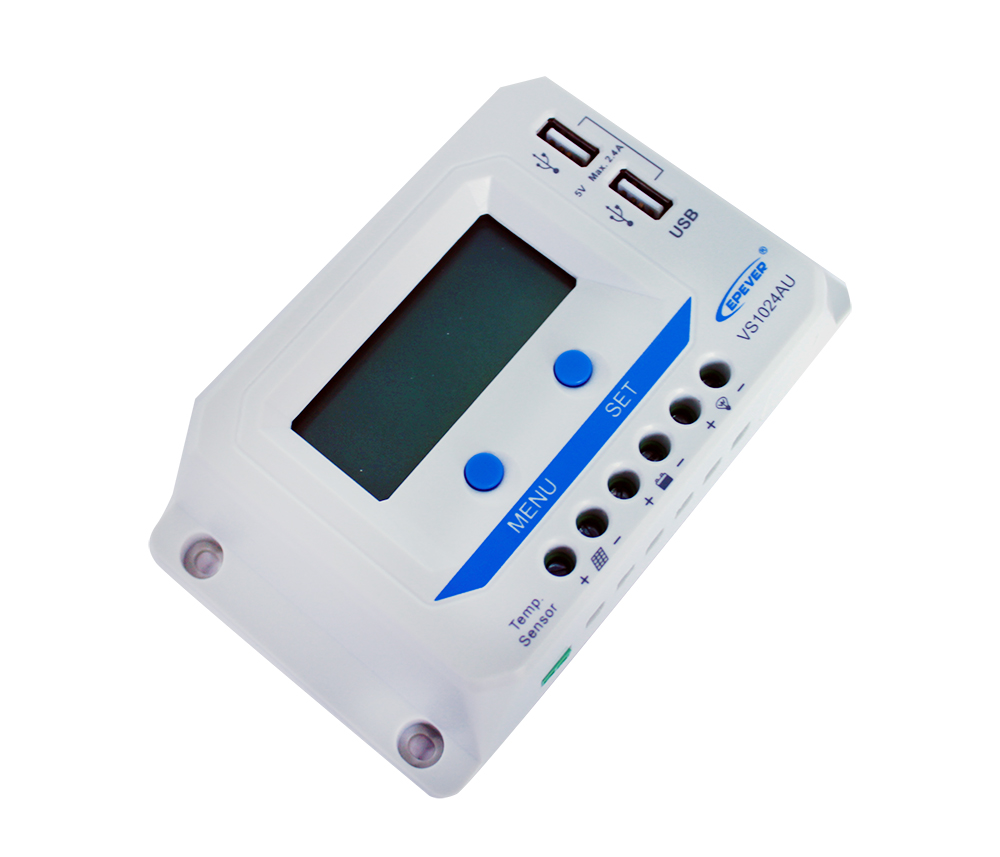

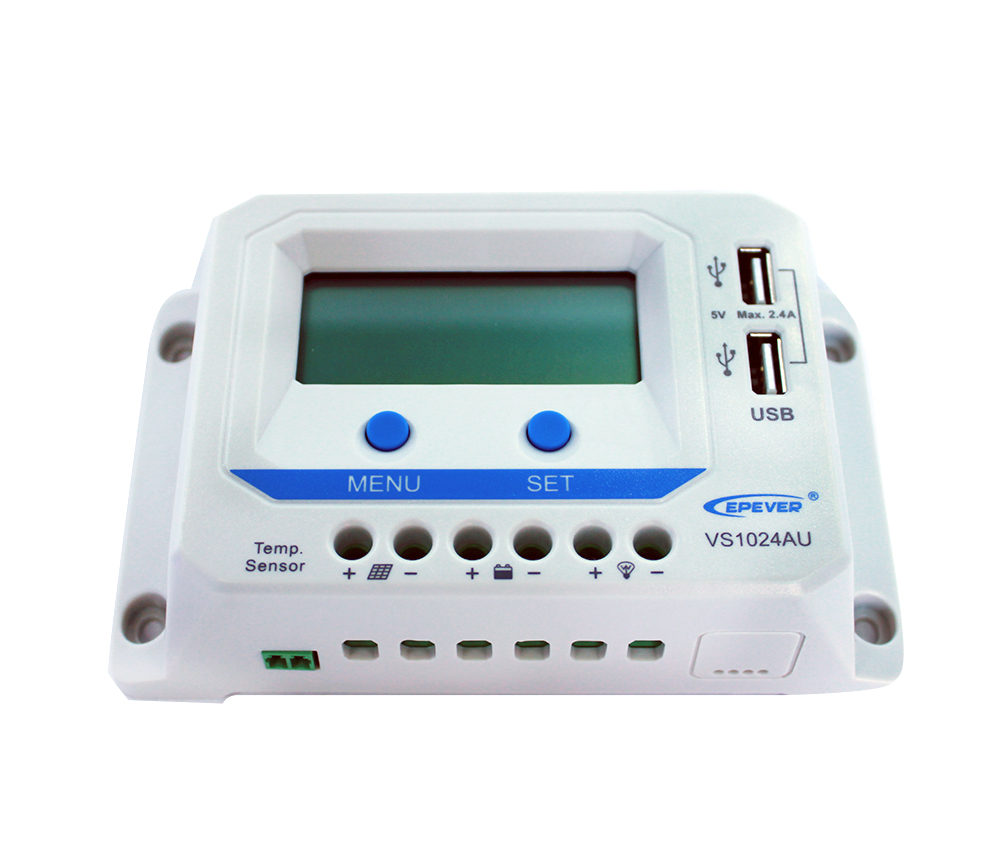

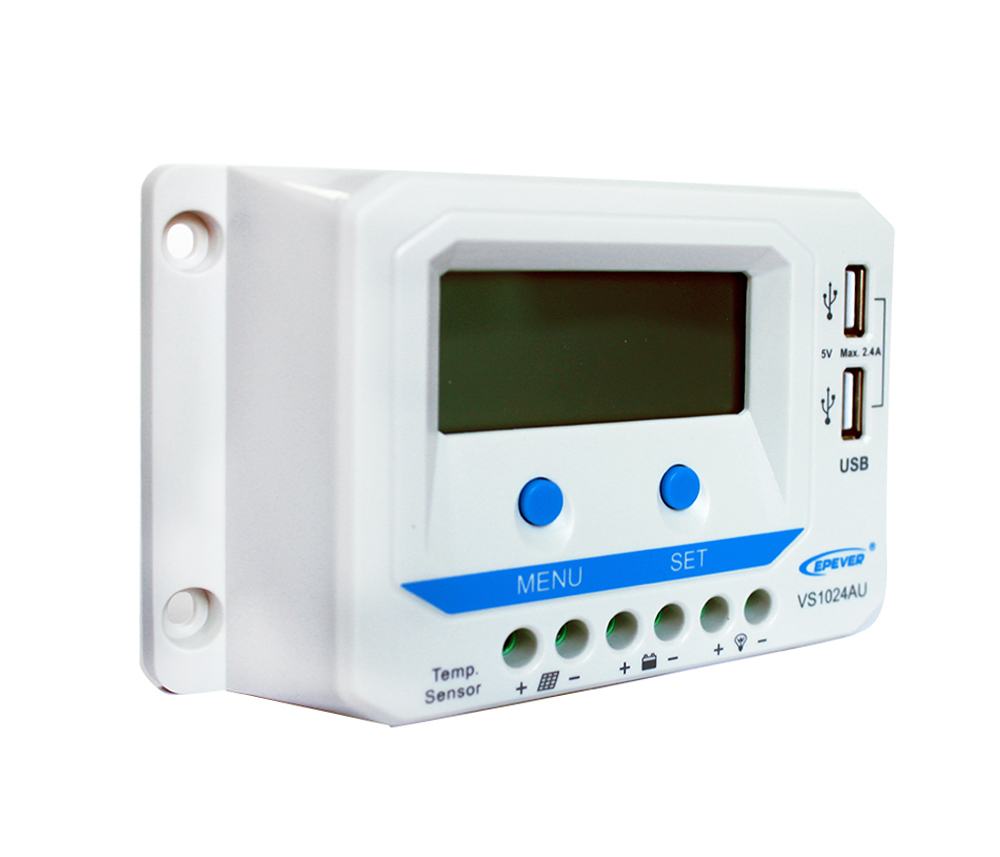

Photo:
