ANENG AN8004 Electric 1999 Counts Voltmeter Current Professional Multimeter Tester Digital Voltage Indicator Ohm Frequency Meter

ANENG AN8004

Portable Automatic Digital Multimeter

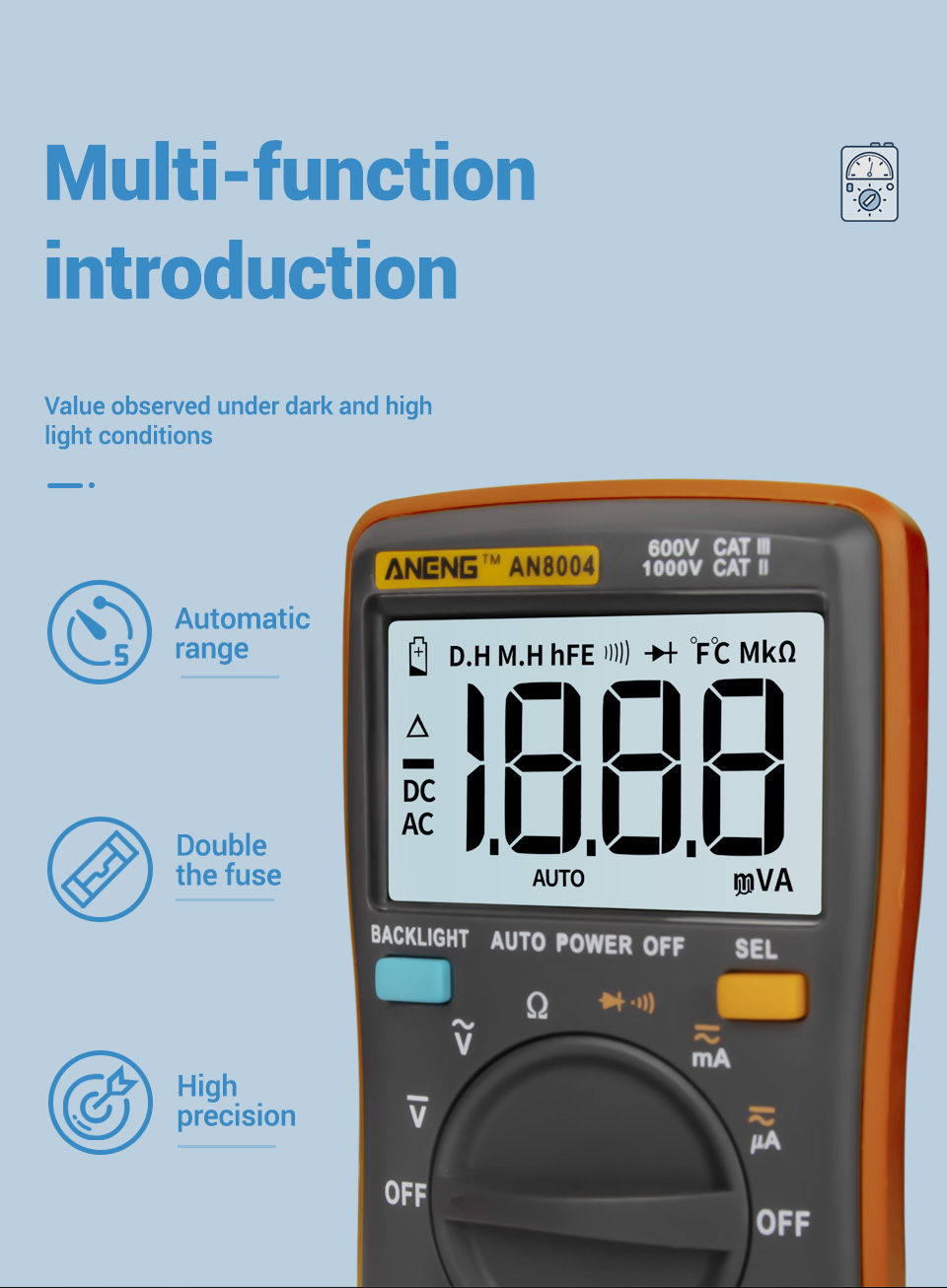

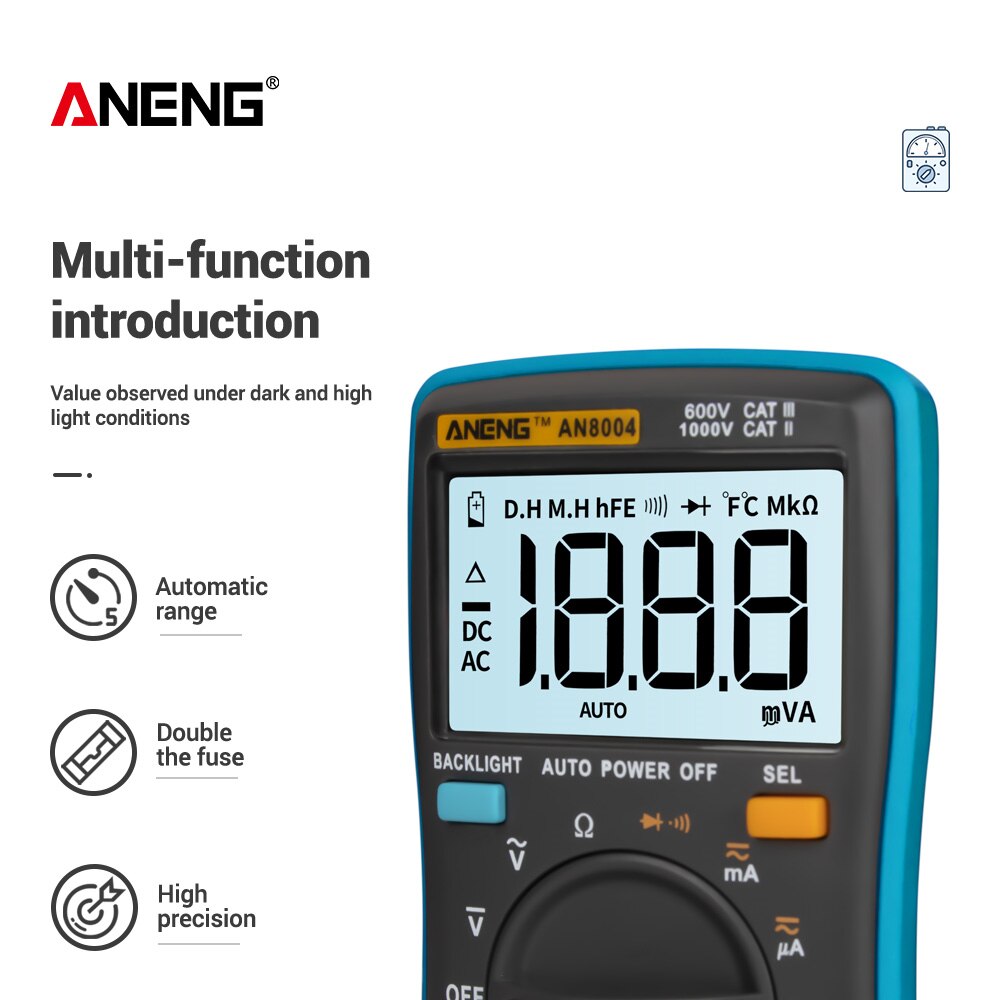

Features:

550V protection in Resistance.Capacitance and Frequency ranges

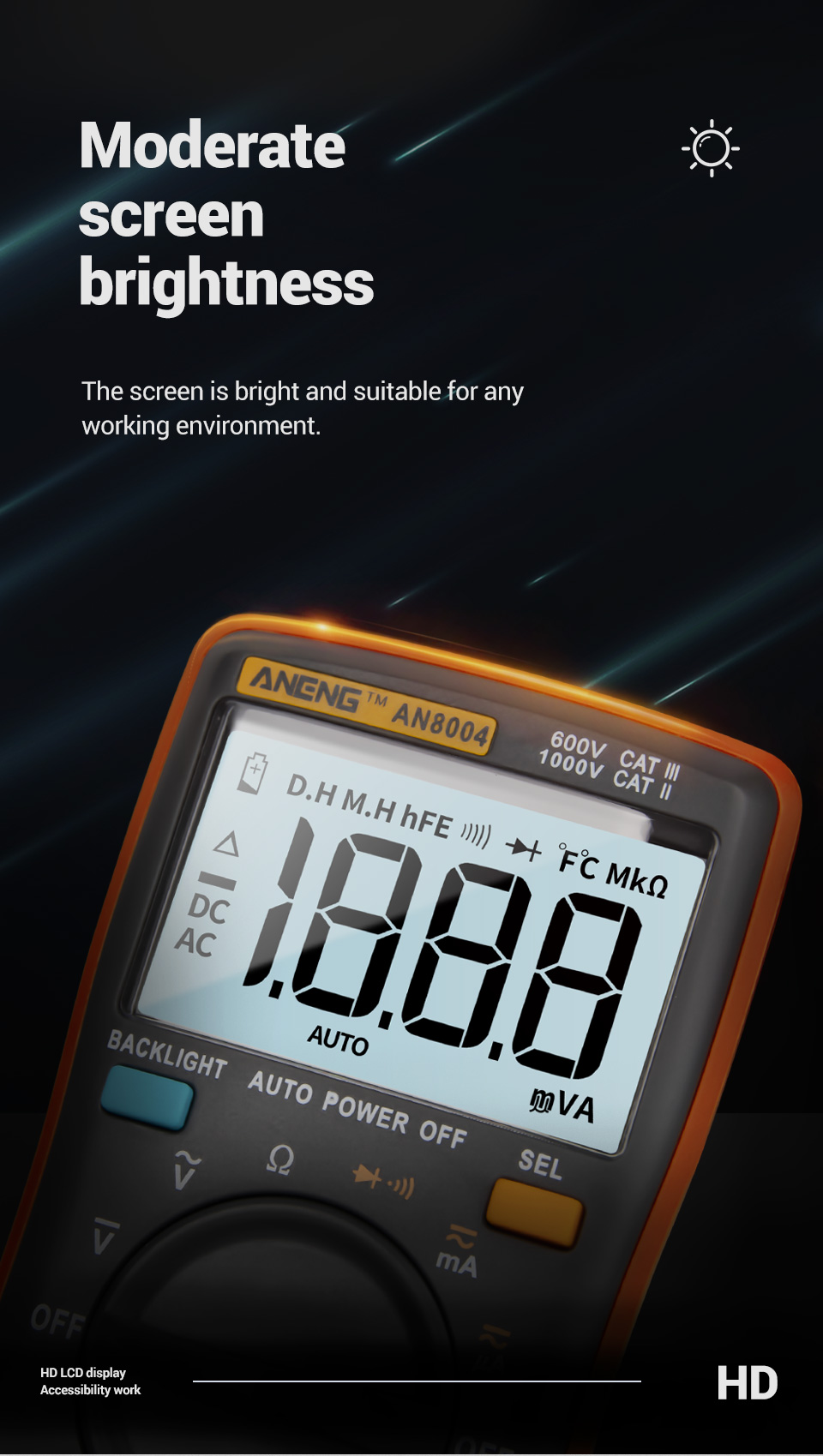

Large LCD display,MAX display 1999 counts

Sample rate: 3 times per second

backlight/Data hold

Relative measurement

Polarity identification

Low voltage indication

10A high current and low current measurement

Auto power off

Main measurements:AC/DC Voltage, AC/DC Current, Resistance,Capacitance,

Diode and Continuity Testing,Frequency and duty cycle.

* Frequency:1Hz to 10MHz

* AC volts: 0.1mV to 750V

* DC volts:0.1mV to 1000V

* AC current:0.1uA to 10A

* DC current:0.1uA to 10A

* Resistance :0.1Ω to 40MΩ

* Duty cycle:1% to 99%

Specifications:

DC volts:400mV/4V/40V(±0.5%+4),400V/600V(±0.8%+4)

AC volts: 400mV(±1.5%+4), 4V/40V/400V(±1.2%+4),600V(±1.5%+4)

DC current:40mA/400mA(±1.0%+4),10A(±1.5%+4)

AC current:40mA/400mA/10A(±2.0%+4 ,50-200Hz)

Resistance :400Ω/4K/40K/400K/4M(±0.8%+4),40MΩ(±2.0%+4)

Frequency:99.5/999.5/9.999k/99.99k/999.9k/9.999MHz (±0.08%+2)

Duty cycle:0.1% to 99.9%(±0.08%+2)

Measurement mode: △Σmode

Over range indication: OL

Working environment: 0~40°, relative humidity < 80%

Power supply voltage: 3V (AAA x2 Pcs 1.5V) (Battery not included)

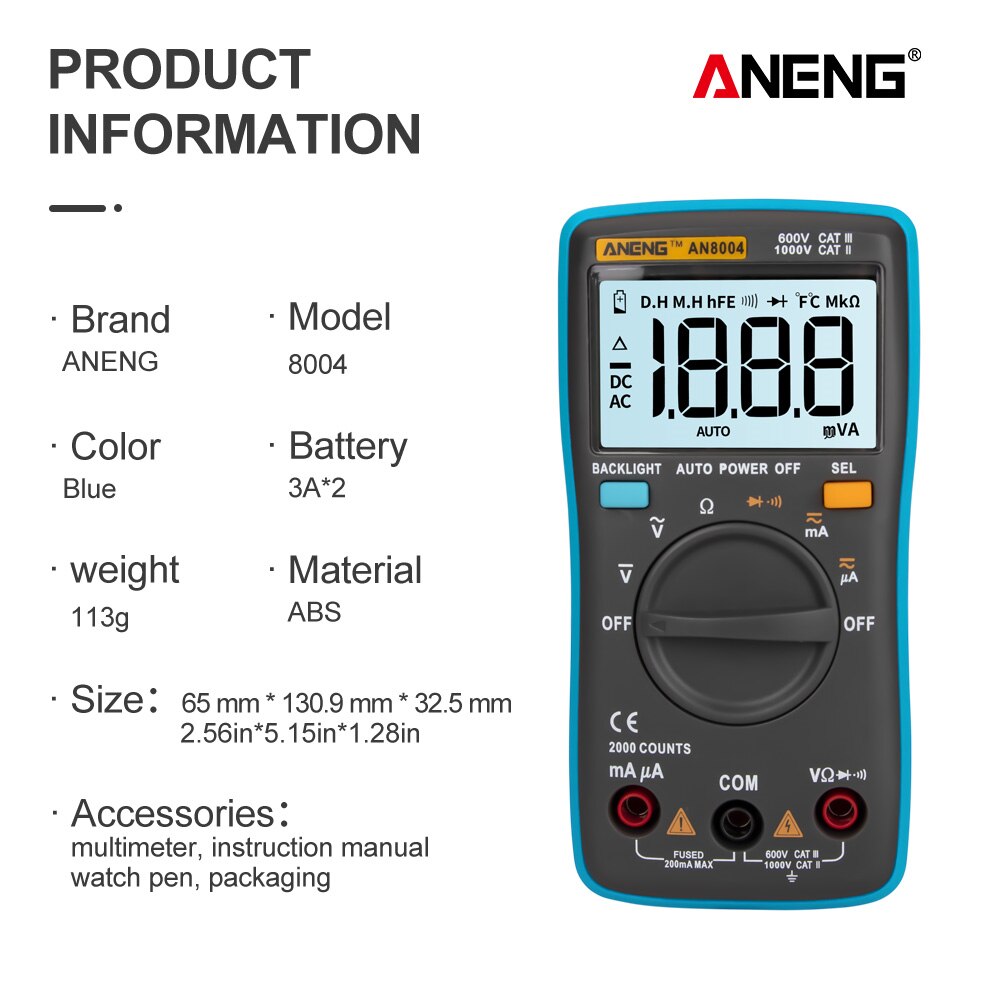

Dimension: 130*65*30mm

Weight: 200g

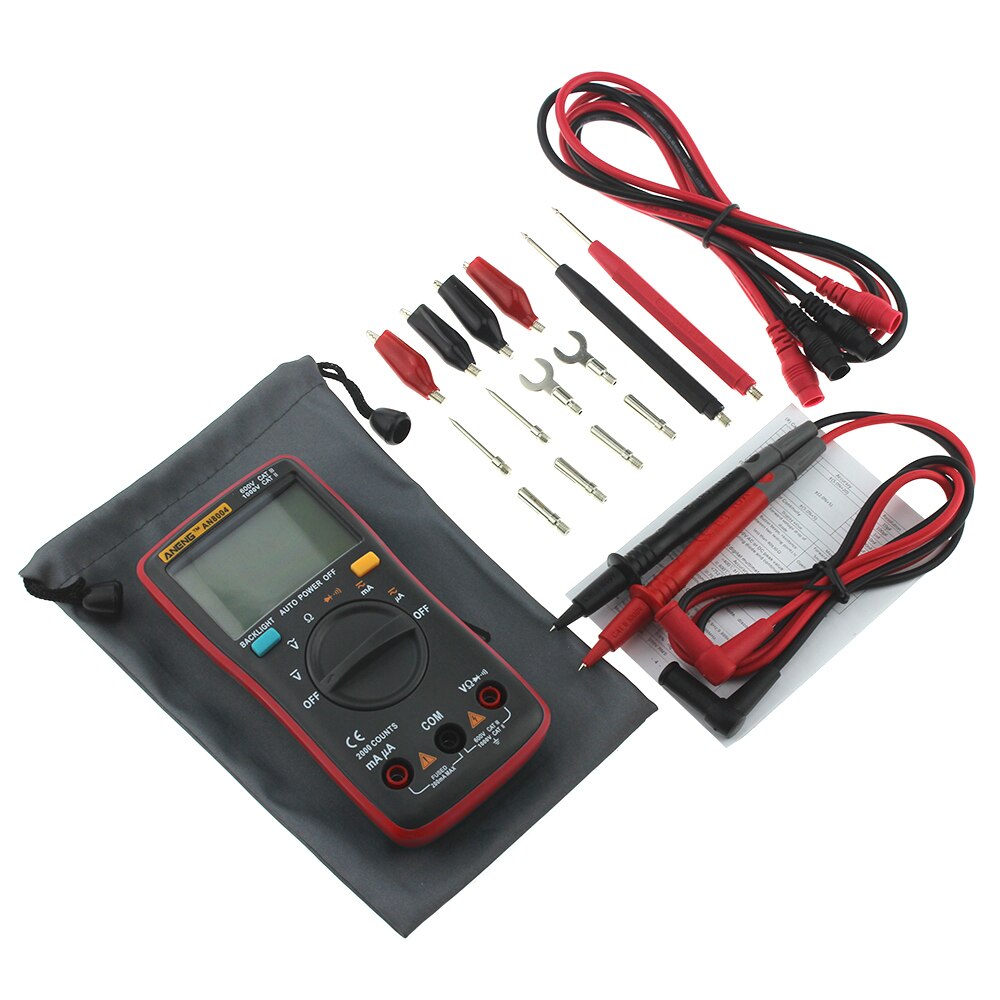

Package included:

1 x Device

1 x 1pair Electronic Probe

1 x User Manual

1 x Case

1 x 2pcs Alligator clip test wire
