Item No. COBD27455 Price Down Notice
In Stock
Price:
US$285.70/ piece
Discount Price:
US$197.00/ piece 31%
Quantity:

Shipping:
Airmail Post
Estimated delivery time: 7-45 working days.See details»
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat WhatsApp Skype Ask a question

This ultrasonic thickness gauge measures a variety of metallic and non-metallic materials. Such as steel, aluminum, ceramics, composites, epoxies, brass, copper, iron, plastic, PVC, glass, etc. Wide application in Petroleum, Chemical, Metallurgy, Shipbuilding, Aerospace area.

Measuring range: 0.75-300mm; Resolution: 0.01mm; Accuracy: ±(0.5%+0.04)mm. Inch/mm units switchable.

Auto power off, battery capacity indication, two point calibration, probe-zero and sound-velocity-calibration function.

Memory data can be processed and downloaded through specified software, also can be printed through specified printer.

4.5 digits LCD with EL backlight for easy reading.

Product description

Features:

Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials

Transducer models are available for special application, including for coarse grain material and high temperature applications

Probe-Zero function, Sound-Velocity-Calibration function

Two-Point Calibration function

Work modes: Single point mode and scan mode

Coupling status indication

Optional thermal mini-printer to print the measured data via RS232 port for B

Battery capacity indication

Auto power off

Backlight

Specifications:

Display: LCD

Measuring range: 0.75-300mm (steel)

Speed range: 1000-9999 m/s

Resolution: 0.01mm

Accuracy: ±(0.5%+0.04) mm

Units: Metric/Imperial

Measurement period: 4 times per second for single mode, 10 times per second for scan mode

Storage: Up 20 files (up to 99 values for each file) thickness measurement data

Operating Temperature: -20℃-60℃

Storage Temperature: -30℃-70℃

Relative Humidity ≤90%

Power: 1.5V (AA) * 2 (Not Included)

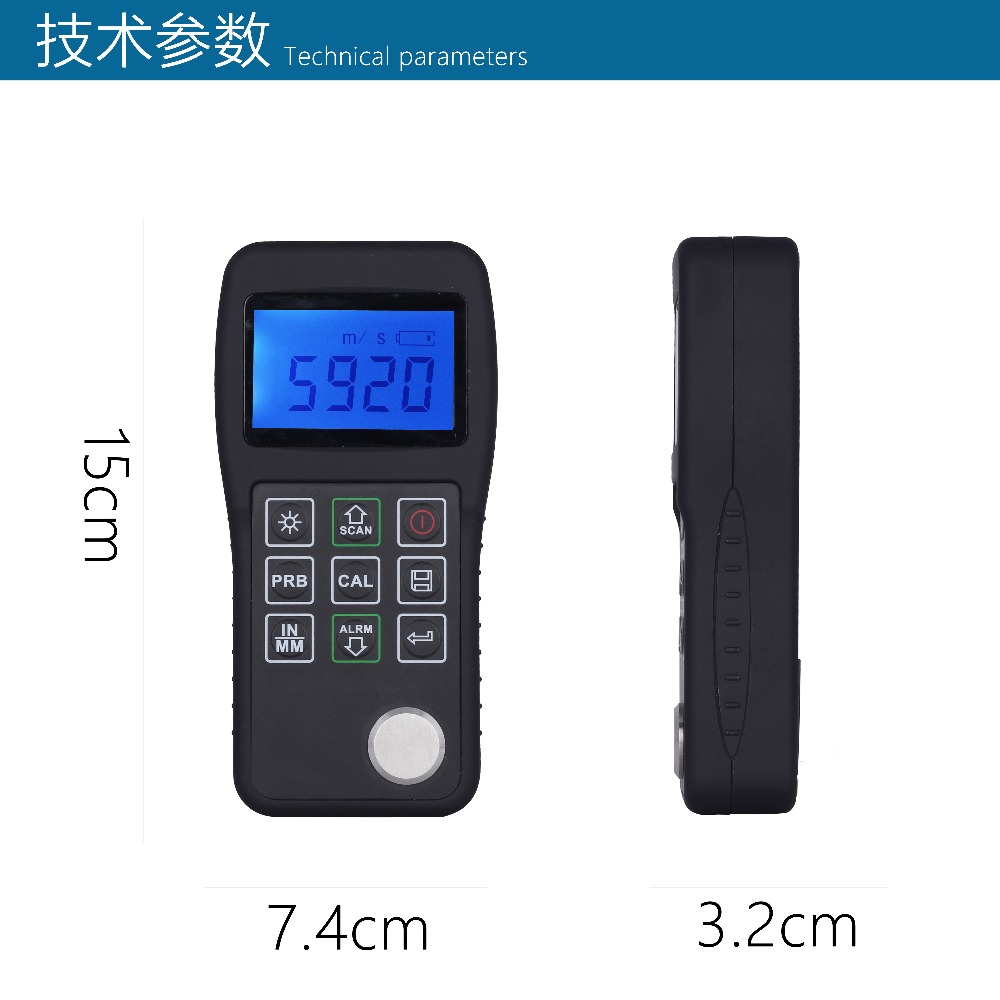

Size: 151 x 75 x 33 mm

Weight: 248g

Package Included:

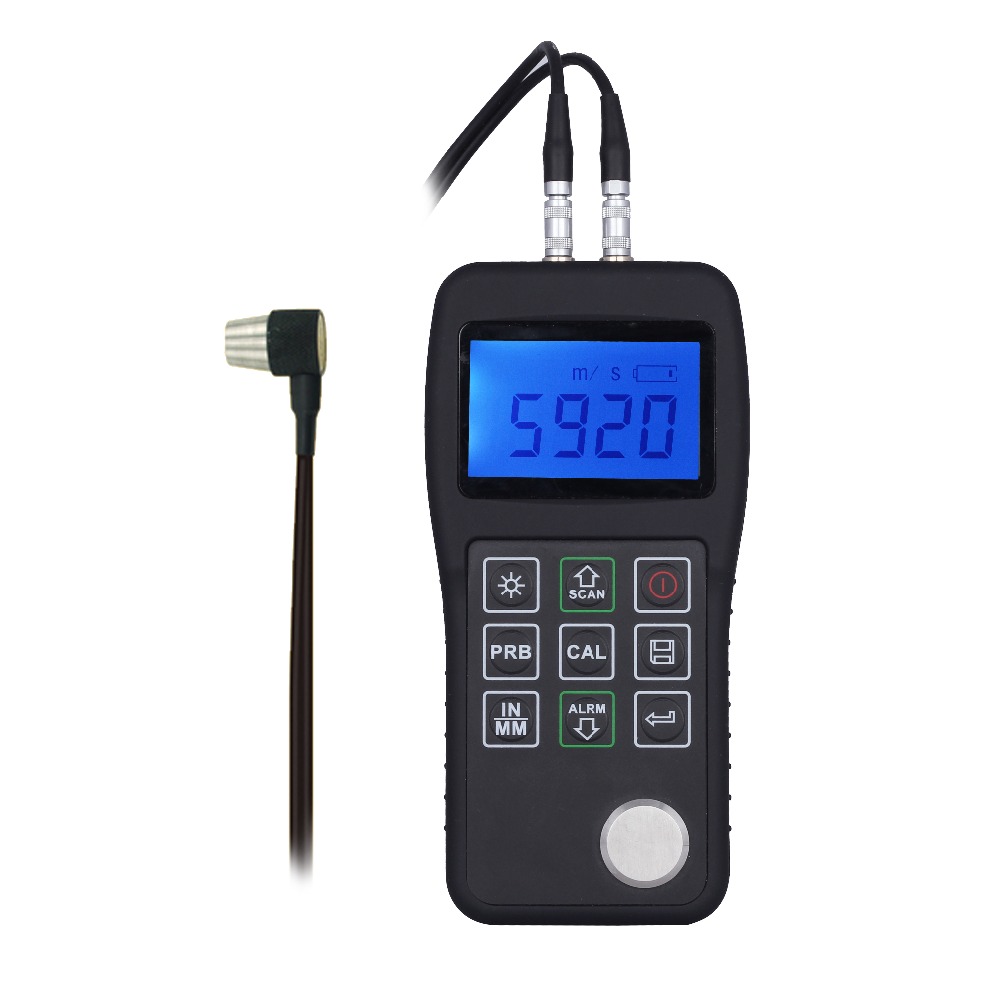

  • 1 * CCT11 Ultrasonic Thickness Gauge

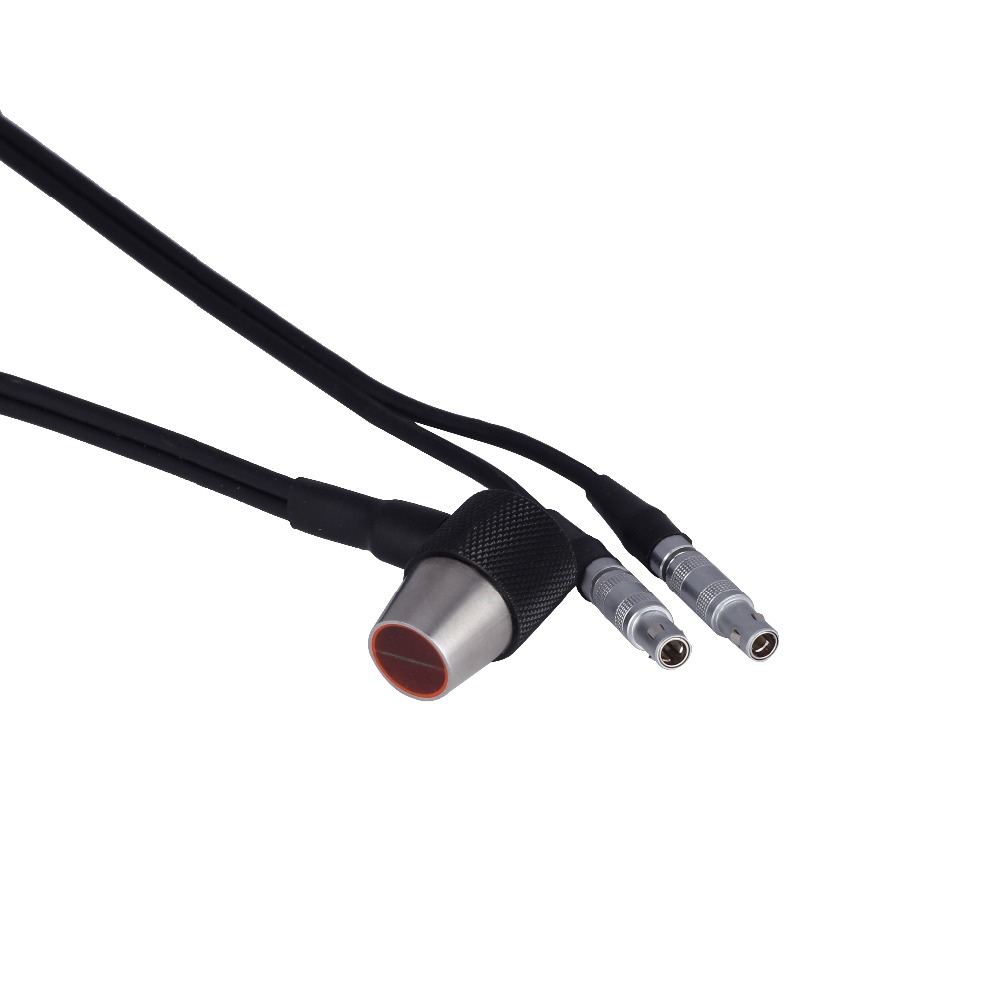

  • 1 * Transducer

  • 1*Carry box

  • 1 * User Manual

  • 1*Color box
