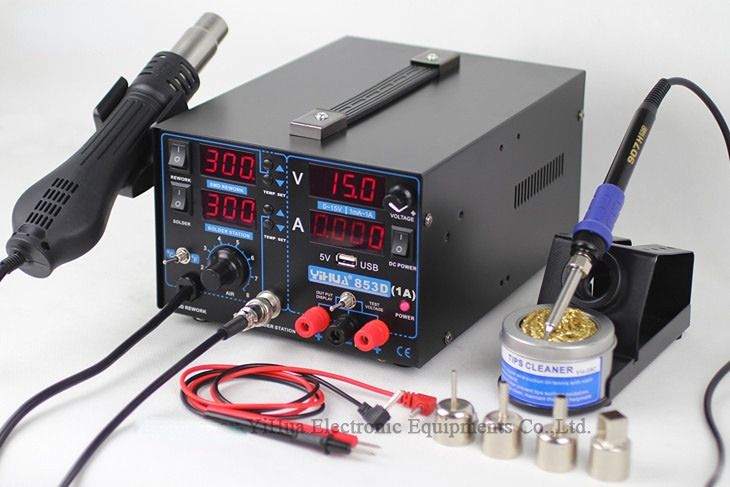

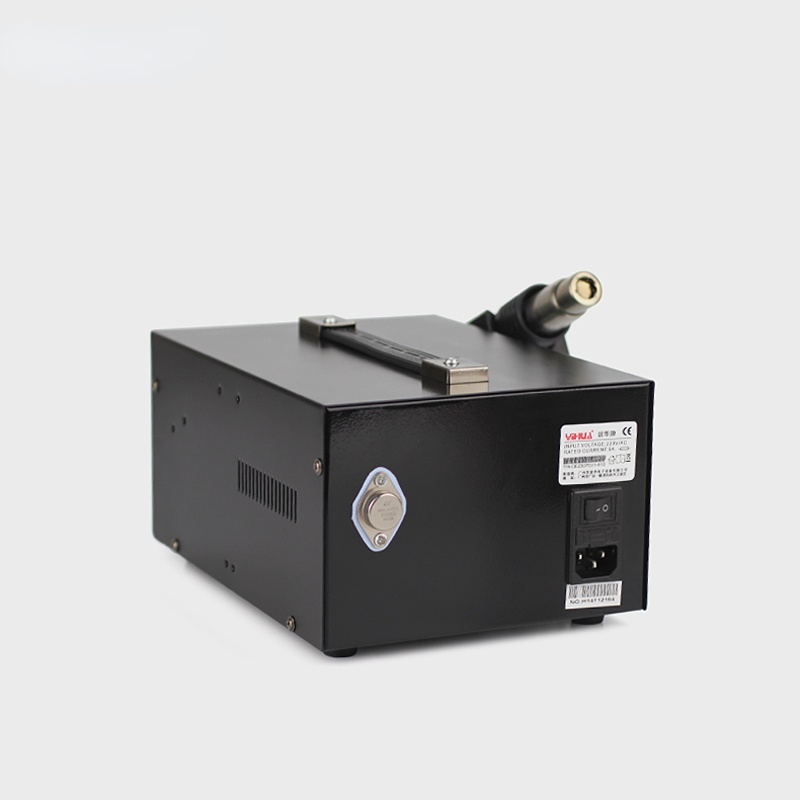

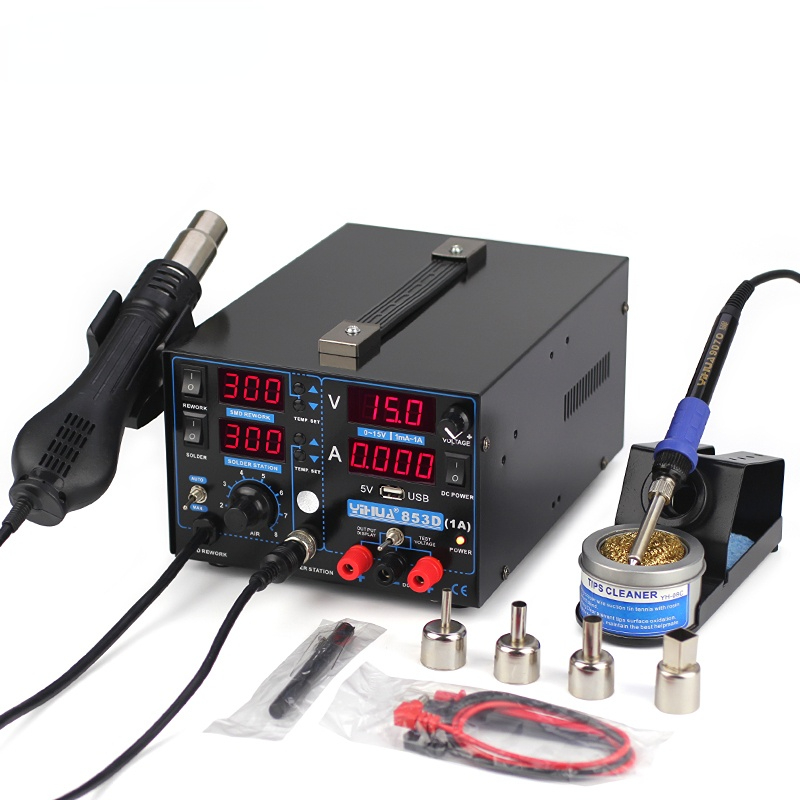

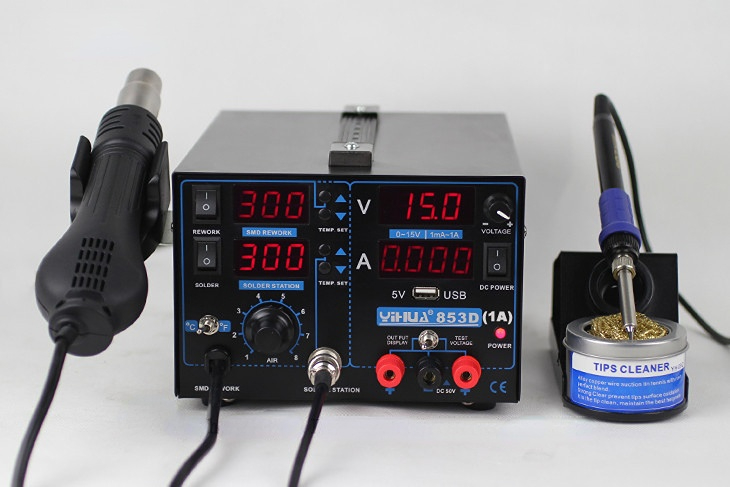

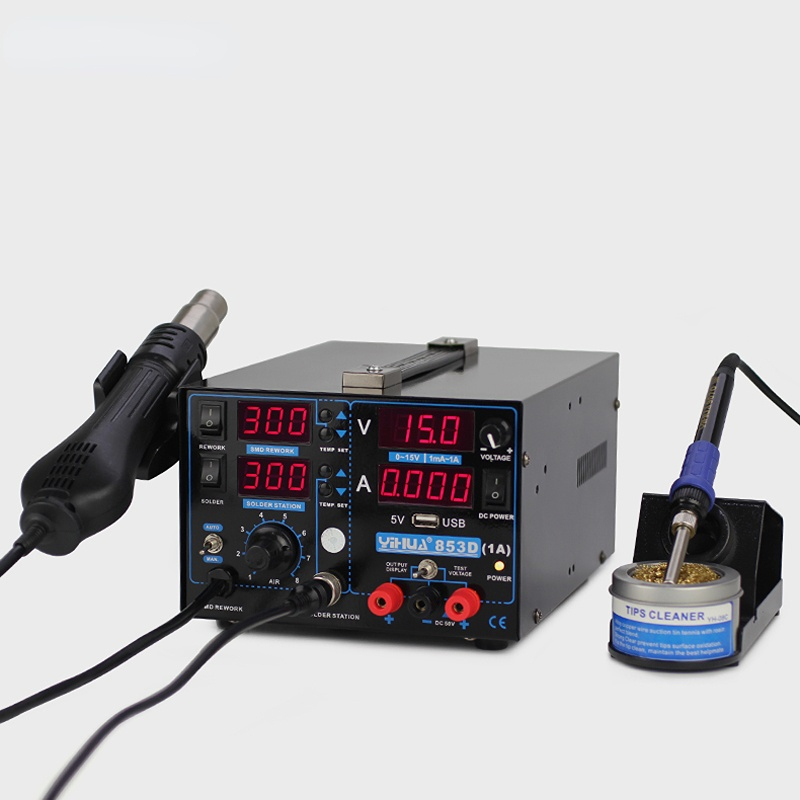

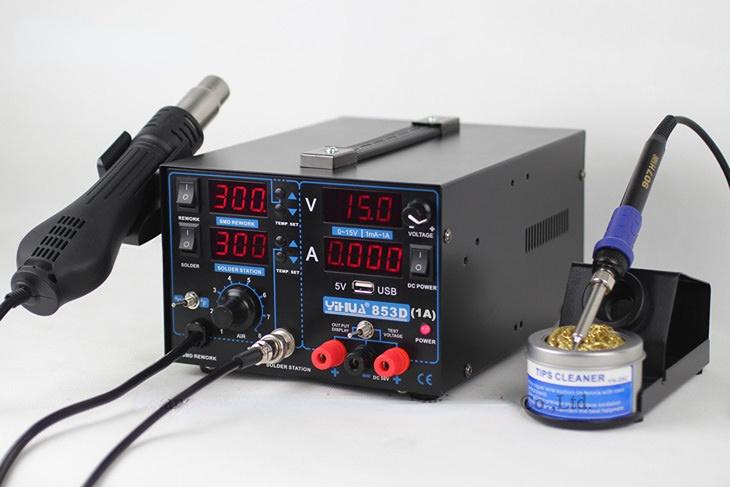

High Power YIHUA 853D 1A USB Soldering Station With Power Supply Soldering Station Hot Air For Welding
High Power YIHUA 853D 1A USB Soldering Station With Power Supply Soldering Station Hot Air For Welding
High Power YIHUA 853D 1A USB Soldering Station With Power Supply Soldering Station Hot Air For Welding
High Power YIHUA 853D 1A USB Soldering Station With Power Supply Soldering Station Hot Air For Welding
High Power YIHUA 853D 1A USB Soldering Station With Power Supply Soldering Station Hot Air For Welding
High Power YIHUA 853D 1A USB Soldering Station With Power Supply Soldering Station Hot Air For Welding

High Power YIHUA 853D 1A USB Soldering Station With Power Supply Soldering Station Hot Air For Welding

High Power YIHUA 853D 1A USB Soldering Station With Power Supply Soldering Station Hot Air For Welding, wholesale High Power Hot Air Soldering Station, buy High Power Hot Air Soldering Stationfrom ukobd2.com
Item No. COBD210603 Price Down Notice
In Stock
Price:
US$107.59/ piece
Discount Price:
US$99.00/ piece 8%
Quantity:

Shipping:
Express Shipping Service
Estimated delivery time: 3-15 working days.See details »
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat WhatsApp Skype Ask a question

Related Accessories/Similar Items

Special Function

1.5V USB output
2.iron sleep function
3.C/F conversion function

Main Function

This mode has all merits of before YIHUA 853D 1A,and add the follow function:

1.Iron handle add to iron sleep function: iron handle have 10mins sleep function.

2.Air gun handle add to °c/°F temperature conversion function ,meet different market need to design

the temperature display mode,according to the custom to choose.

3.This new type add to 5V output USB interface ,it more convenience repair mobile phone,alsocan use power supply for mobile.4.All parts is LED digital display ,and the current is 4 digital precise display current value,the current value can precise display mA value.it is very directly perceived through the senses.

5.The goods inside board use double panel SMT technology,the performance more stability and durable.

6.Wiring terminal output use thick material than before,then the output end power will be larger than before.

7.The iron holder is more professional and convenience ,the iron holder include solder tips fluxand cleaner tips copper wire ball,more convenience clean tips,it's prolong use life.

High Power

High Power

Technical Data

Rated voltage: AC 220V±10% 50HZ ( 110V±10% 50HZ)

Total Power: 700W+50W+15W=765W±10%(max)
Work environment : 0-50°C

Iron parts

Gun parts

Dc power supply parts

Work Voltage :AC:26V±10% 50HZ

Work Voltage: AC:220V±10% 50HZ\( 110V±10% 50HZ)

Work Voltage:AC 20V±10% 50HZ\ ( 110V±10% 50HZ)

Output power:50W±10%

Output power:700W±10%

Output power:15W

Temperature range:200°C-480°C

Temperature range:100°C-480°C

Output voltage:0-15V

Output current:1A

Temperature stability:±2°C

Temperature stability:±2°C

Load stability:<0.01±2mv

Tip of ground impedance<2ohm

Recovery time:<100us

Tip of ground voltage<2mV

Ripple dB<1mvrms (virtual value)

Temperature coefficient:<300PPm/°C

Protection starting current:>standard value 10%

High Power

* main unit + gun + power cord
* guide
* soldering iron
* soldering iron holder +gun frame+testleadest cable

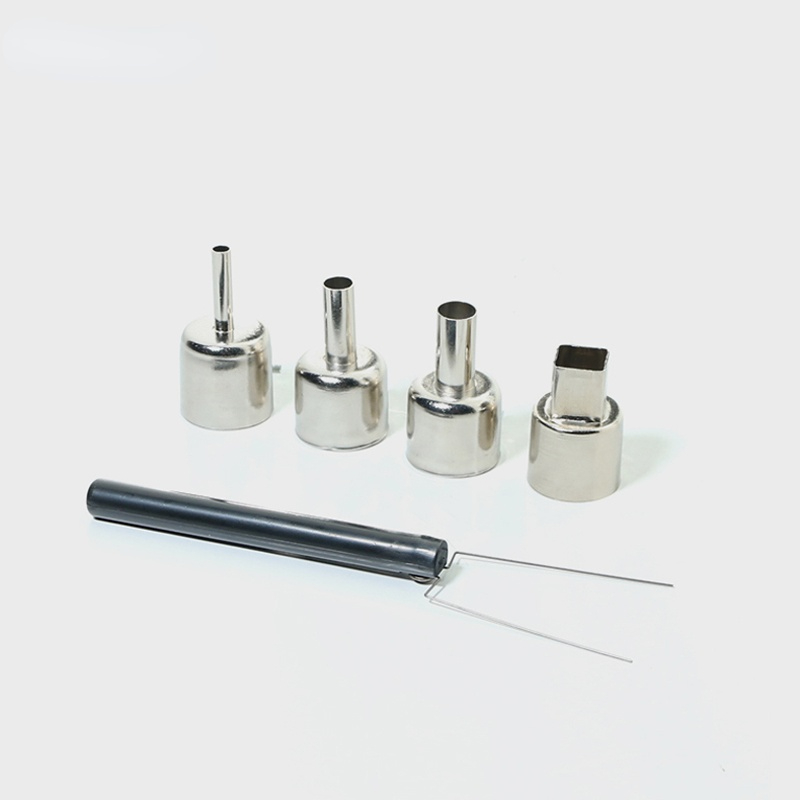

* 4 nozzles
